USER MANUAL DWM2655M Tripp Lite

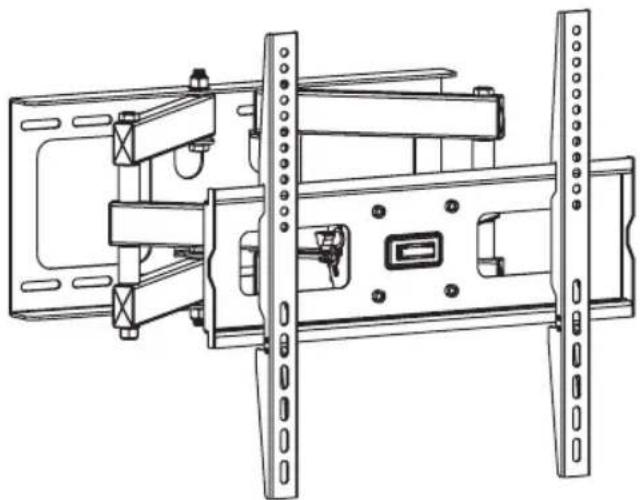

Full Motion Flat Screen Wall Mount

MODEL: DWM2655M

Technical line drawing of a mechanical assembly with vertical supports and mounting holes (no text or symbols)

Español 9 • Français 17 • Русский 25 • Deutsch 33

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

200x200/300x300/400x200/400x400

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector—a \$50 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2014 Tripp Lite. All rights reserved.

WARNING

• Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have any questions regarding any of the instructions or warnings, please visit www.tripplite.com/support.
• This mounting bracket was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
• Make sure that the mounting surface can safely support the combined load of the equipment and all attached hardware and components.
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. The use of a stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not over-tighten. Over-tightening can damage the items, greatly reducing their holding power.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

Warranty & Warranty Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

WARRANTY REGISTRATION

Visit www.triplite.com/warranty today to register the warranty for your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

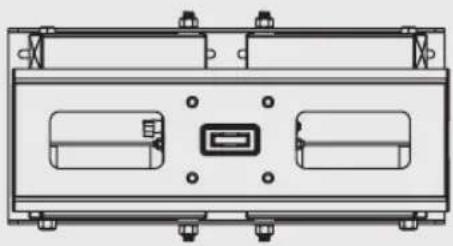

Component Checklist

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit www.triplite.com/support for service.

Technical line drawing of a rectangular electronic device with internal compartments and mounting holes (no text or symbols)

(x1) (x2)

Line drawing of a rectangular electronic device with multiple ports and connectors (no text or symbols)

Package M

M5X14 (x4)

M6X14 (x4)

M8X20 (x4)

M6X30 (x4)

M8X30 (x4)

Washer (x4)

Small Spacer (x8)

Big Spacer (x4)

Package W

Anchor Bolt (x6) Concrete Anchor (x6) D6 Washer (x6)

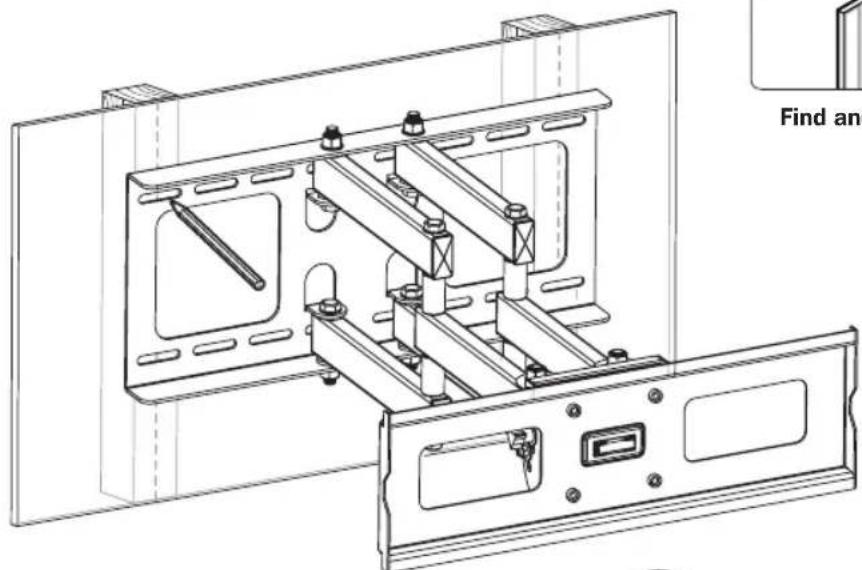

1a. Mount on Wood Stud Wall

Technical line drawing of a mechanical assembly with mounting brackets and a central control panel (no text or symbols)

Find and mark the exact location of mounting holes

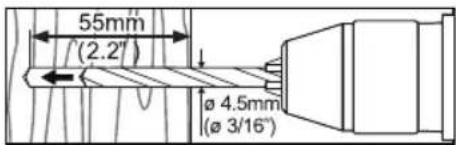

Drill pilot holes

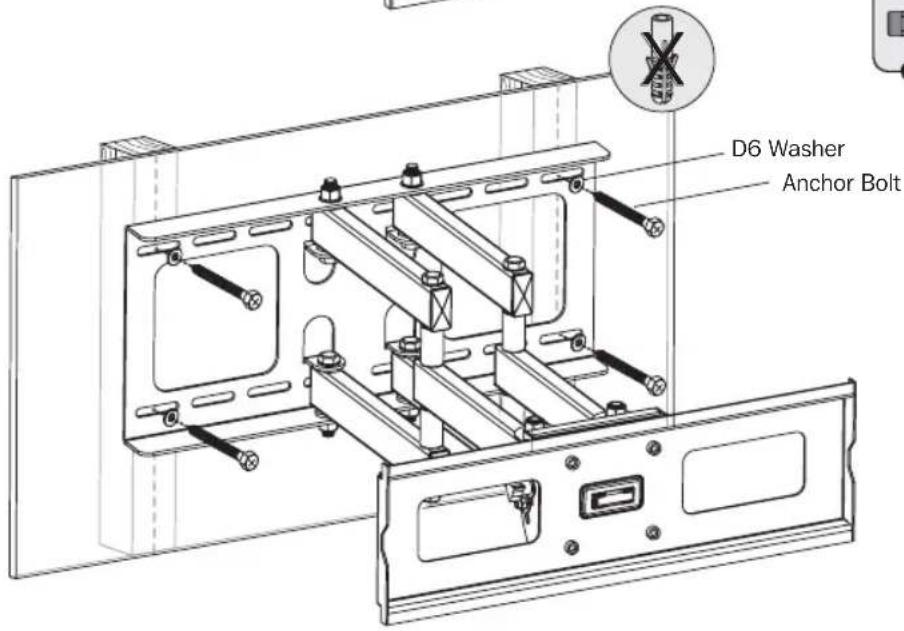

Screw the wall mount onto the wall

WARNING

• Make sure that mounting screws are anchored into the center of the studs. Use of a stud finder is highly recommended.
  • Installers are responsible to provide hardware for other types of mounting situations.
  • Installers must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.

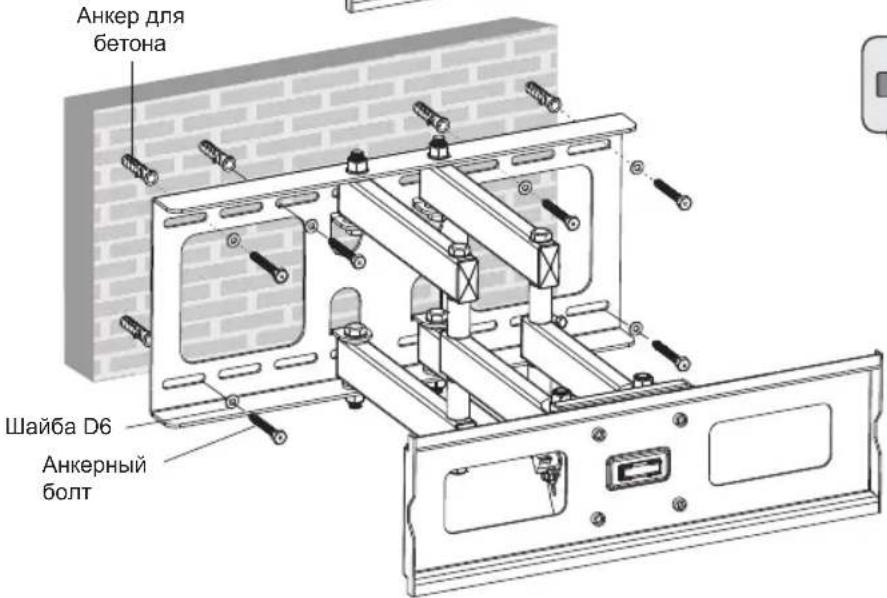

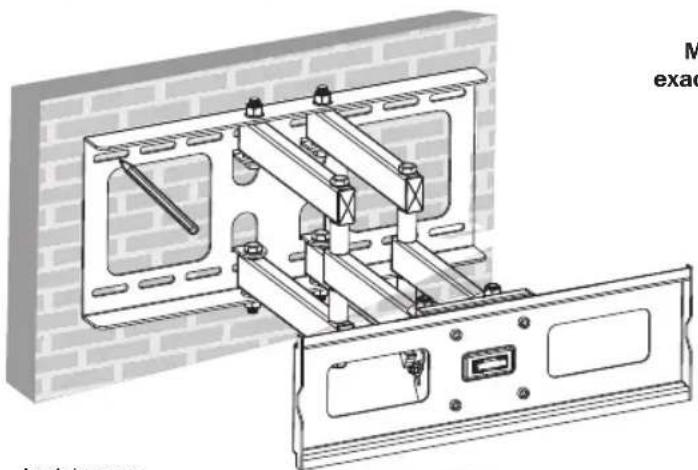

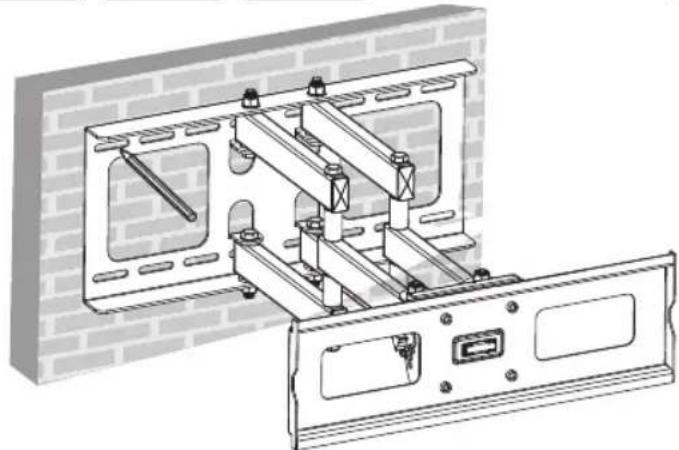

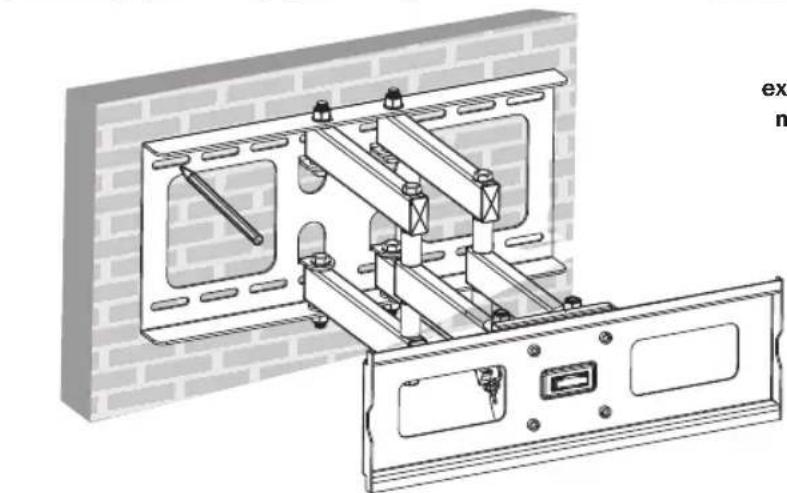

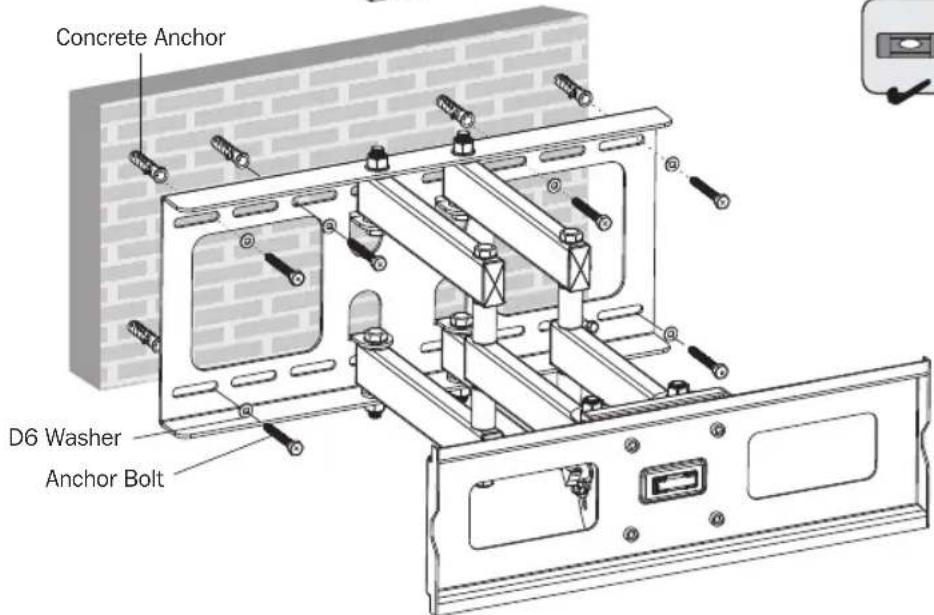

1b. Mount on Solid Brick and Concrete Block

Three grayscale illustrations of construction tools: brick wall, pencil, and power tool (no text or symbols)

Mark the exact location of mounting holes

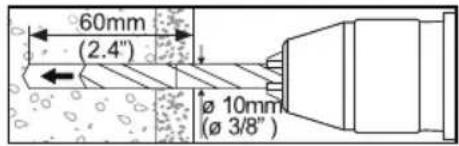

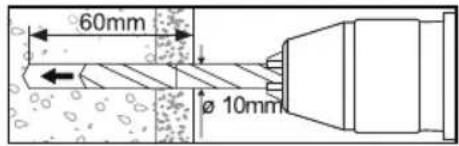

Drill pilot holes

Technical line drawing of a wall-mounted electrical enclosure with mounting brackets and a control panel (no text or symbols)

Screw the wall mount onto the wall

WARNING

• When installing wall mounts onto a concrete masonry unit (also known as a CMU or "cinder block"), verify that the actual concrete thickness is at least 35mm (1-3/8") in order to hold the concrete anchors. DO NOT DRILL INTO MORTAR JOINTS! Be sure to mount the assembled wall-mount plate with the included concrete anchors, D6 washers and anchor bolts onto solid sections of the blocks. The solid sections can generally be found 25mm (1") toward the middle of the block from either end. An electric drill on a slow setting is suggested to drill the hole rather than a hammer drill so as to avoid breaking out the back of the hole when entering a hollow section.
  • Installers must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components.

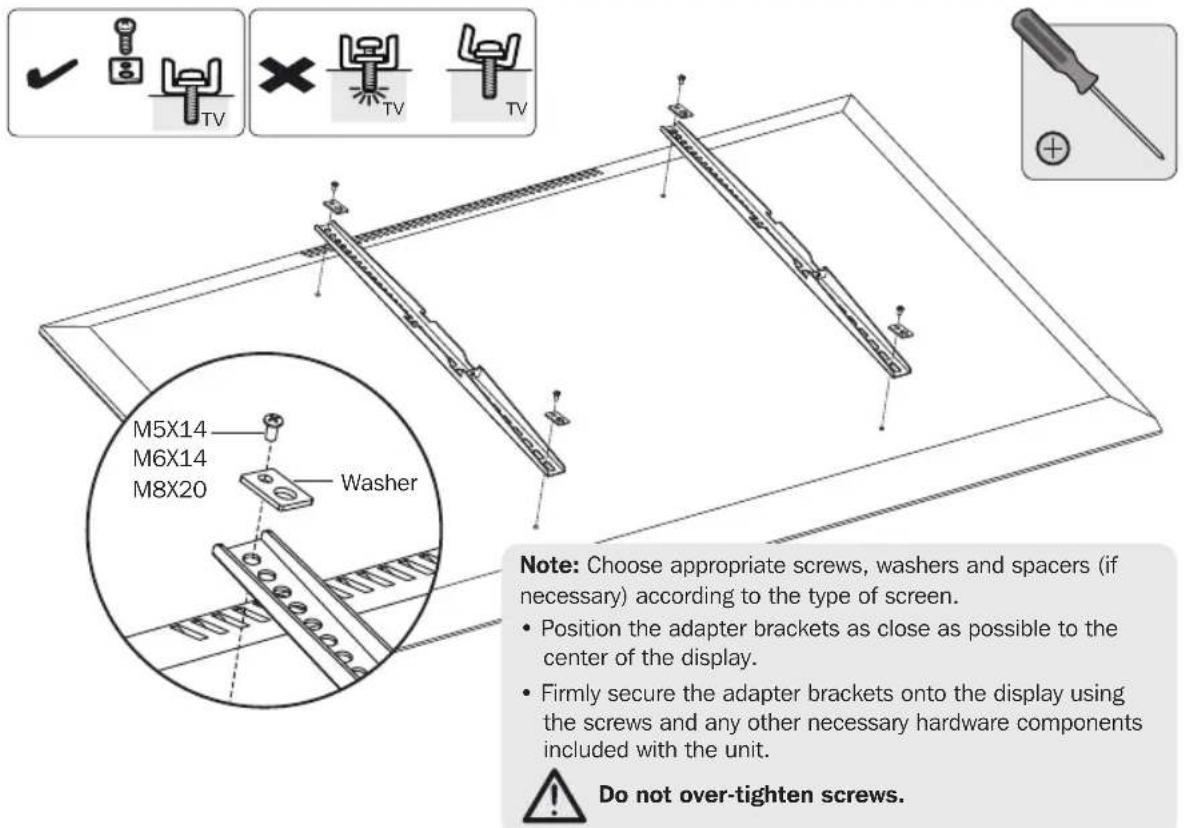

2. Install Adapter Brackets

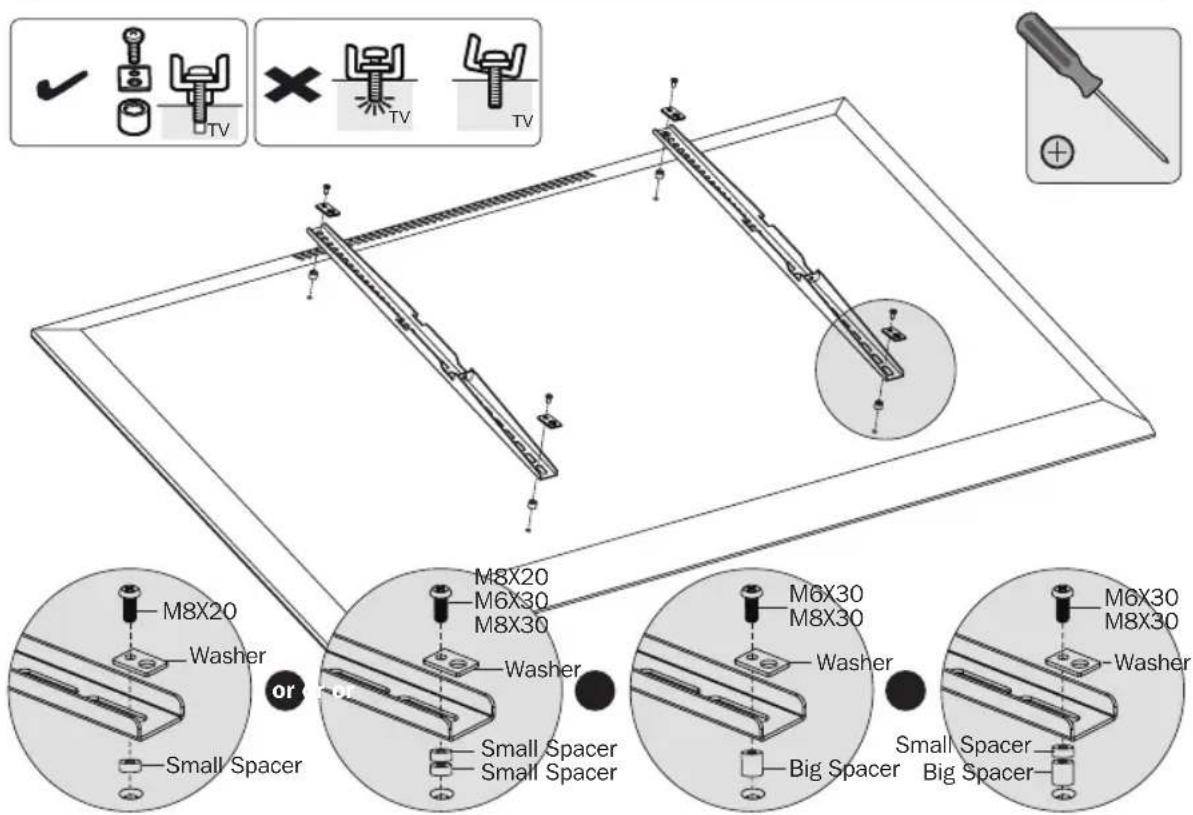

2-1 For Flat Back Screen

2-2 For Recessed Back Screen or to Access A/V Inputs

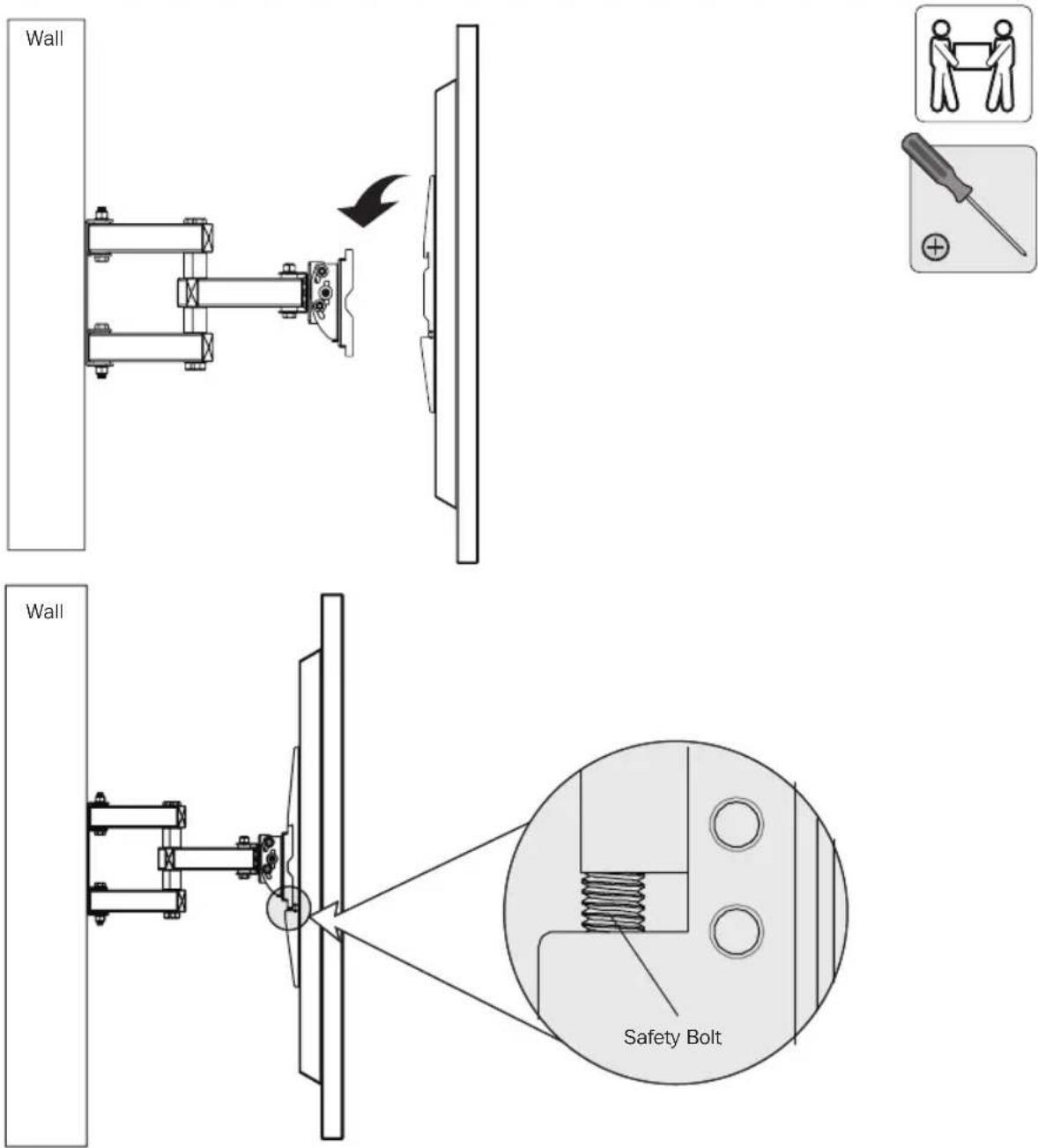

3. Hang Display onto the Wall Plate

Using an assistant or mechanical lifting equipment, hook the display with attached adapter brackets over the top of the wall mount's arm assembly plate. Tighten the safety bolts on the bottom of the adapter brackets to secure the unit.

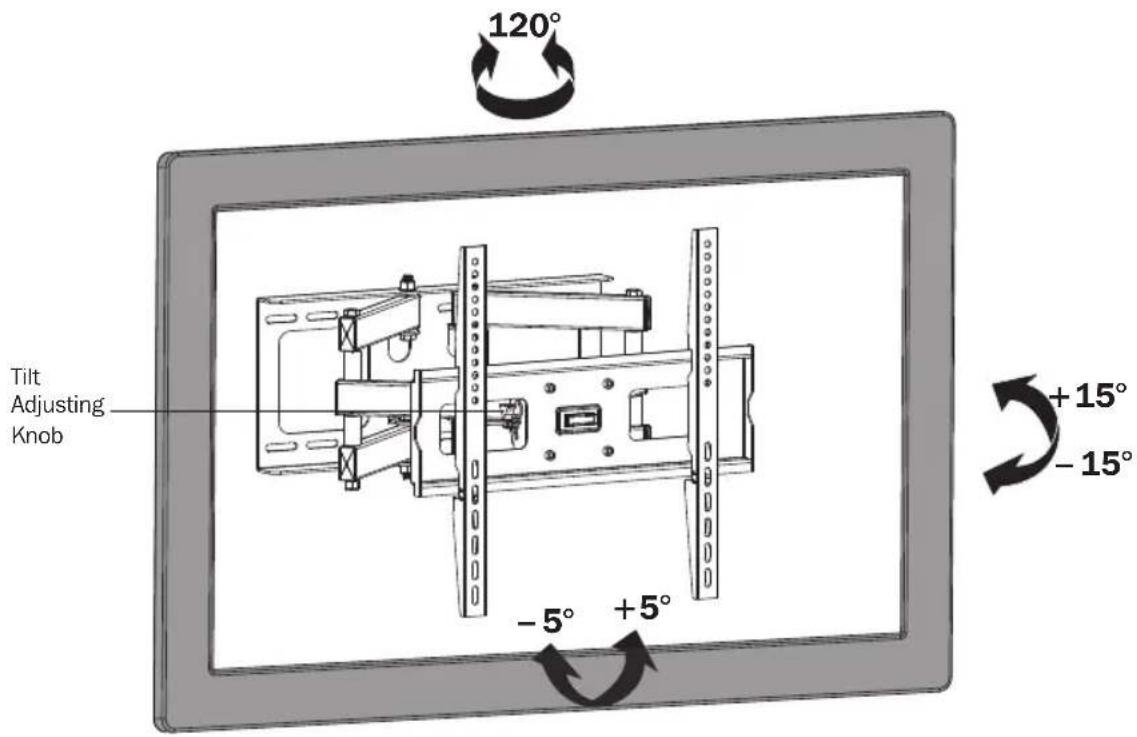

4. Adjustment

To adjust the tilt angle, loosen the Tilt Adjusting Knobs located behind the wall mount arm assembly plate. Once the display is at the desired position, retighten the knobs to hold.

Maintenance

• Check that the bracket is secure and safe to use at regular intervals (at least every three months).
• Please visit www.tripplite.com/support if you have any questions.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

14-04-243 · 93-3354_RevA

Technical line drawing of a wall-mounted device with multiple vertical supports and mounting brackets (no text or symbols)

English 1 • Français 17 • Русский 25 • Deutsch 33

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Technical line drawing of a rectangular electronic device with two internal components and mounting holes (no text or symbols)

(x1) (x2)

Line drawing of a rectangular electronic device with multiple ports and a handle (no text or symbols)

Paquete M

M5X14 (x4)

M6X14 (x4)

M8X20 (x4)

M6X30 (x4)

M8X30 (x4)

Arandela (x4)

Three technical illustrations: brick wall, pencil, and power tool (no text or symbols)

Technical line drawing of a wall-mounted electrical enclosure with mounting brackets and a door panel (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Technical line drawing of a wall-mounted device with mounting brackets and mounting holes (no text or symbols)

English 1 • Español 9 • Русский 25 • Deutsch 33

MISE EN GARDE : NE PAS EXCÉDER LA CAPACITÉ PONDÉRALE MAXIMUM INDI-QUÉE. DES BLESSURES GRAVES OU DES DOMMAGES MATÉRIELS RISQUENT DE SE PRODUIRE!

200x200/300x300/400x200/400x400

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Technical line drawing of a rectangular electronic device with two internal components and mounting holes (no text or symbols)

(x1) (x2)

Line drawing of a rectangular electronic device with multiple ports and a handle (no text or symbols)

Emballage M

M5X14 (x4)

M6X14 (x4)

M8X20 (x4)

M6X30 (x4)

M8X30 (x4)

Rondelle (x4)

Petite entretoise (x8)

Grande entretoise (x4)

Emballage W

Four-panel image showing different types of office supplies: a cabinet, a battery pack, a pencil, and a power tool (no text or symbols visible)

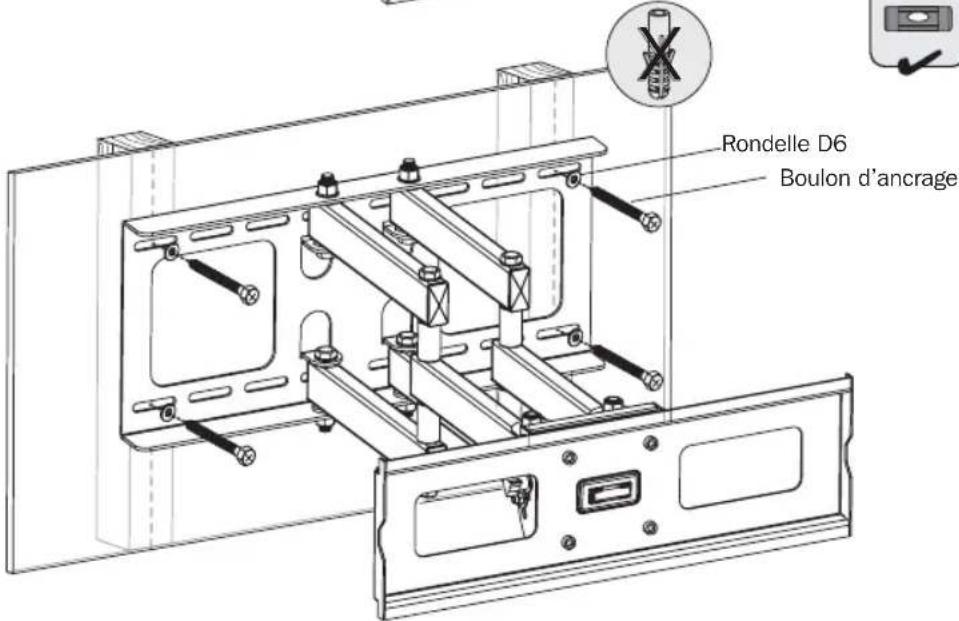

Technical line drawing of a mechanical assembly with mounting brackets and a central component (no text or symbols)

Percer des avant-trous.

Three grayscale illustrations of construction tools: brick wall, pencil, and power tool (no text or symbols)

Technical line drawing of a wall-mounted electrical enclosure with mounting brackets and wiring (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Technical line drawing of a wall-mounted device with mounting brackets and a central control panel (no text or symbols)

English 1 • Español 9 • Français 17 • Deutsch 33

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Technical line drawing of a rectangular electronic device with two internal components and mounting holes (no text or symbols)

(x1) (x2)

Line drawing of a rectangular electronic device with multiple ports and a handle (no text or symbols)

Three grayscale illustrations of construction tools: brick wall, pencil, and power tool (no text or symbols)

Technical line drawing of a mechanical assembly mounted on a brick wall, showing structural components and mounting brackets (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Benutzerhandbuch

Technical line drawing of a wall-mounted device with multiple vertical supports and mounting brackets (no text or symbols)

English 1 • Español 9 • Français 17 • Русский 25

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Technical line drawing of a rectangular electronic device with two internal components and mounting holes (no text or symbols)

(x1) (x2)

Line drawing of a rectangular electronic device with multiple ports and a handle (no text or symbols)

Paket M

M5X14 (x4)

M6X14 (x4)

M8X20 (x4)

M6X30 (x4)

M8X30 (x4)

Beilagscheibe (x4)

Technical line drawing of a mechanical assembly with mounting brackets and a central component (no text or symbols)

Three technical illustrations: brick wall, pencil, and power tool (no text or symbols)

Technical line drawing of a mechanical assembly with clamps and a panel, mounted on a brick wall (no text or symbols)

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
