Product Type	USB-C to HDMI Video Adapter (MST)
Brand	Tripp Lite
Model	U444-3H-MST
Input Connector	Integrated USB Type-C (male)
Output Connector	3 HDMI Ports (female)
Maximum Resolution	4K @ 60 Hz (one display); 2× 4K @ 60 Hz (two displays); 1× 4K @ 60 Hz + 2× 4K @ 30 Hz (three displays, Windows); 3× 4K @ 60 Hz (three displays, macOS)
HDR	Yes
HDCP Version	1.4 and 2.2
Transport Mode	MST (Windows) / SST (macOS)
Compatibility	USB-C, Thunderbolt 3, DisplayPort Alt Mode 1.4
Power Supply	USB Bus (self-powered, no external power)
Standby Power Consumption	≤ 1 W
Dimensions (L × W × H)	26.3 × 3.6 × 1.15 cm
Weight	55.5 g
Operating Temperature	0 to 45 °C
Operating Humidity	10 to 85 % RH, non-condensing
Installation	Plug-and-play, no driver required
Maintenance and Cleaning	Disconnect before cleaning; use a soft, dry cloth; do not use liquid or abrasive products
Safety	Use only within specified temperature and humidity ranges; do not expose to water or heat sources; disconnect during lightning storms
Spare Parts and Repairability	Not user-serviceable; in case of failure, contact after-sales service
Warranty	3-year limited warranty
Certifications	CE, FCC, RoHS, REACH
General Information	Allows connecting up to 3 HDMI displays via a single USB-C port; supports DSC 1.2, color depth 6/8/10 bits, pixel formats RGB/YCbCr 4:4:4, 4:2:2, 4:2:0

Frequently Asked Questions - U4443HMST Tripp Lite

Which types of devices are compatible with the U4443HMST?

The adapter is compatible with any device equipped with a USB Type-C or Thunderbolt 3 port supporting DisplayPort Alt Mode 1.4, including laptops, tablets, MacBooks, and Chromebooks.

Can I use this adapter with a Mac to display three screens in extended mode?

Yes, on macOS, the adapter operates in SST (Single-Stream Transport) mode, which allows displaying the same content on all three screens, or extending the desktop if the operating system allows it. For three screens in extended mode, a Windows system is recommended with MST mode.

What maximum resolution can I achieve with three monitors connected?

On Windows: 1 display at 4K @ 60 Hz + 2 displays at 4K @ 30 Hz. On macOS: all three displays can achieve 4K @ 60 Hz simultaneously, but in mirror mode (SST). Performance depends on host support for DP 1.4.

Does the adapter require an external power supply?

No, the adapter is powered directly from the USB bus of the host device. Its standby power consumption is less than 1 W.

What should I do if only one display works when I have connected two?

First, check that your host device supports MST mode (Windows) or SST (macOS). Also ensure that the HDMI cables are securely connected and the monitors are powered on. Restart the computer if necessary.

Does the adapter support HDR?

Yes, the adapter supports HDR (High Dynamic Range) for better contrast and color accuracy.

Is this adapter compatible with HDCP displays?

Yes, it is compatible with HDCP 1.4 and HDCP 2.2 standards, allowing playback of protected content like 4K streaming videos.

Can I use the adapter with a USB-C port that does not support DisplayPort Alt Mode?

No, the adapter requires the host USB-C port to support DisplayPort Alt Mode (DP Alt Mode). Without it, no video signal will be transmitted.

How do I clean the adapter?

Disconnect the adapter before cleaning. Use a soft, dry cloth to remove dust. Do not use liquids, sprays, or abrasive products.

What does the warranty for this adapter cover?

Tripp Lite offers a 3-year limited warranty against defects in materials and workmanship. It does not cover normal wear, misuse, or accidental damage.

USER MANUAL U4443HMST Tripp Lite

Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!

tripplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved. USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.

Package Contents

• U444-3H-MST
• Quick Start Guide

Product Features

• Connects 3 HDMI displays to the USB-C or Thunderbolt™ 3 port on your laptop, tablet, MacBook® or Chromebook™
• Delivers 4K video to all 3 connected HDMI displays at the same time
• Converts A/V signals from USB-C devices supporting DisplayPort Alt Mode with maximum 8.1 Gbps per lane (32.4 Gbps per 4 lanes)
• Supports DSC 1.2 and 6/8/10-bit color depth output with output pixel format: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 and YCbCr 4:2:0
  • Supports High Dynamic Range (HDR) for rich contrast and expanded color accuracy
• Compatible with HDCP 1.4 and 2.2 standards
• Built-in USB-C cable connects to host device in either direction for immediate no-fuss use
• Plug-and-play operation with no software required for quick, easy installation

Product Features

When Used with Windows® Host Device

• Allows connection of 2 displays (max 4K @ 60 Hz) showing different images under Multi-Stream Transport (MST) mode
• Allows connection of 3 displays (max 1x 4K @ 60 Hz + 2x 4K @ 30 Hz) showing different images under MST mode

When Used with macOS® Host Device

- Allows connection of 3 displays (max 4K @ 60 Hz) showing the same images under Single-Stream Transport (SST) mode

Notes:

• To achieve the above resolution, the host should support DP 1.4 Alt Mode. If connected to a DP 1.2 Alt Mode host, the corresponding resolution will be decreased due to bandwidth limitation.
• The above resolution combination is for theoretical reference. The actual output resolution depends on the connected host and displays.
• When working with a 2080 graphics card, this product does not support 10-bit Deep Color.

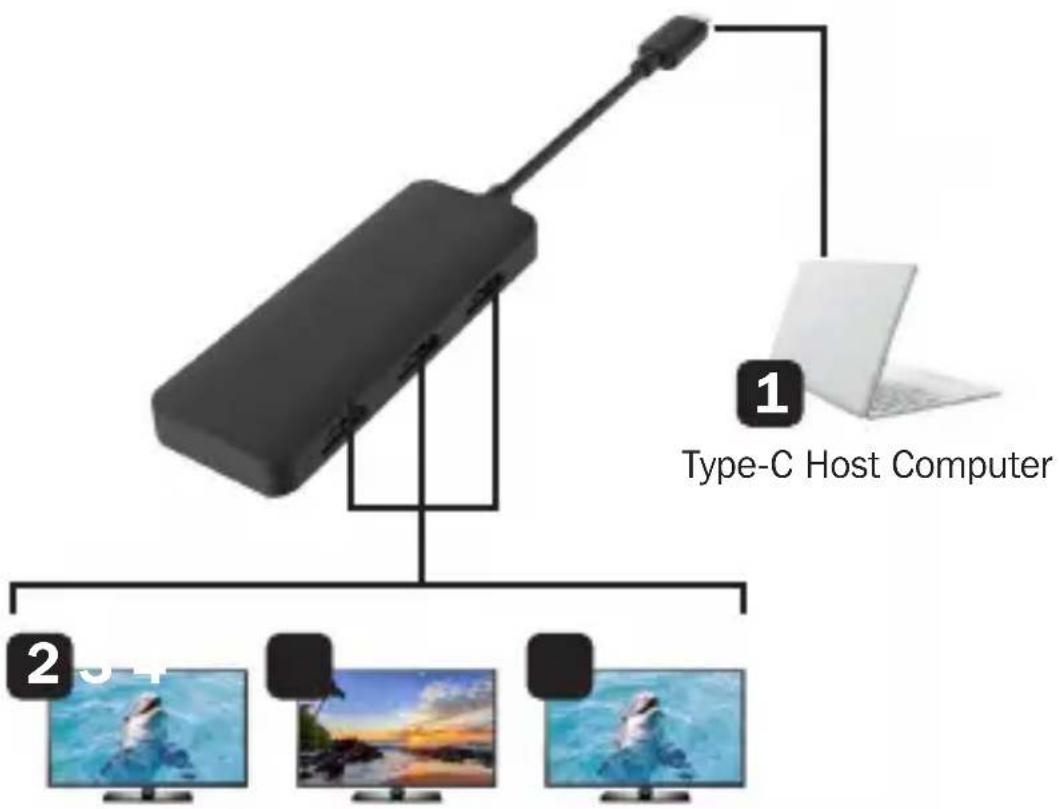

Connection Diagram

1 USB Type-C Host Computer
2 Display 1 Single Display: 4K @ 60 Hz (Windows and Mac)
3 Display 2 Dual Displays: 2x 4K @ 60 Hz (Windows and Mac)
4 Display 3 Triple Displays: 1x 4K @ 60 Hz + 2x 4K @ 30 Hz (Windows), 3x 4K @ 60 Hz (Mac)

Display 1 Display 2 Display 3

Specifications

Input/Output Connector
Input USB Type-C (Male)
Output (3x) HDMI (Female)
HDMI
Resolution Single Display (4K @ 60 Hz)Dual Display (4K @ 60 Hz)Triple Display (4K @ 60 Hz,2x 4K @ 30 Hz)
HDR Yes
HDCP Version 1.4 and 2.2
Environmental
Operating Temperature 32° to 113°F (0° to 45°C)
Operating Humidity 10 to 85% RH, Non-Condensing
Storage Temperature 14° to 158°F (-10° to 70°C)
Storage Humidity 5 to 90 % RH, Non-Condensing
Power Requirement
Power Source Bus Power
Standby Power Consumption	≤ 1W

Specifications

Mechanical
Dimensions(L x W x H)	10.35 x 1.42 x 0.45 in. /26.3 x 3.6 x 1.15 cm
Weight 0.12 lb. (55.5 g)
Warranty
Limited Warranty 3-Year	Limited Warranty
Regulatory Approvals
Certifications RoHS, REACH, CE, FCC

Warranty

3-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of three (3) years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

*No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
