Product Type	4-Port 4K Presentation Switch
Brand	Tripp Lite
Model	B321-4X1-HDVC
Input Connectors	HDMI, DisplayPort, USB-C, VGA (male)
Output Connectors	HDMI (male), USB-A (male), USB-C (female)
Maximum Resolution (HDMI, DisplayPort, USB-C)	4096 x 2160 @ 60 Hz (4:4:4)
Maximum Resolution (VGA)	1920 x 1080 @ 60 Hz
Dimensions (H x W x D)	10.8 x 7.5 x 2.4 cm
Weight	0.35 kg
Operating Temperature	0 to 40 °C
Storage Temperature	-15 to 50 °C
Relative Humidity	0 to 85 %, non-condensing
PD 3.0 Charging	20 V 5 A (90 W)
Built-in HDMI Cable Length	2.44 m
Pigtail Cable Lengths	HDMI, DisplayPort, USB-C: 0.3 m; VGA: 0.3 m; USB: 0.9 m
HDR Support	Yes (via HDMI)
3D Support	Yes
EDID Support	Yes
Operation	Plug-and-Play, push-button switching
Warranty	1-year limited

Frequently Asked Questions - B3214X1HDVC Tripp Lite

What resolutions are supported by the Tripp Lite B3214X1HDVC?

The adapter supports up to 4096 x 2160 @ 60 Hz (4:4:4) via HDMI, DisplayPort, and USB-C, and up to 1920 x 1080 @ 60 Hz via VGA.

Can I charge my laptop via the USB-C input?

Yes, the USB-C port supports PD 3.0 charging up to 90 W (20 V 5 A), but 10 W is reserved for chipset operation, thus providing 90 W to the source.

How do I switch between different video sources?

Simply press the push button on the front panel of the device to switch between sources.

What cables are included with the product?

The switch comes with built-in pigtail cables: HDMI (2.44 m), DisplayPort (0.3 m), USB-C (0.3 m), and VGA (0.3 m). A USB cable (0.9 m) is also integrated.

Does the product require software installation?

No, it operates Plug-and-Play, no software is required for quick and easy setup.

What types of input connectors are available?

The device has four inputs: HDMI, DisplayPort, USB-C, and VGA, all with male connectors.

Is the switch compatible with 4K resolutions?

Yes, it supports 4K at 60 Hz (4:4:4) on HDMI, DisplayPort, and USB-C inputs.

What is the warranty length?

The device comes with a one-year limited warranty against defects in materials and workmanship.

Can I use this adapter with a VGA projector?

Yes, the VGA input supports a maximum resolution of 1920 x 1080 @ 60 Hz, ideal for projectors.

What do the LED indicators on the device mean?

A green LED indicates power on, while an orange LED indicates active input signal.

USER MANUAL B3214X1HDVC Tripp Lite

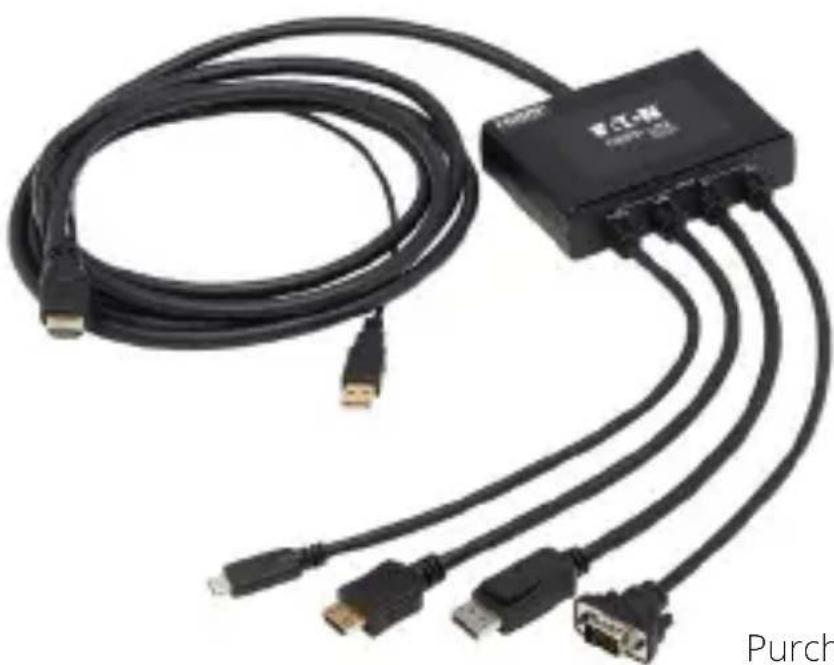

4-Port 4K Presentation Switch HDMI, DP, USB-C and 1080p VGA to HDMI with Built-In Cables

Model:

B321-4X1-HDVC

USB Type-C® and

USB-C® are

registered

trademarks of

USB Implementers

Forum.

Purchased product may differ from image.

Espanol 9

Français 16

Deutsch 24

Italiano 31

Powering Business Worldwide

Package Contents

B321-4X1-HDVC 4-Port Presentation Switch
- Owner's Manual

Optional Accessories

• U420-Series USB 3.1 Gen 1 or Gen 2 USB-C Cables
  U038-Series USB-A to USB-C Cables

Product Features

• Connects up to 4 sources to a single HDMI display with the built-in 8 ft. cable
• Switches between 4 sources using the front-panel push button
  Supports HDMI, DisplayPort, USB-C and VGA video formats

o HDMI: HDMI 2.0, HDCP 1.4/2.2, HDR, up to 4096 x 2160 @ 60 Hz (4:4:4)
o DisplayPort: DisplayPort 1.2a, up to 4096 x 2160 @ 60 Hz (4:4:4)
o USB-C: USB 3.1 Gen 1, 90W PD 3.0 Charging, up to 4096 x 2160 @ 60 Hz (4:4:4)
o VGA: up to 1920 x 1080 @ 60 Hz

Product Features

• Green and orange LED indicators signal active input and power
  Supports 3D and EDID
• Built-in USB-C PD 3.0 cable supports up to 100W (20V 5A) and provides 90W of charging power to the USB-C source*
• Plug-and-play operation with no software required for easy, immediate installation

*10W is reserved for the functionality of the USB Type-C chipset system.

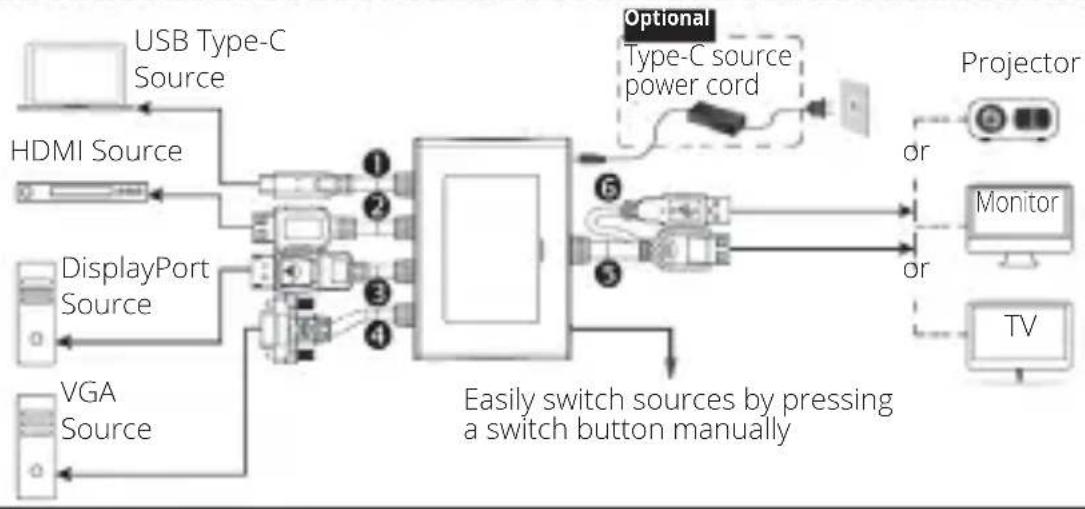

Installation

B321-4X1-HDVC

Up to 1 ft. (0.3 m) USB Type-C pigtail at 4K @ 60 Hz
Up to 1 ft. (0.3 m) HDMI pigtail at 4K @ 60 Hz
Up to 1 ft. (0.3 m) DisplayPort pigtail at 4K @ 60 Hz
Up to 1 ft. (0.3 m) VGA pigtail at 1080p @ 60 Hz
Up to 8 ft. (2.4 m) HDMI pigtail at 4K @ 60 Hz
Up to 3 ft. (0.9 m) Power USB cable at 4K @ 60 Hz

Specifications

Input Connections (Male)	HDMI, DisplayPort, USB-C, VGA
Output Connections	HDMI (Male), USB-A (Male), USB-C (Female)
Maximum Resolution	HDMI, DisplayPort, USB-C: 4096 x 2160 @ 60 Hz (4:4:4) VGA: 1920 x 1080 @ 60 Hz
Unit Dimensions (H x W x D)	4.25 x 3 x 0.9 in. / 10.8 x 7.5 x 2.4 cm
Unit Weight 0.77 lb. / 0.35 kg
Operating Temperature	32° to 104°F / 0° to 40°C
Storage Temperature	5° to 122°F / -15° to 50°C
Relative Humidity	0 to 85%, Non-Condensing
PD 3.0 Charging 20V 5A (90W)

Warranty

1-Year Limited Warranty

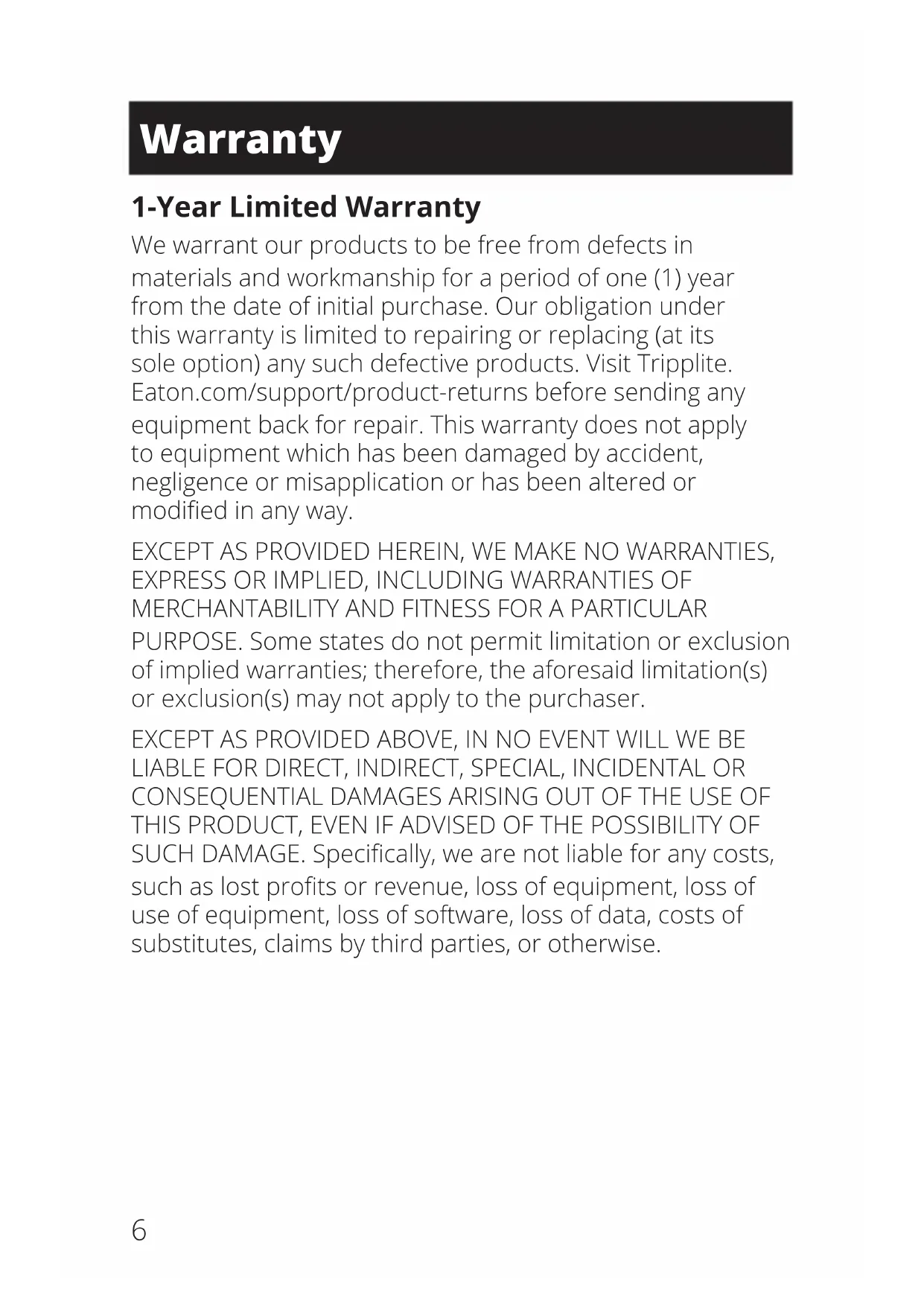

We warrant our products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Triplite. Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Warranty

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Eaton has a policy of continuous improvement.
Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

EAT-N

Powering Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

©2024 Eaton

All Rights Reserved

Publication No.

23- 10- 142 /

93-3D5A_ReVB

March 2024

933D5A

Eaton is a registered trademark.

All trademarks are property of their respective owners.
