USER MANUAL DMCS3780HDS Tripp Lite

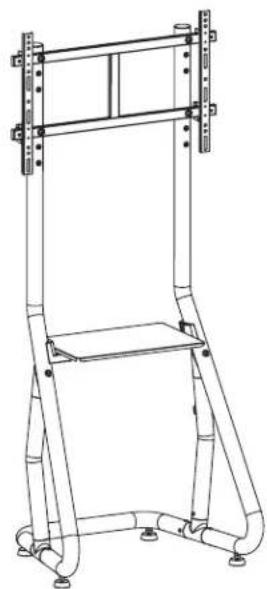

Steamline Landscape Mobile Cart

Model: DMCS3780HDS

Technical line drawing of a mechanical support structure (no text or symbols)

Español 12 • Français 23 • Русский 34 • Deutsch 45

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

200 x 200/300 x 200

300×300/400×200

400×300/400×400

600×400

DVD

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!

tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

Safety Instructions

NOTE: Read the entire instruction manual before you start assembly and installation.

WARNING

• Do not begin the installation until you have read and understood the instructions and warnings contained in this manual. If you have questions regarding any of the instructions or warnings, please visit tripplite.com/support.
• This product was designed to be installed and utilized ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone of good mechanical ability, with basic building experience and a full understanding of this instruction manual.
• Make sure the unit can safely support the combined load of the equipment and all attached hardware and components.
  • Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and/or personal injury.

Warranty and Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

Component Checklist

IMPORTANT: Ensure you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit tripplite.com/support for service.

Line drawing of two vertical metal supports with base and support legs (no text or symbols)

A
(x1)

B
(x1)

C
(x1)

D
(x1)

E
(x2)

F
(x1)

G
(x1)

H
(x1)

I
(x4)

J
(x3)

S
(x1)

Package M

M-A
M5x14 (x4)

M-B
M6x14 (x4)

M-C
M6x30 (x4)

M-D
M8x30 (x4)

M-E
M8x50 (x4)

M-F
(x4)

M-G
(x8)

M-H
(x8)

Package P

M6x10 (x6)

M8x15 (x1)

M8x35 (x6)

D8 (x4)

M6x16 (x2)

4 mm (x1)

5 mm (x1)

M10 (x1)

Assembly

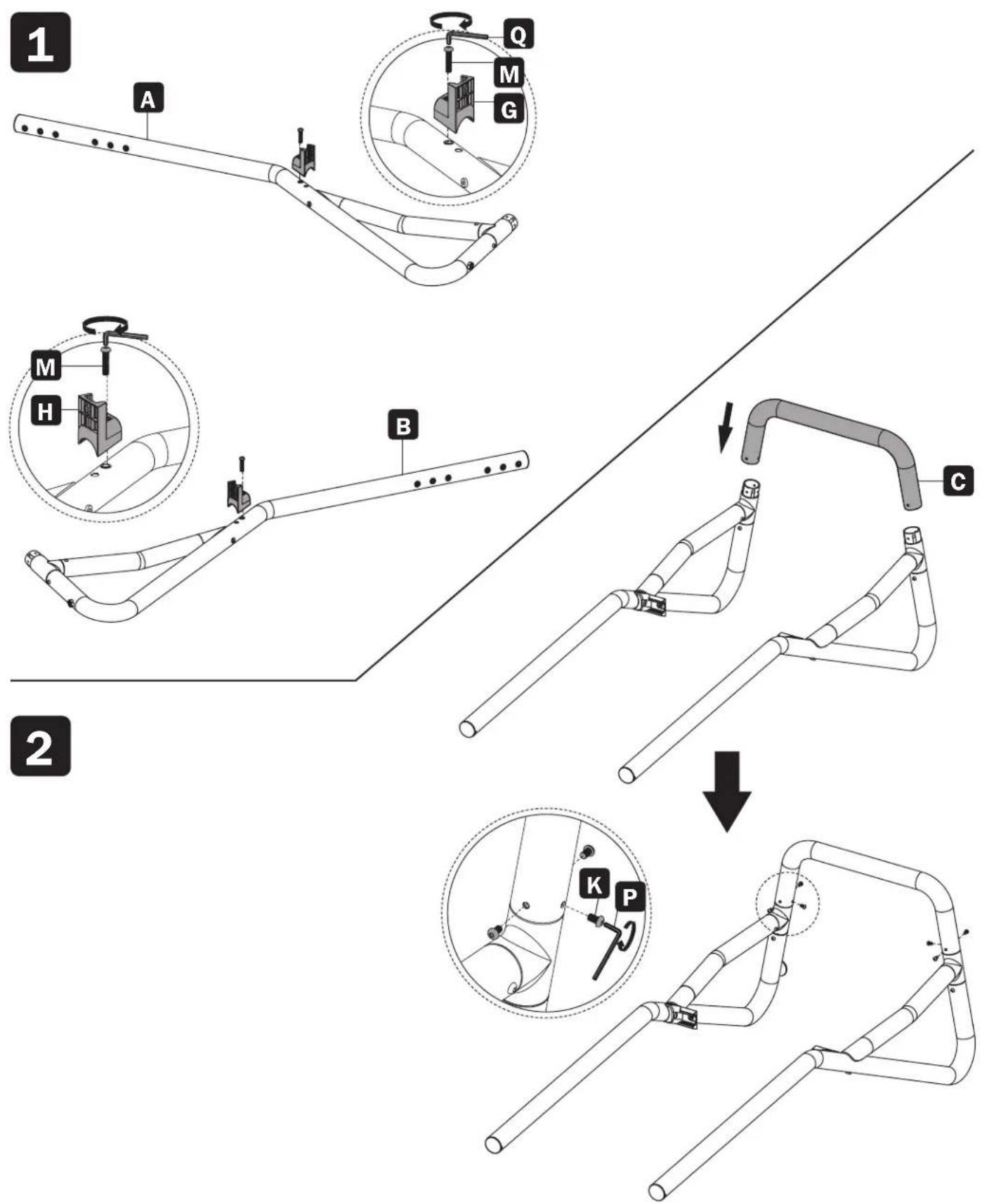

Assembly

3

Technical line drawing of a mechanical linkage system with multiple pipes and mounting brackets (no text or symbols)

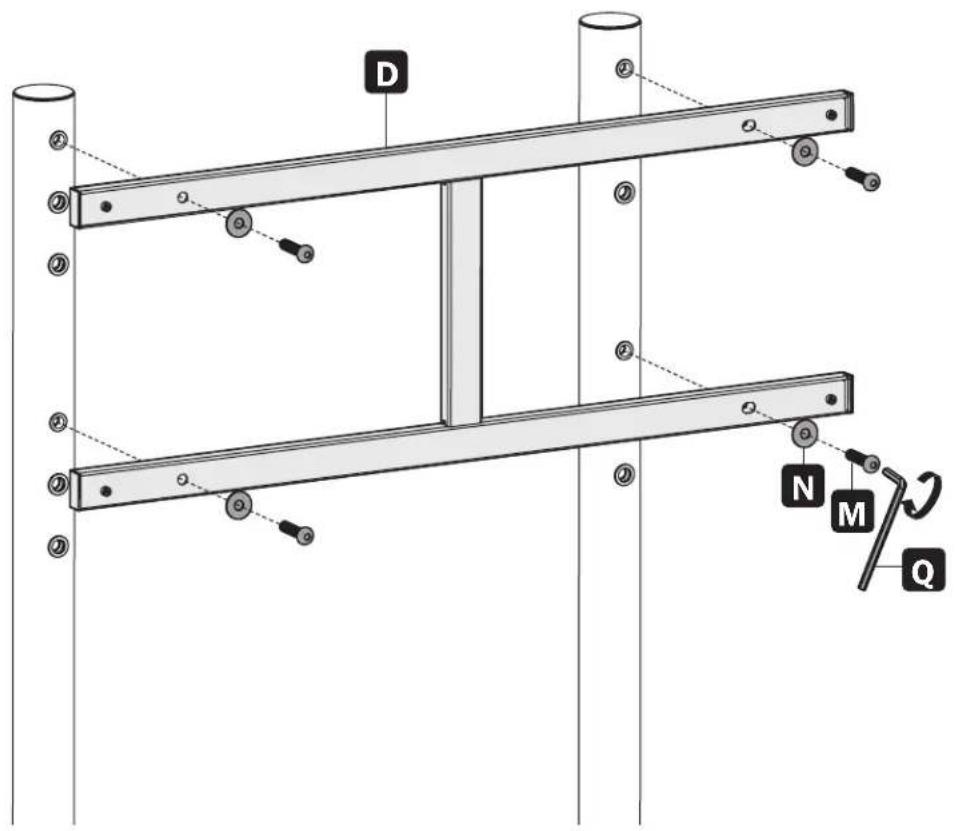

4

Assembly

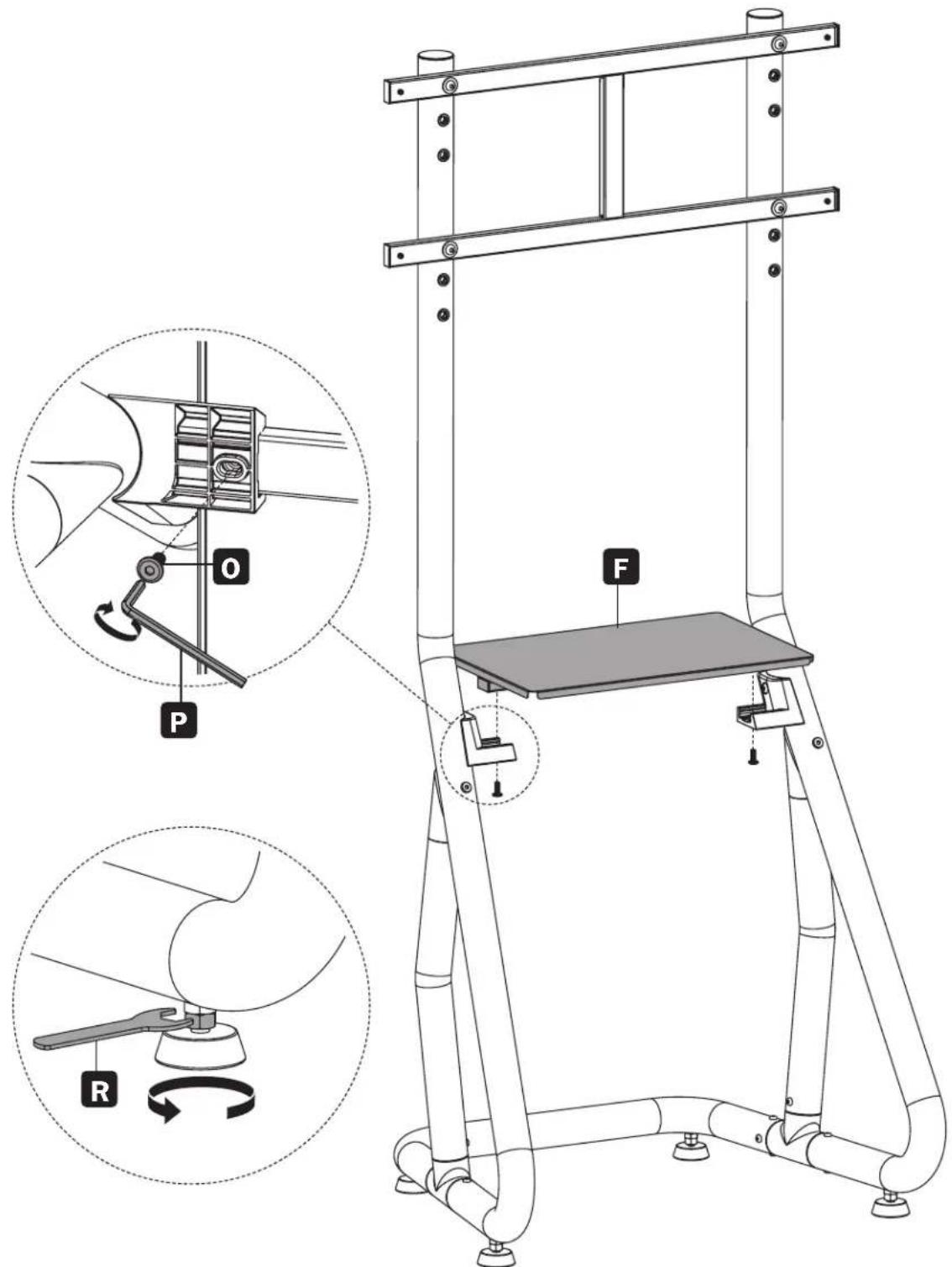

5

Assembly

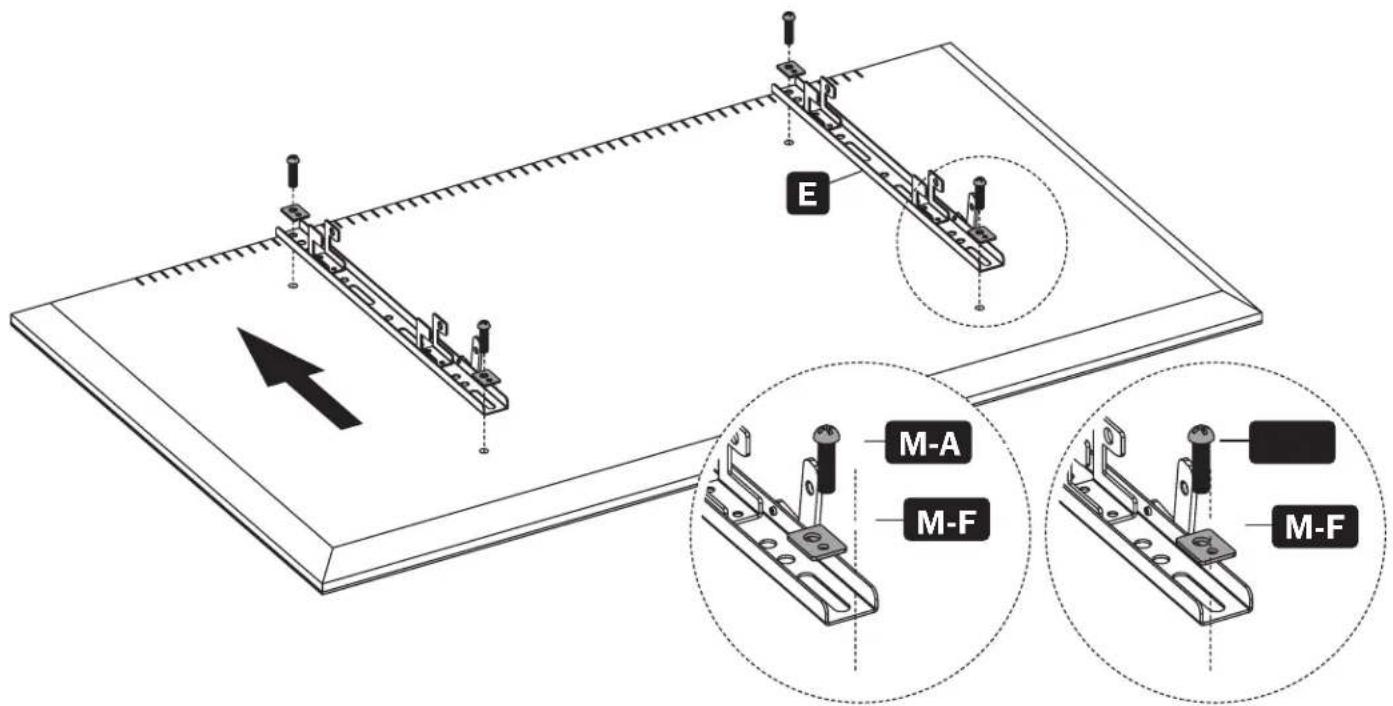

For Flat-Back Screens

Note: Choose the appropriate Screws, Washers and Spacers (if needed) according to the type of screen.

CAUTION:

Do not over-tighten screws.

Assembly

6b

For Recessed-Back Screens or Accessing A/V Inputs

Note: Choose the appropriate Screws, Washers and Spacers (if needed) according to the type of screen.

CAUTION:
Do not over-tighten screws.

Assembly

7

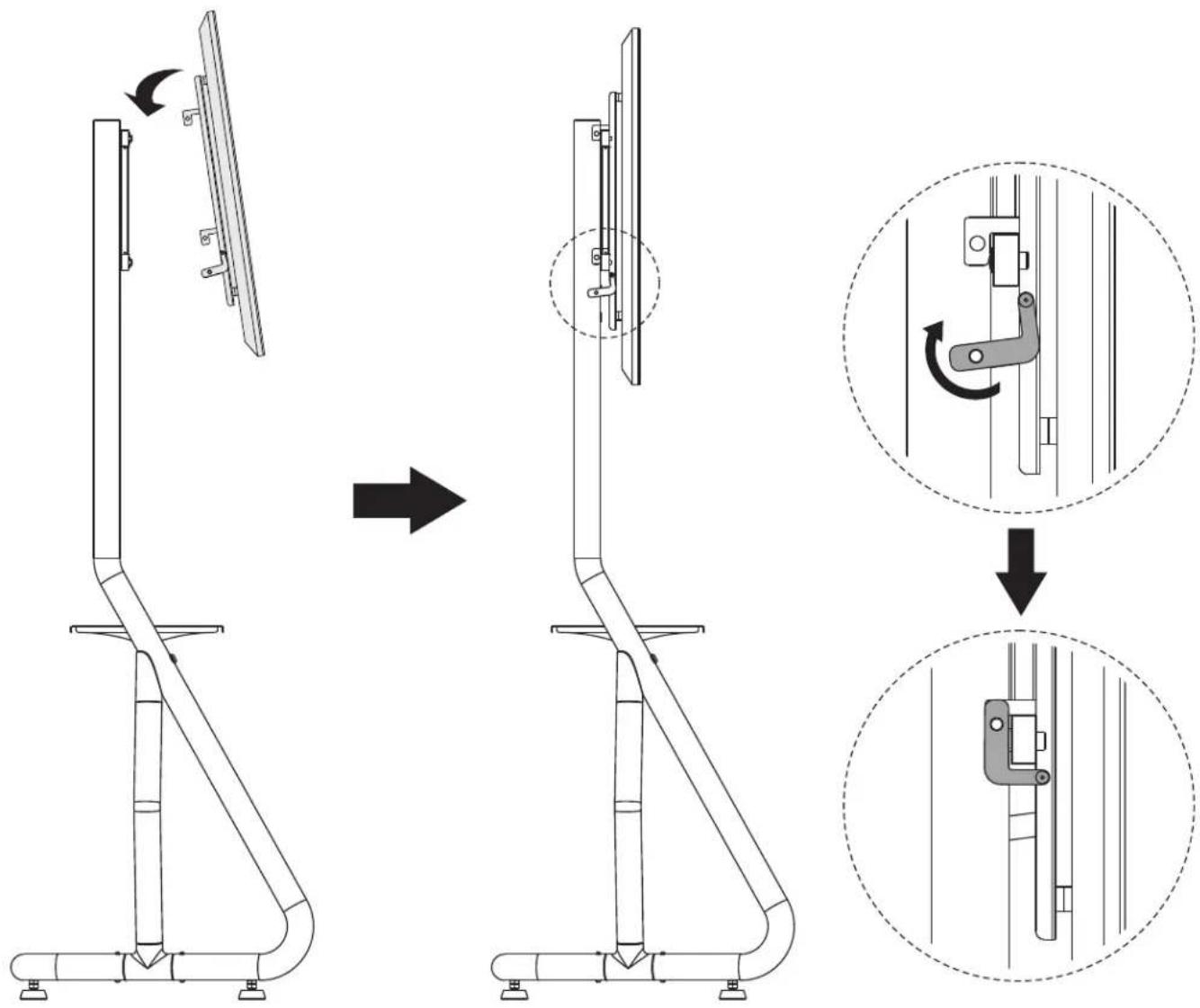

Note: With the help of an assistant or mechanical lifting equipment, hook the mounting arms onto the mounting brackets.

CAUTION:

Make sure the display is correctly mounted before releasing the display.

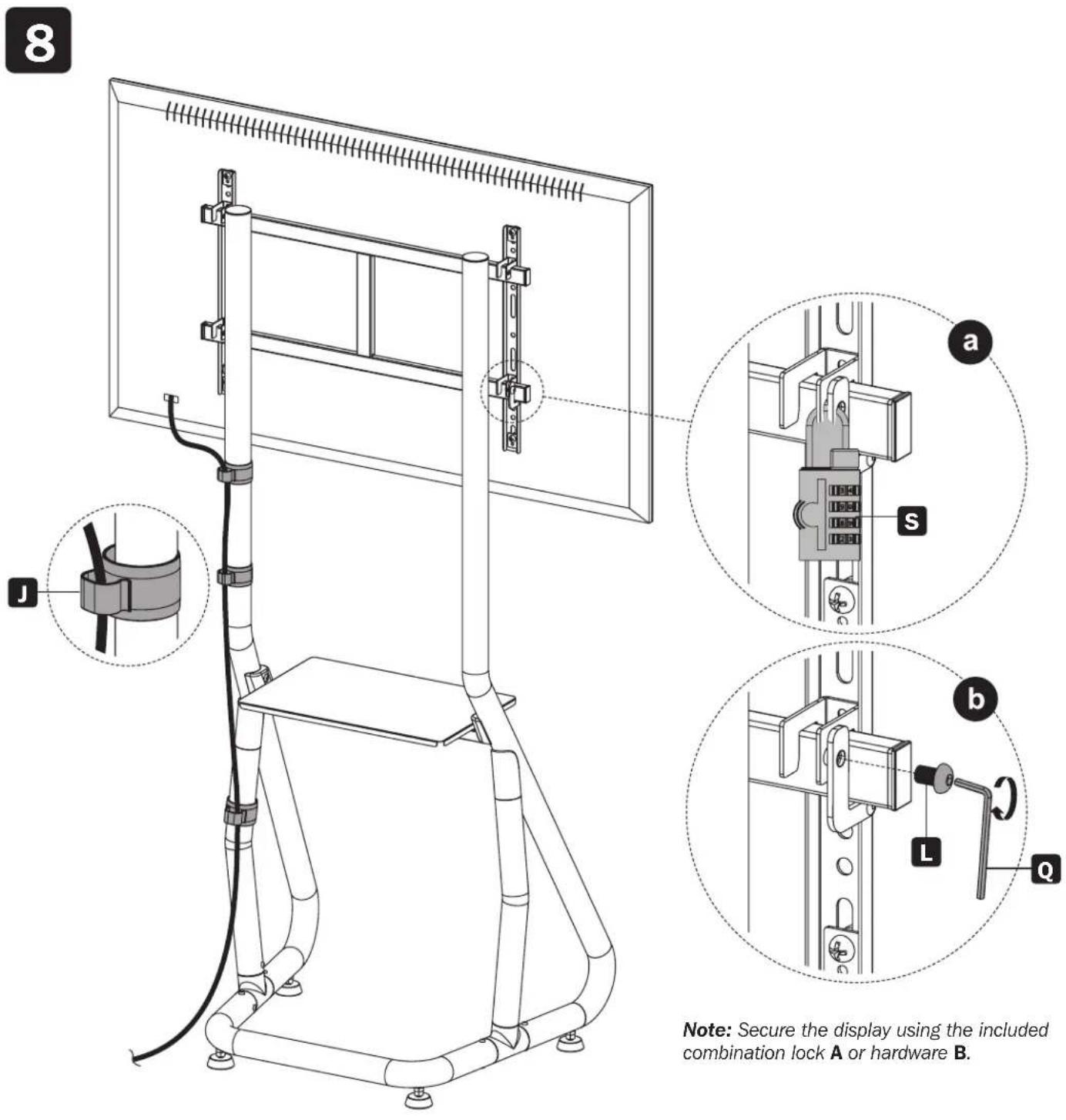

Assembly

Maintenance

• Check that the bracket is secure and safe to use at regular intervals (at least every three months).
• Please visit tripplite.com/support if you have any questions.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a mechanical lifting device with vertical supports and mounting feet (no text or symbols)

English 1 • Français 23 • Русский 34 • Deutsch 45

Line drawing of two vertical metal supports with base and support legs (no text or symbols)

A
(x1)

B
(x1)

C
(x1)

D
(x1)

E
(x2)

F
(x1)

G
(x1)

H
(x1)

I
(x4)

J
(x3)

S
(x1)

Paquete M

M-A
M5x14 (x4)

M-B
M6x14 (x4)

M-C
M6x30 (x4)

M-D
M8x30 (x4)

M-E
M8x50 (x4)

M-F
(x4)

M-G
(x8)

M-H
(x8)

Paquete P

M6x10 (x6)

M8x15 (x1)

M8x35 (x6)

D8 (x4)

M6x16 (x2)

4 mm (x1)

5 mm (x1)

M10 (x1)

Ensamble

Ensamble

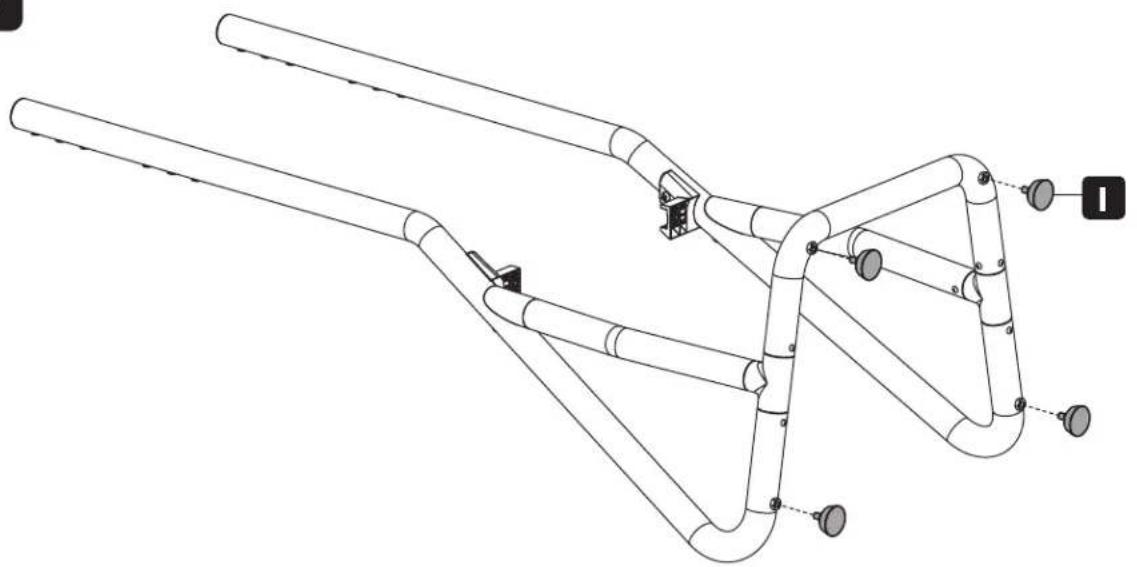

3

Technical line drawing of a mechanical linkage system with multiple pipes and mounting brackets (no text or symbols)

4

Ensamble

5

Ensamble

Technical line drawing of a mechanical support structure (no text or symbols)

Englishl 1 • Español 12 • Русский 34 • Deutsch 45

MISE EN GARDE : NE PAS EXCÉDER LA CAPACITÉ PONDÉRALE MAXIMUM INDIQUÉE. CELA RISQUERAIT DE CAUSER DES BLESSURES GRAVES OU DES DOMMAGES MATÉRIELSI

200 x 200/300 x 200

300×300/400×200

400×300/400×400

600×400

léviseur

100 kg (220 lb)

CAPACITÉ NOMINALE

25 kg (55 lb)

CAPACITÉ NOMIN

D'excellence Industrielle

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Line drawing of two vertical metal supports with base and support legs (no text or symbols)

A
(x1)

B
(x1)

C
(x1)

D
(x1)

E
(x2)

F
(x1)

G
(x1)

H
(x1)

I
(x4)

J
(x3)

S
(x1)

Emballage M

M-A
M5 x 14 (x4)

M-B
M6 x 14 (x4)

M-C
M6 x 30 (x4)

M-D
M8x30 (x4)

M-E
M8 x 50 (x4)

M-F
(x4)

M-G
(x8)

M-H
(x8)

Emballage P

M6 x 10 (x6)

M8 x 15 (x1)

M8 x 35 (x6)

D8 (x4)

M6 x 16 (x2)

4 mm (x1)

5 mm (x1)

M10 (x1)

Assemblage

Assemblage

3

Technical line drawing of a mechanical linkage system with multiple pipes and mounting brackets (no text or symbols)

4

Assemblage

5

Assemblage

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical line drawing of a mechanical lifting device with vertical supports and mounting feet (no text or symbols)

English 1 • Español 12 • Français 23 • Deutsch 45

1111 W. 35th Street, Chicago, IL 60609 USA - tripplite.com/support

Two identical line drawings of a vertical support structure with base and support legs (no text or symbols)

A
1 шт.

B
1 шт.

C
1 шт.

D
1 шт.

E
2 шт.

F
1 шт.

G
1 шт.

H
1 шт.

I
4 шт.

J
3 шт.

S
1 шт.

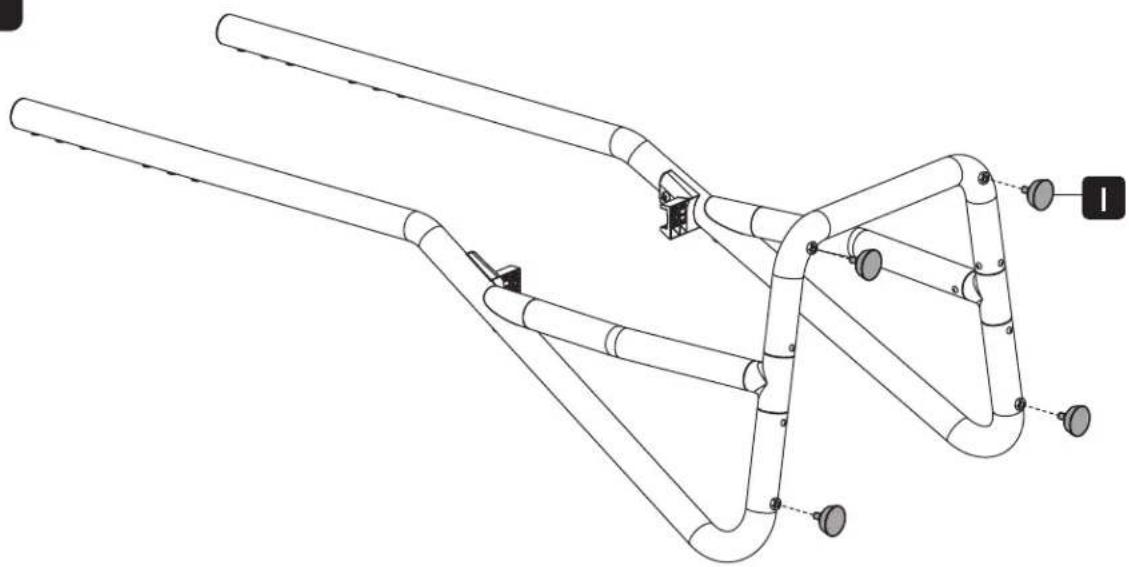

Порядок сборки
