U4600033AGALC - Network adapter Tripp Lite - Free user manual and instructions

Product Type	USB-C Multiport Hub
Brand	Tripp Lite
Model	U460-003-3AGALC
Dimensions	95 x 45 x 13 mm (3.7 x 1.8 x 0.5 in)
Weight	68.5 g (2.4 oz)
Power	Via USB-C PD port (100 W) or host power
USB-A Ports	3 USB 3.2 Gen 1 ports up to 5 Gbps, 1 port with charging 5 V 1.5 A (7.5 W)
USB-C PD Port	1 USB-C PD 3.0 port (20 V 5 A, 100 W) with Fast Role Swap and data up to 5 Gbps
Ethernet Port	1 RJ45 Gigabit Ethernet port (10/100/1000 Mbps)
USB Version	USB 3.2 Gen 1 (5 Gbps), backward compatible with USB 2.0
Operating Temperature	0 to 45 °C (32 to 113 °F)
Storage Temperature	-10 to 70 °C (14 to 158 °F)
Operating Humidity	10 to 85% RH, non-condensing
Storage Humidity	5 to 90% RH, non-condensing
Certifications	FCC, CE, ICE, RoHS, REACH
Warranty	3 years (limited)
Package Contents	Hub, quick start guide
Care and Cleaning	Clean with a dry cloth. Do not use liquids or abrasive products.
Spare Parts and Repairability	No user-serviceable parts. Contact customer support.
General Information	Use with MacBook, Chromebook or any USB-C host. Not suitable for life-support devices.

Frequently Asked Questions - U4600033AGALC Tripp Lite

Which devices are compatible with this hub?

The hub is compatible with any device with a USB-C port, such as a MacBook, Chromebook, or laptop PC. It works with Windows, macOS, Chrome OS, and Linux.

What is the transfer speed of the USB-A ports?

The three USB-A ports support USB 3.2 Gen 1 with a maximum speed of 5 Gbps. They are backward compatible with USB 2.0 and 1.1 devices.

Can the USB-C PD port charge my computer?

Yes, the USB-C PD port provides up to 100 W (20 V, 5 A) output, which can charge most USB-C compatible laptops. It also supports Fast Role Swap for quick power switching.

What is the speed of the Ethernet port?

The RJ45 port provides a Gigabit Ethernet connection with speeds up to 10/100/1000 Mbps. It is ideal for a stable and fast wired network connection.

Can I use this hub with a power adapter?

Yes, you can plug a USB-C wall charger (not included) into the PD port to power the hub and simultaneously charge your computer. This allows using all ports without performance loss.

Is the hub compatible with USB 2.0 accessories?

Yes, all USB-A ports are backward compatible with USB 2.0 and USB 1.1 devices. The speed will then be limited to that of the device.

How to clean this hub?

Use a soft, dry cloth to wipe the surface. Never use liquids or harsh cleaning products that could damage the components.

What is the maximum operating temperature?

The hub can operate in a range of 0 to 45 °C (32 to 113 °F). Beyond that, performance may be affected.

Is the hub warrantied?

Yes, Tripp Lite offers a limited 3-year warranty against defects in materials and workmanship. The warranty does not cover normal wear or damage caused by misuse.

Can I use the hub without plugging in the PD power?

Yes, the hub can be used solely via the USB-C cable connected to the host. However, to charge power-hungry devices (e.g., a laptop), it is recommended to use the PD port with a suitable charger.

USER MANUAL U4600033AGALC Tripp Lite

3-Port USB-C Hub with Gigabit Ethernet, 100W PD Charging and QC Charging

Model: U460-003-3AGALC

USB Type-C ^® and USB-C ^® are registered trademarks of USB Implementers Forum.

Español 9 • Français 17

Русский 25 • Deutsch 33

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!

tripplite.com/warranty

TRIPP·LITE

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

Product Features

• 3 USB-A ports support USB 3.2 Gen 1 data transfer speeds up to 5 Gbps
• One USB port also supports charging up to 5V 1.5A (7.5W)
• USB-C PD Charging 3.0 port supports 20V 5A (100W) power output and Fast Role Swap for charging host device, as well as simultaneous data transmission at speeds up to 5 Gbps
• USB ports backward compatible with USB 2.0 legacy equipment
• RJ45 port allows connection to 10/100/1000 Mbps (1 Gbps) Gigabit Ethernet network
• Compact size allows convenient transport in a backpack or laptop bag for connections anywhere

Package Contents

• U460-003-3AGALC 3-Port USB-C Hub
- Quick Start Guide

Optional Accessories

• N201-Series Cat6 Gigabit Snagless Ethernet Cables
• U420-Series USB-C (USB 3.2 Gen 1) Cables, M/M

Operation

1. Connect the built-in USB-C cable to your MacBook, Chromebook or other USB-C host.
2. Connect the USB-C PD Charging port to your host device or an AC wall charger with a user-supplied USB cable (see Optional Accessories).
3. Connect USB peripherals, such as a thumb drive, mouse and keyboard, to the USB-A ports.
4. Connect the RJ45 port to a Gigabit Ethernet network or router with a user-supplied Ethernet cable (see Optional Accessories).
5. Automatically or manually set the host device's IP address.

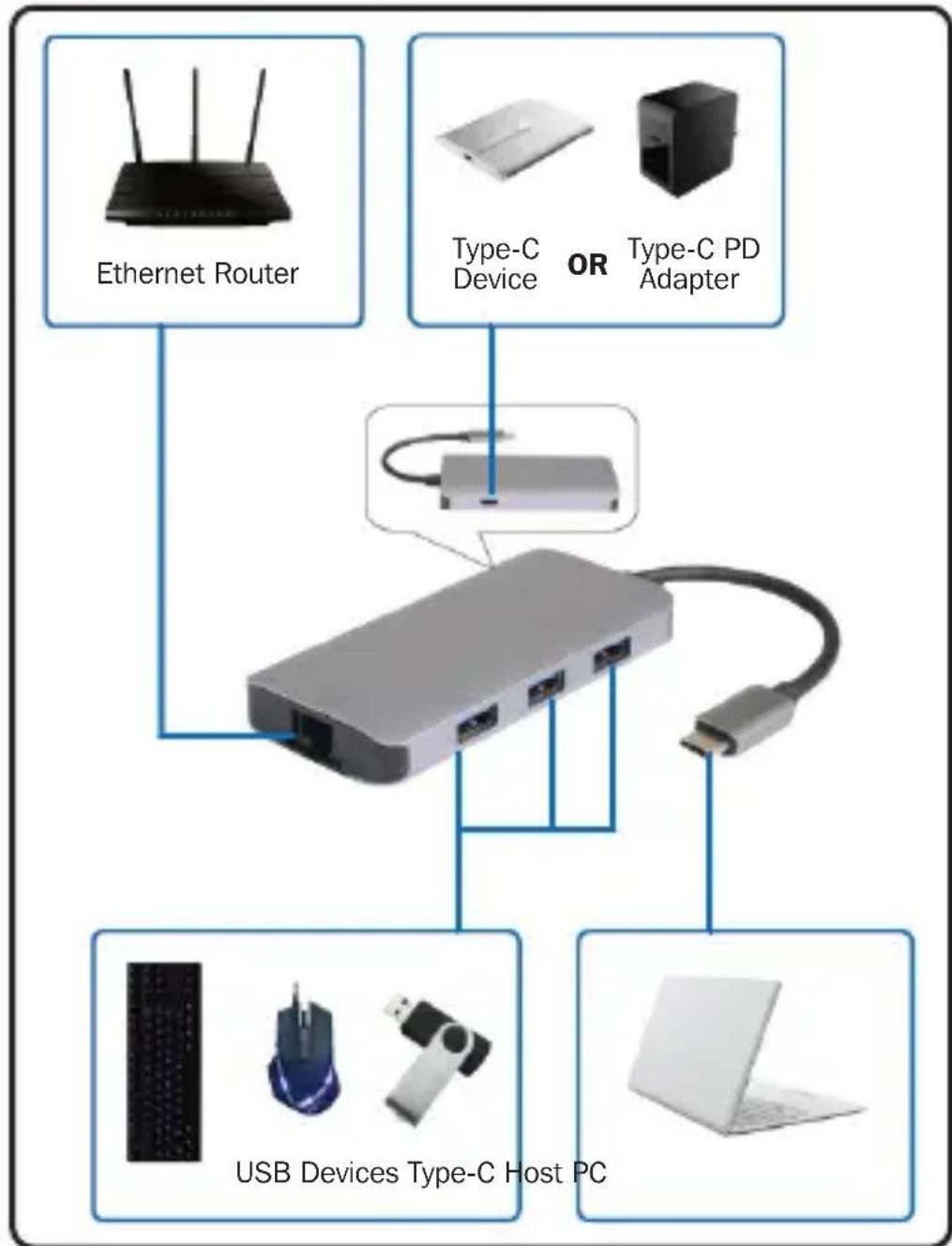

Operation


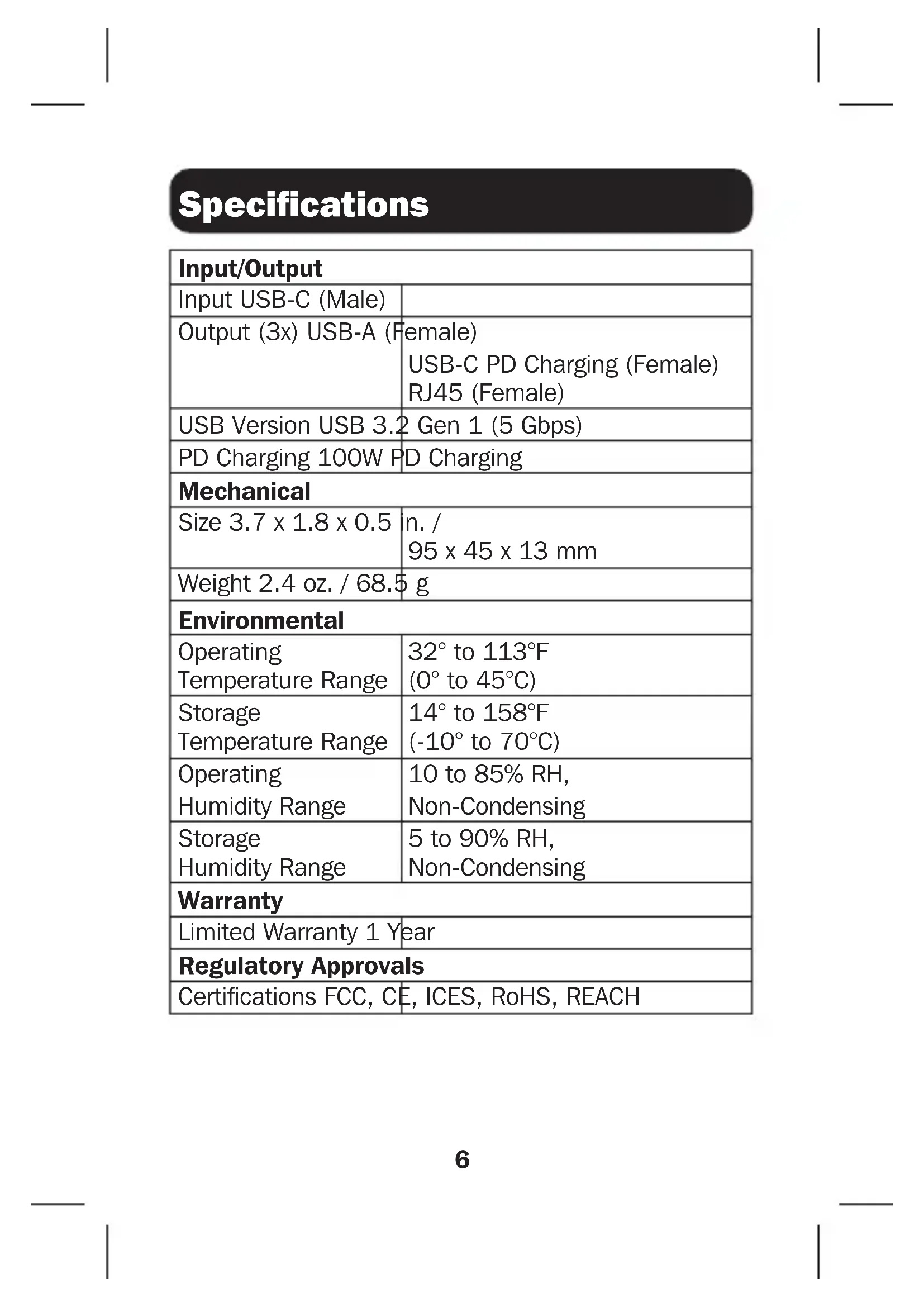

Specifications

Input/Output
Input USB-C (Male)
Output (3x) USB-A (Female)USB-C PD Charging (Female)RJ45 (Female)
USB Version USB 3.2 Gen 1 (5 Gbps)
PD Charging 100W PD Charging
Mechanical
Size 3.7 x 1.8 x 0.5 n./95 x 45 x 13 mm
Weight 2.4 oz. / 68.5 g
Environmental
OperatingTemperature Range	32° to 113°F(0° to 45°C)
StorageTemperature Range	14° to 158°F(-10° to 70°C)
OperatingHumidity Range	10 to 85% RH,Non-Condensing
StorageHumidity Range	5 to 90% RH,Non-Condensing
Warranty
Limited Warranty 1 Year
Regulatory Approvals
Certifications FCC, CE, ICES, RoHS, REACH

Warranty and Product Registration

3-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of three (3) years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, at its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Warranty and Product Registration

Product Registration

Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

*No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement.

Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609, EE UU tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609, EE UU tripplite.com/support

21-03-059 • 93-3E2E_RevA
