Product Type	USB-C to VGA Adapter with USB-A Hub
Compatible Models	U444-06N-VU-C, U444-06N-VUB-C
Input Connector	USB-C Male
Output Connectors	1 x VGA Female, 1 x USB-A Female, 1 x USB-C Female (charging and data)
Maximum Video Resolution	1920 x 1080 (1080p) at 60 Hz
USB Data Rate	Up to 5 Gbit/s (USB 3.2 Gen 1)
USB-C PD Charging	Supports input up to 20 V 3 A (60 W), USB-A output 5 V 1 A (5 W)
Network Compatibility	None (no Ethernet port on this model)
Plug and Play	Yes, no driver required
Supported Operating Systems	Windows, macOS, Linux, Chrome OS, Android (with USB-C)
Operating Temperature	0 °C to 45 °C
Operating Humidity	10% to 85% RH, non-condensing
Approximate Dimensions	50 x 30 x 10 mm
Approximate Weight	30 g
Warranty	3-year limited
Care and Cleaning	Clean with a soft, dry cloth. Do not use solvents.
Safety	Avoid shocks, excessive humidity, and heat sources.
Spare Parts and Repairability	User-serviceable parts not available. Optional VGA cables available (P502 series).
Package Contents	Adapter, user manual

Frequently Asked Questions - U44406NVUC Tripp Lite

Which models are compatible with this adapter?

Models U444-06N-VU-C and U444-06N-VUB-C are covered. Check the label on your product to confirm.

Can I connect a VGA monitor with this adapter?

Yes, it allows connecting a VGA monitor via a USB-C port with a maximum resolution of 1920 x 1080 at 60 Hz.

Does this adapter support charging my computer?

Yes, the USB-C port on the adapter supports Power Delivery charging input up to 60 W (20 V 3 A).

What are the transfer speeds of the USB ports?

The USB-A and USB-C ports support USB 3.2 Gen 1 speeds up to 5 Gbit/s, backward compatible with previous generations.

Does this adapter work without a driver?

Yes, it is Plug and Play. No software or driver is required for most operating systems.

Can I use an Ethernet cable with this model?

No, models U444-06N-VU-C and U444-06N-VUB-C do not have an Ethernet port. Only models U444-06N-VGU-C and U444-06N-VGUB-C have one.

Which operating systems are compatible?

Windows, macOS, Linux, Chrome OS, and Android (with a USB-C host device) are compatible.

Can I connect multiple devices at the same time?

Yes, you can connect a VGA monitor, a USB-A device, and charge your device via the USB-C port simultaneously.

What is the warranty of this adapter?

Tripp Lite offers a 3-year limited warranty against defects in material and workmanship.

How to clean the adapter?

Use a soft, dry cloth to wipe the device. Avoid liquids and abrasive cleaners.

USER MANUAL U44406NVUC Tripp Lite

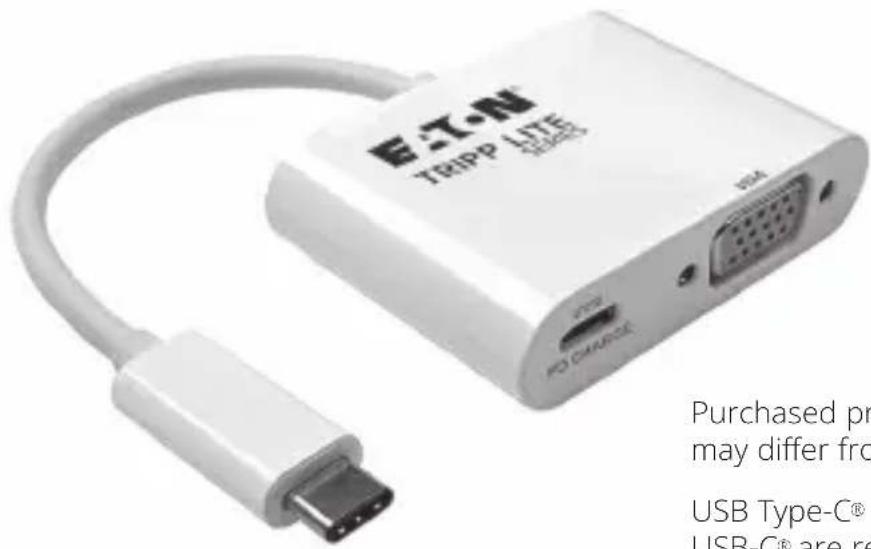

USB 3.2 Gen 1 USB-C to VGA Adapters

Models:

U444-06N-V-C

U444-06N-VB-C

U444-06N-VU-C

U444-06N-VUB-C

U444-06N-VGU-C

U444-06N-VGUB-C

Purchased product may differ from image.

USB Type-C® and

USB-C® are registered

trademarks of USB

Implementers Forum.

Espanol 9

Français 17

Deutsch 25

Italiano 33

Powering Business Worldwide

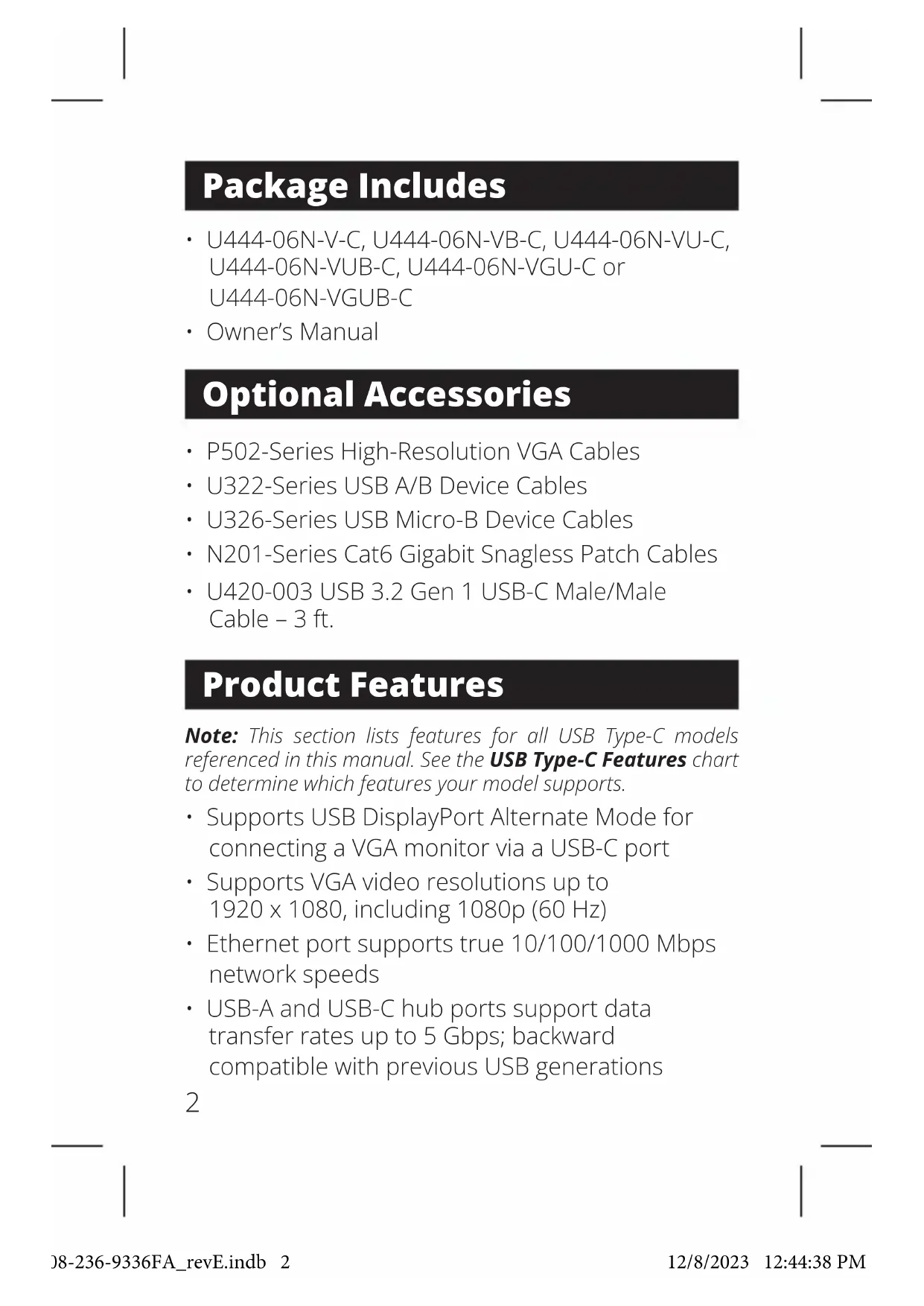

Package Includes

• U444-06N-V-C, U444-06N-VB-C, U444-06N-VU-C, U444-06N-VUB-C, U444-06N-VGU-C or U444-06N-VGUB-C
• Owner's Manual

Optional Accessories

P502-Series High-Resolution VGA Cables
U322-Series USB A/B Device Cables
U326-Series USB Micro-B Device Cables
- N201-Series Cat6 Gigabit Snagless Patch Cables
- U420-003 USB 3.2 Gen 1 USB-C Male/Male Cable - 3 ft.

Product Features

Note: This section lists features for all USB Type-C models referenced in this manual. See the USB Type-C Features chart to determine which features your model supports.

Supports USB DisplayPort Alternate Mode for connecting a VGA monitor via a USB-C port
Supports VGA video resolutions up to 1920 x 1080, including 1080p (60 Hz)
- Ethernet port supports true 10/100/1000 Mbps network speeds
- USB-A and USB-C hub ports support data transfer rates up to 5 Gbps; backward compatible with previous USB generations

2

Product Features

• USB-C port supports both data transfer and USB Power Delivery (PD) charging with power input up to 20V 3A (60W)
• Plug and play; no software or drivers required

USB Type-C Features

Models	U444-06N-V-C/ U444-06N-VB-C	U444-06N-VU-C/ U444-06N-VUB-C	U444-06N-VGU-C/ U444-06N-VGUB-C
VGA Port Y Y Y
USB-A Hub Port N Y Y
Gigabit Ethernet Port N N Y
USB-C Port Charging Support	Y Y Y
USB-C Port Data Support N Y N

Installation

Note: When the unit is connected to the USB-C port on your computer and to a network via Cat5e/6 cabling, a network connection will be automatically established. If no connection is made, you can manually establish one by going to your computer's network settings page. For example, on a Mac you would navigate to the Network section found in System Preferences, click the 'Assist Me' button to get to the Network Setup Assistant, then follow the prompts to establish a connection.

1. Connect the adapter's USB Type-C connector to the USB-C port on your laptop, tablet or other compatible device.
2. Connect the adapter's VGA port to the monitor's VGA port using a VGA cable (such as P502-Series VGA cables).
3. Charge your device by connecting its USB-C charger to the adapter's USB-C port.*
4. Connect a USB device to the adapter's USB-A hub port.*
5. Connect the adapter's RJ45 port to a network using a UTP cable (such as N201-Series Cat6 cables).**

*USB-C port for U444-06N-VU-C and U444-06N-VUB-C models support both data transfer and charging.

**See the USB Type-C Features chart for the features your product supports.

4

Specifications

Models	U444-06N-V-C/U444-06N-VB-C	U444-06N-VU-C/U444-06N-VUB-C	U444-06N-VGU-C/U444-06N-VGUB-C
Input Connectors
USB USB-C	(Male)	USB-C(Male)	USB-C(Male)
USB-C Port Charging Support	YYY
USB-C Port Data Support	NYN
Output Connectors
VGA VGA	(Female)	VGA(Female)	VGA(Female)
USB N/A USB-A		(Female)	USB-A(Female)
Ethernet N/A N/A RJ45			(Female)
Environmental
Operating Temperature 32°F to 113°F (0°C to 45°C)
Operating Humidity	10% to 85% RH, Non-Condensing
Storage Temperature 14°F to 158°F (-10°C to 70°C)
Storage Humidity 5% to 90% RH, Non-Condensing
Power Requirements
USB-C Charging Port	Supports up to 20V 3A (60W) Input
USB-A Port N/A Provides up to 5V 1A	to 5V 1A	(5W) Output

Warranty

3-YEAR LIMITED WARRANTY

We warrant our products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Warranty

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment.

Warranty

WEEE Compliance Information for Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton, they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Eaton has a policy of continuous improvement. Specifications are subject to change without notice.

E·T·N

Powering Business Worldwide

Eaton

1000 Eaton Boulevard Cleveland, OH 44122

United States Eaton.com

© 2023 Eaton

All Rights Reserved Publication No.

23-08-236/

93-36FA_RevE

December 2023

9336FA

Eaton is a registered trademark.

All trademarks are property of their respective owners.

8

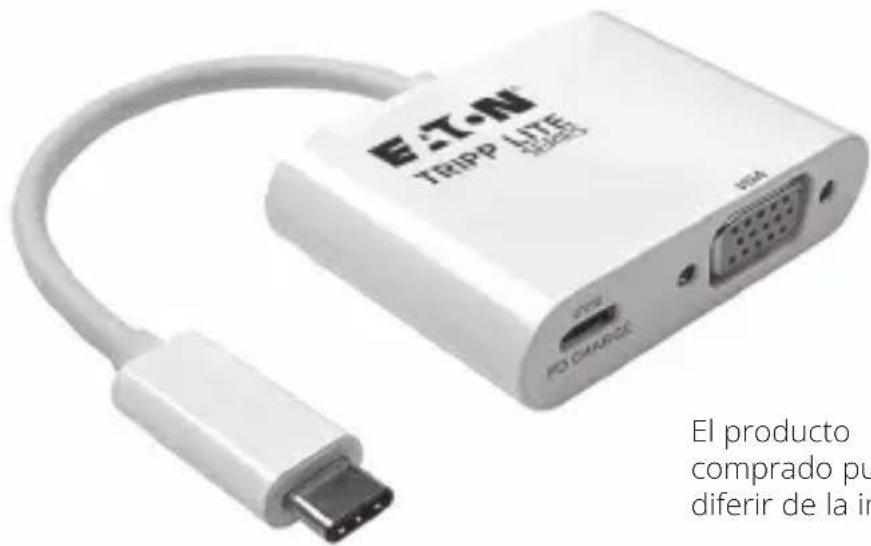

Adaptador de USB 3.2 Gen 1 USB-C a VGA

U444-06N-V-C

U444-06N-VB-C

U444-06N-VU-C

U444-06N-VUB-C

U444-06N-VGU-C

U444-06N-VGUB-C

English 1

Français 17

Deutsch 25

Italiano 33

Powering Business Worldwide

United States Eaton.com

Powering Business Worldwide

Im Paket enthalten

U444-06N-V-C, U444-06N-VB-C, U444-06N-VU-C, U444-06N-VUB-C, U444-06N-VGU-C oder U444-06N-VGUB-C
- Benutzerhandbuch

Optionales Zubehör

Powering Business Worldwide

Modelli	U444-06N-V-C/ U444-06N-VB-C	U444-06N-VU-C/ U444-06N-VUB-C	U444-06N-V90-744/ U444-06N-VGB-B
Porta VGA S S S
Porta hub USB-A N S S
Porta Gigabit Ethernet N N S
Supporto per la ricarica della porta USB-C	S S S
Supporto dati della porta USB-C	N S N

Installazione
