USER MANUAL U4600044AC Tripp Lite

USB 3.2 Gen 1 USB-C to USB-A Hub with Charging

Models:

U460-004-4A-C

U460-004-4AB-C

USB Type-C® and

USB-C ^6 are registered

trademarks of USB

Implementers Forum.

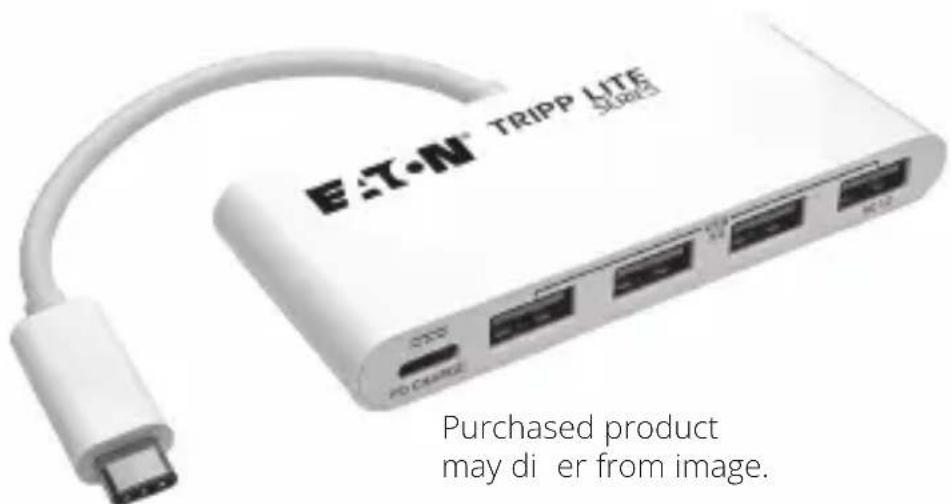

Purchased product may differ from image.

Espanol 5

Français 9

Deutsch 13

Italiano 17

Powering Business Worldwide

Package Includes

• U460-004-4A-C (White) or, U460-004-4AB-C (Black)
• Owner's Manual

Optional Accessories

U322-Series USB 3.2 A/B Device Cables
U326-Series USB 3.0 Micro-B Device Cables
- U420-003 USB 3.1 Gen 1 USB-C Male/Male Cable - 3 ft.

Product Features

• Portable design with built-in cable is perfect for travel and stores easily into a laptop bag
• USB-A ports support data transfer rates up to 5 Gbps and are compatible with previous USB generations
• Dedicated 5V/1.5A USB port provides fast charging power to mobile devices
• USB-C charging port supports power input up to 20V 3A (60W)
• Plug-and-play - no software or drivers required

Installation

1. Connect the unit's USB Type-C connector to the USB-C port on your laptop, tablet or personal electronic device.
2. Connect up to four USB devices to the unit's USB-A ports.
3. Charge your device by connecting the unit's USB-C port to your device's USB charger.

Specifications

Input Connectors
USB USB-C (Male)
Charging USB-C (Female)
Output Connectors
USB-A USB-A (Female)	x4
Environmental
Operating Temperature	32 to 113°F (0 to 45°C)
Operating Humidity 10% to 90% RH, Non-Condensing
Storage Temperature	14 to 158°F (-10 to 70°C)
Storage Humidity 10% to 90% RH, Non-Condensing
Power Requirements
USB-C Charging Port S	Supports up to 20V 3A (60W) Input

Warranty

3-YEAR LIMITED WARRANTY

We warrant our products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Triplite.Eaton.com/support/productreturns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

FCC Notice, Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment.

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Eaton has a policy of continuous improvement. Specifications are subject to change without notice.

Pouwnng Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

United States

Eaton.com

93374B

© 2023 Eaton

All Rights Reserved

Publication No.

23-08-352 /

93-374B_RevE

September 2023

Eaton is a registered trademark.

All trademarks are property of their respective owners.

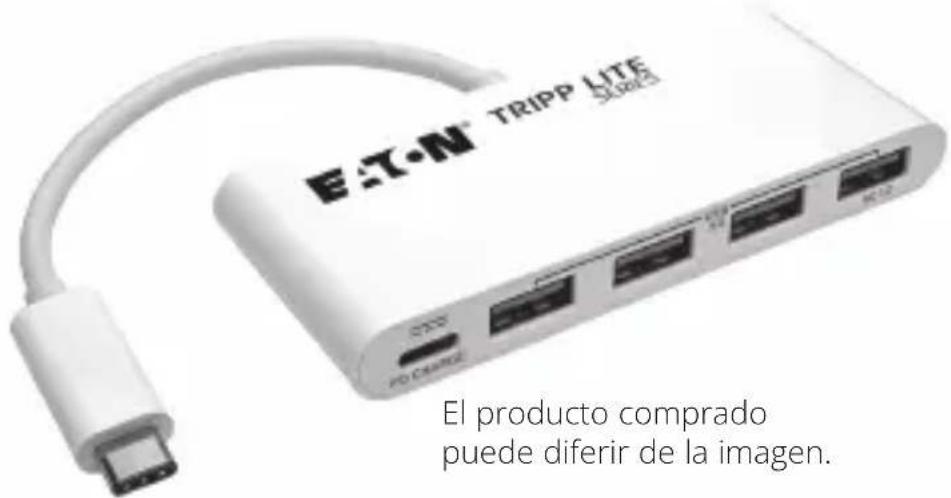

Hub USB 3.2 Gen 1 USB-C a USB-A con Carga

Modelos:

U460-004-4A-C

U460-004-4AB-C

USB Type-C® y USB-C®

son marcas

comerciales

*

Implementers Forum

Powering Business Worldwide

El paquete incluye

• U460-004-4A-C (Blanco) o U460-004-4AB-C (Negro)
• Manual del Propietario

Powersing Business Worldwide

Eaton

Powering Business Worldwide

Poeening business worldwide

Eaton

Powering Business Worldwide

Im Paket enthalten

Powering Business Worldwide

Pouwo ng Business Worldwide

Eaton

1000 Eaton Boulevard

Cleveland, OH 44122

Stati Uniti

Eaton.com

93374B

© 2023 Eaton
