| Product Type | USB-C to HDMI Adapter |
| Brand | Tripp Lite |
| Model | U444-06N-HD8KW |
| Input Connector | USB-C (Male) |
| Output Connector | HDMI (Female) |
| Maximum Resolution | 7680 x 4320 (8K) at 30 Hz |
| Supported Video Formats | 8K/30 Hz YCbCr 4:2:0, 4K/120 Hz YCbCr 4:4:4 |
| HDCP Compatibility | HDCP 2.3 and Earlier |
| Color Depth | 8, 10, or 12 bits (36 bits max) |
| DSC | DSC 1.1/1.2a |
| HDR | HDR10+ |
| Power | USB Bus Power |
| Cable Length | 110 mm (4.33 in) |
| Dimensions (L x W x H) | 41.85 x 37 x 15.5 mm |
| Operating Temperature | 0 to 45 °C |
| Storage Temperature | -10 to 70 °C |
| Relative Humidity | 10 to 90% RH |
| Warranty | 3 years (limited) |
| Package Contents | Adapter, Quick Start Guide |
| System Compatibility | USB-C or Thunderbolt 3 device with DisplayPort Alternate Mode |
| Installation | No driver required, plug-and-play |
Frequently Asked Questions - U44406NHD8KW Tripp Lite
User questions about U44406NHD8KW Tripp Lite
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Dongle in PDF format for free! Find your manual U44406NHD8KW - Tripp Lite and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. U44406NHD8KW by Tripp Lite.
USER MANUAL U44406NHD8KW Tripp Lite
USB Type-C and USB-C are registered trademarks of USB Implementers Forum
Español 9 • Français 16 Русский 23 • Deutsch 30
WARRANTY REGISTRATION
Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!
tripplite.com/warranty
Copyright © 2022 Tripp Lite. All rights reserved.
Product Features
- Connect to an 8K HDMI monitor via the USB-C or Thunderbolt™ 3 port on your laptop, tablet or other device
- Supports USB DisplayPort Alternate Mode, allowing you to transmit an audio/video signal via the USB-C port on your smartphone, tablet, Ultrabook or computer
• Supports video resolutions up to 7680 x 4320 (8K) @ 30 Hz, as specified in HDMI 2.0
• Supports 8K/30 Hz at YCbCr 4:2:0 and 4K/120 Hz at YCbCr 4:4:4 - Compatible with HDCP 2.3 and previous HDCP versions
• Supports DSC 1.1/1.2a decoder
• Supports 8 / 10 / 12 color depth (36 Bit) - Plug-and-play – no software or drivers required to operate
Package Contents
• U444-06N-HD8KW
- Quick Start Guide
System Requirements
- USB Type-C or Thunderbolt 3 device that supports USB DisplayPort Alternate Mode
- HDMI-enabled display
Optional Accessories:
• P568-XXX-8K6-Series 8K HDMI Cables
• P568-Series High-Speed HDMI Cables
Installation
- Connect the USB Type-C connector on the adapter to the USB-C port on your laptop or computer.
- Using an HDMI cable (such as Tripp Lite's P568-XXX-8K6 Series 8K HDMI cables), connect the HDMI port on the adapter to an HDMI monitor.
- The video image will appear on the add-on monitor. Customize how video is displayed using your device's display settings.
Specifications
| Connectors | |
| Input USB Type-C (Male) | |
| Output HDMI (Female) | |
| Video | |
| Maximum Resolution 7 | 680 x 4320 @ 30 Hz (8K) |
| HDCP 2.3 | |
| Color Depth 8 / 10 / 12 | bits (36-bit) |
| Pixel Format RGB/YCb | Cr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| DSC DSC 1.1/1.2a | |
| HDR HDR10+ | |
| Environmental | |
| Operating Temperature Range | 32°F to 113°F (0°C to 45°C) |
| Storage Temperature Range | 14°F to 158°F (-10°C to 70°C) |
| Relative Humidity Range | 10% to 90% RH |
| Power Bus-Powered | |
| Physical | |
| Cable Length 4.33 in. (110 mm) | |
| Unit Dimensions [H x W x D] | 0.61 x 1.46 x 1.65 in. (15.5 x 37 x 41.85 mm) |

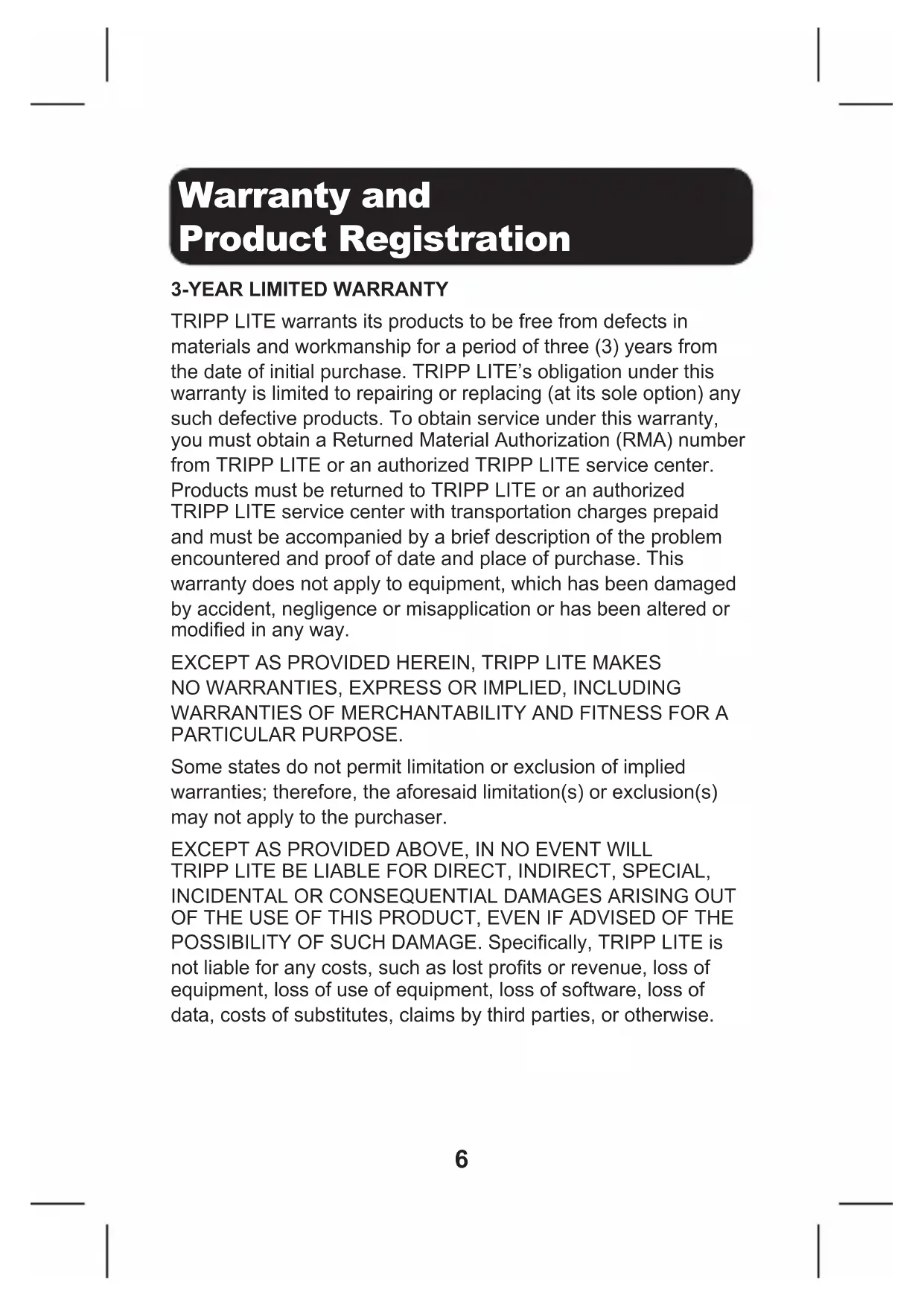

Warranty and Product Registration
3-YEAR LIMITED WARRANTY
TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. TRIPP LITE's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL TRIPP LITE BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, TRIPP LITE is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
Warranty and Product Registration
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warranty and Product Registration
Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.
WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:
- Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
- Send the new equipment back for recycling when this ultimately becomes waste
Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
