| Product Type | USB to RS-232 Serial Adapter |
| Brand | Tripp Lite |
| Model | U209-005-COM |
| Interface | USB 2.0 (backward compatible with USB 1.1) |
| Serial Port | RS-232, DB9 male |
| Chip | FTDI |
| Max Data Rate | 230 Kb/s |
| COM Retention Function | Yes |
| Power | USB bus (no external power needed) |
| Shielding | Double shielding, EMI/RFI reduction |
| Power Management | Remote wake-up support |
| Supported Operating Systems | Windows, Mac, Linux |
| System Requirements | Computer with available USB port |
| Maintenance | Wipe with a dry, lint-free cloth |
| Safety | Use in a dry, temperate environment |
| Cable Length | Approximately 1.5 m (estimated) |
| Warranty | 3-year limited |
| Compliance Information | Compliant with WEEE directives |
Frequently Asked Questions - U209005COM Tripp Lite
User questions about U209005COM Tripp Lite
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Network adapter in PDF format for free! Find your manual U209005COM - Tripp Lite and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. U209005COM by Tripp Lite.
USER MANUAL U209005COM Tripp Lite

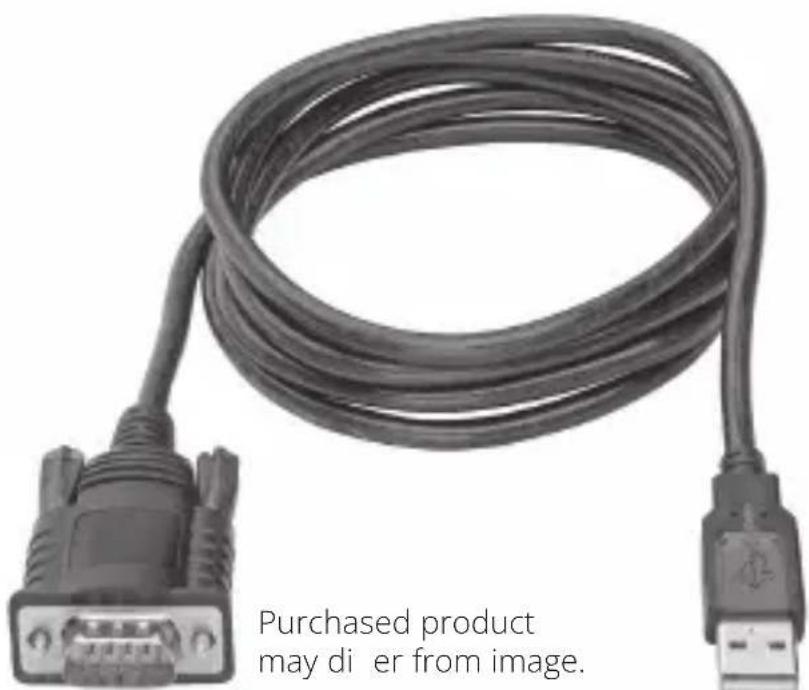

FTDI USB to Serial Adapter Cable with COM Retention
Model: U209-005-COM
Espanol 9
Francais 16
Deutsch 23
Italiano 30
Package Contents
U209-005-COM
- Owner's Manual
Product Features
- Add a RS-232 serial port via the USB port on your laptop, tablet or computer
COM retention allows the same COM port values to be reassigned to each port in case a cable is disconnected or the system is rebooted - FTDI chipset supports advanced features and compatibility
Supports data transfer rates up to 230Kbps
Supports USB 2.0 specifications; backwards compatible with USB 1.1
Supports remote wake up and power management - Premium double-shielded cable eliminates cross-talk and reduces EMI/RFI interference
- No external power required
System Requirements
- Computer with an available USB port
- Compatible with Windows, Mac and Linux operating systems
Installation
- Power on your computer and retrieve the drivers from the U209-005-COM product page on Triplite.Eaton.com/support.
- Launch the driver that corresponds with your product and follow the prompts until installation is completed.
- Your computer will detect the adapter and assign it a COM port upon completing the installation.

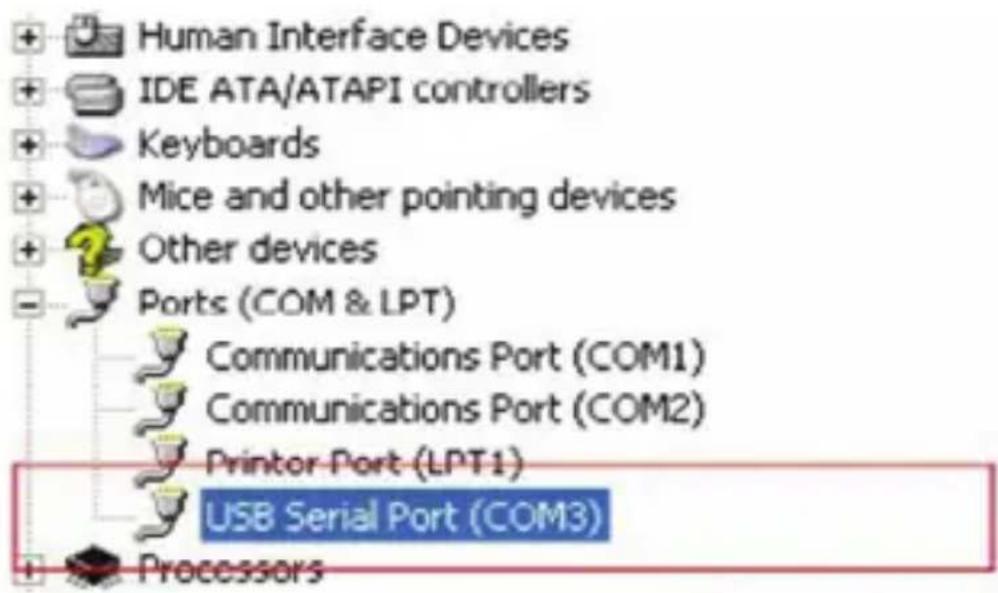

- To verify that your adapter has been successfully installed, navigate to your computer's Control Panel and open the Device Manager screen. The adapter will appear in the Ports section, with its assigned COM port next to it.
Installation
Installation

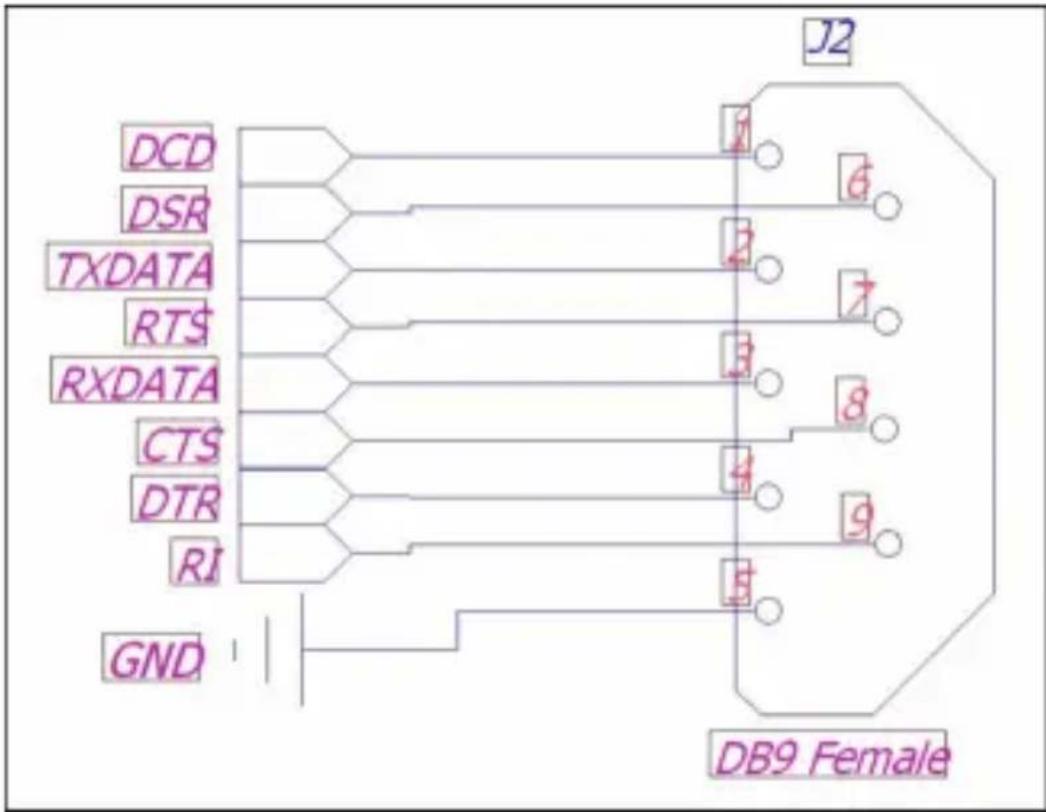

Pinout
Warranty
3-Year Limited Warranty
We warrant our products to be free from defects in materials and workmanship for a period of three (3) years from the date of initial purchase. Our obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. Visit Tripplite.
Eaton.com/support/product-returns before sending any equipment back for repair. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.
EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTYES, EXPRESS OR IMPLIED, INCLUDING WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL EATON BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, we are not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
Warranty
FCC Notice, Class B
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications to this equipment not expressly approved by Eaton could void the user's authority to operate this equipment.
Warranty
WEEE Compliance Information for Customers and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Eaton they are entitled to:
- Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
- Send the new equipment back for recycling when this ultimately becomes waste
Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
Eaton has a policy of continuous improvement.
Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.
