N48LSS16X16 - Network connection panel Tripp Lite - Free user manual and instructions

Product Type	MPO/MTP Network Patch Panel for Singlemode Fiber Optic
Brand	Tripp Lite
Model	N48LSS16X16
Network Architecture	Spine-and-leaf with 16 spine ports (front) and 16 leaf ports (rear)
Form Factor	1U (rack units), compatible with standard EIA 19-inch rack
Dimensions (W x D x H)	48.26 cm x 30.5 cm x 4.4 cm (19 in x 12 in x 1.73 in)
Weight	Approximately 2.5 kg
Material	Steel and ABS plastic
Power	None (passive component)
Key Features	MPO/MTP fiber optic interconnection for spine-and-leaf architecture, reducing cable clutter, front and rear fiber management
Ports	16 MPO/MTP ports front (spine), 16 MPO/MTP ports rear (leaf)
Cable Management System	Adjustable front and rear cable management system
Mounting	Rack mounting with extendable side brackets and screws
Maintenance and Cleaning	Use a dry or slightly damp lint-free cloth to clean the exterior. Do not use harsh solvents.
Safety	Follow mounting instructions for standard rack. Do not block ventilation openings.
Warranty	Limited lifetime warranty covering defects in materials and workmanship
General Information	Designed for data centers and high-density networks. Compatible with MPO/MTP singlemode connectors.

Frequently Asked Questions - N48LSS16X16 Tripp Lite

What is the main function of the N48LSS16X16 panel?

The N48LSS16X16 panel allows MPO/MTP fiber optic interconnection in a spine-and-leaf architecture, replacing traditional cross-connects and reducing cable clutter.

How many ports does the N48LSS16X16 have?

It is equipped with 16 MPO/MTP ports on the front (spine ports) and 16 MPO/MTP ports on the rear (leaf ports), for a total of 32 ports.

What type of fiber optic is compatible?

This panel is designed for singlemode fiber optic with MPO/MTP connectors.

What is the height of the panel in a rack?

The panel occupies 1U (one rack unit) and installs in a standard 19-inch rack (48.26 cm).

How to install the panel in a rack?

Proceed in three steps: 1) extend the front and rear side brackets, 2) orient the cable management systems, 3) secure the panel in the rack with the provided screws.

Does the panel require power?

No, the N48LSS16X16 panel is a passive component that does not require any power.

What is the warranty offered by Tripp Lite?

Tripp Lite offers a limited lifetime warranty covering defects in materials and workmanship. For details, see the manual.

How to clean the patch panel?

Use a lint-free cloth dry or slightly damp. Do not use harsh or abrasive chemicals.

What models are available in this series?

The models are the N48LSS-16X16 (your model) and the N48LSS-32X32 which offers 32 spine ports and 32 leaf ports.

Can I use this panel for life support applications?

No, Tripp Lite does not recommend using this equipment for life support devices where failure could compromise the safety or effectiveness of the device.

USER MANUAL N48LSS16X16 Tripp Lite

Spine-and-Leaf Singlemode MPO/MTP Panels, 1U

Models: N48LSS-16X16, N48LSS-32X32

Español 5 • Français 9 • Русский 13 • Deutsch 17

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!

tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

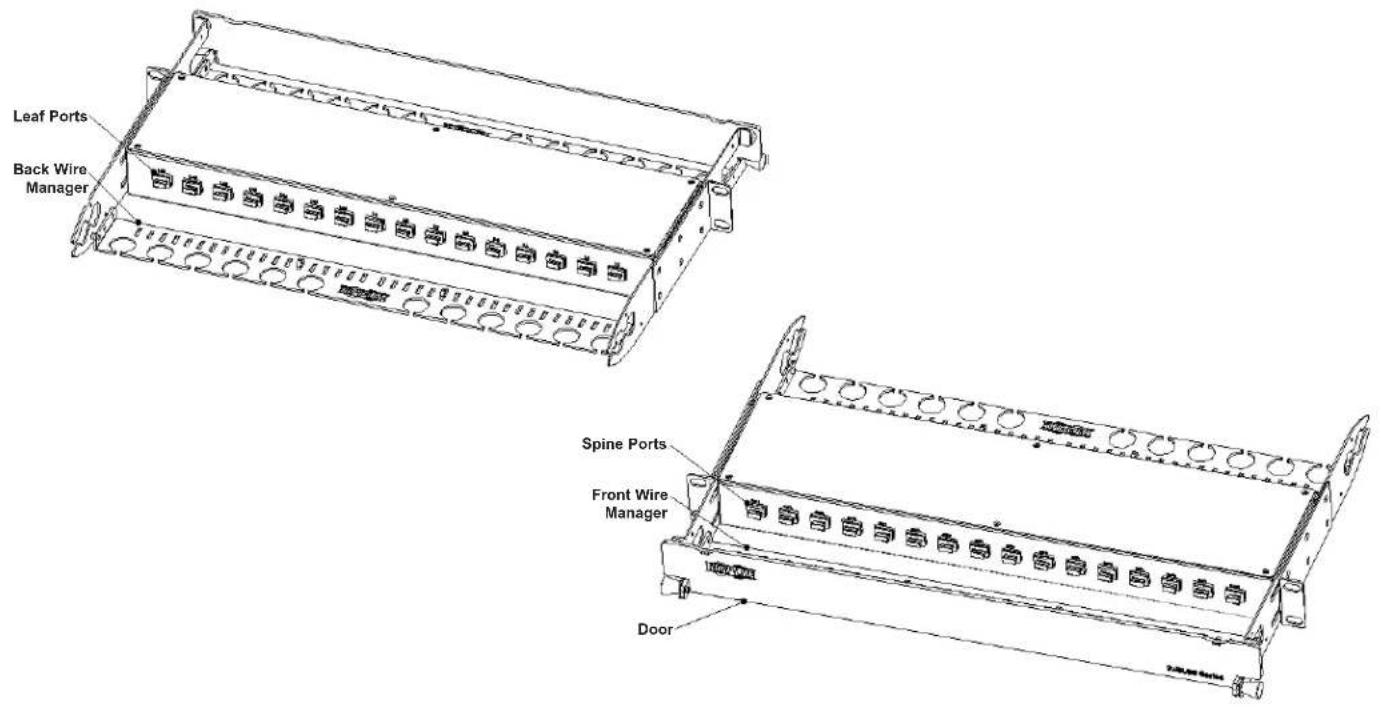

Main Components

The N48LSS-16X16 and N48LSS-32X32 1U network panels are designed for spine-and-leaf architecture, which replaces a standard MPO/MTP-to-LC cross-connect with MPO/MTP ports and helps eliminate significant rack clutter. Spine ports in the front of the panel mate with a spine switch, and leaf ports in the rear mate with a leaf switch. Main components of the panels are shown below:

Leaf Ports Back Wire Manager Spine Ports Front Wire Manager Door

Installation

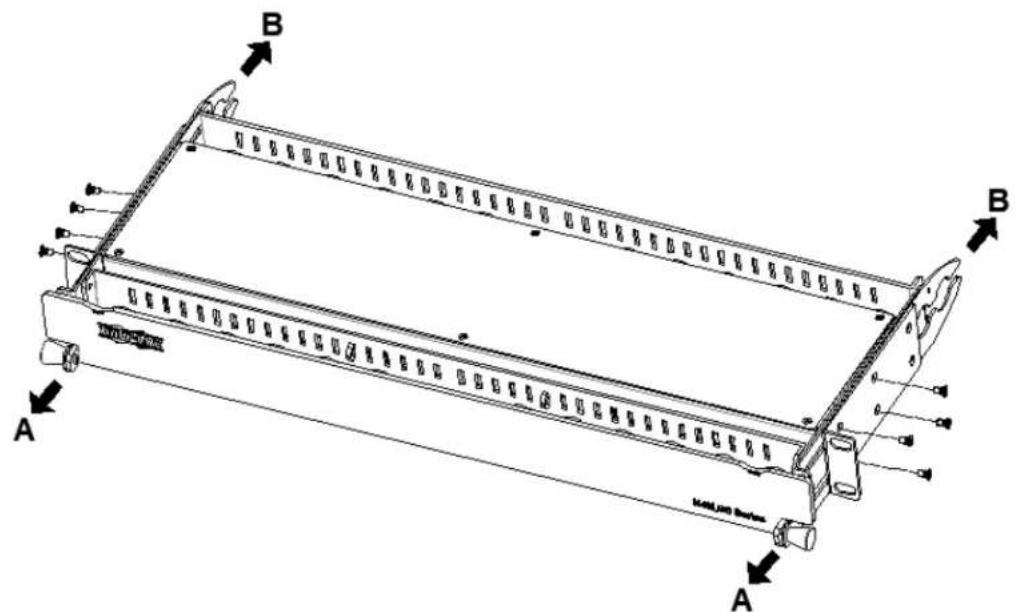

Step 1: Extend the front and back side brackets, and secure the side screws.

A B B A LADJ 2001 Server

Installation

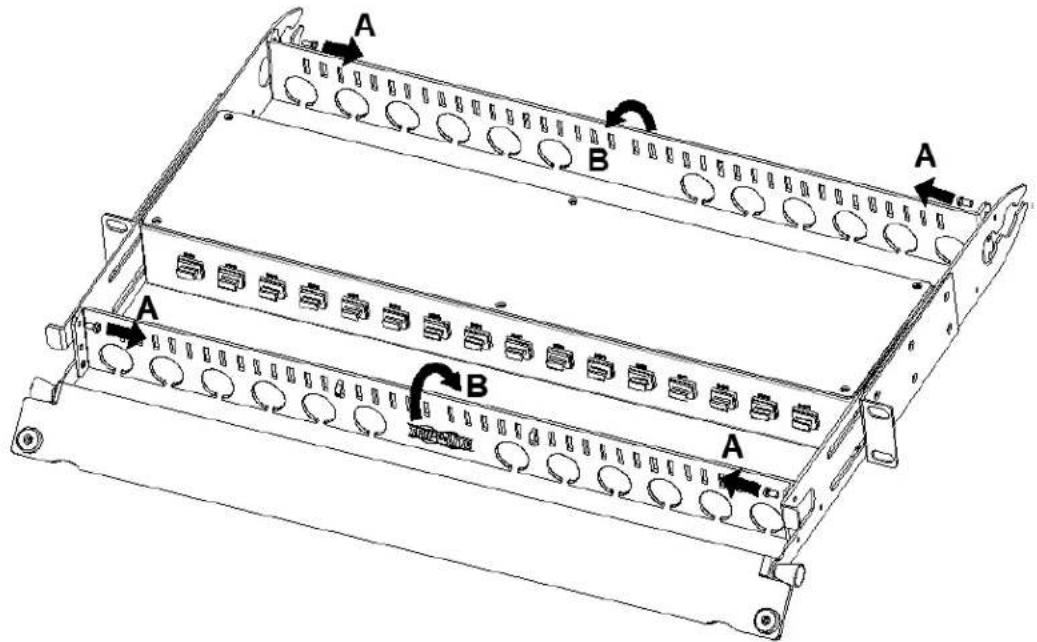

Step 2: Remove screws, rotate the front and back wire manager, and then tighten the screws.

A B A A B A

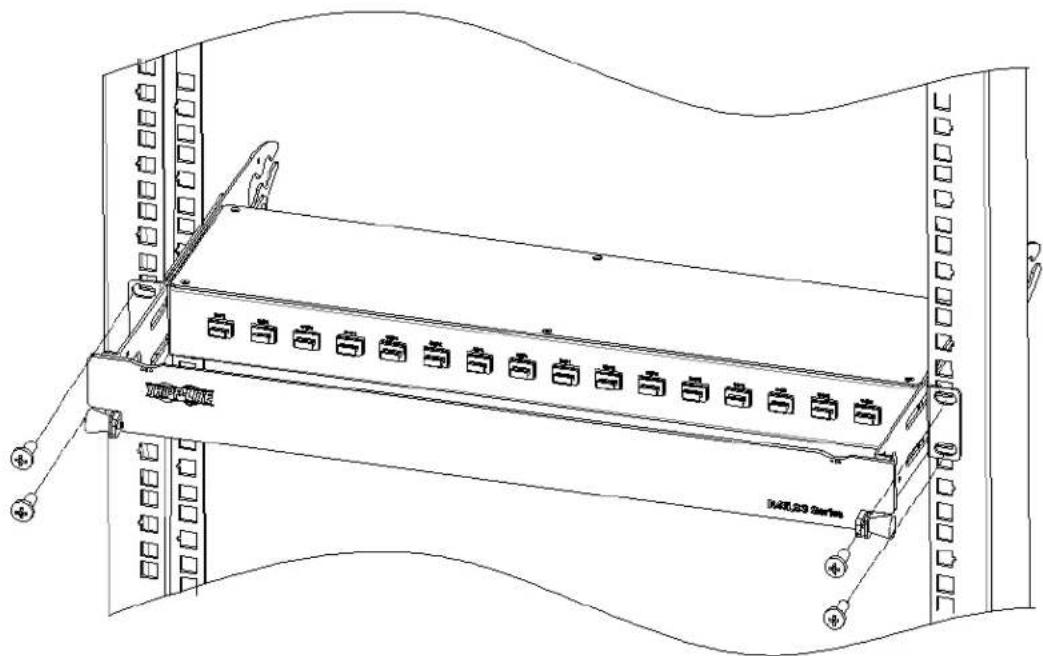

Step 3: Mount the panel into an EIA-standard 19-inch rack, and secure the screws.

Line drawing of a server rack unit with labeled ports and connectors (no text or symbols beyond labels)

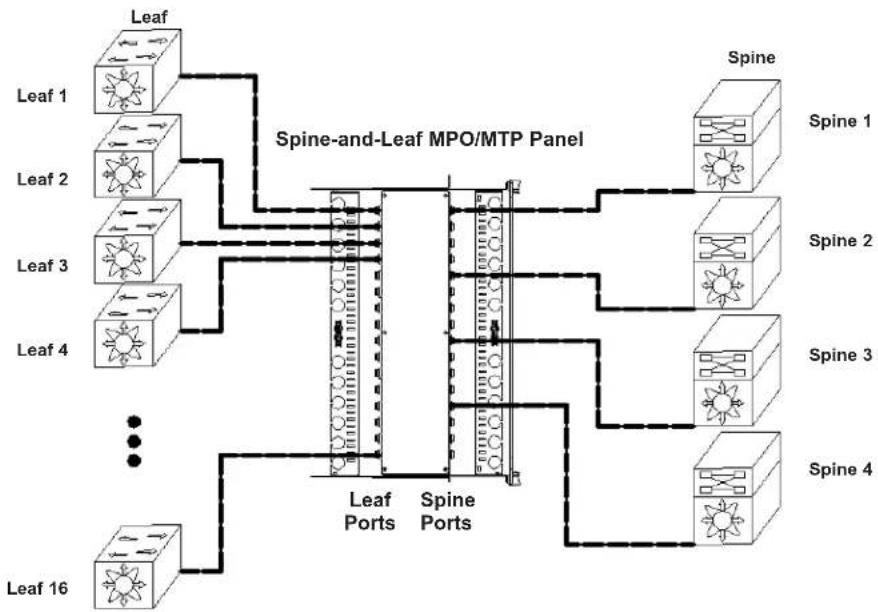

Network Mapping

Warranty and Product Registration

Limited Lifetime Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for its lifetime. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion. Service under this Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: Tripp Lite, 1111 W. 35th St., Chicago, IL 60609. Seller will pay return shipping charges.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

*No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21-06-215·93-3F64 RevA

Modelos: N48LSS-16X16, N48LSS-32X32

English 1 • Français 9 • Русский 13 • Deutsch 17

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609, EE. UU. • tripplite.com/support

Line drawing of a server rack with labeled components (no text or symbols beyond labels)

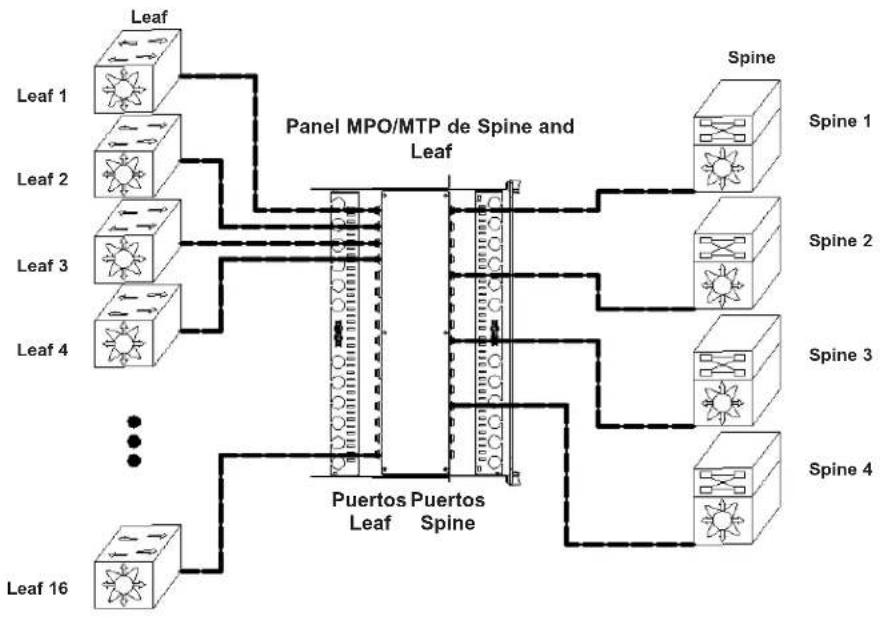

Mapeo de la Red

Garantía

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Line drawing of a server rack unit with labeled ports and connectors (no text or symbols beyond labels)

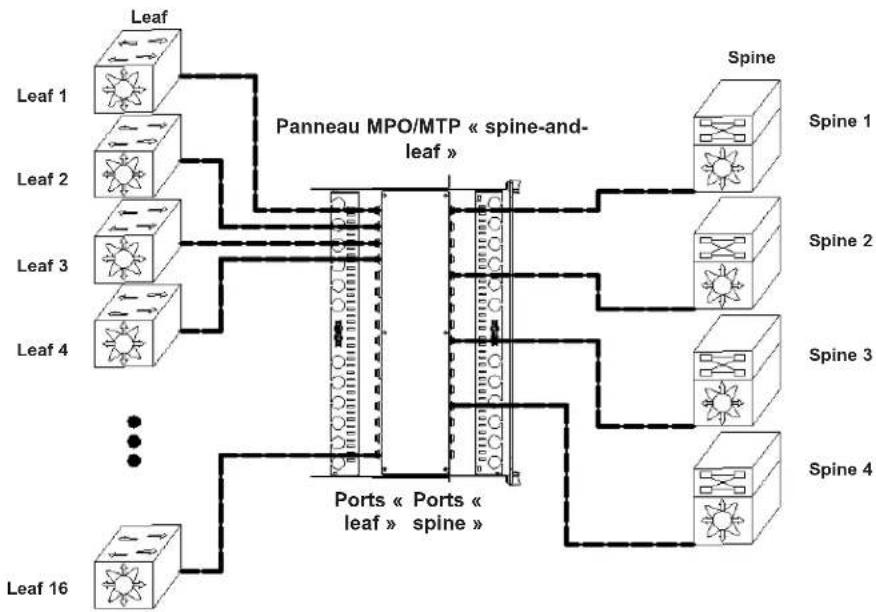

Schéma du réseau

Garantie

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21-06-215 93-3F64 RevA

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Line drawing of a server rack unit with labeled ports and connectors (no text or symbols beyond labels)

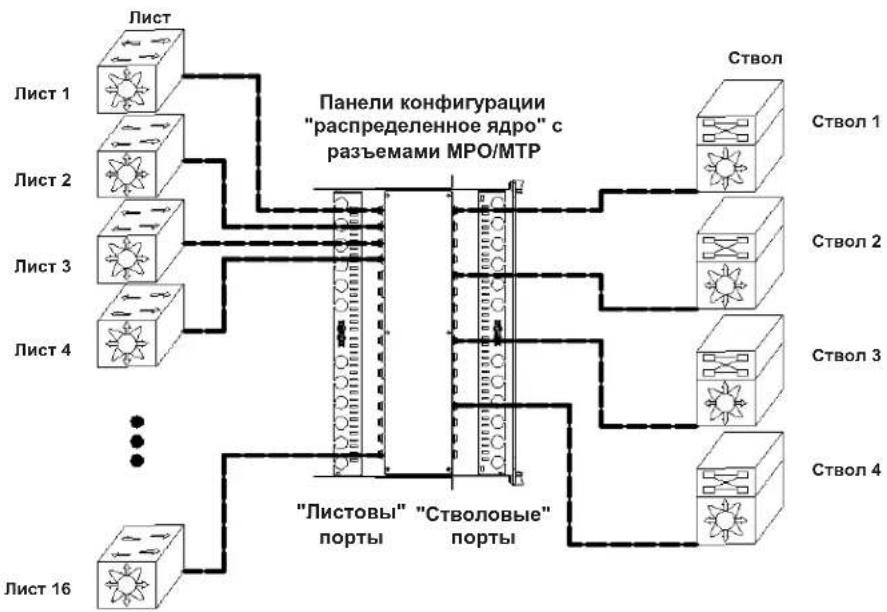

Топология сети

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21-06-218·93-3F84_RevA

Bedienungsanleitung

Spine-and-Leaf Singlemode MPO/MTP-Panels, 1-HE

Modelle: N48LSS-16X16, N48LSS-32X32

English 1 • Español 5 • Français 9 • Русский 13

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Technical diagram of a dual-chamber electronic device with labeled ports A and B, showing internal structure and mounting points.

Line drawing of a server rack with labeled components (no text or symbols beyond labels)

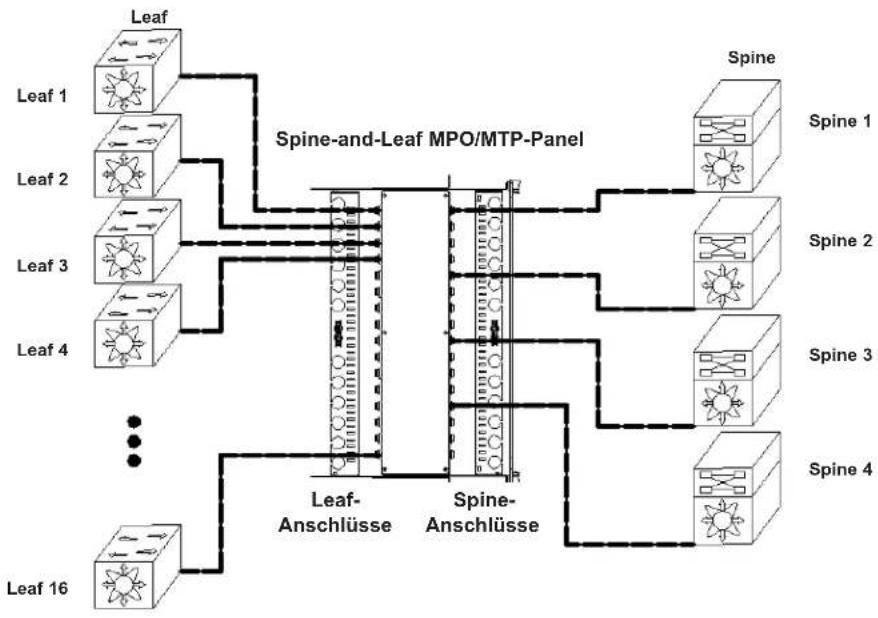

Netzwerkzuordnung

Garantie

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

21-06-218·93-3F54 RevA
