N252024SHK - Network Equipment Tripp Lite - Free user manual and instructions

Product Type	Patch Panel
Brand	Tripp Lite
Model	N252-024-SH-K
Category	Network Hardware
Form Factor	1U (19-inch rackmount)
Number of Ports	24 ports
Connector Type	Krone IDC
Category	Cat6
Cable Type	STP (shielded)
Chassis Material	Steel
Dimensions (W x H x D)	48.3 x 4.4 x 10 cm
Weight	1.2 kg
Power	None (passive)
Operating Temperature	0 to 50 °C
Relative Humidity	5 to 95% non-condensing
Key Features	Termination and organization of network cables, grounding
Warranty	Limited Lifetime Warranty
Included Accessories	Cable ties, grounding strap
Installation	19-inch rack mounting
Safety	Grounding required
Maintenance	Clean with a dry cloth
Repairability	Not user-serviceable

Frequently Asked Questions - N252024SHK Tripp Lite

What type of cable to use with this patch panel?

Use STP (shielded) or F/FTP cables for optimal termination. UTP cables are not recommended.

How to properly install the ground wire?

Strip the jacket 50 mm, unbraid the braid or foil, and ensure the ground wire makes good contact with the back panel. Wrap the ground wire at least twice around the foil.

Is this panel compatible with a standard rack?

Yes, it is 1U form factor and mounts in any standard 19-inch rack.

What punch down tool to use?

Use a punch down tool compatible with Krone IDC connectors with a low force setting to avoid damaging contacts.

Can I use RJ11 (6P) cables?

No, RJ11 plugs must not be inserted into RJ45 ports. Use only RJ45 connectors.

How to secure cables after termination?

Use the included nylon cable ties to secure cables to the built-in cable manager. Do not overtighten the ties.

What is the recommended strip length?

Remove about 50 mm of the outer jacket. For the metallic foil, remove about 2 mm of the exposed length.

Is grounding mandatory?

Yes, for safety and performance reasons, the panel must be grounded via the included grounding strap.

What is the warranty on this product?

Tripp Lite offers a limited lifetime warranty covering defects in materials and workmanship.

How to clean the patch panel?

Use a dry, lint-free cloth to remove dust. Do not use chemicals or liquids.

USER MANUAL N252024SHK Tripp Lite

24-Port Cat6 Krone IDC STP 1U Patch Panel

Model: N252-024-SH-K

Español 9 • Français 17 • Русский 25

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a \$100 value!

www.tripplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2018 Tripp Lite. All rights reserved.

Installation

1 Prepare Cables.

S/FTP Cable

Remove approximately 50 mm of cable sheath.

Pure diagram of a cable or wire with no text, numbers, or symbols

Roll the exposed braid back along the cable sheath.

Where a foil screen is present, remove approximately 2 mm of the exposed length.

Cross-sectional diagram of a multi-core cable with twisted insulation (no text or labels)

Separate the conductors.

F/FTP Cable

Remove approximately 50 mm of cable sheath.

Diagram of a mechanical tool or drill bit with an arrow indicating direction (no text or symbols present)

Roll the exposed foil back along the cable sheath.

Where a foil screen is present, remove approximately 2 mm of the exposed length.

Cross-sectional diagram of a multi-core cable with twisted insulation (no text or labels)

Wrap the drain wire at least twice around the foil. Separate the conductors.

Installation

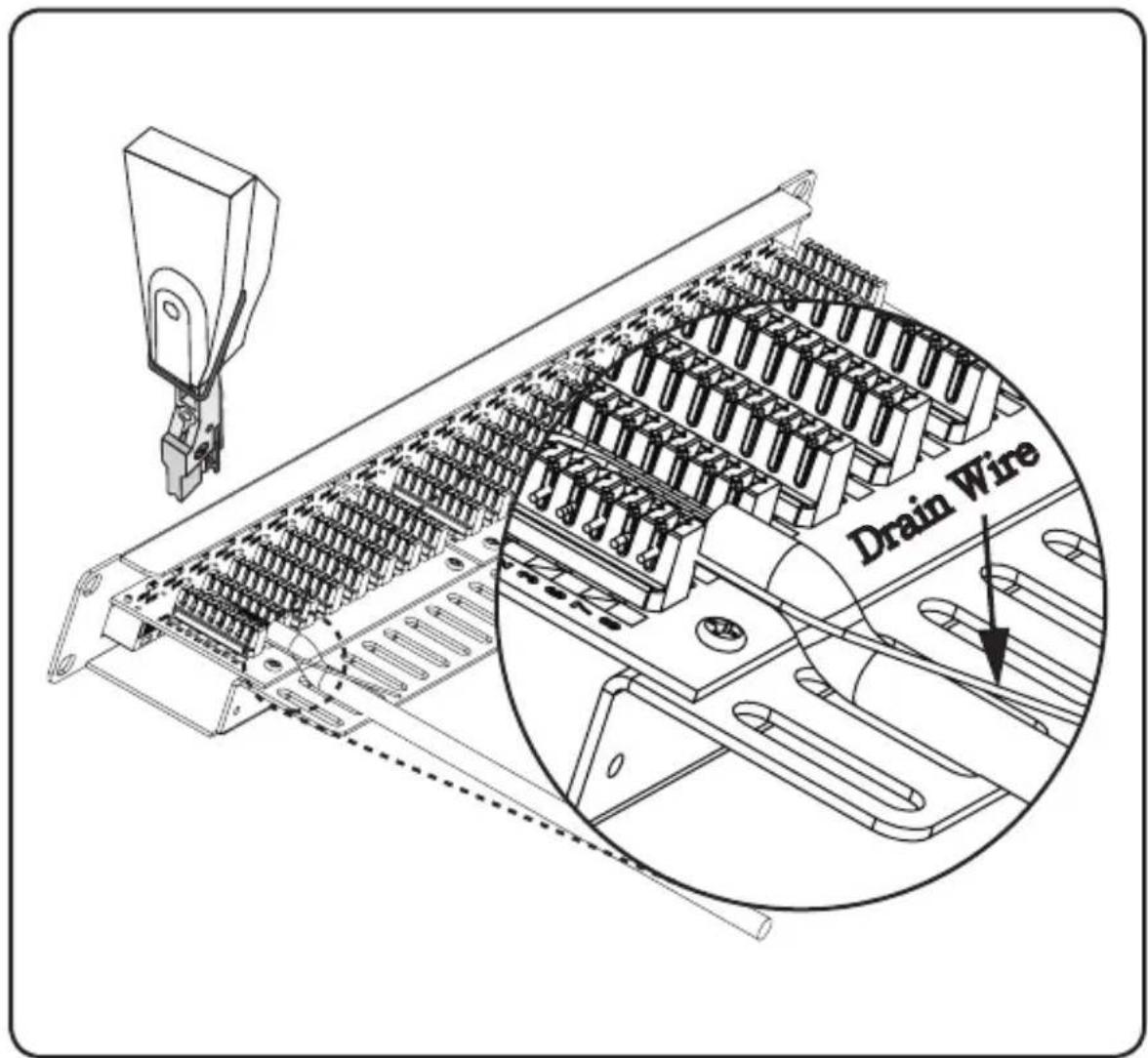

2 Seat each wire into the IDC slots according to the color scheme map. Punch down with a proper impact tool.

Installation

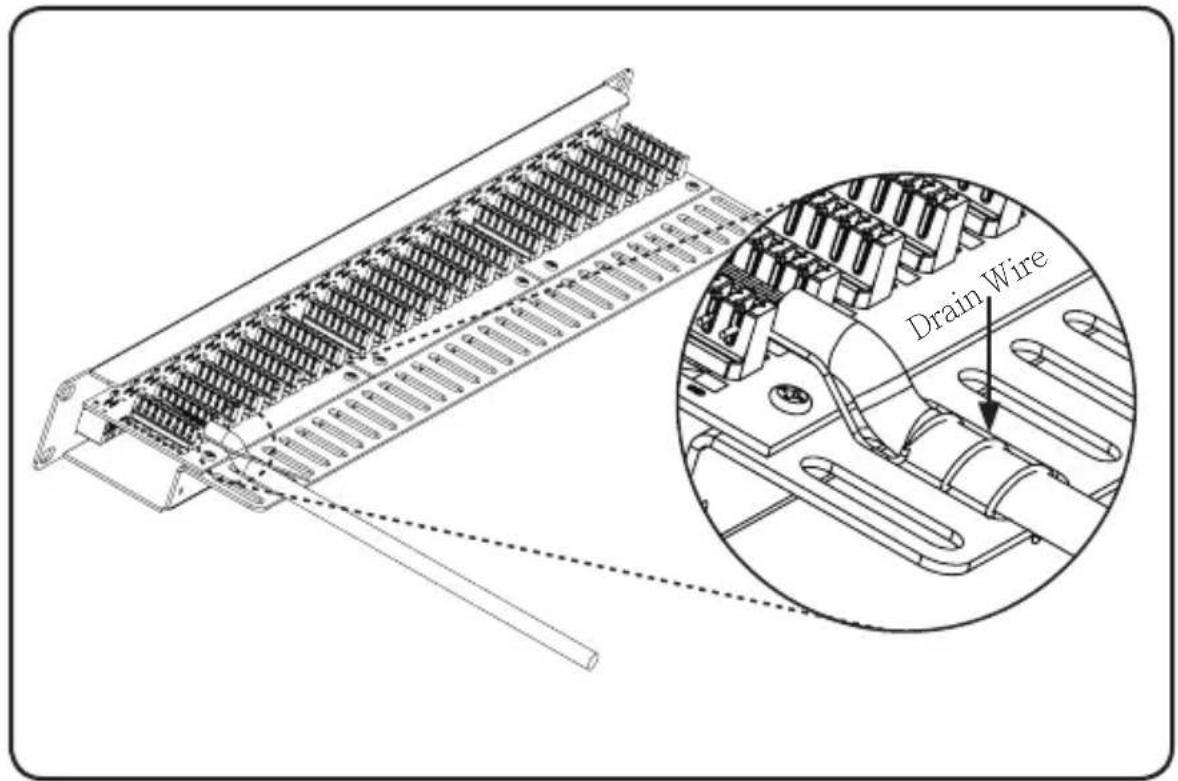

3 Make sure the drain wire has good contact with the rear panel.

Installation

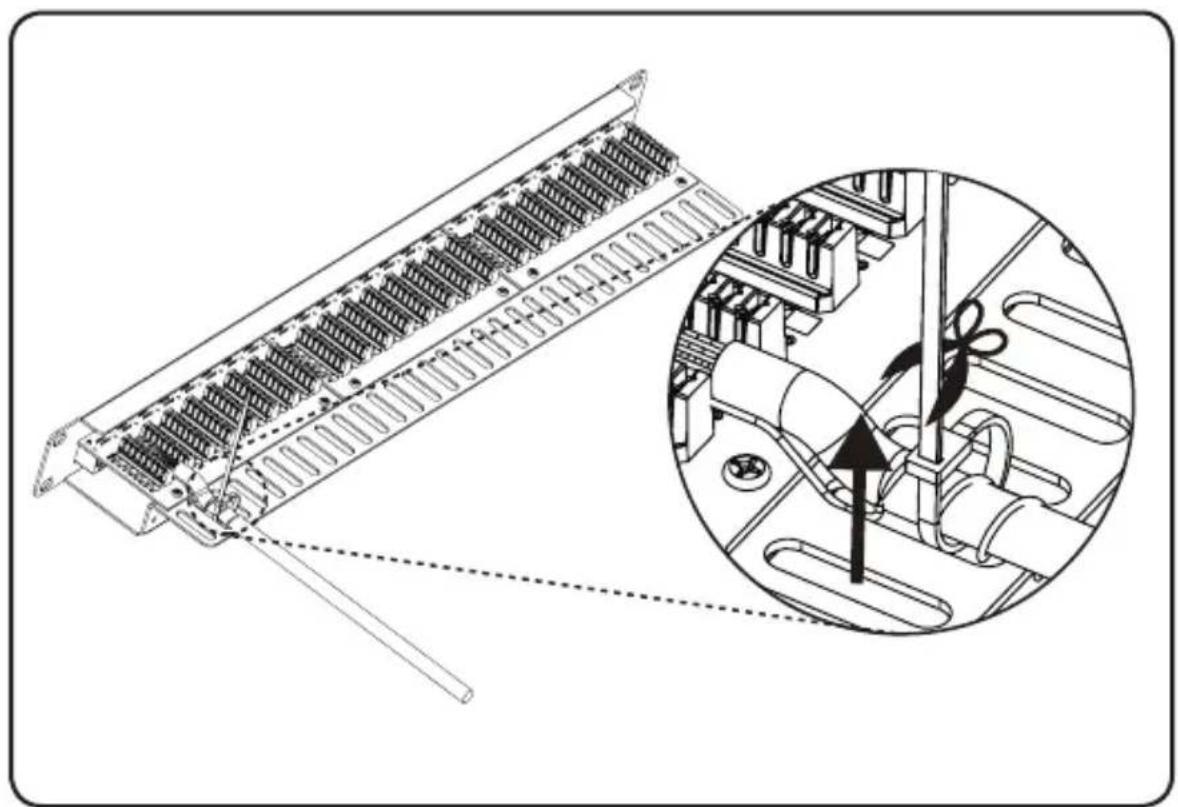

4 Use nylon cable ties to secure the bulk cables to the cable manager.

Cut off all excess straps.

Note: Do not over-tighten the cables.

Technical illustration of a server rack with an inset showing a close-up of internal components (no text or symbols)

Installation

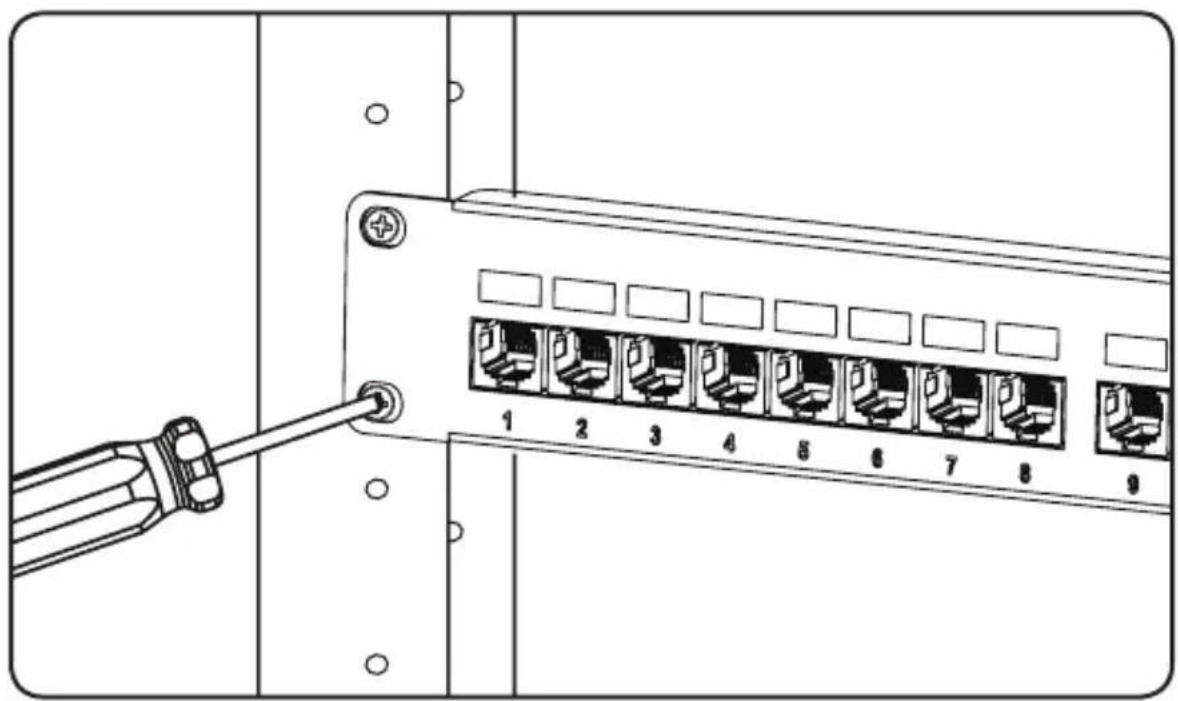

5 Attach the patch panel to a rack or cabinet.

Diagram of a network switch device with multiple ports and a cable inserted, showing no text or symbols on the main components.

Installation

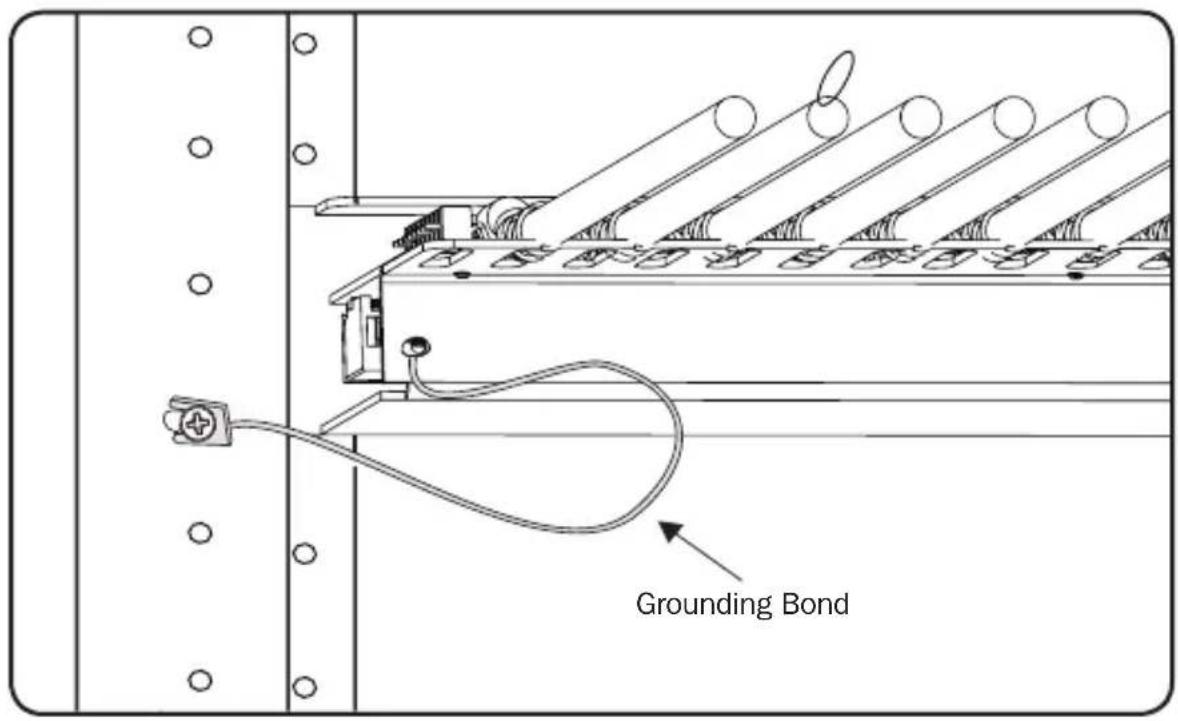

6 Attach the panel's grounding bond to the rack or cabinet.

Notes:

• When terminating cables onto the patch panel, set your impact tool to low impact.
• Do not insert RJ11 6P plug.

Warranty and Product Registration

Lifetime Limited Warranty

Tripp Lite warrants its products to be free from defects in materials and workmanship for life. Tripp Lite's obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from Tripp Lite or an authorized Tripp Lite service center. Products must be returned to Tripp Lite or an authorized Tripp Lite service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment, which has been damaged by accident, negligence or misapplication or has been altered or modified in any way.

EXCEPT AS PROVIDED HEREIN, Tripp Lite MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.

EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL Tripp Lite BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, Tripp Lite is not liable for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.

Product Registration

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
