USER MANUAL FDUS50M7A Furrion

• Product picture is for reference only.

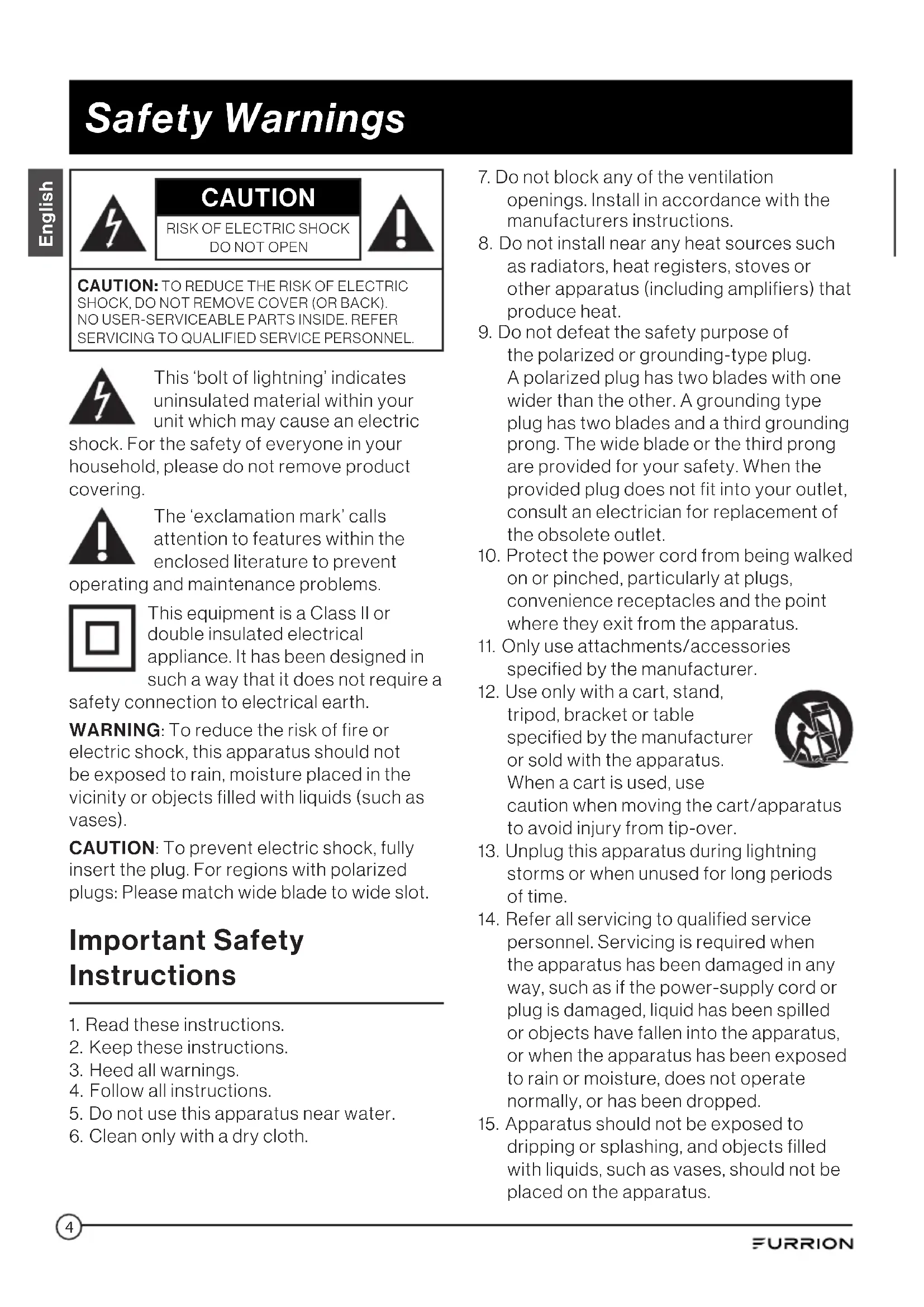

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NOUSER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This ‘bolt of lightning’ indicates uninsulated material within your unit which may cause an electric shock. For the safety of everyone in your household, please do not remove product covering. The ‘exclamation mark’ calls attention to features within the enclosed literature to prevent operating and maintenance problems. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

WARNING: To reduce the risk of fire or

electric shock, this apparatus should not be exposed to rain, moisture placed in the vicinity or objects filled with liquids (such as vases). CAUTION: To prevent electric shock, fully insert the plug. For regions with polarized plugs: Please match wide blade to wide slot. Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation

openings. Install in accordance with the manufacturers instructions.

8. Do not install near any heat sources such

as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of

the polarized or grounding-type plug. Apolarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked

on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

11. Only use attachments/accessories

specified by the manufacturer.

12. Use only with a cart, stand,

tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus to avoid injury from tip-over.

13. Unplug this apparatus during lightning

storms or when unused for long periods of time.

14. Refer all servicing to qualified service

personnel. Servicing is required when the apparatus has been damaged in any way, such as if the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, or when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Apparatus should not be exposed to

dripping or splashing, and objects filled with liquids, such as vases, should not be placed on the apparatus.5 Safety Warnings English

16. An outside antenna system should not

be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to eliminate touching power lines or circuits as contact might be fatal.

17. Do not overload wall outlets, extension

cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

18. Never push objects of any kind into this

product through openings as they may touch short-out parts or dangerous voltage points that could result in a fire or electric shock. Never spill liquid of any kind on the product.

19. If an outside antenna is connected to the

television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrodes. NEC-NATIONAL ELECTRICAL

reminder is provided to call the CATV system installer’s attention to Article 820- 40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

21. When replacement parts are required,

be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

22. Upon completion of any service or repairs

to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

23. When you connect the product to other

equipment, turn off the power and unplug from the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner’s manual of the other equipment carefully and follow the instructions when making any connections.

24. Sudden high volume may cause hearing

or speaker damage. When you use headphones (if the unit is equipped with a headphone jack), keep the volume at a moderate level. If you use headphones continuously with high volume, you may suffer hearing damage.

25. Do not allow the product to output

distorted sound for extended periods of time. This may cause speaker overheating and fire.

26. The socket-outlet must be installed near

the unit and easily accessible.

27. The mains plug is used as the disconnect

and shall remain readily operable.6 Safety Warnings English

28. Batteries (battery pack or batteries

installed) shall not be exposed to excessive heat such as sunshine, fire or the like. CONDENSATION Moisture will form in the operating section of the unit if the unit is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens the unit’s performance will be impaired. To prevent this, let the unit stand in its new surroundings for about an hour before switching on, or make sure the room temperature rises gradually. Condensation may also form during the summer if the unit is exposed to the breeze from an air conditioner. In such cases, change the location of the unit.

HOW TO HANDLE THE LED PANEL

● Do not press hard or jolt the LED panel. Itmay cause the LED panel glass to break and injury may occur. ● If the LED panel is broken, make absolutely sure you do not touch the liquid in the panel. This may cause skin inflammation. ● If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult your doctor after rinsing for at least 15 minutes in clean water. Possible Adverse Effects on LED Panel: If a fixed (non-moving) pattern remains on the LED panel for long periods of time, the image can become permanently engrained and cause subtle but permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your LED panel on for long periods of time while it is displaying the following formats or images: ● Fixed images, such as stock tickers, video game patterns, TV station logos and websites. ● Special formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a wide screen (16:9) display (black bars on left and right sides of screen). The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any responsibility for these symptoms. ● LED panels are manufactured using an extremely high level of precision technology, however sometimes parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction. ● Do not install the LED panel near electronic equipment that produces electromagnetic waves. Some equipment placed too near this unit may cause interference. ● Effect on infrared devices – there may be interference while using infrared devices such as infrared cordless headphones. Power source: This LED TV is designed to operate on 100~240 volt 50/60 Hz, AC current. Insert the power cord into a 100~240volt 50/60 Hz outlet. To prevent electric shock, do not use the LED TV’s (polarized) plug with an extension cord, receptacle, or other outlet unless the blades and ground terminal can be fully inserted to prevent blade exposure.

Warning: To reduce the risk of fire or electric

shock, do not expose this apparatus to rain or moisture.7 Safety Warnings English Caution: Never remove the back cover of the LED TV as this can expose you to very high voltages and other hazards. If the TV does not operate properly, unplug the LED TV and call your authorized dealer or service center. Adjust only those controls that are covered in the instructions, as improper changes or modifications not expressly approved by Furrion could void the user’s warranty. COMPLIANCE FCC Statement Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

WARNING: Changes or modifications to

this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment under FCC Rules. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful

2. This device must accept any interference

received, including interference that may cause undesired operation. Safety Precautions

WARNING: Never place a television set in

an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: – Using cabinets or stands recommended by the manufacturer of the television set. – Only using furniture that can safely support the television set. – Ensuring the television set is not overhanging the edge of the supporting furniture. – Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support. – Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture. – Educating children about the dangers of climbing on furniture to reach the television set or its controls.8 Safety Warnings English If your existing television set is being retained and relocated, the same considerations as above should be applied. The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating. Do not block ventilation holes, or set up near radiators. Do not place in direct sunlight. When placing on a shelf, leave 4 inches (10 cm) free space around the entire unit. 4 inches YES !!NO !!WireClampScrew4 inchesWireWireScrewClampWireWireWire1.5 inches1.5 inches Notes when mounting the LED TV on the wall If the unit is to be mounted on the wall, contact the retailer where you purchased the LED TV for advice, and have the equipment professionally installed. Incomplete or improper installation may cause injury to you and/or damage to the LED TV.

● Do not use this TV with wall mounts that allow the TV to tilt vertically. Vertical tilting wall mounts may cause structural damage to the TV. ● Use ONLY fixed or horizontal swiveling wall mounts with this TV. Notice for TV Cabinet If the unit is to be mounted on a cabinet smaller than the length of the unit, it could result in an unstable location. The unit may tumble over, making a risk of personal, possibly fatal injury. This would also damage the product seriously. Accordingly, Furrion accepts no responsibility or liability for any injuries or property damage resulting from the improper installation. 4 inches YES !! NO !! Wire Clamp Screw 4 inches Wire Wire Screw Clamp Wire Wire Wire

Function Overview English Control Panel Item Button Function

VOL+ Press to increase volume

VOL- Press to decrease volume

CH+ Press to skip to the next channel

CH- Press to skip to the previous channel

SOURCE Press to select the input source

POWER Press to switch the TV on/off

• Please note that the button layout of the controls may vary from model to model. VOL+ VOL- CH+ CH- MENU SOURCE POWER

Function Overview English

• The configuration of the connection ports may vary from model to model. USB AUDIO L- -RAUDIO OUT L- -R

Rear Panel Item Port Function

LAUDIO OUTR Connects to the AUDIO IN ports of an audio device

OPTICAL OUT Connects to the OPTICAL AUDIO IN port of an audio device.

VIDEO Connects to the VIDEO OUT ports of an audio device.

L-AUDIO IN-R Connects to the AUDIO OUT ports of an audio device.

Connects to the COMPONENT VIDEO OUT ports of a DVD Player, Cable Box or other compatible device.

HDMI 1 IN Connects to the HDMI OUT port of a DVD Player, Games Console, Cable, Box or other HDMI device. CEC (Consumer Electronics Control) When connected to the CEC compatible Furrion Entertainment Systems or other CEC Compatible devices, the TV links with the system to give extra functionality. HDMI 2 IN

HDMI 3 IN (ARC) Connects to the HDMI OUT port of a DVD Player, Games Console, Cable Box or other HDMI device. ARC Audio Return Channel When connected with a HDMI1.4 cable to an ARC compatible audio system, the TV links with the device to give extra audio functionality.

RF IN Connects to the ANTENNA, CABLE, or CABLE BOX

USB USB Port: view pictures and listen to MP3s via a compatible USB stick11 Function Overview English Unimote

Switches to TV mode.FIREPLACESelects Furrion Fireplace remote control functions.* Please refer to your Furrion Fireplace manual for more information. Turn on/off the TV/Entertainment System. NUMBER BUTTONSEnters numbers or select channels. Toggles between single & double digit input. S.MODECycles through sound modes. P.MODECycles through picture modes. INFO/OSDIn TV mode, press to display information on the selected TV channel; In Stereo mode, press to display DVD playback status. F.LISTDisplays the favorites list.

EPG Displays the program guide. SOURCECycles through input sources. NAVIGATION & OK BUTTONSNavigates within a menu and press OK to confirm your selection. VOL+/-Increases/decreases volume. Ejects DVD/ CD. During playback, press to select the previous track/chapter. Press and hold to rewind. Automatic or Manual tuning in radio mode.

STEP Press to forward frame by frame during DVD/ VCD playback.Dial or accept a call (when the system is connected to a cell phone).12 Function Overview English Item Button Function

MTS/AUDIO Cycles through MTS sound modes.

RDM Toggles random playback mode on & off.

ZOOM Press to enlarge screen images.

SEL Toggles between Volume, Bass, Treble & Balance; Adjusts hours & minutes.

LOC*/SLOW Toggles radio reception strength; Press to start slow motion playback.

SUBT Press to display subtitles on compatible media; Repeatedly press to cycle through subtitle options.

PBC/TITLE Displays DVD/VCD Title lists; Toggles PBC (Play Back Control) on & off.

PROG Press to start the programmed playback function.

A-B Press to start the A-B repeat function (playback loop of a segment of track).

SETUP Enters the Setup menu for the entertainment system. Item Button Function

Closed Captions On & Off.

APS Press to scan radio stations: Abrief press searches through each stored station. Press & hold to scan and store the 6strongest stations. End or reject a call (when the system is connected to a cell phone).

During playback, press to select the next track/ chapter. Press and hold to fast forward. Automatic or Manual tuning in radio mode.

CH+/- Channel Up/Down.

FAV Adds or deletes the current channel from the favorites channel list.

AUTO Automatically adjusts the picture in PC mode.

Toggles between the current and previous channel.

Starts, Pauses or restarts playback.

MENU Enters the main menu.13 About Your 4K LED TV English Features Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for hearing impaired viewers. Picture Adjustments Using The Remote Control - The On-Screen display allows precise remote control adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS. Programmable TV Sleep Timer - Operable from the remote control, the TV can be programmed for up to 240 minutes to turn off automatically. On-Screen 3 Language Display - You can select one of 3 languages, English, Spanish or French for on-screen programming. HDMI/Component Video Jacks - A VCR, DVD player, satellite receiver or other audio/video component can be connected to this unit. Power Source NOTE: ● Please make sure to insert the cord securely at both the LED TV and the wall outlet.

● DO NOT CONNECT THIS UNIT TO THE POWER USING ANY DEVICE OTHER THAN THE SUPPLIED AC CORD. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE. ● DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE SPECIFIED. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE. CAUTION: ● WHEN THIS UNIT IS NOT USED FOR A LONG TIME (E.G., AWAY ON A TRIP), IN THE INTEREST OF SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET. ● DO NOT PLUG/UNPLUG THE AC CORD WHEN YOUR HANDS ARE WET. THIS MAY CAUSE ELECTRICAL SHOCK. ● IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE IS RECOMMENDED. CONTACT THE DEALER THAT YOU PURCHASED THE UNIT FROM.14 Before Operation English What’s in the Box Thanks for purchasing this Furrion 4K LED TV. First, check the contents of your box with the parts checklist below: ● TV ● Remote control ● AAA battery × 2 ● Wall-mount screws × 4 (M6 x 20mm) ● Bottom mount stand × 2 ● Bottom mount stand screws × 6 ● Printing materials Prepare your Remote Control BATTERY INSTALLATION

1. Open battery compartment cover.

2. Install two AAA batteries.

3. Close the cover of the battery

compartment. NOTE: Use two “AAA” size batteries. Thebatteries may last approximately one year depending on how much the remote control is used. For best performance, itis recommended that batteries should be replaced on a yearly basis, or when the remote operation becomes erratic. Do not mix old and new batteries or different types. BATTERY PRECAUTIONS These precautions should be followed when using batteries in this device: ● Use only the size and type of batteries specified. ● Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may cause damage to the device. ● Do not mix different types of batteries together (e.g. Alkaline and Carbon-zinc) or old batteries with fresh ones. ● If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage. ● Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer’s directions.) ● Please use caution when inserting batteries to avoid battery damage. If the spring terminal in the remote control remains in contact with a side of a damaged battery it can cause a short circuit. Never use damaged batteries as they can become very hot and are dangerous.15 Getting Started English The Setup Wizard window appears the first time you turned on the TV. It will assist you to configure the TV and scan for available channels. IMPORTANT: Make sure the antenna or cable TV system connection is made.

1. Press POWER button on the TV control

panel or button on the remote control to switch on the TV. The power indicator will change to green. The Setup Wizard window appears on the screen. NOTE: It may take a few seconds before the Setup Wizard window appears on the screen.

2. Use or to to select Home Mode

to select Yes or No. Press OK to enter the next menu or press MENU to return to the previous menu.

4. Use / / / to navigate and select

your desired settings. Setup Wizard Menu Language Use or to highlight Menu Language, then press or to select English, French or Spanish. Air/Cable Use or to highlight Air/ Cable, then press or to select Air or Cable. Cable System Use or to highlight Cable System, then press or to select Auto, STD, IRC or HRC. NOTE: Only adjustable when “Air/ Cable” is set as “Cable” mode. Auto Scan Use or to highlight Auto Scan, then press OK or to start scanning all the channels available in your area. NOTE: You may press MENU at any time to exit the menu. *The Setup Wizard will scan for available channels automatically. The scanning may take some time.16 TV Settings English Setup Setting

would like to reset, then press or to select the settings.

4. Press MENU to return to the previous

menu or exit the setting. Setup Menu Menu LanguageSelect the menu language. Press or to select English, Français or Español. TransparencyControl the transparency level of the menu.Press or to select Off / On.Zoom ModeSet the picture proportion. Press or to select Zoom, Normal, Cinema or Wide. Noise ReductionReduce the roughness of thepicture. Press or to select Off, Weak, Middle or Strong.17 TV Settings English Setup Menu Closed Caption Configure Closed Caption functions. CC Mode Press or to select CC On, CC Off or CC On Mute. Analog CC Press or to select CC1, CC2, CC3, CC4, Text 1, Text2, Text 3 or Text 4. Digital CC Press or to select Off, Service1, Service 2, Service3, Service 4, Service 5 or Service 6. Option

• Press OK or to enter the sub menu Mode Press or to select Default or Custom Font Style Press or to select Default, Font 0, Font 1, Font 2, Font 3, Font 4, Font 5, Font 6 or Font 7. Font Size Press or to select Default, Normal, Large or Small. Font Edge Style Press or to select Default, None, Raised, Depressed, Uniform, Left Shadow or Right Shadow. Font Edge Color Press or to select Default, Black, White, Red, Green, Blue, Yellow, Magenta or Cyan. FG Color Press or to select Default, White, Red, Green, Blue, Yellow, Magenta or Cyan. BG Color Press or to select Default, Black, Red, Green, Blue, Yellow, Magenta or Cyan. FG Opacity Press or to select Default, Solid, Flashing, Translucent or Transparent. BG Opacity Press or to select Default, Solid, Flashing, Translucent or Transparent. DLC Adjust the picture contrast. Press or to select High, Middle or Low. Setup Wizard Start the Setup Wizard. Press OK or to enter Setup Wizard. Restore Default Reset settings to factory defaults. Press or to select Yes or No18 TV Settings English Setup Menu HDMI CEC Press to enter sub-menu, then press or to select Off /On for HDMI CEC. When selecting On, the sub-menu in the right column will be available to set up. Auto Standby Press or to select Off or On. *In On mode, TV will shut down when there is no signal for several minutes. Auto TV on Press or to select Off or On. *In On mode, TV will automatically turn on when the connected CEC device is turned on. HDMI ARC Press or to select Off or On. *Set the HDMI ARC On if you want to enable the ARC function with a connected 5.1/7.1 Home Theater System. Device control Press or to select Off or On.

• In On mode, it allows a connected CEC device to be controlled by TV remote control. Device list Press to display a list of HDMI CEC devices currently connected to the TV. EDID Switch Select the EDID version. Press or to select Auto, EDID 1.4 or EDID 2.0. Restore Default Reset to factory default settings. Press or to select Yes or No. NOTE: HDMI CEC function is only available when connecting with a CEC device.19 TV Settings English Picture Setting

would like to reset, then press or to select the settings.

4. Press MENU to return to the previous

menu or exit the setting. Picture Menu Picture Mode Select the display mode. Press or to select EnergySaving/User/Standard/Dynamic/Mild. *The Energy Saving feature adjusts the brightness of the TV in order to save energy and reduce power consumption.ContrastControl the contrast level of the picture.Press or to increase or decrease contrast intensity.* Only adjustable after set “Picture Mode” as “User” mode.BrightnessControl the brightness level of the picture.Press or to increase or decrease the overall brightness.* Only adjustable after set “Picture Mode” as “User” mode.ColorControl the color level of the picture.Press or to increase or decrease the color intensity.* Only adjustable after set “Picture Mode” as “User” mode. Tint Control picture tint.Press or to adjust colors toward green or reddish tint.* Only available under NTSC signal.SharpnessControl the sharpness of the picture.Press or to soften or enhance edges in the picture.* Only adjustable after set “Picture Mode” as “User” mode.Color TempSelect the color mode.Press or to select Medium / Warm / Cool. HDR Select the level of HDR imaging. Press or to select Middle / Strong / Weak.20 TV Settings English Audio Setting

would like to reset, then press or to select the settings.

4. Press MENU to return to the previous

menu or exit the setting. NOTE: The display menu may vary while different input source was selected. Audio Menu Sound ModeSelect the sound mode. Press or to select Standard, Music, Movie, Sport or User mode. Bass Control the bass level.Press or to increase or decrease low frequency intensity.TrebleControl the treble level.Press or to increase or decrease high frequency intensity.BalanceControl the balance level.Press or to adjust the desired level between 0~100.SurroundControl the surround effect. Press or to select On or Off. AVC (Auto Volume Control) Control the maximum power output. Press or to select On or Off. SPDIF TypeSelect the SPDIF sound mode.Press or to select Off / RAW / PCM. MTS Select the sound mode.Press or to select Stereo / SAP / Mono.* Only available on ATV channel.AccessibilityControl the Voice Guide functions.Voice GuideVoice Guide Press or to set as On or Off. When the Voice Guide is On, the OSD will read out via voice once you operate the TV.Volume Press or to select Low, Middle or High.

• Only available after Voice Guide was set as On mode. Speed Press or to select Slow, Normal or Fast.

• Only available after Voice Guide was set as On mode. Pitch Press or to select Low, Middle or High.

• Only available after Voice Guide was set as On mode. VideoDescription Press or to set as On or Off. When setting as On, the video description function is enabled and the video commentary text will appear.21 TV Settings English Time Setting

would like to reset, then press or to select the settings.

4. Press MENU to return to the previous

menu or exit the setting. Time Menu Sleep TimerSet the countdown timebefore TV automaticallyshutdown.Press or to select Off, 5min, 10min, 15min, 30min, 60min, 90min, 120min, 180min or 240min.Time ZoneSet the time zone. Press or to select Pacific, Alaska,Hawaii, Samoa, Newfoundland, Atlantic, Eastern, Central or Mountain.Daylight Saving TimeTurn on/off daylightsaving time. Press or to set as On or Off.

• Only adjustable on DTV channelTime FormatSelect the time display format. Press or to set as 12-hour or 24-hour.
• Only adjustable on DTV channelAuto ClockSet automatic time. Press or to set as On or Off.
• Only adjustable on DTV channelClockDisplay the current date and time.22 TV Settings English Lock Setting

3. Use or to highlight “Enter Password” and input “0000” to enter the setup window.

4. Use or to highlight the item you would like to reset, then press or to select the

5. Press MENU to return to the previous menu or exit the setting.

Lock Menu EnterPasswordInput the password to access the Lock menu. Use the Number Buttons (0~9) to enter the password.* Default password is 0000.* If you forgot the password, use 8888 to enter any locked menu.Set PasswordChange the User Password. Set PasswordUse Number buttons (0-9) to enter a new password.Confirm PasswordRepeat the password to confirm.System LockChange the parental controls. Press or to set as On or Off. US RatingSet up parental locks based on US rating system.* Only available when System Lock is set as On mode. Press to enter the TV Ratings menu and use / / / to select your TV rating preference. (refer to the following tables of Age and Genre) MPAA Press / buttons to select your movie rating preference based on US Rating System.Canada RatingSet up parental locks based on Canadian rating system.* Only available when System Lock was set as On mode.Canada English Press / buttons to select your ratings preference based on Canadian Rating System (English). Canada French Press / buttons to select your ratings preference based on Canadian Rating System (French).23 TV Settings English Lock Menu RRT Setting Set parental locks based on Canadian rating system.

• Only available when the DTV code RRT traffic detected by the system. Humor Level See Canadian Rating System table. Intelligence level See Canadian Rating System table. Erotic level 20CHARS See Canadian Rating System table. Reset RRT Restore to default RRT settings. Press OK or to enter the sub menu, then press or to select Yes or No. Clear Lock Restore to default V-chip settings and clear the lock setting. Press OK or to enter the sub menu, then press or to select Yes or No.24 English TV Settings Genre ALL All

Adults Only Canadian Rating System (English)

Exempt from the ratings (All ages)

Suitable for children age of 0–7 years C8+ Suitable for children age over 8 years

Parental Guidance 14+ Suitable for viewers age over 14 years 18+ Suitable for adults over 18 years Canadian Rating System (French)

Exempt from the ratings (All ages)

General Audience 8 ans+ Suitable for children ages over 8 years 13 ans+ Suitable for children ages over 13 years 16 ans+ Suitable for viewers ages over 16 years 18 ans+ Suitable for adults over 18 years25 TV Settings English Channel Setting

would like to reset, then press or to select the settings.

4. Press OK to confirm your selections or

settings and enter the sub menus.

5. Press MENU to return to the previous

menu or exit the setting. Channel Menu Air/CableSet the reception type. Press or to select Air or Cable. ● Select Air when TV is connected to an indoor / outdoor antenna. ● Select Cable if you subscribe to a pay television service WITHOUT a set top box.Auto ScanAutomatically scan for available channels.Press or OK to enter sub menu.Cable System Press or to select Auto, STD, IRC or HRC. (Only available when you select Cable as the reception type.)Start to Scan Press or OK to start scanning available channels. FavoriteAdd or delete a channel inthe favorite list. Press or to select a channel, then press or OK to add or delete the channel in the favorite list.Show/HideShow or hide availablechannels already in memory. Press or to select a channel, then press or OK to show or hide the channel.Channel No.Select a channel numberto be labeled.Press or to select a channel.Channel LabelAllow custom labeling toname or rename a channel. Press or to select each letter, number or character. Press or to skip to the previous or next space. (Maximum of 7 characters)DTV SignalDynamically display the DTV signal status.26 Change Settings English USB Mode

1. After connecting a flash drive, press SOURCE button and select Media. Press OK or to

2. Use or to select Photo or Music. Press OK or to enter.

3. Use or to navigate the files or folders on the USB drive.

4. Press MENU to return to the previous menu or press EXIT at any time to exit the setting.

When viewing photos, you can use this photo viewer tool to control slide show, play music and show file information.

• The photo viewer displays .jpg photo format files. Playback of music is via this music player, which gives playback controls and information on the file.

• The music player plays MP3 audio format files.27 Troubleshooting English Problem Solution/Issue TV does not operate ● Make sure the power cord is plugged in. ● Try another AC outlet. ● Power is off, check fuse or circuit breaker. ● Unplug unit for an hour, then plug it back in. Normal picture, but no sound ● Check the volume settings. ● Sound muted? Press MUTE button. ● Try another channel. ● Check audio cable connections. The remote control does not work ● Make sure the remote control is in range with no obstructions. ● Check the batteries. ● Correct operating mode set: TV, VCR etc. Poor sound or no sound ● Station or Cable TV experiencing problems, tune to another station. ● Check sound adjustments (Volume or Mute). ● Check for sources of possible interference. Poor picture or no picture ● Station or Cable TV experiencing problems, tune to another station. ● Make sure channels are set into memory. ● Check antenna or Cable TV connections, adjust antenna. ● Check the possible interference sources. ● Check picture control adjustments. Poor TV reception ● Ensure the antenna amplifier is turned on for Antenna TV. ● Adjust the antenna position to a stronger signal receiving angle. ● Check if the Antenna connection is tight to the TV. ● Check if there is power supplied to the Antenna distribution box. ● Confirm your incoming cable is connected to the correct cable / antenna wall connection inside the RV. ● Ensure the internal RV coax jump cable is connected to the correct port. Poor Cable / Satellite TV Reception ● Ensure antenna amp is turned off for cable signal. ● Check if incoming Cable is connected correctly to RV. ● Ensure cable splitter box has power. ● Check if the incoming cable is connected to the correct cable / Satellite wall connection inside your RV. ● Ensure the internal RV coax jump cable is connected to the correct port. ● Ensure Dish has no obstruction. TV shuts off ● Sleep Timer is set. ● Power interrupted. Black and white image from the connected AV device ● Check video connections on both the TV and connected AV device. Ensure the colors match between the connectors and sockets: green (Y), blue (Pb/Cb) and red (Pr/Cr) for component connection, and yellow (VIDEO) for composite connection. ● Ensure all video cables are connected firmly.28 Specifications English

VESA MOUNTING PATTERN

and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries. ©2007-2019 Furrion Ltd. Furrion
