USER MANUAL FGHWCLDABL Furrion

Line drawing of a portable electronic device with four circular control knobs (no text or symbols)

Thank you for purchasing this Furrion® product. Before operating your new appliance, please read these instructions carefully. This instruction manual contains information for safe use, installation and maintenance of the appliance.

Please keep this instruction manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury. Be sure to pass on this manual to new owners of this appliance.

The manufacturer does not accept responsibility for any damages due to not observing these instructions.

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any appliance.

• WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliances.

• Do not touch any electrical switches.
• Do not use any phone in your recreational vehicle.
• Clear the recreational vehicle of all occupants.
• Turn off the LP container valve or main container.
• Immediately call your gas supplier for instructions.
• If you cannot reach your gas supplier, call the fire department.

- Have the gas system checked and leakage source corrected by a qualified installer, service agency, manufacturer, dealer or the gas supplier.

Table of Contents

Table of Contents....3

Explanation of Symbols 4

Important Safety Instructions....4

General Safety Warnings 4
Cooktop Safety....5

Product Overview 6

Installation 6

What's in the Box....6
Cabinet Cutout Instructions....7
Cooktop Installation 7
Gas Connection 8
Electrical Connection 8
Glass Cover Replacement....9
Leak Check....9

Operation....10

Lighting the Cooktop 10
Turning Off the Cooktop....11
The Burner Flame....11
Light Control 11
Slow Cooking 11

Maintenance 12

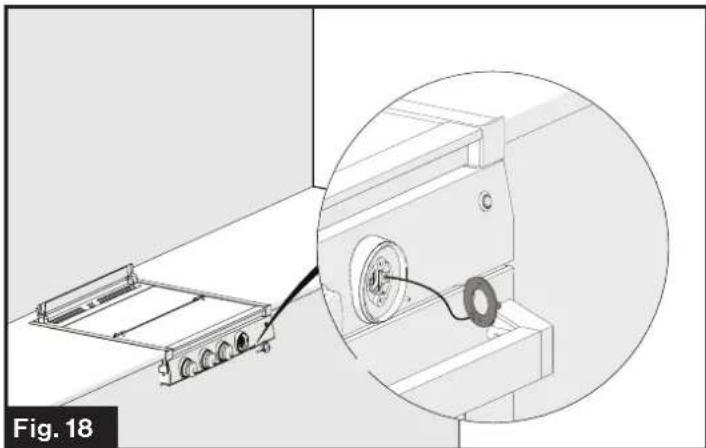

Replacing the Control Knob LED 12

Storage 13

Troubleshooting....13

Specification 13

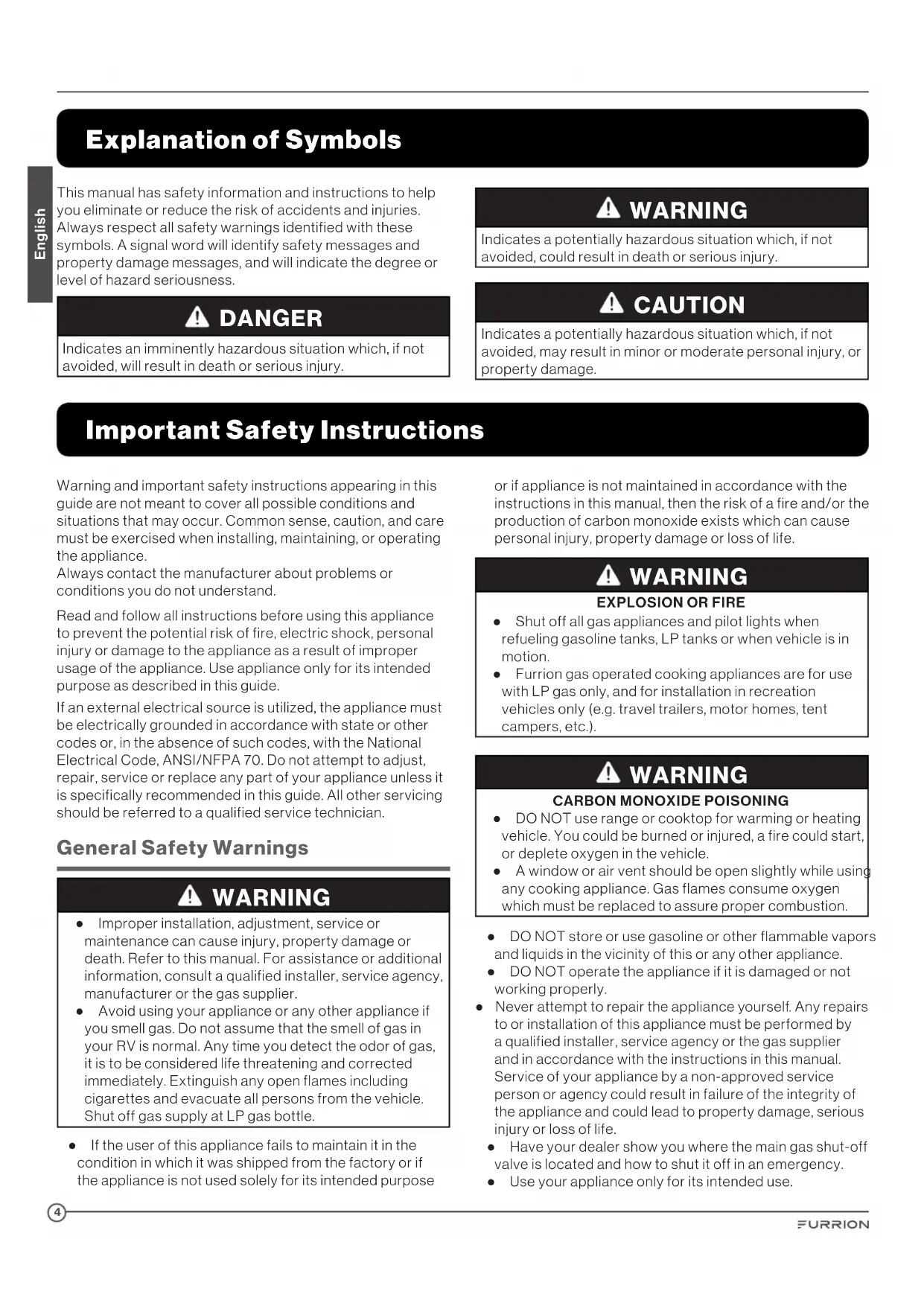

Explanation of Symbols

This manual has safety information and instructions to help you eliminate or reduce the risk of accidents and injuries. Always respect all safety warnings identified with these symbols. A signal word will identify safety messages and property damage messages, and will indicate the degree or level of hazard seriousness.

DANGER

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate personal injury, or property damage.

Important Safety Instructions

Warning and important safety instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining, or operating the appliance.

Always contact the manufacturer about problems or conditions you do not understand.

Read and follow all instructions before using this appliance to prevent the potential risk of fire, electric shock, personal injury or damage to the appliance as a result of improper usage of the appliance. Use appliance only for its intended purpose as described in this guide.

If an external electrical source is utilized, the appliance must be electrically grounded in accordance with state or other codes or, in the absence of such codes, with the National Electrical Code, ANSI/NFPA 70. Do not attempt to adjust, repair, service or replace any part of your appliance unless it is specifically recommended in this guide. All other servicing should be referred to a qualified service technician.

General Safety Warnings

WARNING

• Improper installation, adjustment, service or maintenance can cause injury, property damage or death. Refer to this manual. For assistance or additional information, consult a qualified installer, service agency, manufacturer or the gas supplier.
• Avoid using your appliance or any other appliance if you smell gas. Do not assume that the smell of gas in your RV is normal. Any time you detect the odor of gas, it is to be considered life threatening and corrected immediately. Extinguish any open flames including cigarettes and evacuate all persons from the vehicle. Shut off gas supply at LP gas bottle.

- If the user of this appliance fails to maintain it in the condition in which it was shipped from the factory or if the appliance is not used solely for its intended purpose.

or if appliance is not maintained in accordance with the instructions in this manual, then the risk of a fire and/or the production of carbon monoxide exists which can cause personal injury, property damage or loss of life.

WARNING

EXPLOSION OR FIRE

• Shut off all gas appliances and pilot lights when refueling gasoline tanks, LP tanks or when vehicle is in motion.
• Furrion gas operated cooking appliances are for use with LP gas only, and for installation in recreation vehicles only (e.g. travel trailers, motor homes, tent campers, etc.).

WARNING

CARBON MONOXIDE POISONING

• DO NOT use range or cooktop for warming or heating vehicle. You could be burned or injured, a fire could start, or deplete oxygen in the vehicle.
• A window or air vent should be open slightly while using any cooking appliance. Gas flames consume oxygen which must be replaced to assure proper combustion.

- DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

- DO NOT operate the appliance if it is damaged or not working properly.

- Never attempt to repair the appliance yourself. Any repairs to or installation of this appliance must be performed by a qualified installer, service agency or the gas supplier and in accordance with the instructions in this manual. Service of your appliance by a non-approved service person or agency could result in failure of the integrity of the appliance and could lead to property damage, serious injury or loss of life.

• Have your dealer show you where the main gas shut-off valve is located and how to shut it off in an emergency.

• Use your appliance only for its intended use.

• Children should be taught that the appliance is not a toy. They should not be allowed to play with the controls or any other parts of the appliance. Do not allow anyone to stand or sit on top of the appliance. Not only can this damage the appliance, but personal injuries could result.

• Do not store items of interest to children in cabinets above or near the appliance. Children climbing on the appliance to reach items could be seriously injured.
• All control knobs must be turned off when not in use. Fire and/or burning hazard may occur if a burner is accidentally left on.
• If any burner should extinguish (after initially lighting or due to accidental blow-out), turn all burner knobs off and wait five (5) minutes before again attempting to light the burner.
• DO NOT store flammable materials on, in, or near the appliance. Any fumes can create an explosion and/or fire hazard.
• Do not wear loose fitting clothing or long-hanging sleeved clothing while using the appliance. If they contact the open flame of the burner, they could ignite and cause severe burns.
• Use only dry potholders to remove hot utensils. Using damp potholders on hot surfaces could result in burns to hands. Do not use a towel or bulky cloth for a pot holder. The cloth could contact open flame and catch fire.
• Never heat an unopened container. Pressure build-up within the container can cause it to explode.
• Do not use water on grease fires. Never pick-up a flaming pan. Smother a flaming pan with a lid or flat pan. Flaming grease outside the pan can be extinguished with baking soda or a multipurpose dry chemical fire extinguisher.
• This appliance is intended to be built-in to a cabinet structure only and is not intended for attachment to the building structure.

Cooktop Safety

• Do not place pans onto glass surface. Raise cover into full open position before operating burners. Let cooktop cool before closing glass cover.
• If the cooktop is near a window, proper precautions should be taken to prevent curtains from blowing over burners creating a fire hazard.
• Keep the area around the cooktop clean and clear of any combustible materials, gasoline or other flammable vapors and liquids. Not doing so can cause an explosion and/or fire.
• Do not leave children alone or unsupervised in area where cooktop is being used. The top burners, burner grates and other areas near the burners become hot enough to cause severe burns.
• Do not wear loose fitting clothing or long-hanging sleeved clothing while using the appliance. If they contact the open flame of the burner, they could ignite and cause severe burns.
• Use only dry potholders to remove hot utensils. Using damp potholders on hot surfaces could result in burns to hands. Do not use a towel or bulky cloth for a pot holder. The cloth could contact open flame and catch fire.

• Never heat an unopened container. Pressure build-up within the container can cause it to explode.

• Keep the appliance clean. The build-up of grease and food boil-over and/or spillage can create a fire hazard.

• Turn pan handles inward or toward back of cooktop and out of the way of people walking past cooktop and/or out of the reach of children. Do not turn handles to where they are over the burners.
• Do not use water on grease fires. Never pick-up a flaming pan. Smother a flaming pan with a lid or flat pan. Flaming grease outside the pan can be extinguished with baking soda or a multipurpose dry chemical fire extinguisher.
• Never leave top burner(s) unattended.

- For such reasons as down drafts that could be created by opening and closing of cabinet doors or doors within the RV or by positive or negative air pressures affecting burners due to improper installation. (See Installation section) The burner could extinguish resulting in gas escaping into the RV. Remember, gas flow to each burner is controlled manually, you must turn gas flow "ON" and "OFF".

– A boil over could occur and the spill could ignite.

- Flame size

– Never extend the flame beyond the outer edge of the utensil. A higher flame simply wastes heat and energy.

- Correct flame size is determined by utensil size and material, what you are cooking and whether or not you are cooking with liquid.

Illustration of a cooking pot on a stove with a crossed X mark (no text or symbols)

Illustration of a cooking pot with a checkmark indicating heating (no text or symbols)

• To prevent damage to the cooktop, top burners, or top grate, never operate a top burner without a pan in place. The top burners, especially the high input burner, should not be operated on high for an extended period of time. The high setting should be used only to start the food cooking or to bring liquids to a boil, then reduce the flame to a lower setting to continue cooking. Use the low flame setting to keep food warm. Remember, a gas range heats quicker than an electric range, therefore, experiment with various settings until you feel comfortable cooking with gas.
• Never use cookware which extends beyond one inch of the grate (maximum pan size 10" diameter). Never place cooking utensil on grate to where it rests over two operating top burners. This will cause excessive heat buildup, which could result in damage to the grate, top burner(s) and cooktop.
• Verify sufficient gas supply before attempting to light any top burner. Air in the gas supply line will significantly delay burner ignition, and a burner may light unexpectedly as the air in the line clears out and is replaced by LP gas, this unexpected ignition may burn you. Air may be introduced into the supply line when the vehicle gas bottle is replaced, during servicing of other gas appliances, etc.
• DO NOT touch top burners, burner grates, or other areas near top burners during and after use. Do not let clothing or other flammable materials to contact top burners or areas near top burners until they have had sufficient time to cool.
  • Make sure the utensils you use are large enough to

contain food and avoid boil overs and spillovers. Heavy splattering or spillovers left on the cooktop can ignite and burn you.

• Be sure that glass cooking utensils are safe for use on the cooktop. Only certain kinds of glass utensils are suitable for surface or top burner use without breaking due to the sudden changes in temperature.
• Grease is flammable. Never allow grease to collect around top burners or on cooktop surface. Wipe spillovers

immediately.

• Use care when lighting a top burner by hand. If the burner lights unexpectedly, or your hand is close to the burner, you may be burned.
• DO NOT drop pans on the porcelain surface. Cracks or chips in the porcelain surface may result.
• DO NOT leave an empty utensil, or one which has boiled dry, on a hot top burner. The utensil could overheat and damage the utensil or the cooking appliance.

Product Overview

Technical diagram of a computer drive chassis with numbered components and airflow indicators

1	Glass Cover
2	Grate
3	Ignition Knob
4	Burner Control Knobs
5	Light Switch
6	Cooktop Burner

Installation

WARNING

FIRE, EXPLOSION, BURN INJURY CARBON MONOXIDE POISONING

• The cooking appliance must be completely separated and/or sealed from other air moving or air consuming devices such as, but not limited to furnaces, microwave ovens clothes dryers, cooling fans and doors or drawers in common cabinets. Failure to do so will affect the appliance(s) combustion air supply by creating either a negative or positive draft.
• NEGATIVE DRAFT caused by air moving appliances may draw the top burner flame down into or toward the cooktop resulting in cooktop damage, burn hazard, explosion possibility and/or carbon monoxide build up.
• POSITIVE DRAFT may blow out the top burner flame during use resulting in an explosion and/or fire hazard and/or injury to the occupants of the vehicle.
• DO NOT operate the appliance in excessive windy conditions as this may cause a negative or positive draft.

WARNING

Installation of this appliance must be made in accordance with the written instructions provided in this manual. No agent, representative or employee of Furrion or other persons has the authority to change, modify or waive any provision of the instructions contained in this manual.

The installation must conform with local codes or in the absence of such codes, refer to the latest edition of: In the U.S.A.:

a. Standard for Recreational Vehicles NFPA 1192
b. National Fuel Gas Code ANSI Z223.1/NFPA 54

In Canada, the installation must conform with:

a. Standard CAN/CSA Z-240.4.2-08, Installation Requirements for Propane Appliances and Equipment in Recreational Vehicles.
b. Any applicable local codes and regulations

What's in the Box

Make sure you have all the following items included in the packaging. If any item is damaged or missing, contact your dealer.

• Range Oven x 1
• Cooktop Grate x 2
  • Instruction Manual x 1
• Warranty Leaflet x 1

Cabinet Cutout Instructions

For proper operation of your cooking appliance, the cabinets must be properly constructed and squared with respect to the counter top and the cabinet face.

For proper operation of the appliance, the cabinet must be level and the bottom of the appliance must be supported.

NOTES: When planning the location, consider curtains or other combustible materials installed around the appliance so as not to create a fire hazard.

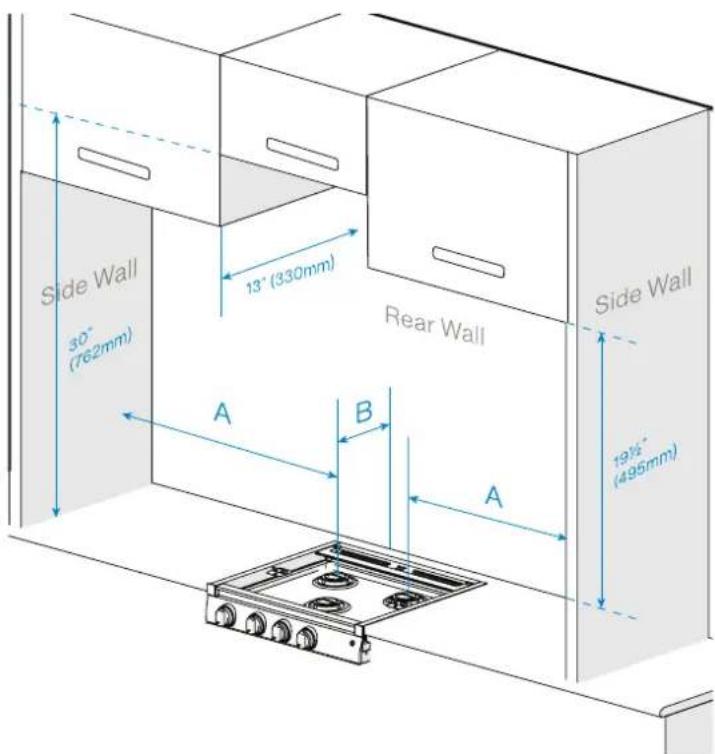

The minimum horizontal distance(s) from sides and back of appliance to adjacent vertical combustible walls extending above the top panel:

Item Dimension

A71⁄4" Min. (184mm Min.)

B8" Min. (203mm Min.)

NOTE: These distances shall be from the burner center of the appliance.

Side Wall 30° (762mm) 13' (330mm) Rear Wall Side Wall 19½" (495mm) A B A

WARNING

The minimum vertical distance to combustible material above the range cooking top is 30" (762mm), provided the overhead construction does not extend 13" (330 mm) from the rear wall.

NOTE: If installing a range hood or microwave hood combination above the cooking surface, follow the range hood or microwave hood combination installation instructions for dimensional clearances above the cooktop surface.

Cabinet and counter cutout chart:

A D G E F C B

A17 34 " (451mm)

B20 18 " (511mm)

C4 116 " (103mm)

D ^15/_16 " (23mm) max.

E1 ^9/_16 " (40mm) max.

F4 ^5/_16 " (110mm)

G3 ^9/_16 " (90mm)

Cooktop Installation

When the cabinet has been prepared according to the dimensions given and the gas line is in place.

1. Take your cooktop out of the carton and place on a flat surface. Remove the packing materials.

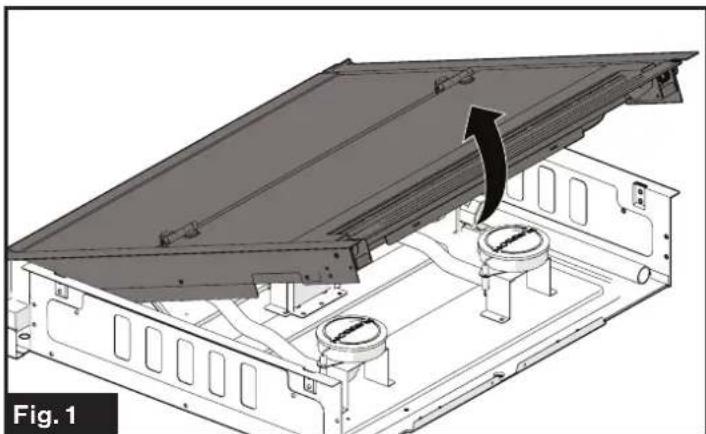

2. Hold the baffle and pull upward to release the top glass cover assembly from the cooktop. (Fig. 1)

Technical illustration of a mechanical assembly with a sloped metal frame and internal components (no text or symbols)

1. Push a little and lift to remove the top glass cover from the cooktop. (Fig. 2)

English

Technical diagram of a mechanical assembly with a sloped metal panel and internal components, labeled Fig. 2 (no text or symbols on the diagram itself)

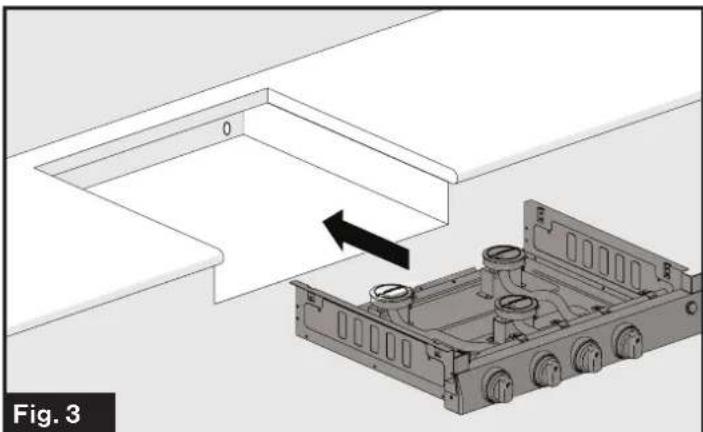

1. Slide the cooktop into the cabinet opening. Verify that the cooktop is level from side to side and front to rear. (Fig. 3)

Technical diagram showing a mechanical assembly with a component labeled 'Fig. 3' and an arrow indicating direction (no text or symbols on the diagram itself)

1. Fix the cooktop in the cabinet opening on both left and right using four self-tapping screws on both left and right (2 screws each side). (Fig. 4)

Technical diagram showing a mechanical assembly with an inset close-up of a component detail (no text or symbols)

Gas Connection

WARNING

Gas supply pipe must be installed with clearance from knives contacting or cutting gas lines.

Connect a propane supply line with a 38 " Flare Female connection to the cooktop in the upper left rear corner of the cabinet. (Fig. 5) Tighten the gas line joint to the cooktop using

2 wrenches.

IMPORTANT: Leave adequate space around the gas supply pipe in case of bend or damage during installation. Make sure the gas supply pipe cannot contact any moving parts after installed. Be sure all openings in the cabinet around the gas line are sealed at time of installation.

Technical diagram of a mechanical assembly with pipes and components, no visible text or symbols

Electrical Connection

CAUTION

PRODUCT DAMAGE HAZARD

• Connect to 12V DC service only.
• DO NOT connect to a circuit fused for more than 3 amps.
• DO NOT hi-pot range unless electronic ignition system has been disconnected.

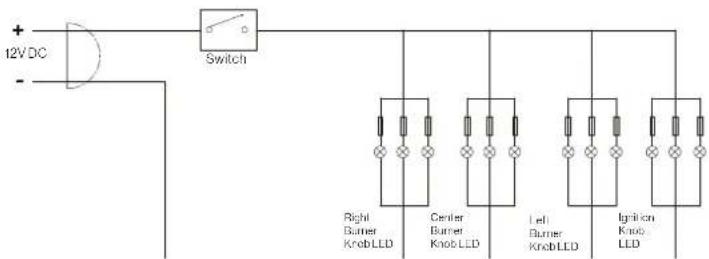

Connect a positive 12V power supply wire to the cooktop black 12V light wire and a negative 12V power supply wire to the cooktop white 12V light wire. (Fig. 6)

NOTE: Ensure to connect the wires with the correct polarity. Black is "+" and White is "−".

Technical diagram of a mechanical or electrical component with pipes and circular components, no visible text or symbols

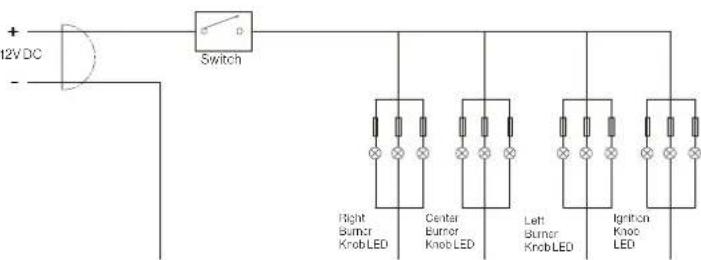

12V DC Switch Right Burner Knob LED Center Burner Knob LED Left Burner Knob FD Ignition Knob LED

Glass Cover Replacement

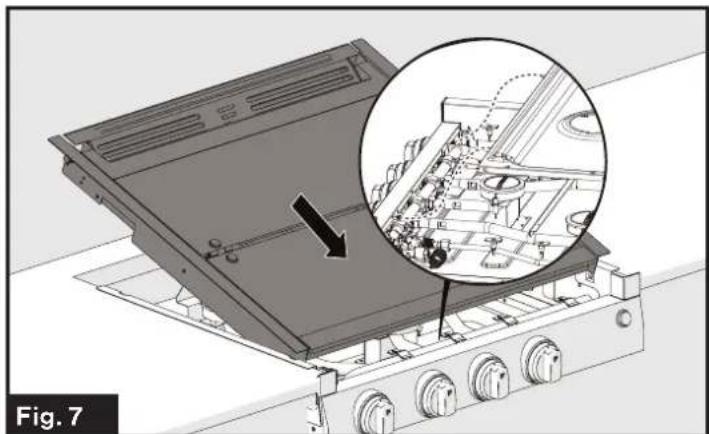

1. Align the top glass cover assembly with the slots on the cooktop and place it into the cooktop. (Fig. 7)

Technical diagram of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

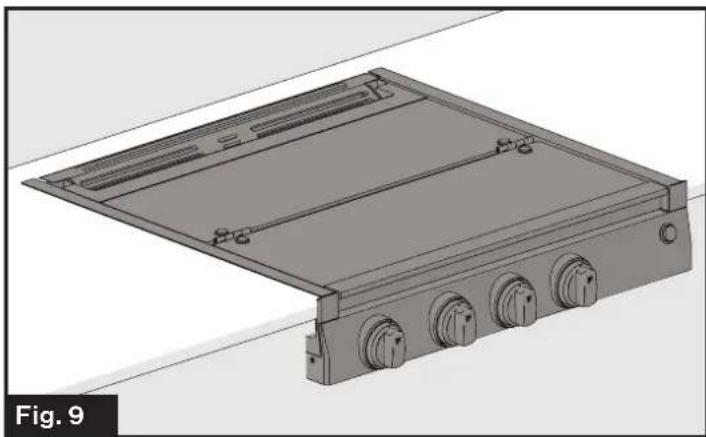

1. Press the backside of the top glass cover and you will hear a click noise. The top glass cover is now locked into place. (Fig. 8 and Fig. 9)

3D mechanical component diagram showing a tray with mounting holes and two arrows indicating features (no text or symbols present)

3D CAD model of a mechanical device with multiple ports and mounting brackets (no text or symbols visible)

Leak Check

WARNING

FIRE OR EXPLOSION

• Extinguish all open flames.
- NEVER leak test when smoking. Never use a flame.
- Do not use the appliance until connection has been leak tested and does not leak.
• Pressure/Leak test using 11-13.8 WC pressure.

WARNING

• Gas leaks may occur in your system and result in a dangerous situation. Always perform a leak test for possible leaks according to the manufacturer's instructions after installation and before any operation.

• Gas leaks may not be detected by smell alone. Gas suppliers recommend you purchase and install a UL approved gas detector.

• Make sure all control knobs are in the OFF position.

• Apply a gas leak detection liquid to the connections. Any gas leaks will be indicated by bubbles.
• If a gas leak is detected, tighten the loose joint, or replace the faulty part with a replacement part recommended by Furrion authorized retailer.

Operation

WARNING

Keep your arms and face away from being directly above the cooking area while in operating the appliance.

DANGER

• The top glass cover must be kept open when lighting and using the cooktop.
• Do not attempt to light more than one burner at a time.

Lighting the Cooktop

Before lighting, check and make sure all the control knobs are in the OFF position. Make sure the main gas tank valve is opened.

Standard Ignition:

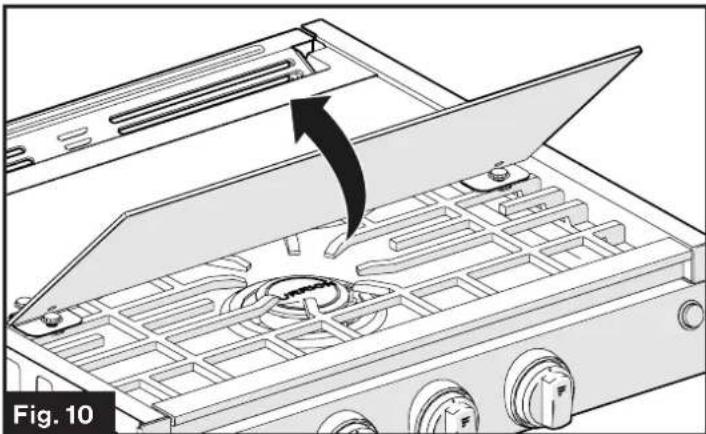

1. Lift to open the cooktop top glass cover. (Fig. 10) The top glass cover must be kept open when lighting and using the cooktop.

Diagram of a device interior showing a lid with a black arrow indicating a component, labeled 'Fig. 10' (no text or symbols on the diagram itself)

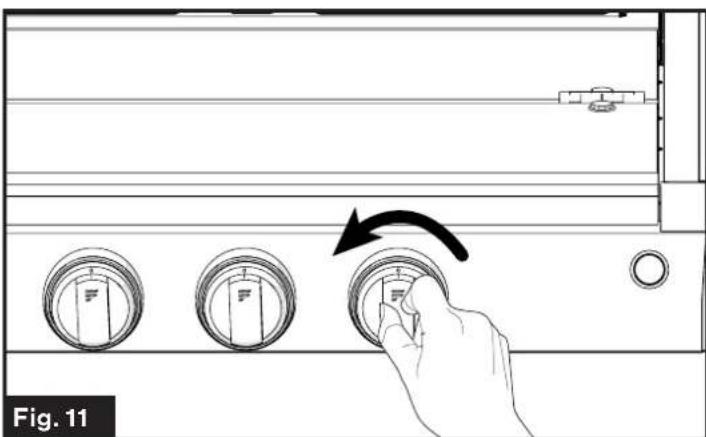

1. Push and turn the appropriate burner control knob counterclockwise to the ♠ position. (Fig. 11)

Diagram of a hand pressing down on a control panel with three circular buttons and an arrow indicating rotation (no text or symbols)

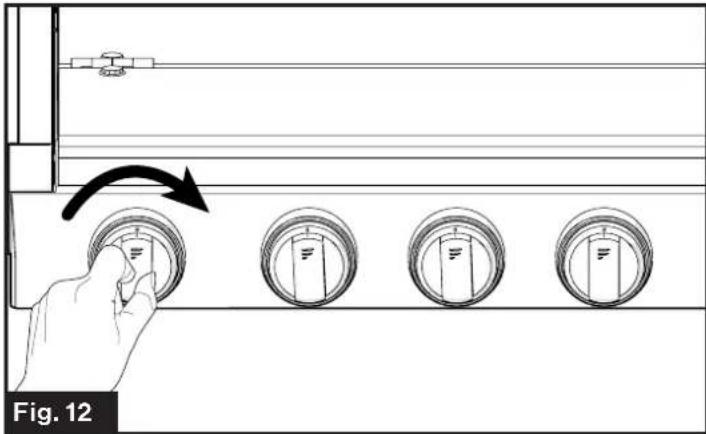

1. Keep the burner control knob pushed in and turn the ignition knob clockwise repeatedly until the burner is lit. (Fig. 12)

Fig. 12

1. Once the cooktop burner is lit, keep the ignition button pushed in for about 5 seconds until the flame becomes steady.
2. Rotate the burner control knob to adjust the flame to desired level.
3. Repeat steps 2 and 5 to light the other burner(s) as required.

If the burner does not ignite

In the event of failure to light the burner within 5 seconds, immediately turn the control knob clockwise to the OFF position. Wait at least 5 minutes and repeat the igniting procedure. If ignition still not occur, use a gas lighter or a match to light the burner. Refer to the 'Manual Ignition' section.

Manual Ignition:

WARNING

Use care when lighting the burners by hand. If a burner lights unexpectedly, or your hand is to close to the burner, you could be burned.

In the event of failure to ignite the burner in standard ignition, you may light the burner manually by following the steps below:

1. Turn the appropriate burner control knob counterclockwise to the ♠position. (Fig. 13)

Diagram of a hand pressing down on a control panel with three rotary buttons and a curved arrow indicating rotation (no text or symbols)

1. Immediately strike and place a burning long wooden match or a gas lighter near the burner to light. (Fig. 14)

Line drawing of a hand using a tool to adjust or install a gas stove burner, with no visible text or symbols.

1. Repeat steps 1 to 2 to light the other burner(s) as required.
2. Rotate the burner control knob to adjust the flame to desired level. (Fig. 15)

Diagram showing a hand pressing down on a control panel with three circular buttons and an arrow indicating rotation (no text or symbols)

If the Flame Goes Out

WARNING

Risk of Fire!

If the flame goes out accidentally, gas will escape. Never leave the gas burner unattended during operation. Ensure that there are no drafts that can affect the burner flame.

Immediately turn the control knob to the OFF position. Wait at least 5 minutes and light the burner again.

Turning Off the Cooktop

WARNING

Always turn off the gas tank valve when refueling or traveling.

To turn the cooktop burners off, rotate the control knobs clockwise to the OFF position.

The Burner Flame

Flames should appear similar to the good flame shown in diagram below.

Good Yellow Blue Holes in Burner Bad Yellow Blue

A good flame should be blue with a yellow tip.

Some yellow tips on flames up to 1" (25.4mm) in length are acceptable as long as no carbon or soot deposits appear. If flames are excessively yellow and irregular, the oil residue may not be completely burned off, or the venturi may be clogged or may not be properly positioned over the orifices.

Light Control

Diagram showing a hand pressing a button on a control panel with two circular gauges and directional arrows indicating motion.

Position Meaning
I	All control knob lights are on
O	All lights are off

Slow Cooking

The power of the side burners is lower than the center burner, it is recommended that you use the side burners for slow cooking purpose.

Maintenance

• Make sure all the control knobs are off and the appliance is cool before cleaning.
• Make sure all the appliance surfaces, burner grates and burners are cool before cleaning or disassembling.
• DO NOT use bleach or rust removers on the cooktop or burner grates.
• DO NOT obstruct the flow of combustion and ventilation air.
• Keep the appliance area clear of combustible materials, gasoline and other flammable vapors and liquids.
• Never use a wire brush or metallic item for cleaning burner ports or orifices. Brush may "shed" bristles that may lodge in the orifice or burner ports and cause a fire or explosion.
• Clean all surfaces as soon as possible after boilovers or spillovers.
• Use warm soapy water only to clean the burner grates, cooktops, painted surfaces, porcelain surfaces, stainless steel surfaces and plastic items on your range or cooktop. Do not use grit or acid-type cleaners. Do not use cleaners with ammonia, Cleaners of these types are corrosive and could damage component parts in the range.
• DO NOT use steel wool, or abrasive cleaners, or acid type cleaners such as chlorine bleach on your cooktop or grate systems. They will damage your range or cooktop. Use only non-abrasive plastic scrubbing pads.
• DO NOT allow foods containing acids (such as lemons or tomato juice, or vinegar) to remain on porcelain or painted surfaces. Acids may remove the glossy finish. Wipe up egg spills when cooktop is cool.
• DO NOT wash warm porcelain surfaces. Allow these areas to cool before cleaning. You could burn yourself or the porcelain could crack.
• Pitting and discoloration will result if spills are allowed to remain for any length of time on stainless steel.
• DO NOT allow spillovers to remain on the burner caps. The caps could become permanently stained.
• When cleaning around the burners use care to prevent damage to the electrode (if so equipped). If a sponge or cloth should catch the metal igniter electrode, it could damage or break the electrode. If this occurs the burner will not light.

Replacing the Control Knob LED

1. Disconnect the oven from the power supply by means of the switch used to connect the appliance to the electrical mains, or unplug the appliance if the plug is accessible.

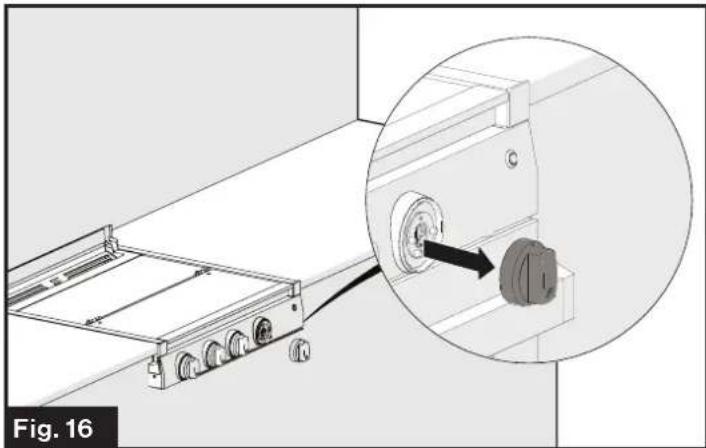

2. Grasp and pull on the control knob with the broken LED light. (Fig. 16)

Technical diagram showing a mechanical assembly with a magnified inset highlighting a circular component (no text or symbols present)

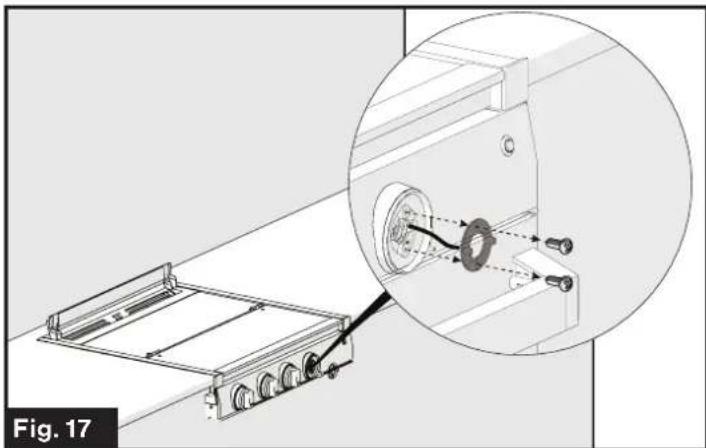

1. Remove the two screws holding the LED light using a Phillips screwdriver. (Fig. 17)

Technical diagram showing a mechanical assembly with an inset close-up of a circular component being inserted into a housing (no text or symbols present)

1. Remove the LED assembly and disconnect the wire from the base of the LED assembly. (Fig. 18)

Technical diagram showing a mechanical assembly with an inset close-up of a component being inserted (no text or symbols present)

1. Plug the wire harness connector into the new LED assembly.
2. Reattach the LED assembly to the console with the 2 screws removed in step 3. Ensure the wires are not pinched during this process.
3. Reattach the control knob by aligning the stem of the control into the opening in the control knob housing and pushing it back into position.

Storage

Dry all surfaces and burner box, then spray surfaces with cooking oil substance to preserve the surface from rusting during long term storage. Wipe off oil coating before reuse.

Troubleshooting

Before calling for service, review this list. It may save you both time and expense. This list includes common experiences that are not the result of defective workmanship or material in your appliance.

Problem Possible Cause/Solution
Surface burners do not light	Surface control knob has not been completely turned to▲ position. Push in and turn the surface control knob to▲ position until burner ignites and then turn control to desired flame size.
	Ensure gas supply valve is open.
	Burner ports or slots are clogged. With the burner off use a small-gauge wire or needle to clean ports or slots.
	Low gas supply level in cylinder.
Surface burner flame burns half way around	Moisture is present on the burner, dry burner thoroughly.
	Burner ports or slots are clogged. With the burner off clean ports with a small-gauge wire or needle to clean ports or slots.
	Moisture is present after cleaning. Lightly fan the flame and allow burner to operate until flame is full. Dry the burners thoroughly.
Surface burner flame is orange	Dust particles in main line. Allow the burner to operate a few minutes until flame turns blue.
	In coastal areas a slightly orange flame is unavoidable due to salt air.

Specification

Technical Specifications
Optional power	Gas power
BTU/HR	Left and Right Burner: 6500 BTU
	Front Burner: 8000 BTU
Fuel / Power	Propane
Inlet pressure	10" WC Min to 13.8" WC Max
Power input	12V DC < 2 Amp

This appliance conforms with the directives: ANSI Z21.57a-(2012) Rec / CAN1-1.16-M79 (R2011)

Illustration of a cooking pot on a stove with a crossed X mark (no text or symbols)

Illustration of a cooking pot with a cooking pan and a checkmark (no text or symbols)

Technical diagram of a computer drive chassis with numbered components and airflow indicators

INCENDIE, EXPLOSION, BRÛLURES, INTOXICATION AU MONOXYDE DE CARBONE

A D G E F C B

A 1734 po (451 mm)

B 2018 po (511 mm)

C 4116 po (103 mm)

D ^15/_16 po (23 mm) au max.

E 1^9/_16 po (40 mm) au max.

F 4516 po (110 mm)

G 3916 po (90 mm)

Technical diagram of a mechanical assembly with a metal frame and internal components, showing no text or symbols.

Technical diagram of a mechanical assembly with a sloped metal frame and internal components, showing no text or symbols.

Technical diagram showing a mechanical assembly with a component labeled 'III. 3' and an arrow indicating direction (no text or symbols on the diagram itself)

Technical diagram showing a mechanical assembly with an inset close-up of a component detail (no text or symbols)

Raccordement de gaz

AVERTISSEMENT

Technical diagram of a mechanical assembly with pipes and valves, no visible text or symbols

Technical diagram of a mechanical assembly with pipes and valves, showing a black arrow pointing to a component (no text or symbols present)

12V DC Switch Right Burner KnobLLD Center Burner KnobLLD Left Burner KnobLLD Ignition Knob LLD

Technical diagram of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

3D mechanical component diagram showing a tray with mounting holes and two arrows indicating features (no text or symbols)

3D CAD model of a mechanical device with multiple ports and mounting brackets (no text or symbols visible)

Diagram of an open refrigerator with a door panel and internal compartments, showing a black arrow indicating the direction (no text or symbols present)

Hand pressing a button on a control panel with three circular buttons and an arrow indicating rotation (no text or symbols)

Diagram of a hand pressing down on a control panel with three circular buttons and an arrow indicating rotation (no text or symbols)

Line drawing of a hand using a tool to press down a gas stove burner, with three rotary switches on the side (no text or symbols)

Hand pressing down on a control panel with three rotary buttons and a black arrow indicating rotation (no text or symbols)

Good Yellow Blue Holes in Burner Bad Yellow Blue

Diagram showing a hand pressing a button on a circular component with measurement markings and control buttons.

Position Signification

Technical diagram of a mechanical assembly with a magnified inset showing a component being inserted (no text or symbols present)

Technical diagram showing a mechanical assembly with an inset close-up of a component being inserted (no text or symbols present)

Technical diagram showing a mechanical assembly with an inset close-up of a component (no text or symbols visible)

Illustration of a cooking pot with a pan and a crossed-out X mark (no text or symbols)

Illustration of a cooking pot with a checkmark indicating heating (no text or symbols)

Technical diagram of a computer drive chassis with numbered components and airflow indicators

Side Wall 30° (762mm) 13° (330mm) Rear Wall Side Wall 19½" (495mm) A B A

ADVERTENCIA

A D G E F C B

A17 34 " (451 mm)

B20 18 " (511 mm)

C4 16 " (103 mm)

D ^15/_16 " (23 mm) máx.

E1 916 " (4 mm) máx.

F4 516 " (110 mm)

G3 96 " (90 mm)

Technical illustration of a mechanical assembly with a sloped metal frame and internal components (no text or symbols)

Technical diagram of a mechanical assembly with a sloped metal panel and internal components, labeled Fig. 2 (no text or symbols on the diagram itself)

Technical diagram showing a mechanical assembly with a component labeled 'Fig. 3' and an arrow indicating direction (no text or symbols on the diagram itself)

Technical diagram showing a mechanical assembly with an inset close-up of a bracket component (no text or symbols)

Conexión de gas

ADVERTENCIA

Technical diagram of a mechanical assembly with pipes and valves, no visible text or symbols

Conexión eléctrica

PRECAUCIÓN

PELIGRO DE DAÑO DEL PRODUCTO

Technical diagram of a mechanical or electrical component with pipes and valves, showing a directional arrow (no text or symbols present)

12V DC Switch Right Bumper KnobLED Center Bumper KnobLED Left Bumper KnobLED Ignition Knee LED

Technical illustration of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

3D mechanical component diagram showing a flat plate with mounting holes and two arrows indicating features (no text or symbols present)

3D CAD model of a mechanical device with multiple ports and mounting brackets (no text or symbols visible)

Diagram of a computer chassis showing internal components and a directional arrow indicating movement (no text or symbols present)

Diagram of a hand pressing down on a control panel with three circular buttons and an arrow indicating rotation (no text or symbols)

Diagram of a hand pressing down on a control panel with three rotary buttons and a scroll wheel (no text or symbols)

Line drawing of a hand using a tool to press down a gas stove burner, with three rotary switches on the side (no text or symbols)

Diagram of a hand pressing down on a control panel with three circular buttons and an arrow indicating rotation (no text or symbols)

Good Yellow Blue Holes in Burner Bad Yellow Blue

Diagram showing a hand pressing a button on a control panel with two circular gauges and directional arrows.

Technical diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Technical diagram showing a mechanical assembly with an inset close-up of a component being inserted (no text or symbols present)

Technical diagram showing a mechanical assembly with an inset close-up of a component (no text or symbols present)

Abstract black geometric shape on white background (no text or symbols)

Furrion Innovation Center & Institute of Technology

- 52567 Independence Ct., Elkhart, IN 46514, USA - Toll free:1-888-354-5792

- Email: [e-mail]

©2007-2019 Furrion Ltd. Furrion® and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries.
