Pro AC5210 - Hair dryer Carmen - Free user manual and instructions

Product Type	Professional Hair Dryer
Brand	Carmen
Model	Pro AC5210
Power	2300 W (1950-2300 W)
Motor	Professional AC Motor
Technology	ION (shiny and antistatic hair)
Number of Speeds	2
Number of Temperatures	3 + Cool Shot function
Included Accessories	Advanced diffuser, concentrator
Removable Filter	Yes, for easy cleaning
Cord Length	1.8 m
Hanging Loop	Yes
Warranty	2 years
Power Supply	220-240 V, 50/60 Hz
Protection Class	Class II (double insulation)
Cleaning	Damp cloth, removable grille
Safety	Do not use near water, unplug after use

Frequently Asked Questions - Pro AC5210 Carmen

How to activate the Cool Shot function?

Press the Cool Shot button (button D) while drying to set your hairstyle with a blast of cold air.

How to clean the hair dryer filter?

Before cleaning, unplug the device. Remove the removable grille (part C) and clean it with a soft brush or cloth. Put it back in place after drying.

Can I use this hair dryer in the bathroom?

Yes, but with caution. Never use it near a bathtub, sink, or water source. Unplug it after each use. A 30 mA residual current circuit breaker is recommended.

How to choose the temperature and speed?

Use the airflow power selector (F) to choose between normal and full power. The temperature selector (E) offers three positions: hot, warm, and cool.

What to do if the cord is damaged?

The cord cannot be replaced. If the cord is damaged, the appliance must be discarded. Contact customer service for advice.

Are the diffuser and concentrator removable?

Yes, both accessories simply attach to the device's outlet. You can change them according to your styling needs.

How to store the hair dryer after use?

Let the device cool down, clean the grille if necessary, then store it in a dry place between 15°C and 25°C. Use the hanging loop to hang it.

What is the maximum power of the device?

The power varies between 1950 W and 2300 W depending on voltage. The 2300 W professional AC motor ensures fast drying.

Does the warranty cover accessories?

No, the 2-year warranty only covers the device itself. Accessories such as the diffuser and concentrator are excluded.

How to benefit from ionic technology?

The ION technology is built-in and activates automatically. It reduces static electricity and makes hair shiny and easier to style.

USER MANUAL Pro AC5210 Carmen

Black CARMEN hair dryer with a pointed tip and handle (no visible text or symbols on the device body)

AC5210

CARMEN PRO

AC-HAIR DRYER 2300

• Professional and powerful AC motor 2300 W: ensures fast drying time and longer life span
• ION technology for shiny and anti-static hair
- Cool shot function
• 2 speed- and 3 temperature settings
• Including advanced diffuser
- Includingconcentrator
- Easy to clean due to the removable filter
•Hangingloop
• 1.8 m cable cord
•2Yearwarranty

Technical specifications:

• 220-240V 50/60Hz 1950-2300W

ENGLISH • 3

A B C D E F G H CARMEN

DELIVERY SET

Unit body - 1 pc.

Attachments - 2 pcs.

Instruction manual - 1 pc.

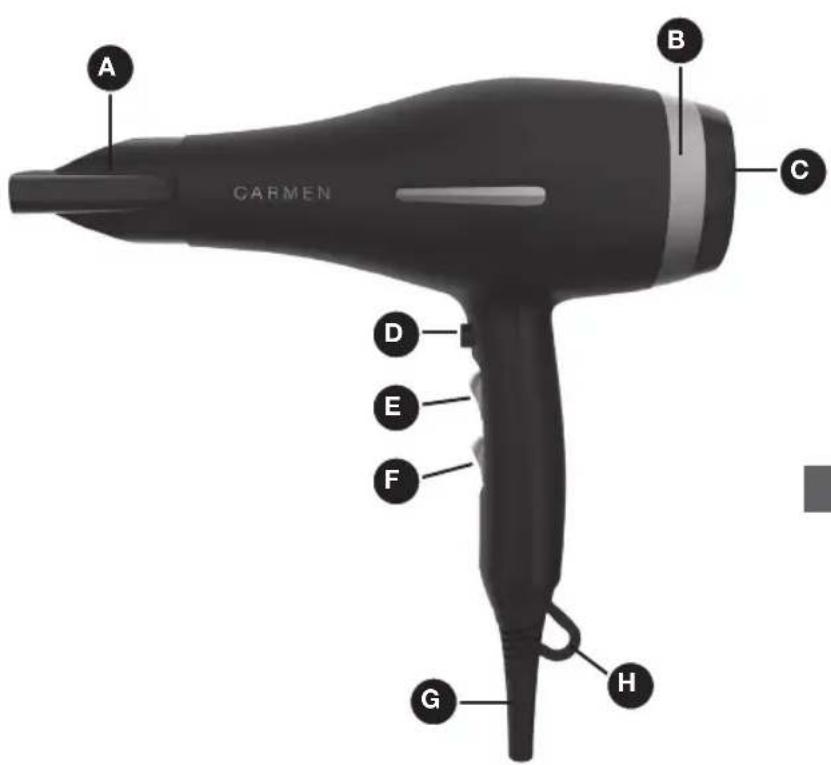

>DESCRIPTION

A. Concentrator
B. Decorative ring
C. Removable grill
D. Cool Shot button
E. Temperature control switch
F. Speed control switch
G. Cable cord
H. Hanging loop

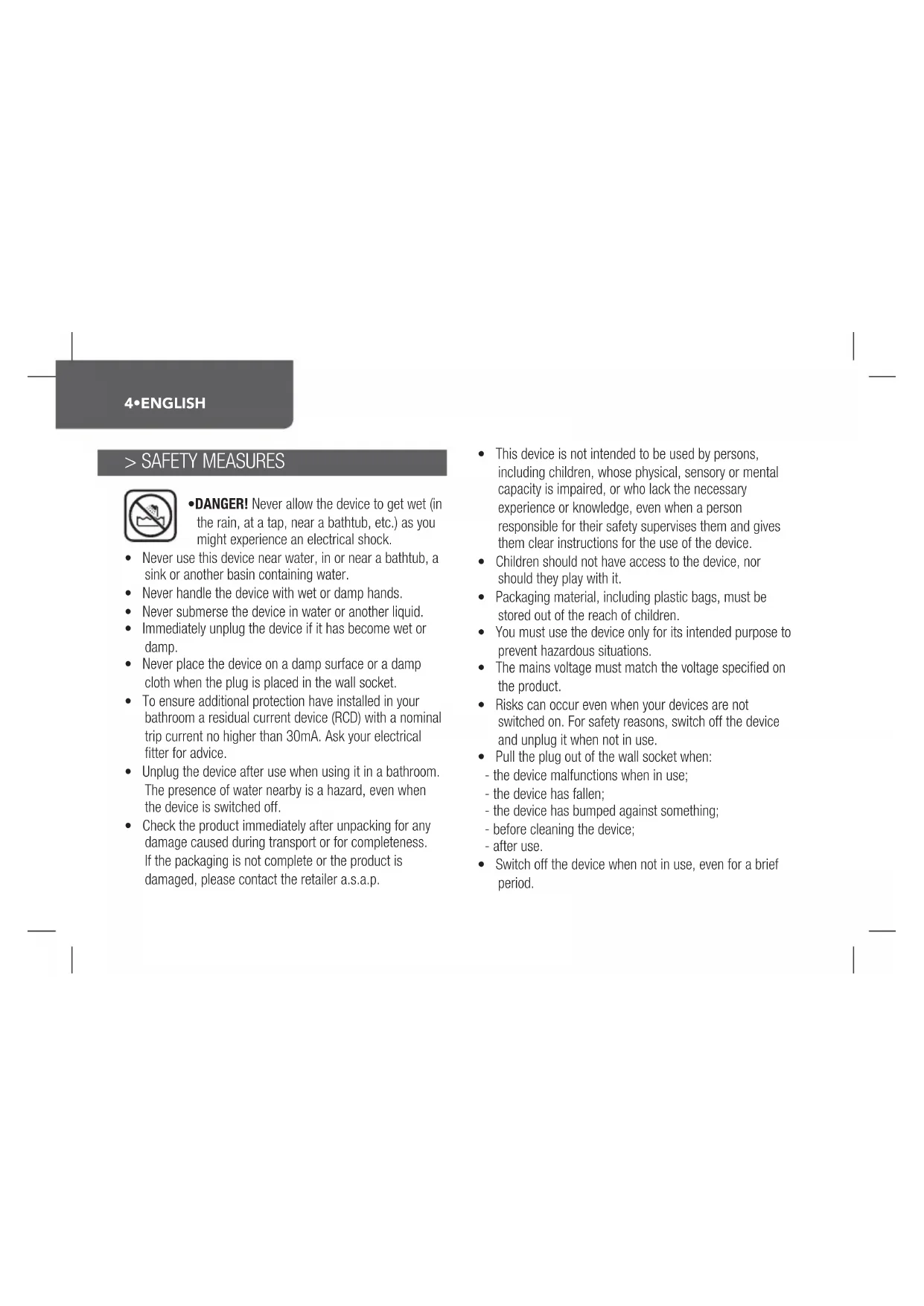

> SAFETY MEASURES

- DANGER! Never allow the device to get wet (in the rain, at a tap, near a bathtub, etc.) as you might experience an electrical shock.

• Never use this device near water, in or near a bathtub, a sink or another basin containing water.
• Never handle the device with wet or damp hands.
• Never submerse the device in water or another liquid.
• Immediately unplug the device if it has become wet or damp.
• Never place the device on a damp surface or a damp cloth when the plug is placed in the wall socket.
• To ensure additional protection have installed in your bathroom a residual current device (RCD) with a nominal trip current no higher than 30mA. Ask your electrical fitter for advice.
• Unplug the device after use when using it in a bathroom. The presence of water nearby is a hazard, even when the device is switched off.

• Check the product immediately after unpacking for any damage caused during transport or for completeness. If the packaging is not complete or the product is damaged, please contact the retailer a.s.a.p.

• This device is not intended to be used by persons, including children, whose physical, sensory or mental capacity is impaired, or who lack the necessary experience or knowledge, even when a person responsible for their safety supervises them and gives them clear instructions for the use of the device.

• Children should not have access to the device, nor should they play with it.
• Packaging material, including plastic bags, must be stored out of the reach of children.
• You must use the device only for its intended purpose to prevent hazardous situations.
• The mains voltage must match the voltage specified on the product.
• Risks can occur even when your devices are not switched on. For safety reasons, switch off the device and unplug it when not in use.
• Pull the plug out of the wall socket when:

- the device malfunctions when in use;

- the device has fallen;

- the device has bumped against something;

- before cleaning the device; - after use.

- Switch off the device when not in use, even for a brief period.

ENGLISH • 5

• Always unplug the device when leaving it unattended for a longer period.
  • Never leave the device unattended.
• Never use the device when it is damaged. Regularly check the device and the cable for damages. The cable cannot be replaced. The device will have to be discarded if the cable is damaged. Repairs must be performed exclusively by experts. Repairs that are inexpertly performed can be very hazardous for the user.
• If the device is damaged, contact the supplier to find out if you can still use it.
• When unplugging always pull the plug. Never pull on the cable itself.
• Do not insert the plug in the wall socket when:

- the cable is damaged;

- the device is visibly damaged;

- the device has fallen.

• Do not let the cable touch the hot parts of the device.
• Always make sure that the cable is unencumbered when you move the device around.
• Avoid tripping over the cable.
• Never cover the cable with a rug, mat, blanket etc.
• Never wrap the cable around the device.

• Check the cable of the device regularly for cable breakage to prevent short circuits.

• Let the device cool before storing or cleaning it.

• Store the device in a safe place to prevent accidental cool down use.
• The device must be stored in a dry place at temperatures between 15°C and 25°C.
• Do not expose the device to heat (radiator, oven, etc.), direct sunlight or humidity.
• Do not use any accessories other than those recommended by Carmen.
• Keep the device clean and do not use abrasives or products containing solvents.
• Connect the device only to an electrical system that meets the prevailing regulations and that is equipped with a delay fuse. Make sure that the maximum current of all devices connected to this fuse does not exceed its maximum current (16A).
• We recommend equipping the group to which the bathroom is connected with a residual current operated circuit breaker of maximum 16A to increase safety. Ask your electrician for advice.
• The most recent instruction manual can be found on the Carmen website: www.carmen.nl

> DIRECTION FOR USE

Wash your hair and dry it with a towel. Plug in the device. Set the switch to the desired airspeed and temperature.

Airspeeds

Use the double-throw switch to activate the device and select the desired airflow.

$$ \begin{array}{l} {\text { ✿ }} = \text { Powerful airflow } \ \star = \text { Normal airflow } \ \bigcirc = \text { Device off } \ \end{array} $$

Temperature setting

Use the triple-throw switch to select the desired temperature.

$$ \begin{array}{l} \mathrm{sss} = \text { High } \ \mathbf {s} = \text { Medium } \ \mathfrak {s} = \text { Low } \ \end{array} $$

Cold-Air function

Use the button of the cold-air function to fix your hair with a flow of cold air.

Concentrator

This blower nozzle makes it possible to aim the airflow more accurately at the hair. This concentrator can easily be attached at the front of the device.

> CLEANING AND MAINTRANCE

• Unplug the device before cleaning it.
- Do not let children clean the device.
- Never submerse it in water.
- Protect the device from dust.
- Occasionally clean the ventilation grille to remove dust and hairs.
- You can use a slightly damp cloth to clean the device. Afterwards, dry the device with a dry cloth.

> THE ENVIRONMENT AND WASTE

The packaging material, the device, and accessories are made of recyclable materials. Properly sorting waste and a proper treatment of the residual materials assist in recycling. The above markings indicate that this product must be processed separately from regular household waste in the EU. Recycle the product responsibly to promote the sustainable reuse of raw materials and to prevent potential

ENGLISH • 7

harm to the environment or public health due to improper treatment. Use the existing collection systems when discarding your device or contact the shop where you bought it. The shop can ensure that your device is recycled in an environmentally responsible manner.

Always keep your device separate from regular household waste. Ask about the regulations applicable at your place of residence or return the device to the shop. Save your purchase receipt as proof of guarantee.

> ENVIRONMENT AND WASTE

In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this device is marked with the symbol of a crossed-out wheelie bin indicating that this product cannot be disposed of as household waste. The device must be brought to the appropriate waste collection point for treatment, removal, and recycling of WEEE (information can be obtained at the town hall of your domicile) or brought back to a dealer based on the principle of “1 for 1 free of charge” (the dealer’s take back does not create a right to a payment or rebate). The consumer or user contributes to the preservation of the natural resources and to the protection of human health by respecting the environment in this manner.

> WARRANTY

This CARMEN device comes with a two (2)-year warranty to be counted from the date of purchase under normal conditions of use. This warranty does not cover damage directly or indirectly caused by misuse, neglect, unauthorised use, accidents, unauthorised repairs or modifications, as well as a lack of maintenance. Please save your receipt/invoice as proof of your purchase. This device's accessories are not covered by a warranty. Exclusions from the warranty

• Modifications, dismantling or integration with another device or an assembly making the device fixed or semi-fixed,
  • Normal wear and tear of the parts,
• Degradation due to improper use,
• Failure to comply with the user manual or with the maintenance and safety instructions,

ENGLISH • 9

• Damage resulting from poor maintenance or a lack of maintenance,
• Damage caused by external factors (lightening...),
• Abnormal use of the device,
• Improper storage,
  •Shocks,
• Deformation of the tank,
• The device having been submerged,
• Expired warranty.

For warranty and service we refer you to the reseller and for more information you can consult our website www.carmen.nl.

This is a class II device with double insulation and no grounding

This device conforms to the Electromagnetic Compatibility Directive 2014/30/EU

and the Low Voltage Directive 2014/35/EU

10 • NEDERLANDS

PRODUCTINFORMATIE

Productcode:

AC5210

Productnaam: Carmen Pro AC-Hair dryer 2300

EAN geschenkverpakking: 5011832067708

Specifications:

INFORMATIONS SUR LE PRODUIT

Most recent IM can be

downloaded from www.carmen.nl
