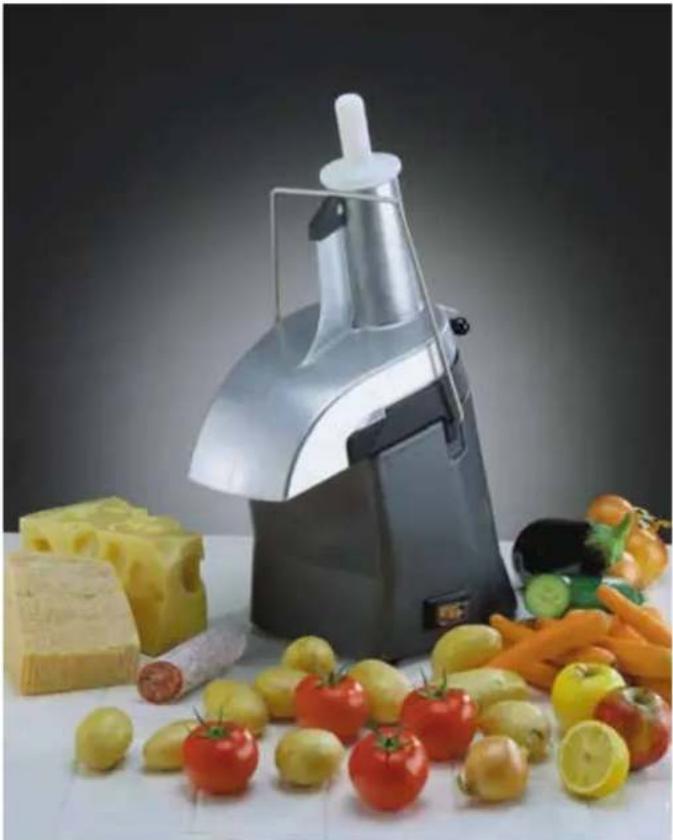

USER MANUAL N° 49 Santos

TYPEPLAATJE VAN HET APPARAAT

TYPEPLAATJE VAN HET APPARAAT

IMPORTANT: documents included in this manual to be kept:

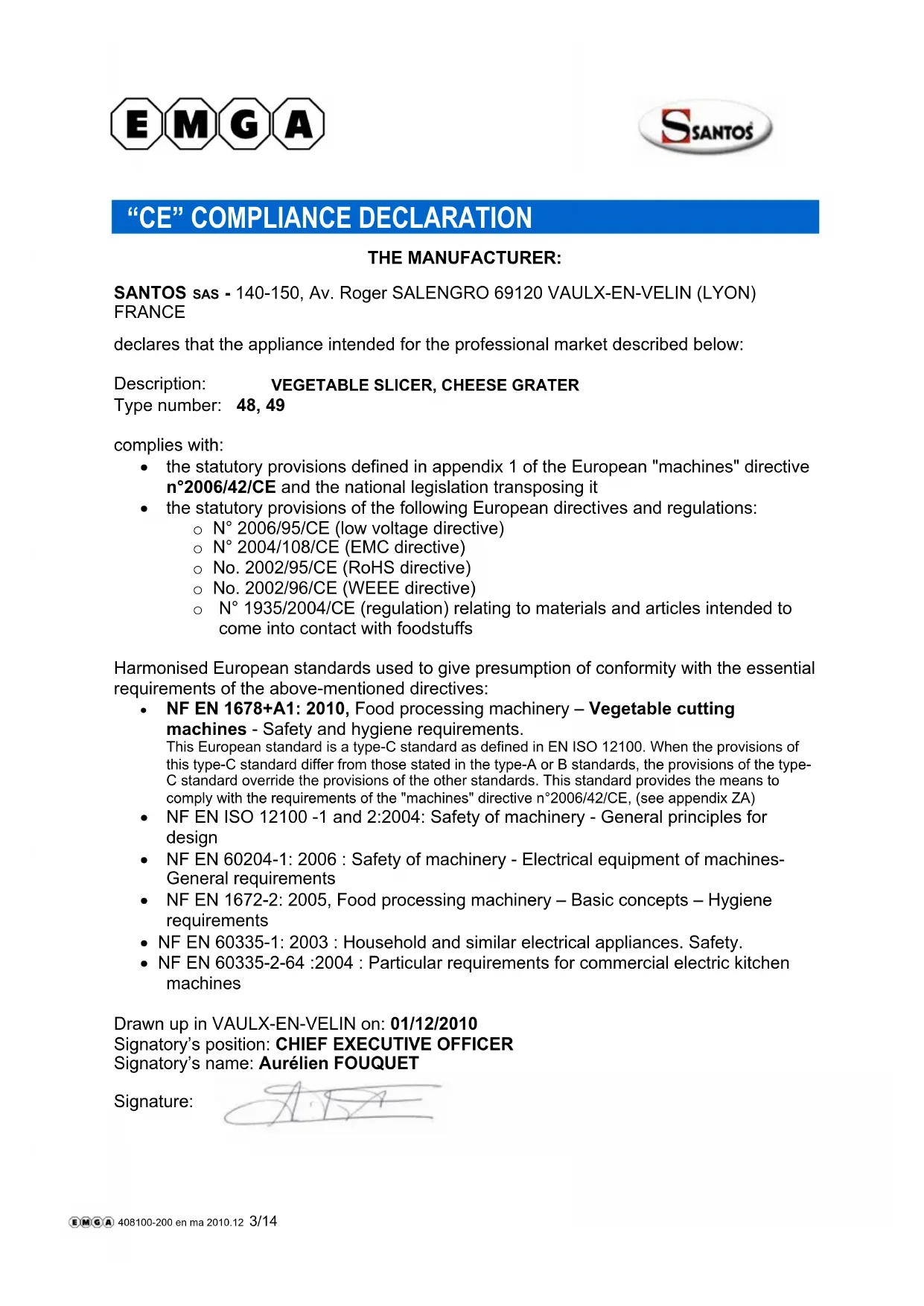

THE MANUFACTURER: SANTOS SAS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE declares that the appliance intended for the professional market described below: Description:

VEGETABLE SLICER, CHEESE GRATER

Type number: 48, 49 complies with: the statutory provisions defined in appendix 1 of the European "machines" directive n°2006/42/CE and the national legislation transposing it the statutory provisions of the following European directives and regulations: o N° 2006/95/CE (low voltage directive) o N° 2004/108/CE (EMC directive) o No. 2002/95/CE (RoHS directive) o No. 2002/96/CE (WEEE directive) o N° 1935/2004/CE (regulation) relating to materials and articles intended to come into contact with foodstuffs Harmonised European standards used to give presumption of conformity with the essential requirements of the above-mentioned directives: NF EN 1678+A1: 2010, Food processing machinery – Vegetable cutting machines - Safety and hygiene requirements. This European standard is a type-C standard as defined in EN ISO 12100. When the provisions of this type-C standard differ from those stated in the type-A or B standards, the provisions of the type- C standard override the provisions of the other standards. This standard provides the means to comply with the requirements of the "machines" directive n°2006/42/CE, (see appendix ZA) NF EN ISO 12100 -1 and 2:2004: Safety of machinery - General principles for design NF EN 60204-1: 2006 : Safety of machinery - Electrical equipment of machines- General requirements NF EN 1672-2: 2005, Food processing machinery – Basic concepts – Hygiene requirements NF EN 60335-1: 2003 : Household and similar electrical appliances. Safety. NF EN 60335-2-64 :2004 : Particular requirements for commercial electric kitchen machines Drawn up in VAULX-EN-VELIN on: 01/12/2010 Signatory’s position: CHIEF EXECUTIVE OFFICER Signatory’s name: Aurélien FOUQUET Signature: 408100-200 en ma 2010.12 3/1498148 US 3.2 - 12 2010 4 / 14 www.santos.fr VEGETABLE SLICER No. 48 / CHEESE GRATER No. 49 The No. 48 vegetable slicer is of sturdy construction (component parts in cast aluminum, rubber and food-quality plastic) and is particularly suitable for cutting, slicing, thinly slicing, grating and stripping in preparations made by professionals in: Restaurants, Pizzerias, Snack bars, Catering points, sandwich bars, theme restaurants, etc. With its powerful motor, it can drive either high-output cutting disks or grating disks of ø 170 mm. The active part of the tools (knives for slicers or disks for grating disks) is made of stainless steel. Care: the appliance is designed for cutting, slicing, stripping and grating all types of vegetable, fruits, cheeses and sausages, but not frozen foods.

EQUIPMENT AND ACCESSORIES

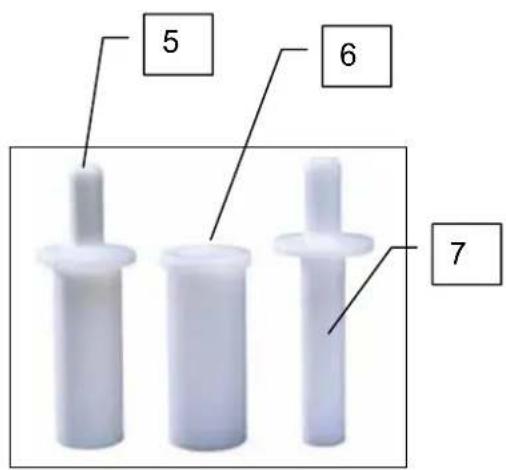

Rams A ram (5) for large diameter (of between 70 mm and 40 mm) products such as potatoes, turnips, apples, Gruyere and Parmesan cheese, etc. A reducer (6) and a small diameter ram (7) for long and small diameter (maximum diameter 40 mm) products such as carrots, cucumbers, courgettes, etc. Disks 48200T1: 1 mm cut slicer disk 48200T2: 2 mm cut slicer disk 48200T3: 3 mm cut slicer disk 48200T4: 4 mm cut slicer disk 48200T5: 5 mm cut slicer disk 48200T6: 6 mm cut slicer disk 48200TD4: 4 mm special Tomatoes slicer disks 48200TD6: 6 mm special Tomatoes slicer disks 48200TO4: 4 mm special Crinkle-cut potatoes slicer disks. 48200R2: Ø 2 mm grater disk 48200R3: Ø 3 mm grater disk 48200R4: Ø 4 mm grater disk, 48200RP: Parmesan cheese grater disk 48200RR: "Röstis" grater disk. 48200E2: 2x2 stripping disk 48200E4: 4x4 stripping disk 48200E8: 8x8 stripping disk (chips)

Disk storage 48290: Disk support for work surfaces or for wall application (optional). 408100-200 en ma 2010.12 4/1498148 US 3.2 - 12 2010 5 / 14 www.santos.fr RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE This appliance has the recycling symbol marking relating to waste electrical and electronic equipment. This means that this product must be processed by a waste sorting system in accordance with Directive 2002/96/CE (WEEE) – Professional Equipment section – so that it can be either recycled or disassembled in order to reduce any impact on the environment. For further information, please contact your dealer or SANTOS. For the elimination or recycling of the appliance components, please contact a specialist company or contact SANTOS Electronic products which have not been out-sorted are potentially dangerous for the environment. The packaging materials must be eliminated or recycled in accordance with regulations in force.

1. The appliance No. 48-49 is not designed to be used with knives of a cut of

2. The appliance must not be cleaned with either with a water spray or a

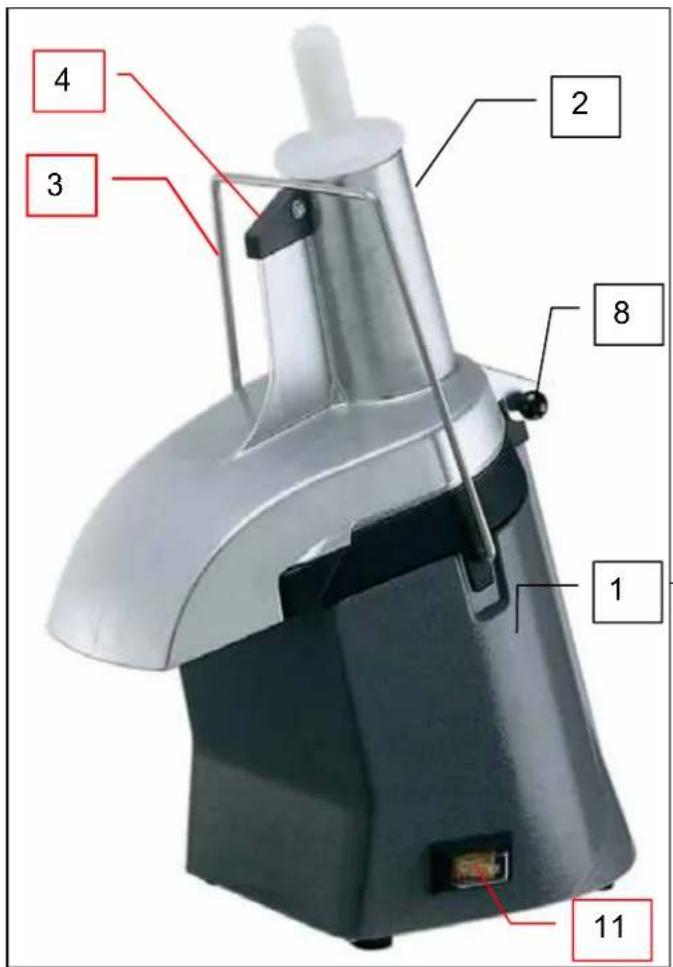

pressure jet, nor should it be immersed Note: To make understanding the following paragraphs easier, please refer to the diagrams at the end of this manual

408100-200 en ma 2010.12 5/1498148 US 3.2 - 12 2010 6 / 14 www.santos.fr ELECTRICAL CONNECTION: The electric power supply for the machine is available in 2 single-phase voltages: - 110-120 V 50/60 Hz: model 48V1 and 49V1 - 220-240 V 50/60 Hz: model 48 and 49 Line protection: the machine should be connected to a standard 2-pole + earth electric socket. The system should be fitted with a ground fault circuit interrupter and a fuse rated at 16A. The appliance must be earthed. CARE: Before connecting the machine, check that the mains electrical voltage is the same as the voltage for your machine. This value is given: either on the identification plate under the machine. or on the identification plate on the last page of this manual. If the power supply lead is damaged, it must be by a special assembly available from approved SANTOS dealers or from SANTOS. CARE: Check that the On / Off switch (11) is in the 0 position before connecting the power supply lead plug to your mains electric power socket.

3. Remove the ejector (12) from the motor spindle (18) and wash it in fresh water.

4. Wash all the items in contact with food in fresh water: the guide channel (2), the dirt

tray (9), the large diameter ram (5), the reducer (6), the small diameter ram (7), the slicer disk (14) and the grater disk (13). TAKE CARE: RISK OF CUTS ON HANDLING THE KNIVES. STARTING UP:

1. After selecting the appropriate tool for the work required (grating or slicing), fit the

3. Place a recipient under the appliance outlet

4. Lock the guide channel (2) with the locking loop (3) and position on the clip (4).

5. Plug the power supply plug (10) into your mains power socket.

6. Switch the machine on by putting the On/Off switch (11) to the 1 position; the

indicator lights up.

7. Introduce the products into the guide channel (2) or into the reducer (6).

8. Push the products in using the large diameter ram (5) or the reducer (6) and the

small diameter ram (7) until the ram reaches the collar. CLEANING: IMPORTANT: Stop the machine and unplug the machine power supply lead. The appliance must not be cleaned either with a water spray or pressure jet, nor should it be immersed For easier cleaning, do not allow food to dry on the guide channel (2), the grater disk (13), the slicer disk (14), the ejector (12) or the dirt tray (9). It is recommended that all these machine parts are cleaned as soon as the work is finished.

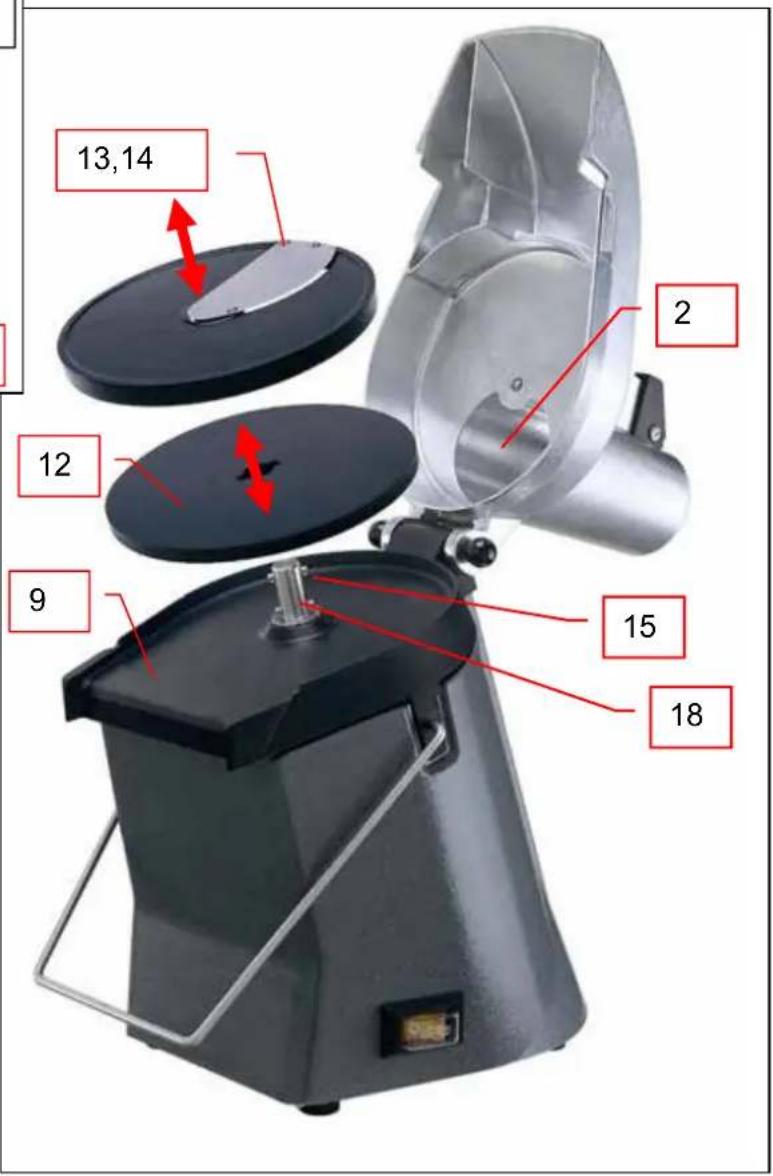

408100-200 en ma 2010.12 7/1498148 US 3.2 - 12 2010 8 / 14 www.santos.fr MAINTENANCE: Put the appliance to the "Off" position with the On/Off button (11) and unplug the power supply lead plug (10). Remove the large diameter ram (5) or the reducer (6) and the small diameter ram (7). Unclip the locking loop (3) from the clip (4), pulling it towards you. Raise the guide channel (2). For cleaning after handling products which are difficult to clean (products with greasy substances for example), the guide channel hinge pin (8) can be removed and the guide channel washed in a dish washer. Take the disk (13, 14) off the motor spindle (18). Take the ejector (12) off the motor spindle (18). Wash with dish-washing detergent, then rinse and dry: the grater disk (13) or the slicer disk (14), the guide channel (2) and the dirt tray (9). Clean the base (1) with a soft damp sponge and dry. Fitting the cutting tool FITTING: Fit the ejector (12), smooth side on the disk side, onto the end of the motor shaft (18), line the grooves up with the pins (15) and push to the motor shaft stop (18). Fit the grater disk (13) or the slicer disk (14) lining up the drive pin with the groove in the disk support (13) or (14). REMOVING: Pull the grater-holder disk or the slicer disk upwards and along the motor shaft (18) axis (be careful: risk of cuts on holding the tool, especially for the slicing disks as the knife blades are very sharp). Pull the ejector (12) upwards and along the motor shaft (18) axis, making sure it passes correctly level with the tool drive pin (15) on the motor shaft (18). SAFETY Safety device, housing closure

1. The guide channel (2) must be in the closed position and the locking loop (3) in the

locked position on the clip (4) to provide mechanical unlocking of the motor and allow the slicer to be turned on with the On/Off switch (11).

2. Unclipping the locking loop (3) causes stoppage (position 0) on the switch (11) and

mechanical stoppage of the motor spindle (18).

3. A cut in the mains power supply causes stoppage (position 0) on the switch (11). The

switch (11) has to be reactivated (position 1) to start again.

408100-200 en ma 2010.12 8/1498148 US 3.2 - 12 2010 9 / 14 www.santos.fr If the motor is jammed (17) (foreign body, too hard body, too much pressure on the processed products, etc.) the switch (11) automatically goes to the 0 position. Rectify the problem and then press the switch (11) to position 1. Safety device, motor overheating Turn the power off (unplug the mains lead plug (10) before any work). If the motor overheats, the switch (11) automatically switches to the 0 position. Wait for the motor to cool down (15 to 30 minutes) and then press the switch (11) to position 1. Safety device, access to rotating tools Tool access while operating safety is provided by the following three points:

1. The motor can only be started if the guide channel (2) is in position and locked by the

2. The guide channel provides safety on the input side for the products to be processed.

The dimensions of the introduction guide channel (2) comply with the standard safety requirements currently in force.

3. The restriction system formed by the guide channel (2) and the ejector (12) provides

the safety on the output side of the products processed. MAINTENANCE Before any work on the appliance, it is imperative that the machine is disconnected from the mains (10) Spare parts: This machine requires no specific maintenance. The bearings are lubricated for life. If work is required to replace wear parts such as the electrical components or other, refer to the parts list (see exploded view at the end of the manual). For all spare part orders (see references in the exploded view at the end of the manual), state: the type, the machine serial number and the electrical specifications recorded under the machine.

Safety device, motor overload Turn the power off (unplug the mains lead plug (10) before any work). 408100-200 en ma 2010.12 9/1498148 US 3.2 - 12 2010 10 / 14 www.santos.fr STANDARD REFERENCES CE (Europe) GS (Germany) controlled by the LNE National Test Laboratory. UL (USA) and cUL (Canada). NSF (USA).

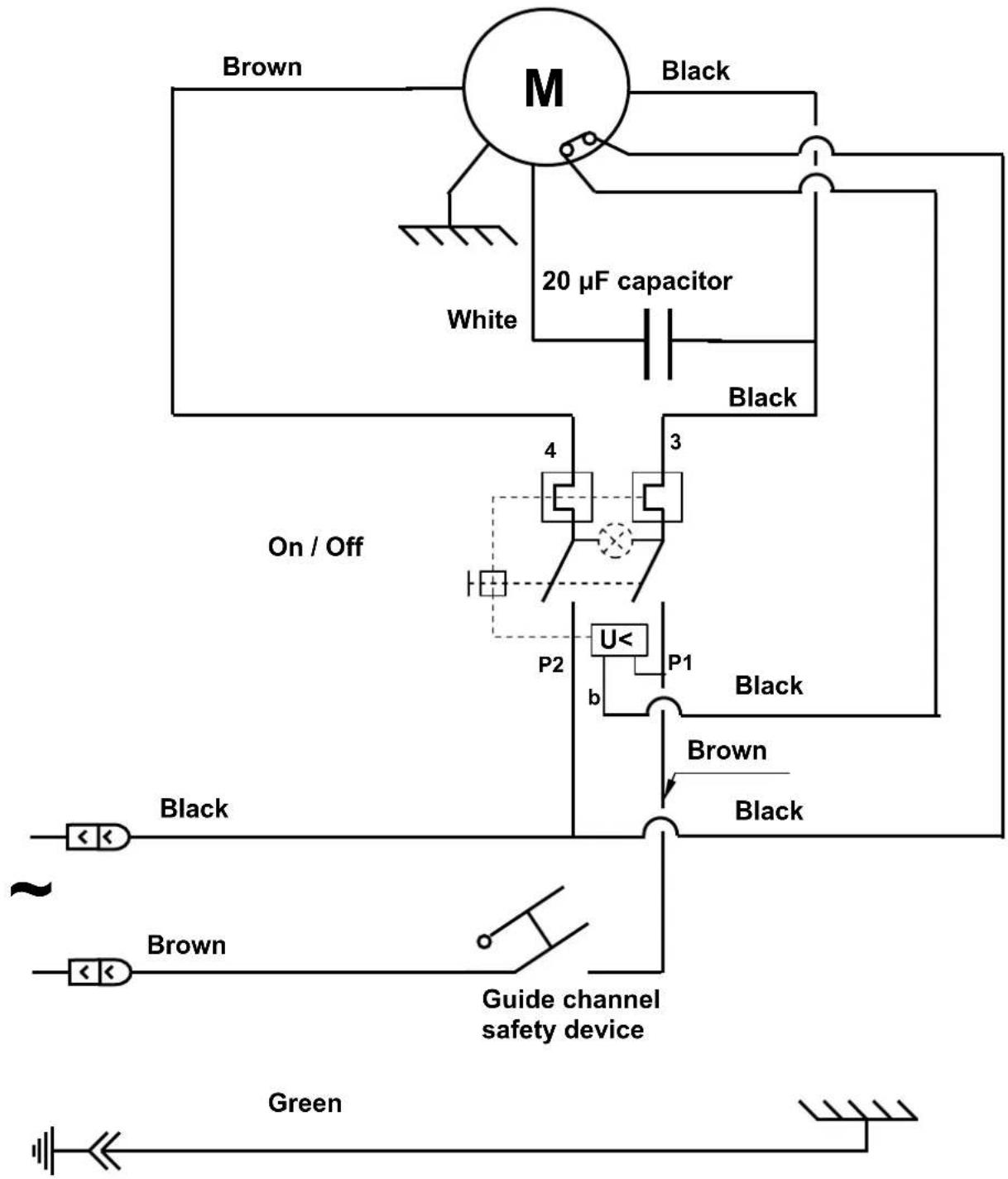

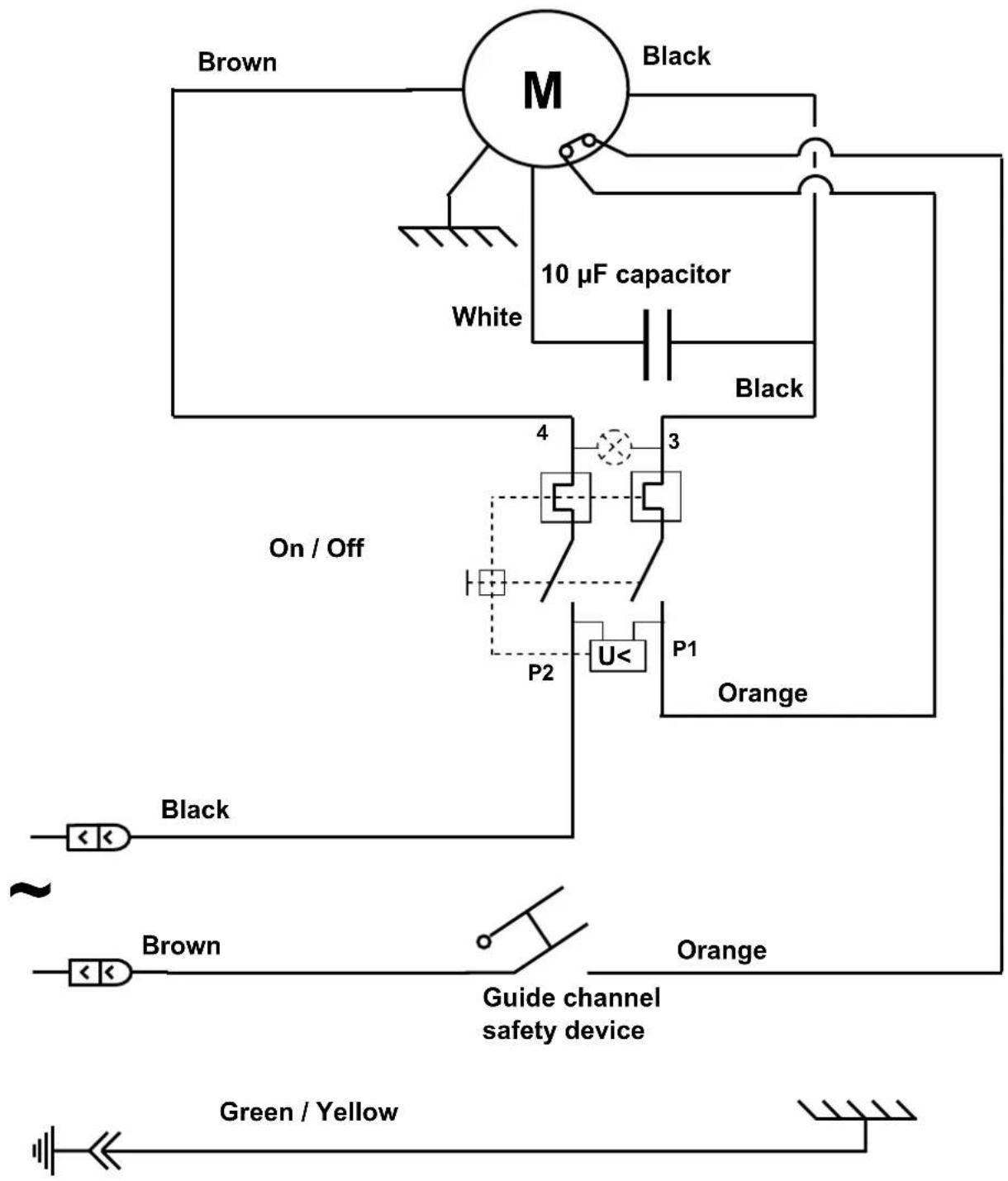

50/60 50/60 Motor: rating Input power (kW) 0.39 0.45 Speed: (rpm) 1000 1200 Running capacitor (µF) 10 µF- 400V 20µF-400V Height under the ram (mm) 505 Dimensions: Height with ram (mm) 580 Width (mm) 250 Depth (mm) 430 Weight: Net weight (kg) 16 Packaged weight (kg) 17 Noise: (2) (dBA) 60 (1) These values are given as an indication only. The exact electrical specifications for your machine are recorded on the identification plate. (2) Noise level measured in acoustic pressure with the machine under load at 1 m from its axis in accordance with standard EN 31201. 408100-200 en ma 2010.12 10/1498148 US 3.2 - 12 2010 11 / 14 www.santos.fr 110-120 V 50/60 Hz electrical wiring diagram

Guide channel safety device

Guide channel safety device

SPECIMEN For all the documents not delivered with the appliance. Printed, Faxed, Downloaded Since the 01.01.95, all our appliances comply with CE and possess the CE label. Our guarantee is of 12 months from the manufacturing date mentioned on the descriptive plate. Warranty is strictly limited to the free replacement of any part of origin recognized by us as defective due to a defect or building default and identified as belonging to the concerned appliance. Warranty does not apply to damages resulting from installation or use non-complying with our appliance data sheet (user’s manual) or in case of an evident lack of maintenance or disrespect of elementary security electric rules. It does not apply in case of regular wear and tear. Any replacement of parts under warranty will be realized after return of the defective part in our workshops, postage paid, supported by a copy of a conformity statement on which appears the serial number of the appliance. Every appliance is equipped with a descriptive plate conforming to the EC recommendations and of which a duplicate exists in the conformity statement (serial number, manufacturing date, electrical characteristics …). In case of serious damage judged repairable only in our workshops, and after prior consent from our departments, any appliance under guarantee is sent by the Distributor, carriage paid. In case of repairs or reconditioning of appliances not under guarantee, the round trip transport is payable by the distributor. The parts and workforce are invoiced at the current rate. A preliminary estimate can be supplied. Coffee grinder not using SANTOS original burrs are not taken under guarantee. The warranty conditions, repairs, reconditioning, of the espresso coffee grinder are the object of a specific note. Our guarantee does not extend to the payment of penalties, the repair of direct or indirect damages and notably to any loss of income resulting from the nonconformity or the defectiveness of products, SANTOS's global responsibility being limited to the sale price of the delivered product and to the possible repair of the defective products. In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility. 408100-200 en ma 2010.12 14/14TRANCHEUR A LEGUMES N° 48 RAPE A FROMAGE N° 49

DECLARATION “CE” DE CONFORMITE

MUSTER für alle nicht mit dem Gerät gelieferten Dokumente. Ausdrücke, Faxe, Downloads Since the 01.01.95, all our appliances comply with CE and possess the CE label. Our guarantee is of 12 months from the manufacturing date mentioned on the descriptive plate. Warranty is strictly limited to the free replacement of any part of origin recognized by us as defective due to a defect or building default and identified as belonging to the concerned appliance. Warranty does not apply to damages resulting from installation or use non-complying with our appliance data sheet (user’s manual) or in case of an evident lack of maintenance or disrespect of elementary security electric rules. It does not apply in case of regular wear and tear. Any replacement of parts under warranty will be realized after return of the defective part in our workshops, postage paid, supported by a copy of a conformity statement on which appears the serial number of the appliance. Every appliance is equipped with a descriptive plate conforming to the EC recommendations and of which a duplicate exists in the conformity statement (serial number, manufacturing date, electrical characteristics …). In case of serious damage judged repairable only in our workshops, and after prior consent from our departments, any appliance under guarantee is sent by the Distributor, carriage paid. In case of repairs or reconditioning of appliances not under guarantee, the round trip transport is payable by the distributor. The parts and workforce are invoiced at the current rate. A preliminary estimate can be supplied. Coffee grinder not using SANTOS original burrs are not taken under guarantee. The warranty conditions, repairs, reconditioning, of the espresso coffee grinder are the object of a specific note. Our guarantee does not extend to the payment of penalties, the repair of direct or indirect damages and notably to any loss of income resulting from the nonconformity or the defectiveness of products, SANTOS's global responsibility being limited to the sale price of the delivered product and to the possible repair of the defective products. In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility. 408100-200 de ma 2010.12 14/14
