N° 38 - Juicer Santos - Free user manual and instructions

Product type	Professional citrus juicer
Brand	Santos
Model	N° 38
Use	Press limes, lemons, oranges and grapefruits
Number of cones	2 interchangeable pressing cones
Materials	Aluminum base, bowl and cones in technical plastic
Dimensions (H x W x D)	350 x 200 x 300 mm
Height under spout	135 mm
Net weight	5 kg
Packed weight	5.6 kg
Power supply voltage	220-240 V ~ 50/60 Hz (100-120 V version also available)
Motor power	130 W
Power consumption	155 W
Rotation speed	1450 rpm at 50 Hz / 1700 rpm at 60 Hz
Thermal protection	Yes, automatic shutdown in case of overheating
Noise level	65 dBA (uncertainty KpA = 2.5 dB)
Maintenance	Removable parts dishwasher-safe; base cleaned with damp sponge
Safety	Grounding mandatory; do not immerse base
Spare parts	Cone, bowl, cover, pulp strainer (for N°52), anti-splash dome (for N°52)
Warranty	12 months from date of manufacture
Standards	CE, RoHS, WEEE
Manufacturer	SANTOS SAS, 69120 Vaulx-en-Velin, France

Frequently Asked Questions - N° 38 Santos

What types of citrus fruits can I juice with the Santos N°38?

This appliance is designed to juice limes, lemons, oranges and grapefruits. Do not use it for other foods (see instructions, page Contraindications).

How to clean the appliance after use?

Stop the appliance and unplug it. Wash the removable parts (cone, bowl, cover, strainer) in the dishwasher or with dish soap. Clean the base with a damp sponge, never immerse it in water.

What if the appliance does not start?

Check the mains power and the condition of the power cord. Make sure the switch is in position 1. If the problem persists, contact a SANTOS authorized dealer.

The appliance stops during use, why?

This may be due to motor overheating. The thermal protector cuts the power. Set the switch to 0, unplug, wait 20 to 45 minutes, then plug back in and restart.

Can I use non-original spare parts?

No, it is imperative to use only certified SANTOS original parts. Using non-compliant parts voids the warranty and can be dangerous.

How many cones are supplied with the N°38 model?

The N°38 model comes with 2 technical plastic pressing cones (while the N°11 and N°52 models have 3). They are interchangeable according to the size of the citrus fruits.

What is the required power supply voltage?

The appliance operates on 220-240 V single phase 50/60 Hz (standard version). There is also a version for 100-120 V. Check the rating plate under the appliance.

Is the appliance covered by warranty?

Yes, the warranty is 12 months from the date of manufacture, for any defective part recognized by SANTOS. The warranty does not cover normal wear nor non-compliant use.

Can I juice whole fruits?

No, cut the citrus fruits in half before juicing. Do not juice whole fruits or other foods.

Where can I find the complete manual?

The complete manual is available for free download in PDF format on notice-facile.com or on the SANTOS website. Refer to the manual for electrical diagrams and exploded views.

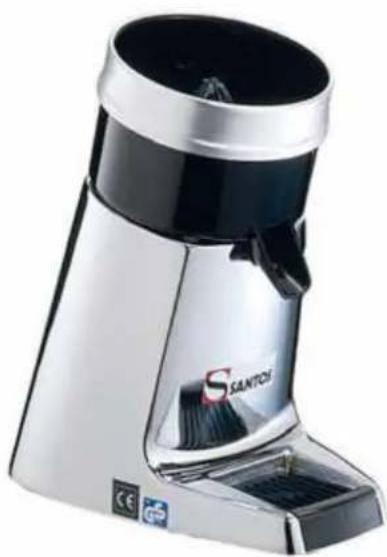

USER MANUAL N° 38 Santos

Exterior view of a modern stainless steel SANTCHS blender with black and silver casing (no text or symbols visible)

*408.007 - *408.010
Model Nr 11

Exterior view of a modern stainless steel coffee maker with black lid and silver body (no visible text or symbols)

*408.152 - *408.252
Model Nr 52

Exterior view of a SANTOS coffee maker (no signage or text beyond brand name)

*408.011
Model Nr 38

INHOUDSOPGAVE

"CE"-CONFORMITEITSVERKLARING ....3

BELANGRIJKE VOORZORGSMAATREGELEN....4

WAARSCHUWINGEN: 4

TYPEPLAATJE VAN HET APPARAAT....13

"CE"-CONFORMITEITSVERKLARING

DE FABRIKANT :

SANTOS SAS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANKRIJK

Since the 01.01.95, all our appliances comply with CE and possess the CE label. Our guarantee is of 12 months from the manufacturing date mentioned on the descriptive plate. Warranty is strictly limited to the free replacement of any part of origin recognized by us as defective due to a defect or building default and identified as belonging to the concerned appliance. Warranty does not apply to damages resulting from installation or use non-complying with our appliance data sheet (user's manual) or in case of an evident lack of maintenance or disrespect of elementary security electric rules. It does not apply in case of regular wear and tear. Any replacement of parts under warranty will be realized after return of the defective part in our workshops, postage paid, supported by a copy of a conformity statement on which appears the serial number of the appliance. Every appliance is equipped with a descriptive plate conforming to the EC recommendations and of which a duplicate exists in the conformity statement (serial number, manufacturing date, electrical characteristics ...). In case of serious damage judged repairable only in our workshops, and after prior consent from our departments, any appliance under guarantee is sent by the Distributor, carriage paid. In case of repairs or reconditioning of appliances not under guarantee, the round trip transport is payable by the distributor. The parts and workforce are invoiced at the current rate. A preliminary estimate can be supplied.

Coffee grinder not using SANTOS original burrs are not taken under guarantee. The warranty conditions, repairs, reconditioning, of the espresso coffee grinder are the object of a specific note. Our guarantee does not extend to the payment of penalties, the repair of direct or indirect damages and notably to any loss of income resulting from the nonconformity or the defectiveness of products, SANTOS's global responsibility being limited to the sale price of the delivered product and to the possible repair of the defective products.

In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.

TYPEPLAATJE VAN HET APPARAAT

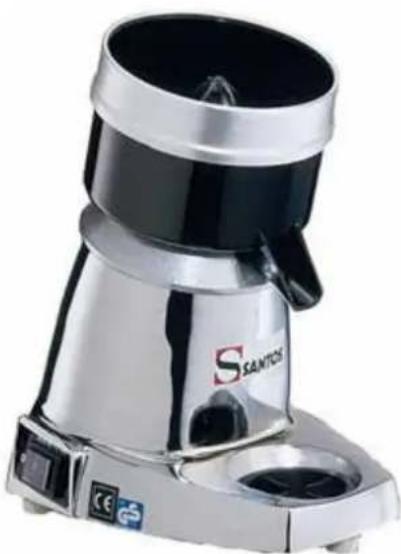

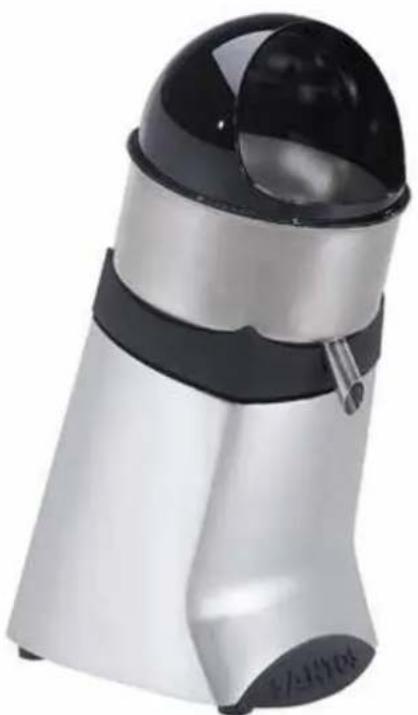

SPECIMEN

IMPORTANT: documents included in this manual to be kept:

• “CE” COMPLIANCE DECLARATION
  • WARRANTY CERTIFICATE

Exterior view of a modern SANTCH brand blender with black and silver casing (no text or symbols on body)

*408.007 - *408.010
Model no 11

Exterior view of a modern stainless steel coffee maker with black lid and silver body (no visible text or symbols)

*408.152 - *408.252
Model no 52

Exterior view of a modern SANTOS brand coffee maker (no signage or text visible on body)

*408.011
Model no 38

CONTENTS

"CE" COMPLIANCE DECLARATION ....3

IMPORTANT SAFEGUARDS....4

IMPROPER USE....4

ELECTRICAL CONNECTION: 4

USING FOR THE 1st TIME:....4

RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE ....5

YOUR CITRUS JUICER Nos. 11-38-52 6

Using the CITRUS JUICER 6

USING: 6

CLEANING: 6

MAINTENANCE....7

Spare parts 7

TROUBLESHOOTING....7

The appliance does not start: 7

The appliance stops due to motor overheating....7

The appliance stops further to an overload: 7

TECHNICAL SPECIFICATIONS 8

ELECTRICAL WIRING DIAGRAMS....9

Wiring diagram 220-240V 50/60Hz....9

Wiring diagram 220-240V 50/60Hz 10

Wiring diagram 100-120V 50/60Hz 11

FIGURES 12

WARRANTY CERTIFICATE....13

APPLIANCE IDENTIFICATION PLATE 13

"CE" COMPLIANCE DECLARATION

THE MANUFACTURER:

SANTOS SAS - 140-150, Av. Roger SALENGRO 69120 VAULX-EN-VELIN (LYON) FRANCE

declares that the appliance intended for the professional market described below:

Description: CITRUS JUICERS

Type number: 11, 11C, 38, 38C, 52, 52C

complies with:

• the statutory provisions defined in appendix 1 of the European "machines" directive n°2006/42/CE and the national legislation transposing it
  • the statutory provisions of the following European directives and regulations:

○ N° 2006/95/CE (low voltage directive)
○ N° 2004/108/CE (EMC directive)
○ No. 2002/95/CE (RoHS directive)
○ No. 2002/96/CE (WEEE directive)
○ N° 1935/2004/CE (regulation) relating to materials and articles intended to come into contact with foodstuffs

Harmonised European standards used to give presumption of conformity with the essential requirements of the above-mentioned directives:

• NF EN ISO 12100 -1 and 2:2004: Safety of machinery - General principles for design
• NF EN 60204-1: 2006 : Safety of machinery - Electrical equipment of machines-General requirements
• NF EN 1672-2: 2005, Food processing machinery – Basic concepts – Hygiene requirements
• NF EN 60335-1: 2003 : Household and similar electrical appliances. Safety.
• NF EN 60335-2-64 :2004 : Particular requirements for commercial electric kitchen machines

Drawn up in VAULX-EN-VELIN on: 01/01/2010

Signatory's position: CHIEF EXECUTIVE OFFICER

Signatory's name: Aurélien FOUQUET

Signature:

IMPORTANT SAFEGUARDS

When using, cleaning or maintaining the machine, always follow these instructions:

Read all instructions

Note: You will find it easier to understand the next few paragraphs if you refer to the diagrams at the end of this manual.

IMPROPER USE

1. Do not use this appliance to press any food other than limes, lemons, oranges and grapefruit.

2. The appliance should neither be cleaned in a jet of water nor with a high pressure spray.

3. The base (4) must not be immersed in water.

4. For electrocution risk protection reasons, never plunge the base into water or any other liquid.

5. Unplug the appliance before carrying out any work on it: cleaning, maintenance or repair.

6. The use of spare parts other than certified SANTOS original parts is prohibited.

ELECTRICAL CONNECTION:

The appliance is available in with a choice of two voltages for the power supply

• 220-240V 50/60 Hz single phase
• 110-120V 50/60 Hz single phase

Line protection: the appliance should be connected to a standard 2-pole + earth electric socket. The installation should be fitted with an RCD and a fuse rated at 16A. The appliance must be earthed

CARE:

- Before connecting the machine, check that the mains electrical voltage is the same as the voltage for your appliance. Its value is shown:

• either on the identification plate under the machine.
  or on the identification plate on the last page of this manual.

- If the power cable (10) is damaged, it should be replaced by a special assembly available from approved SANTOS dealers or from SANTOS.

CARE: Make sure that the on / off switch (6) is on 0 position before plugging the power cord (7) into the mains supply socket (Fig.A).

USING FOR THE 1st TIME:

Carefully clean all parts of the machine in contact with the food (Fig. A).

• Remove the anti-splash dome (8) {model no 52}.
• Remove the cone (1) by pulling it upwards.
• Remove the bowl (2), the pulp grating (9) {model no 52} and the trim (3) {model nos. 11 and 38}.
• Wash the parts with a standard washing up liquid or in the dishwasher.

RECYCLING THE PRODUCT AT THE END OF ITS SERVICE LIFE

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

This equipment is marked with the selective sorting symbol relating to wastes from electrical and electronic equipment. It signifies that this product should be taken over by a selective collection system conforming to the Guideline 2002/96/EC (WEEE) – part Professional Equipment – so that it can be either recycled or dismantled in order to reduce any impact on the environment.

For more information, please contact your Retailer or the SANTOS.

For eliminating or recycling components of equipment, please contact a specialized company or contact SANTOS.

The electronic products not undergoing a selective sorting are potentially dangerous for the environment.

The damaging materials should be eliminated or recycled according to the regulations in force.

YOUR CITRUS JUICER Nos. 11-38-52

• Citrus juicers nos. 11 – 38 – 52 are especially designed for bars, cafés, hotels, restaurants, cocktail bars, institutions, fresh fruit juice bars, etc.
• The appliances nos. 11 and 38 are comprised of an aluminum motor unit, a juice bowl and 3 engineered plastic pressing cones (2 pressing cones for model N°38).
• The appliance no. 52 is comprised of an aluminum motor unit, a powerful motor for intensive use, a stainless steel bowl, 3 plastic pressing cones and a plastic anti-splash dome.
• Citrus juicers nos. 11 – 38 – 52 are designed to press limes, lemons, oranges or grapefruit.
• They are ideal for preparing: fresh lemon, orange or grapefruit juice or as a basis for preparing fruit cocktails.

Using the CITRUS JUICER

USING:

Caution: the fruits used must be washed carefully before being pressed.

Assembly and preparation:

1. Place the trim (3) on the bowl (2) {models nos. 11 and 38}.
2. Place the bowl (2) on the base (4).
3. Place the pulp grating (9) in the bowl.
4. Place the cone (1) on the motor shaft (5).
5. Place the anti-splash dome (8) on the bowl (2) {model no 52}.
6. Cut the citrus fruit in two halves.
7. Place a glass level with the spout on the bowl (2).
8. Start the appliance by putting the On / Off switch (6) on "1".

9. Press the citrus fruit halves one after the other.

10. When you have finished using it, stop the appliance by putting the On / Off switch (6) on "0".

CLEANING:

IMPORTANT :

- In every case, stop the appliance and unplug the appliance's power cord (7).

It is recommended to clean the appliance as soon as you have finished using it.

Cleaning will be easier if you do not wait until the pulp has dried in the bowl (2), on the anti-splash dome (8), the cone (1) or the pulp grating (9).

The base (4) is to be cleaned with a soft damp sponge, then dried.

MAINTENANCE

Before any servicing of the appliance, it is essential to unplug the appliance from the mains supply (7).

This machine requires no particular maintenance because the bearings are lubricated for life.

If servicing is necessary to replace any parts such as the electrical components or any others, refer to the list of components (see the exploded view at the end of the manual).

Spare parts

IMPORTANT: Use of spare parts other than certified original SANTOS parts is prohibited

For all spare part orders (see references in the exploded view at the end of the manual), state:

the type,
the machine serial number and
the electrical specifications (16)

recorded under the machine.

TROUBLESHOOTING

Identifying the cause of appliance stoppage precisely.

The appliance does not start:

- Check: the mains supply, the condition of the power cord (7).

The appliance stops due to motor overheating: (the motor unit is hot)

The motor is protected by a built-in thermal cutout. In the event of overheating, the motor stops.

• Set the On / Off switch (6) to 0 position, disconnect the plug (7).
• Wait until the motor cools down (20 to 45 minutes), reconnect the plug (7) then press the On / Off switch (6) (position 1).

If the problem persists, switch off the power supply to the appliance (unplug the cord from the mains socket (7)) and call in the maintenance service or contact a SANTOS-approved dealer.

The appliance stops further to an overload:

If the motor stalls (due to excessive pressing), it can heat very quickly and stops by overload protection.

TECHNICAL SPECIFICATIONS

Model N° 11 N° 38 N° 52
Supply voltage .(V) 220-240 Frequency	100- (Hz)	120 220-240 100-120 50/60 50/60	220-240 100-120 50/60 50/60	50/60	50/60
Motor: Nominal Power input (W) 130 Speed : (rpm)	155 (rpm)	130 155 230 1450 to 50Hz 1700 to 60Hz	260 1450 to 50Hz 1700 to 60Hz	1450 to 50Hz 1700 to 60Hz
Dimensions : Height Width Depth Clearance height beneath the spout	(mm) (mm) (mm) (mm) (mm)	350 200 300 125	350 200 300 135	480 230 300 200
Weight: Net weight Packaged weight Noise: (2)	(kg) (kg) (dBA)	5 5.6 65	5 5.6 65	10 11 65

(1) These ratings are provided as a rough guide. The exact electrical specifications can be found on the rating plate.

(2) Noise level measured in sound pressure appliance in operation 1 m from its axis in accordance with standard EN 31201.

MARK	Description

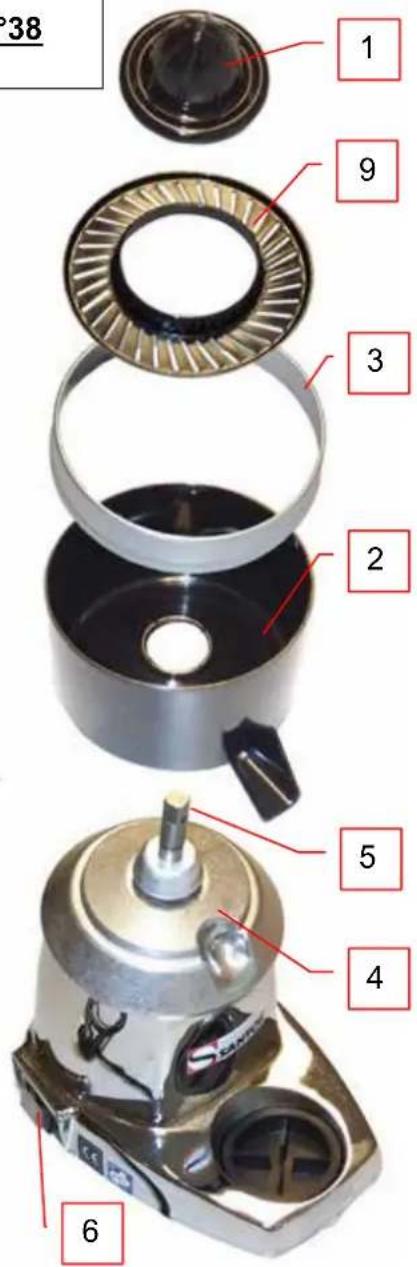

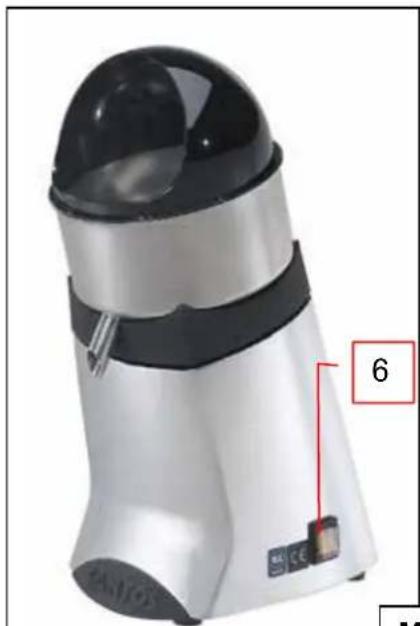

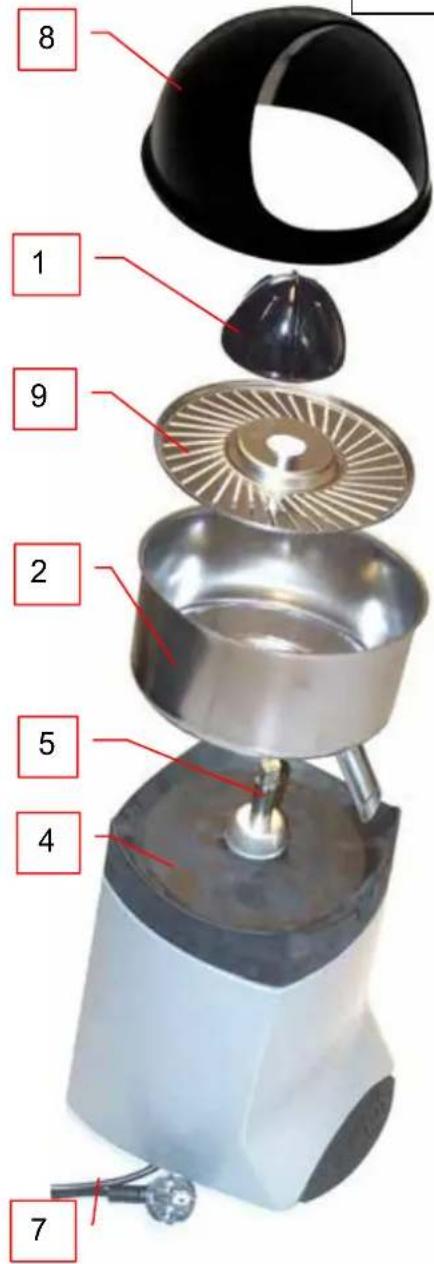

1	Pressing cone
2	Bowl
3	Trim
4	Base
5	Motor shaft

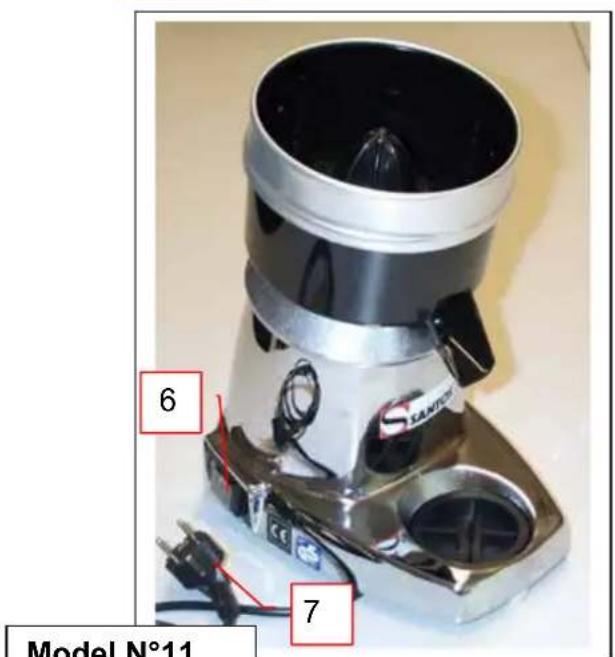

6	On / off switch
7	Plug / power supply cord
8	Anti-splash dome
9	Pulp grating

ELECTRICAL WIRING DIAGRAMS

Models nos. 11 and 38:

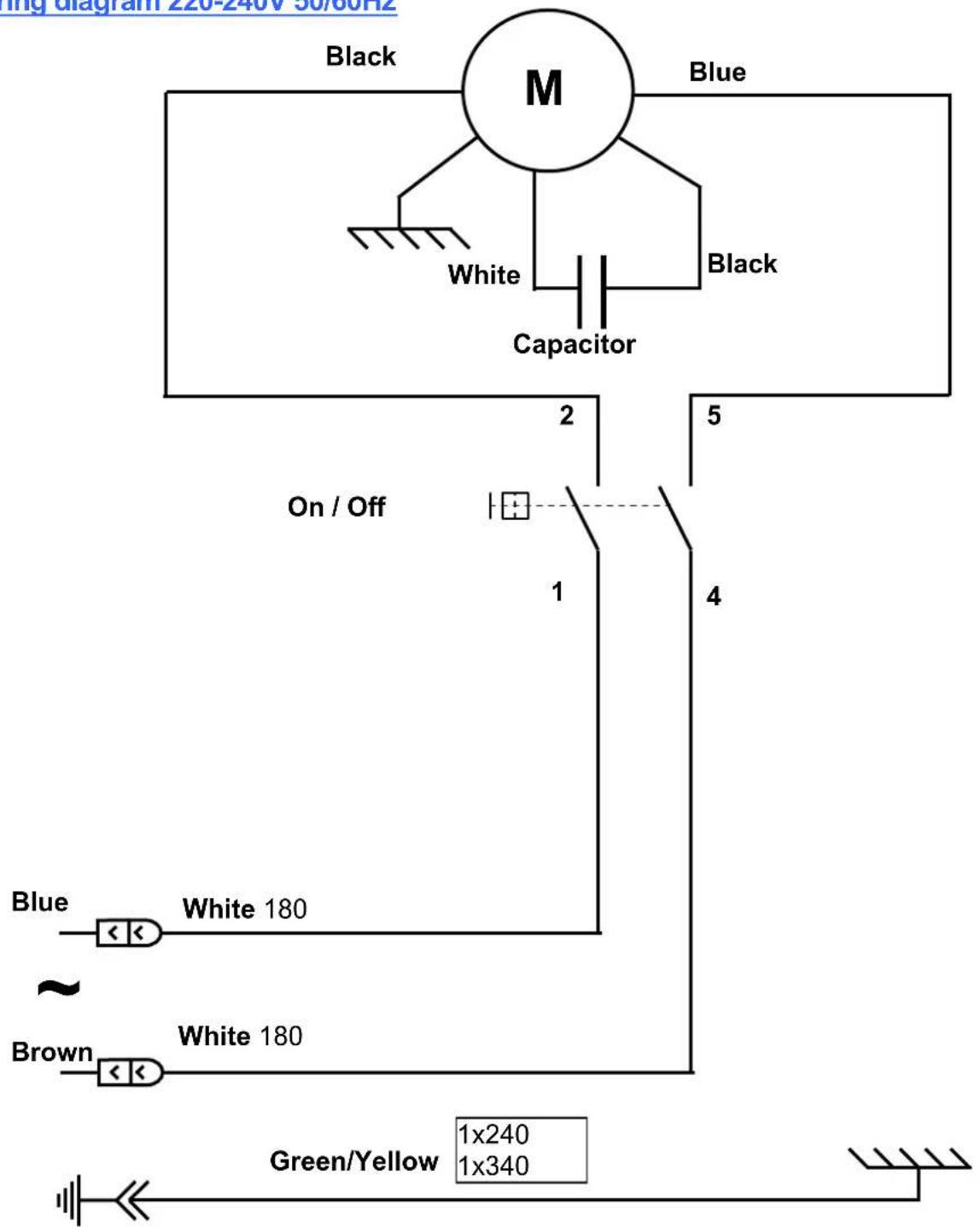

Wiring diagram 220-240V 50/60Hz

ing diagram 220-240V 30/60Hz Black M Blue White Capacitor On / Off 2 5 1 4 White 180 ~ Brown White 180 Green/Yellow 1x240 1x340

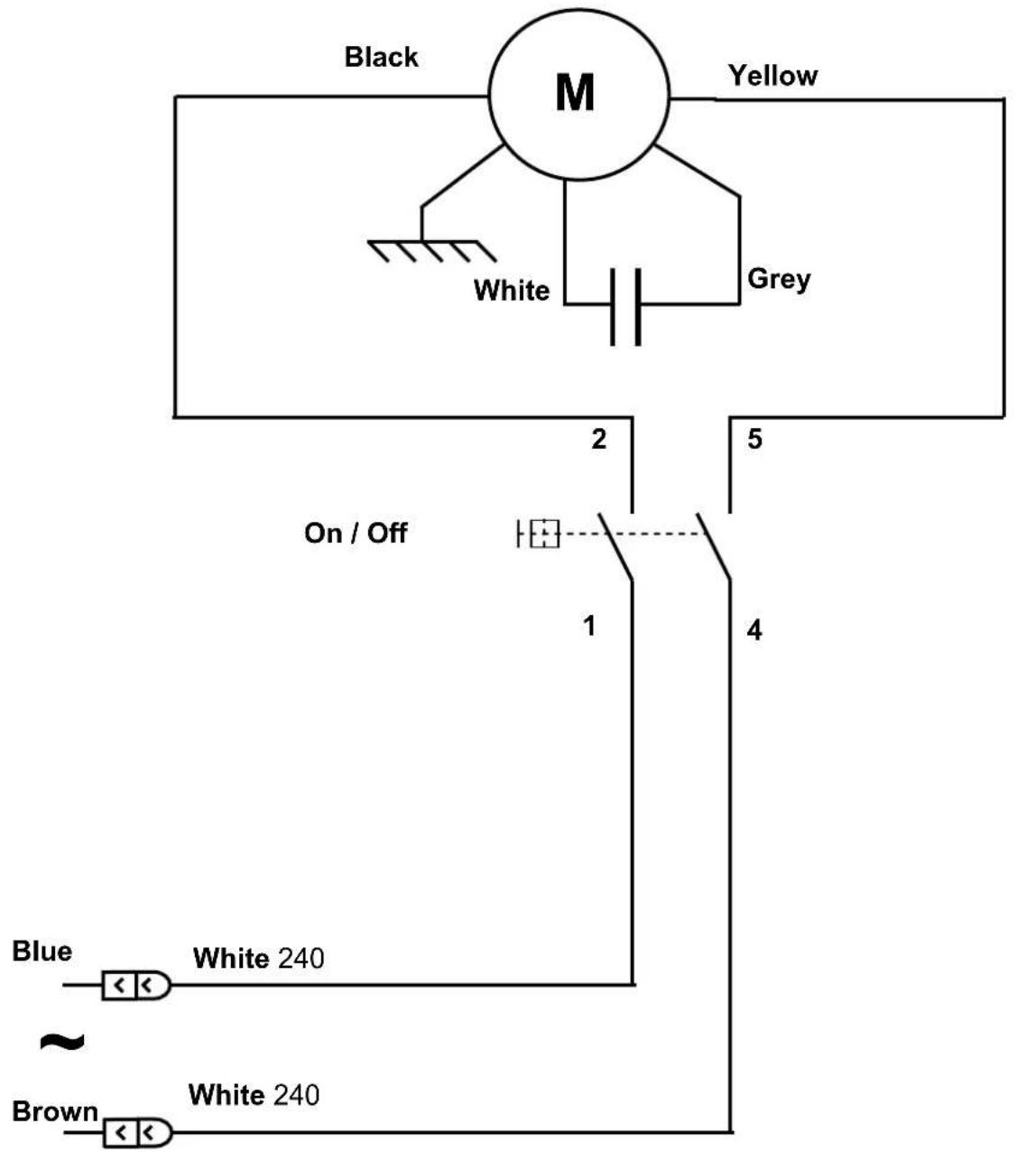

Model no 52:

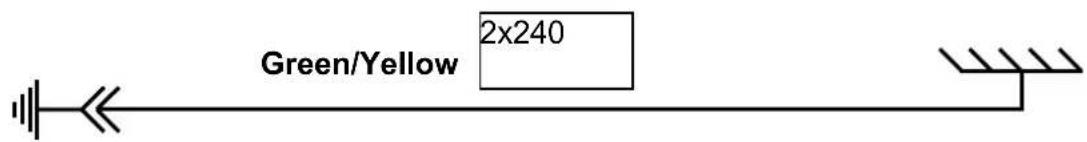

Wiring diagram 220-240V 50/60Hz

Green/Yellow 2x240

Models nos. 11, 38 and 52:

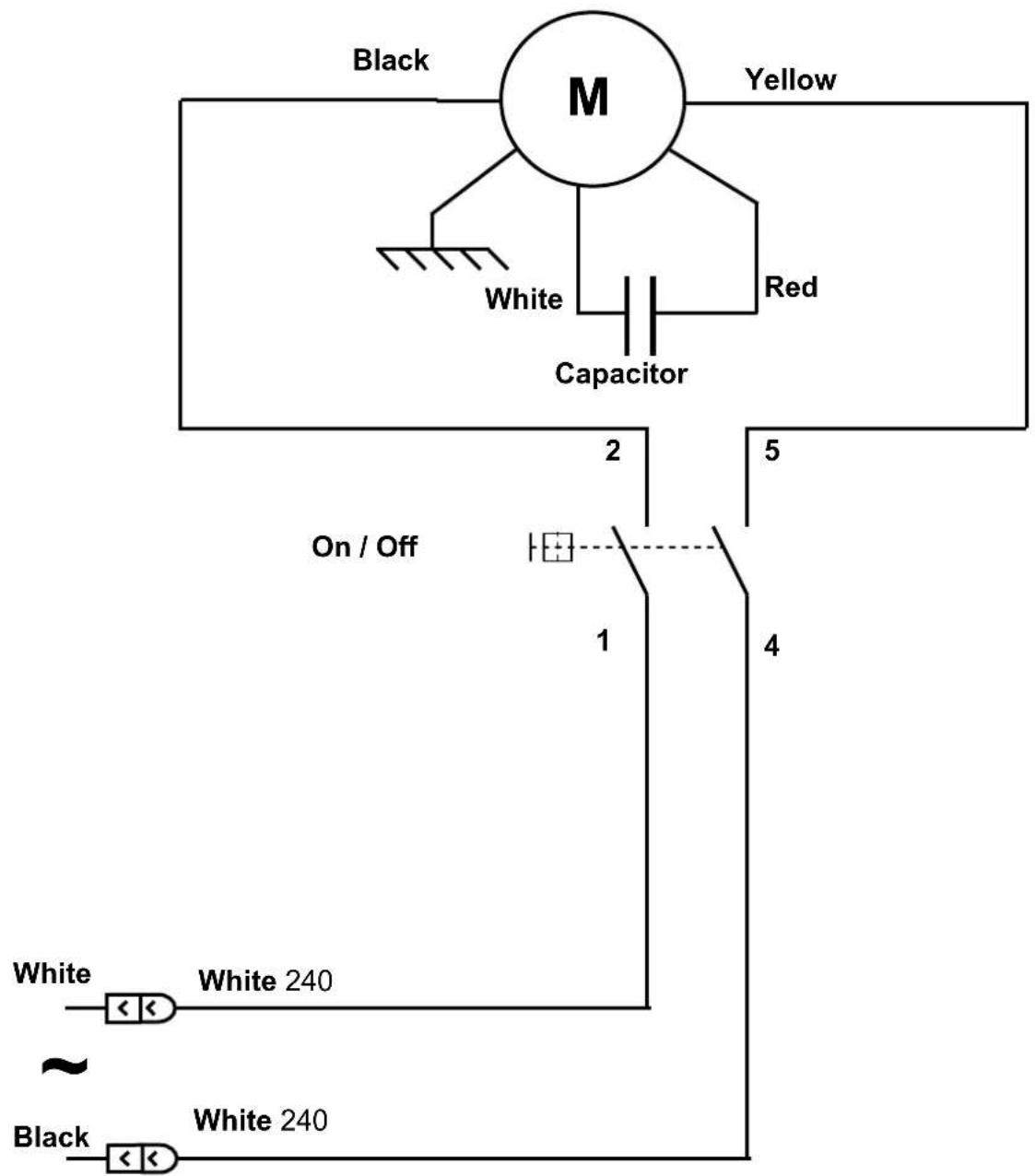

Wiring diagram 100-120V 50/60Hz

Green/Yellow 2x240

FIGURES

6 7 Model N°11

Model N°11
|

or Model N°38

P38 1 9 3 2 5 4 6

Exterior view of a modern kitchen brush unit with a labeled sensor (no text or symbols visible)

Model N°52

8 1 9 2 5 4 7

WARRANTY CERTIFICATE

WARRANTY

Since the 01.01.95, all our appliances comply with CE and possess the CE label. Our guarantee is of 12 months from the manufacturing date mentioned on the descriptive plate. Warranty is strictly limited to the free replacement of any part of origin recognized by us as defective due to a defect or building default and identified as belonging to the concerned appliance. Warranty does not apply to damages resulting from installation or use non-complying with our appliance data sheet (user's manual) or in case of an evident lack of maintenance or disrespect of elementary security electric rules. It does not apply in case of regular wear and tear. Any replacement of parts under warranty will be realized after return of the defective part in our workshops, postage paid, supported by a copy of a conformity statement on which appears the serial number of the appliance. Every appliance is equipped with a descriptive plate conforming to the EC recommendations and of which a duplicate exists in the conformity statement (serial number, manufacturing date, electrical characteristics ...). In case of serious damage judged repairable only in our workshops, and after prior consent from our departments, any appliance under guarantee is sent by the Distributor, carriage paid. In case of repairs or reconditioning of appliances not under guarantee, the round trip transport is payable by the distributor. The parts and workforce are invoiced at the current rate. A preliminary estimate can be supplied.

Coffee grinder not using SANTOS original burrs are not taken under guarantee. The warranty conditions, repairs, reconditioning, of the espresso coffee grinder are the object of a specific note. Our guarantee does not extend to the payment of penalties, the repair of direct or indirect damages and notably to any loss of income resulting from the nonconformity or the defectiveness of products, SANTOS's global responsibility being limited to the sale price of the delivered product and to the possible repair of the defective products.

In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.

APPLIANCE IDENTIFICATION PLATE

SPECIMEN

For all the documents not delivered with the appliance.

Printed, Faxed, Downloaded

PRESSE-AGRUMES N°11 - 38 - 52

MANUEL D'UTILISATION ET D'ENTRETIEN

Exterior view of a SANTCH S grimmer (no text or symbols visible on the device body)

Exterior view of a modern stainless steel coffee maker with black lid and silver body (no visible text or symbols)

Exterior view of a SANTOV brand coffee maker (no signage or text visible on body)

DECLARATION "CE" DE CONFORMITE....3

REGLES DE SECURITES....4

AIDE AU DEPANNAGE....7

Exterior view of a SANTOS brand blender with metallic casing and control buttons (no text or symbols on body)

Exterior view of a modern electric shaver with black lid and silver body (no text or symbols visible)

Exterior view of a SANTON brand coffee maker (no signage or text beyond branding)

RECYCLING DES ALTGERÄTS

Since the 01.01.95, all our appliances comply with CE and possess the CE label. Our guarantee is of 12 months from the manufacturing date mentioned on the descriptive plate. Warranty is strictly limited to the free replacement of any part of origin recognized by us as defective due to a defect or building default and identified as belonging to the concerned appliance. Warranty does not apply to damages resulting from installation or use non-complying with our appliance data sheet (user's manual) or in case of an evident lack of maintenance or disrespect of elementary security electric rules. It does not apply in case of regular wear and tear. Any replacement of parts under warranty will be realized after return of the defective part in our workshops, postage paid, supported by a copy of a conformity statement on which appears the serial number of the appliance. Every appliance is equipped with a descriptive plate conforming to the EC recommendations and of which a duplicate exists in the conformity statement (serial number, manufacturing date, electrical characteristics ...). In case of serious damage judged repairable only in our workshops, and after prior consent from our departments, any appliance under guarantee is sent by the Distributor, carriage paid. In case of repairs or reconditioning of appliances not under guarantee, the round trip transport is payable by the distributor. The parts and workforce are invoiced at the current rate. A preliminary estimate can be supplied.

Coffee grinder not using SANTOS original burrs are not taken under guarantee. The warranty conditions, repairs, reconditioning, of the espresso coffee grinder are the object of a specific note. Our guarantee does not extend to the payment of penalties, the repair of direct or indirect damages and notably to any loss of income resulting from the nonconformity or the defectiveness of products, SANTOS's global responsibility being limited to the sale price of the delivered product and to the possible repair of the defective products.

In case of revelation of an imperfection during the warranty period, the Distributor has to, unless a different written agreement of SANTOS, indicate to his customer to stop any use of the defective product. Such a use would release SANTOS of any responsibility.
