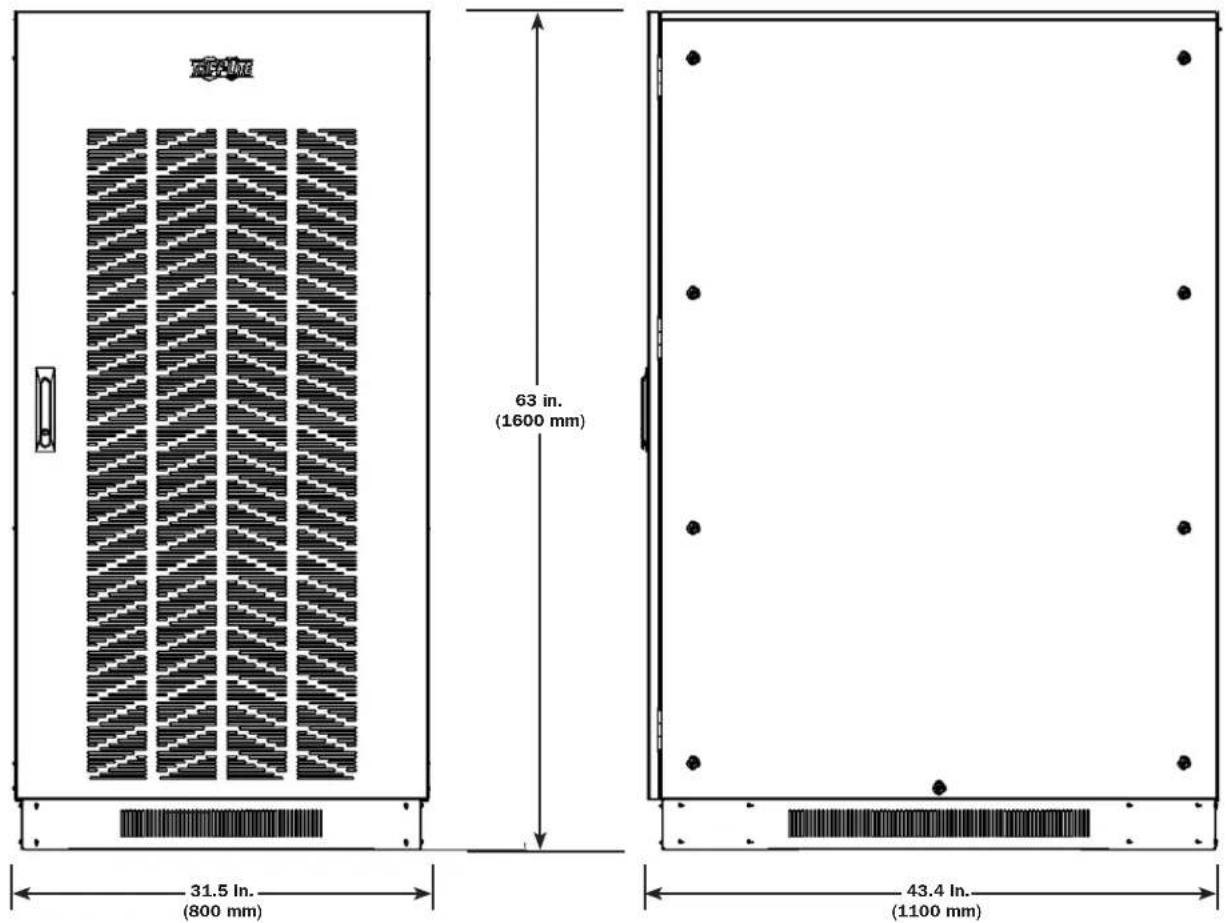

Dimensions (W x D x H)	800 x 1100 x 1600 mm
Weight (with batteries)	Approximately 491 kg
Battery type	Lead-acid VRLA AGM
Built-in circuit breaker	Yes, 600 A 3P
Fuses	4 x 400 A
UPS compatibility	UPS models S3M10-100K without internal battery
Usage	Indoor only
Operating temperature	0°C to 40°C
Relative humidity	< 90% (non-condensing)
Ventilation	Natural convection, front and rear vents
Material	Thick steel, baked powder finish
Safety	Lockable door, circuit breaker, grounding
Warranty	1 year (limited)
Package contents	Manual, cables, copper mounting bars

Frequently Asked Questions - BP240V65LNIB Tripp Lite

How to install the battery cabinet?

Installation must be carried out by a qualified electrician. Place the cabinet in an indoor, level, and ventilated area. Connect the cables respecting polarity and use an external circuit breaker. Refer to the manual for detailed steps.

What safety precautions should be taken?

Disconnect all power sources before any intervention. Do not smoke near batteries. Wear protective equipment (gloves, goggles). Use insulated tools. Batteries contain lead and acid.

What type of battery to use for the BP240V65L-NIB model?

The BP240V65L-NIB model is designed for CSB GP12650i batteries (12V, 65 Ah). You can install up to 40 batteries. Use batteries of the same type and capacity.

How to configure the S3M UPS to use this cabinet?

In the advanced menu of the UPS, set the battery group (2 for 40 batteries), number of batteries to 20, individual capacity to 65 Ah, and maximum charging current according to the manual's table (e.g., 19.5A for one cabinet).

What is the lifespan of the batteries?

The lifespan depends on temperature and cycles. At 25°C, it is approximately 3 to 5 years. Higher temperature reduces lifespan. Recharge the batteries every 3 months if the UPS is off.

How to maintain the battery cabinet?

Periodically check the connections and tighten them to the recommended torque. Clean the exterior with a dry cloth. Ensure vents are not blocked. VRLA batteries do not require water addition.

Can I connect multiple battery cabinets in parallel?

Yes, it is possible to connect multiple cabinets to increase backup time. Follow the wiring diagrams in the manual and adjust the battery group in the UPS accordingly (e.g., 2 cabinets = 4 groups of 20 batteries).

What to do if the cabinet does not work?

Check that the circuit breaker is in the 'On' position. Measure the voltage at the output terminals. If the voltage is abnormal, inspect battery connections and fuses. Contact Tripp Lite support if the problem persists.

Where to find spare parts such as fuses?

Use fuses of the same rating (400 A/500 V DC) available from Tripp Lite or authorized suppliers. For batteries, contact Tripp Lite for compatible replacement batteries.

How to recycle batteries at end of life?

Lead-acid batteries are recyclable. Do not dispose of them in the trash. Comply with local regulations for disposal. You can return them to an authorized collection point or your dealer.

USER MANUAL BP240V65LNIB Tripp Lite

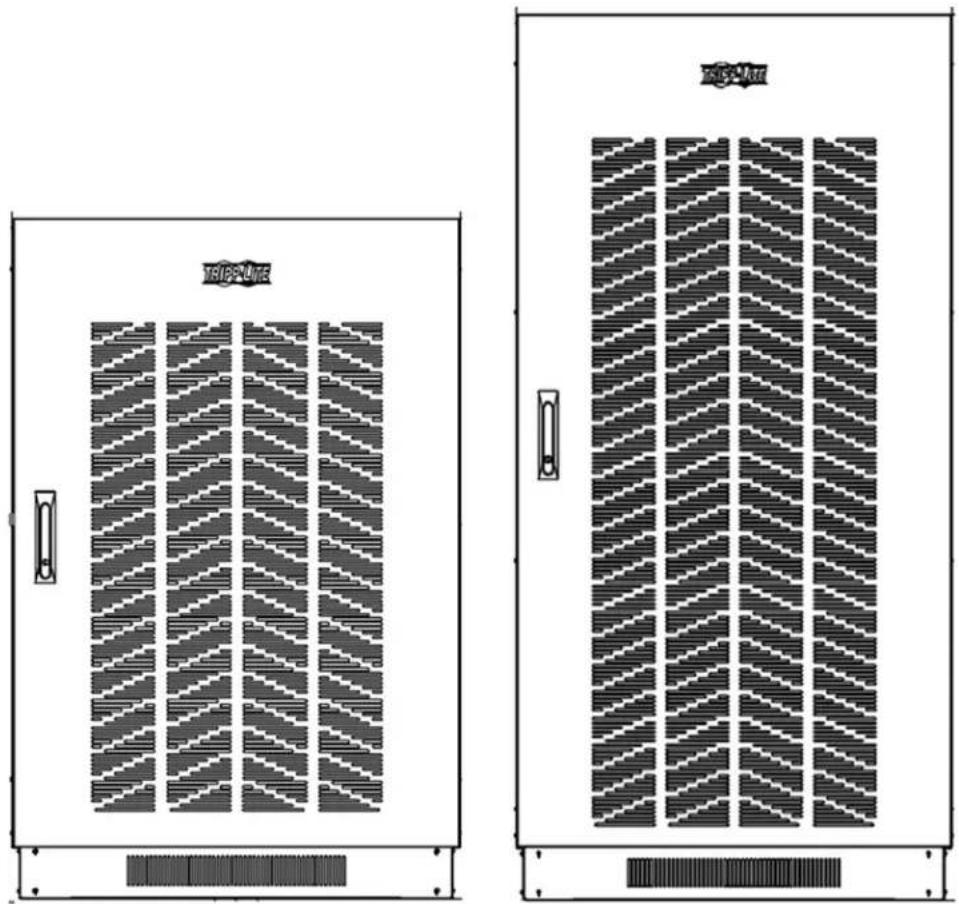

Extended-Run Battery Cabinet

Models: BP240V65, BP240V65-NIB, BP240V65L, BP240V65L-NIB, BP240V100, BP240V100-NIB, BP240V100L, BP240V100L-NIB

Not suitable for mobile applications.

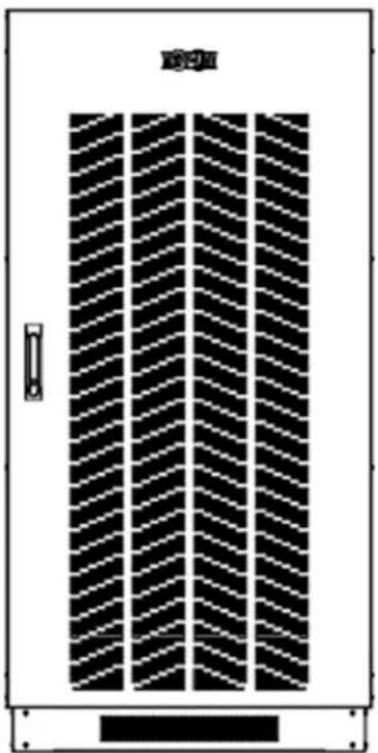

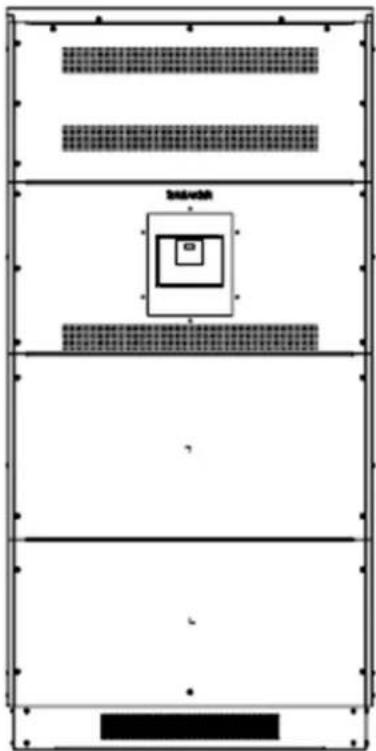

Two identical electrical cabinet diagrams with patterned internal compartments, no text or symbols present.

Español 69 • Français 137

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2020 Tripp Lite. All rights reserved.

Table of Contents

1. Introduction 3

1.1 Features 3

1.2 UPS and Battery Cabinet 4 Compatibility Chart

2. Important Safety Instructions 5

2.1 Installation and Location Warnings 5

2.2 Connection Warnings 5

2.3 Battery Warnings 6

2.4 Standards Compliance 6

3. Battery Cabinet Installation 7

3.1 Preparation 7

3.2 Transportation 7

3.3 Mechanical Check 7

3.4 Package Contents 8

3.5 Internal Wiring (Typical) 8

3.6 Battery Cabinet Placement 9

3.7 Electrical Connection 9

3.8 Final Electrical Check 10

4. Mechanical Data 10

4.1 Physical Measurements 10

4.1.1 Dimensions for BP240V65, 10 BP240V65-NIB, BP240V100, BP240V100-NIB

4.1.2 Dimensions for BP240V65L, 12 BP240V65L-NIB, BP240V100L, BP240V100L-NIB

4.2 Physical Requirements (All Models) 14

5. Installation 15

5.1 Unpacking and Inspection 15

5.2 Selecting Installation Position 16

5.3 Power Cables 17

5.3.1 Cable Sizes 17

5.4 Battery Cabinet Connections – 17 Models BP240V65, BP240V65-NIB, BP240V100, BP240V100-NIB

5.4.1 Remove the Chassis Shell 18

5.4.2 Battery Installation 18 and Connection

5.4.2.1 Battery Installation 22 and Setup: Models BP240V65-NIB, BP240V100-NIB

5.5 Battery Cabinet Connections - 32

5.5.2 Battery Installation and Connection 33

5.5.2.1 Battery Installation 37 and Setup: Models BP240V65L-NIB, BP240V100L-NIB

5.6 Multiple Battery Pack Connections 48

6. Operation and Configuration 52 of S3M UPS Models and Battery Cabinets

6.1 S3M UPS Compatibility with 52 BP240V65 to BP240V100L Battery Cabinets

6.2 Configuring 10-20K UPS for 53 Specific Battery Cabinets using the LCD Display

6.2.1 S3M 10-20K UPS Home Display 53

6.2.2 Setting 55

6.2.3 Battery Setup 56

6.2.4 Confiuring the S3M 10-20-NIB 57 and Optimizing Charging of BP240V65/V65L and BP240V100/V100L Battery Cabinets

6.3 Configuring 25-100K UPS for 59 Specific Battery Cabinets Using the LCD Display

6.3.1 S3M 25-100K UPS Home Display 60

6.3.2 Setting 60

6.3.3 Battery Setup: Click BATT Setup 62

6.3.4 Configuring the S3M25-100K UPS and Optimizing Charging of the BP240V65/V65L and BP240V100/V100L Battery Cabinets 63

6.4 Configuring Reference Tables 66

7. Specifications 67

7.1 Battery Cabinet Specifications 67

8. Storage 67

9. Service and Warranty 68

1. Introduction

Tripp Lite's Extended-Run Battery Cabinets connect to SmartOnline® UPS Systems to provide long-lasting battery backup for data centers, telecommunications, networks, industrial facilities, security, emergency systems and other mission-critical applications that require high capacity, high availability and extended runtime.

Battery cabinets are available in seven models, with pre-installed batteries and without: BP240V65, BP240V65-NIB, BP240V65L, BP240V65L-NIB, BP240V100, BP240V100-NIB, BP240V100L-NIB.

The “-NIB” suffix battery cabinet models BP240V65-NIB, BP240V65L-NIB, BP240V100-NIB and BP240V40L-NIB do not include pre-installed batteries. However, they include all of the jumper cables, fuses and breakers, enabling the flexibility to purchase batteries separately for the battery cabinets. The BP240V65-NIB and BP240V65L-NIB battery cabinets are designed for CSB GP12650i batteries. The BP240V100-NIB and BP240V100L-NIB battery cabinets are designed for CSB GP121000 batteries.

1.1 Features

• The battery cabinets are designed for battery string voltages of ± 120V DC and battery capacities of 65Ah or 100Ah , @ C20 to 1.67VPC.
• Battery cabinets contain multiple 12V DC AGM batteries connected in series to achieve higher voltages.

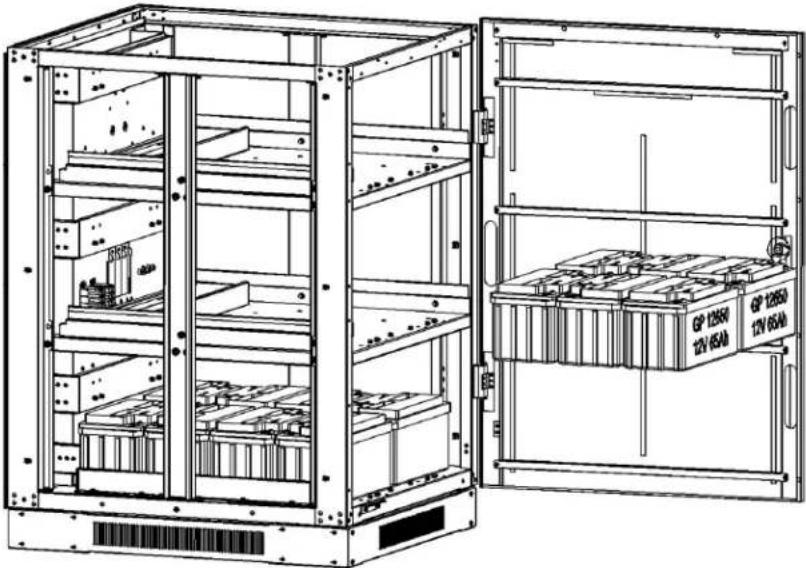

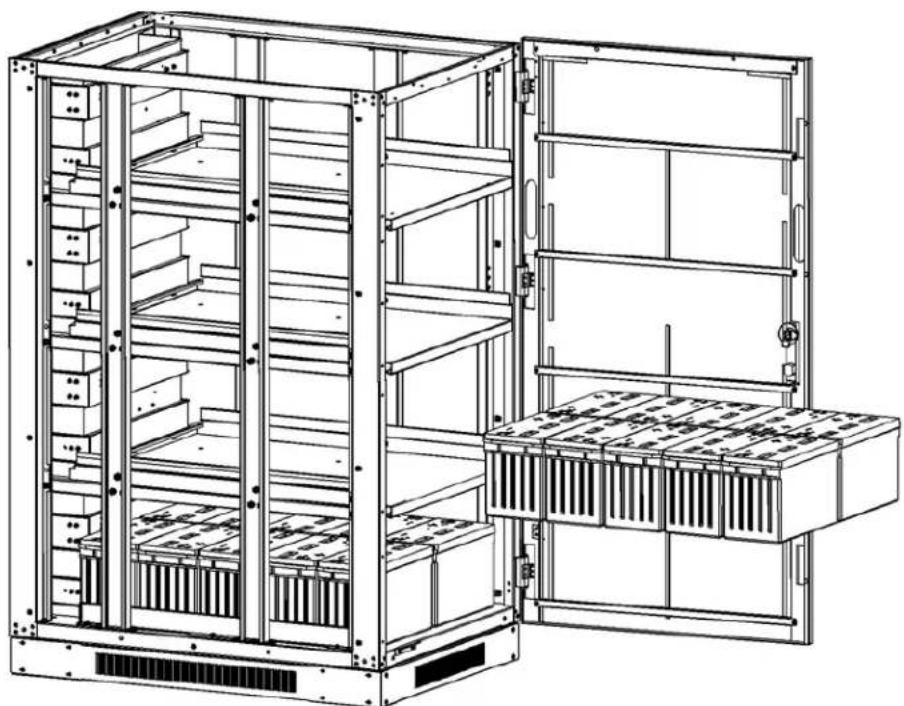

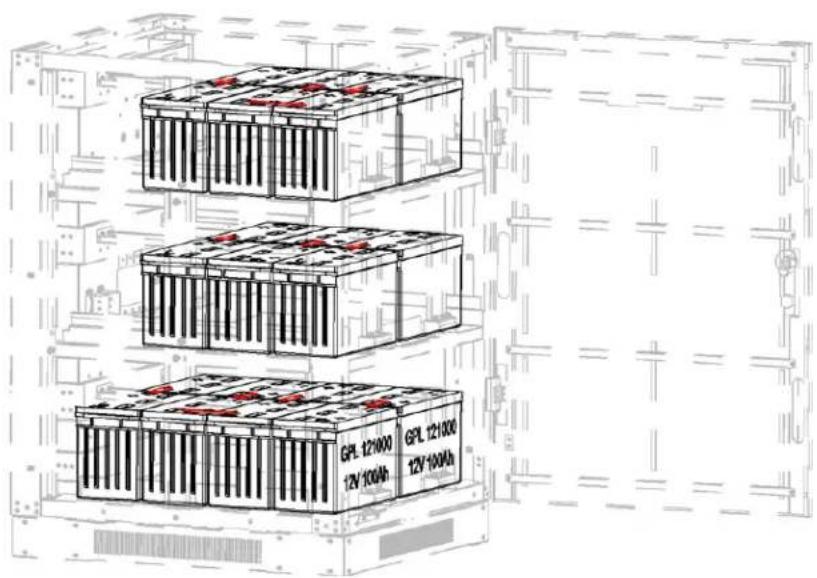

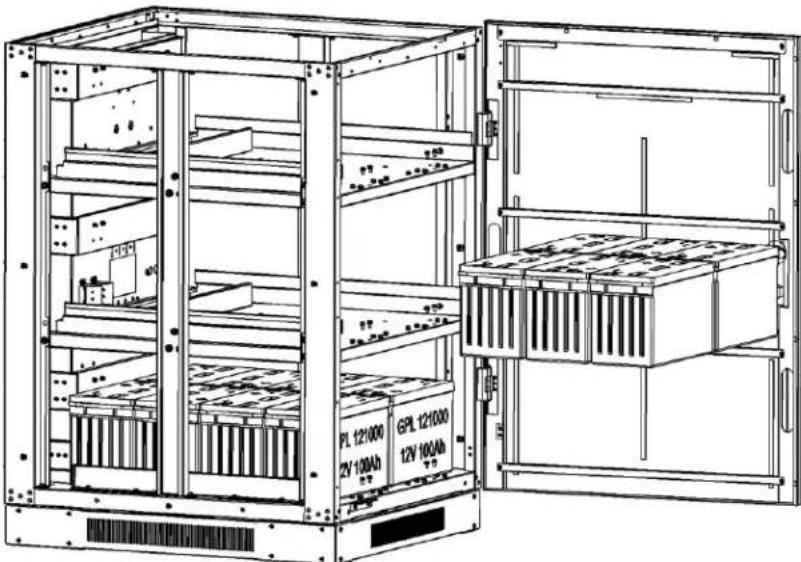

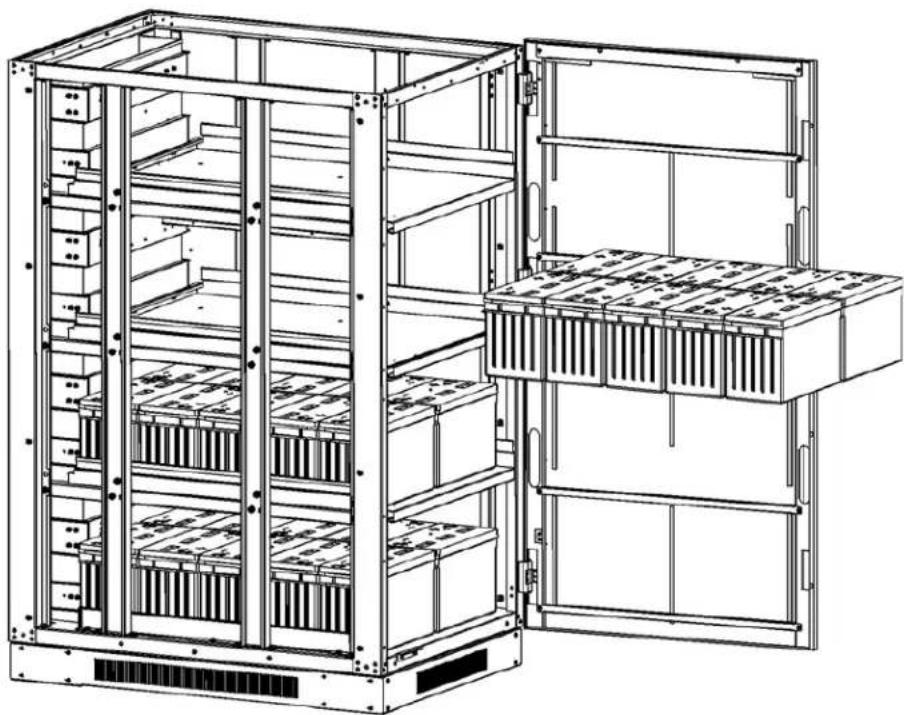

  • Each battery cabinet contains several shelves to achieve the required battery string voltages:

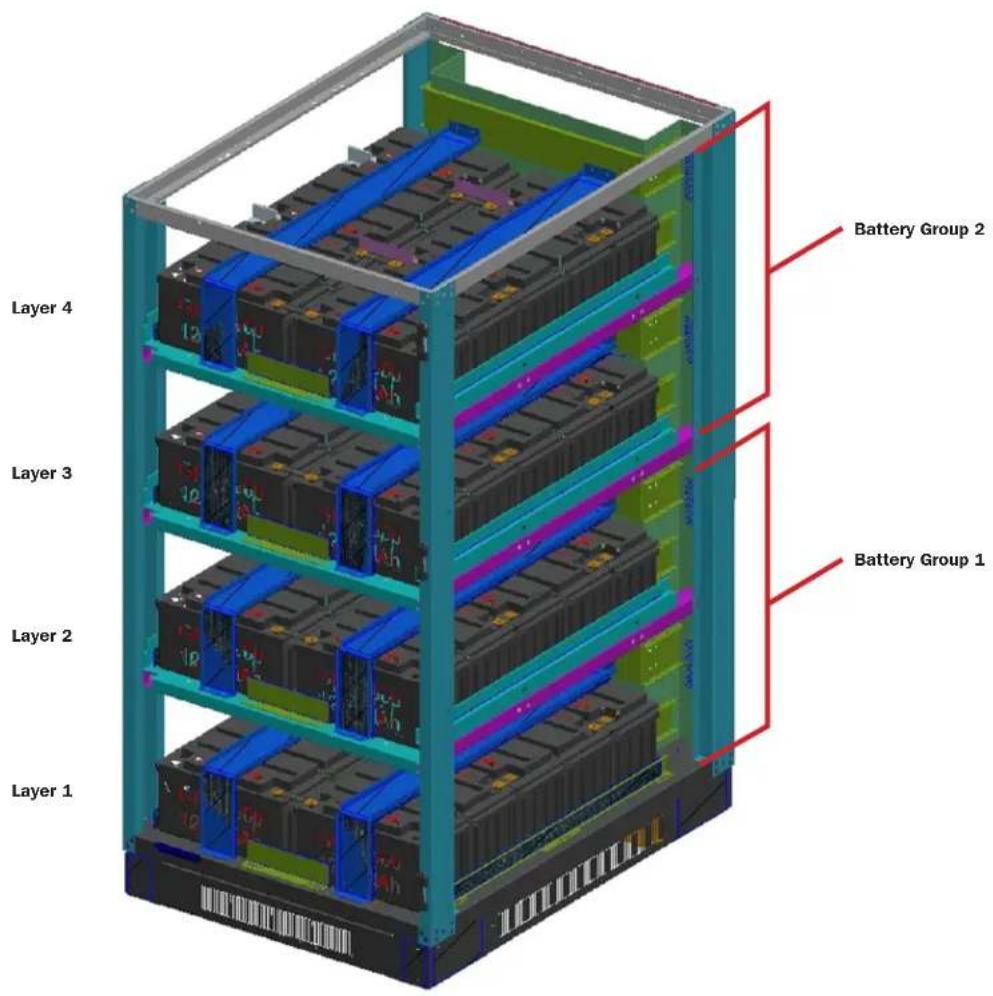

o BP240V65 / BP240V65-NIB: Holds 20 x 65Ah AGM batteries
o BP240V100 / BP240V100-NIB: Holds 20 x 100Ah AGM batteries
o BP240V65L / BP240V65L-NIB: Holds 40 x 65Ah AGM batteries
o BP240V100L / BP240V100L-NIB: Holds 40 x 100Ah AGM batteries

• A hinged, lockable door facilitates access to batteries for periodic maintenance.

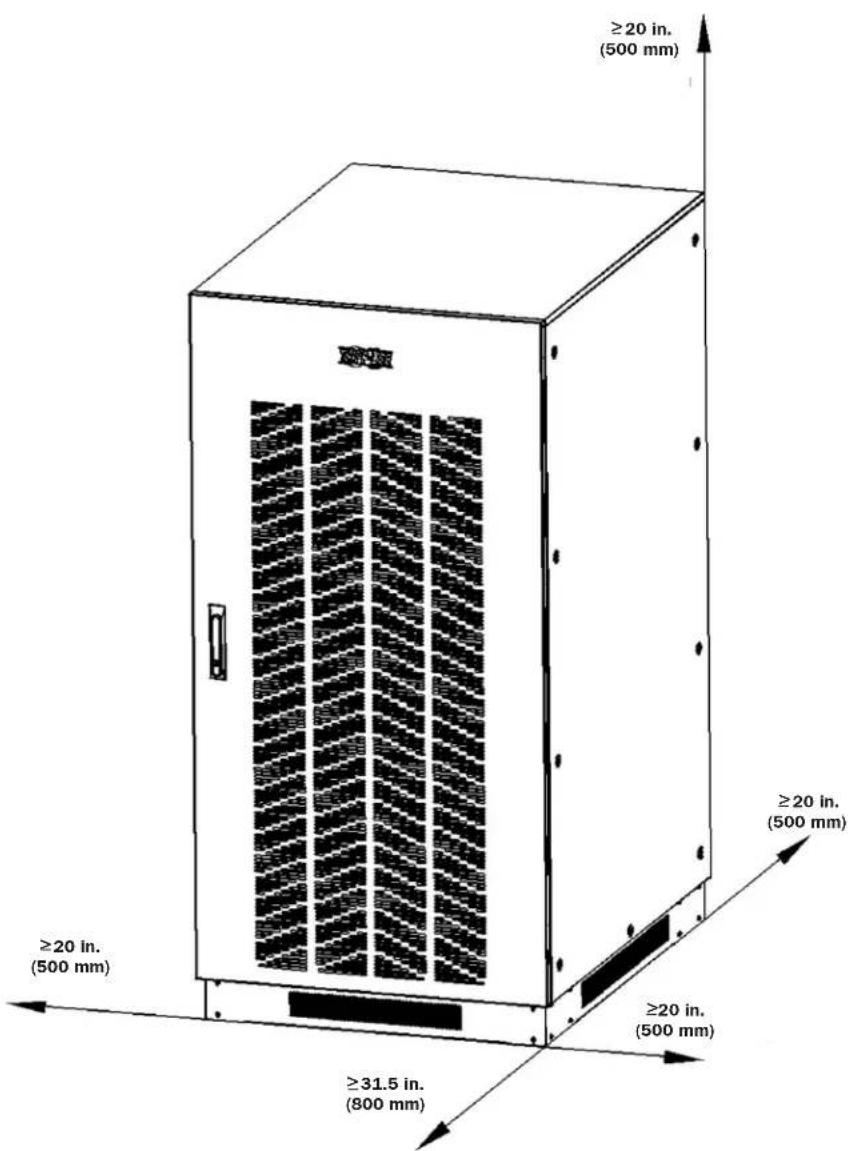

• A minimum of 4 in. (100 mm) clearance is located above the individual batteries for access to terminals.
• The battery cabinet is constructed of heavy-gauge steel for durability.
• A baked powder-coat finish provides corrosion resistance.
• The battery cabinet ships bolted to a pallet with a double layer of protective stretch wrap and integrated corner and top protection.
• Appropriate ventilation and convection cooling of individual batteries is provided via spacing between batteries. Front and rear vents allow the free flow of warmer air out of the battery cabinet.
• A molded case circuit breaker is provided for overcurrent protection.
• User-supplied power output cables can be fed into the battery cabinet via built-in conduit knockouts on the bottom of the cabinet.
• For improved safety, higher power density and minimized maintenance, the cabinet systems use Valve-Regulated Lead-Acid (VRLA) recombinant batteries. The electrolyte in these batteries is immobilized in either an absorbent mat separator or a gelling medium, eliminating the spilling hazards and maintenance requirements of free liquid electrolyte. There is no need to add water or measure specific gravity.
• Because the batteries are recombinant cells that employ an oxygen recombination cycle, minimal gasses are emitted during normal float charging. Each cell contains an individual valve, which releases the gas products from overcharge and prevents pressure build-up within the cell.

1. Introduction

1.2 UPS and Battery Cabinet Compatibility Chart

	Cabinets withInternal Batteries	BP240V65 BP240V65L BP240V100 BP240V100L
	Cabinets with NOInternal Batteries	BP240V65-NIB BP240V65L-NIB BP240V100-NIB BP240V100L-NIB
10kVA-20kVAUPS with InternalBatteries	• S3M10K1B,S3M10K2B,S3M10K3B• S3M15K2BS3M15K3B• S3M20K3B	No No No No
10kVA-20kVA UPSwith NO InternalBatteries	• S3M10K-NIB• S3M15K-NIB• S3M20K-NIB	Yes Yes Yes No

	Cabinets with Internal Batteries	BP240V65 BP240V65L BP240V100 BP240V100L
	Cabinets with NO Internal Batteries	BP240V65-NIB BP240V65L-NIB BP240V100-NIB BP240V100L-NIB
25kVA-100kVA UPS with NO Internal Batteries	• S3M25K • S3M30K	Yes Yes Yes No
	• S3M50K Yes Yes Yes
	• S3M60K No Yes Yes Yes
	• S3M80K • S3M100K	No Yes No Yes

2. Important Safety Instructions

SAVE THESE INSTRUCTIONS

All sections of this manual contain instructions and warnings that must be followed during the installation and operation of the battery cabinet described in this manual. Read ALL instructions thoroughly before attempting to move, install or connect your battery cabinet.

Failure to heed these warnings may affect your warranty and cause serious property damage and/or personal injury.

DANGER! LETHAL HIGH-VOLTAGE HAZARD!

All wiring should be performed by a qualified electrician in accordance with the warnings in this manual and all applicable electrical and safety codes. Incorrect wiring may cause serious personal injury and property damage.

2.1 Installation and Location Warnings

• Install the battery cabinet in a controlled indoor environment, away from moisture, temperature extremes, flammable liquids and gasses, conductive contaminants, dust and direct sunlight.
• Install the battery cabinet in a level, structurally sound location.
- The battery cabinet is extremely heavy. Exercise caution when moving or lifting the unit.
- Operate the battery cabinet at indoor temperatures between 0^ and 40^ only. For best results, maintain an ambient indoor temperature of 25^ .
- Allow adequate space around the front and rear of the battery cabinet for proper ventilation. Do not block, cover or insert objects into the battery cabinet's external ventilation openings.
- Do not place any object on the battery cabinet, especially containers of liquid.
- Do not attempt to stack the battery cabinet. Attempting to stack the battery cabinet may cause permanent damage and create a potential for serious personal injury.
- Do not attempt to unpack or move the battery cabinet without assistance. Use appropriate handling equipment rated to bear the weight and bulk of the battery cabinet, such as freight elevators, pallet jacks and forklifts. (Fully extend forks under load. Spread forks to maximum possible width under load. Lift cabinet from bottom only. Wear safety shoes.)
- For emergency use, install a fire extinguisher rated for energized electrical equipment fires (Class C rating or exact equivalent, with a non-conductive extinguishing agent) near the battery cabinet.

2.2 Connection Warnings

• The battery cabinet contains hazardous high voltages that have the potential to cause personal injury or death from electric shock.
• The battery cabinet has its own energy source. The output terminals may be live, even when the battery cabinet is not connected to a UPS system.
• The battery cabinet must be suitably grounded according to all applicable electrical wiring regulations.
• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
• De-energize all input and output power sources before installing cables or making electrical connections.
• Use flexible cable of sufficient length to permit battery cabinet servicing.
• Use ferrule caps to cover termination cables and prevent frayed ends from shorting on terminal blocks. Use cabling rated VW-1, FT-1 or better. Use cable sleeves and connector clamps.
• Confirm all cables are marked correctly according to their purpose, polarity and diameter.
• Observe proper polarity by following the positive and negative markings on the unit. Failure to observe proper polarity may damage the batteries and create a serious risk of personal injury and property damage.

2. Important Safety Instructions

- Wiring and assembly should be performed by trained, qualified electricians only. Refer to the UPS unit's Owner's Manual for wire sizing.

2.3 Battery Warnings

• The battery cabinet requires routine maintenance by qualified, knowledgeable service personnel familiar with its operation. All required precautions should be taken prior to opening the cabinet for any reason. Keep unauthorized personnel away from batteries.
• The battery cabinet contains valve-regulated recombinant lead-acid (VRLA) batteries. Do not attempt to add water to these batteries or sample the electrolyte specific gravity.
• VRLA batteries can contain an explosive mixture of hydrogen gas. DO NOT SMOKE when near batteries. DO NOT cause flames or sparks near batteries. Discharge static electricity from body before touching batteries. DO NOT open or mutilate batteries—released electrolyte is harmful to the skin and eyes and may be toxic. DO NOT dispose of batteries in a fire—they may explode.
• Batteries present a risk of electrical shock and burns from high short-circuit current. Battery connection or replacement should be performed only by qualified service personnel observing proper precautions. Use tools with insulated handles. Remove watches, rings or other metal objects. Wear rubber gloves and boots. Do not short or bridge the battery terminals with any object. Do not lay tools or metal parts on top of batteries.
• Replace batteries with equivalent batteries (same number and type) available from Tripp Lite.
• The batteries are recyclable. Refer to local codes for disposal requirements. Do not dispose of batteries except through approved channels in accordance with all applicable local, state and national regulations.
• Do not connect or disconnect batteries when the UPS system is operating from the battery supply or when the unit is not in bypass mode. Disconnect the charging source prior to connection or disconnecting battery terminals.
• If the charging source remains off for an extended period of time, it should be turned on periodically to allow the batteries to recharge. The charging source should be turned on and the batteries should be recharged at least one uninterrupted 24-hour period every 3 months. Failure to recharge the batteries periodically may cause permanent battery damage.
• Allow batteries to charge uninterrupted for 24 hours after installation.

Note on Labeling

These symbols may appear on the product label:

V=: DC Voltage

+ : Ground

+: Battery Positive

- : Battery Negative

Refer to the product label for model numbers, voltage ratings and other important information.

2.4 Standards Compliance

• UL 1778, CSA-C22.2 No. 107.3-14 (3rd Ed)
• ISTA B (Transport, Vibration, Tilt)

3. Battery Cabinet Installation

Read Section 2 – Important Safety Instructions Before Installation

3.1 Preparation

• At your site, prepare to off-load the battery cabinet from the delivery truck and transport it to the final installation location. Consider both the packaged weight and dimensions.
• Make sure the floor can support the load of the specific battery cabinet being installed. The battery cabinet must be installed in a structurally sound area with a level floor that is able to bear the weight of the battery cabinet and other equipment that will be installed nearby.
• Draw a wiring schematic representing the cables connected between the battery cabinet's output terminal blocks and any external disconnect device, junction box and/or load/rectifier.
• If you plan to store the battery cabinet for an extended period before or after installation, follow the instructions in section 9. Storage and Service.

3.2 Transportation

1. Inspect the shipping container(s) for visible damage (do not remove the stretch wrap around the unit until it has been transported to the final installation location). Confirm that the model name and rating match the unit you ordered. If you determine the unit has been damaged during shipping or if anything appears to be missing, contact Tripp Lite for assistance. Do not attempt to use the unit if it has been damaged or mishandled.
2. Do not attempt to move or unpack the battery cabinet without assistance. Use appropriate handling equipment rated to bear the weight and bulk of the battery cabinet, such as freight elevators, pallet jacks and forklifts. (Fully extend forks under load. Spread forks to maximum possible width under load. Lift cabinet from bottom only. Wear safety shoes.) Confirm load limits for freight elevators, handling equipment and floors along the transport route are not exceeded by the combined weight of the packaged battery cabinet, handling equipment and personnel. Confirm that the packaged unit will pass through any doorways along the intended route.
3. The battery cabinet is secured with stretch wrap to protect it during shipping and movement within a facility. Remove the stretch wrap from the battery cabinet when the unit is in the final installation location—not before.

3.3 Mechanical Check

While the assembled cabinet battery system is still on the shipping pallet, inspect all sides for impact or other damage.

1. Open the front door of the battery cabinet.
2. Confirm none of the internal parts (batteries, terminal blocks, circuit breaker and other parts) have been damaged.
3. Note the individual battery model number and terminal type shown in section 8. Specifications.
4. Use insulated tools to tighten all battery terminal connections to the recommended torque shown in the table in section 6.3 Power Cables.
5. Use insulated tools to tighten the cables from the positive and negative output terminals at the end batteries to the circuit breaker.

3. Battery Cabinet Installation

3.4 Package Contents

	Part Number	Description	BP240V65 B	BP240V65L BP240V65-NIB	BP240V65L-NIB	BP240V100 B	BP240V100L BP240V100-NIB	BP240V100L-NIB
Owners Manual	933BF8		Yes Yes Yes	Yes Yes Yes Yes Yes
Battery Cables	731891 "	Battery cables to connect to S3M10-20K UPS"	2 2 2 2	No 2 No
Battery Insulators	83084A/83084B	Protective materials	N/A N/A 4	5 8/8 N/A	N/A	N/A N/A
"Cabinet Bottom Side Metal Skirts"	1038F7A	Cover bottom area of cabinet	2	N/A	2	N/A	2	N/A
"Cabinet Bottom Side Metal Skirts"	1038F8A	Cover bottom area of cabinet	2 2 2 2	2	2	2
"Cabinet Bottom Side Metal Skirts"	1038F8A	Cover bottom area of cabinet	N/A	2	N/A	2	N/A	2
Battery Cables for "-NIB" Models	Several P/N	For connecting the battery strings to the cabinet	N/A	N/A	10	16	N/A	10
Copper Jumper Bars	1038F3	For interconnecting adjacent batteries	N/A	N/A	10	20	N/A	N/A
Copper Jumper Bars	1038F4	For interconnecting adjacent batteries	N/A	N/A	3	8	N/A	N/A
Copper Jumper Bars	1038F5	For interconnecting adjacent batteries	N/A N/A	N/A N/A	N/A	3	8
Copper Jumper Bars	1038F6	For interconnecting adjacent batteries	N/A N/A	N/A N/A	N/A	10	20

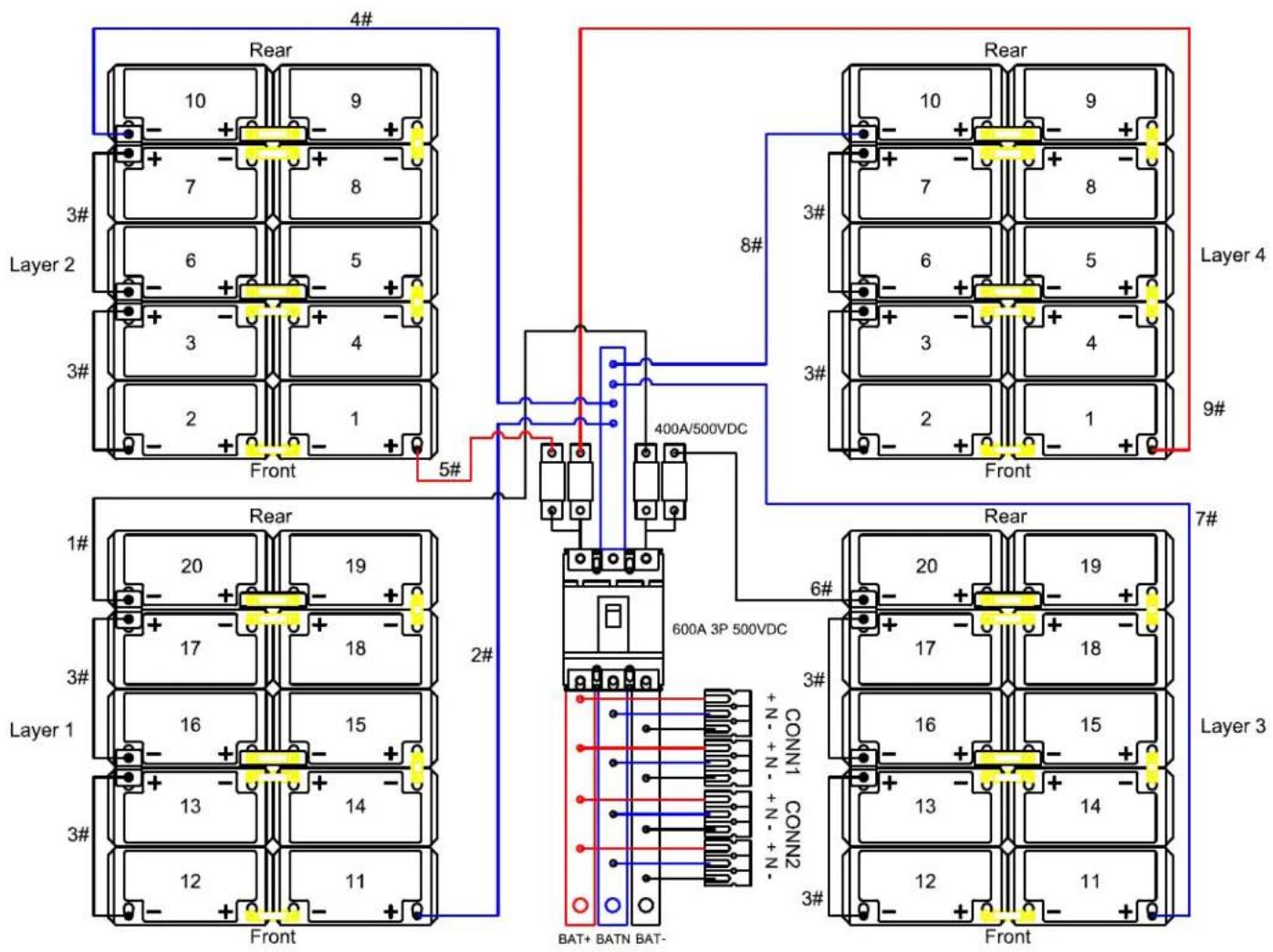

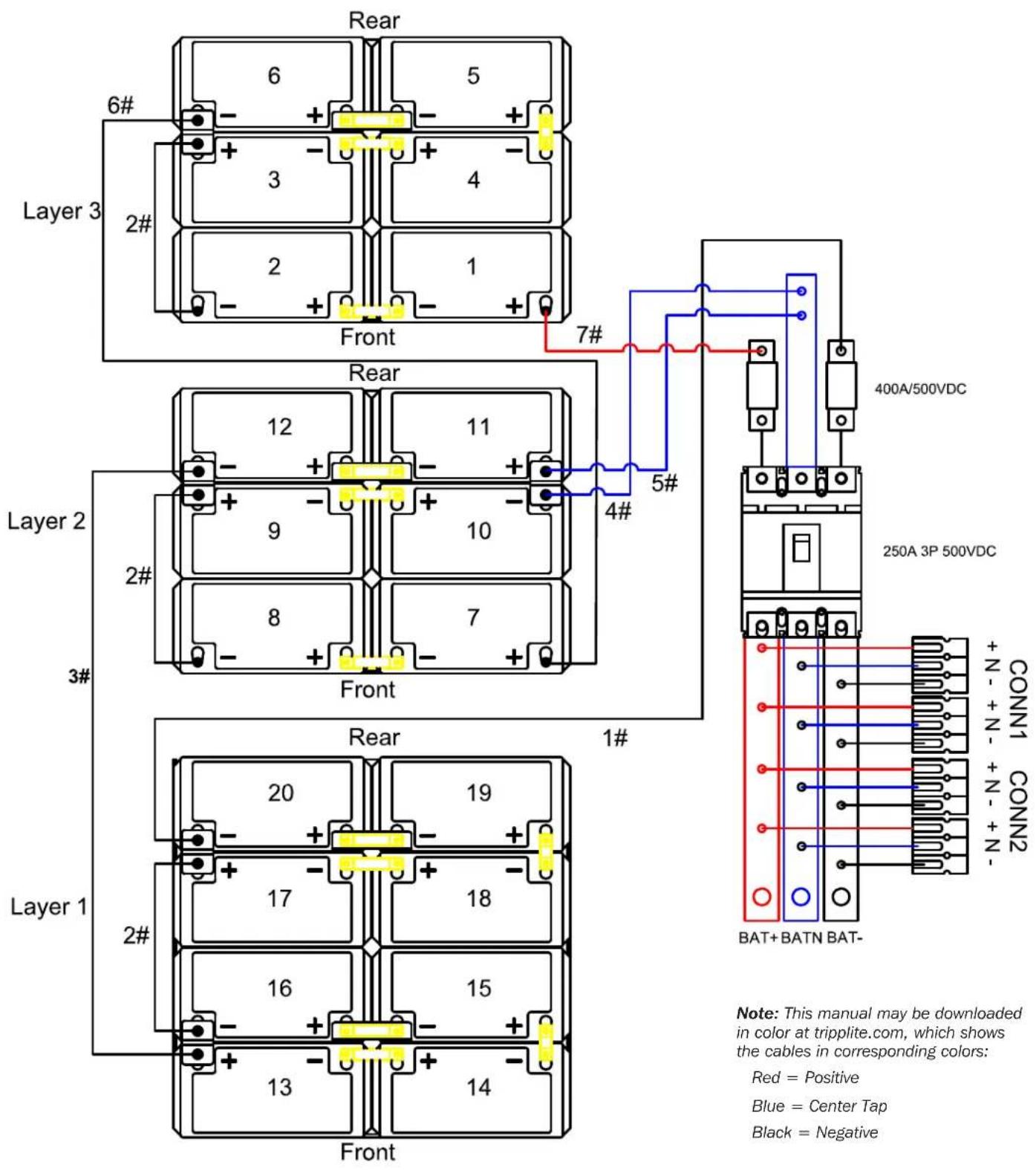

3.5 Internal Wiring (Typical)

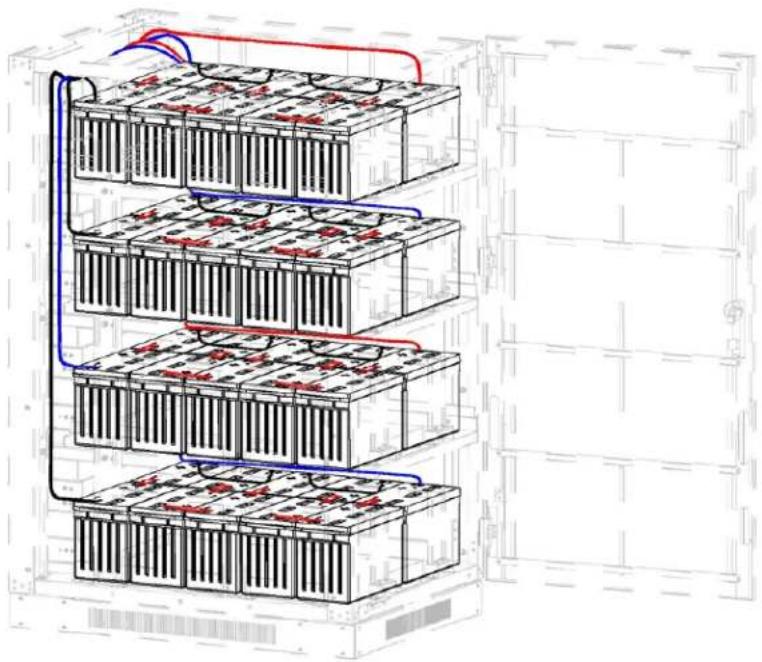

• Battery cabinets use multiple 12V DC batteries connected in series to provide nominal DC voltage of 240V DC (±120V DC).
• Internal cabling is sized for specific application load currents. Do not use any other cable size other than the one provided in the battery cabinet.
  • Each battery cabinet shelf includes a specific wiring diagram. Refer to section 6. Installation for battery installation details.
• All circuit breakers are in the middle tier of the battery cabinet.
• All load connection polarities will be labeled as “+” (battery positive), “-” (battery negative) and “N” (battery center tap) for ±120V DC strings.
• All battery cabinets are provided with a branch circuit overcurrent protection device and may be wired directly to the load or UPS.

3. Battery Cabinet Installation

3.6 Battery Cabinet Placement

Place the battery cabinet in a cool location with free airflow and away from direct heat sources. The lifespan and performance of a battery may be dramatically affected by elevated temperature, decreasing 50% for each 8.25°C above 25°C.

1. Prepare the surface where the cabinet will be placed. The surface must be clean, flat and able to support the battery cabinet and other equipment installed nearby. See section 8. Specifications for floor loads.
2. Allow adequate clearance around the front and rear of the battery cabinet for ventilation and maintenance. The front door must be accessible to allow easy access to internal batteries, internal fuses and other overcurrent protection devices. See section 6.1 Unpacking and Inspection for dimensions and battery cabinet measurements.
3. If the cabinet will be anchored to the floor, install appropriate anchor bolts in the mounting hole located at the bottom of the cabinet. Use washers to create a level surface between the mounting areas around the anchor bolts.
4. Using extreme caution, remove the bolts securing the battery cabinet to the shipping pallet.
5. Forklift forks should be at maximum width within the cabinet clearance opening and fully inserted to prevent tipping. Lift cabinet from bottom only. Be careful not to damage the sheet metal floor of the cabinet with the forks.
6. If the battery cabinet will be secured to the floor, carefully align and lower the battery cabinet down on the floor anchor bolts and secure it in place.
7. If the cabinet will not be secured to the floor, lower it into the designated space and then level it using shims. Leveling does not affect performance, but does align the battery cabinet with other equipment in the facility.

3.7 Electrical Connection

DANGER! LETHAL HIGH-VOLTAGE HAZARD!

All wiring should be performed by a qualified electrician in accordance with the warnings in this manual and all applicable electrical and safety codes. Incorrect wiring may cause serious personal injury and property damage.

• The battery cabinet is connected to the load through a DC circuit breaker. This allows the battery to disconnect from the load and charger for maintenance and/or repair.
• The DC molded case circuit breakers are CE-approved for branch circuit protection. If replacement is required, CE-approved components with the same voltage and current rating must be used.
• The size of the load connection cables must consider maximum allowable voltage drop, as well as the cables' continuous ampere capacity and anticipated ampere discharge rate of the individual battery cabinet. A maximum voltage drop of 1.5V DC in the load connection cables is recommended. Refer to the UPS unit's Owner's Manual for recommended wire sizes.
• Refer to all applicable local, state and national codes for appropriate cable size and ratings.
• External circuit protection devices (fuses or circuit breakers) must consider the discharge rate of the battery, the wiring to be protected and the DC short circuit current of the battery.

After performing the installation procedures in section 6. Installation, perform the following:

1. Open the front door of the battery cabinet to access internal components. Use a digital voltmeter when voltage measurements are required.
2. Determine if the battery has been inadvertently grounded by resetting the circuit breaker to the "On" position and measuring the voltage between the battery cabinet grounding lug and the positive load connection point within the cabinet. This voltage should measure 0 (zero) VDC. If the measured voltage is not zero, determine the cause and correct before proceeding.
3. Return the internal circuit breaker to an open "Off" position as a safety precaution while connecting the output cables. Doing so prevents damage in the event the cables are accidentally shorted.
4. The top of the battery cabinet includes knockouts for load connection cable entry. Punch out the appropriate knockout and connect the conduit or cable bushing.
5. The output circuit breaker accommodates cables up to 300 mm ^4 .

3. Battery Cabinet Installation

1. Connect an appropriate equipment grounding cable to the grounding lug located on the top of the battery cabinet.
2. Feed the positive and negative cables (and "N" center, if equipped) from the open external disconnect switch or the UPS battery field wiring terminals through the conduit/cable bushing. Connect to the respective output terminals inside the battery cabinet.

3.8 Final Electrical Check

Before closing any connecting circuit breaker or disconnect switch, complete these verification steps:

1. Verify the battery cabinet output voltage is correct.
2. If battery cabinets will be operated in parallel, verify that the individual system output voltages match within 2V DC.
3. Verify the voltage measured between either output terminal and the battery cabinet ground is zero.
4. If any of the above verification steps show an irregularity, determine and correct the cause before proceeding.
5. Reset the circuit breaker to the "On" position.

4. Mechanical Data

4.1 Physical Measurements

4.1.1 Dimensions for BP240V65, BP240V65-NIB, BP240V100, BP240V100-NIB

TRIPWUTE 47.2 in. (1200 mm) 31.5 in. (800 mm) 35.4 in. (900 mm)

4. Mechanical Data

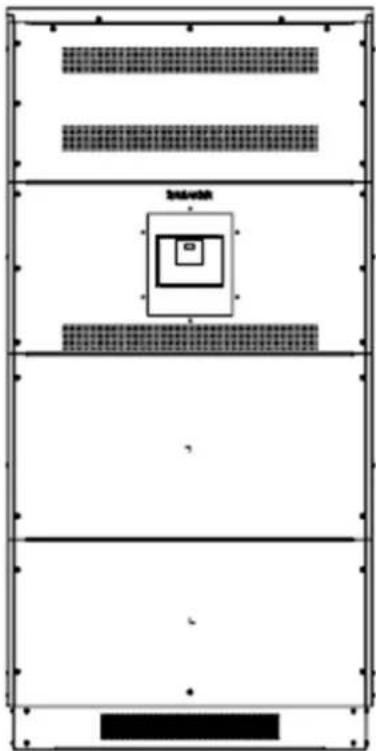

Front view of a server rack unit with four vertical panels and a handle (no text or symbols visible)

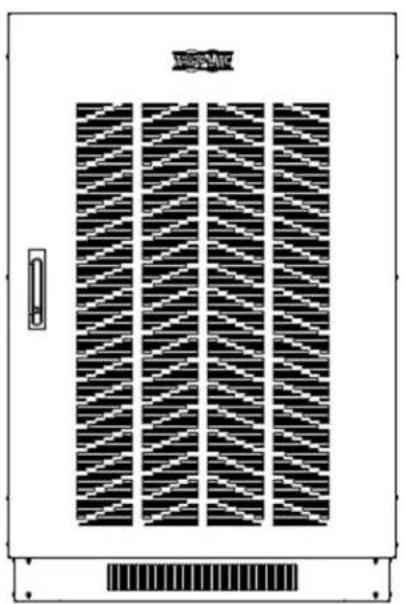

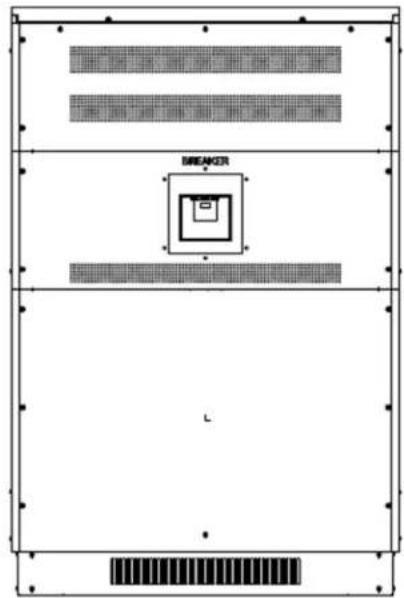

Front View

Blank rectangular frame with corner markers and a small black bar at the bottom (no text or symbols)

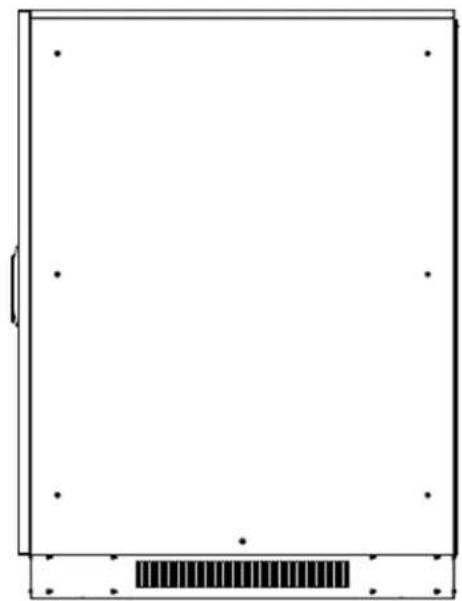

Side View

BREAKER L

Rear View

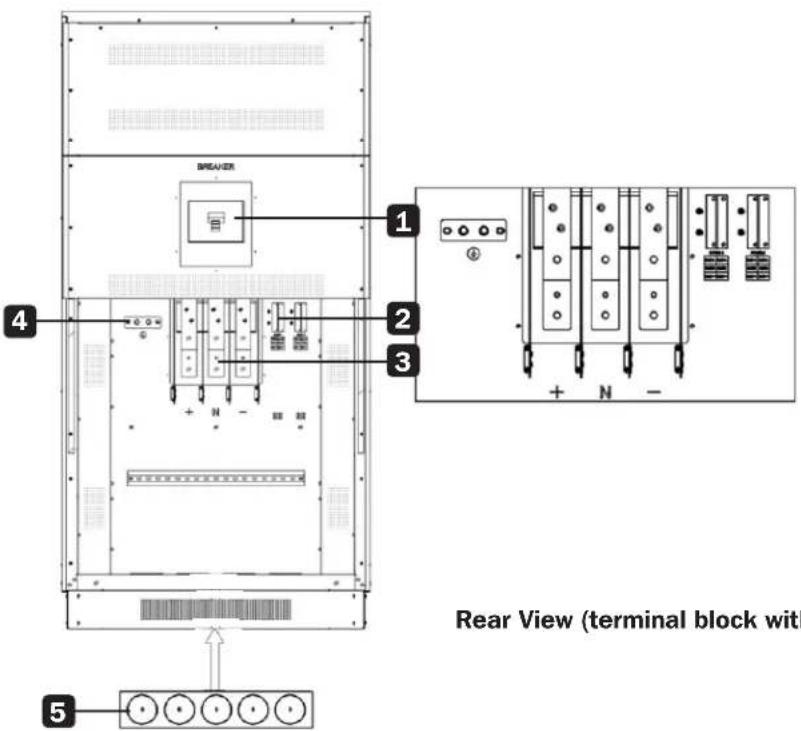

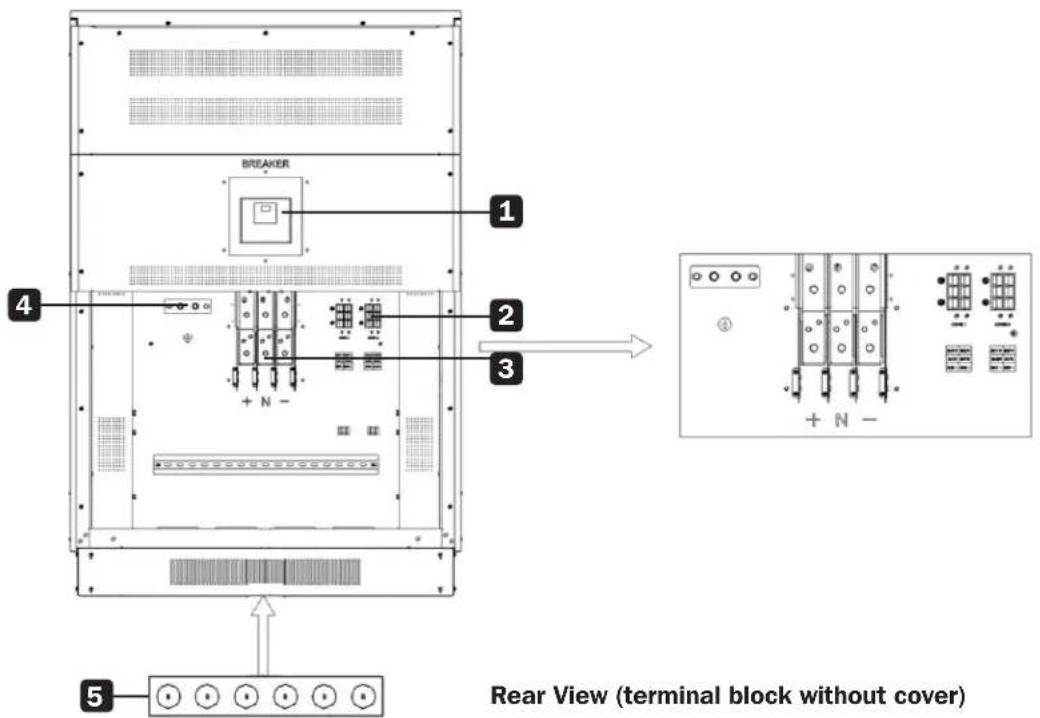

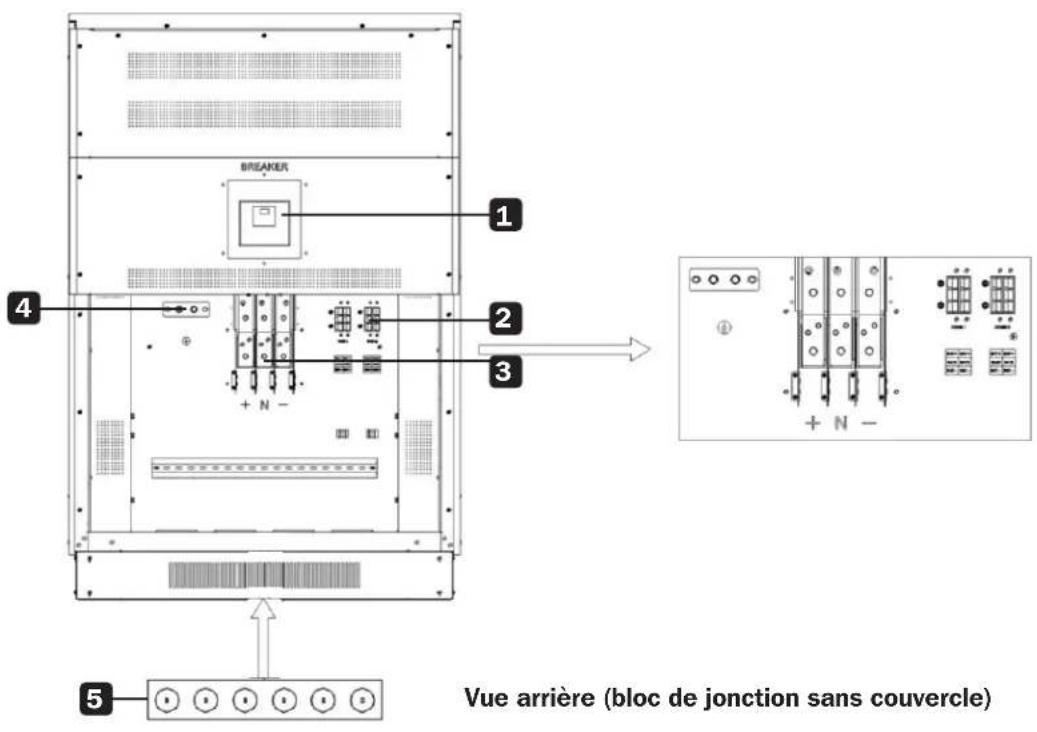

BREAKER 1 2 3 + N - 4 5 Rear View (terminal block without cover)

1 Battery Breaker
2 Battery Terminal for 10kVA-20kVA UPS
3 Battery Terminal for 25kVA-60kVA UPS
4 Grounding Lugs
5 Battery Cable Knockouts

4. Mechanical Data

4.1.2 Dimensions for BP240V65L, BP240V65L-NIB, BP240V100L, BP240V100L-NIB

63 in. (1600 mm) 31.5 in. (800 mm) 43.4 in. (1100 mm)

4. Mechanical Data

Pure diagram of a cabinet or enclosure with vertical slats and diagonal hatching patterns, no text or symbols present.

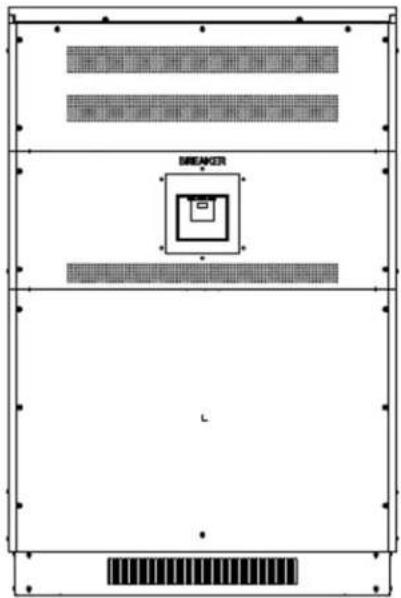

Front View

Blank white document with black dots at corners and a small black rectangle at the bottom (no text or symbols)

Side View

Pure electrical circuit lines without any symbols

Rear View

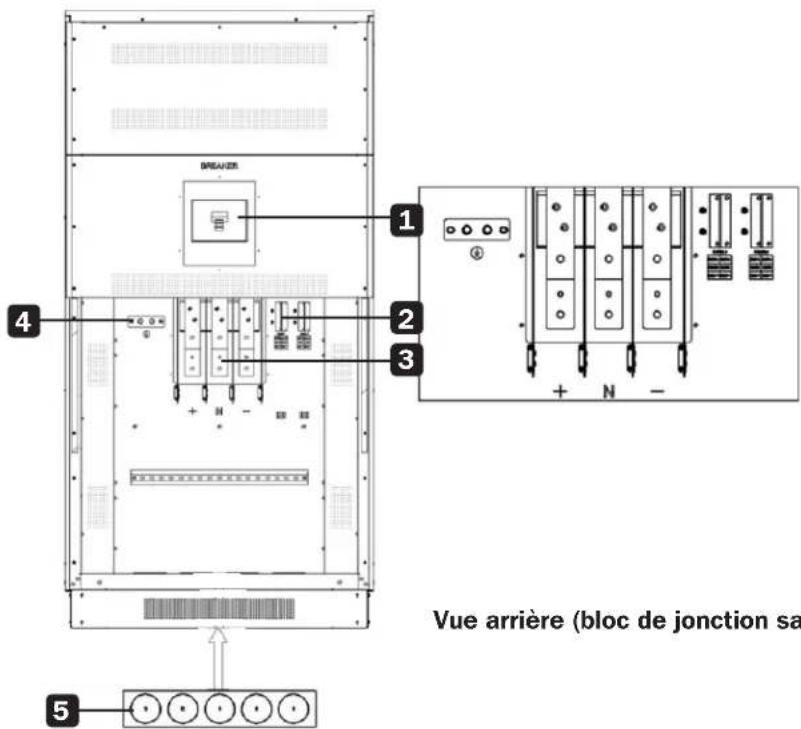

BREAKER 1 2 3 4 + - N - + N - Rear View (terminal block with 5)

1 Battery Breaker
2 Battery Terminal for 10kVA-20kVA UPS
3 Battery Terminal for 25kVA-60kVA UPS
4 Grounding Lugs
5 Battery Cable Knockouts

Rear View (terminal block without cover)

4. Mechanical Data

4.2 Physical Requirements (All Models)

Leave some space around the cabinet for operation and ventilation.

1. Leave at least 31.5 in. (800 mm) space in the front for ventilation.
2. Leave at least 20 in. (500 mm) space at the right and left for operation.
3. Leave at least 20 in. (500 mm) space at the back for ventilation.

≥20 in. (500 mm) ≥20 in. (500 mm) ≥31.5 in. (800 mm) ≥20 in. (500 mm) ≥20 in. (500 mm)

5. Installation

Note: Before installation, inspect the unit. Ensure nothing inside the package is damaged. Retain the original packing material in a safe place for future use.

5.1 Unpacking & Inspection

Any damage to packaging should be noted with the delivery carrier at the time of receipt. Remove the rail kit, battery enclosure, and battery modules from the packaging.

Note: The battery modules are very heavy. Be cautious when unpacking and lifting the unit to avoid injury.

• Don't tilt the battery pack when removing it from the packaging.
• Inspect the battery cabinet for damage that may have occurred from transport. If damage is found, do not turn on the unit. Contact the dealer from whom the unit was purchased immediately.

• Check the accessories according to the packing list and contact the dealer in case of missing parts.

• Hold the sliding plate steady. Cut and remove the binding tapes.

Line drawing of a rectangular box with vertical supports and a pair of pliers attached to the side (no text or symbols)

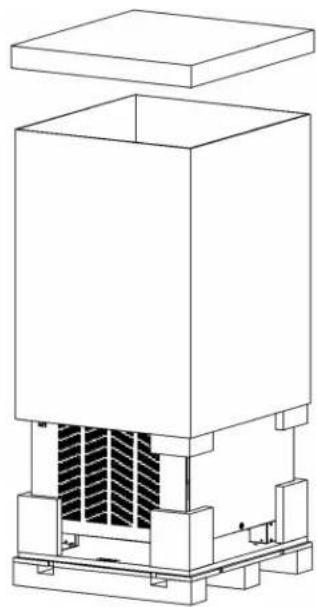

1. Remove the plastic bag and the shipping carton.

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

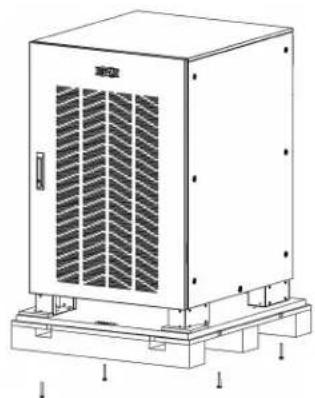

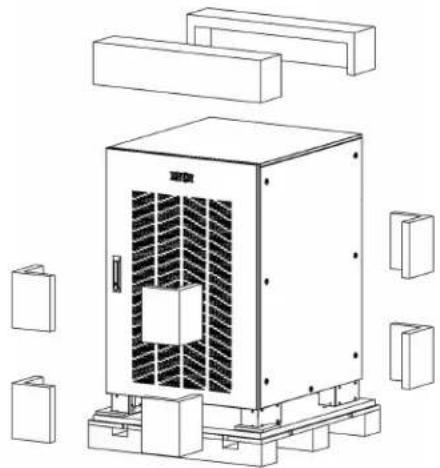

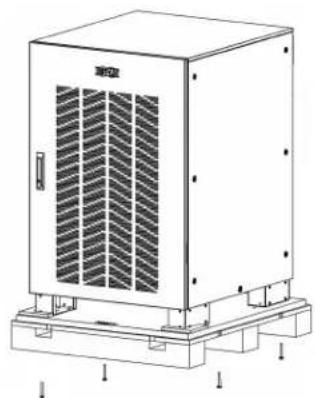

1. Remove the packing foam and the beveled pallet. 4. Remove the bolts securing the cabinet to the shipping pallet.

Technical line drawing of a server unit with cooling panel and mounting base (no text or symbols)

Technical line drawing of a rectangular industrial control cabinet with ventilation grilles and mounting base (no text or symbols)

5. Installation

1. Use a forklift to lift the battery cabinet from the pallet.

Line drawing of a forklift carrying a control unit (no text or symbols present)

5.2 Selecting Installation Position

Select a proper environment to install the unit, in order to minimize the possibility of damage to the battery system and maximize the life of the batteries.

1. Do not block air flow to the ventilation openings of the unit.
2. Ensure environmental conditions of the installation site are in accordance with the unit specifications to avoid overheat and excessive moisture. Refer to section 4.2 Physical Requirements.
3. Do not place the unit in a dusty or corrosive environment or near any flammable objects.
4. The unit is not designed for outdoor use.

Notes:

• Place the battery cabinet in a clean, stable environment. Avoid vibration, dust, humidity, flammable gases, liquids and corrosives.
• To help prevent high temperatures in the room where the UPS is installed, extractor fans and/or cooling systems are recommended.
• Batteries should be mounted in an environment where the temperature is within the required specifications. Temperature is a key factor in determining battery life and capacity. Battery temperature should be maintained between 59^ to 77^ (20°C to 25°C). Keep batteries away from heat sources, main air ventilation areas, etc.

WARNING!

Typical battery performance data reflects an operating temperature between 59^ F to 77^ F ( 20^ C to 25^ C). Operating the UPS above this range will reduce the battery life, while operating the UPS below this range will reduce battery capacity.

- If the UPS will not be installed immediately, it must be stored in a room without excessive heat or humidity.

6. Installation

5.3 Power Cables

The cable design shall comply with the voltages and currents provided in this section, and in accordance with local electrical codes.

WARNING!

UPON STARTING, PLEASE ENSURE YOU ARE AWARE OF THE LOCATION AND OPERATION OF THE EXTERNAL ISOLATORS CONNECTED TO THE UPS INPUT/BYPASS SUPPLY OF THE UTILITY DISTRIBUTION PANEL.

CHECK TO SEE IF THESE SUPPLIES ARE ELECTRICALLY ISOLATED AND POST ANY NECESSARY WARNING SIGNS TO PREVENT ANY INADVERTENT OPERATION

5.3.1 Cable Sizes

UPS MODEL	BP240V65 / BP240V100BP240V65-NIB / BP240V100-NIB		BP240V65L / BP240V100LBP240V65L-NIB / BP240V100L-NIB		Recommended Torque
	CABLE SIZES (THHW wiring at 167°F / 75°C)
	DC INPUT GROUNDING DC INPUT GROUNDING
10kVA	6 AWG 6 AWG 6 AWG 6 AWG Anderson		Connector		(No Torque Parameter)0kgf.com / ON•m
15kVA	6 AWG x 2 6 AWG x 2 6 AWG x 2 6 AWG x 2		2
20kVA	6 AWG x 2 6 AWG x 2 6 AWG x 2 6 AWG x 2		2
25kVA	1/0 AWG 2 AWG	1/0 AWG 2 AWG 450kgf.cm/			44N•m
30kVA	1/0 AWG 1/0 AWG	1/0 AWG 1/0 AWG 1/0 AWG
50kVA	2/0 AWG 2/0 AWG	2/0 AWG 2/0 AWG 2/0 AWG
60kVA	2/0 AWG 2/0 AWG	2/0 AWG 2/0 AWG 2/0 AWG
80kVA			2/0 AWG x 2 2/0 AWG x 2
100kVA			2/0 AWG x 2 2/0 AWG x 2

* S3M10-30K UPS systems do not support BP240V100L/100L-NIB battery cabinet models.

5.4 Battery Cabinet Connections: Models BP240V65, BP240V65-NIB, BP240V100 and BP240V100-NIB

Each battery cabinet design includes built-in internal battery connection cables, breaker, fuses and terminals. The standard cabinet can hold 20 pieces of 12V 65Ah 12V 100Ah batteries. The DC voltage system for all cabinets is 240VDC with ±120V internal battery strings.

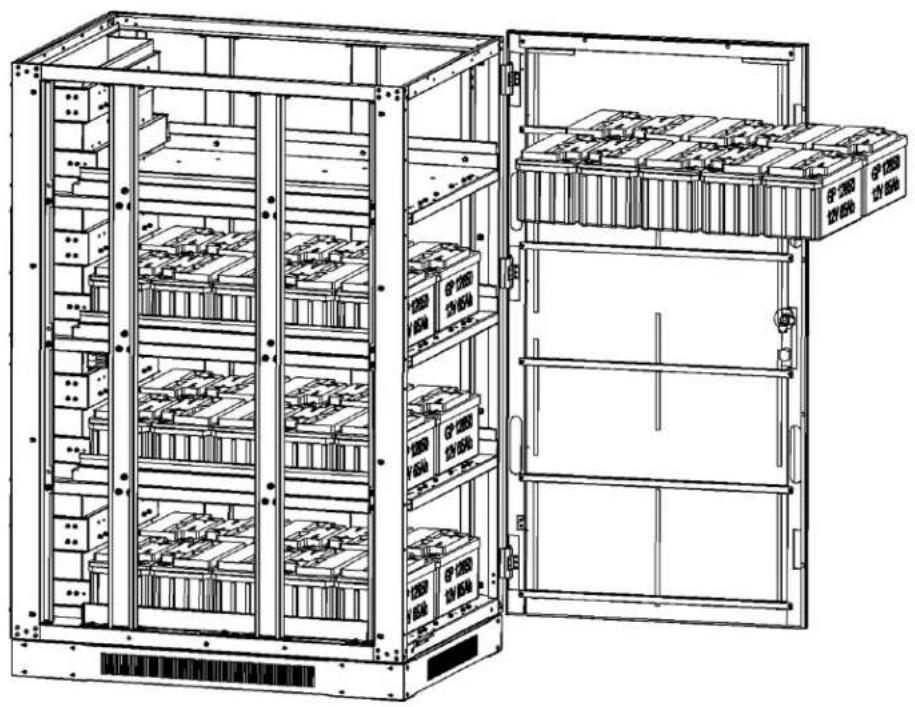

Figures 6-1 and 6-2 show the overall chassis design and exploded views for the BP240V65, BP240V65-NIB, BP240V100 and BP240V100-NIB models. The corresponding views for the BP240V65L, BP240V65L-NIB, BP240V100L and BP240V100L-NIB models are shown in section 6.5 Battery Cabinet Connections: Models BP240V65L, BP240V65L-NIB, BP240V100L and BP240V100L-NIB.

3D rendering of a black industrial machine with hatched ventilation slots and control panel (no visible text or symbols)

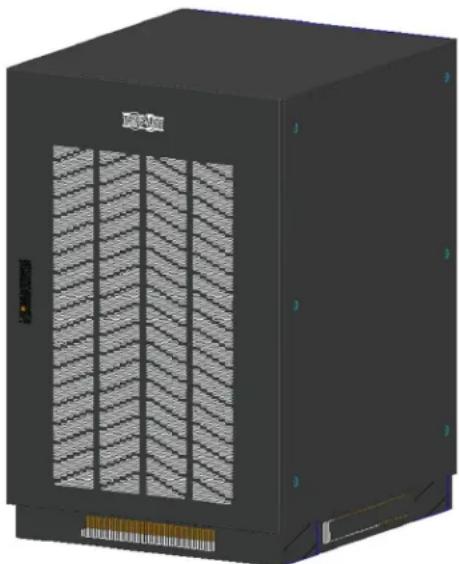

Figure 5-1: BP240V65, BP240V65-NIB, BP240V100, & BP240V100-NIB Battery Cabinet Chassis

5. Installation

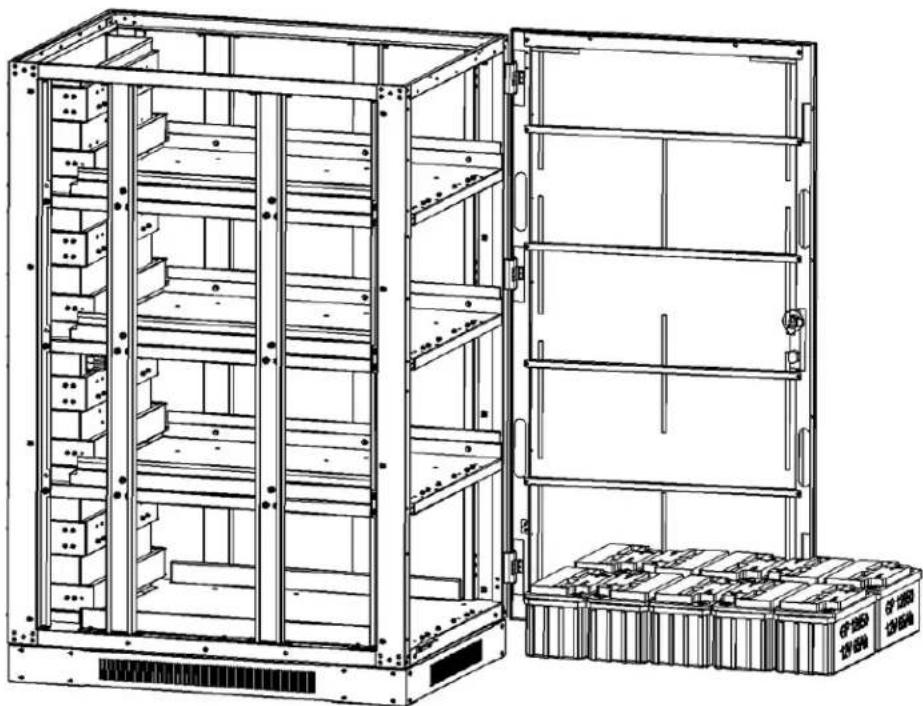

Exploded view diagram of a multi-chamber industrial or electronic device showing internal components and structural layers (no text or symbols)

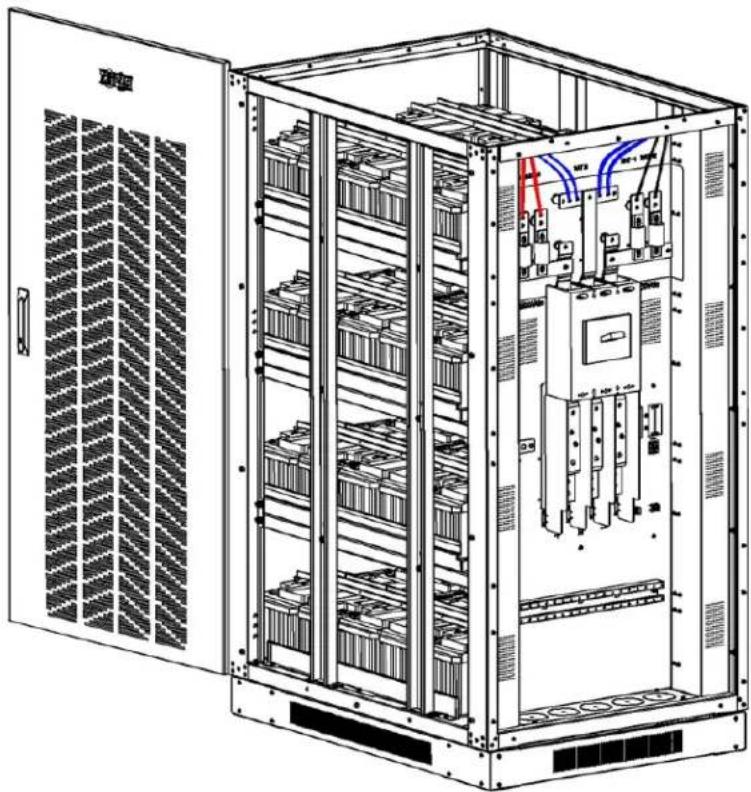

Figure 5-2: Exploded Chassis View, Models BP240V65, BP240V65-NIB, BP240V100, BP240V100-NIB

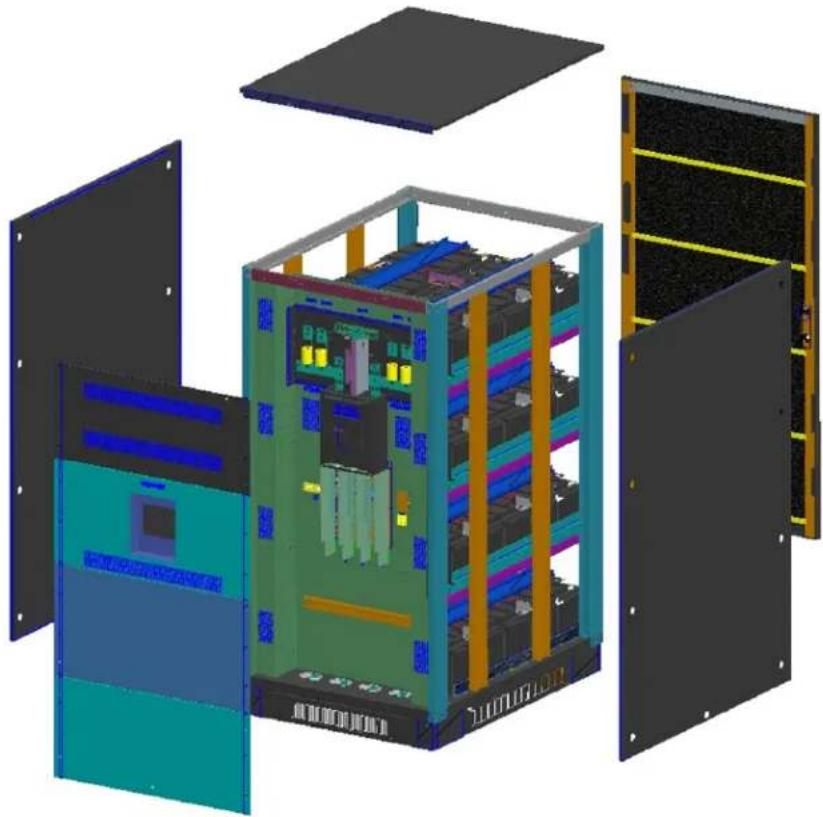

5.4.1 Remove the Chassis Shell

Place the battery cabinet in position. Remove the top, front, left and right panels. Remove the right and left cover plate of the battery pack and the battery flapper to install the batteries.

5.4.2 Battery Installation and Connection

Each battery group has 20 pieces of batteries in series (BAT+, N and BAT-). Place the batteries in the cabinet from the bottom to top one-by-one, then connect the battery cables according to the diagrams that follow.

Note: The positive and negative polarity of the battery cannot be reversed or short circuited. Doing so will damage the battery and/or cause injury. Do not touch the battery's positive and negative terminals at the same time. Before replacing or removing the batteries, disconnect the breaker, pull up cell terminals and remove the screws of the copper bus bar. Not following the instructions could result in damage to the equipment or personal injury. The installation must consist of 40 batteries.

5. Installation

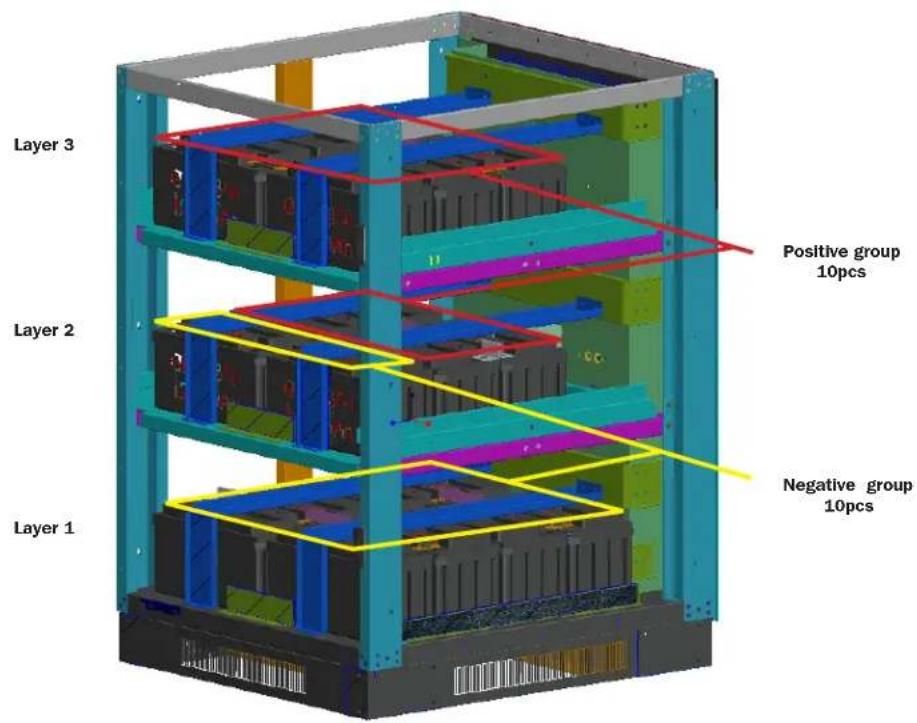

Layer 3 Positive group 10pcs Layer 2 Negative group 10pcs Layer 1

Figure 5-3A: Front View

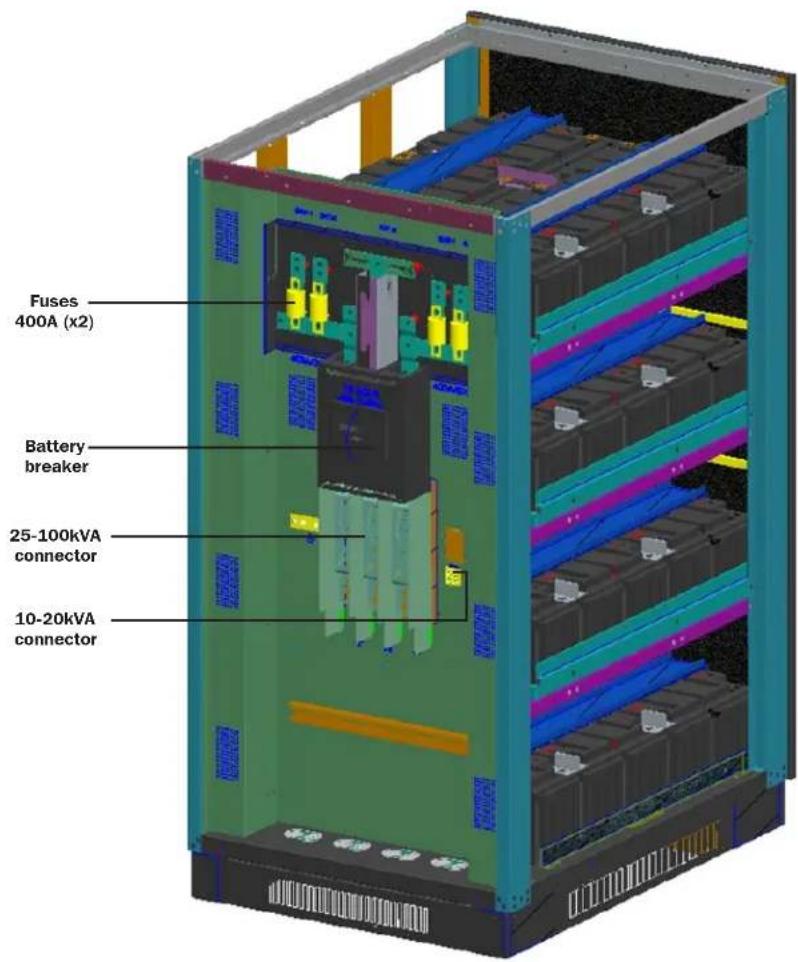

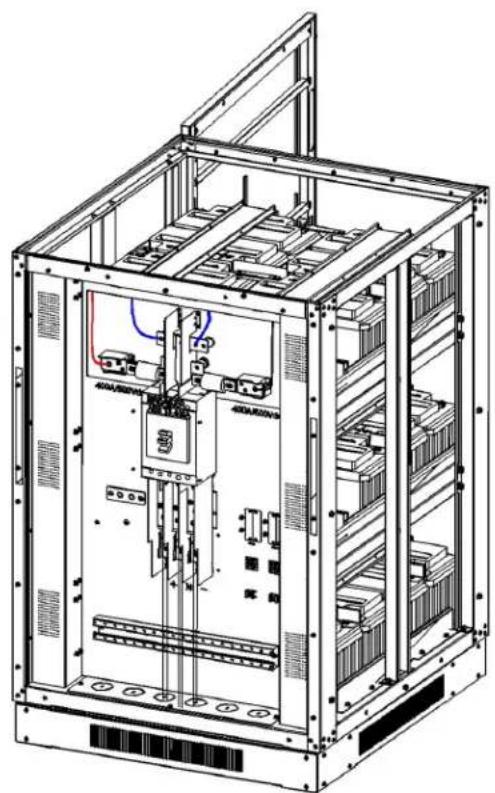

Fuses 400A (x2) Battery breaker 25-100kVA connector 10-20kVA connector

Figure 5-3B: Rear View

5. Installation

Rear 6# 5 + - + + + + + 6# Layer 3 2# 2 1 Front 7# Rear 12 11 + - + + + + 4# Layer 2 2# 10 8 7 Front 4# 5# 400A/500VDC 250A 3P 500VDC CONN1 CONN2 BAT+BATN BAT- Layer 1 2# 19 18 17 16 15 13 14 Rear 1# Layer 1

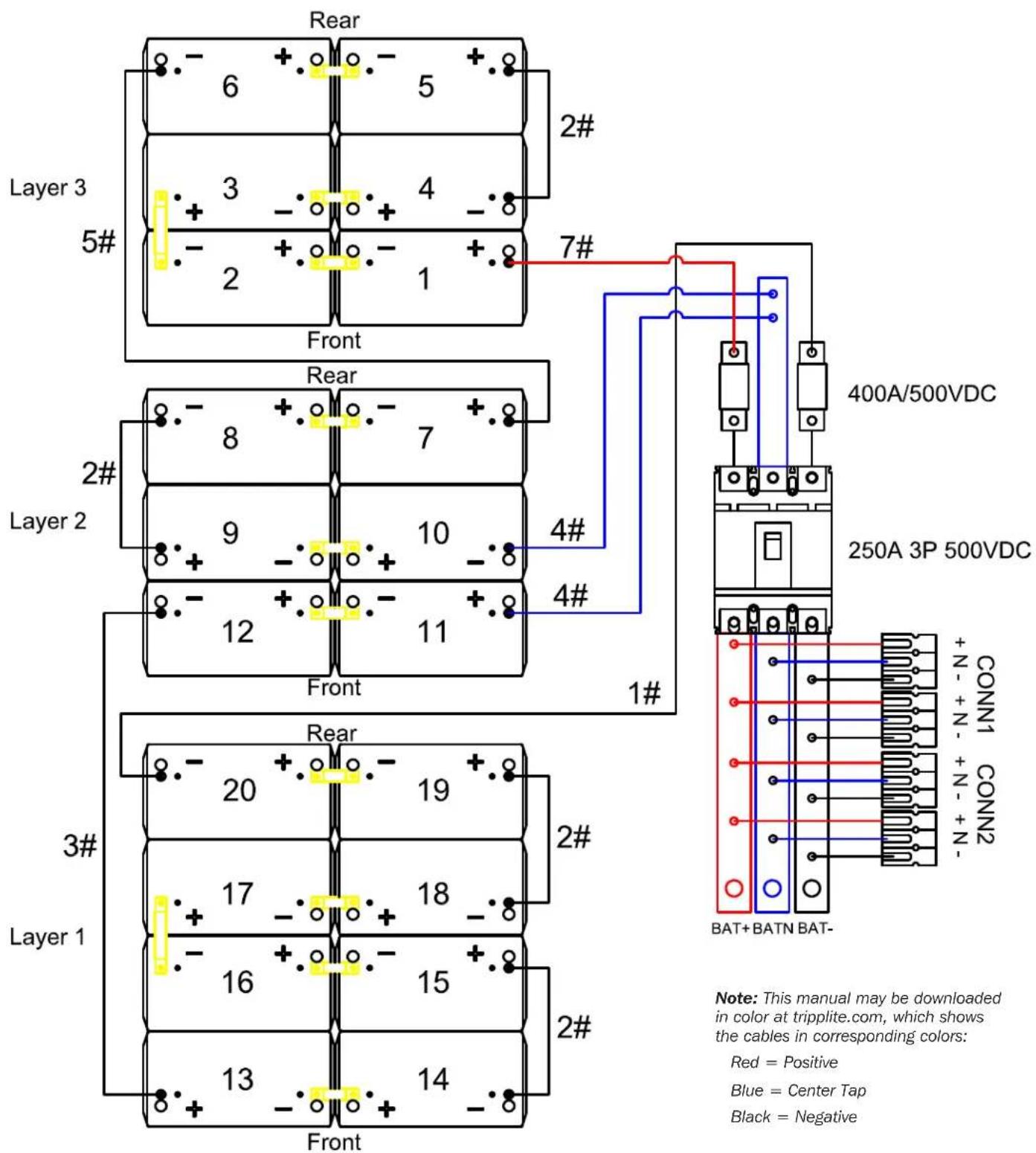

Figure 5-4: Wiring Diagram for Model BP240V65

5. Installation

Rear 6 + - 5 + Layer 3 3 + - 4 - - 5# - 2 + - 1 + Front 2# 7# Rear 8 + - 7 + Layer 2 9 + - 10 - - 8 - 12 + - 11 + Front 4# 4# 1# Rear 20 + - 19 + Layer 1 17 + - 18 - - 16 + - 15 + 8 + - 14 - - 2# 400A/500VDC 250A 3P 500VDC + N - + N - CONN1 CONN2 BAT+BATN BAT- Note: This manual may be downloaded in color at tripplite.com, which shows the cables in corresponding colors: Red = Positive Blue = Center Tap Black = Negative

Figure 5-5: Wiring Diagram for Model BP240V100

5. Installation

5.4.2.1 Battery installation and Setup: Models BP240V65-NIB, BP240V100-NIB

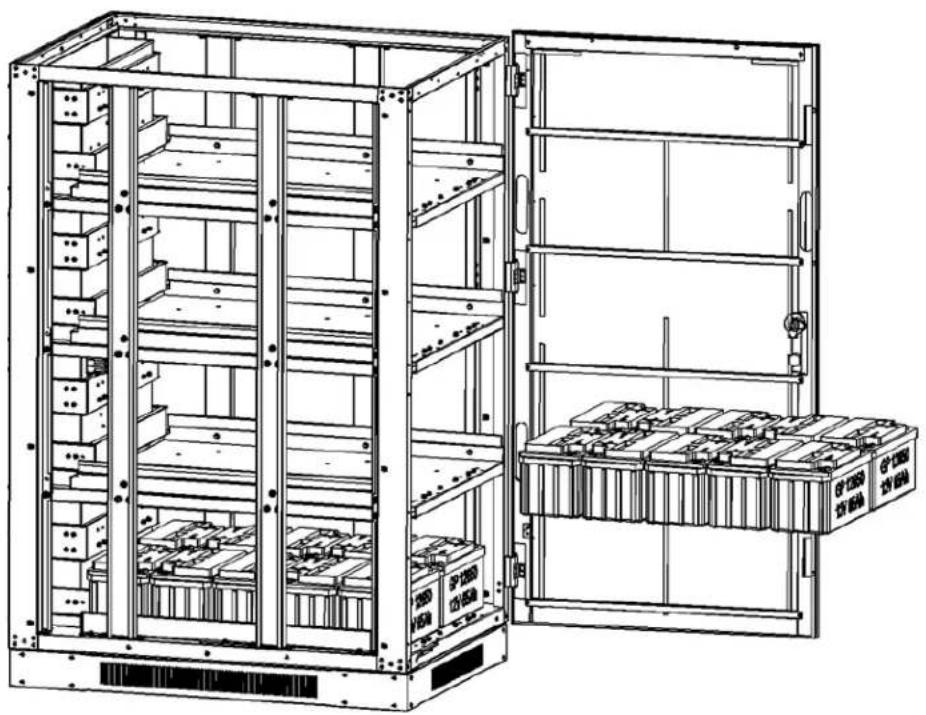

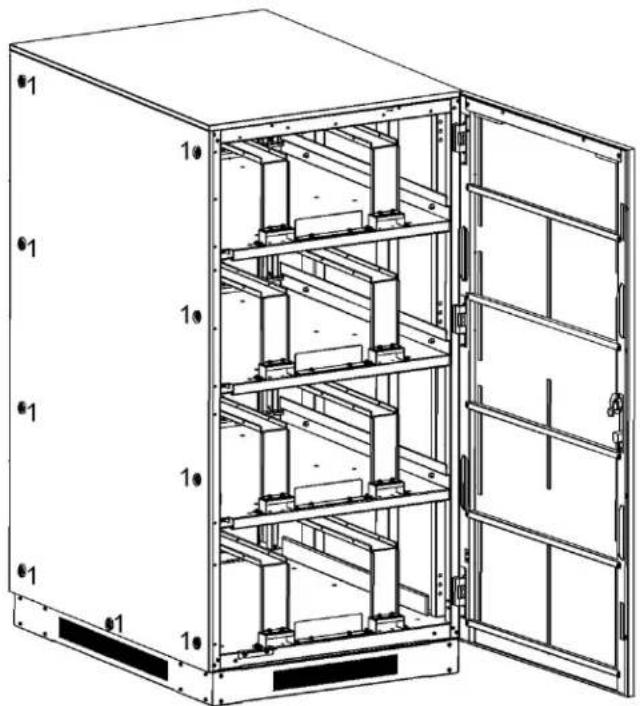

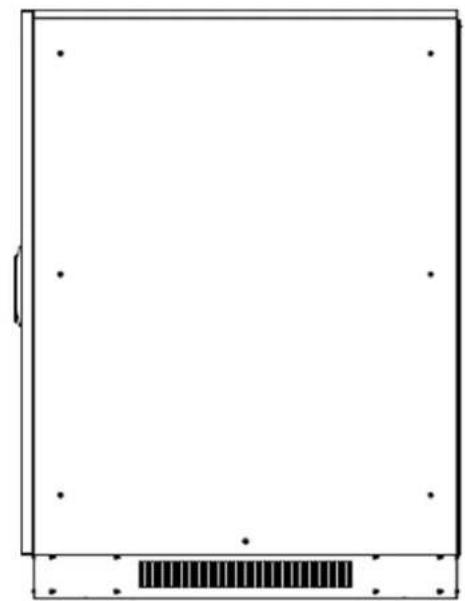

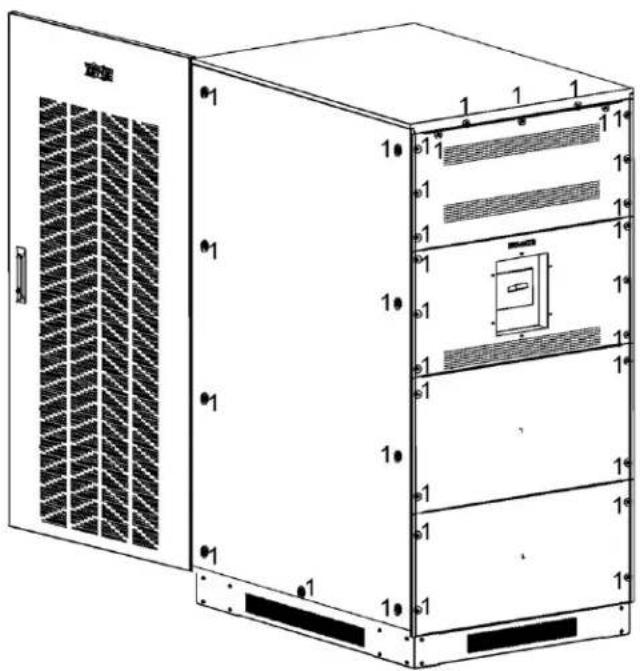

1. Remove all screws labeled 1 (Figures 5-6A and 5-6B).

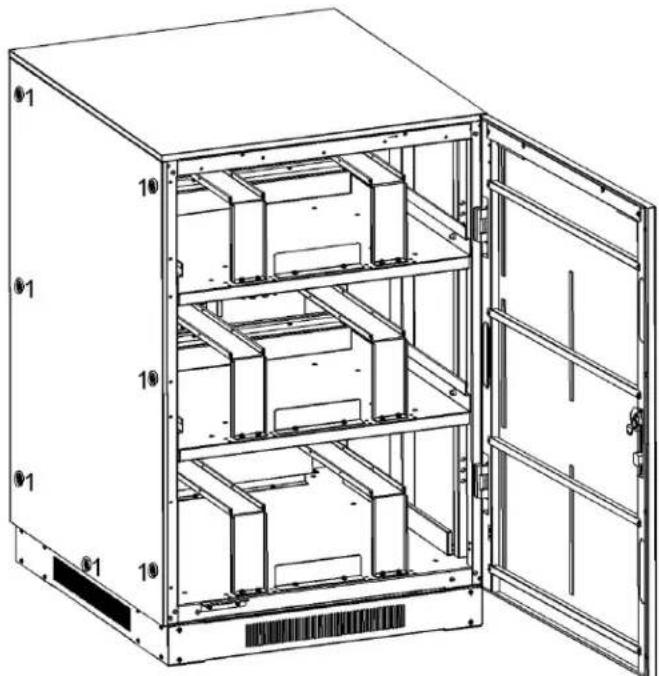

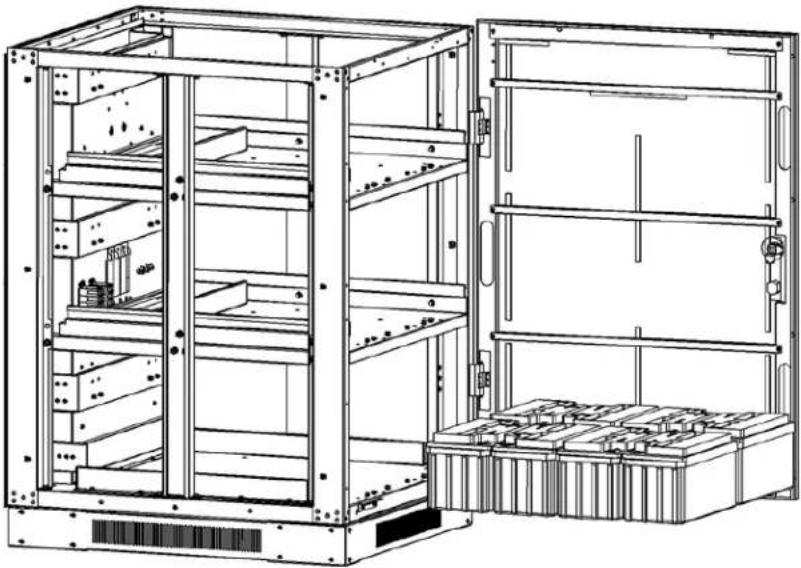

Technical line drawing of an open industrial cabinet with shelves and door (no text or symbols)

Figure 5-6A

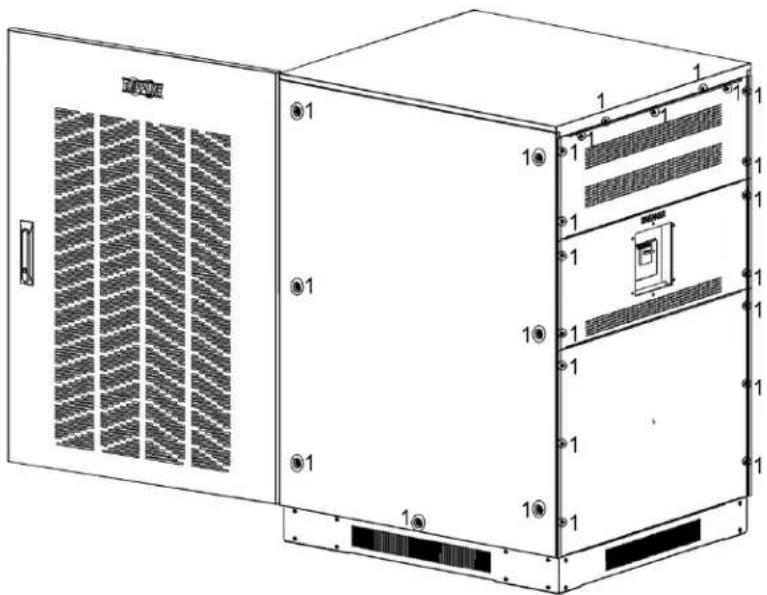

Technical diagram of an electrical cabinet with labeled components and ventilation grilles

Figure 5-6B

5. Installation

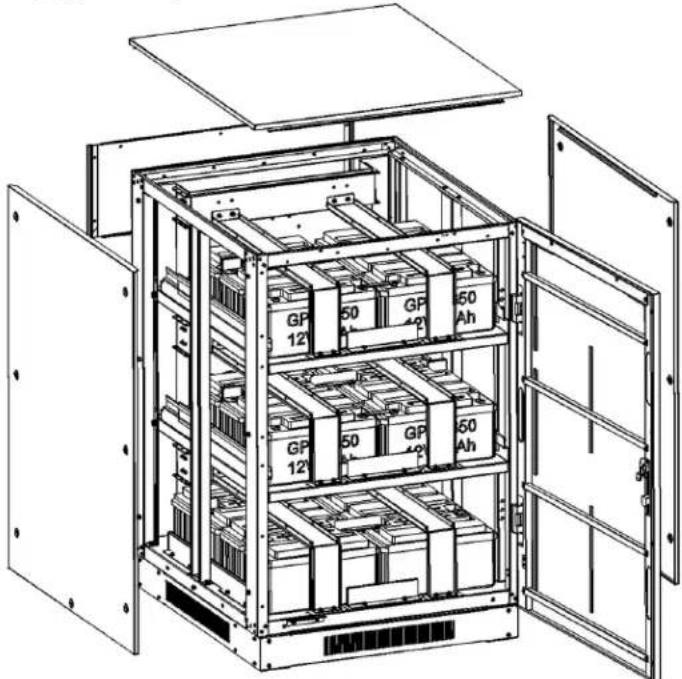

1. Remove the top, right side and left side plates (Figure 5-7).

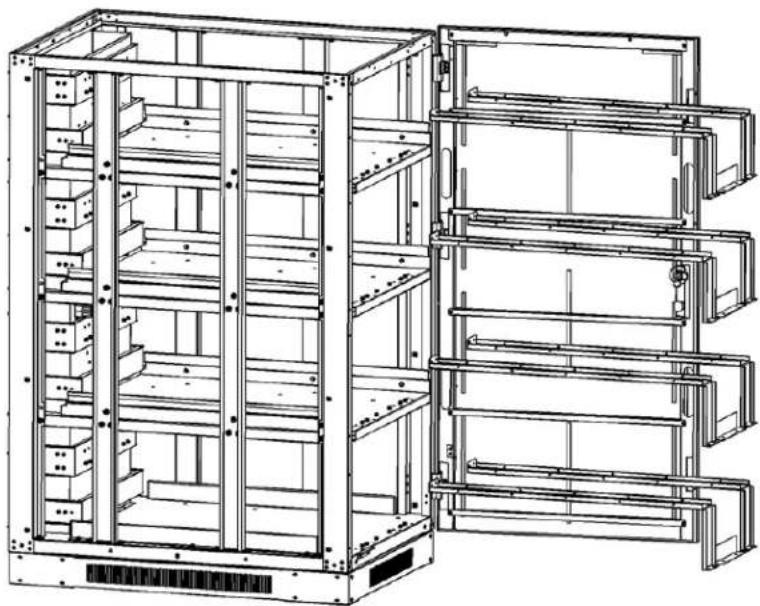

Technical line drawing of an open industrial enclosure with internal shelving units (no text or symbols)

Figure 5-7

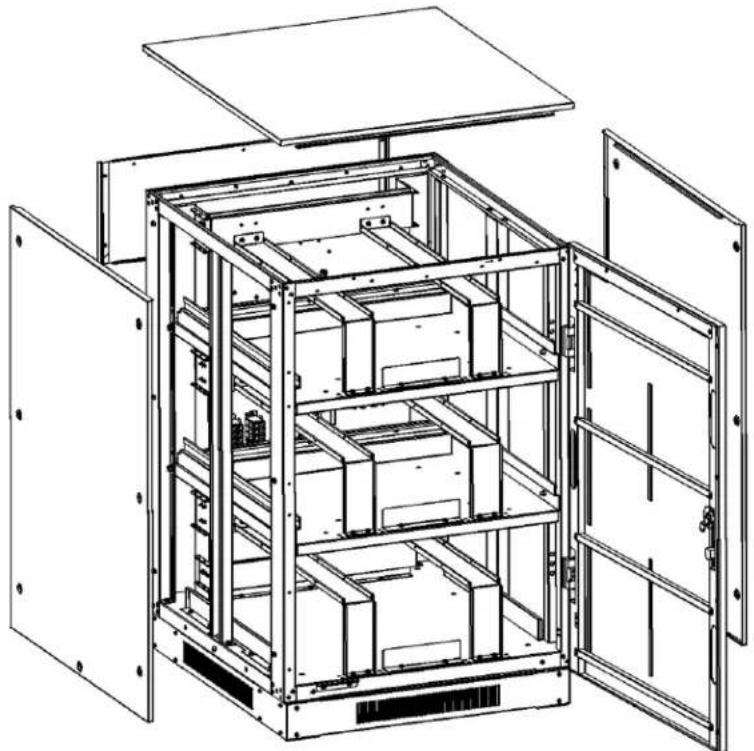

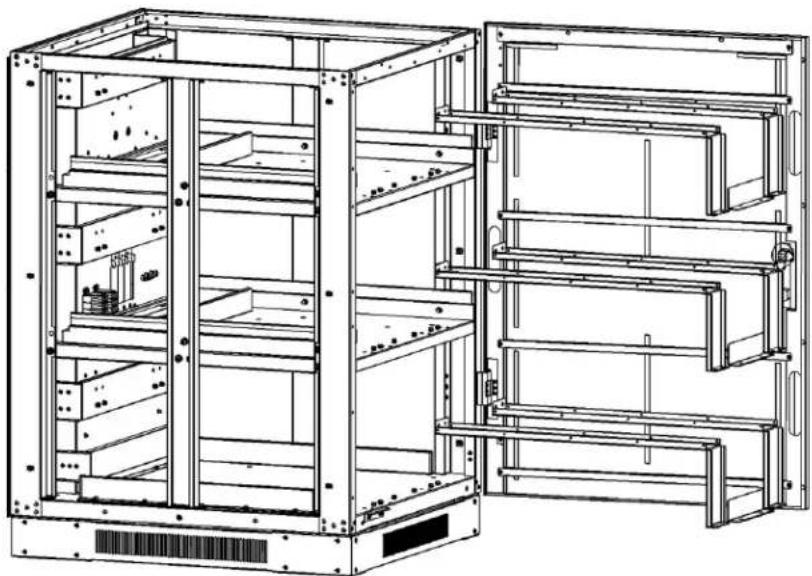

1. Remove all screws of the battery retention brackets and remove the retention brackets (Figure 5-8).

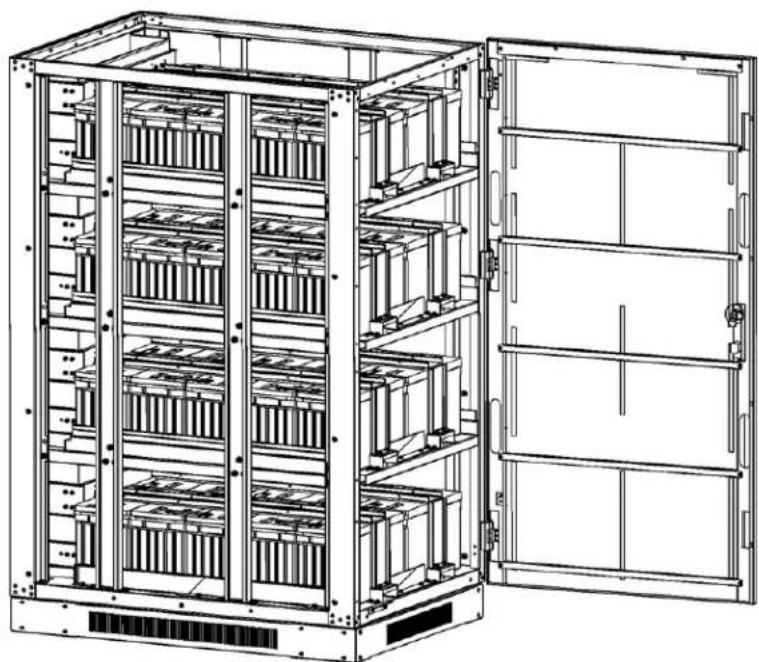

Technical line drawing of a multi-level industrial storage unit with metal framework and mounting brackets (no text or symbols)

Figure 5-8

5. Installation

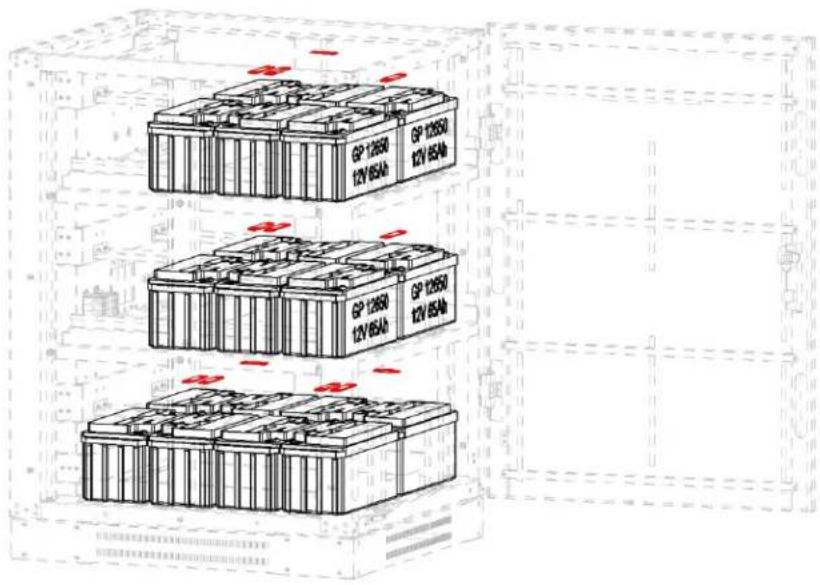

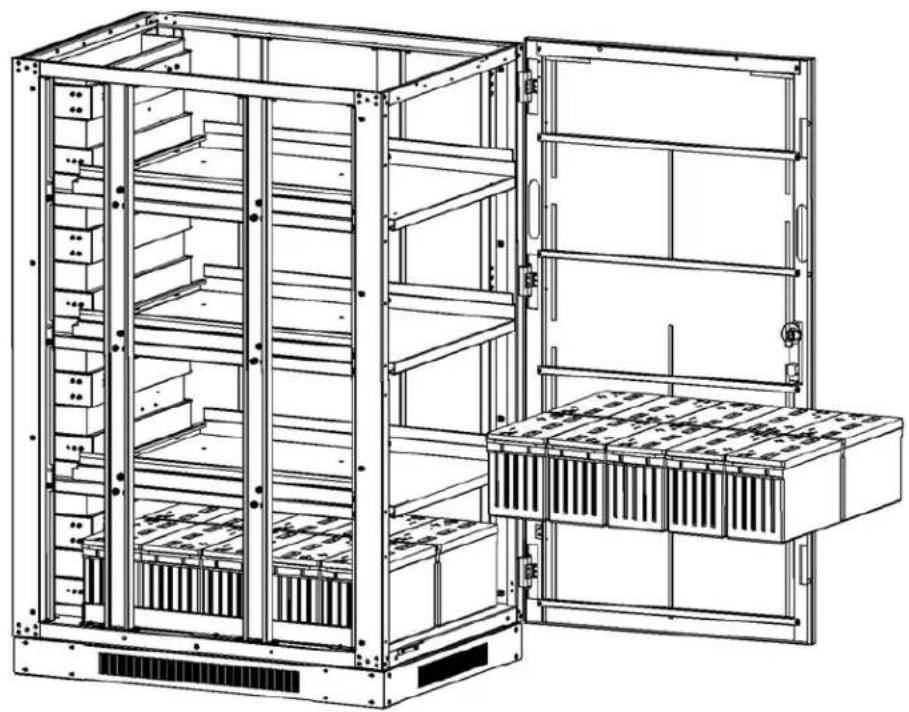

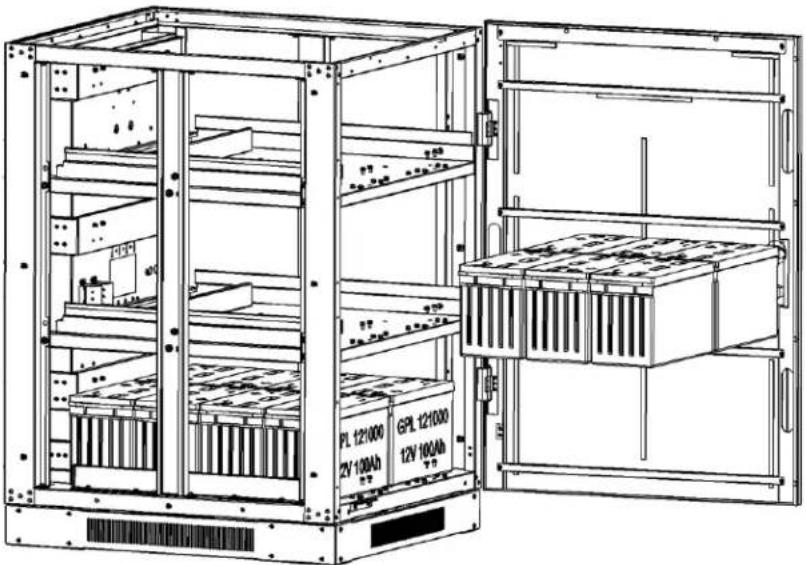

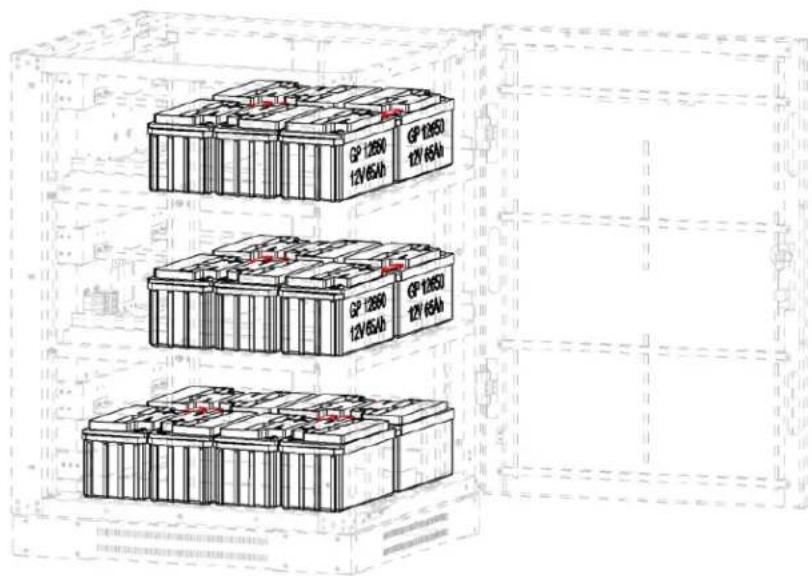

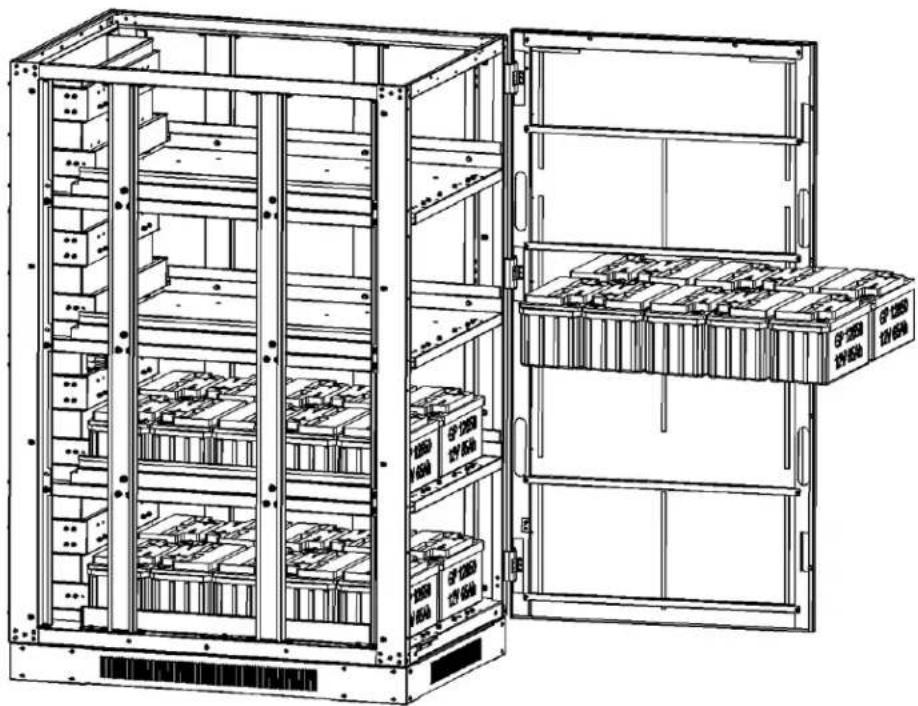

1. Install 8 battery packs in layer 1 (Figure 5-9: Model BP240V65-NIB or Figure 5-10: Model BP240V100-NIB).

Technical line drawing of a multi-level industrial storage unit with shelves and battery pack (no text or symbols)

Figure 5-9: Model BP240V65-NIB

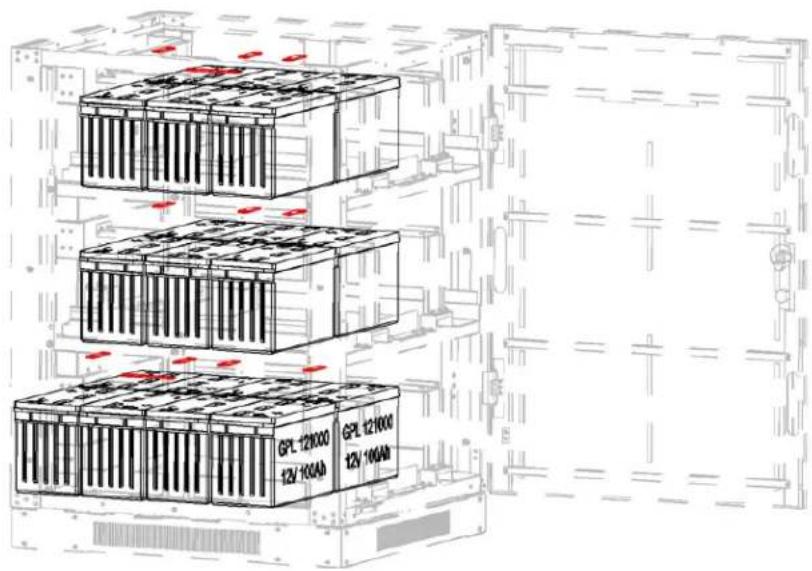

Technical line drawing of a multi-level industrial storage unit with visible internal compartments and labeled control panels (no text or symbols beyond labels)

Figure 5-10: Model BP240V100-NIB

5. Installation

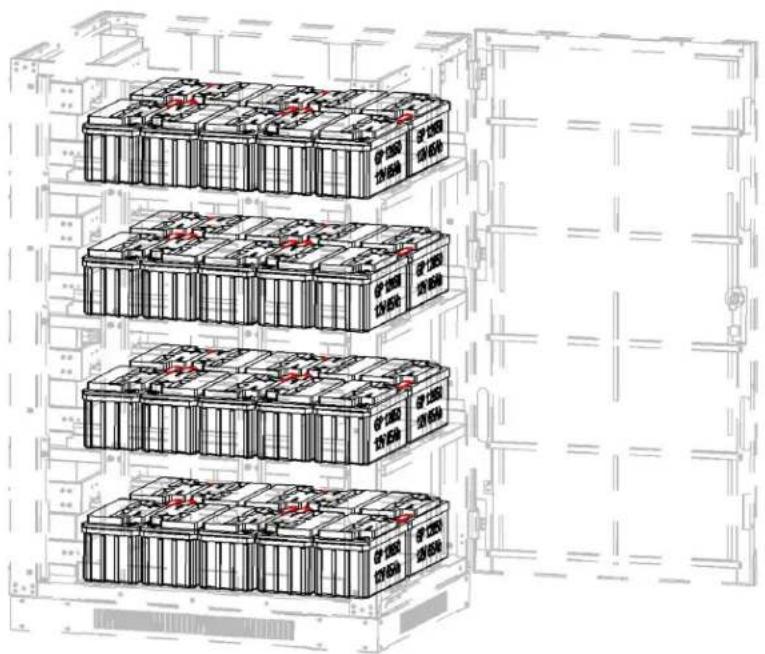

1. Install 6 battery packs in layer 2 (Figure 5-11: Model BP240V65-NIB or Figure 5-12: Model BP240V100-NIB).

Technical line drawing of an open industrial electrical cabinet with internal components (no text or symbols)

Figure 5-11: Model BP240V65-NIB

Technical line drawing of an industrial rack cabinet with internal compartments and labeled storage units (no text or symbols beyond labels)

Figure 5-12: Model BP240V100-NIB

5. Installation

1. Install 6 battery packs in layer 3 (Figure 5-13: Model BP240V65-NIB or Figure 5-14: ModelBP240V100-NIB).

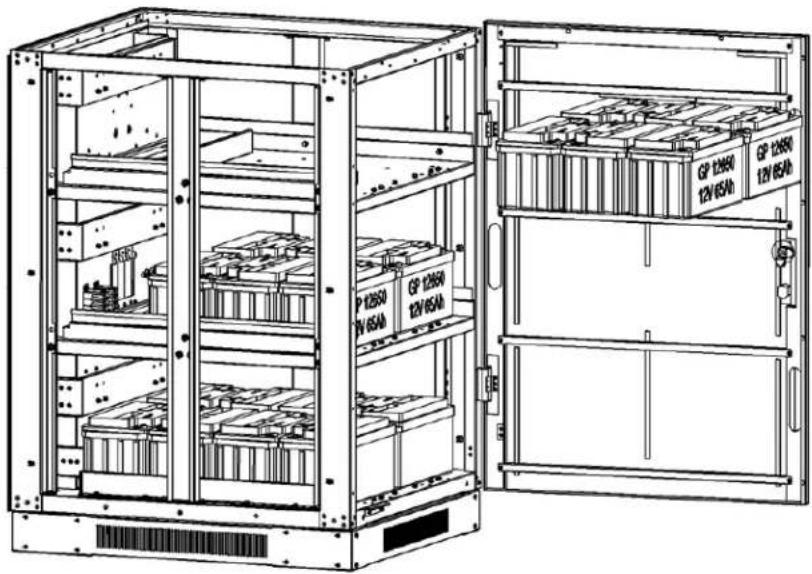

Technical line drawing of an open electrical enclosure with internal compartments and battery packs (no text or symbols)

Figure 5-13: Model BP240V65-NIB

Technical line drawing of a multi-level server rack cabinet with labeled components (PL, GPL, 2V/100Ah, 12V/100Ah) and no readable text or symbols beyond labels.

Figure 5-14: Model BP240V100-NIB

5. Installation

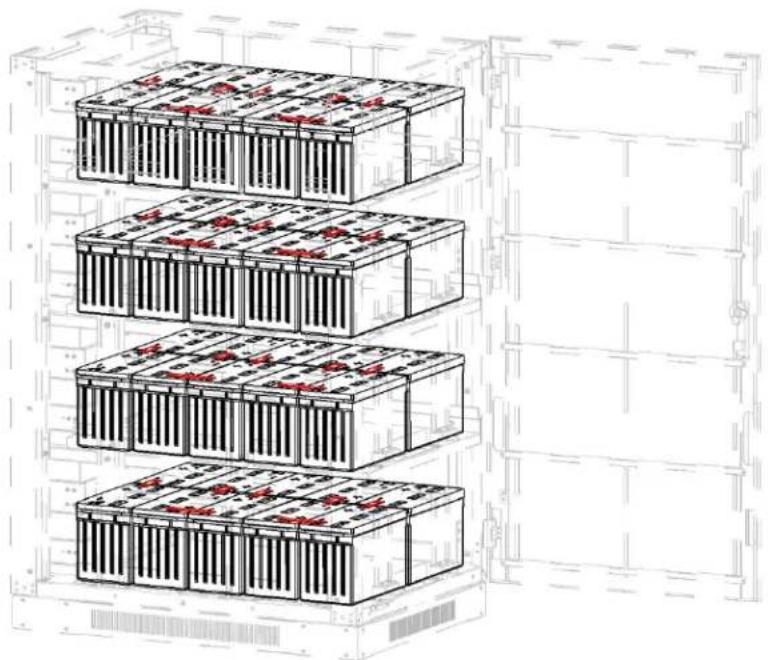

1. Reinstall all battery retention brackets and screws (Figure 5-15: Model BP240V65-NIB or Figure 5-16: Model BP240V100-NIB).

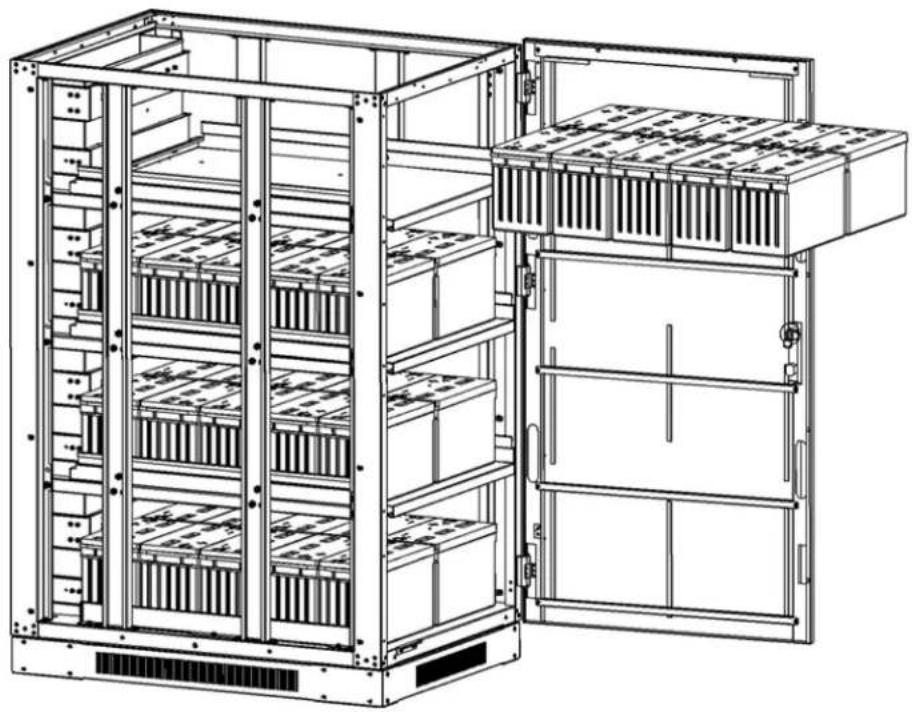

Technical line drawing of an open electrical cabinet with internal shelves and mounting brackets (no text or symbols)

Figure 5-15: Model BP240V65-NIB

Technical line drawing of an open electrical cabinet with internal battery modules and ventilation slots (no text or symbols)

Figure 5-16: Model BP240V100-NIB

5. Installation

1. Model BP240V65-NIB: Install copper bus bars (13 pieces) between adjacent batteries and the battery insert bolts/screws (Figures 5-17A and 5-17B).

GP 12650 12V 85Ah GP 12650 12V 85Ah GP 12650 12V 85Ah GP 12650 12V 85Ah GP 12650 12V 85Ah GP 12650 12V 85Ah GP 12650 12V 85Ah GP 13650 12V 85Ah GP 13650 12V 85Ah GP 13650 12V 85Ah GP 13650 12V 85Ah GP 13650 12V 85Ah GP 13650 12V 85Ah GP 13650

Figure 5-17A

GP 12850 12V/65Ah GP 10850 12V/65Ah GP 12850 12V/65Ah GP 10850 12V/65Ah

Figure 5-17B

5. Installation

1. Model BP240V100-NIB: Install copper bus bars (12 pieces) between adjacent batteries and the battery insert bolts/screws (Figures 5-18A and 5-18B).

GPL 12V 12V/100A GPL 12V 12V/100A

Figure 5-18A

GPL 12/1000 12V/100Ah GPL 12/1000 12V/100Ah

Figure 5-18B

5. Installation

1. Connect the cables from battery 1+ to BAT+ bus bar, battery 10- to BATN bus bar, battery 11+ to BATN bus bar, battery 20- to BAT- bus bar and the layer connect cables (Figure 5-19: Model BP240V65-NIB or Figure 5-20: Model BP240V100-NIB and Figure 5-21).

Notes:

- Use the wiring schematics as reference for the following assemblies:

Use Figure 5-4 for BP240V65-NIB Use Figure 5-5 for BP240V100-NIB

- This manual may be downloaded in color at tripplite.com, which shows the cables in corresponding colors:

Red = Positive

Blue = Center Tap

Black = Negative

GP 12600 12V 65Ah GP 12650 12V 65Ah GP 12600 12V 65Ah GP 12650 12V 65Ah

Figure 5-19: Model BP240V65-NIB

GPL 121000 12V/10Ah GPL 121000 12V/100Ah

Figure 5-20: Model BP240V100-NIB

5. Installation

Technical line drawing of an electrical enclosure with internal components and wiring (no text or symbols)

Figure 5-21

1. Reinstall all covers and screws (Figure 5-22).

Technical line drawing of an open electrical enclosure with stacked battery compartments and insulation panels (no text or symbols)

Figure 5-22

5. Installation

5.5 Battery Cabinet Connections: Models BP240V65L, BP240V65L-NIB, BP240V100L and BP240V100L-NIB

Each battery cabinet design includes built-in internal battery connection cables, breaker, fuses and terminals. The standard cabinet can hold 20 pieces of 12V 65Ah (12V/100Ah) batteries. The "L" long-runtime battery cabinets can hold 40 pieces of the 12V 65Ah (12V 100Ah) batteries. The DC voltage system for all cabinets is 240VDC with ±120V internal battery strings.

Figures 5-23 and 5-24 show the overall chassis design and exploded views for the BP240V65L, BP240V65L-NIB, BP240V100L and BP240V100L-NIB models. The corresponding views for the BP240V65, BP240V65-NIB, BP240V100 and BP240V100-NIB models are shown in section 5.4 Battery Cabinet Connections: Models BP240V65, BP240V65-NIB, BP240V100 and BP240V100-NIB.

3D rendering of a black server rack unit with vertical ventilation grilles (no visible text or symbols)

Figure 5-23: BP240V65L, BP240V65L-NIB, BP240V100L, & BP240V100L-NIB Battery Chassis

5.5.1 Remove the Chassis Shell

Place the battery box its final location. Remove the top, front, left and right panels. Remove the right and left cover plates of the battery pack and the battery supports to install the batteries strings.

Exploded view diagram of a server rack system showing internal components and mounting hardware (no text or labels)

Figure 5-24: Exploded View – Models BP240V65L, BP240V65L-NIB, BP240V100I, BP240V100L-NIB

5. Installation

5.5.2 Battery Installation and Connection

The 40 batteries can be divided into two groups connected in parallel for use. Each group has 20 batteries in series (BAT+, N and BAT-). Place the batteries in the cabinet from the bottom to top one-by-one, then connect the battery cables according to the diagrams that follow.

Note: The positive and negative polarity of the battery cannot be reversed or short circuited. Doing so will damage the battery and/or cause injury. Do not touch the battery's positive and negative terminals at the same time. Before replacing or removing the batteries, disconnect the breaker, pull up cell terminals and remove the screws of the copper bus bar. Not following the instructions could result in damage to the equipment or personal injury. The installation must consist of 40 batteries.

Battery Group 2 Layer 4 Layer 3 Layer 2 Layer 1 Battery Group 1 Battery Group 2

Figure 5-25A: Front view

5. Installation

Fuses 400A (x2) Battery breaker 25-100kVA connector 10-20kVA connector

Figure 5-25B: Rear View

5. Installation

4# Rear 10 9 + - 7 8 3# 6 5 Layer 2 3# 4 3# 2 1 3# Front 5# Rear 10 9 + - 7 8 3# 6 5 Layer 4 3# 4 2 1 9# Front 400A/500VDC 1# Rear 1# 20 19 + - 17 18 3# Layer 1 16 15 3# 13 14 3# 12 11 Front 2# Rear 600A 3P 500VDC CONN1 CONN2 BAT+ BATN BAT- 6# Rear 20 19 + - 17 18 3# Layer 3 16 15 3# 13 14 3# 12 11 Front

Figure 5-26: Wiring diagram for BP240V65L (40 batteries installed)

Note: This manual may be downloaded in color at tripplite.com, which shows the cables in corresponding colors:

$$ R e d = P o s i t i v e $$

$$ B l u e = C e n t e r T a p $$

$$ B l a c k = N e g a t i v e $$

5. Installation

4# Rear 10 9 3# 7 8 - 6 5 3# 3 4 - 2 1 5# Front 1# 9# Rear 10 9 3# 7 8 - 6 5 3# 3 4 - 2 1 Front 400A/500VDC 7# Rear 20 19 3# 17 18 - 16 15 3# 13 14 - 12 11 600A 3P 500VDC BAT+ BATN BAT- Front Layer 4 Layer 3

Figure 5-27: Wiring diagram for BP240V100L (40 batteries installed)

When the battery installation and connection is completed, use a multi-meter or other instrument to check if the voltages between BAT+ and N, N and BAT- are normal. If normal, lock the chassis cover.

Note: This manual may be downloaded in color at tripplite.com, which shows the cables in corresponding colors:

Red = Positive

Blue = Center Tap

Black = Negative

5. Installation

5.5.2.1 Battery Installation and Setup: Models BP240V65L-NIB, BP240V100L-NIB

1. Remove all screws labeled 1 (Figures 5-28A and 5-28B).

Technical line drawing of an open industrial cabinet with multiple shelves and doors (no text or symbols)

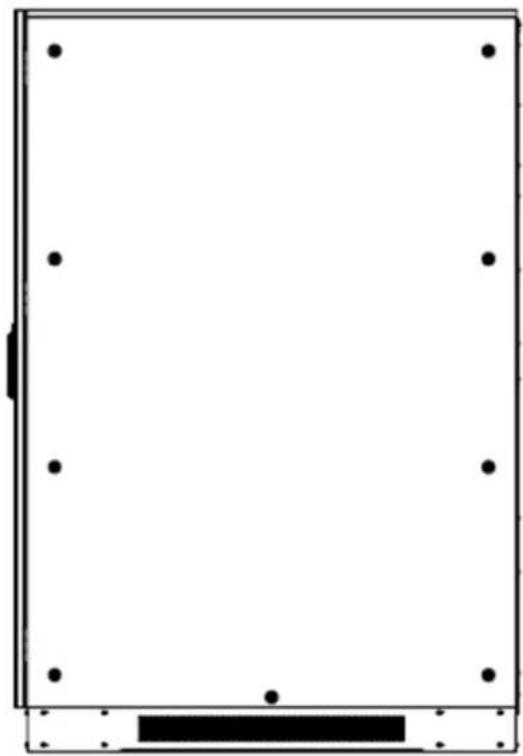

Figure 5-28A

Technical line drawing of a server rack cabinet with ventilation grilles and internal components (no text or labels)

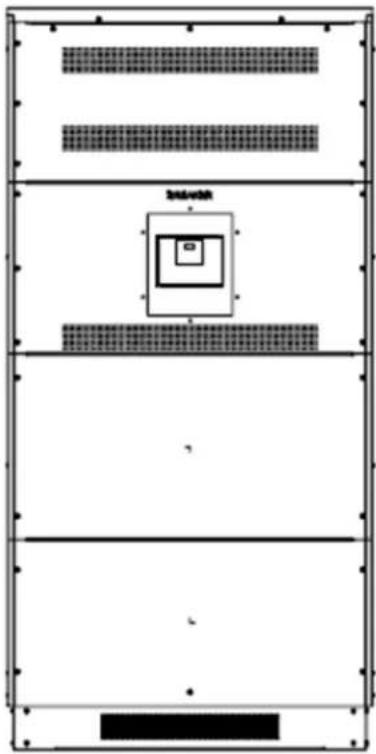

Figure 5-28B

5. Installation

1. Remove the top, right side and left side plates (Figure 5-29).

Technical line drawing of a multi-level industrial storage unit with open doors and internal shelves (no text or symbols)

Figure 5-29

1. Remove all screws of the battery retention brackets and remove the retention brackets (Figure 5-30).

Technical line drawing of a multi-level rack-mounted server or storage unit (no text or symbols visible)

Figure 5-30

5. Installation

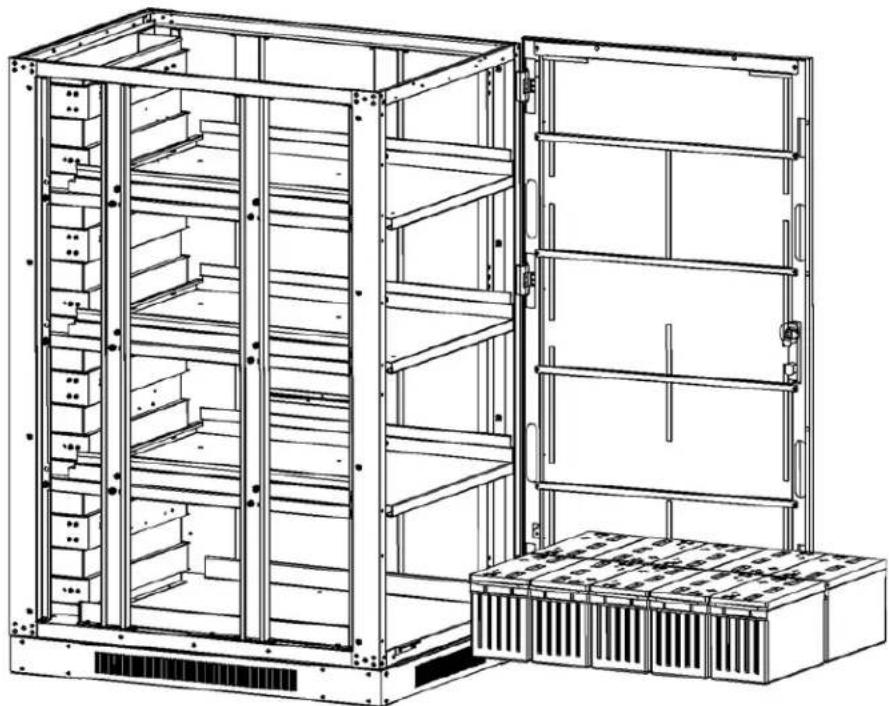

1. Install 10 battery packs in layer 1 (Figure 5-31: Model BP240V65L-NIB or Figure 5-32: Model BP240V100L-NIB).

Technical line drawing of a server rack cabinet with internal compartments and battery pack (no text or symbols)

Figure 5-31: Model BP240V65L-NIB

Technical line drawing of a server rack cabinet with internal shelves and mounting base (no text or symbols)

Figure 5-32: Model BP240V100L-NIB

5. Installation

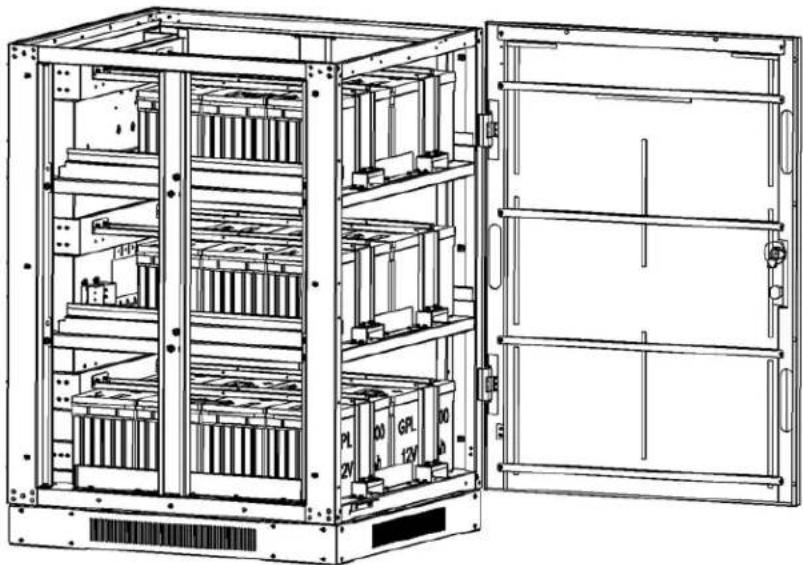

1. Install 10 battery packs in layer 2 (Figure 5-33: Model BP240V65L-NIB or Figure 5-34: Model BP240V100L-NIB).

Technical line drawing of an electrical cabinet with internal battery modules and open panel (no text or symbols)

Figure 5-33: Model BP240V65L-NIB

Technical line drawing of a multi-level industrial storage unit with internal shelves and a cabinet (no text or symbols)

Figure 5-34: Model BP240V100L-NIB

5. Installation

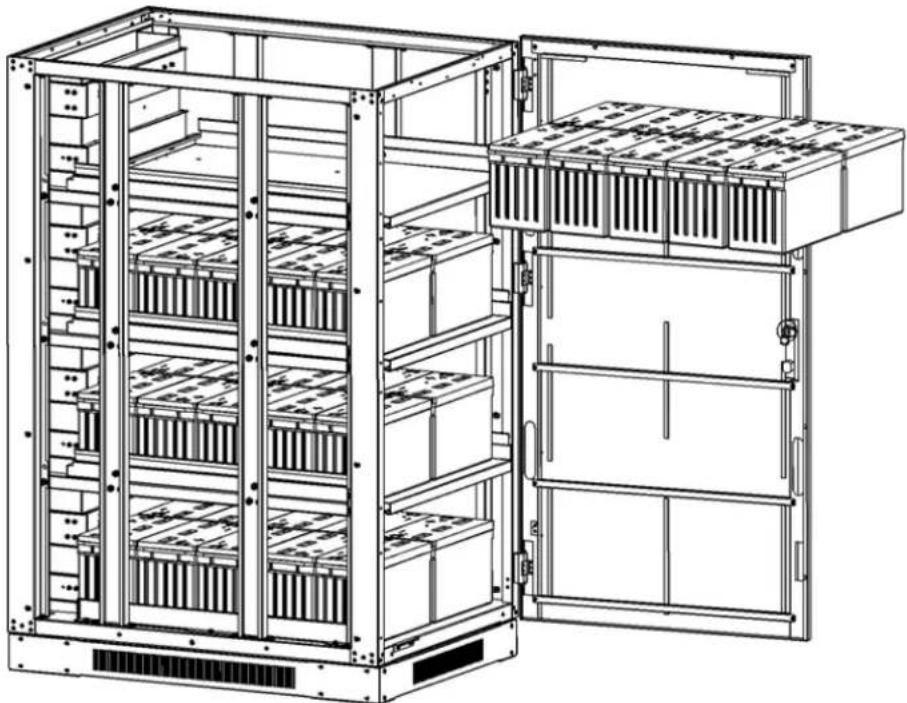

1. Install 10 battery packs in layer 3 (Figure 5-35: Model BP240V65L-NIB or Figure 5-36: Model BP240V100L-NIB).

Technical line drawing of an electrical cabinet with internal compartments and labeled storage units (no text or symbols beyond labels)

Figure 5-35: Model BP240V65L-NIB

Technical line drawing of a server rack cabinet with multiple shelves and an open door (no text or symbols)

Figure 5-36: Model BP240V100L-NIB

5. Installation

1. Install 10 battery packs in layer 4 (Figure 5-37: Model BP240V65L-NIB or Figure 5-38: Model BP240V100L-NIB).

Technical line drawing of an electrical cabinet with battery modules and open door (no text or symbols)

Figure 5-37: Model BP240V65L-NIB

Technical line drawing of a server rack cabinet with multiple shelves and an open door (no text or symbols)

Figure5-38: Model BP240V100L-NIB

5. Installation

1. Reinstall all battery retention brackets and screws (Figure 5-39).

Technical line drawing of a server rack cabinet with multiple shelves and an open door (no text or symbols)

Figure 5-39

1. Model BP240V65L-NIB: Install copper bus bars (13 pieces) between adjacent batteries and the battery insert bolts/posts (Figures 5-40A and 5-40B).

15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25

Figure 5-40A

5. Installation

100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100

Figure 5-40B

1. Model BP240V100L-NIB: Install copper bus bars (12 pieces) between adjacent batteries and the battery insert bolts/posts (Figures 5-41A and 5-41B).

Technical diagram showing stacked battery cell structures with red annotations indicating specific components or features.

Figure 6-41A

5. Installation

Illustration of stacked battery packs arranged in a staircase pattern (no text or symbols)

Figure 5-41B

1. Connect the cables from battery group 1 battery 1+ to BAT+ bus bar, battery 10- to BATN bus bar, battery 11+ to BATN bus bar, battery 20- to BAT- bus bar and the layer connect cables. Connect battery group 2 battery 21+ to BAT+ bus bar, battery 30- to BATN bus bar, battery 31+ to BATN bus bar, battery 40- to BAT- copper bar and the layer connect cables (Figure 5-42: Model BP240V65L-NIB or Figure 5-43: Model BP240V100L and Figure 5-44).

Notes:

- Use the wiring schematics as reference for the following assemblies:

Use Figure 5-26 for BP240V65L-NIB Use Figure 5-27 for BP240V100L-NIB

- This manual may be downloaded in color at tripplite.com, which shows the cables in corresponding colors:

Red = Positive

Blue = Center Tap

Black = Negative

Diagram of battery bank arrangement with labeled storage compartments and red/blue wiring connections

Figure 5-42: Model BP240V65L-NIB

5. Installation

Diagram of stacked battery packs connected by red and blue wires, no text or symbols present

Figure 5-43: Model BP240V100L-NIB

Technical line drawing of an open industrial server rack cabinet with visible internal components and ventilation grilles (no text or labels)

Figure 5-44

5. Installation

1. Reinstall all covers and screws (Figure 5-45).

Technical line drawing of an electrical cabinet with stacked battery packs and open door (no text or symbols)

Figure 5-45

5. Installation

5.6 Multiple Battery Pack Connections

CAUTION!

Ensure correct polarity of the battery string series connection. DO NOT mix batteries with different capacities, different brands or new and old batteries.

WARNING!

ENSURE CORRECT POLARITY OF STRING END CONNECTIONS TO THE BATTERY CIRCUIT BREAKER, AND FROM THE BATTERY CIRCUIT BREAKER TO THE UPS TERMINALS (I.E. (+) TO (+) / (-) TO (-) / (N) TO (N)). DISCONNECT ONE OR MORE BATTERY CELL LINKS IN EACH TIER. DO NOT RECONNECT THESE LINKS AND DO NOT CLOSE THE BATTERY CIRCUIT BREAKER UNLESS ALL CONNECTIONS ARE PROPERLY CHECKED AND APPROVED.

BREAKER UPS Battery Cabinet

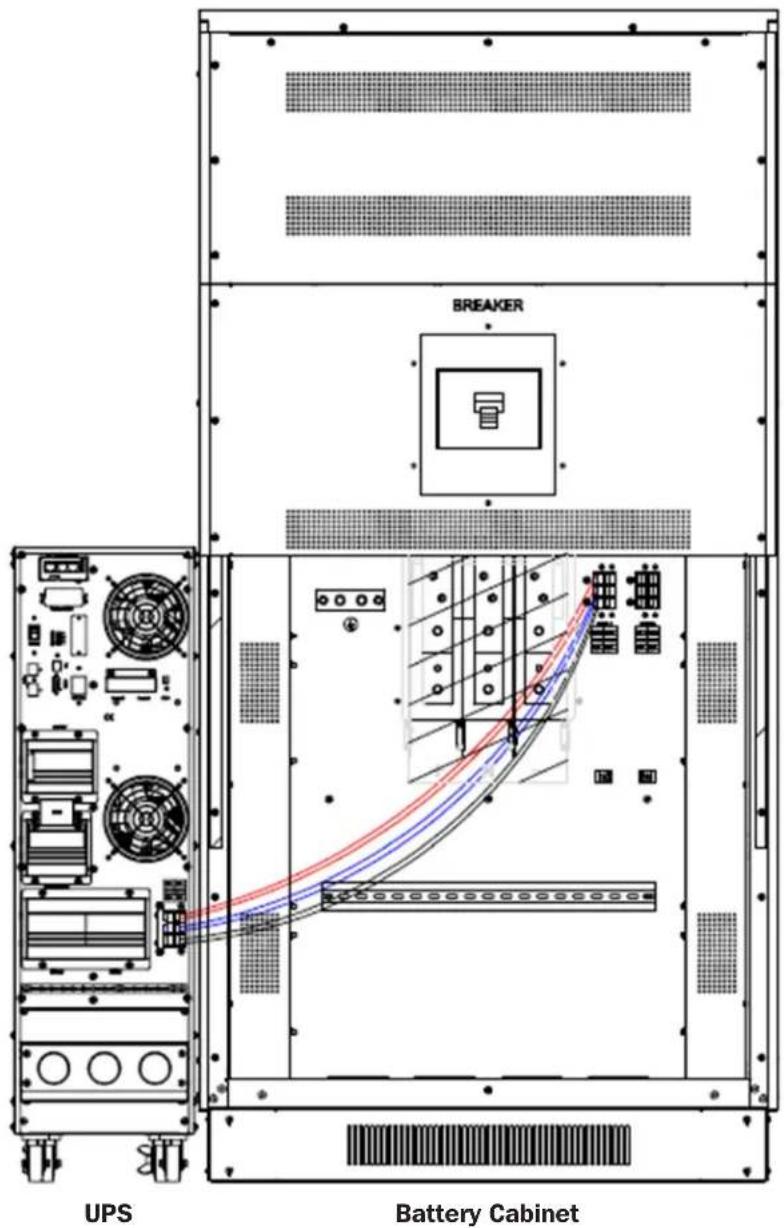

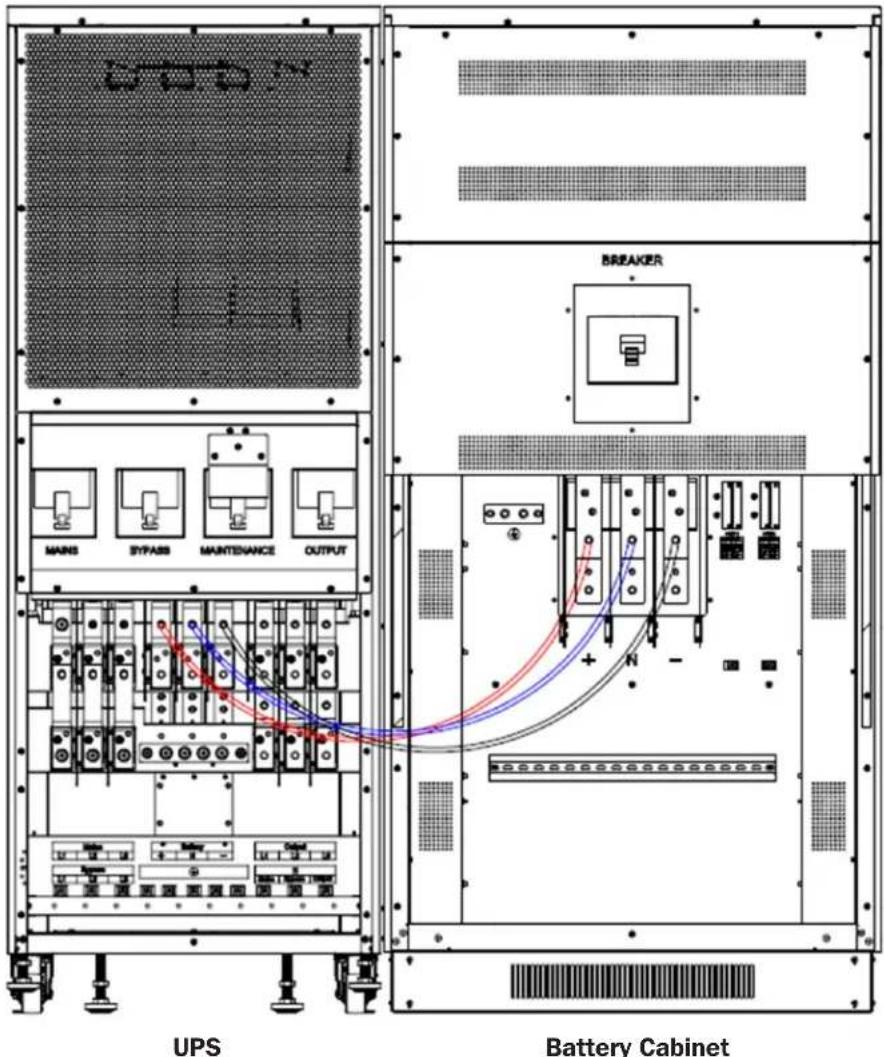

Figure 5-46: Connection of BP240V65L and BP240V65L-NIB for 10kVA, 15kVA and 20kVA UPS

5. Installation

BREAKER UPS Battery Cabinet

Figure 5-47: Connection of BP240V65L and BP240V65L-NIB for 25kVA and 30kVA UPS

5. Installation

BREAKER UPS Battery Cabinet

Figure 5-48: Connection of BP240V65L, BP240V65L-NIB, BP240V100L or BP240V100L-NIB for 50kVA & 60kVA UPS Systems

5. Installation

UPS BREAKER Battery Cabinet

Figure 5-49: Connection of BP240V65L, BP240V65L-NIB, BP240V100L or BP240V100L-NIB for 80kVA & 100kVA UPS

6. Operation and Configuration of S3M UPS Models and Battery Cabinets

6.1 S3M UPS Compatibility with BP240V65 to BP240V100L Battery Cabinets

	Cabinets with Internal Batteries	BP240V65 BP240V65L BP240V100 BP240V100L
	Cabinets with NO Internal Batteries	BP240V65-NIB BP240V65L-NIB BP240V100-NIB BP240V100L-NIB
10kVA-20kVA UPS with Internal Batteries	S3M10K1B, S3M10K2B, S3M10K3B S3M15K2B S3M15K3B S3M20K3B	No No No No
10kVA-20kVA UPS with NO Internal Batteries	S3M10K-NIB S3M15K-NIB S3M20K-NIB	Yes Yes Yes No

	Cabinets with Internal Batteries	BP240V65 BP240V65L BP240V100 BP240V100L
	Cabinets with NO Internal Batteries	BP240V65-NIB BP240V65L-NIB BP240V100-NIB BP240V100L-NIB
25kVA-100kVA UPS with NO Internal Batteries	• S3M25K • S3M30K	Yes Yes Yes No
	• S3M50K	Yes Yes Yes	Yes
	• S3M60K No Yes Yes	Yes
	• S3M80K • S3M100K	No Yes No	Yes

6. Operation and Configuration of S3M UPS Models and Battery Cabinets

6.2 Configuring 10-20K UPS for Specific Battery Cabinets using the LCD Display

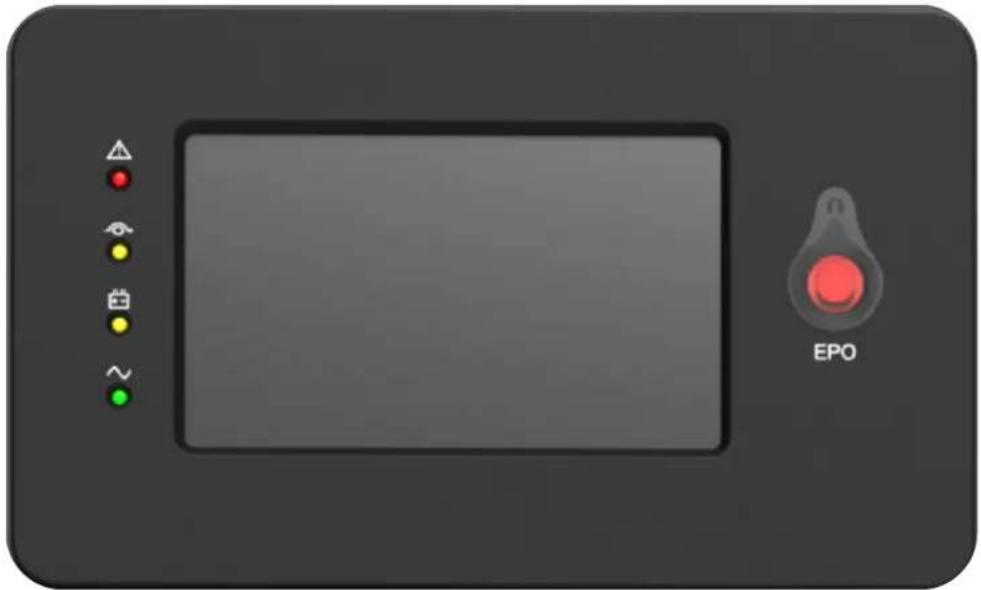

Front panel of a device control panel with indicator lights and a red EPO button (no text or symbols on the panel itself)

CAUTION!

Settings for most parameters cannot be changed when the UPS is in inverter mode.

6.2.1 S3M10-20K UPS Home Display
    style_F["Setting"] fill:#ff9,stroke:#333

6. Operation and Configuration of S3M UPS Models and Battery Cabinets

6.2.2 Setting

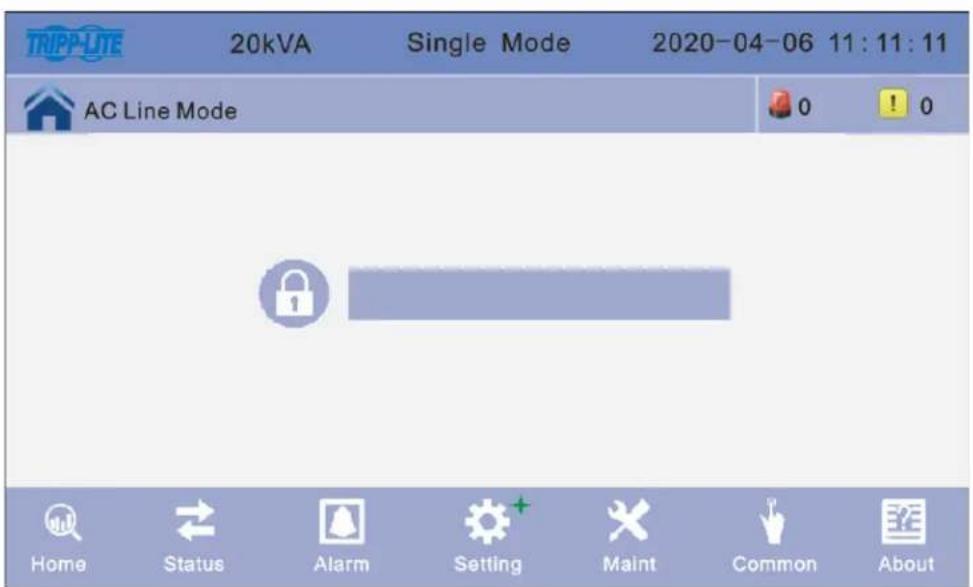

Click on the Settings icon to enter two setting levels. The Basic Setting is for user settings, and the Advanced Setting is for technical personnel only. Contact your administrator to enter advanced settings.

Advanced Setting: Click Advanced Setting and input the correct password. The user password is "191210".

TRIPP-LITE 20kVA Single Mode 2020-04-06 11:11:11 AC Line Mode Basic Setting Advanced Setting Home Status Alarm Setting Maint Common About

TRIPP-LITE 20kVA Single Mode 2020-04-06 11:11:11 AC Line Mode Home Status Alarm Setting Maint Common About

6. Operation and Configuration of S3M UPS Models and Battery Cabinets

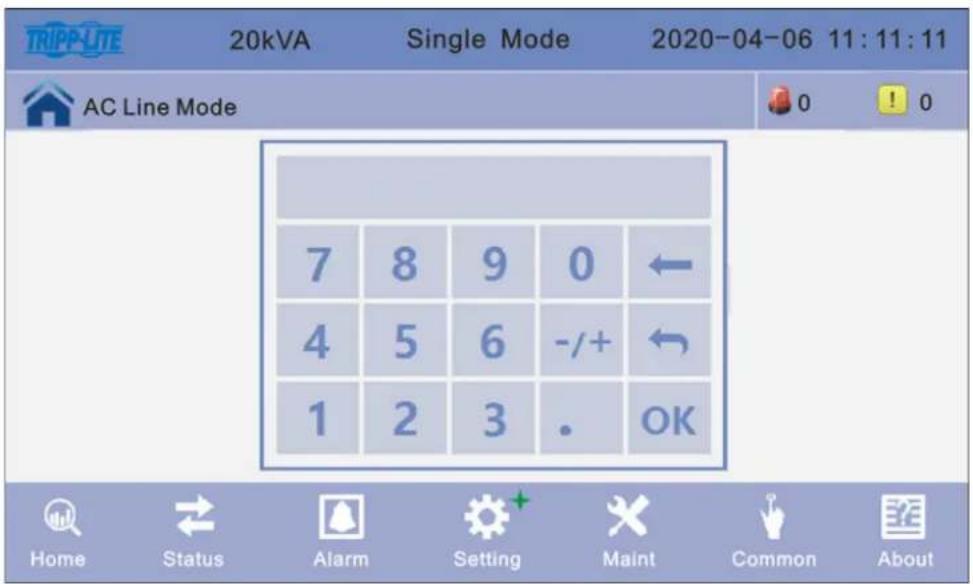

TRIPP-LITE 20kVA Single Mode 2020-04-06 11:11:11 AC Line Mode 7 8 9 0 ← 4 5 6 -/+ ← 1 2 3 . OK Home Status Alarm Setting Maint Common About

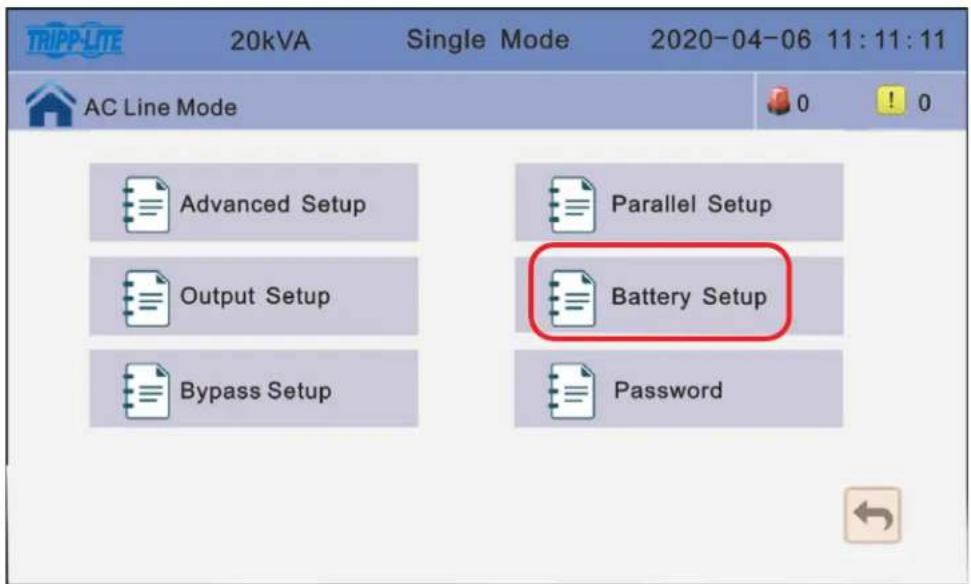

6.2.3 Battery Setup

Click Battery Setup

20kVA Single Mode 2020-04-06 11:11:11 AC Line Mode Advanced Setup Output Setup Bypass Setup Parallel Setup Battery Setup Password

6. Operation and Configuration of S3M UPS Models and Battery Cabinets

6.2.4 Configuring the S3M25-100K UPS and Optimizing Charging of the BP240V65/V65L and BP240V100/V100L Battery Cabinets

Step 1: Setting the Battery Group

The Battery Group is Quantity 1 for every set of 20 batteries that are in and/or connected to the UPS model. For example, UPS model S3M20K-NIB has no internal batteries and is Battery Group 1 by default for any UPS model. However, to connect a BP240V65 cabinet with 20 internal batteries to the S3M20K-NIB, the S3M20K-NIB UPS must remain set to Battery Group 1 (one set of 20 batteries). However, to connect a second BP240V65 to the S3M20K-NIB UPS, the UPS Battery Group must be 2 (two sets of 20 batteries). Obtain the Battery Group number based on the specific S3M UPS and Battery Cabinet models combination from the chart under Section 6.4.

The value can be 1 to 8. The default value is 1 for S3M UPS models without internal batteries.

Step 2: Setting the Battery Number

The battery number must remain at 20 for all S3M10-100K UPS models when connected to Tripp Lite external battery cabinets designed for the S3M-Series UPS Series.

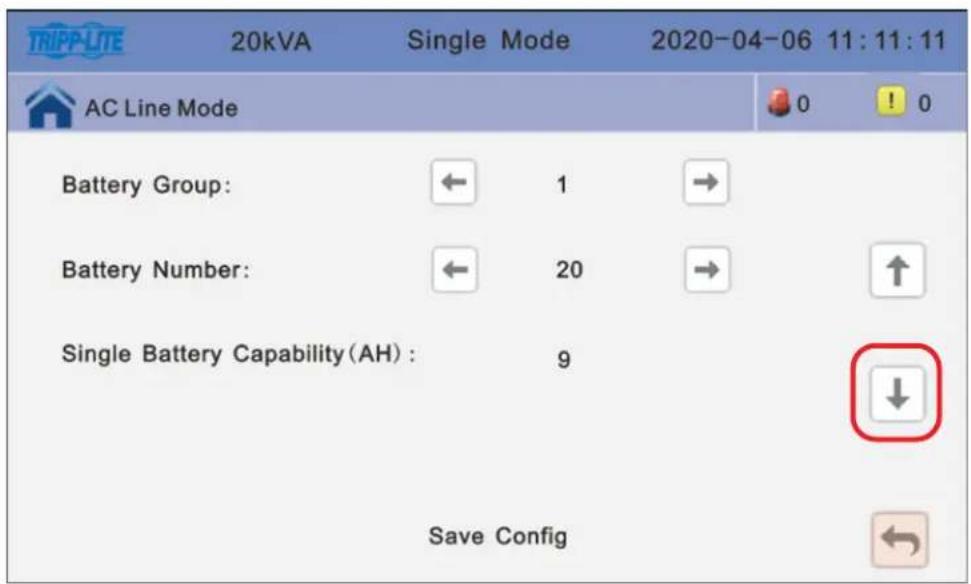

Step 3: Setting Single Battery (Ah) Capability

Change the Single Battery (Ah) Capability to the individual Ah capacity for one individual battery as follows for the specific battery cabinet models:

• BP240V09/BP240V09K: the Single Battery (Ah) Capacity is 9
• BP240V40/BP240V40L: the Single Battery (Ah) Capacity is 40
• BP240V65/BP240V65L: the Single Battery (Ah) Capacity is 65
• BP240V100/BP240100L: the Single Battery (Ah) Capacity is 100

The values can be 7\~2000.

TRIPP-LITE 20kVA Single Mode 2020-04-06 11:11:11 AC Line Mode Battery Group: ← 1 → Battery Number: ← 20 → ↑ Single Battery Capability (AH) : 9 Save Config

Scroll to the next display screen by pressing the down arrow.

6. Operation and Configuration of S3M UPS Models and Battery Cabinets

Step 4: Setting Max Charge Current

Max Charge Current is the estimated charge current that the UPS will use to charge the batteries. Obtain the recommended estimated Max Charge Current based on the specific S3M UPS and battery cabinet model combination from the chart in Section 6.4.

Float and Boost Voltage: The UPS is factory-set for proper float (2.27V/cell, 13.62V/battery) and boost (2.35V/cell, 14.1V/battery) voltages.

Cell float voltage: The float voltage value can be 2.23\~2.30 V/cell. The default value is 2.27 V/cell.

Cell boost voltage: The battery equalized voltage value can be 2.30\~2.40 V/cell. The default value is 2.35 V/cell.

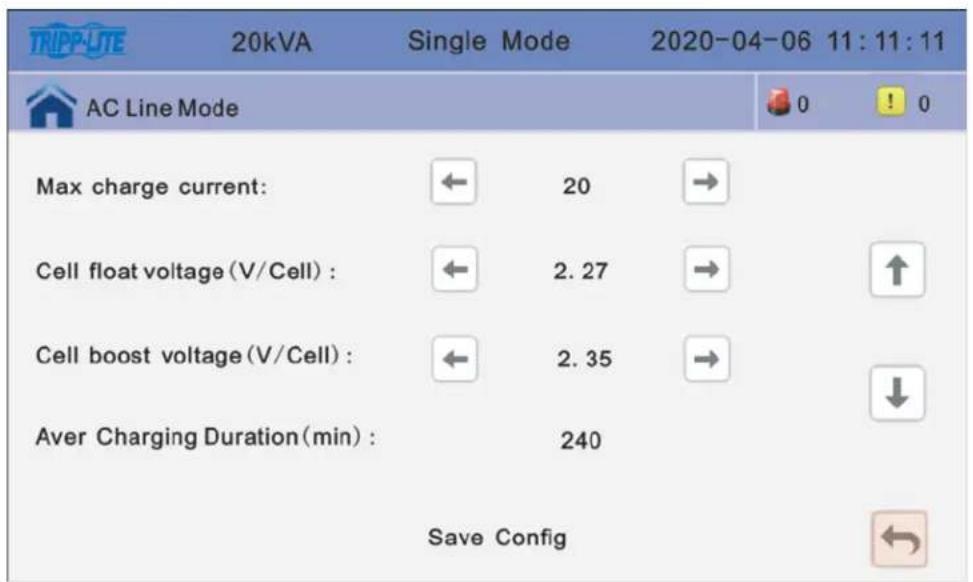

Step 5: Setting Aver Changing Duration (min)

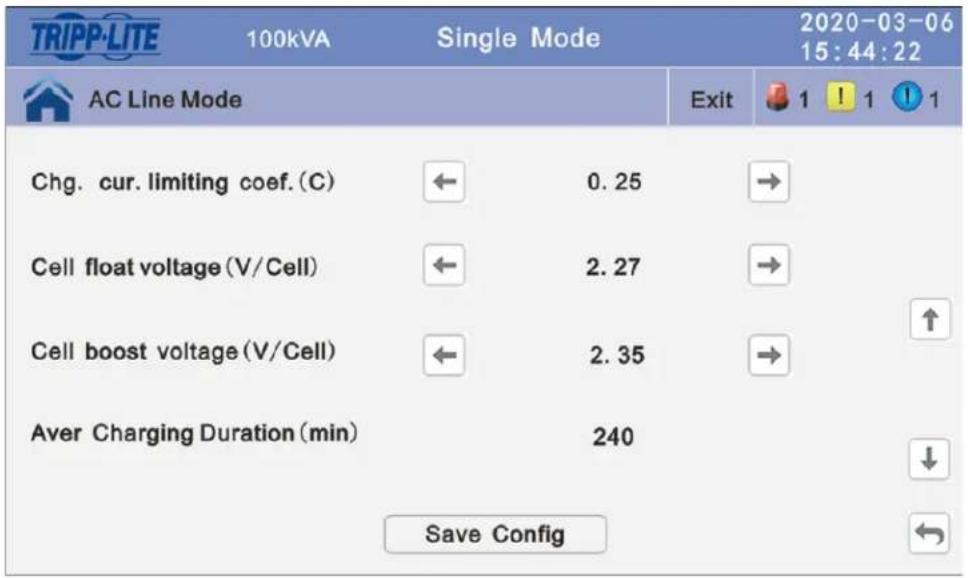

Setting the Average Charging Duration in minutes is an estimation of the boost charger time duration to charge new batteries to 90% capacity at 25°C. Obtain the recommended Average (Aver) Charging Duration (min) number based on the specific S3M UPS and battery cabinet model combination from the chart in Section 6.4. Note the recommended battery boost charge durations are estimates only based on new batteries. These numbers may change with the age of the batteries and the battery ambient temperature. To change the Aver Charging Duration, press directly on the defaulted 240 value in the display.

- The Average (Aver) charging duration is the battery boost charge time limit. The value can be 1\~999 min. The default is value 240 (4 hours).

TRIPP-LITE 20kVA Single Mode 2020-04-06 11:11:11 AC Line Mode Max charge current: ← 20 → Cell float voltage (V/Cell) : ← 2.27 → ↑ Cell boost voltage (V/Cell) : ← 2.35 → ↓ Aver Charging Duration (min) : 240 Save Config

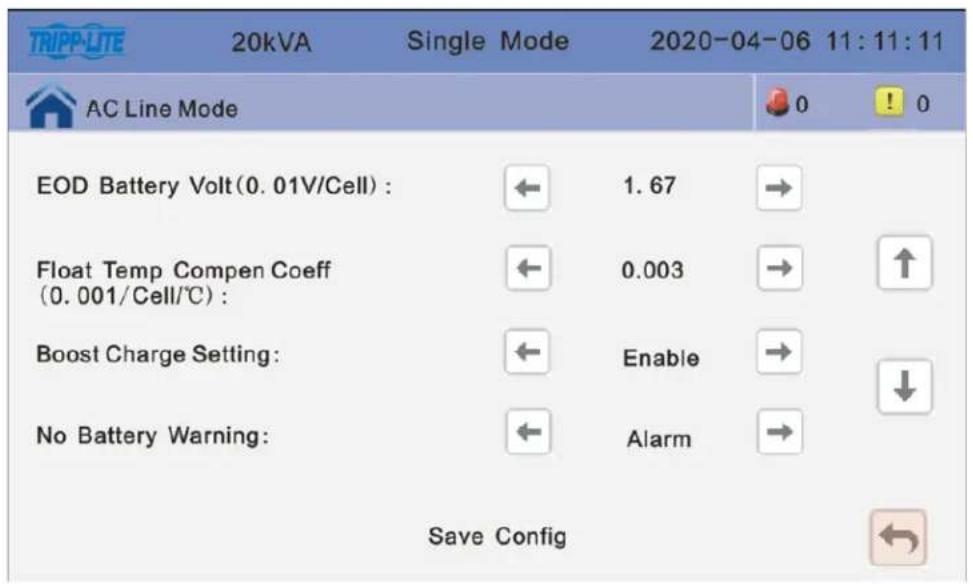

EOD Battery Volt: End of discharge voltage is the low voltage cutoff of the batteries during a battery mode operation. The value can be 1.60\~1.90. The default value is 1.67V/cell, or 10.02Vdc per battery.

Float Temp Compen Coeff: Modifies the voltage of compensation after enabling the switch. The value can be 0.001\~0.007V/cell/°C. The default value is 0.003V/cell/°C.

Boost Charge Setting: Boost charge can be set to Disable or Enable. The default value is Enable.

No Battery Warning: Keep this alarm enabled if you want the UPS to provide a warning when no batteries are present. The default value is Alarm.

6. Operation and Configuration of S3M UPS Models and Battery Cabinets

TRIPP-LITE 20kVA Single Mode 2020-04-06 11:11:11 AC Line Mode EOD Battery Volt(0.01V/Cell) : ← 1.67 → Float Temp Compen Coeff (0.001/Cell/℃) : Boost Charge Setting : ← 0.003 → ↑ No Battery Warning : ← Enable → ↓ Save Config

6.3 Configuring 25-100K UPS for Specific Battery Cabinets Using the LCD Display

CAUTION!

Settings for most parameters cannot be changed when the UPS is in inverter mode.

6. Operation and Configuration of S3M UPS Models and Battery Cabinets

6.3.1 S3M25-100K UPS Home Display

6.3.2 Setting

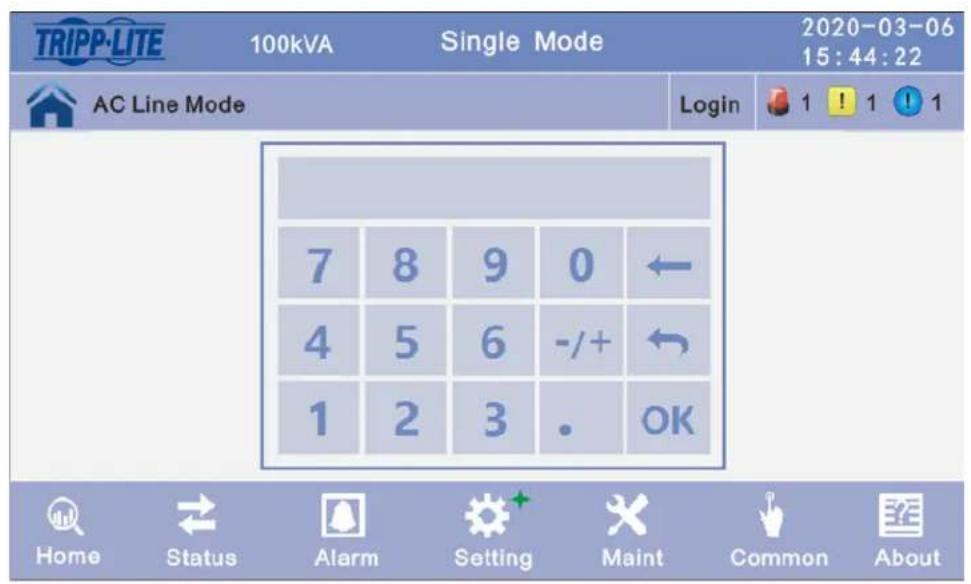

Click on the Settings icon to enter two setting levels. The Basic Setting is for user settings, and the Advanced Setting is for technical personnel only. Contact your administrator to enter advanced settings.

Advanced Setting: Click Advanced Setting and input the correct password. The user password is "191210".

TRIPP-LITE 100kVA Single Mode 2020-03-06 15:44:22 AC Line Mode Login 1 ! 1 ! 1 Basic Setting Advanced Setting Home Status Alarm Setting Maint Common About

6. Operation and Configuration of S3M UPS Models and Battery Cabinets

TRIPP-LITE 100kVA Single Mode 2020-03-06 15:44:22 AC Line Mode Login 1 ! 1 ! 1 Home Status Alarm Setting Maint Common About

TRIPP-LITE 100kVA Single Mode 2020-03-06 15:44:22 AC Line Mode Login 1 ! 1 ! 1 7 8 9 0 ← 4 5 6 -/+ ← 1 2 3 . OK Home Status Alarm Setting Maint Common About

6. Operation and Configuration of S3M UPS Models and Battery Cabinets

6.3.3 Battery Setup

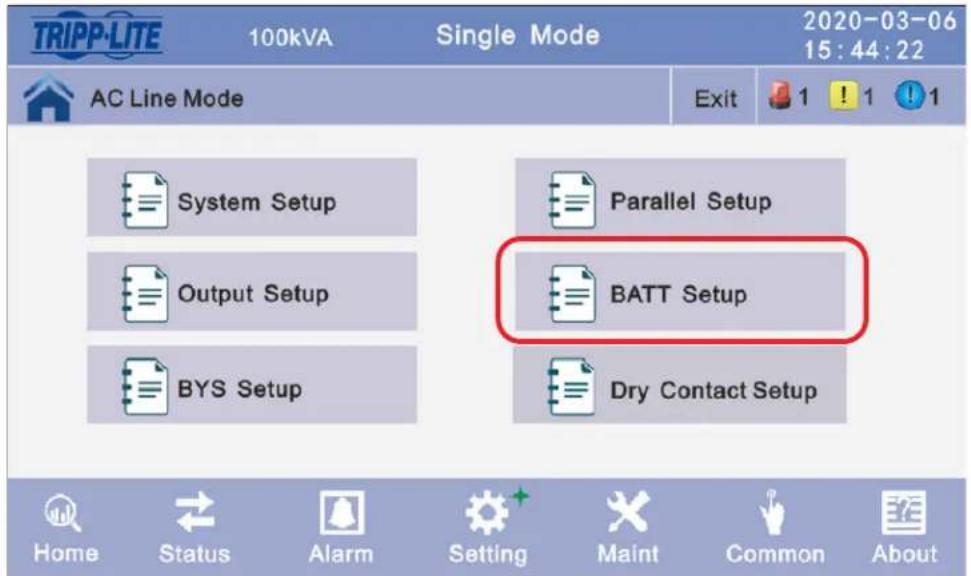

Click BATT Setup

TRIPP-LITE 100kVA Single Mode 2020-03-06 15:44:22 AC Line Mode Exit 1 ! 1 ! 1 System Setup Output Setup BYS Setup Parallel Setup BATT Setup Dry Contact Setup Home Status Alarm Setting Maint Common About

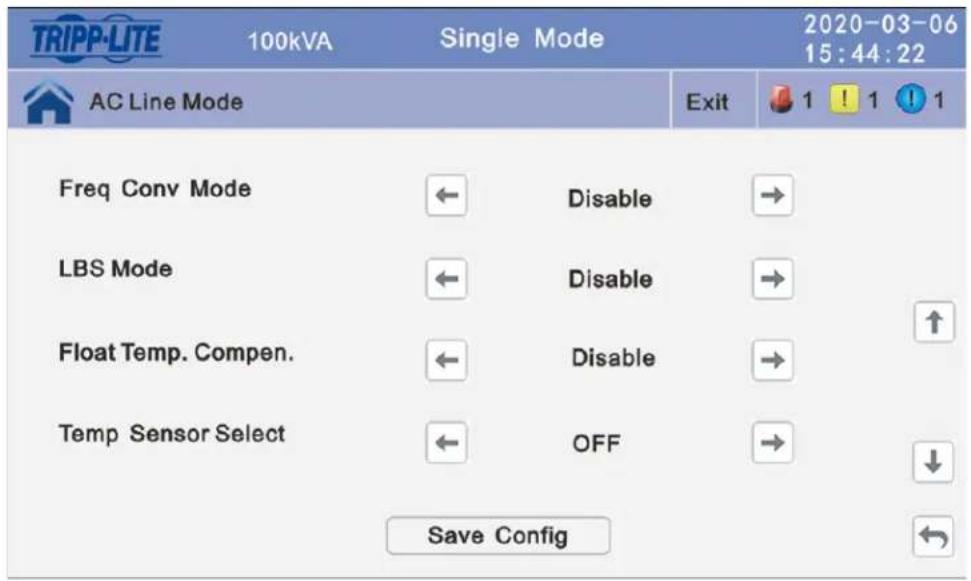

Float Temp. Compen.: The temperature sensor compensation setting maybe changed to Enable when a battery temperature sensor is connected to the UPS system's RJ45 rear port.

Temp Sensor Select: Set the temperature sensor type to NTC for single and short distances. Set the temperature sensor type to RS485 for multiple and far distances.

TRIPP-LITE 100kVA Single Mode 2020-03-06 15:44:22 AC Line Mode Exit 1 ! 1 ! 1 Freq Conv Mode ← Disable → LBS Mode ← Disable → Float Temp. Compen. ← Disable → Temp Sensor Select ← OFF → Save Config

6. Operation and Configuration of S3M UPS Models and Battery Cabinets

6.3.4 Configuring the S3M25-100K UPS and Optimizing Charging of the BP240V65/V65L and BP240V100/V100L Battery Cabinets

Step 1: Setting the Battery Group

The Battery Group is Quantity 1 for every set of 20 batteries that are in and/or connected to the UPS model. For example, UPS model S3M100K UPS has no internal batteries and is Battery Group 1 by default. However, to connect a BP240V100L cabinet with 40 internal batteries to the S3M100K, the S3M100K UPS must be configured to Battery Group 2. To connect a second BP240V100L cabinet to the S3M100K UPS, the Battery Group must be set to 4 (four sets of 20 batteries). Obtain the Battery Group number based on the specific S3M UPS and Battery Cabinet models combination from the chart under Section 6.4.

The value can be 1 to 8. The default value is 1 for S3M UPS models without internal batteries.

Step 2: Setting the Battery Number

The battery number must remain at 20 for all S3M10-100K UPS models when connected to Tripp Lite external battery cabinets designed for the S3M-Series UPS Series.

Step 3: Setting Single Battery (Ah) Capability

Change the Single Battery (Ah) Capability to the individual Ah capacity for one individual battery as follows for the specific battery cabinet model:

• BP240V40/BP240V40L: the Single Battery (Ah) Capacity is 40
• BP240V65/BP240V65L: the Single Battery (Ah) Capacity is 65
• BP240V100/BP240V100L: the Single Battery (Ah) Capacity is 100

The Single Battery (Ah) values can be 7\~2000.

TRIPP-LITE 100kVA Single Mode 2020-03-06 15:44:22 AC Line Mode Exit 1 ! 1 ! 1 Battery Group ← 1 → Battery Number ← 20 → Single Battery Capability (AH) 40 Boost/Float Conversion (Month) 0 ↓ Save Config ↕

Scroll to the next display screen by pressing the down arrow.

6. Operation and Configuration of S3M UPS Models and Battery Cabinets

Step 4: Setting Chg. cur. limiting coef (C)

The charging current limit is a multiple of the battery capacity. It is used to set the battery boost charging time limit. The value can be 0.05\~0.25, and is 0.25 by default. Obtain the Charging (Chg) current (cur) limiting coefficient (C) based on the specific S3M UPS and battery cabinet model combination from the chart in Section 6.4.

Float and Boost Voltage: The UPS is factory-set for proper float (2.27V/cell, 13.62V/battery) and boost (2.35V/cell, 14.1V/battery) voltages.

Cell float voltage: The float voltage value can be 2.23\~2.30 V/cell. The default value is 2.27 V/cell.

Cell boost voltage: The battery equalized voltage value can be 2.30\~2.40 V/cell. The default value is 2.35 V/cell.

Step 5: Setting Aver Changing Duration (min)

Setting the Average Charging Duration in minutes is an estimation of the boost charger time duration to charge new batteries to 90% capacity at 25°C. Obtain the recommended Average (Aver) Charging Duration (min) number based on the specific S3M UPS and battery cabinet model combination from the chart in Section 6.4. Note the recommended battery boost charge durations are estimates only based on new batteries. These numbers may change with the age of the batteries and the battery ambient temperature. To change the Aver Charging Duration, press directly on the defaulted 240 value in the display.

- The Average (Aver) charging duration is the battery boost charge time limit. The value can be 1\~999 min. The default is value 240 (4 hours).

TRIPP-LITE 100kVA Single Mode 2020-03-06 15:44:22 AC Line Mode Exit 1 1 1 1 Chg. cur. limiting coef. (C) ← 0.25 → Cell float voltage (V/Cell) ← 2.27 → Cell boost voltage (V/Cell) ← 2.35 → ↑ Aver Charging Duration (min) 240 ↓ Save Config ↻

6. Operation and Configuration of S3M UPS Models and Battery Cabinets

EOD Battery Volt: End of discharge voltage is the low voltage cutoff of the batteries during a battery mode operation. The value can be 1.60\~1.90. The default value is 1.67V/cell, or 10.02Vdc per battery.

Float Temp Compen Coeff: Modifies the voltage of compensation after enabling the switch. The value can be 0.001\~0.007V/cell/°C. The default value is 0.003V/cell/°C.

Boost Charge Setting: Boost charge can be set to Disable or Enable. The default value is Enable.

No Battery Warning: Keep this alarm enabled if you want the UPS to provide a warning when no batteries are present. The default value is Enable.

TRIPP-LITE 100kVA Single Mode 2020-03-06 15:44:22 AC Line Mode Exit 1 ! 1 ! 1 EOD Battery Volt (V/Cell) ← 1.67 → Float Temp Compen Coef. (V/Cell/℃) ← 0.003 → Boost Charge Setting ← Enable → ↑ No Battery Warning ← Enable → ↓ Save Config ↕

©

6. Operation and Configuration of S3M UPS Models and Battery Cabinets

Configurations for S3M80K

Battery Packs Batteries Qty. of	Battery Cabinets	Step 1 Step	2 Step 3 Step	4 Step 5
		Battery Group	Battery Number	Single Battery Capability	Chg. Cur. Limiting Coef. (C)	Aver Changing Duration (min) Time (minutes) to Charge Batteries to 90% at 25°C
BP240V65 20 x	65Ah 1 1 20 65	0.15 540
BP240V65 20 x	65Ah 2 2 20 65	0.15 540
BP240V65 20 x	65Ah 3 3 20 65	0.15 540
BP240V65L 40 x	65Ah 1 2 20 65	0.15 540
BP240V65L 40 x	65Ah 2 4 20 65	0.15 540
BP240V65L 40 x	65Ah 3 6 20 65	0.15 540
BP240V100 20 x	100Ah 1 1 20 100	0.15 540
BP240V100 20 x	100Ah 2 2 20 100	0.15 540
BP240V100 20 x	100Ah 3 3 20 100	0.15 540
BP240V100L 40 x	100Ah 1 2 20 100	0.15 540
BP240V100L 40 x	100Ah 2 4 20 100	0.15 540
BP240V100L 40 x	100Ah 3 6 20 100	0.1	840

Configurations for S3M100K

Battery Packs Batteries Qty. of	Battery Cabinets	Step 1 Step	2 Step 3 Step	4 Step 5
		Battery Group	Battery Number	Single Battery Capability	Chg. Cur. Limiting Coef. (C)	Aver Changing Duration (min) Time (minutes) to Charge Batteries to 90% at 25°C
BP240V65 20 x	65Ah 1 1 20 65	0.15 540
BP240V65 20 x	65Ah 2 2 20 65	0.15 540
BP240V65 20 x	65Ah 3 3 20 65	0.15 540
BP240V65L 40 x	65Ah 1 2 20 65	0.15 540
BP240V65L 40 x	65Ah 2 4 20 65	0.15 540
BP240V65L 40 x	65Ah 3 6 20 65	0.15 540
BP240V100 20 x	100Ah 1 1 20 100	0.15 540
BP240V100 20 x	100Ah 2 2 20 100	0.15 540
BP240V100 20 x	100Ah 3 3 20 100	0.15 540
BP240V100L 40 x	100Ah 1 2 20 100	0.15 540
BP240V100L 40 x	100Ah 2 4 20 100	0.15 540
BP240V100L 40 x	100Ah 3 6 20 100	0.13 540

7. Specifications

7.1 Battery Cabinet Specifications

(DC Nominal Voltage: ± 120V DC, 240V DC)

Battery Pack BP240V65	(-NIB) BP240V100 (-NIB)	BP240V65L (-NIB) BP240V	100L (-NIB)
DimensionW × D × H	31.5 x 35.4 x 47.2 in.(800 x 900 x 1200 mm)		31.5 x 43.3 x 63 in.(800 x 1100 x 1600 mm)
Weight	608 lb. (275.8 kg)* 930 lb. (421.8 kg)* 1083 lb. (491.2 kg)* 1637 lb. (742.5 kg)*
Breaker	1x 250A 1x 600A
Fuse	2x 400A 4x 400A

*Models with the -NIB suffix do not include internal batteries, so their total weight varies based on batteries installed by the end user.

8. Storage

Storage

The battery cabinet must be stored in a clean, secure environment with a temperature less than 104^ F ( 40^ C) and a relative humidity less than 90% (non-condensing). Store the battery cabinet in its original shipping container if possible. Charge the batteries for at least 24 hours prior to use. Do not rely on the battery cabinet to provide backup power to connected equipment until the batteries are fully charged.

Note: If the UPS system remains off for an extended period of time, it should be turned on periodically to allow the batteries to recharge. The UPS system should be turned on and the batteries should be recharged at least one uninterrupted 24-hour period every 3 months. Failure to recharge the batteries periodically may cause irreversible battery damage.

9. Service and Warranty

Service

Your Tripp Lite product is covered by the warranty described in this manual. A variety of Extended Warranty and On-Site Service Programs are also available from Tripp Lite. For more information on service, visit tripplite.com/support. Before returning your product for service, follow these steps:

1. Review the installation and operation procedures in this manual to ensure that the service problem does not originate from a misreading of the instructions.
2. If the problem continues, do not contact or return the product to the dealer. Instead, visit tripplite.com/support.
3. If the problem requires service, visit triplite.com/support and click the Product Returns link. From here you can request a Returned Material Authorization (RMA) number, which is required for service. This simple on-line form will ask for your unit's model and serial numbers, along with other general purchaser information. The RMA number, along with shipping instructions will be emailed to you. Any damages (direct, indirect, special or consequential) to the product incurred during shipment to Tripp Lite or an authorized Tripp Lite service center are not covered under warranty. Products shipped to Tripp Lite or an authorized Tripp Lite service center must have transportation charges prepaid. Mark the RMA number on the outside of the package. If the product is within its warranty period, enclose a copy of your sales receipt. Return the product for service using an insured carrier to the address given to you when you request the RMA.

9. Service and Warranty

Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of one (1) year from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion. Service under this Warranty includes parts and Tripp Lite service center labor. On-site service plans are available from Tripp Lite through authorized service partners (in most areas). Visit tripplite.com/support for details. International customers should contact Tripp Lite support at [e-mail].

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

Tripp Lite; 1111 W. 35th Street; Chicago IL 60609; USA

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marketing name or model number of the product.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Two identical electrical cabinet designs with patterned internal compartments and a door, no text or symbols present.

English 1 • Français 137

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 EE UU • tripplite.com/support

TRIPPINATE 1200 mm [47.2"] 800 mm [31.5"] 900 mm [35.4"]

4. Datos Mecánicos

Front view of a server rack unit with four vertical panels and a handle (no text or symbols visible)

Vista Frontal

Empty rectangular frame with corner markers and a small black bar at the bottom (no text or symbols)

Vista Lateral

BREAKER L

Vista Posterior

BREAKER 1 2 3 + N - Vista Posterior (bloque de terminales sin tapa) 4 5

800 mm [31.5"] 1600 mm [63"] 1100 mm [43.30"]

4. Datos Mecánicos

Pure diagram of a cabinet or enclosure with vertical slats and diagonal hatching patterns, no text or symbols present.

Vista Frontal

Blank white rectangular frame with black dots at corners and a small black rectangle at the bottom (no text or symbols)

Vista Lateral

Pure electrical circuit lines without any symbols

Vista Posterior

Vista Posterior (bloque de terminales sin tapa)

Line drawing of a rectangular box with vertical supports and a pliers attached to the side (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Technical line drawing of a server unit with cooling panel and mounting base (no text or symbols)

Technical line drawing of a rectangular industrial control cabinet with ventilation grilles and mounting base (no text or symbols)

5. Instalación

Line drawing of a forklift and industrial equipment unit (no text or symbols)

3D rendering of a black industrial machine with hatched ventilation slots and control panel (no visible text or symbols)

3D cutaway diagram of an electronic device showing internal components and mounting panels (no text or symbols)

Figura 5-2: Vista de Despiece del Bastidor, Modelos BP240V65, BP240V65-NIB, BP240V100, BP240V100-NIB

Technical line drawing of an open industrial refrigerator with labeled compartments (no text or symbols present)

Figura 5-6A

Technical line drawing of an open industrial control cabinet with ventilation grilles and labeled ports (no text or symbols present)

Figura 5-6B

5. Instalación

Technical line drawing of an open industrial enclosure with internal shelving units (no text or symbols)

Figura 5-7

Technical line drawing of a multi-level industrial storage unit with metal framework and mounting brackets (no text or symbols)

Figura 5-8

5. Instalación

Technical line drawing of a multi-level industrial storage unit with shelves and chassis (no text or symbols)

Figura 5-9: Modelo BP240V65-NIB

Technical line drawing of a multi-level industrial storage unit with visible internal compartments and control panel (no text or symbols)

Figura 5-10: Modelo BP240V100-NIB

5. Instalación

Technical line drawing of an open industrial storage unit with internal compartments and battery pack (no text or symbols)

Figura 5-11: Modelo BP240V65-NIB

Technical line drawing of a multi-level industrial storage unit cabinet with visible internal compartments and labeled components (no text or symbols beyond labels)

Figura 5-12: Modelo BP240V100-NIB

5. Instalación

Technical line drawing of an open electrical enclosure with internal compartments and battery packs (no text or symbols)

Figura 5-13: Modelo BP240V65-NIB

Technical line drawing of a multi-level server rack cabinet with labeled components (PL, GPL, 2V/100Ah, 12V/100Ah) and no readable text beyond labels.

Figura 5-14: Modelo BP240V100-NIB

5. Instalación

Technical line drawing of an open electrical cabinet with internal compartments (no text or symbols)

Figura 5-15: Modelo BP240V65-NIB

Technical line drawing of an open electrical cabinet with internal battery modules and ventilation slots (no text or symbols)

Figura 5-16: Modelo BP240V100-NIB

5. Instalación

GP 12850 12V/65Ah GP 10850 12V/65Ah GP 12850 12V/65Ah GP 10850 12V/65Ah

Figura 5-17B

5. Instalación

Technical line drawing of an internal server rack unit with visible circuitry and components (no text or labels)

Figura 5-21

Technical line drawing of an open electrical enclosure with stacked battery compartments and a top panel (no text or symbols)

Figura 5-22

5. Instalación

3D rendering of a black industrial server unit with hatched ventilation slots and control panel (no visible text or symbols)

3D cutaway illustration of an internal server rack with colored modules and mounting panels (no text or symbols)

Figura 5-24: Vista de Despiece – Modelos BP240V65L, BP240V65L-NIB, BP240V100I, BP240V100L-NIB

5. Instalación

Technical line drawing of an open industrial cabinet with multiple shelves and doorways (no text or symbols)

Figura 5-28A

Technical line drawing of a server rack cabinet with ventilation grilles and internal components (no text or labels)

Figura 5-28B

5. Instalación

Technical line drawing of a multi-level industrial storage unit with open doors and internal shelves (no text or symbols)

Figura 5-29

Technical line drawing of a multi-level rack or storage unit structure (no text or symbols)

Figura 5-30

5. Instalación

Technical line drawing of a server rack cabinet with internal compartments and battery pack (no text or symbols)

Figura 5-31: Modelo BP240V65L-NIB

Technical line drawing of a server rack cabinet with internal shelves and mounting base (no text or symbols)

Figura 5-32: Modelo BP240V100L-NIB

5. Instalación

Technical line drawing of an electrical cabinet with internal shelves and battery pack (no text or symbols)

Figura 5-33: Modelo BP240V65L-NIB

Technical line drawing of a multi-level server rack cabinet with visible internal compartments and mounting brackets (no text or labels)

Figura 5-34: Modelo BP240V100L-NIB

5. Instalación

Technical line drawing of an electrical cabinet with multiple shelves and a door open (no text or symbols)

Figura 5-35: Modelo BP240V65L-NIB

Technical line drawing of a multi-level server rack cabinet with visible internal compartments and mounting brackets (no text or labels)

Figura 5-36: Modelo BP240V100L-NIB

5. Instalación

Technical line drawing of an internal server rack with battery compartments and a separate unit cabinet (no text or symbols present)

Figura 5-37: Modelo BP240V65L-NIB

Technical line drawing of a server rack cabinet with multiple shelves and an open door (no text or symbols)

Figura 5-38: Modelo BP240V100L-NIB

5. Instalación

Technical line drawing of a server rack cabinet with multiple shelves and an open door (no text or symbols)

Figura 5-39

Diagram showing four rows of battery cell units with red labels indicating '100% 电池' (100% 电池) and a label '250% 电池' (250% 电池) at the bottom.

Figura 5-40A

5. Instalación

100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100

Figura 5-40B

Stacked battery storage units in a warehouse (no visible text or labels)

Figura 5-41A

5. Instalación

Illustration of stacked battery packs arranged in a staircase pattern (no text or symbols)

Figura 5-41B

Technical diagram of battery pack assembly with labeled components and wiring connections

Figura 5-42: Modelo BP240V65L-NIB

5. Instalación

Stacked battery cell panel diagram with red and blue wiring connections (no text or labels)

Figura 5-43: Modelo BP240V100L-NIB

Technical line drawing of an open server rack cabinet with internal components and ventilation grilles (no text or labels)

Figura 5-44

5. Instalación

Technical line drawing of an electrical cabinet with stacked battery packs (no text or symbols)

Figura 5-45

5. Instalación

Front view of a device control panel with indicator lights and a red EPO button (no text or symbols on the panel itself)

iPRECAUCIÓN!

TRIPP·LITE 100kVA Single Mode 2020-03-06 15:44:22 AC Line Mode Exit 1 ! 1 ! 1 EOD Battery Volt (V/Cell) ← 1.67 → Float Temp Compen Coef. (V/Cell/℃) ← 0.003 → Boost Charge Setting ← Enable → ↑ No Battery Warning ← Enable → ↓ Save Config

1111 W. 35th Street, Chicago, IL 60609 EE UU • tripplite.com/support

Two identical schematic diagrams of industrial storage units with patterned internal structures, no text or symbols present.

English 1 • Español 69

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Front view of a server rack unit with four vertical panels and a handle (no text or symbols visible)

vue avant

Blank white rectangular frame with black dots at corners and a small striped bar at the bottom (no text or symbols)

vue latérale

BREAKER L

vue arrière

Pure diagram of a vertical panel with diagonal hatching pattern, no text or symbols present

vue avant

Blank white document frame with black dots at corners and a small black rectangle at the bottom (no text or symbols)

vue latérale

Technical diagram showing a multi-level structure with labeled components and a central square feature.

vue arrière

Line drawing of a rectangular box with vertical supports and a pair of pliers attached to the side (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Technical line drawing of a server unit with cooling panel and mounting base (no text or symbols)

Technical line drawing of a rectangular industrial enclosure with ventilation grilles and mounting base (no text or symbols)

5. Installation

Line drawing of a forklift and industrial equipment unit (no text or symbols)

3D rendering of a black industrial machine with hatched ventilation slots and control panel (no visible text or symbols)

Exploded view diagram of a multi-chamber industrial or electronic device showing internal components and structural layers (no text or symbols)

Technical line drawing of an open industrial refrigerator with labeled compartments (no text or symbols present)

Figure 5-6A

Technical line drawing of an open industrial control cabinet with ventilation grilles and labeled ports (no text or symbols present)

Figure 5-6B

5. Installation

Technical line drawing of an open industrial enclosure with internal shelving units (no text or symbols)

Figure 5-7

Technical line drawing of a multi-level industrial storage unit with metal framework and mounting brackets (no text or symbols)

Figure 5-8

5. Installation

Technical line drawing of a multi-level industrial storage unit with shelves and battery pack (no text or symbols)

Technical line drawing of a multi-level industrial storage unit with visible internal compartments and labeled control panels (no text or symbols beyond labels)

Technical line drawing of an open industrial electrical cabinet with internal components (no text or symbols)

Technical line drawing of an electrical cabinet with internal compartments and labeled storage units (no text or symbols beyond labels)

Technical line drawing of an electrical enclosure with internal compartments and battery modules (no text or symbols)

Technical line drawing of an industrial server rack cabinet with labeled components (PL 121000, GPL 121000) and power ratings (2V 100Ah, 12V 100Ah), no readable text or symbols beyond labels.

Technical line drawing of an open electrical cabinet with internal compartments (no text or symbols)

Technical line drawing of an open electrical cabinet with internal battery modules (no text or symbols)

GP 12850 12V/65Ah GP 10850 12V/65Ah GP 12850 12V/65Ah GP 10850 12V/65Ah

Figure 5-17B

5. Installation

Technical line drawing of an electrical enclosure with internal components and wiring (no text or symbols)

Figure 5-21

Technical line drawing of an open electrical enclosure with stacked battery compartments and a top panel (no text or symbols)

Figure 5-22

5. Installation

3D rendering of a black server rack unit with vertical ventilation grilles (no visible text or symbols)

3D cutaway illustration of a server rack system showing internal components and mounting panels (no text or symbols)

Technical line drawing of an open industrial cabinet with multiple shelves and doorways (no text or symbols)

Figure 5-28A

Technical line drawing of a server rack cabinet with ventilation grilles and internal components (no text or labels)

Figure 5-28B

5. Installation

Technical line drawing of a multi-level industrial storage unit with open doors and internal shelves (no text or symbols)

Figure 5-29

Technical line drawing of a multi-level rack-mounted server or storage unit (no text or symbols visible)

Figure 5-30

5. Installation

Technical line drawing of a server rack cabinet with internal compartments and battery pack (no text or symbols)

Technical line drawing of a server rack cabinet with internal shelves and mounting base (no text or symbols)

Technical line drawing of an electrical cabinet with internal shelves and battery compartments (no text or symbols)

Technical line drawing of a multi-level server rack cabinet with internal shelves and a door open (no text or symbols)

Technical line drawing of an electrical cabinet with multiple shelves and a door open (no text or symbols)

Technical line drawing of a multi-level server rack cabinet with visible internal compartments and mounting brackets (no text or labels)

Technical line drawing of an electrical cabinet with multiple battery modules and open door (no text or symbols)

Technical line drawing of a server rack cabinet with multiple shelves and an open door (no text or symbols)

Technical line drawing of a server rack cabinet with open door (no text or symbols)

Figure 5-39

Technical diagram showing four stacked battery cell units with red labels indicating '100% 电池' (100% battery)

Figure 5-40A

5. Installation

100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100

Figure 5-40B

Architectural line drawing of stacked battery cells with red markers indicating locations (no text or symbols)

Figure 5-41A

5. Installation

Illustration of stacked battery packs arranged in a staircase pattern (no text or symbols)

Figure 5-41B

Technical diagram of battery pack assembly with labeled components and wiring connections

Diagram of stacked battery packs connected by red and blue wires, no text or symbols present

Technical line drawing of an open server rack cabinet with internal components and ventilation grilles (no text or labels)

Figure 5-44

5. Installation

Technical line drawing of an electrical cabinet with stacked battery packs (no text or symbols)

Figure 5-45

5. Installation

Front panel of a device control panel with indicator lights and a red EPO button (no text or symbols on the panel itself)

Danger!

DANGER!

TRIPP-LITE 100kVA Single Mode 2020-03-06 15:44:22 AC Line Mode Exit 1 ! 1 ! 1 EOD Battery Volt (V/Cell) ← 1.67 → Float Temp Compen Coef. (V/Cell/℃) ← 0.003 → Boost Charge Setting ← Enable → ↑ No Battery Warning ← Enable → ↓ Save Config ↕

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
