Axon 40 Ultra - Smartphone ZTE - Free user manual and instructions

Brand	ZTE
Model	Axon 40 Ultra
Product type	Smartphone
Operating system	Android (registered trademark of Google LLC)
Processor	Snapdragon 8 Gen 1 (Qualcomm)
Mobile connectivity	5G/4G/3G/2G, dual nano-SIM
Wireless connectivity	Wi-Fi 802.11a/b/g/n/ac/ax (2.4 and 5 GHz), Bluetooth 5.0, NFC
Location	GPS, Glonass, etc.
Front camera	Under-display (not specified)
Fingerprint sensor	Under-display
Battery	Non-removable lithium-ion
Charging	USB Type-C
Audio	DTS:X Ultra, speaker
Security	Face recognition, fingerprint, pattern/PIN/password lock
Blue light reduction	Built-in Night Light function
Operating temperature	-10°C to +40°C
SAR value (head)	0.921 W/kg
SAR value (body)	1.556 W/kg (at 5 mm)
SAR value (limbs)	3.191 W/kg (at 0 mm)
Power supply	ZTE approved USB charger
Maintenance	Do not disassemble, avoid liquids and extreme temperatures
Repairability	Non-removable battery, contact customer service
Compliance	Directive 2014/53/EU, ErP 2009/125/EC
Disposal	Do not dispose of with household waste, recycle via collection points

Frequently Asked Questions - Axon 40 Ultra ZTE

How to install the SIM card?

Use the provided ejection tool. Insert the tip into the slot hole, remove the tray, place the nano-SIM card in the appropriate slot, then gently reinsert the tray.

How to charge the battery?

Plug the ZTE approved charger into a power outlet, then connect the USB Type-C cable to the phone. The battery will fully charge in a few hours. Use only approved accessories.

What to do if the phone does not turn on?

Make sure the battery is charged. Plug in the charger and wait at least 20 minutes. If the phone still does not turn on, contact customer service.

How to unlock the screen?

Press the Power button to wake up the screen, then swipe your finger. If you have set up face recognition, a fingerprint, a pattern, a PIN, or a password, you must use these to unlock.

How to activate eye protection?

Open Settings > Display > Night Light. Enable 'Turn on now' or 'Schedule' to program the blue light reduction.

What are the usage precautions?

Do not use the phone while driving. Keep a distance of at least 10 mm between the phone and your body during calls. Avoid prolonged high volumes to protect your hearing. Turn off the device on airplanes, in hospitals, and in explosive risk areas.

What is the SAR value of this phone?

The maximum measured SAR (Specific Absorption Rate) is 0.921 W/kg for the head, 1.556 W/kg for the body (at 5 mm), and 3.191 W/kg for the limbs (at 0 mm). These values comply with European limits.

Can I use the phone in the rain or near water?

No. Avoid any contact with liquids. Keep the phone dry. The device is not waterproof. Exposure to water may damage the phone.

How to update the software?

Software updates can be checked in Settings > System > Software updates. If an update is available, follow the on-screen instructions to install it.

Is the phone compatible with 5G?

Yes, both nano-SIM slots support 5G networks, as well as 4G, 3G, and 2G.

USER MANUAL Axon 40 Ultra ZTE

Copyright © 2022 ZTE CORPORATION.

All rights reserved.

No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation.

Notice

ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice.

We offer self-service for our smart terminal device users. Please visit the ZTE official website (at

https://ztedevices.com) for more information on user manual, self-service and supported product models. Information on the website takes precedence.

Disclaimer

ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software.

Images and screenshots used in this guide may differ from the actual product. Content in this guide may differ from the actual product or software.

Trademarks

ZTE and the ZTE logos are trademarks of ZTE Corporation.

Android ^™ is a trademark of Google LLC.

The Bluetooth ^® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ZTE Corporation is under license.

Wi-Fi CERTIFIED 6 ^™ and the Wi-Fi CERTIFIED 6 ^™ Logo are trademarks of Wi-Fi Alliance ^® .

Snapdragon

8 mobile platform

Gen 1

Snapdragon ^® is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.

Snapdragon is a trademark or registered trademark of Qualcomm Incorporated.

licensed by

Qualcomm

This product implements certain patented technologies licensed by Qualcomm Incorporated.

Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries.

The Licensed by Qualcomm logo is a trademark of Qualcomm Incorporated.

Snapdragon Sound™ is a product of Qualcomm Technologies, Inc. and/or its subsidiaries.

Snapdragon and Snapdragon Sound are trademarks or registered trademarks of Qualcomm Incorporated.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together, DTS:X, the DTS:X logo, and DTS:X Ultra are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

Covered by one or more claims of the HEVC patents listed at patentlist.accessadvance.com

Other trademarks and trade names are those of their respective owners.

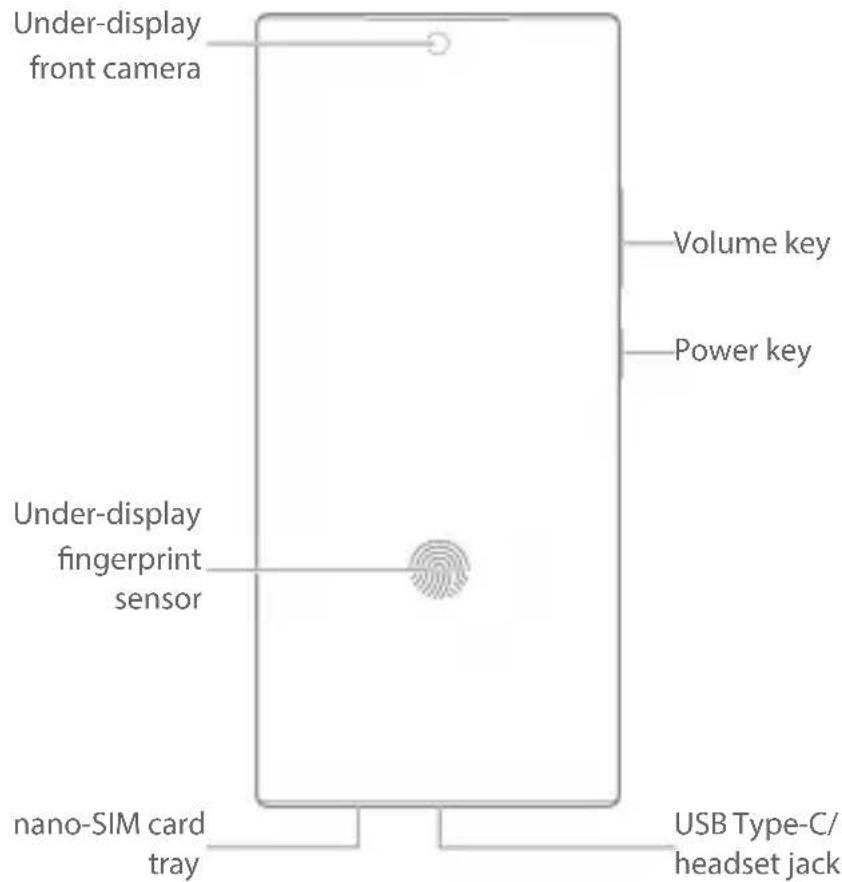

Getting to Know Your Phone

Your phone supports 2.4 GHz and 5 GHz Wi-Fi.

Setting Up Your Phone

The nano-SIM card(s) can be installed or removed while the phone is turned on.

WARNING!

To avoid damage to the phone, do not use any other kind of SIM cards, or any non-standard nano-SIM card cut from a SIM card. You can get a standard nano-SIM card from your service provider.

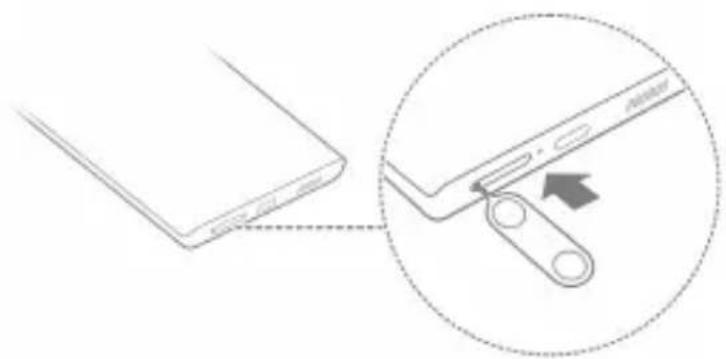

1. Insert the tip of the tray eject tool into the hole on the card tray.

Diagram showing a smartphone with a close-up view of its cable being inserted into a port (no text or symbols present)

CAUTION:

Never replace the included tray eject tool with sharp objects. Ensure that the tray eject tool is perpendicular to the hole. Otherwise, the phone may be damaged.

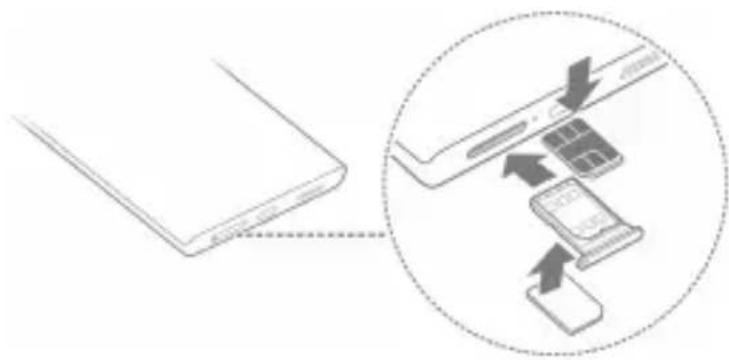

1. Pull out the card tray and install the nano-SIM card(s) into the card slot(s) as shown. Carefully slide the tray back into place.

Diagram showing a device with an inset close-up of its internal components (no text or symbols present)

NOTE:

The two card slots support 5G/4G/3G/2G networks.

Charging the Phone

Your phone's battery should have enough power for the phone to turn on, find a signal, and make a few calls. You should fully charge the battery as soon as possible.

WARNING!

Use only ZTE-approved chargers and USB Type-C cables. The use of unapproved accessories could damage your phone or cause the battery to explode.

WARNING!

Do not remove the back cover. The battery is not removable. Removal may cause fire or explosion.

1. Connect the adapter to the charging jack.

Line drawing of a smartphone with an attached USB cable, showing the cable being inserted into the screen (no text or symbols present)

1. Connect the charger to a standard AC power outlet.
2. Disconnect the charger when the battery is fully charged.

NOTE:

If the battery is extremely low, you may be unable to power on the phone even when it is being charged. In this case, try again after charging the phone for at least 20 minutes.

Contact the customer service if you still cannot power on the phone after prolonged charging.

Powering On/Off Your Phone

Make sure the battery is charged before powering on.

• Press and hold the Power key to turn on your phone.
• To power off, press and hold the Power key to open the options menu, and touch ⏻. ⏻

NOTE:

If the screen freezes or takes too long to respond, try pressing and holding the Power key for over 10 seconds to restart the phone.

Waking Up Your Phone

Your phone automatically goes into sleep mode when it is not in use for some time. The display is turned off to save power and the keys are locked to prevent accidental operations.

You can wake up your phone by turning on the display and unlocking the keys.

1. Press the Power key to turn the screen on.
2. Swipe up on the screen.

NOTE:

If you have set a face verification, a fingerprint, an unlock pattern, a PIN or a password for your phone, you'll need to use your face or fingerprint, draw the pattern, or enter the PIN/password to unlock your screen.

Lowering Blue Light

Blue light with wavelengths between 415 nm and 455 nm is considered harmful for the eyes. It may cause eye discomfort, suppress melatonin, and affect sleep quality and circadian rhythm. This product has the function of reducing blue radiant energy.

To avoid eye fatigue, it is recommended to place the product at an appropriate distance from your eyes and rest for 20 minutes to look into the distance after two hours of continuous viewing.

To enable eye protection, open the Settings app and touch Display > Night Light > Turn on now. Use Turn on automatically to enable eye protection between sunset and sunrise or during customized time. In addition, you can adjust the protection effect by changing the blue light filter and white point reduction levels.

Product Safety Information

	Don't make or receive phone calls while driving. Never text while driving.
	Keep your phone at least 10 mm away from your body while making calls.
	Small parts may cause choking.
	Your phone can produce a loud sound.
	To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use.
	Avoid contact with anything magnetic.
	Keep away from pacemakers and other electronic medical devices.
	Turn off when asked to in hospitals and medical facilities.
	Turn off when told to on aircraft and at airports.
	Turn off when near explosive materials or liquids.
	Don't use at gas stations.
	Your phone may produce a bright or flashing light.
	Don't dispose of your phone in fire.
	Avoid extreme temperatures.
	Avoid contact with liquids. Keep your phone dry.
	Do not attempt to disassemble your phone.
	Only use approved accessories.
	For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.
	Don't rely on your phone as a primary device for emergency communications.

EU Specific Absorption Rate (SAR)

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.

The guidelines use a unit of measurement known as Specific Absorption Rate, or SAR. For mobile devices, the SAR limit is 2 W/kg for the head and the body. The highest SAR value for this device when tested at the head was

0.921 W/kg*, and when tested at the body was 1.556 W/kg* with 5 mm distance. The limb (0 mm) SAR limit for mobile devices is 4 W/kg. The highest SAR value for this device when tested at the body with 0 mm distance was 3.191 W/kg*. As mobile devices offer a range of functions, they can be used in other positions, such as on the body as described in the user manual**.

As SAR is measured utilizing the device's highest transmitting power, the actual SAR of this device while operating is typically below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum power required to communicate with the network.

* The tests are carried out in accordance with EN 50360, EN 50566, EN 50663, EN 62209-1 and EN 62209-2.
** Please see body worn operation in the user manual.

Specification

EUT tested radios application	GSM 900/1800WCDMA Band 1,8FDD LTE Band 1,3,5,7,8,20,28TDD LTE Band 38,40,415G NR Band N1,3,5,7,28,38,40,41,78802.11a/b/g/n/ac/axBluetooth V5.0+BR/EDR/LENFCGPS
	WCDMA Version Rel.9LTE Version Rel.15
Maximum RF output power	GSM900: 33.5 dBmGSM1800: 31 dBmWCDMA Band 1: 25 dBmWCDMA Band 8: 25.5 dBmFDD LTE Band 1: 25.7 dBmFDD LTE Band 3: 25.7 dBmFDD LTE Band 5: 25.7 dBmFDD LTE Band 7: 25.7 dBmFDD LTE Band 8: 25.7 dBmFDD LTE Band 20: 25.7 dBmFDD LTE Band 28: 25.7 dBmTDD LTE Band 38: 25.7dBmTDD LTE Band 40: 25.7 dBmTDD LTE Band 41: 25.7 dBm5G NR Band N1: 24 dBm5G NR Band N3: 24 dBm5G NR Band N5: 23 dBm5G NR Band N7: 23 dBm5G NR Band N28: 23 dBm5G NR Band N38: 23 dBm5G NR Band N40: 23 dBm5G NR Band N41: 24.5 dBm5G NR Band N78: 26 dBm802.11b/g/n/ax: 17.92 dBm802.11a/n/ac/ax: 21.05 dBmBluetooth BR/EDR: 15.22 dBmBluetooth LE: 7.52 dBmNFC: -25.476 dBmA/m@10mGPS (RX Only)

CE Caution

Battery Caution

• There is a risk of explosion if battery is replaced by an incorrect type.
• Dispose of used batteries according to the instructions.
• Do not dispose of a battery into fire or a hot oven, or mechanically crush or cut a battery. Doing so can result in an explosion.
• Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas.
• A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.

USB Port

This product can be connected to a USB interface of version USB 3.1.

Proper Use

As described in this guide, your device can be used only in right location. If possible, please do not touch the antenna area on your device.

Do not expose your device to extreme temperatures lower than -10 ^ and higher than +40 ^ .

Disposal of Your Old Appliance

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

1. When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2012/19/EU.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

For this product's recycling information based on WEEE directive, please send an e-mail to [e-mail]

EU DECLARATION OF CONFORMITY

CE

Hereby, ZTE Corporation declares that the radio equipment type ZTE A2023PG is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: https://certification.ztedevices.com

The device is restricted to indoor use only when operating in the 5150 to 5250 MHz frequency range.

	AT BE BG HR CY CZ DK
	EE FI FR DE EL HU IE
	IT	LV	LT	LU	MT	NL	PL
	PT RO SK SI ES SE UK(NI)

ErP Conformity

The external power supply of this product conforms to the Energy-related Product Directive (ErP) 2009/125/EC of the European Parliament and the Council. The detailed ErP information is available on ZTE website https://certification.ztedevices.com.

Copyright © 2022 ZTE CORPORATION.

Diagram showing a smartphone with a close-up view of its cable being inserted into a port (no text or symbols present)

! ACHTUNG:

Diagram showing a device with an inset close-up of its internal components (no text or symbols present)

HINWEIS:

Line drawing of a smartphone with an attached USB cable, showing no text or symbols

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

https://certification.ztedevices.com

Website https://certification.ztedevices.com.

ZTE AXON 40 Ultra

Telif Hakki © 2022 ZTE CORPORATION.

Diagram showing a smartphone with a close-up view of its cable being inserted into a port (no text or symbols present)

! DİKKAT:

Diagram showing a device with an attached cable and its internal components, including a close-up view of the cable being inserted (no text or symbols present)

NOT:

Line drawing of a device with an attached cable and arrow indicating direction (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Copyright © 2022 ZTE CORPORATION.

Diagram showing a smartphone with a close-up view of its edge and a magnified inset highlighting the connector (no text or symbols present)

PRECAUCIÓN:

Diagram showing a device being inserted into a cable, with arrows indicating the process (no text or symbols present)

NOTA:

Las dos ranuras de tarjeta son compatibles con redes 5G/4G/3G/2G.

Carga del teléfono

Line drawing of a device with an attached cable showing a USB cable inserted into a portion of the back (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Copyright © 2022 ZTE CORPORATION.

Diagram showing a smartphone with a close-up view of its internal structure, no text or symbols present.

ATTENTION :

Diagram showing a device with an attached cable and its internal components, including a close-up view of the cable being inserted (no text or symbols present)

REMARQUE :

Line drawing of a smartphone with an attached USB cable, showing the cable being inserted into the screen (no text or symbols present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

DÉCLARATION DE CONFORMITÉ UE

CE

Copyright © 2022 ZTE CORPORATION.

Diagram showing a smartphone with a close-up view of its internal components (no text or symbols present)

ATTENZIONE:

Diagram showing a device being inserted into a folder, with arrows indicating the process (no text or symbols present)

NOTA:

Line drawing of a device with an attached cable showing a USB cable inserted into a portion of the back (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

https://certification.ztedevices.com

Copyright © 2022 ZTE CORPORATION.

Diagram showing a smartphone with a close-up view of its internal components (no text or symbols present)

PRZESTROGA:

Diagram showing a smartphone with an attached cable and its internal components, including a close-up view of the cable being inserted (no text or symbols present)

UWAGA:

Line drawing of a device with an attached cable and arrow indicating direction (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Copyright © 2022 ZTE CORPORATION.

Minden jog fenntartva.

Diagram showing a smartphone with a close-up view of its internal structure, no text or symbols present.

VIGYÁZAT:

Diagram showing a smartphone with an attached cable and its internal components, including a close-up of the cable being inserted (no text or symbols present)

MEGJEGYZÉS:

Line drawing of a smartphone with an attached USB cable, showing the cable being inserted into a portion of its screen (no text or symbols present)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Diagram showing a smartphone with a close-up view of its cable being inserted into a port (no text or symbols present)

! OPREZ:

Diagram showing a device with an attached cable and its internal components, including a close-up view of the cable being inserted (no text or symbols present)

NAPOMENA:

Line drawing of a USB cable inserted into a physical device (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

1. Simbol precrtane korpe za otpatke na proizvodu znači da je proizvod obuhvaćen Evropskom direktivom 2012/19/EU.
2. Sve električne i elektronske proizvode treba odlagati odvojeno od uobičajenog kućnog otpada preko odgovarajućih namenskih sabirnih objekata koje je imenovala državna ili lokalna uprava.
3. Pravilno odlaganje starih uređaja pomaže u sprečavanju negativnih posledica po životnu sredinu i ljudsko zdravlje.

Za više informacija o recikliranju ovog proizvoda u skladu sa direktivom WEEE, pošaljite e-poruku na [e-mail]

DEKLARACIJA O USAGLAŠENOSTI SA PROPISIMA EU

Korporacija ZTE ovim izjavljuje da je radio-oprema tipa ZTE

A2023PG u skladu sa Direktivom 2014/53/EU.

Ceo tekst deklaracije o usaglašenosti sa propisima EU dostupan je na sledećoj internet adresi:

https://certification.ztedevices.com
