Product type	Canister vacuum with steam function
Brand	LG
Model	VK9820SCSUY
Power supply	Mains, appropriate voltage indicated on the base of the appliance
Suction power	Adjustable (handle control)
Steam function	Yes, with 25 cl water tank and microfiber cloth
Brush type	Steam brush, all-floor brush, parquet brush, mini-turbine, sani-punch brush, crevice tool, upholstery tool
Dust container capacity	Not specified, but with fill indicator
Filters	Air filter, motor safety filter, exhaust filter
Cord length	Not specified, with automatic cord rewind
Telescopic tube	Yes, adjustable in length
Weight	Not specified, estimated around 5-7 kg (vacuum + accessories)
Dimensions	Not specified
Noise level	Not specified
Safety	Thermal protector, automatic steam shut-off after 30 seconds of non-use, steam safety trigger
Maintenance	Emptying and cleaning the dust container, cleaning filters (clean water, drying in the shade), washing the microfiber cloth
Warranty	24 months (parts and labor, excluding wear and tear and damage due to misuse)
Included accessories	Steam brush, sani-punch brush, crevice tool, upholstery tool, microfiber cloth, measuring cup
Use	Vacuuming only, steam only, or combined vacuum and steam
Floor types	Hard floors (tiles, quarry tiles), carpets, parquet floors (caution: do not use steam on parquet)

Frequently Asked Questions - VK9820SCSUY LG

How to start steam cleaning?

Attach the steam brush to the telescopic tube and hose. Fill the water tank with 25 cl of clean water. Attach the microfiber cloth to the holder. Turn on the vacuum and press the STEAM button. Keep the safety trigger pressed during use. Steam appears after about 2.5 minutes.

What to do if the dust container indicator lights up red?

The indicator shows the dust container is full or blocked. Turn off the vacuum and unplug it. Press the container release button, remove it, empty it, then put it back. If the indicator stays on, also clean the air filter and motor safety filter.

Can I use the steam function on a parquet floor?

No, never use the steam brush on a parquet floor. Heat and moisture can discolor or warp the floor. Reserve steam for tiles and quarry tiles.

How to clean the vacuum filters?

Open the vacuum cover, remove the dust separator then the filters (air filter and motor safety filter). Wash them with clean water (not hot water). Let them dry completely in the shade before reinstalling. The exhaust filter is cleaned dry, without water, once a year.

The vacuum stops suddenly during use, what to do?

This is probably due to motor overheating. Turn off the switch and unplug the appliance. Check that the dust container is not full, that the hose or brush is not blocked. Correct the problem and wait at least 30 minutes before plugging in and turning on again.

How to replace the microfiber cloth of the steam brush?

Turn off and unplug the vacuum. Remove the cloth holder from the steam brush. Place a clean cloth (white side on the holder) and click the holder onto the brush until it locks. Wash the dirty cloth with water and soap, then let it dry completely.

Is it possible to use the vacuum without the steam function?

Yes, you can use the vacuum in vacuum-only mode with any brush. For the steam brush, simply do not press the STEAM button.

What to do if suction power decreases?

Turn off and unplug the vacuum. Check that the tube, hose, and brush are not blocked. Empty the dust container if full. Clean the exhaust filter (dry) and the air filter and motor safety filter (with water). If the problem persists, contact customer service.

Can I vacuum water or liquids with this vacuum?

No, this vacuum is not designed to vacuum liquids. Never vacuum water, as it would damage the appliance and pose a risk of electric shock.

How to store the vacuum after use?

Turn off the vacuum and unplug the cord. Press the cord rewind button. Empty the dust container if necessary. Clean the microfiber cloth and let it dry. Store the vacuum indoors, in a dry place, avoiding placing the hot brush directly on the floor.

USER MANUAL VK9820SCSUY LG

This information contains important instructions for the safe use and maintenance of the vacuum cleaner. Especially, please read all of the information on page 4,5 for your safety. Please keep this manual in an easily accessible place and refer to it anytime.

VK9820SCSUY

MANUEL D'UTILISATION

ASPIRATEUR KOMPRESSOR MULTI-CYCLONIQUE

Important safety instructions 3-5

Assembling vacuum cleaner 15~16

Operating vacuum cleaner 17

Using the carpet master. 18

Using the accessory nozzles 20

Basic operation of the steam cleaner. 12

Vacuum cleaning, steam cleaning, simultaneous vacuum and steam cleaning 13

Cleaning hardwood/laminated/general floor/carpet, when removing old stain/floor stain 14

How to supply water, how to replace and clean the microfiber cloth 15

Cleaning dust tank 22

Cleaning air filter and motor safety filter 23

Cleaning exhaust filter 24

Storage method after use 25

What to do if your vacuum cleaner does not work 26

What to do when suction performance decreases 26

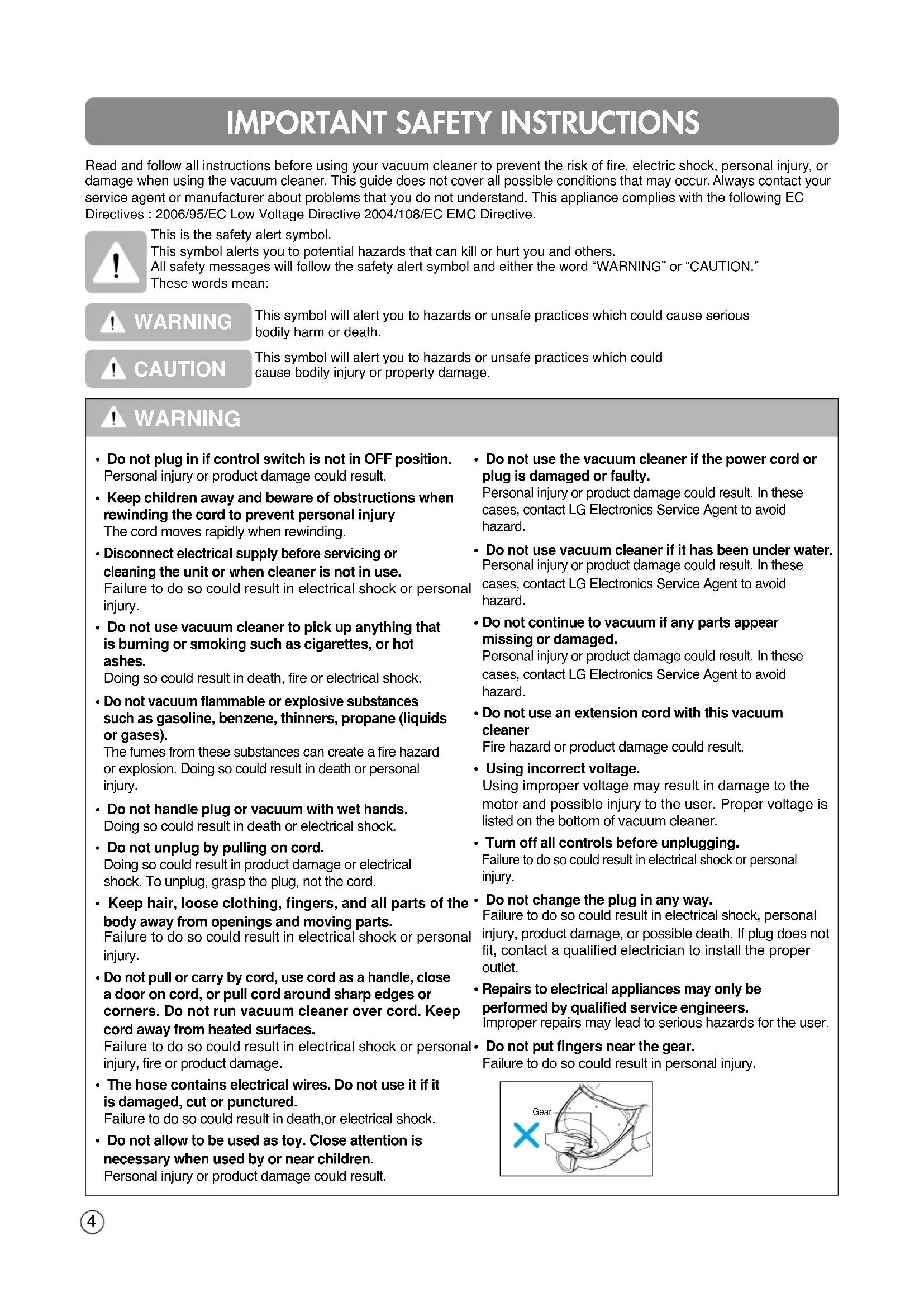

IMPORTANT SAFETY INSTRUCTIONS

Read and follow all instructions before using your vacuum cleaner to prevent the risk of fire, electric shock, personal injury, or damage when using the vacuum cleaner. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This appliance complies with the following EC Directives : 2006/95/EC Low Voltage Directive 2004/108/EC EMC Directive.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "WARNING" or "CAUTION."

These words mean:

WARNING

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

CAUTION

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

WARNING

• Do not plug in if control switch is not in OFF position. Personal injury or product damage could result.
• Keep children away and beware of obstructions when rewinding the cord to prevent personal injury The cord moves rapidly when rewinding.
• Disconnect electrical supply before servicing or cleaning the unit or when cleaner is not in use. Failure to do so could result in electrical shock or personal injury.
• Do not use vacuum cleaner to pick up anything that is burning or smoking such as cigarettes, or hot ashes. Doing so could result in death, fire or electrical shock.
• Do not vacuum flammable or explosive substances such as gasoline, benzene, thinners, propane (liquids or gases). The fumes from these substances can create a fire hazard or explosion. Doing so could result in death or personal injury.
• Do not handle plug or vacuum with wet hands. Doing so could result in death or electrical shock.
• Do not unplug by pulling on cord. Doing so could result in product damage or electrical shock. To unplug, grasp the plug, not the cord.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts. Failure to do so could result in electrical shock or personal injury.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.

Failure to do so could result in electrical shock or personal injury, fire or product damage.

• The hose contains electrical wires. Do not use it if it is damaged, cut or punctured. Failure to do so could result in death, or electrical shock.

• Do not allow to be used as toy. Close attention is necessary when used by or near children. Personal injury or product damage could result.

• Do not use the vacuum cleaner if the power cord or plug is damaged or faulty.
  Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.

• Do not use vacuum cleaner if it has been under water. Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
• Do not continue to vacuum if any parts appear missing or damaged. Personal injury or product damage could result. In these cases, contact LG Electronics Service Agent to avoid hazard.
• Do not use an extension cord with this vacuum cleaner

• Fire hazard or product damage could result.

• Using incorrect voltage.
  Using improper voltage may result in damage to the motor and possible injury to the user. Proper voltage is listed on the bottom of vacuum cleaner.

• Turn off all controls before unplugging.

Failure to do so could result in electrical shock or personal injury.

• Do not change the plug in any way.
  Failure to do so could result in electrical shock, personal injury, product damage, or possible death. If plug does not fit, contact a qualified electrician to install the proper outlet.
• Repairs to electrical appliances may only be performed by qualified service engineers.

Improper repairs may lead to serious hazards for the user.

Do not put fingers near the gear.

Failure to do so could result in personal injury.

WARNING

• Be careful when using the product on hardwood, coated floor, brick floor and high quality floor etc.

It can cause discoloration or deformation depending on the floor material.

• Do not stay in one location or use it on the same location repeatedly.

It can cause discoloration or deformation by the hot heat of the steam.

• Do not open the water hole cap of the nozzle or supply water when the product is being used or when the power is turned on.

It could cause burns from hot water spilling over.

• Never flip or tilt the steam nozzle when the power is turned on, being used for cleaning or right after finishing cleaning.

It can cause burns from the spraying of steam.

• When cleaning the exterior of the nozzle, always unplug the power and do not use volatile substance.

It can cause electric shock and exterior damage.

• Do not touch the bottom surface of the steam nozzle directly with you hands or feet.

It can cause burns.

• Do not pour in synthetic detergent, chemical substance and other substances instead of water.

It can cause product damage or explosion.

• Do not clean the exterior and bottom surface of the steam nozzle with water or detergent

It can cause product damage and electric shock.

• Unlike the hose of the existing cleaner, high current flows through the hose, this can cause fire and electric shock.

• Make sure the steam is not applied directly to human or animal.

It can cause a direct burn.

• Make sure that children, the elderly or people who do not know how to operate the cleaner, do not use the product.

It can cause burns.

• Do not directly touch the surface of the nozzle when cleaning or when the nozzle is heated.

It can cause burns.

• Do not vacuum water or clean with water because the steaming hose is internally installed on the electric connection part.

Periodically check whether there are any problems with the pipe and if there are any damaged parts, stop using the product and contact the service center.

• When attaching or replacing the microfiber cloth, turn off the power and use the cloth board to attach/ detach the cloth.

If you replace the microfiber cloth with the power on, it can cause damage on the floor or cause a fire.

• If the circuit breaker trips when the power is turned on or when using the steam cleaner, immediately stop using the product and contact the AS center.

It can cause electric shock may occur.

• Do not use the steam nozzle on the wooden floor.

It can cause discoloration or deformation when using the steam nozzle.

CAUTION

• Do not put any objects into openings.

Failure to do so could result in product damage.

• Do not use with any opening blocked: keep free of dust, lint, hair, and anything that may reduce air flow.

Failure to do so could result in product damage.

• Do not use vacuum cleaner without dust tank and/or filters in place.

Failure to do so could result in product damage.

Always clean the dust bin after vacuuming carpet cleaners or fresheners, powders and fine dust.

These materials clog the filters, reduce airflow and can cause damage to the cleaner. Failure to clean the dust bin could cause permanent damage to the cleaner.

• Do not use vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc.

They may damage the cleaner or dust bin.

• Store the vacuum cleaner indoors.

Put the vacuum cleaner away after use to prevent tripping over it.

• The vacuum cleaner is not intended by use by young children or infirm people without supervision.

Failure to do so could result in personal injury or product damage.

• Only use parts produced or recommended by LG Electronics Service Agents.

Failure to do so could result in product damage.

• Use only as described in this manual. Use only with LG recommended or approved attachments and accessories.

Failure to do so could result in personal injury or product damage.

• To avoid personal injury and to prevent the machine from falling when cleaning stairs, always place it at the bottom of stairs.

Failure to do so could result in personal injury or product damage.

• Use accessory nozzles in "MIN" mode.

Failure to do so could result in product damage.

• Don't grasp the tank handle when you are moving the vacuum cleaner.

The vacuum cleaner's body may fall when separating tank and body. Personal injury or product damage could result. You should grasp the carrier handle when you are moving the vacuum cleaner.

• If after emptying the dust tank the indicator light is on(red), clean the dust tank.

Failure to do so could result in product damage.

• Make sure the filters (exhaust filter and motor safety filter) are completely dry before replacing in the machine.

Failure to do so could result in product damage.

• Do not dry the filter in an oven or microwave.

Failure to do so could result in fire hazard.

• Do not dry the filter in a clothes dryer.

Failure to do so could result in fire hazard.

• Do not dry near an open flame.

Failure to do so could result in fire hazard.

• If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Thermal protector :

This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating.

If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner.

Check the vacuum cleaner for possible source of overheating such as a full dust tank, a blocked hose or clogged filter.

If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner.

After the 30 minute period, plug the vacuum cleaner back in and turn on the switch.

If the vacuum cleaner still does not run, contact a qualified electrician.

CONSIGNES DE SECURITE IMPORTANTES

How to use Assembling vacuum cleaner

Push the nozzle into the telescopic pipe.

Push the fitting pipe on the flexible hose into the attachment point on the vacuum cleaner.

To remove the flexible hose from the vacuum cleaner, press the button situated on the fitting pipe, then pull the fitting pipe out of the vacuum cleaner.

How to use Operating vacuum cleaner

Pull out the power cord to the desired length and plug into the power outlet
- Press the control button of the hose handle to operate vacuum cleaner.
To turn off, press the OFF button.

• Press the cord reel button to rewind the power cord after use.

When indicator light flashes and alarm sounds 1. Detection of the signal: the REFLEX detector
1. Dust tank is full press the OFF button and enjoy custank
2. Power is on without dust tank press the OFF button and restart dust tank
3. Rotating plate in the dust tank is restricted because of obstruction

press the OFF button and remove obstruction

REMARQUE

How to use Using all floor nozzle and hard floor nozzle

How to use Using hard floor nozzle

How to use Using accessory nozzles

Upholstery nozzle is for vacuuming upholstery, mattresses etc. The thread collectors help to pick up the threads and fluff.

Dusting brush is for vacuurning picture frames, furniture frames, books and other irregular surfaces.

Crevic e tool is for vacuuming in those nomally hard-to-reach place such as reaching cobwebs or between the cushions of sofa.

How to use Basic operation of the steam cleaner

By using the steam cleaning vacuum tool, you can do vacuum cleaning and steam cleaning simultaneously or individually, in an easy way.

Always hold the steam safety switch during steam cleaning.

Align the extension pipe (2) and the terminal part of the steam cleaning vacuum tool (3), and connect the two completely until you hear the "Click". If the steam cleaning vacuum tool and the extension are not completely connected, the nozzle will be pulled out or the steam will not be generated.
- Connect the hose (1) and the extension pipe (2) completely until you hear the "Click" sound.
- When you press the "STEAM" button (4) on the function control button on the handle part of the hose (1), the steam will be generated. Initial steam generation time is about 2.5 minutes and it will take a little longer for the cloth to get wet. You must operate the "STEAM" button after filling the water.
- When you press the "STEAM" button (4)one more time or press the "OFF" button (5), the steam will stop.

To supply water, always unplug the power then pour the water into the unit. Open the water hole can of the steam cleaning vacuum tool.

• Use the measuring cup to pour 250cc of water and then close the water hole cap tightly. Before attaching the microfiber cloth, you must always turn off the power.
• After attaching the cloth on the cloth board, install it on the nozzle for steam cleaning. Be careful because the cloth board can be hot.
  After aligning the vacuum tool with the cloth board, press it from the top. Until you hear the clicking sound.

To prevent safety accidents during steam cleaning, if you do not press the steam safety switch within 30 seconds, the unit will recognize that the cleaning has been completed and turn off the power. If you want to use the steam again, press the "STEAM" button one more time.

• During initial steam nozzle operation, it will operate for 150 seconds (2.5 minutes) even when you do not press the steam safety switch.
• About 2 minutes after pressing the "STEAM" button, you can start the cleaning and after about 2.5 minutes, you can visibly see the steam.
• The cloth can get wet faster depending on how the steam vacuum tool is used and the time. At this time, when you replace the cloth, you can clean with a dry cloth.

How to use Vacuum cleaning, steam cleaning, simultaneous vacuum and steam cleaning

• Do not use the steam nozzle on the wooden floor. It can cause discoloration or deformation when using the steam nozzle.

AVERTISSEMENT

How to use Cleaning hardwood/laminated/general floor/carpet

When removing old stain/floor stain

When removing old stain/floor stain Elimination des taches

When cleaning on the carpet, don't operate the function control button to "MAX" or "MIN" mode. It can cause fire or electric shock.

AVERTISSEMENT

How to use How to supply water, how to replace and clean the microfiber cloth

To reduce the foreign particles formed inside the water tank as much as possible, use clean water.
- When supplying the water, you must stop operating the steam cleaning vacuum tool and unplug the power.
- When supplying the water, pull down the hose handle to the floor and supply the water.

ATTENTION

When replacing the microfiber cloth, always make sure the power is turned off. Detach the cloth board from the steam cleaning vacuum tool and replace the microfiber cloth. Attach the white side of the microfiber cloth on the cloth board on the bottom surface of the cleaner.
- Reuse the dirty cloth by cleaning it with clean water, soap, detergent etc. and then by completely drying the cloth in the shade.

How to use Using the sani punch nozzle

This nozzle is ideal for picking up dust through porous surfaces such as thick blankets and mattresses, as a result of the vibrating action of the sani punch nozzle. The bottom part can be separated to be cleaned. Since the bottom does not stick to the surface, vacuuming is easy.

\section*{Caracteristiques}

Follow the directions below for proper use.

Utilisation

Connect the nozzle to the telescopic tube.

Assemblage

Set the suction power control switch to MAX POWER before vacuuming.

Depending on the type of surface handling may be awkward or it may cause a lot of noise.

If this is the case, adjust the suction power control switch to a lower setting.

The sani punch nozzle is effective for cleaning of beds and blankets to remove mites and dust.

Lay out the blanket and vacuum it on the bed

It is easier to clean a light blanket or sheet

by pushing the nozzle in the direction of the arrow.

To increase cleaning efficiency for light blankets, lay on top of a bulky blanket and then clean.

For simple cleaning of the vacuum nozzle, detach the sani punch nozzle from the telescopic tube and attach the crevice tool to vacuum dust.

Since the vibrator inside is composed of precision parts, never disassemble the unit.

Be careful not to let foreign objects clog the air suction part on top of the vacuum nozzle.

Since removal of the punch bar may cause performance problems, do not warp or remove it.

Attach the bottom plate properly before using. Without this bottom plate, it may not function.

Since this vacuum nozzle has been made exclusively for cleaning beds, blankets and upholstery, use it only for these cleaning purposes.

(Using it to clean the floor may result in soiling it or a decrease in performance, do not use it for such purposes.)

Push the button 2-3 times when the dust compartment is full.

This should be done while cleaning and vacuum is on.

When the dust is fully filled after cleaning, take the bin and turn it counterclockwise to disconnect

Empty the dust in the bin.

Reattach the bin to the projection part.

How to use Emptying dust tank

The dust tank needs emptying when indicator light is on. - Turn off the vacuum cleaner and unplig it.
- Grasp the handle of the tank and then press the tank separation lever. - Pull out the dust tank.
- Empty the tank and then assemble the dust tank as below

Moving the vacuum cleaner

• Don't grasp the tank handle when you are moving the vacuum cleaner.

The vacuum cleaner's body may fall when separating tank and body. You should grasp the carrier handle when you are moving the vacuum

How to use Cleaning dust tank

If suction power decreases after cleaning dust tank, then clean air filter and motor safety filter. → Next page

REMARQUE

How to use Cleaning air filter and motor safety filter

If suction power is decreased after cleaning dust tank or indicator light is on, clean air filter and motor safety filter. Air filter and motor safety filter are located at the top of vacuum cleaner in the above figure.
- Open the Vacuum cleaner cover by pushing the button.
- Grasp the handle of the dust separator and take it out.
- Open the guide cover by pulling the guide cover lever and remove dust.
- Open the pre filter cover by pulling the pre filter cover lever and take out pre filter.
- Wash air filter and motor safety filter with water
- Do not wash filters with hot water
- Dry fully in shade so that moisture is entirely removed.
Air filter and motor safety filter should be cleaned in the above case.

If filters are damaged, do not use them.

In this cases, contact LG Electronics Service Agent.

Wash filters at least every 3 months.

How to use Cleaning exhaust filter

• The exhaust filter is reusable.
  To clean the exhaust filter, remove the exhaust filter cover on the body by pulling it out.
• Separate the exhaust filter.
• Dust off filter.(Do not wash filter with water.)
  The exhaust filter should be cleaned at least once a year.

Exhaust filter cover assembling

• Fit exhaust filter cover lugs to the grooves of vacuum cleaner body.
• Join it to the body.

How to use Storage method after use

• Turn off the power switch and unplug the power.

• After using the microfiber cloth, directly clean the

• Always separate the cloth after cleaning, and wash the cloth. When the cloth is exposed for a long time, it can generate a bad odor.

• Always store the steam cleaning vacuum tool on the storage board. If the hot potrin is directly left on the floor, it can damage the floor.

• When the product is not used for a long period of time, completely remove any moisture within the nozzle.

• After the water inside the nozzle is completely cooled, empty the water. When you empty the water right after the cleaning or when the water is very hot, it can damage the product and cause burns. When removing the water, you can easily empty the water by separating the nozzle from the pipe.

• Eteignez l'aspirateur et cebranche z le cordon d'alimentation.

• Netoyerz le chiffon microfibre immédiatement après l'avoir utilisé.

• Enevloz toujls chiff en apree le notoyage et lavze-le. Si youn lavze pas le chiffon regulierement, il peut cogager une oedre cedarable.

• Rangez toujours l'aspirateur en posant la Brosse vapeur sur la plaque.

What to do if your vacuum cleaner does not work

Check that the vacuum cleaner is plugged in correctly and that the electrical socket is working.

What to do if your vacuum cleaner does not work

What to do when suction performance decreases

• Turn off the vacuum cleaner and unplug it.
• Check the telescopic pipe, flexible hose and cleaning tool for blockages or obstructions.
• Check that the dust tank is not full. Empty if necessary.
• Check that the exhaust filter is not clogged. Clean the exhaust filter if necessary.
• Check that the air filter is not clogged. Clean the air filter if necessary.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

Warranty Certificate For offer a 24-month warranty for this apparatus

During the 24-month warranty period, we will repair your apparatus at no cost to you or make available spare parts to your dealer free, if this apparatus fails due to manufacturing or material defects. Further claims are excluded. We are not liable for damages due to acts of providence or damages occurring during transport. The buyer assumes shipping and packaging costs. Your warranty conditions on the rear also apply!

Type of apparatus:

Serial number:

Name of buyer:

Purchase date:

Dealer's stamp and signature

Warranty conditions for vacuum cleaner

1. The warranty period begins on the purchase date and is valid for 24 months. Begin of warranty period is proven if, the buyer submits purchase receipt together with the warranty card, filled in and signed by the seller. The serial number of the product must agree with the number entered onto the warranty card.
2. During the warranty period, we will correct any defects at no cost to you, if it can be proven that these are attributed to manufacturing or material defects.

3. Damages due to incorrect handling, noncompliance with instructions for use and normal wear are not covered by this warranty. Also, the warranty does not cover wear parts or easily broken parts (for example, viewing glass, light bulbs). The buyer is responsible for any damages during transport as well as shipping and packaging costs.

4. We decide whether to make repairs, exchange or replace parts. Exchanged or replaced parts are our property. The original warranty period is not prolonged if a refrigerator is repaired or certain parts are replaced.

5. The warranty is nullified if any person intervenes in the apparatus that are not authorised by LG Electronics, if the apparatus is used for commercial purposes.
6. Always keep the original packaging, so that if the apparatus requires servicing, it can be transported without damaging it.
7. If a repair is covered by this warranty, always contact your dealer or an authorised service centre.
8. Further claims are excluded. If parts of these provisions are invalid, they apply in the sense of the wording. The validity of the other provisions is not effected.
