Product type	Robot vacuum
Brand	LG
Model	VPARQUET (VR6260 Ser. / VR6270 Ser.)
Main unit dimensions	340 mm × 340 mm × 89 mm
Weight	3 kg
Battery type	Lithium-ion polymer battery (14.8 V / 1900 mAh)
Charging time	Approximately 3 hours
Runtime	Approximately 100 minutes (on hard floor)
Power consumption	18 W (robot) / 23 W (charging base)
Base power supply	230 V~ 50 Hz, output 17.1 V / 1.1 A

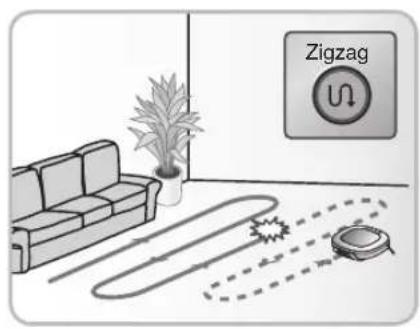

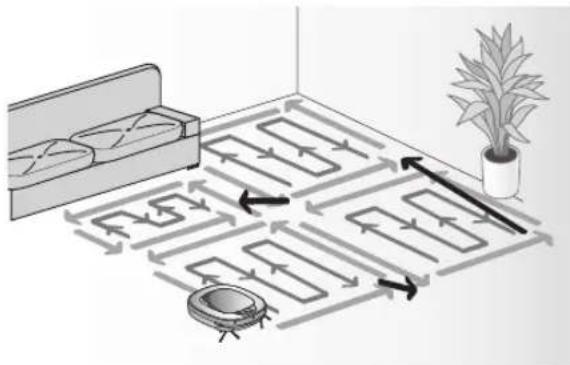

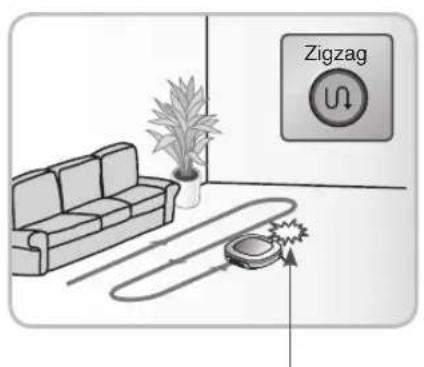

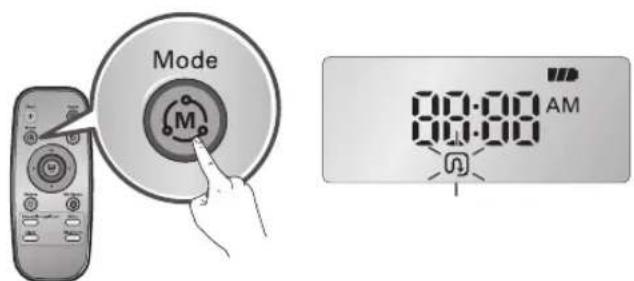

Cleaning modes	Zigzag, Zone by zone, Spiral (Spot), My space, Repeat, Turbo
Smart functions	Smart Drive (environment memory), self-diagnosis, navigation, automatic return to base
Filtration system	HEPA filter + sponge filter
Brushes	Main brush, 2 side brushes
Included accessories	Remote control (2 AAA batteries), charging base, microfiber cloth and holder, cleaning brush

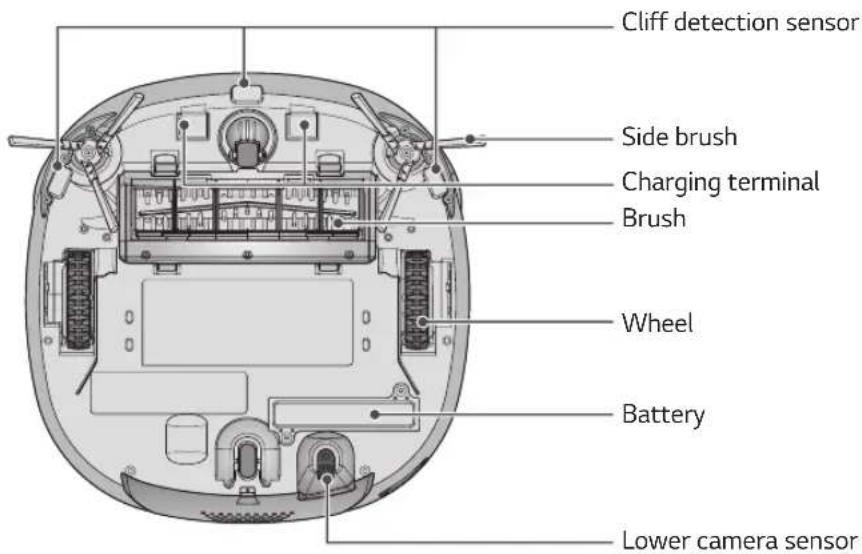

Sensors	Obstacle detection, anti-drop, bottom camera, ultrasonic
Noise level	Not specified (estimated: around 60 dB)
Warranty	24 months (battery: 12 months)
Recommended maintenance	Empty dustbin after each cycle, clean HEPA filter once a week, clean brushes regularly
Safety	Automatic stop when lifted, fall detection, button lock

Frequently Asked Questions - VPARQUET LG

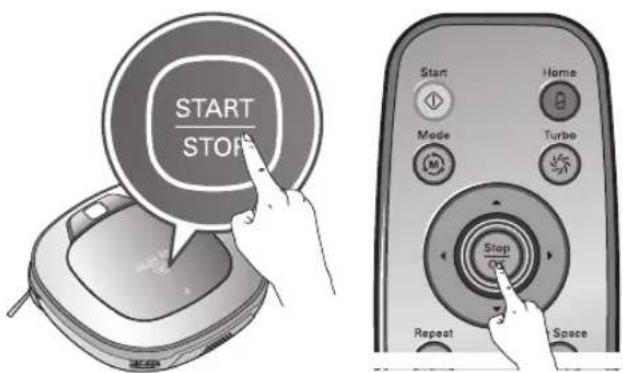

How to start cleaning with the LG VPARQUET robot vacuum?

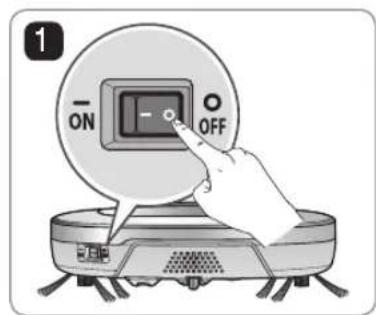

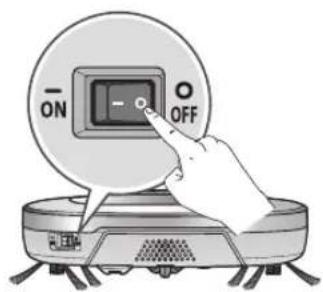

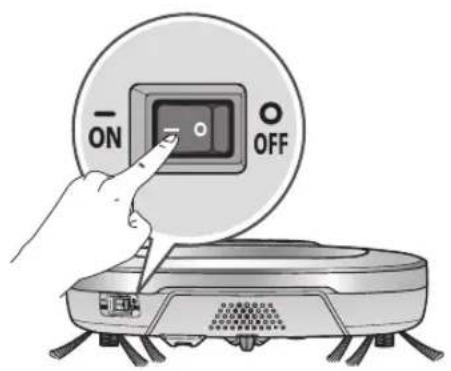

Make sure the main switch on the back of the robot is set to ON. Then press the START/STOP button on top of the robot. A beep indicates the start of cleaning. You can also use the remote control.

Why is my robot vacuum not charging?

Check that the charging base is plugged in and the indicator light is on. Clean the charging terminals with a dry cloth. Make sure the robot's main switch is set to ON. If the problem persists, run a self-diagnosis from the remote control.

How to schedule cleaning at a specific time?

When the robot is charging on its base, press the Schedule button on the remote control. Use the arrows to set the time and choose Once or Every day. Confirm with the Stop/OK button.

What to do if the robot vacuum makes an abnormal noise or has weak suction?

Empty the dustbin and clean the HEPA filter. Check that no foreign object is blocking the main brush or the suction duct. If the noise persists, inspect the side brushes and remove tangled hair.

How to clean the HEPA filter of the vacuum?

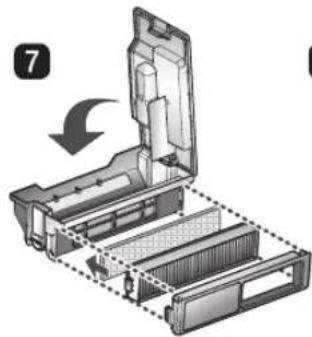

Remove the dustbin, then separate the HEPA filter from the sponge by pulling the tab. Clean the HEPA filter with a brush or vacuum cleaner – do not wash it with water. The sponge can be rinsed with clean water and dried completely in the shade before reassembling.

The robot vacuum does not return to its charging base, what to do?

Make sure the base is clear (1.5 m on each side, 2 m in front). Clean the infrared sensors on the base and the robot with a dry cloth. If the problem persists, press the Home button on the robot or remote control to force the return.

Can I use the microfiber cloth on all floors?

The microfiber cloth is designed for hard and dry floors. Do not use it on carpets, wet or stained floors. Remove it before cleaning thick carpets, as the robot may not cross thresholds over 5 mm.

How to perform a diagnostic of the vacuum?

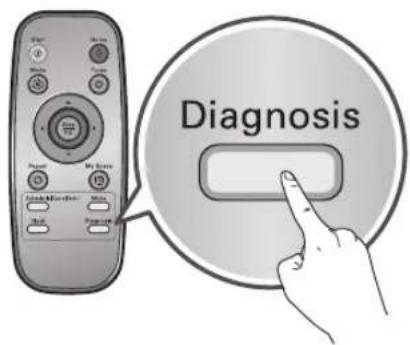

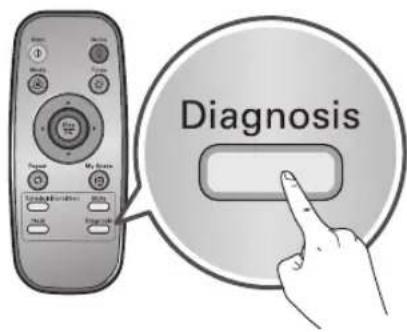

Place the robot on its charging base and press the Diagnosis button on the remote control. Step back and remove any objects within a 1 m radius. The robot will analyze its components and announce the results. In case of an error, refer to the voice message table in the manual.

What to do if the remote control does not work?

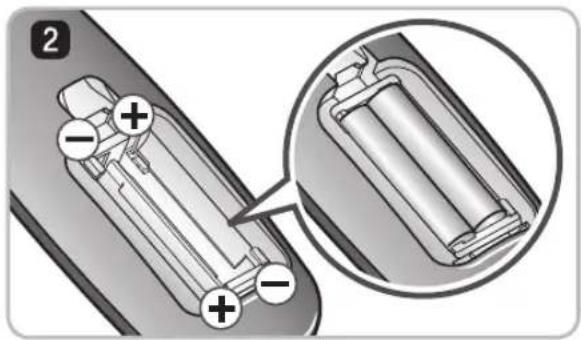

Check that the batteries (AAA) are correctly inserted and not drained. Make sure the robot's main switch is set to ON and you are within 3 m of the robot. Avoid nearby fluorescent lights.

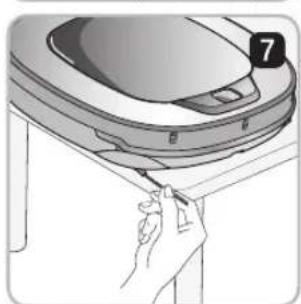

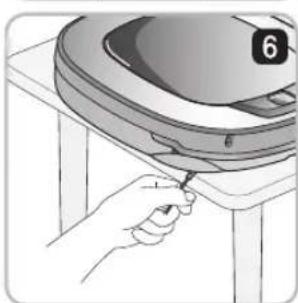

How to replace or clean the side brushes?

To clean: soak the brushes in hot water, wipe them, and straighten the bristles. To replace: remove the screws with a screwdriver, detach the brush, then attach the new one respecting the L (left) and R (right) markings. Tighten the screws.

USER MANUAL VPARQUET LG

Before using, please carefully read the Safety Precautions pages to allow for safe operation of the product. After reading the operation manual, please keep it in an easily accessible location.

VR6260 Ser.

VR6270 Ser.

Corner Master

By having adopted a brand new concept design that is appropriate for walls, the Robot Cleaner's cleaning performance is incredibly efficient.

Learning Mode

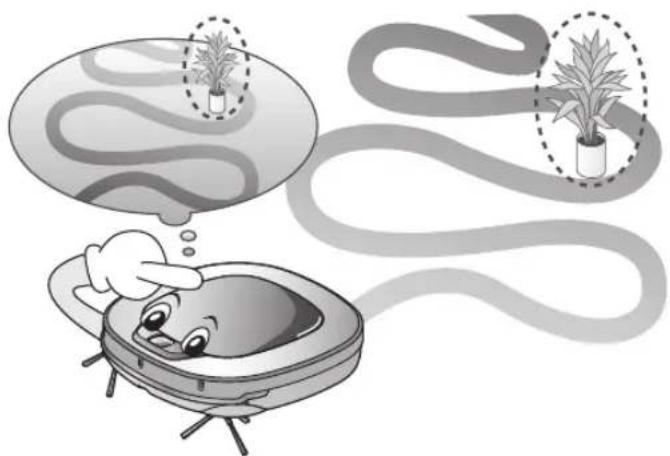

The Robot Cleaner is capable of memorizing the cleaning environment via its Smart Operation feature for smarter cleaning.

Turbo Mode

In the "Turbo" mode, the Robot Cleaner runs more powerful giving cleaner results. When selected, the "Turbo" mode is automatically activated on carpets, which enables the Robot Cleaner to run more efficiently.

Drawer Mop Plate

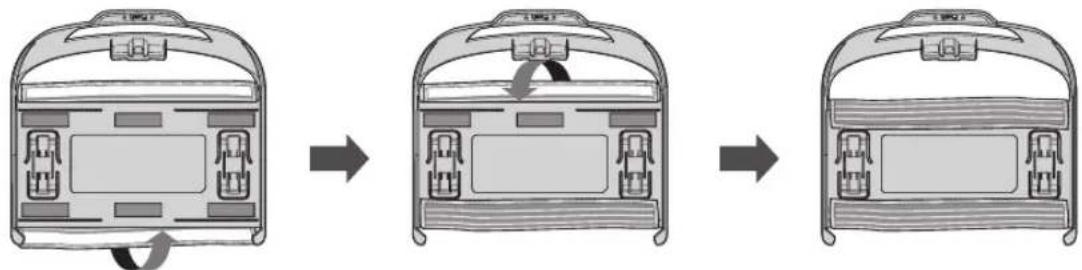

The "Drawer mop plate" makes it much easier for users to change the mop without having to flip the device over.

My Space Mode

By commanding it to clean a particular space, the Robot Cleaner quickly cleans the desired space.

Repeat Cleaning

The Robot Cleaner will continuously clean until the battery runs out.

Location Search Function

When the Robot Cleaner is moved from a spot while operating, the device will automatically search for the previous location and return to the spot from where it was interrupted.

CONTENTS

1 BEFORE USING

2\~5 Safety precautions

6 Included with product

7\~8 Parts description

9-10 Button functions

11 Display status information

12 Before you start

13 Overview

2 METHOD OF USE

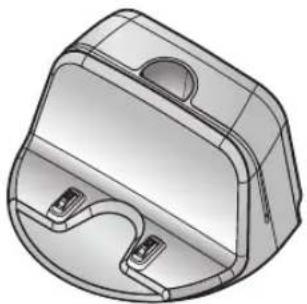

14 How to install the home station

15 How to turn the Robot Cleaner power supply on & off

16 How to start and stop cleaning

17\~18 How to charge the battery

19\~20 Cleaning modes

21\~22 Auxiliary cleaning modes

23 Time setting

24 Scheduled cleaning

25 Mop cleaning (option)

26 Location search function

27-28 Smart diagnosis

3 HANDLING METHOD AFTER USE

29 Cleaning the dust bin

30 Cleaning the dust bin filter

31 Cleaning the brush

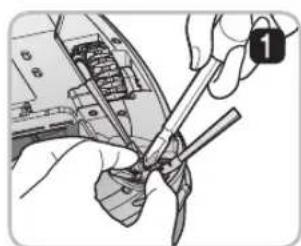

32 Cleaning the sensor/charging terminal

33 Cleaning the side brush

34 Cleaning the ultra microfi ber mop (option)

4 ADDITIONAL INFORMATION

35\~37 Troubleshooting

38 Before you call for service

5 REFERENCE

39 Product specifications

40 Open source software notice

The purpose of the safety precautions described below is for the user to use the product safely and correctly to prevent any unexpected risk of injury or damage.

Basic safety precautions

After reading this manual, please keep it in an easily accessible location.

This is the safety alert symbol. This symbol alerts you to potential hazards that can result in property damage and/or serious bodily harm or death.

WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

WARNING

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by LG Electronics Service Agent in order to avoid a hazard
4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance must not be made by children without supervision.

Cartoon illustration of a child running with tools and a computer monitor (no text or symbols)

For your safety, do not remove the battery from the Robot Cleaner. If you need to replace the battery or the Robot Cleaner, take it to the nearest authorized LG Electronics service center or dealer for assistance.

Failure to follow this warning can cause fire or product failure.

Technical line drawing of a mechanical assembly or device with no visible text or symbols

Never use the Robot Cleaner with a battery and/or home station from any other product than the Robot Cleaner. Doing so can cause fire or product failure.

WARNING

Make sure the power cord of the home station is not crushed under a heavy object or damaged by contact with sharp objects.

Failure to follow this warning can cause electric shock, fi re or product failure. If the power cord is broken, do not plug it in. Take the product to an LG Electronics Authorised service repairer.

Do not use the Robot Cleaner when candles or fragile objects are placed on the floor.

Doing so can cause fire or product failure.

Illustration of a plug plug with steam rising, no text or symbols present

Do not place the home station and the Robot Cleaner near a heating device.

Doing so can cause product deformation, fire, or product failure.

Always use a dedicated power outlet with a 10 amp rating.

If multiple appliances are connected to an outlet simultaneously, they can generate enough heat to cause a fire.

Do not force the power plug to bend. Do not use the power plug when it has been damaged or loosened.

Doing so can cause fire or product failure.

When pulling out the home station power plug, always pull it out by grabbing the plug, not the cord. When pulling out the power plug, do not to touch the prongs with your fingers.

Doing so can cause an electric shock.

Do not touch the power plug with wet hands.

Doing so can cause electric shock.

Do not allow children or pets to play with or rest upon the Robot Cleaner at any time. Do not use the Robot Cleaner while an object is hanging from it.

Doing so can cause injury or product damage.

Do not spray or use infl ammable materials, surfactants, or drinking water in the vicinity of the Robot Cleaner.

Doing so can cause fire or product failure.

* Infl ammable materials: gasoline, thinner, etc.

* Surfactant: detergent, articles for bath, etc.

Turn the power supply off immediately if any abnormal sound, odor, or smoke is generated from the Robot Cleaner by removing it from the home station and turning off the main switch on the rear side of the unit.

Failure to do so can cause fire or product failure.

Do not insert any part of the body, such as a hand or foot, below the brush or wheels of the Robot Cleaner while in use.

Doing so can cause injury or product damage.

Do not operate the Robot Cleaner in a room where a child is sleeping.

Doing so can cause injury or product damage.

Do not operate the Robot Cleaner on narrow and high furniture such as a wardrobe, refrigerator, desk, table, etc.

Doing so can cause injury, product failure or damage which is not covered by the warranty.

Do not leave Children or pets near the Robot Cleaner unsupervised.

Doing so can cause injury or product damage.

Do not activate the device on a floor that has more than a 10 degree incline.

The device may not work properly.

CAUTION

Diagram of a mechanical assembly with two butterflies emitting smoke (no text or symbols)

Frequently empty the dust bin and maintain its cleanliness.

The dust collected in the dust bin can trigger allergies and may contain harmful insects.

Illustration of a graduation cap and a ball falling into a ball (no text or symbols)

Do not drop the Robot Cleaner or subject it to strong impacts.

Doing so can cause injury or product failure not covered by the warranty.

Cartoon illustration of a smiling insect-like character inside a house outline (no text or symbols)

Use the Robot Cleaner indoors only.

Using it outdoors can cause product failure and irreparable damage to the unit.

Illustration of a crossed hammer and sickle symbol over a drum, with ice cubes nearby (no text or symbols)

Do not expose the Robot Cleaner to cold temperatures (less than -5 °C) for a long period of time.

Doing so can cause product failure.

Illustration of a robotic vacuum cleaner with open lid and internal components (no text or symbols)

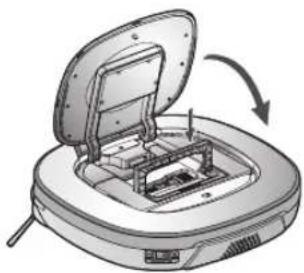

Close the cover of the dust bin on the main unit before starting cleaning.

If the cover is not closed, it can cause injury or product damage.

Cartoon illustration of a person running away from a table with a box, no text or symbols present

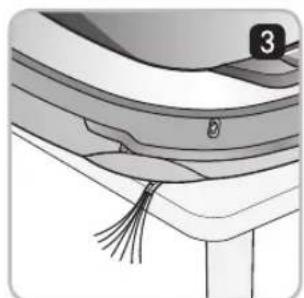

Remove any cables or string from the floor before starting.

Cable or string can get tangled in the wheels of Robot Cleaner and cause product failure or the cord of an appliance can be disconnected.

Illustration of a mechanical device with a hammer and lever mechanism (no text or symbols)

DO NOT use the Robot Cleaner around a banister, staircase or any other dangerous place.

Otherwise, the user or the product can be exposed to damage.

Illustration of a person working on a large cylindrical object with a hammer and scale, no text or symbols present.

Make sure the Robot Cleaner is not put on a table or desk, with the power ON.

It may result in injury of the user or damage in the product.

In rare cases, the Robot Cleaner's brush can damage the carpet. If this happens, immediately stop the cleaning operation.

When a carpet has long tassels, the tassels can be damaged.

Illustration of a person cooking with a steaming bowl (no text or symbols)

Do not allow the Robot Cleaner to sweep up liquids, blades, thumb tacks, kindling, etc.

These items can cause product failure.

Illustration of a person opening a door with a suitcase nearby (no text or symbols)

Do not let the main unit and charging terminal of the home station come into contact with metallic objects.

Doing so can cause product failure.

Cartoon illustration of a person holding a tablet with a speech bubble and 'NO' sign above, no readable text or symbols present.

Do not put sharp objects into the opening of the Robot Cleaner's ultrasonic sensor.

Doing so can cause product failure.

Illustration of a child cleaning a bowl while another person holds a bucket (no text or symbols)

Do not put water, detergent, etc. into the Robot Cleaner.

Doing so can cause product failure. Do not put any water or detergent on the Robot Cleaner. If liquids get inside of the Robot Cleaner, turn off the power supply and contact an LG Electronics sales agent or customer care center.

Cartoon illustration of a crossed donut with arms and legs, no text or symbols present

Do not use the Robot Cleaner when the dust bin is completely filled up.

Doing so can cause product failure.

CAUTION

Illustration of a child painting a large character (no text or symbols present)

If the floor is wet or has wet spots, wipe them up before using the Robot Cleaner. Do not use the Robot Cleaner on a wet surface.

Failure to do so can cause product failure.

Cartoon illustration of a helicopter with wings and a 'NO' sign, no text or symbols present

When the robot cleaner is operating, it may hit the chair leg, desk leg, table leg or other narrow pieces of furniture.

For quicker and better cleaning, place the dining chairs on top of the dining table.

When attaching the mop, do not block the bottom camera sensor.

Blocking the bottom camera sensor may not allow the product to work smoothly.

Illustration of a hand using a tool to lift a wooden plank (no text or symbols visible)

Make sure the plate on the floor is higher than 2 cm from the ground before starting the cleaning.

If the threshold is low, the Robot Cleaner can go over it and perhaps into an undesirable location. Make sure that all the doors of the rooms that are not to be cleaned are closed.

If you do not use it to save the energy, turn off the power switch, and turn on the power switch when you are cleaning or recharging it.

Tip

Check the following items before use:

• Empty the dust bin after each operation or prior to it filling up.
• Remove any cables or long strings from the floor.
• Remove any moisture from the floor before cleaning.
• Close the cover of the dust bin before cleaning.
• Remove fragile or unnecessary objects from the room to be cleaned. For example, remove expensive ceramics and valuables from the floor
• Confirm whether the battery has sufficient power, and if it is low, recharge it.
• Close the doors of any room that you do not want the Robot Cleaner to enter. During cleaning, the Robot Cleaner may enter another room and continue cleaning.
• Do not use this product in the room where a child is sleeping alone. The child can be hurt or woken.
• Remove towels, foot towel or any other thin cloth from the floor as they can get caught by the brush.
• Before starting the device, it's better to remove carpets that are thicker than 20 mm as they may cause it to malfunction.
• Please close any balcony doors. The wheels may get stuck while cleaning.

Illustration of a robotic vacuum cleaner with control panel and tripod legs (no text or symbols)

Robot Cleaner

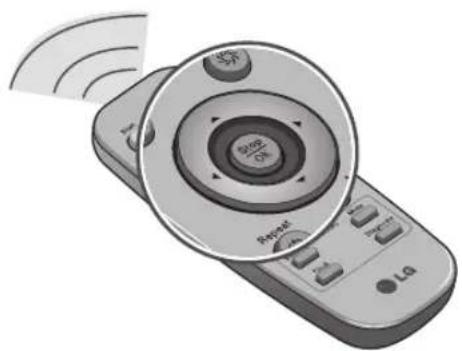

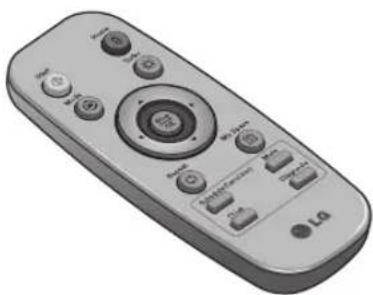

Illustration of a silver remote control with buttons and dials (no text or symbols)

Remote controller

Technical line drawing of a mechanical housing component (no text or symbols)

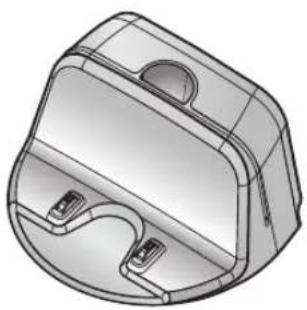

Home station

▶ Figures can be different from actual objects.

Illustration of a comb-like tool with fins and handle (no text or symbols)

Cleaning Tool

Illustration of a rectangular heat exchanger or cooling unit (no text or symbols visible)

Dust bin fi lter (spare) (option)

Quick guide Operation manual

Cleaning brush (It's on the dust bin cover)

Technical line drawing of a device casing with internal components (no text or symbols)

Mop plate (option)

Blank lined paper sheet with no visible text or markings

Ultra microfi ber mop (2 pieces) (option)

Dry cell for remote controller (2 units of AAA size)

Mechanical tool with four arms and central hub (no text or symbols)

Side brush (2 pieces) (option)

Technical line drawing of a mechanical component with threaded ends and grooves (no text or symbols)

Carpet Master (option)

Plan view

Front view

Rear view

Bottom view

▶ Figures can be different from actual objects.

Home station

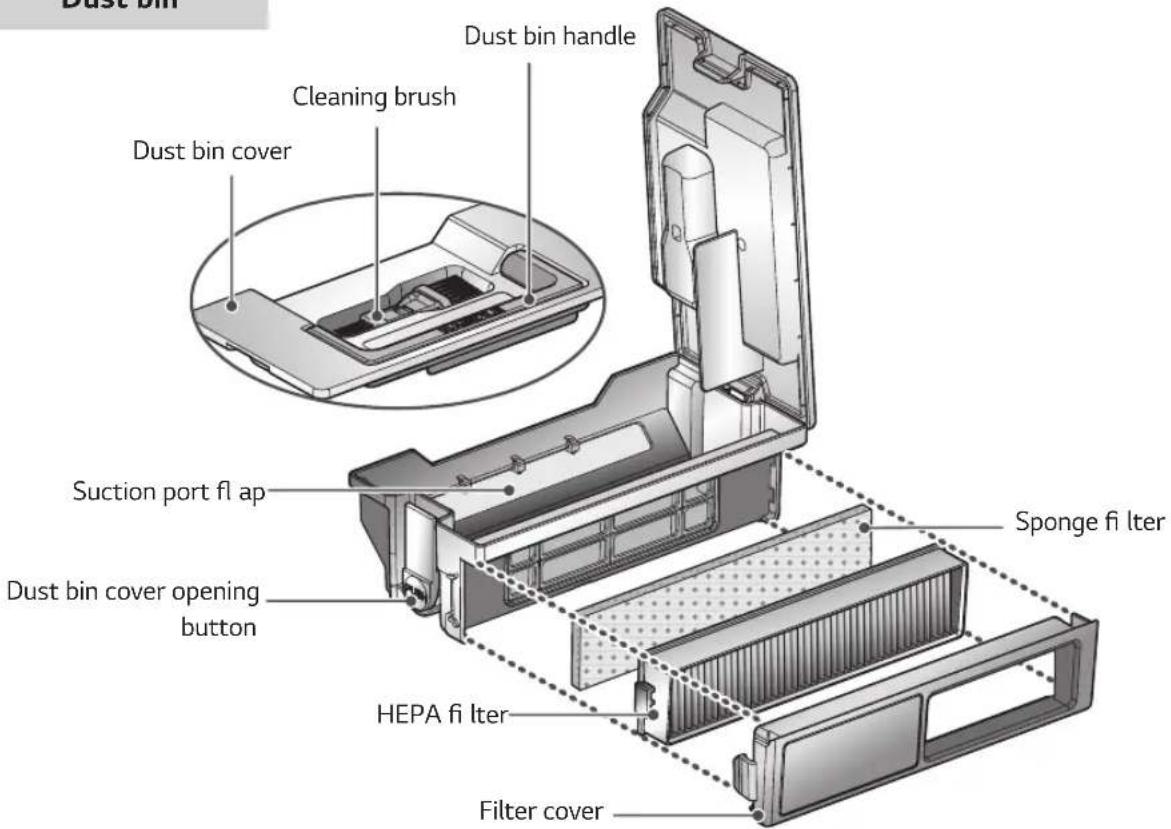

Dust bin

▶ Figures can be different from actual objects.


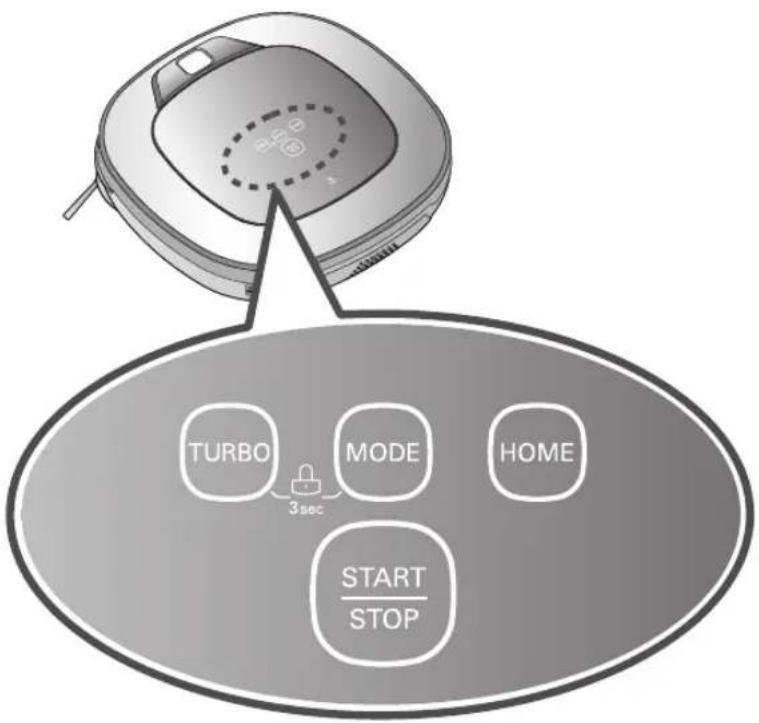

TURBO	·If the button is pressed, 'Turbo Mode' will be set with a voice confirmation.·If the button is pressed whilst in 'Turbo Mode', it will be canceled.
START/STOP	·Used to turn the power ON, start or stop cleaning.·If the button is pressed whilst the unit is powered ON, it will start cleaning.·If button is pressed during the cleaning, it will stop the cleaning.·If the button is pressed for about 2 sec. whilst the power is ON, the power will be OFF.·If the button is pressed in 'Smart Diagnosis' mode, it will end the diagnosis.
MODE	·Used to change the clean mode setting.·If the machine is at the Home Station, 'Spot Clean' option is not available.·The 'My Space' mode can only be selected by remote control (when the Robot Cleaner is not on the home station).
HOME	·Used to return the Robot Cleaner back to the home station for charging.·If cleaning is finished or the battery is low, the Robot Cleaner will return to the Home Station by itself to recharge its battery.
BUTTON LOCK On/Off	·Pressing the 'Turbo' and 'Mode' button for 3 seconds will activate or deactivate the Lock function.·If 'Lock' is ON, a voice announcement "Key has been locked" will be heard each time a button is pressed.

Tip

• Remote Controller does NOT provide a Power ON function.
• With the machine's power OFF, the Remote Controller will not work.
• To turn the power ON/OFF, use the 'Start/Stop' button on the upper section of the Robot Cleaner.
• Only use the 'Mode', 'My Space' or 'Clock' button after stopping Robot Cleaner.

Tip

• Once the clean mode is selected (Zigzag or Cell by Cell) it will be remembered even if the power is OFF.
• To cancel the reservation, please press the 'Schedule' button on the remote for 3 seconds while the Robot Cleaner is recharging.

Check these items before cleaning

• Do not use this device in a room where a child is left alone. The child could be injured.
• Remove fragile or unnecessary objects from the room to be cleaned. Especially, remove expensive ceramics and valuables from the floor.
• Close the cover of the dust bin before cleaning.
• Remove any moisture that might be on the floor.
• Remove cables, strips, towels, mats etc. from the floor so they will not get caught by the brush.
• Confirm whether the battery charge is sufficient, and if it is low, recharge it.
• Empty the dust bin before or after each clean, or before it becomes full.
• Close the doors of any room that you do not want the Robot Cleaner to enter. During cleaning, the Robot Cleaner may enter another room and continue cleaning.
• When the mop is attached, Robot Cleaner will not be able to go over thresholds of 5mm or higher. If you are not planning to use the mop for cleaning, separate the mop before using Robot Cleaner.
• Before starting the device, it's better to remove carpets that are thicker than 20 mm as they may cause it to malfunction.
• Please close any balcony doors. The wheels may get stuck while cleaning.

Loading the remote controller battery

1. Open the battery cover by lifting the rear hook of the remote controller.
2. Insert two AAA batteries, checking for +, - nodes while loading.

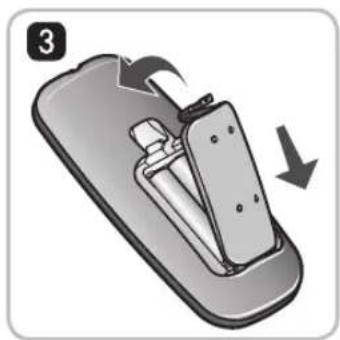

3. Close the battery cover completely so that the batteries will not fall out.

Illustration of a hand holding a small electronic device with a scroll, no text or symbols present

Illustration of a device being inserted into a tray, showing internal components and a downward arrow (no text or symbols)

Precautions while using the remote control

• Only press one button at a time.
• Do not drop or subject it to forceful impact.
• Do not store it near devices that give off heat, fire or hot air.
• Certain fluorescent lamps, such as the three band radiation lamp, can interfere with the activation of the remote control. Therefore, use it as far away as possible from such lamps.
• If the remote control is far from the Robot Cleaner when activated, it may fail to operate properly. Use the device within 3m of the Robot Cleaner if possible.

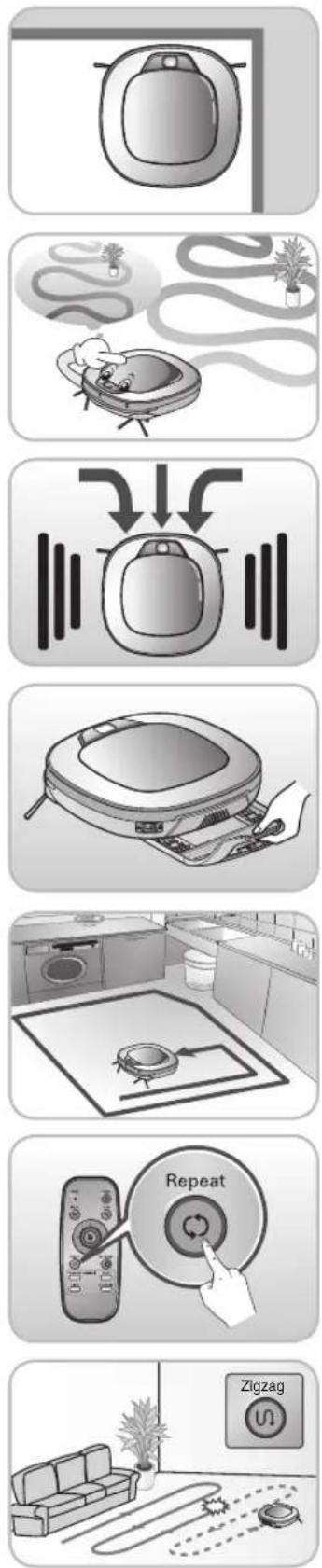

1

Install the home station. (p14)

Insert the power cord plug into an outlet and locate the station against a wall. If power is not supplied to the home station, the Robot Cleaner will not charge.

2

Turn on the power supply of the Robot Cleaner. (p15)

Turn ON the power switch on the rear-left of Robot Cleaner, and press the 'Start/Stop' button on the top.

※ If the power supply is not turned on, refer to page 15.

3

Check the dust bin.

Check the cleanness of the dust bin before start cleaning and close the cover of the dust bin on the main unit.

Diagram of a robotic vacuum cleaner with open lid and internal components, showing mechanical assembly (no text or symbols)

4

Start cleaning. (p16)

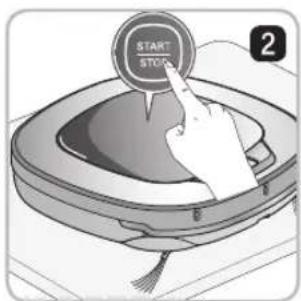

Press the START/STOP button once again while the Robot Cleaner is turned on. You will hear the sound of cleaning and cleaning will begin.

5

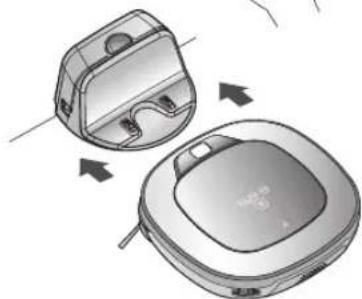

Automatic charge. (p17-18)

The Robot Cleaner will self-diagnose and automatically return to the home station to recharge before the complete discharge of the battery. It takes approximately three hours to charge the battery.

Illustration of a vacuum cleaner with two views showing internal components and airflow direction (no text or symbols)

6

Use the cleaning mode and auxiliary functions. (p19\~25)

Use the buttons on Robot cleaner and Remote Controller to use each cleaning mode and supporting feature.

Cleaning modes include ZigZag, Cell by Cell, Spot, My space, and Repeat cleaning; supporting features include Manual, Scheduled and Microfiber Mop cleaning.

Line drawing of a hand holding a remote control (no text or symbols)

When Robot Cleaner is operated with the cover of the dust bin open, it can cause an injury or serious damage to the product.

How to Install the Home Station

1. Position the home station against a wall on hard level flooring to prevent sliding during docking.

Remove objects within 1.5 m to the right and left side and within 2 m to the front.

Technical line drawing of a mechanical component or bracket with hatched areas indicating material (no text or symbols)

O

Technical line drawing of a mechanical component or bracket (no text or symbols)

X

1. Plug the power cord into an outlet.

Wrap the power cord around the fixed hook on the back side of the home station or along the wall surface so that the travel path of the Robot Cleaner will not be obstructed.

Technical line drawing of a mechanical component with no visible text or symbols

Fixing hook of power cord

Technical illustration of a mechanical component with a wire and mounting holes (no text or symbols)

O

Illustration of a mechanical component with a coiled cable and two ports, no text or symbols present.

X

1. Fix the home station against the wall so that it does not move. Please turn on the power switch.

Illustration of hands using a power switch to press a circular component (no text or symbols visible)

1. When the remote controller is not used, store it on the remote controller holder on the home station.

Technical illustration of a mechanical housing or enclosure with mounting brackets and a clip (no text or symbols)

Tip

- Always keep the home station plugged in. If the home station is not plugged in, the Robot Cleaner will not return to the station to charge automatically.

< Warning > Do not operate the Robot Cleaner if the Home Station has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. To avoid hazard, the cord must be replaced by LG Electronics, Inc. or a qualified service person.

Turning on the main power supply

Make sure the Power Switch on the rear-left of the Robot Cleaner.

If the power is OFF, turn the switch ON.

※ When turning on the power switch, do not press the button located at the upper section of the Robot Cleaner. Operation of the button can be delayed.
※ Turn off the power switch if the Robot Cleaner will not be used for a long period of time, in order to protect the battery. The Robotic Cleaner cannot charge if the main switch is in the "OFF" position.

Turning on from Stand By power.

With the power of Robot Cleaner OFF, press 'Start/Stop' button for 1 second until a "Ting" sound is heard. In about 10 seconds, the power will be on and a melody will sound.

※ If 10 minutes elapse without the Robot Cleaner having been given an active command after being turned on, the power will automatically turn OFF.

Turning off the power supply

Press the START/STOP button for two seconds while the

Robot Cleaner is turned on. A melody will sound when the power is turned off.

Tip

• If the power cannot be turned on, do the following.
• Turn on the power switch and wait for more than 3 seconds.
• Press the 'START/STOP' button when the power switch is turned on.
• If the power is not turned on or if there is no display but only the "Ting" sound, put the Robot Cleaner manually on to the home station.

Using the buttons on the Robot Cleaner

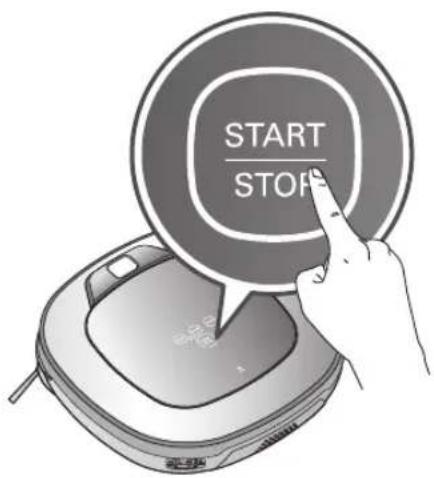

After the Robot Cleaner is turned on, press the START/STOP button to begin cleaning. A melody will sound and cleaning will begin.

Press the START/STOP button during the cleaning cycle to stop cleaning.

※ When the 'START/STOP' button is pressed while the power supply of the Robot Cleaner is turned off, the power will be turned on. Press the 'START/STOP' button one more time to start cleaning.

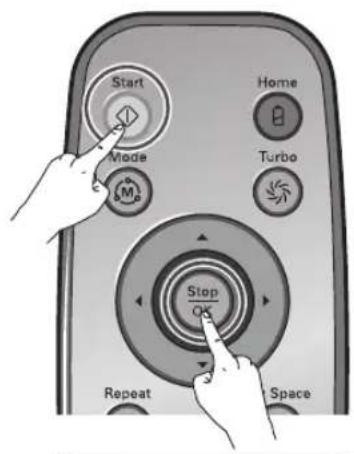

Using the remote controller

After the Robot Cleaner is turned on from the Robotic Cleaner, press the START button on the remote control. A melody will sound and cleaning will begin.

Press the STOP button during the cleaning cycle to stop cleaning.

※ The Robot Cleaner cannot be turned on from Stand By, by using the remote controller when the power of the Robot Cleaner is off. When the power is off, press the 'START/STOP' button on the upper side of Robot Cleaner to turn the power on and to allow the remote to be used.

※ During cleaning, collisions can happen when the sensor cannot detect objects because of their shape (Thin chairs and table legs, furniture corner). When this happens, the internal impact detecting sensor will react by using a backward motion.

※If the Robot Cleaner is set to start cleaning at a location away from the home station, put the Robot Cleaner on a flat floor in order to prevent a malfunction of the obstacle detecting sensor. In addition, start cleaning from a location where there are no obstacles such as curtains or walls within 30 cm of the Robot Cleaner.

Tip

For best results:

• Briefly scan the area to be cleaned for big and small objects that will cause difficulty for the Robot Cleaner.
• If cleaning is started when the Robot Cleaner is at the home station, the device can rapidly be returned to the home station as the current home position has been accurately read.
• When the mop plate is installed, to prevent a 2^nd contamination from the contaminated mop, it will not go over door sills of 5 mm or higher.

Automatic charging

The Robot Cleaner returns to the home station at the end of a cleaning cycle or when its battery is running low.

* If 10 minutes elapse without the Robot Cleaner moving or the battery is too low, the power will automatically be turned OFF.

※ Do NOT turn OFF the Main Power Switch as the battery will not be recharged. If the machine is returned manually with the Main Power Switch OFF, it shows an error message, "Main power switch on the back of the HOM-BOT is turned off. Please turn the switch on."

※ In the event that the unit returns to the Home Station due to a low battery during the cleaning, cleaning will be started, after the charging, from the nearest place of the area which has not been cleaned before. (Page 18)

※ If Robot Cleaner is unable to dock to the home station on its first attempt, it will try again until it docks successfully.

※ When Robot Cleaner has completed all areas that it can clean, it will return to the home station even when the battery level is not low.

Diagram showing a robotic vacuum cleaner with internal components and directional arrows indicating motion (no text or symbols)

Manual charging

If using the Robot Cleaner for the first time or when charging the battery during cleaning, you can manually charge the battery.

Illustration of a robotic vacuum cleaner with open lid and internal components, shown in two views (no text or symbols)

Method 1. Attach the Robot Cleaner to the home station by aligning to the front side of the home station. A melody sound will be generated along with an audio message to start charging.

※ If a voice message, "Main power switch on the back of the HOM-BOT is turned off. Please turn the switch on." is announced repeatedly, then turn on the Main Power Switch.

Method 2. When the 'HOME' button of the remote control or the Robot Cleaner is pressed, charging will be prompted by automatically generating a searching signal and returning the Robot Cleaner to the home station.

※ If the Robot Cleaner did not start cleaning from the home station or if the Robot Cleaner is manually charged by pressing the Home button, it may take slightly longer to find the home station.

※If the Robot Cleaner is within 10 cm of the front of the charging terminal while the power supply is turned on, it will automatically be returned to the home station and charging will begin.

Tip

Take the following precautions when using the home station:

- If foreign material is caught in the charging terminal, charging may not proceed smoothly. Wipe the terminal from time to time with a dry cloth after the power plug is disconnected.(p32)

- To prevent electric shock or damage to the home station, do not touch the charging terminal with any metallic objects.

- To avoid fire or electric shock, never disassemble or modify the home station.

- Do not to place the home station or power plug near a heating source.

Remaining Battery Charge Indicator

Battery level is indicated on Status Display, as follows.

• If recharging is in progress, the Battery Level Lamp flickers.
• If recharging is complete, only the 'Battery' and 'Clean Mode' icons are displayed to save the energy.
• Upon the need for recharging, only the first level of Battery Level Lamp will be on and flickering.

Charging is required

Low

Middle

High

※ If Robot Cleaner goes back to Home Station, with a low level of battery while it is the 'Clean Mode' lamp starts to flicker.

• When the 'Clean Mode' lamp starts to flicker after recharging is complete, Robot Cleaner will then resume cleaning the areas which were not covered.
• Pressing the 'Start' button on the Remote Controller or 'Stop' button on main unit whilst it is recharging, with the 'Clean Mode' lamp flickering, will also make Robot Cleaner find and clean uncovered spots.
• Pressing the "Start" button on the remote control or the "Start/Stop" button on the device after changing the mode will make the Robot Cleaner start to clean from beginning again.

If the Battery is Not Charging

Check 1:

If the battery is not charging even when the Robot Cleaner is attached to the home station, check the following items.

• Turn the power switch on the rear-left of the Robot Cleaner off once and then on again.
• Check the power lamp of the home station.
• Wipe the terminal on the home station with a dry cloth. (p32)

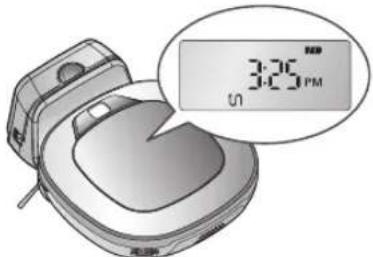

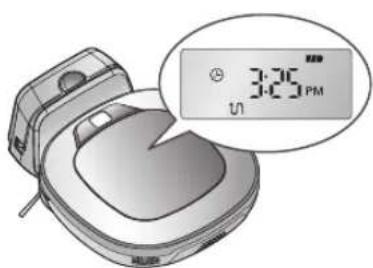

The status indication lamp while the robot is charged (In spatial Zigzag mode)

In the case of no existing area to be cleaned

In the case of an existing area to be cleaned (Flickering)

Illustration of a robotic vacuum cleaner with open lid and internal components, shown in two views (no text or symbols)

Zigzag Cleaning

In 'Zigzag Clean' mode, Robot Cleaner repeats a zigzag operation to clean every and each spot in the cleaning area.

If you need to quickly clean an area choose 'Zigzag Clean' mode.

Press 'Mode' button on Remote Controller or main unit to select 'Zigzag Clean' mode and press 'Start' button.

※ Factory release default setting is 'Zigzag Clean.'

Cell by Cell Cleaning

In 'Cell by Cell' mode, Robot Cleaner cleans the area by dividing it into rectangular spaces.

For meticulous cleaning, select this mode.

Press 'Mode' button on Remote Controller to select 'Cell by Cell' mode and press 'Start' button.

The 1st stage:

The maximum outline of 3 m x 3 m of cleaning area will be cleaned. (The size of the outline may vary in accordance with the shape of the area to be cleaned.)

The 2nd stage:

The 2nd stage of Cell by Cell cleaning engages a Zigzag mode automatically.

When the 1st, 2nd stages are completed, the cleaned area will be cleaned through the repetition of the above cleaning method as the device is being moved to the next part of cleaning area.

Tip

• Once set up, the cleaning mode(Zigzag, Cell by Cell) setting will be maintained even after the power supply is turned off.

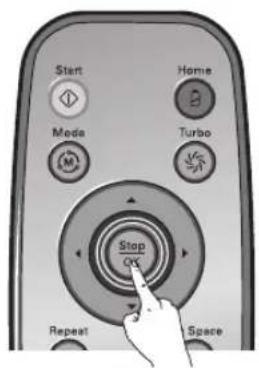

• During operation, if a mode change is required, press the Stop/OK button and then select the mode. Cleaning will then start from the beginning.

My Space Cleaning

Pressing 'My Space' on Remote Controller will set the My Space cleaning mode with a voice message.

For cleaning of particular spaces, select this mode.

The 1st stage:

Use the Remote Controller to manually run the cleaning on outskirts of each cleaning block.

* This cleaning mode will be accepted when the distance of the start and end position is less than 1 m.

The 2nd stage:

Pressing the 'Start' button will then make the Robot Cleaner clean the manually outlined area by itself.

※ Upon failure to correctly outline a zone, a voice will announce, which says "Area does not meet the specified conditions. Please continue to make specified area for cleaning process."

Use the Remote Controller to assign a zone, again.

※ Upon completion of cleaning for all selected areas, the Robot Cleaner will be placed in the cleaning mode (Zigzag or Cell by Cell) which was run, right before.

Tip

• While recharging, you cannot activate 'My Space clean' mode.
• To change the cleaning mode while Robot Cleaner is in operation, press 'Stop/OK' button first to select a mode. The cleaning will the start from the beginning.

Manual cleaning

By pressing a direction key on Remote Controller, you can move Robot Cleaner in a Manual mode.

Robot Cleaner will clean the area, moving forward/backward/left/right, according to the input of the direction key.

While in 'Manual' mode, the robot cleaner will run into obstacles placed behind it if the backward key on the remote remains held down.

Illustration of a robotic vacuum cleaner with directional arrows indicating rotational flow (no text or symbols)

Illustration of a remote control with a circular dial and indicator lights, no text or symbols present.

Spot Cleaning

Is best used used to clean certain parts of the house.

Press 'Mode' button on Remote Controller to select 'Spot Clean' mode, indicated on Status Display, and 'Start' button, then Robot Cleaner will start Spot cleaning for a space within a 1.5 m diameter.

※ While recharging, 'Spot Clean' cannot be selected.

It stops at the started position after completing the cleaning(takes 4\~5 min.).

Diagram of a spiral-shaped object with directional arrows indicating rotation (no text or symbols)

Turbo Mode

Pressing 'Turbo' button on Remote Controller or main unit will activate 'Turbo' mode, with a voice message.

While in 'Turbo' mode, pressing the same button will cancel 'Turbo' mode, with a voice message.

In 'Turbo' mode, Robot Cleaner runs more intensely for a powerful clean.

※

'Turbo mode' will automatically operate when the Robot Cleaner cleans carpets.

Repeat Mode

Pressing 'Repeat' button on Remote Controller will activate 'Repeat' mode, with a voice message.

While in 'Repeat' mode, pressing the same button will cancel 'Repeat' mode, with a voice message.

In 'Repeat' mode, Robot Cleaner repeats the cleaning in progress until the battery runs out.

Learning Mode

Robot Cleaner is capable of memorising the cleaning environment through its Learning mode for an intelligent cleaning operation.

* 'Learning Mode' is available only when the machine starts cleaning from the Home Station.

Illustration of a cartoon character inside a bowl with thought bubbles showing potted plants (no text or symbols)

Tip

• Precautions with Smart Operation

• This Learning mode enables memorizing locations with obstacles to bypass them. Robot Cleaner memorizes every aspect of the environment it was put under from when it started cleaning from the Home Station to the moment it finishes its course.
• Robot Cleaner learns the new conditions when the location of Home Station has been changed.
• If the learning mode is accepted, a voice message will say "The learning cleaning process is complete."

You can set the current time on the Robot Cleaner.

Pressing 'Clock' button on Remote Controller, when Robot Cleaner is waiting, will start the current time setting.

Select by using '◀▶' buttons on the Remote Controller.The function can be heard through the voice guide.		Set the time units by using '▲▼' buttons on Remote Controller.
		Set the unit of minutes using '▲▼' buttons on Remote Controller.
		Set the AM/PM using '▲▼' buttons on Remote Controller.
		Pressing 'Clock' or 'Stop/OK' button on Remote Controller will complete the time setting process.

Tip

• Any scheduled cleaning will be activated based on the time on the Robot Cleaner. You must set the clock before setting scheduled cleaning.
• If there is no input for 10 seconds, the clock setting is canceled.

You can schedule a cleaning so that the Robot Cleaner starts cleaning at a scheduled time.

Pressing 'Schedule' button on Remote Controller, when the battery is recharging, will start the scheduled cleaning setting.

Setting/Cancelling the reservation is only possible when the unit is recharging.

Select a level by using '◀ ▶' buttons on Remote Controller.

Tip

• When the scheduled time comes up, Robot Cleaner will start cleaning by itself.
• Scheduled cleaning can only be set when the Robot Cleaner is recharging.
• While recharging, by pressing the 'Schedule' button on the Remote Controller for 3 seconds will cancel the set schedule.
• If there is no input when setting the schedule time within 10 seconds, the setting is canceled.

By attaching the ultra microfi ber mop, you can effectively use the Robot Cleaner to remove dust.

When the mop plate is attached, the Robot Cleaner will not climb on to carpets or over thresholds, in order to prevent transferring dirt from the mop.

Caution

Do not cover the bottom camera sensor by mop.

For mop cleaning, mount the mop and mop plate to the Robot Cleaner according to the following instructions:

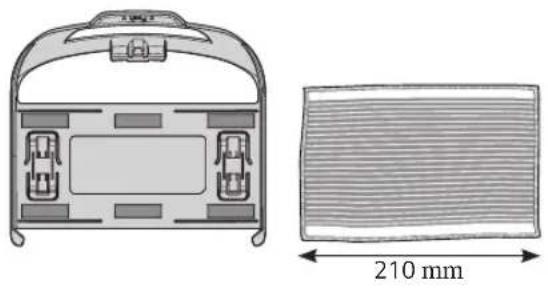

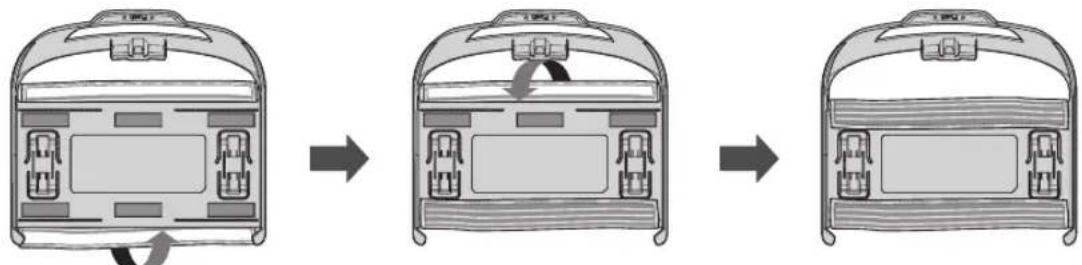

1. Attach the ultra microfi ber mop to the Velcro of the mop plate as shown in the fi gure.

Top-down line drawing of a car cab with front seats and rear canopy (no text or symbols)

Gray rectangular frame with horizontal lines, no text or symbols present

Front view of a train cab with rear seats and side-mounted lockers (no text or symbols visible)

Diagram of a train front view showing the cab, rear seats, and overhead gear (no text or symbols)

Line drawing of a briefcase with handle and front panel (no text or symbols)

1. Firmly push the Mop Plate into the furrows until you hear a 'click' sound.

※ Note that, if the Mop Plate is not secured correctly, it may separate during the cleaning.

Illustration of a portable electronic device with ports and cables, no text or symbols present

Illustration of a vacuum cleaner with a button labeled "Click" (no other text or symbols)

1. It is essential that the fixing hooks on the Mop Plate align correctly on to the fixing grooves on the underside of the cleaner.

Fixing hook

Diagram of a computer monitor with labeled ports and cables (no text or symbols present)

Fixing groove

Technical line drawing of a mechanical device with internal components (no text or symbols)

Tip

• To avoid odors, wash any foreign material or dust off the mop after cleaning is complete.
- To avoid staining floors, do not use the ultra microfiber mop to clean when dirt is mixed with liquids such as coffee or ink.
- To avoid damage to carpets from the Velcro or dirt transfer from the mop, do not clean the carpet while the mop plate or mop is attached.
- Keep the ultra microfiber mop dry. Do not use it on wet surfaces. If there is moisture, it can interfere with the navigation.
- Smart Diagnosis feature is not available, when the Mop Plate is attached.

The Robot Cleaner remembers its location while cleaning.

If the user moves the Robot Cleaner while it is operating, it will search for the location it was moved from by using its navigational location search function before continuing to clean.

※ The navigating function will be activated after the Robot Cleaner adequately recognizes the cleaning environment.

Illustration of a robotic vacuum cleaner with hands holding it, showing airflow direction (no text or symbols)

Change location

When the location search function is activated, the cleaning mode of the status indicator will flash

Manual Relocation.

1. Locate the Robot Cleaner near the location where it was originally moved from.

※ The location search is more effective when the Robot Cleaner is closer to the location where it was moved from.
※ If it is moved from its original cleaning position by more than 1 m, it becomes difficult for the Robot Cleaner to search for it's previous location.

Location of incident

1. Press the START/STOP button on the Robot Cleaner or START button on the remote controller.

Robot Cleaner will then start the location search function along with an audio guide.

※ When the location search is successfully completed, it will continue cleaning from where it was moved. If the location search fails, it will start again from the beginning.

Interior scene with a sofa, a potted plant, and a Zigzag directional indicator (no text or symbols on main objects)

Location of incident

Interior scene showing a sofa, a robot, and a vacuum cleaner with a Zigzag logo (no text or symbols on main objects)

Tip

• When the power is turned off after the location search function is set, the location search function will be canceled.
• Location search will be more effective when the Robot Cleaner is closer to the location where it was moved from.

Robot Cleaner uses this Smart Diagnosis feature to run a self-diagnosis.

If any irregularity is found from the diagnosis, please contact the local LG Electronics service center.

※ During Smart Diagnosis, the Robot Cleaner will move about within a 50 cm radius. So, make sure no objects are in the way within a 1 m radius around the Home Station, before starting Smart Diagnosis.

1. Turn ON the Main Power Switch on the back after making sure the Robot Cleaner is attached to the Home Station.

* Smart Diagnosis is only possible when the Robot Cleaner is attached to the Home Station.

1. Press 'Diagnosis' button on the Remote Controller, then the process will start with a voice message which says "Starting HOM-BOT smart diagnosis. Please step away and remove any items within 1 meter, or about 3 feet."

※ If the Mop Plate is attached, the process will not be activated.

1. When the Smart Diagnosis has successfully finished, Robot Cleaner will return back to the Home Station and inform the result through a voice message. After the voice message, pressing the 'HOME' button on the Remote Controller or main unit will allow the voice message to be repeated. To terminate the diagnosing process, press the 'Stop/OK' button on the Remote Controller or main unit.

※ After the Smart Diagnosis voice message, the Robot Cleaner will start recharging after 1 minute.

※ If an error is detected with any of the Sensors whilst in Smart Diagnosis, a voice message will announce, and the unit will not return to the home station.

Illustration of a robotic vacuum cleaner with three close-up views showing internal components (no text or symbols)

Tip

- Be careful not to touch the Robot Cleaner or disturb its operation before Smart Diagnosis is complete. If it is accidentally interrupted, turn the main power switch OFF then ON again to resume the diagnosis.

- Smart Diagnosis will not be activated in each of the following cases. In each case, check the problem and try again.

• Robot Cleaner is detached from Home Station
• Battery level is insufficient
• No Dust Bin Filter is fitted.
• Mop Plate is attached

If a voice message is announced after Smart Diagnosis, refer to the following table to take proper actions.

Voice message Measures (for reference)
Starting HOM-BOT smart diagnosis. Please step away and remove any items within 1 meter, or about 3 feet.	Clear any object within a 1 m radius around Home Station, and stay back until the diagnosis is complete.
HOM-BOT needs to be charging in order to activate smart diagnosis. Please dock the HOM-BOT to the home station.	Move Robot cleaner to the Home Station to recharge it.
Starting HOM-BOT smart diagnosis. Reservation has been cancelled for smart diagnosis. Please step away and remove any items within 1 meter, or about 3 feet.
No defect found during diagnosis.
Unable to initiate smart diagnosis due to a low battery. Please try again after battery is charged.	Try the Smart Diagnosis again after recharging the battery.

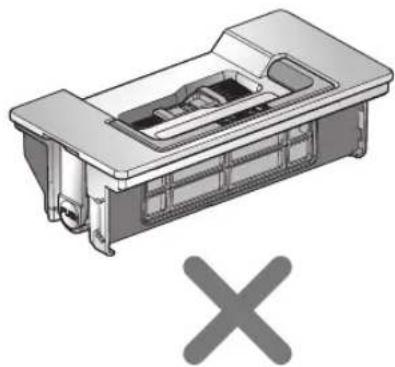

Please check that the dust bin and filter are properly installed.	Open the Dust Bin Cover and examine the bin.
HOM-BOT will not charge due to infrared sensor error. Please try smart diagnosis again after turning the main power switch on the back of the HOM-BOT 'Off' then 'On' again. If the problem continues, please contact LG Electronics customer care.	Run Smart Diagnosis again and, if the same message is announced, contact an LG Electronics service center.
HOM-BOT will not charge due to ultrasonic sensor error.	Run Smart Diagnosis again and, if the same message is announced, contact an LG Electronics service center.
HOM-BOT will not charge due to a problem with the cliff sensors on bottom. Please wipe the sensors clean.	Clean the three Cliff Sensors on the bottom at the front of the unit.
Please clean the camera sensor on bottom right side.	Clean the lens of Camera Sensor on the bottom-right
Please clean the obstacle detecting sensor windows on the left and right side of the HOM-BOT.	Clean the lens of the Obstacle Sensors on both the left and right hand sides.
A problem has been found on the Gyro Sensor. Please try smart diagnosis again after turning the main power switch on the back of the HOM-BOT 'Off' then 'On' again. If the problem continues, please contact LG Electronics customer care.	Run Smart Diagnosis again and, if the same message is announced, contact an LG Electronics service center.
Please check for foreign material on the left wheel.	Check for foreign materials on the left wheel.
Please check for foreign material on the right wheel.	Check for foreign materials on the right wheel.
A problem has been found on the left wheel sensor. Please try smart diagnosis again after turning the main power switch on the back of the HOM-BOT 'Off' then 'On' again. If the problem continues, please contact LG Electronics customer care.	Run Smart Diagnosis again and, if the same message is announced, contact an LG Electronics service center.
A problem has been found on the right wheel sensor. Please try smart diagnosis again after turning the main power switch on the back of the HOM-BOT 'Off' then 'On' again. If the problem continues, please contact LG Electronics customer care.	Run Smart Diagnosis again and, if the same message is announced, contact an LG Electronics service center.
A problem has been found with the brush. Please check for any foreign material.	Check for any foreign material stuck in the Brush.
A problem has been found in the suction motor. Please try smart diagnosis again after turning the main power switch on the back of the HOM-BOT 'Off' then 'On' again. If the problem continues, please contact LG Electronics customer care.	Run Smart Diagnosis again and, if the same message is announced, contact an LG Electronics service center.
A problem has been found in the acceleration sensor. Please try smart diagnosis again after turning the main power switch on the back of the HOM-BOT 'Off' then 'On' again. If the problem continues, please contact LG Electronics customer care.	Run Smart Diagnosis again and, if the same message is announced, contact an LG Electronics service center.
In order to listen to the smart diagnosis result again, please press the charging button. To stop, please press the stop button.	If you need to repeat the diagnosis result, press the 'Home' button, or press 'Stop/OK' button to fi nish the diagnosis.
Smart diagnosis mode will be turned off.
Smart Diagnosis mode will not operate with the mop plate attached. Please try again after removing it.	Run Smart Diagnosis again after removing the Mop Plate.
Smart diagnosis has failed to complete its diagnostics. Please try again after turning the main power switch on the back of the HOM-BOT 'Off' then 'On' again.	Turn the main power switch OFF and then ON again to resume the diagnosis. Do NOT touch the robot or disturb its operation until the diagnosis is complete.
Please check if the charging terminal is damaged or dirty.	Clean the bottom of the machine and Charging Terminal on Home Station.

If the dust bin is full, suction power can be reduced. Clean the dust bin before and after each cleaning session. Clean the dust bin using the following sequence:

1. Open the dust bin cover by pressing the PUSH button on the Robot Cleaner.
2. Grab the handle of the dust bin and pull it upward.
3. Pull the hook on the left of Filter Cover on the rear of Dust Bin to separate the filter and the sponge.

*Note that separating the filter may result in dust dropping.

※Refer to p.30 when cleaning the Dust Bin Filter.

1. Lift the cover upward while pressing the separation button on the dust bin.
2. Empty the dust bin and clean it with a cleaning brush or under running water.
3. After cleaning with water, completely dry the dust bin in a well-ventilated area out of the direct sunlight.
4. When reassembling or fitting the cleaned Dust Bin, close the cover and put in the Sponge and HEPA Filter.

※ Refer to p.30 for detailed assembly guides.

1. Put the dust bin into the Robot Cleaner and close the dust bin cover.

Illustration of a robotic vacuum cleaner with open lid and upward arrow indicating motion (no text or symbols)

Illustration of a hand holding a device with a scroll, no text or symbols present

Diagram of a mechanical device with an open lid and internal components, showing a rotation arrow (no text or symbols)

Illustration of hands using a faucet to lift a device into a container (no text or symbols)

Illustration of a simple house with a sun and a person standing at the entrance (no text or symbols)

Diagram of a device's internal structure with an arrow indicating rotation (no text or symbols present)

Diagram of a device with an open lid and internal components, showing a curved arrow indicating rotation (no text or symbols present)

Tip

- Operating the unit without Filters fitted to the dust bin can cause a motor malfunction not covered by warranty.

- After cleaning the Dust Bin, make sure to assemble the filter and fit it to the Dust Bin. If you initiate cleaning, with no filters fitted to the dust bin or Filter Cover not assembled, a voice message will be announced which says "Please check that the dust bin and filter are properly installed."

• Always ensure that the dust bin cover is refitted correctly after cleaning the dust bin so that it closes easily and accurately.

Technical illustration of a mechanical assembly with a downward arrow indicating a component (no text or symbols present)

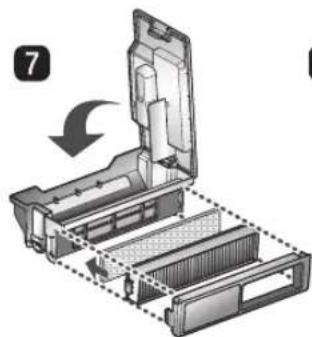

The Dust Bin Filter consists of a HEPA Filter and Sponge Filter. Clean both the HEPA and Sponge filters as per the following sequence.

1. Pull the hook on the left of the HEPA Filter module on the rear side of Dust Bin to separate the HEPA Filter and the sponge.

Illustration of a hand inserting a device into a device housing (no text or symbols visible)

Illustration of a hand holding an open mechanical device with internal compartments (no text or symbols)

Illustration of a hand inserting a component into a device housing (no text or symbols visible)

1. Thoroughly clean out the fine dust particles on the HEPA Filter, with a vacuum cleaner or cleaning brush.

※ Do NOT wash the HEPA Filter with water. Its suction power will be reduced.

Illustration of a hand using a power tool to clean or store items on a metal tray (no text or symbols visible)

1. Use a cleaning brush to clean the Sponge Filter. If using water to clean it, allow it to dry completely in the shade before refi tting.

Illustration of a hand using a brush to clean or store items on a wooden board (no text or symbols)

1. Assemble the HEPA and Sponge filters back onto the Filter Cover as per the following sequence.

※ Fit the rectangular locator on the HEPA Filter into the locating slot of the fi lter body.

Diagram of a battery pack and internal structure showing internal components (no text or symbols)

※ Be careful not to incorrectly assemble HEPA and Sponge Filter onto the Filter Cover.

3D diagram of a layered electronic component with a perforated top layer (no text or symbols visible)

Cross-sectional illustration of a layered electronic component with dotted pattern and layered structure (no text or symbols)

Tip

• To preserve the performance of Robot Cleaner, clean the HEPA Filter at least once a week, with a brush or vacuum cleaner.
- If you run Robot Cleaner, with the Filter Cover assembled onto Dust Bin and without no filters inserted, it may involve dusts coming inside to cause a failure.

The rotating Brush, located on the bottom of Robot Cleaner, helps collect the dust. Clean the Brush as per the following sequence.

※ Before turning over the main unit, lay a soft cloth on the floor and remove the Dust Bin. Otherwise, the main unit can get scratches and dust will fall from Dust Bin.

1 Turn the Main Power Switch OFF before starting the clean. Put the Robot Cleaner upside down on a soft cloth.

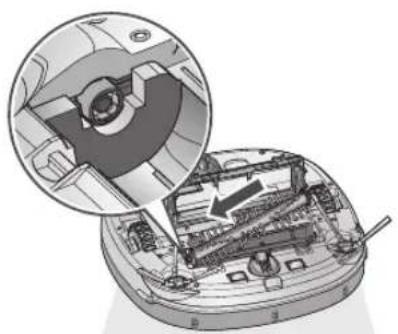

4 Push the Brush all the way into the yellow protrusion.

Illustration of a computer with an open lid and internal components, showing a hand inserting a component (no text or symbols visible)

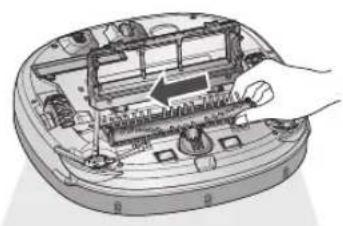

7 Fit the Fixing Hook (rectangular shape) on the side of the Brush into the slots, with the colors matching.

Technical illustration of a mechanical assembly with an inset showing a close-up of a gear mechanism (no text or symbols present)

2 After checking for foreign materials, press down the Fixing Hook and pull it up to separate the brush Cover.

Illustration of a hand pressing a button on a device (no text or symbols visible)

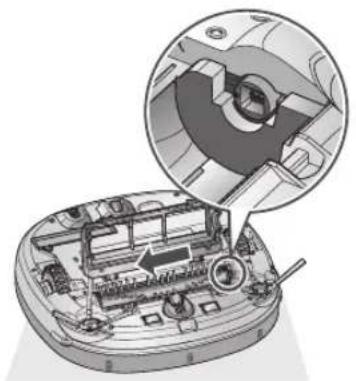

5 While pushing the Brush, lift the white protrusion part up to separate it from the main unit.

Technical illustration of a mechanical assembly with an inset showing internal components (no text or symbols visible)

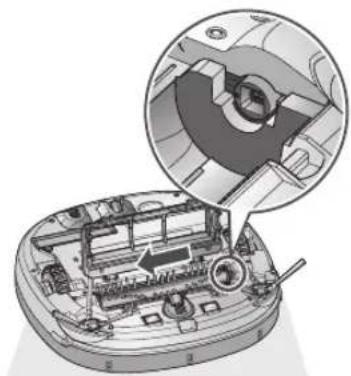

8 While pushing the Brush to the arrow direction, fit the Fixing Hook (rectangular shape) on the opposite side into the slot.

Technical illustration of a mechanical device with an inset close-up showing internal components (no text or symbols visible)

3 By using a cleaning tool, clear hairs and other debris and foreign materials on the Brush and from the 2 smaller jockey wheels.

Illustration of a hand using a tool to adjust internal components of an electronic device (no text or symbols visible)

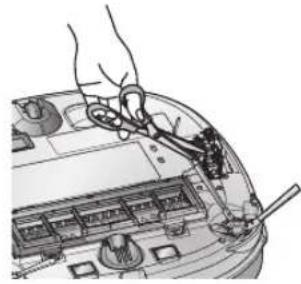

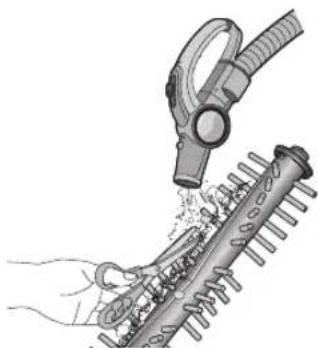

6 Carefully clean the Brush with a vacuum cleaner or scissors.

Illustration of a hand using a vacuum cleaner to clean or store items around a brush (no text or symbols visible)

9 Press down and close the Cover until a 'crack' sound is heard from both sides of Fixing Hook.

※ Be careful not to trap the side brush bristles under the cover when closing it.

Technical line drawing of a vehicle chassis with internal components and a tool (no text or symbols)

CLEANING THE SENSOR/CHARGING TERMINAL

There are sensors on the Robot Cleaner that detect obstacles, stairways and the home station for charging the battery. In order to maintain the performance of the Robot Cleaner, regularly clean the sensors and charging terminal as follows:

1. Turn off the power switch on the bottom of the Robot Cleaner. Injury can be caused by the activation of the Robot Cleaner if the main power is not turned off.
2. Lay a smooth cloth on the floor, overturn the Robot Cleaner and put it on the cloth.
   ※ Please make sure to remove the dust bin before rotating the main body. Otherwise, the dust in the dust bin may fall out.
3. Use a smooth cloth or cleaning brush to wipe the dust off each cliff sensors, camera sensors and ultrasonic sensors and the charging terminal as described below.

Tip

• Do not clean the Robot Cleaner by directly spraying it with water, thinner, benzene, or any other liquids.
• Call the service center if the sensor or charging terminal is damaged. Sensor and terminal damage can cause the product to malfunction.
  • To clean the sensor/charging terminal, use the cleaning brush.

Foreign objects/materials such as hair can easily adhere to the side brush. Remove such materials at least once a week.

If excessive amounts of foreign materials are stuck to the brush, there is the risk of damage to the brushes.

Illustration of hands using a power tool to adjust or install electronic components on a device (no text or symbols visible)

If the floor is rough or walls are frequently cleaned, the side brush may bend or become damaged. In this case, use the following method to straighten the side brush.

1. The following procedure is helpful in restoring deformed brushes.

2. Turn off the power by switching the main switch off on the rear off the unit.

3. Place the Robot Cleaner at the end of a table to make cleaning the side brush easier. Make sure that the Robot Cleaner is not in danger of falling.

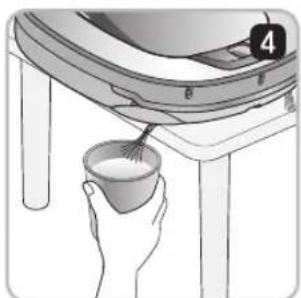

4. Soak the side brush in warm water.

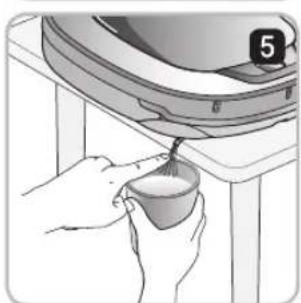

5. Press down on the side brush for about ten seconds so that it is completely submerged in the water.

6. Slowly wipe the side brush by sliding it through your hand.

7. Rotate the side brush and repeat steps 4-6 for each section of the brush.

8. Use the side brush only after it has completely dried.

Side Brush management

1. Remove the screws by using a driver and separate the Side Brush from the main unit.

2. Remove any hair after the separation.

3. Assemble the Side Brush by replacing it onto the bottom of the Robot Cleaner, with the 'R' and 'L' marking of the Brush matching the counterparts on Robot Cleaner.

Cross-sectional illustration of layered geological strata with visible tattered fibers (no text or symbols)

Diagram of layered material structure with a tassel, no visible text or symbols

Illustration of a hand pouring liquid from a bowl into a container (no text or symbols)

Illustration of hands pouring liquid from a container into a cup (no text or symbols)

Illustration of a hand using a tool to adjust or install a circular object on a shelf (no text or symbols visible)

Illustration of a hand inserting a small object into a device component (no text or symbols visible)

Close-up of a mechanical component with layered structure and a black arrow pointing to a feature (no text or symbols visible)

Close-up of hands using a tool to adjust or install a component, no visible text or symbols

Mechanical assembly diagram showing two views of a mechanical component with no visible text or symbols

CLEANING THE ULTRA MICROFIBER MOP (OPTION)

To avoid odors, dirt and dust should be washed off the mop after it is used for cleaning. Follow these directions to wash the ultra microfi ber mop:

1. Separate the ultra microfiber mop from the mop plate.

Technical line drawing of a two-part mechanical device with side views and a 210 mm dimension label (no text or symbols beyond the dimension)

1. Carefully clean it with warm water.

Illustration of a faucet releasing water into a basin with a cloth inside (no text or symbols)

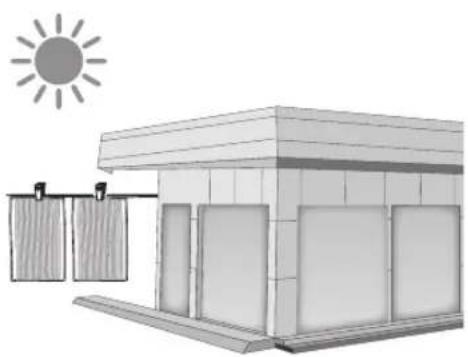

1. Use the Mop after completely drying it in direct sunlight.

※ If the Mop is used in a damp or wet state, it will cause the Robot Cleaner to malfunction.

Simple line drawing of a house with laundry hanging under a sun (no text or symbols)

Tip

• To avoid product malfunction, only use the ultra microfiber mop provided with the Robot Cleaner.
  • Additional microfiber mops can be purchased by visiting a nearby LG Electronics service center.

Upon a voice message, "The wheels are not touching the floor. Please move HOM-BOT onto flat floor."

A warning message will be given if a wheel does not contact the floor surface for any reason.

• Is a wheel trapped in the front door, balcony, stairway, etc?

▶ Move the Robot Cleaner on to the flat floor.

Illustration of a robotic vacuum cleaner on a platform (no text or symbols)

Illustration of a robotic vacuum cleaner with a circular top and tripod base (no text or symbols)

Upon a voice message, "Please remove any foreign material on the left/right wheel."

• Is any foreign material wound around the wheel?

▶ Lay smooth cloth on the floor, overturn the Robot Cleaner, and put it on the cloth. Remove foreign material after observing the wheel.
※ Please make sure to remove the dust bin before flipping the main body. Otherwise, the dust in the dust bin may fall out.

Diagram of a device interior with an inset showing a mechanical assembly (no text or symbols visible)

Illustration of hands installing or adjusting a device on a device (no text or symbols visible)

Upon a voice message, "HOM-BOT cannot continue cleaning. Please check the area around it."

A warning message will be given if Robot Cleaner cannot go on cleaning due to any unfavourable condition.

• Is the Robot Cleaner stuck?

▶ After removing the part that is stuck, place the Robot Cleaner on flat floor.

Illustration of a robotic vacuum cleaner placed on a sofa (no text or symbols)

Illustration of a futuristic robotic device with a circular top and three legs (no text or symbols)

Upon a voice message, "Please check that the dust bin and filter are properly installed."

A warning message will be given if there is no Dust Bin or Filter Cover fitted.

• Is the Dust Bin fitted to the Robot Cleaner?

▶ Open the Dust Bin Cover and check to ensure the Dust Bin is in place.
▶ Do NOT leave the Dust Bin Cover open.

Technical illustration of a mechanical device with internal components and a handle (no text or symbols)

Illustration of a vacuum cleaner with open lid and internal components, showing airflow direction (no text or symbols)

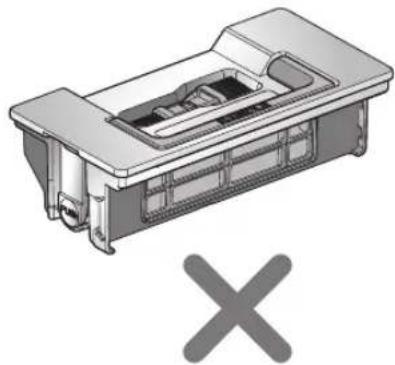

- Make sure the Filter Cover is assembled onto the Dust Bin.

Technical illustration of a mechanical housing component with a circular washer and internal components (no text or symbols)

3D diagram of a mechanical component with a cross symbol below (no text or labels)

Upon a voice message, "Battery is low. Please move HOM-BOT onto the home station to charge."

When the remaining amount of battery power is almost nil, the voice, "Battery is low", is generated.

• Initiate battery charging of the Robot Cleaner by moving it to the home station.
  ▶ When the Robot Cleaner is attached to the docking station successfully, it will start the recharging with the recharging start melody.

Illustration of a robotic vacuum cleaner with open lid and internal components, shown in three views (no text or symbols)

Side-view illustration of a modern electric vehicle with a mounted sensor array (no text or symbols visible)

Upon a voice message, "Please remove any foreign material from the brush on the bottom of the HOM-BOT."

A warning message will be given if foreign materials restrict the Brush's rotation.

Lay a soft cloth on the floor and put the Robot Cleaner upside down on it.

※ Before turning over the main unit, remove the Dust Bin. Otherwise, it will cause dust to fall from Dust Bin.

• The brush is making a loud, abnormal sound.

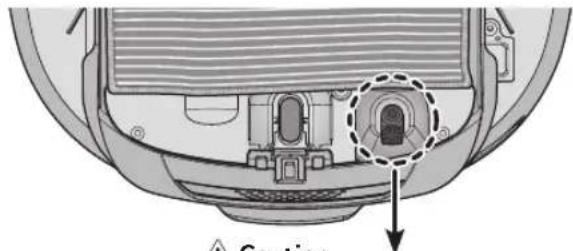

▶ Confirm the correct assembly of the brush by checking the separation groove of the brush
▶ Remove the brush from Robot Cleaner and remove any foreign material from the brush.

• The brush or side brush is stuck.

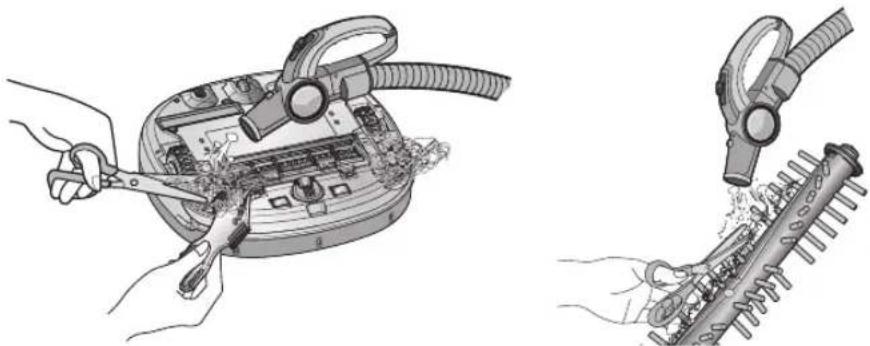

Remove any foreign materials such as cables, thread of hair caught in the side brush or the brush.

Illustration of two different cleaning or repair tools: a hand using a tool to clean a device and a tool applying material to a rack (no text or symbols present)

※ For a more detailed description of this process, refer to the instructions on page 31, 33.

Confir rm before reporting the failure of Robot Cleaner.

Problem Solutions (Reference page)
The power supply cannot be turned on.	Check that the power switch is turned on. (Page 15)
The power supply automatically turns off.	This is not a failure. Robot Cleaner has its own power saving function.If it is not used for ten minutes after the power supply is turned on,the power will automatically turn off. (Page 17)
The Robot Cleaner will not charge. Check whether the main power switch is turned on.	▸ Remove objects around the home station. (Page 15)▸ Confirm that the power supply is connected to the home station. (Page 14)▸ Wipe the charging terminal with a dry cloth.
Suction power becomes weak. Check whether there is foreign material blocking the suction port. (Page 31)	▸ Empty the dust bin. (Page 29)▸ Clean the dust bin filter. (Page 30)
Noise becomes louder.	▸ Confirm that the dust bin has been mounted properly.▸ Confirm that the dust bin filter has been mounted properly. (Page 30)▸ Check whether foreign material is caught in the brush. (Page 31)
The Robot Cleaner will not activate.	▸ Confirm that the power switch is turned on. (Page 15)▸ Confirm that the battery has been charged. (Page 18)
The brush does not rotate.	▸ Clean the brush. (Page 31)▸ Confirm that the brush has been mounted properly. (Page 31)
Movements or travel path are abnormal.	▸ Carefully wipe the sensor with a smooth cloth. (Page 32)▸ If the ultra microfiber mop is attached, confirm that it is mounted properly.(Page 25)▸ Turn the power switch off and on.
The Robot Cleaner cannot be activated with the remote control.	▸ Replace the remote control batteries. (Page 12)▸ Confirm that the control is within the coverage area of the main unit, which is less than 3 m. (Page 12)▸ Check whether the main power switch is turned on. (Page 15)

Illustration of a robotic vacuum cleaner with control panel and tripod legs (no text or symbols)

Item/Model LG HOM-BOT	VR6260 Ser. / VR6270 Ser.
External Dimensions	340 mm × 340 mm × 89 mm
Weight	3 kg
Power Consumption	18 W
Battery (Fully Charging)	DC 16.8 V
Traveling Velocity	350 mm/s (Maximum)
Use Time Approx. 100 minutes(Based on general wooden floor)
Charging Time 3 hours
Main Functions Turbo Mode	Learning ModeObstacle SensingAnti-Plunge functionScheduled CleaningError DisplayingNavigationAuto/Manual RechargingDry Mopping (cleaning)Corner CleanVoice MessagingMap DrawingSpot CleaningRepeat CleaningMy Space CleaningCell by Cell cleaningZigzag Cleaning

Technical line drawing of a mechanical housing component (no text or symbols)

Item/Model Home Station (VR621)
External Dimensions	236 mm × 181 mm × 128 mm
Rating	230 V~50 Hz
Output Voltage/Current	DC 17.1 V / 1.1 A
Power Consumption	23 W

Technical line drawing of a rectangular electronic component with a small base (no text or symbols)

Item/Model Battery
Type Lithium Ion Polymer Battery
Rating	DC 14.8 V / 1900 mAh

Open source software notice

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

Dis/Assembling the battery

Turn off the main power switch on the back-left side of the Robot Cleaner.

Top-down schematic of a vehicle chassis showing internal components and structural elements (no text or symbols)

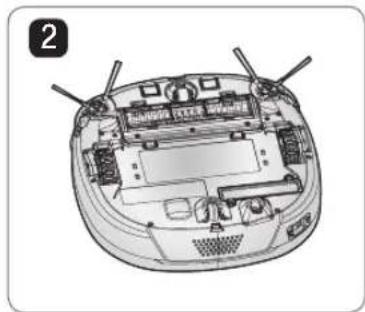

Place a soft cloth on the floor, remove the dust bin, and flip the Robot Cleaner over.

Remove the screw by using the screwdriver.

Interior view of a car's dashboard and engine compartment showing internal components like lockers and motors (no text or symbols visible)

Please assemble the battery in the reverse order.

Mechanical assembly diagram showing hand fastening a component with no visible text or symbols

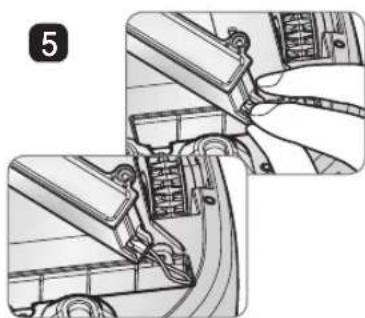

Separate the wire from the battery while pressing the connector hook.

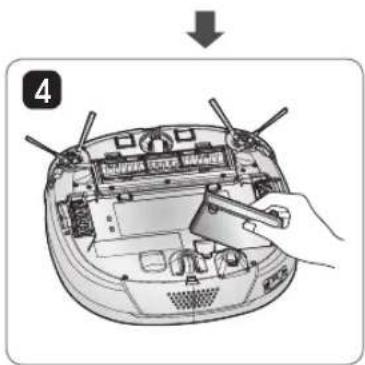

Remove the battery from the device.

WARNING

Please be careful of fire, explosion, electric shock, or breakdown.

• Do not charge this Battery Pack(Pack hereafter) with any other type of charger than the one originally provided whit the charger.
• Do not damage the Pack in such ways as drop, crush, puncture, cut or short external contacts.
• Do not attempt to disassembly the pack In any case. When the Pack is damaged or malfunctioning, bring it to the service center.
• Do not place this pack near a heat source or do not dispose of in fire or water.
• Please keep the Pack away from damp or wet environment when the pack is charged.
• Please keep away from children, infant or pets.

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

Disposal of waste batteries/accumulators

1. When this crossed-out wheeled bin symbol is attached to batteries/accumulators of Your product it means they are covered by European Directive 2006/66/CE.
2. This symbol may be combined with chemical symbols for mercury(Hg), cadmium(Cd) or lead(Pb) if the battery Contains more that 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead.
3. All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
4. The correct disposal of Your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health.
5. For more detailed information about disposal of Your old batteries/accumulators, please contact Your city office, waste disposal service or the shop where You purchased the product.

Symbol of a trash bin crossed with no visible text or labels

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

Warranty Certificate

For offer a 24-month warranty for this apparatus

During the 24-month warranty period, (Battery of cleaning robot: 12month) we will repair your apparatus at no cost to you or make available spare parts to your dealer free, if this apparatus fails due to manufacturing or material defects. Further claims are excluded.

We are not liable for damages due to acts of providence or damages occurring during transport. The buyer assumes shipping and packaging costs.

Your warranty conditions on the rear also apply!

Type of apparatus:

Serial number:

Name of buyer:

Purchase date:

Dealer's stamp and signature

Warranty conditions for vacuum cleaner

1. Wednesday's period begins repairs exchange date and is valid for 24 months. Begin of warranty period is proven if, the buyer submits purchase receipt together with the warranty card, filled in and signed by the seller. The serial number of the product must agree with the number entered onto the warranty card.
2. During the warranty period, we will correct any defects at no cost to you, if it can be proven that these are attributed to manufacturing or material defects.
3. Damages due to incorrect handling, non-compliance with instructions for use and normal wear are not covered by this warranty. Also, the warranty does not cover wear parts or easily broken parts (for example, viewing glass, light bulbs). The buyer is responsible for any damages during transport as well as shipping and packaging costs.

4.

or replace parts. Exchanged or replaced parts are our property. The original warranty period is not prolonged if a refrigerator is repaired or certain parts are replaced.

1. The warranty is nullified if any person intervenes in the apparatus that are not authorised by LG Electronics, if the apparatus is used for commercial purposes.
2. Always keep the original packaging, so that if the apparatus requires servicing, it can be transported without damaging it.
3. If a repair is covered by this warranty, always contact your dealer or an authorised service centre.
4. Further claims are excluded. If parts of these provisions are invalid, they apply in the sense of the wording. The validity of the other provisions is not effected.

HANDLEIDING VOOR DE EIGENAAR

ROBOTSTOFZUIGER

39 Productspecifi caties
40 Melding open-bron-software

Illustration of a cartoon character with a wrench and a computer monitor, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Cartoon illustration of a car with a cross-shaped object and a triangular roof, no text or symbols present

Cartoon illustration of a girl struggling to hold a large tool, with a lightning bolt nearby (no text or symbols)

Illustration of a glass with a cross-shaped object inside, showing motion lines and spray (no text or symbols)

Cartoon illustration of a helicopter in flight with wings and propellers (no text or symbols)

Diagram of a mechanical assembly with butterflies and particles, no text or symbols present

Illustration of a graduation cap placed on a desk with a hand underneath, showing a ball rolling down (no text or symbols)

Illustration of a cartoon flying saucer with wings and waving, set against a house outline (no text or symbols)

Illustration of a campfire with a cross over a drum, surrounded by snow and ice cubes (no text or symbols)

Illustration of a robotic vacuum cleaner with open lid and internal components, showing mechanical assembly (no text or symbols)

Cartoon illustration of a person running with a large 'X' symbol, next to a table with a box (no text or symbols present)

Illustration of a mechanical device with a hammer and fulcrum (no text or symbols visible)

Illustration of a mechanical device with rotating components and a handle, no text or symbols present

Illustration of a person using a tool to interact with a device, no text or symbols present

Illustration of a child interacting with a device and a suitcase (no text or symbols)

Cartoon illustration of a person lying on the ground with a large robot and a 'NO' sign above (no text or symbols on the robot or background)

Illustration of a child cooking with a frying pan and a bowl, no text or symbols present

Cartoon illustration of a smiling banana with arms crossed, holding a plate and a 'NO' sign (no text or symbols on the main subject)

Illustration of a child painting a large object with a bandaged top, no text or symbols present

Cartoon illustration of a robot-like creature with crossed arms and a 'No' label, no readable text or symbols present.

Illustration of a person using a tool on a wooden deck (no text or symbols visible)

Illustration of a robotic vacuum cleaner with control panel and tripod legs (no text or symbols)

Robotstofzuiger

Illustration of a silver remote control with buttons and a 'Lo' button (no text or symbols on the device itself)

Afstandsbediening

Technical line drawing of a mechanical housing component (no text or symbols)

Dockingstation

Illustration of a hairpin with bristles and segmented body (no text or symbols)

Reinigingshulpstuk

Illustration of a rectangular electronic component with vertical fins and a small protrusion (no text or symbols)

Stofcontainerfi Iter (reserve) (optie)

Diagram of a mechanical connector with multiple leads and housing (no text or symbols)

Technical line drawing of a device casing with internal components (no text or symbols)

Dweilhouder (optie)

Blank document with two blank sheets, no text or symbols visible

Mechanical tool with four arms and central hub (no text or symbols)

Technical illustration of a mechanical component with helical grooves and a central hub (no text or symbols)

Illustration of a hand holding a smartphone with a device being inserted (no text or symbols visible)

Illustration of a device being inserted into a plastic housing, showing internal components and a downward arrow indicating motion (no text or symbols)

3

Controleer de opvangbak.

Diagram of a robotic vacuum cleaner with open lid and internal components, showing mechanical assembly (no text or symbols)

4

5

Automatisch opladen. (p. 17-18)

Illustration of a robotic vacuum cleaner with two views showing internal components and airflow direction (no text or symbols)

6

Line drawing of a hand holding a remote control (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands using a power switch to press a circular component (no text or symbols visible)

Technical illustration of a mechanical housing or enclosure with mounting brackets and a clip (no text or symbols)

Wenk

Diagram showing a robotic vacuum cleaner with internal components and directional arrows indicating motion (no text or symbols)

Met de handbediening opladen

Diagram of a robotic vacuum cleaner with open lid and internal components, shown in three views (no text or symbols)

Zigzagreiniging

Wenk

Illustration of a robotic vacuum cleaner and a remote control with signal waves (no text or symbols)

Diagram of a spiral-shaped object with directional arrows, no text or symbols present

Stand Turbo

Illustration of a cartoon character inside a TV with thought bubbles showing potted plants (no text or symbols)

Wenk

Technical line drawing of a briefcase and its side panel (no text or symbols)

Illustration of two views of a robotic vacuum cleaner device with attached circuit board (no text or symbols)

Illustration of a robotic vacuum cleaner with hands holding it, showing airflow direction (no text or symbols)

Locatie wijzigen

Interior scene with a sofa, a potted plant, and a Zigzag directional indicator (no text or symbols on main objects)

Interior scene showing a sofa, a vacuum cleaner, and a Zigzag control panel (no text or symbols on main objects)

Wenk

Illustration of a robotic vacuum cleaner with open lid and internal components, shown in three views (no text or symbols)

Wenk

Illustration of a robotic vacuum cleaner with open lid and handle, showing mechanical components (no text or symbols)

Illustration of a hand holding a device with a tray and handle (no text or symbols)

Diagram of a mechanical device with an open lid and internal compartments, showing a rotation arrow (no text or symbols)

Illustration of hands using a tool to lift a water tap into a container (no text or symbols)

Illustration of a simple house with a sun and a person standing near the doorway (no text or symbols)

Diagram of a mechanical device with an open lid and internal compartments, showing a transformation arrow (no text or symbols present)

Diagram of a robotic vacuum cleaner with open lid and internal mechanism (no text or symbols)

Wenk

Technical diagram of a mechanical assembly with a downward arrow indicating a component (no text or symbols present)

HET FILTER VAN DE OPVANGBAK REINIGEN

Illustration of a hand holding an open mechanical device with internal components (no text or symbols visible)

Illustration of a hand inserting a component into a device housing (no text or symbols visible)

Illustration of a hand using a power tool to clean or store items on a metal tray (no text or symbols visible)

Illustration of a hand using a brush to clean or store contents on a wooden board (no text or symbols)

Diagram showing a battery cell connected to a microfluidic chip, with an inset close-up highlighting the internal structure (no text or symbols present)

3D diagram of a layered electronic component with a perforated top layer and mounting base (no text or symbols)

Cross-sectional illustration of a layered electronic component with dotted patterned top layer (no text or symbols)

Wenk

Illustration of a computer with an open lid and hand inserting a button (no text or symbols visible)

Technical illustration of a mechanical assembly with an inset showing a close-up of a gear mechanism (no text or symbols present)

Illustration of a hand pressing a button on a battery pack (no text or symbols visible)

Technical illustration of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Technical illustration of a mechanical device with an inset close-up showing internal components (no text or symbols visible)

Illustration of a hand using a tool to adjust internal components of an electronic device (no text or symbols visible)

Illustration of a hand using a vacuum cleaner to clean or store items around a cylindrical brush (no text or symbols present)

Technical line drawing of a vehicle's internal components (no text or symbols)

DE SENSOR/CONTACTPUNTEN REINIGEN

Illustration of hands using a power tool to switch an electronic device with tubing (no text or symbols visible)

Cross-sectional diagram of layered geological strata with visible tattered fibers (no text or labels)

Diagram of layered material structure with a tassel, no visible text or symbols

Illustration of a hand pouring liquid from a bowl into a container (no text or symbols)

Illustration of hands pouring liquid from a container into a container (no text or symbols)

Illustration of a hand using a tool to adjust or install a circular object on a shelf (no text or symbols visible)

Illustration of a hand inserting a cable into a device component (no text or symbols visible)

Cross-sectional diagram of a mechanical component with layered structure and a labeled section (no text or symbols)

Close-up of hands using a tool to adjust or install a component, no visible text or symbols

Mechanical component diagram showing two views of a mechanical assembly (no text or symbols)

DE ULTRAMICROFIBER-DWEIL (OPTIE) REINIGEN

Technical line drawing of a mechanical device with side and top views, showing internal components and a 210 mm dimension label (no text or symbols beyond the dimension)

Illustration of a faucet releasing water from a bowl into a basin (no text or symbols)

Simple line drawing of a house with laundry hanging under a sun (no text or symbols)

Wenk

Upon a voice message, "The wheels are not touching the floor. Please move HOM-BOT onto flat floor."

Illustration of a robotic vacuum cleaner on a platform (no text or symbols)

Illustration of a robotic vacuum cleaner with a circular housing and tripod legs (no text or symbols)

Upon a voice message, "Please remove any foreign material on the left/right wheel."

Diagram of a device interior with an inset showing internal components (no text or symbols visible)

Illustration of hands using a tool to adjust or install electronic components on a device (no text or symbols visible)

Upon a voice message, "HOM-BOT cannot continue cleaning. Please check the area around it."

Illustration of a robotic vacuum cleaner placed on a sofa (no text or symbols)

Illustration of a robotic vacuum cleaner with a circular housing and tripod legs (no text or symbols)

Upon a voice message, "Please check that the dust bin and filter are properly installed."

Technical illustration of a mechanical device with internal compartments and a handle (no text or symbols)

Illustration of a vacuum cleaner with open lid and internal mechanism (no text or symbols)

Technical illustration of a mechanical component with a circular washer and internal structure (no text or symbols)

3D technical illustration of a mechanical component with no visible text or symbols

Upon a voice message, "Battery is low. Please move HOM-BOT onto the home station to charge."

Illustration of a robotic vacuum cleaner with open lid and internal components, shown in three views (no text or symbols)

Side-view illustration of a modern electric vehicle with a mounted sensor array (no text or symbols visible)

Upon a voice message, "Please remove any foreign material from the brush on the bottom of the HOM-BOT."

Illustration of hands using a tool to adjust or install electronic components in a device case (no text or symbols visible)

Illustration of a hand using a spray gun to clean or store plastic components on a bamboo mat (no text or symbols)

Illustration of a robotic vacuum cleaner with control panel and tripod legs (no text or symbols)

Technical line drawing of a mechanical housing component (no text or symbols)

Technical line drawing of a rectangular electronic component with a small base (no text or symbols)

Melding open-bron-software

Top-down diagram of a device chassis showing internal components and wiring (no text or symbols)

Diagram of a robotic device with hands operating the internal components (no text or symbols visible)

Interior view of a car showing engine compartment and structural components (no text or symbols visible)

Close-up of a mechanical component being held, showing hands and structural details (no text or symbols visible)

Simple line drawing of a trash bin with no text or symbols

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or numbers)

Simple line drawing of a stylized object resembling a helmet or device, with no text or symbols present.

Nettoyage des coins

Illustration of a person sleeping in a small boat with thought bubbles and plants (no text or symbols)

Diagram of a device with directional arrows indicating flow or movement (no text or symbols)

Fonction Turbo

Illustration of a hand holding a small electronic device with a lid and scroll (no text or symbols visible)

Interior view of a kitchen with a stove placed on the floor and a washing machine in the background (no text or symbols visible)

Interior scene with sofa, scooter, and Zigzag logo (no text or symbols on main elements)

Localisation intelligente

Illustration of two cartoon characters, one holding a wrench and the other a computer monitor (no text or symbols)

Illustration of a medical device with a cross-sectional view and a seated patient (no text or symbols)

Diagram of a mechanical assembly with two butterflies emitting particles (no text or symbols)

Illustration of a graduation cap placed on a desk with a hand underneath, showing a broken object (no text or symbols present)

Cartoon illustration of a smiling insect-like character inside a house outline (no text or symbols)

Illustration of a crossed hammer and cube with smoke, surrounded by ice blocks (no text or symbols)

Illustration of a device with an open lid and internal components, showing a curved arrow indicating rotation (no text or symbols present)

Cartoon illustration of a person running away from a table with a box (no text or symbols)

Illustration of a person using a computer with a magnifying glass (no text or symbols visible)

Illustration of a mechanical device on a table with a rotating component (no text or symbols)

Illustration of a person cooking with a pan and a doughnut (no text or symbols)

Illustration of a person opening a door with a suitcase nearby (no text or symbols)

Cartoon illustration of a person holding a large object with a 'NO' sign above, no readable text or symbols present.

Illustration of a child cooking with a knife and bowl, no text or symbols present

Cartoon illustration of a crab with crossed legs and arms, no text or symbols present

Illustration of a child painting a cake with a bucket (no text or symbols)

Cartoon illustration of a helicopter with wings and a 'NO' sign, no text or symbols present

Illustration of a person climbing a wooden plank with a small boat on the surface (no text or symbols)

Illustration of a robotic vacuum cleaner with control panel and tripod legs (no text or symbols)

Aspirateur robot

Illustration of a remote control with buttons and a small logo (no text or symbols on the device itself)

Télécommande

Technical line drawing of a mechanical component with two mounting holes and a curved base (no text or symbols)

Base de chargement

Illustration of a stylized fish head with fins and tail (no text or symbols)

Outil de nettoyage

Illustration of a rectangular electronic component with vertical fins and a small protrusion (no text or symbols)

Filtre (Hepa11) (en option)

Guide de prise en main rapide

Technical line drawing of a mechanical component or housing (no text or symbols visible)

Support lingette microfi bre (en option)

Blank lined paper sheet with no visible text or markings

Lingettes microfi bre (2 pieces) (en option)

Technical line drawing of a three-blade tool or plunger mechanism (no text or symbols)

Technical illustration of a mechanical component with threaded ends and a central hub (no text or symbols)

Illustration of a hand inserting a device into a smartphone (no text or symbols)

Illustration of a device being inserted into a plastic container, showing internal components and a downward arrow (no text or symbols)

3

Diagram of a device with an open lid and internal components, showing a curved arrow indicating rotation (no text or symbols present)

4

5

Illustration of a vacuum cleaner with two views showing internal components and airflow direction (no text or symbols)

6

Line drawing of a hand holding a remote control (no text or symbols)

Technical line drawing of a mechanical component or bracket with no visible text or symbols

O

Technical line drawing of a mechanical component or bracket with hatched areas (no text or symbols)

X

Technical illustration of a mechanical component with a wire and mounting holes (no text or symbols)

O

Illustration of a mechanical component with a coiled cable and two mounting holes (no text or symbols)

X

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands installing a circular switch on a mechanical device (no text or symbols visible)

Technical illustration of a mechanical component with mounting holes and a central bracket (no text or symbols)

Tip

Mise hors tension

Diagram showing a robotic vacuum cleaner with internal components and directional arrows indicating assembly or operation (no text or symbols present)

Faible

Moyenne

Élevée

Illustration of a robotic vacuum cleaner with open lid and internal components, shown in three views (no text or symbols)

ZIGZAG (Nettoyage Zigzag)

Tip

Illustration of a robotic vacuum cleaner and a remote control with circular dial (no text or symbols)

SPOT (Spirale)

Diagram of a spiral-shaped object with directional arrows indicating rotational motion (no text or symbols)

Mode turbo

Illustration of a cartoon TV with a character pointing at a path, surrounded by thought bubbles containing potted plants (no text or symbols)

Tip

Technical line drawing of a briefcase and its corresponding flat panel (no text or symbols)

Illustration of two robotic vacuum cleaner designs, one open and one closed, with no visible text or symbols.

Illustration of a robotic vacuum cleaner with hands holding it, showing airflow direction (no text or symbols)

Changement de zone

Interior scene with sofa, potted plant, and a wall-mounted device labeled 'Zigzag' (no text or symbols on main objects)

Zone d'incident

Interior scene with sofa, vacuum cleaner, and a robot (no text or symbols)

Tip

Illustration of a robotic vacuum cleaner with open lid and internal components, shown in three views (no text or symbols)

Tip

Illustration of a robotic vacuum cleaner with open lid and mechanical components, showing hand gesture (no text or symbols)

Illustration of a hand holding a device with a scroll, no text or symbols present

Diagram of a mechanical device with an open lid and internal components, showing a rotation arrow (no text or symbols)

Illustration of hands using a tool to clean or exhaust from a water tap (no text or symbols)

Illustration of a sun-draped building with a person sitting on the ground and another person standing nearby (no text or symbols)

Diagram of a device's internal structure showing a rectangular frame with a lid and internal compartments, enclosed in a dashed-line bounding box (no text or symbols)

Diagram of a device with an open lid and internal components, showing a curved arrow indicating rotation (no text or symbols present)

Tip

Technical illustration of a mechanical assembly with a downward arrow indicating a component (no text or symbols present)

NETTOYAGE DU FILTRE DU RÉCEPTACLE À POUSSIÈRE

Illustration of a hand using a vacuum cleaner to clean or store items on a gridded tray (no text or symbols visible)

Illustration of a hand using a paintbrush to brush a textured surface, with no visible text or symbols.

Diagram showing a battery pack connected to a microchip or connector, with an inset close-up highlighting internal structure (no text or symbols present)

Technical illustration of two mechanical components with dotted fill patterns, shown from different angles (no text or symbols)

Tip

Illustration of a hand pressing a button on a battery pack (no text or symbols visible)

Illustration of a hand using a tool to adjust internal components of an electronic device (no text or symbols visible)

Diagram of a computer monitor with an open rear panel and a hand inserting a spring into the case (no text or symbols visible)

Technical illustration of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Illustration of a hand using a vacuum cleaner to clean or store items around a cylindrical brush (no text or symbols visible)

Technical illustration of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Technical illustration of a mechanical assembly with an inset close-up showing a circular component (no text or symbols visible)

Technical line drawing of a device casing with internal components and a handle (no text or symbols)

MANIPULATION DES CAPTEURS / DE LA BORNE DE CHARGEMENT

Illustration of hands using a tool to adjust or install electronic components on a device (no text or symbols visible)

Cross-sectional illustration of layered geological strata with visible strata and a labeled feature (no text or symbols)

Diagram of a mechanical or structural component with layered layers and a tassel, no visible text or symbols

Illustration of a hand pouring liquid from a bowl into a container (no text or symbols)

Illustration of hands pouring liquid from a container into a cup (no text or symbols)

Illustration of a hand using a tool to adjust or install a circular component on a shelf (no text or symbols visible)

Illustration of a hand inserting a cable into a device (no text or symbols visible)

Close-up of a mechanical component with layered structure and a zipper (no visible text or symbols)

Close-up of hands using a tool to adjust or repair a mechanical component (no visible text or symbols)

Mechanical assembly diagram showing two views of a mechanical component with no visible text or symbols

NETTOYAGE DE LA LINGETTE MICROFIBRE

Technical line drawing of a mechanical device with a 210 mm dimension label (no text or symbols on the diagram itself)

Illustration of a faucet releasing water into a bowl with a cloth inside (no text or symbols)

Simple line drawing of a sun-draped house with hanging laundry hanging from the side (no text or symbols)

Tip

Upon a voice message, "The wheels are not touching the floor. Please move HOM-BOT onto flat floor."

Illustration of a robotic vacuum cleaner on a platform (no text or symbols)

Illustration of a robotic vacuum cleaner with a circular housing and tripod legs (no text or symbols)

Upon a voice message, "Please remove any foreign material on the left/right wheel."

Diagram of a device interior with an inset showing a close-up of internal components (no text or symbols visible)

Illustration of hands operating a computer monitor with a screwdriver inserted (no text or symbols visible)

Upon a voice message, "HOM-BOT cannot continue cleaning. Please check the area around it."

Illustration of a robotic vacuum cleaner placed on a sofa (no text or symbols)

Illustration of a robotic vacuum cleaner with a circular vent and tripod base (no text or symbols)

Upon a voice message, "Please check that the dust bin and filter are properly installed."

Technical illustration of a mechanical housing or enclosure with internal compartments and a handle (no text or symbols)

Diagram of a robotic vacuum cleaner with open lid and internal mechanism (no text or symbols)

Technical illustration of a battery pack with internal compartments and a circular washer (no text or symbols)

3D technical illustration of a mechanical component with a cross symbol below (no text or labels)

Upon a voice message, "Battery is low. Please move HOM-BOT onto the home station to charge."

Illustration of a robotic vacuum cleaner with open lid and internal components, shown in three views (no text or symbols)

Side-view illustration of a modern electric vehicle with a tripod-mounted sensor array (no text or symbols)

MESURES CORRECTIVES FACE À DES ANOMALIES DE L'ASPIRATEUR ROBOT

Upon a voice message, "Please remove any foreign material from the brush on the bottom of the HOM-BOT."

Illustration of two different cleaning or repair tools: a hand using scissors to clean the box and a tool with a spray nozzle (no text or symbols present)

Illustration of a robotic vacuum cleaner with control panel and tripod base (no text or symbols)

Technical line drawing of a mechanical housing component (no text or symbols)

Technical line drawing of a rectangular electronic component with a small protrusion at the base (no text or symbols)

Simple line drawing of a trash bin with no text or symbols

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

Simple line drawing of a stylized object resembling a helmet or device, with no text or symbols present.

Illustration of a sleeping dog in a bathtub with thought bubbles and potted plants (no text or symbols)

Diagram of a device with arrows indicating flow or movement, no text or symbols present

Illustration of a hand holding a vacuum cleaner next to a device with a lid (no text or symbols visible)

Interior kitchen scene showing a washing machine, microwave oven, and floor plan with arrows indicating direction (no text or symbols)

Interior scene with sofa, scooter, and Zigzag wall (no text or symbols)

Corner master

Cartoon illustration of two characters in winter clothing, one holding a wrench and the other waving (no text or symbols)

Diagram of a car seatbelt mechanism with no visible text or symbols

Cartoon illustration of a car being stopped by a switch (no text or symbols)

Diagram of a mechanical assembly with two butterflies emitting particles (no text or labels)

Illustration of a person using a magnifying glass to lift a large object, with no visible text or symbols.

Cartoon illustration of a smiling insect-like character inside a house outline (no text or symbols)

Illustration of a crossed hammer and cube with swirling lines, no text or symbols present

Illustration of a robotic vacuum cleaner with open lid and internal components (no text or symbols)

Cartoon illustration of a person in a spacesuit climbing a table (no text or symbols)

Illustration of a person using a computer with a magnifying glass (no text or symbols visible)

Illustration of a mechanical device with rotating components and a handle, no text or symbols present

Illustration of a hand holding a 'NO' sign over a circular object, with no visible text or symbols.

Illustration of a person bending over a device with a smoke cone nearby (no text or symbols)

Illustration of a person opening a door with a suitcase nearby (no text or symbols)

Cartoon illustration of a person lying on the ground with a large object and a 'NO' sign above, no readable text or symbols present.

Illustration of a woman cooking with a pan and a knife, no text or symbols present

Cartoon illustration of a crab with crossed legs and arms, no text or symbols present

Illustration of a child painting a large character (no text or symbols present)

Cartoon illustration of a robot-like creature with crossed arms and a 'No' label, no readable text or symbols present.

Illustration of a hand using a tool to lift a small boat on a wooden deck (no text or symbols visible)

Illustration of a robotic vacuum cleaner with control panel and tripod legs (no text or symbols)

Robot Cleaner

Illustration of a remote control with buttons and a 'Lo' button (no text or symbols on the device itself)

Távirányító

Technical line drawing of a mechanical housing component (no text or symbols)

Kiindulási állomás

Illustration of a hairpin with bristles and comb (no text or symbols)

Takarító eszköz

Illustration of a rectangular heat exchanger or cooling unit (no text or symbols visible)

Használati útmutató

Diagram of a mechanical connector with multiple leads and a central housing (no text or symbols)

Technical line drawing of a mechanical component or housing (no text or symbols visible)

Mechanical component diagram showing four arms and a central hub (no text or symbols)

Technical illustration of a mechanical component with helical grooves and threaded ends (no text or symbols)

Illustration of a hand using a tool to adjust or install a device into a tray (no text or symbols visible)

Illustration of a device being inserted into a plastic container, showing internal components and a downward arrow (no text or symbols)

3

Diagram of a robotic vacuum cleaner with open lid and internal components, showing mechanical assembly (no text or symbols)

4

5

Illustration of a vacuum cleaner with two views showing internal components and airflow direction (no text or symbols)

6

Line drawing of a hand holding a remote control (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of hands installing or adjusting a circular switch device on a mechanical base (no text or symbols visible)

Technical illustration of a mechanical housing component with mounting holes and a clip (no text or symbols)

Tanács

Diagram showing a device with internal components and directional arrows indicating motion (no text or symbols)

Manuális töltés

Illustration of a robotic vacuum cleaner with open lid and internal components, showing close-up views (no text or symbols)

Illustration of a robotic vacuum cleaner with open lid and internal components, shown in three views (no text or symbols)

Az 1. fokozatban:

Illustration of a robotic vacuum cleaner with directional arrows indicating rotation and cycle (no text or symbols)

Illustration of a remote control with a circular dial and signal waves (no text or symbols)

Spirális takarítás

Diagram of a spiral-shaped object with directional arrows, no text or symbols present

Turbó üzemmód

Illustration of a cartoon character inside a TV with thought bubbles showing potted plants (no text or symbols)

Tanács

Technical line drawing of a two-part mechanical device with internal compartments and a separate flat panel (no text or symbols)

Illustration of two Kattano Hang vacuum cleaner designs, showing internal components and wiring (no text or symbols)

Illustration of a robotic vacuum cleaner with directional arrows indicating motion (no text or symbols)

Helyváltoztatás

Interior scene with a sofa, potted plant, and a directional path marked 'Zigzag' (no text or symbols on main objects)

Interior scene showing a sofa, a vacuum cleaner, and a Zigzag wall icon (no text or symbols on main objects)

Tanács

Illustration of a robotic vacuum cleaner with open lid and internal components, shown in three views (no text or symbols)

Tanács

Illustration of a robotic vacuum cleaner with an open lid and handle, showing mechanical components (no text or symbols)

Illustration of a hand holding a device with a tray and handle (no text or symbols)

Diagram of a mechanical device with an open lid and internal components, showing a rotation arrow (no text or symbols)

Illustration of hands using a tool to clean or install a device with a faucet (no text or symbols)

Illustration of a simple house with a sun and a person standing near the doorway (no text or symbols)

Diagram of an open device with internal components and a dashed outline indicating assembly (no text or symbols)

Diagram of a robotic vacuum cleaner with open lid and internal mechanism (no text or symbols)

Tanács

Technical illustration of a mechanical assembly with an arrow indicating a downward component (no text or symbols present)

Illustration of a hand inserting a device into a plastic housing (no text or symbols visible)

Illustration of a hand holding an open mechanical device with internal components (no text or symbols visible)

Illustration of a hand inserting a device into a tray (no text or symbols visible)

Illustration of a hand using a tool to cut a metal component with granular material (no text or symbols)

Illustration of a hand using a brush to clean or store contents on a flat surface (no text or symbols)

Diagram of a battery pack assembly with an inset close-up showing internal components (no text or symbols)

3D diagram of a layered electronic component with a perforated top layer (no text or symbols)

Cross-sectional diagram of a layered electronic component with dotted pattern and layered structure (no text or symbols)

Tanács

Illustration of a hand pressing a button on a battery cover (no text or symbols visible)

Illustration of a hand using a tool to adjust or install electronic components on a device casing (no text or symbols visible)

Illustration of a computer monitor with an open lid and handle, showing internal components (no text or symbols)

Technical illustration of a mechanical assembly with an inset showing internal components (no text or symbols)

Illustration of a hand using a vacuum cleaner to clean or store air by handling a cylindrical brush (no text or symbols present)

Technical illustration of a mechanical assembly with an inset close-up showing internal components (no text or symbols visible)

Technical illustration of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

Technical line drawing of a car interior showing internal components and structural layout (no text or labels)

Illustration of hands using a power tool to switch internal components of an electronic device (no text or symbols visible)

Diagram of layered geological strata with visible strata and a labeled feature (no text or symbols)

Diagram of layered material structure with a tassel, no visible text or symbols

Illustration of a hand pouring liquid from a bowl into a container (no text or symbols)

Illustration of hands pouring liquid from a container into a machine (no text or symbols)

Illustration of a hand using a tool to adjust or install a circular object on a shelf (no text or symbols visible)

Illustration of a hand inserting a cable into a device component (no text or symbols visible)

Cross-sectional diagram of a mechanical component with layered structure and a labeled section (no text or symbols)

Close-up of hands using a tool to adjust or install a mechanical component (no visible text or symbols)

Mechanical component diagram showing two views of a mechanical assembly (no text or symbols)

AZ ULTRA-MIKROSZÁLAS MOPOS (OPCIONÁLIS) TAKARÍTÁS

Technical diagram of a device rear view and side view, showing internal components and a 210 mm dimension label (no text or symbols on the diagram itself)

Illustration of a faucet releasing water into a bowl with a cloth inside (no text or symbols)

Simple line drawing of a sun-draped house with hanging laundry hanging from the side (no text or symbols)

Tanács

Illustration of a robotic vacuum cleaner on a platform (no text or symbols)

Illustration of a robotic vacuum cleaner with a circular sensor and tripod base (no text or symbols)

Diagram of a device interior with an inset close-up showing internal components (no text or symbols visible)

Illustration of hands operating a computer monitor with a tool, no visible text or symbols

Line drawing of a robotic vacuum cleaner placed on a sofa (no text or symbols)

Illustration of a robotic vacuum cleaner with a circular vent and tripod base (no text or symbols)

Technical illustration of a mechanical device with internal compartments and handle (no text or symbols)

Illustration of a robotic vacuum cleaner with open lid and internal components, showing mechanical assembly (no text or symbols)

Technical illustration of a mechanical housing component with a circular washer and ventilation slots (no text or symbols)

3D technical illustration of a mechanical component with a cross symbol below (no text or labels)

Illustration of a vacuum cleaner with open lid and internal components, showing close-up views (no text or symbols)

Side-view illustration of a robotic vacuum cleaner with tripod-mounted sensor (no text or symbols)

Illustration of a hand using a tool to clean or adjust a mechanical component, with no visible text or symbols.

Illustration of a robotic vacuum cleaner with control panel and tripod legs (no text or symbols)

Technical line drawing of a mechanical housing component (no text or symbols)

Simple line drawing of a rectangular electronic component with a small circular base (no text or symbols)

Technical line drawing of a vehicle chassis with visible internal components and no text or symbols

Diagram of a robotic device with open lid and internal components, showing hands interacting with the component (no text or symbols visible)

Technical diagram of a car's front engine compartment showing internal components like fuel tanks and motors (no text or labels)

Technical illustration of a mechanical assembly with hands and components, no visible text or symbols

Simple line drawing of a trash bin with no text or symbols

Symbol of a trash bin with crossed lines and a blank rectangular block below (no text or labels)
