Product Type	Smartwatch
Brand	LG
Model	LMW315
Operating System	Wear OS by Google
Power Source	Rechargeable built-in lithium-ion battery via included charging cradle
Battery Life	Varies depending on use; JustWatch mode saves battery
Water Resistance	IP68 (dust and water resistant up to 1.5 meters for 30 minutes)
Connectivity	Bluetooth 4.2, Wi-Fi 2.4 GHz, GPS via paired smartphone
Sensors	Barometer, altimeter, compass, accelerometer, heart rate sensor (Google Fit)
Main Functions	Notifications, voice command (Google Assistant), activity tracking (Google Fit), stopwatch, timer, alarm, compass, altimeter, barometer, customizable watch faces, JustWatch mode
Screen	Touchscreen, with always-on mode possible
Strap	Interchangeable (snap-and-swap MODE™ system)
Smartphone Compatibility	Android 4.4+ or iOS 9.3+
Operating Temperature	0°C to 35°C
Weight	Approximately 50 g (estimated)
Dimensions (case)	Approximately 42 mm in diameter (estimated)
Care and Cleaning	Wipe with a soft, dry cloth; avoid chemicals
Safety	Do not open, do not expose to extreme temperatures, keep out of reach of children, follow charging instructions
Spare Parts and Repairability	Non-removable battery; for repair, contact an authorized LG center
General Information	User guide included, system update via Settings, declaration of conformity available online

Frequently Asked Questions - LMW315 LG

How can I pair my LG LMW315 watch with my smartphone?

Make sure your smartphone runs Android 4.4+ or iOS 9.3+ with Bluetooth enabled. Download the Wear OS by Google app, then follow the on-screen instructions on the watch and phone to pair.

Is the LG LMW315 watch waterproof?

Yes, it is IP68 certified, meaning it is resistant to immersion in fresh water up to 1.5 meters for 30 minutes. However, it is not designed for swimming or high-pressure water.

How do I charge the watch battery?

Use the included charging cradle. Plug the USB cable into a wall charger or computer, place the watch on the cradle until it clicks, and remove it once fully charged (indicated by 100% on the screen).

How do I reset my LG LMW315 watch?

Go to Settings > System > Disconnect & reset. This erases all data and restores factory settings. You can also press and hold the Power button until the LG logo appears to force a restart.

What health tracking features are available?

Thanks to Google Fit, you can track your steps, distance, calories burned, active time, and set goals. The watch also uses the heart rate sensor, barometer, and altimeter.

Can I change the watch strap?

Yes, it is designed with interchangeable snap-and-swap MODE™ straps. You can buy other compatible straps, but using third-party straps is not covered by LG's warranty.

How can I save battery on my watch?

Turn off always-on display, reduce brightness, disable Wi-Fi if not needed, and use JustWatch mode to show only the time. You can also block app notifications from the Wear OS app on your phone.

How do I use voice commands on the watch?

Say 'OK Google' or press and hold the Power button until you see 'What can you do?'. You can then ask to send a message, set an alarm, start a stopwatch, etc. A Bluetooth or Wi-Fi connection to the phone is required.

What does JustWatch mode mean?

This mode disables all connected functions (Wear OS, notifications, Bluetooth, Wi-Fi) to use the watch only as a traditional watch, greatly saving battery. To activate, press and hold the bottom right button.

Where can I find accessories or spare parts for my watch?

Contact LG customer support or visit their official website. Genuine accessories are recommended. Note that the battery is not removable and its replacement must be done by an authorized professional.

USER MANUAL LMW315 LG

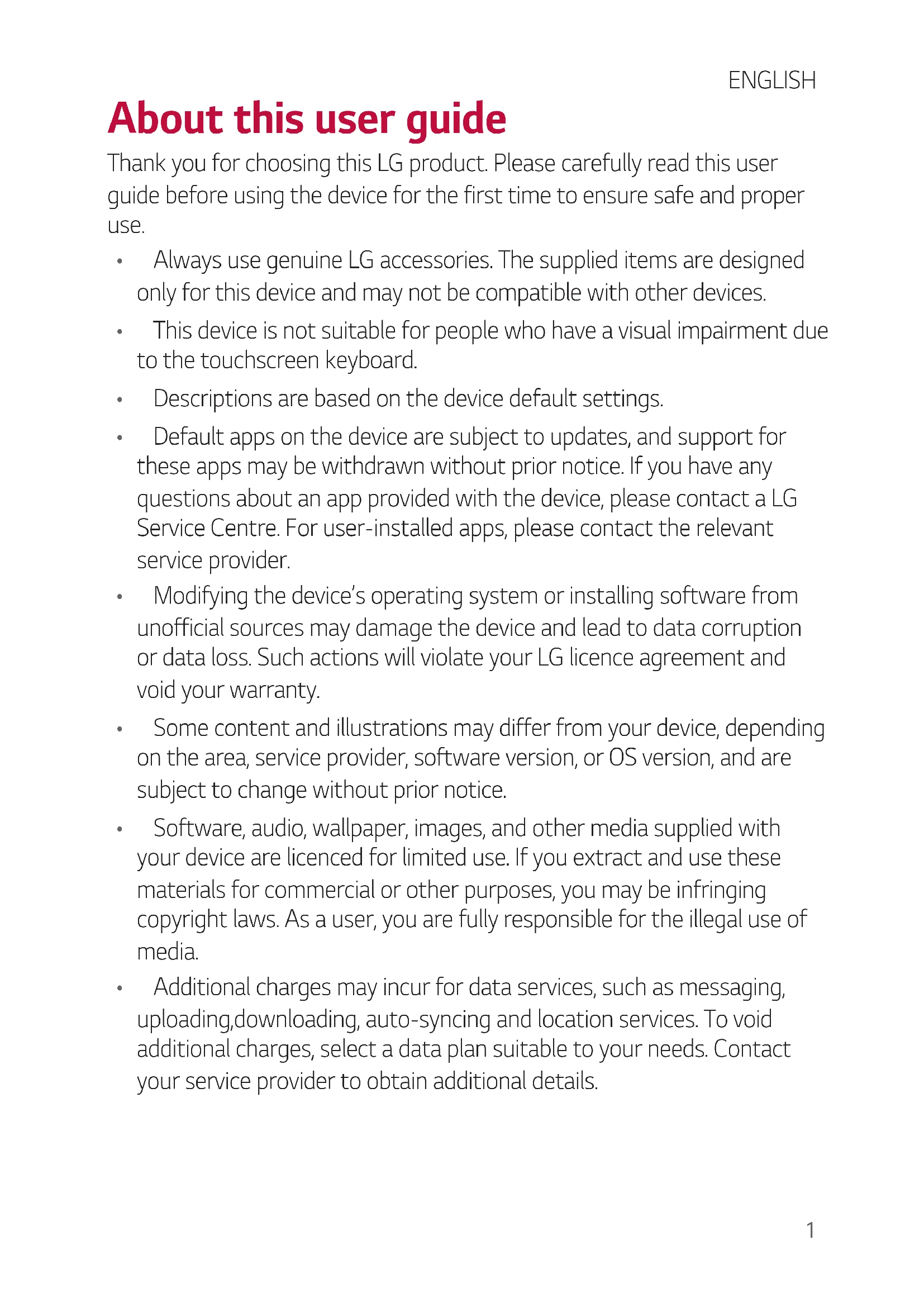

About this user guide

Thank you for choosing this LG product. Please carefully read this user guide before using the device for the first time to ensure safe and proper use.

• Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices.
- This device is not suitable for people who have a visual impairment due to the touchscreen keyboard.
• Descriptions are based on the device default settings.

- Default apps on the device are subject to updates, and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact a LG Service Centre. For user-installed apps, please contact the relevant service provider.

- Modifying the device's operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG licence agreement and void your warranty.

- Some content and illustrations may differ from your device, depending on the area, service provider, software version, or OS version, and are subject to change without prior notice.

- Software, audio, wallpaper, images, and other media supplied with your device are licenced for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully responsible for the illegal use of media.

• Additional charges may incur for data services, such as messaging, uploading, downloading, auto-syncing and location services. To void additional charges, select a data plan suitable to your needs. Contact your service provider to obtain additional details.

Instructional notices

WARNING: Situations that could cause injury to the user and third parties.

CAUTION: Situations that may cause minor injury or damage to the device.

NOTE: Notices or additional information.

Table of contents

01

Basic Functions

6 Accessories
7 Watch Overview
10 Get ready for snap-and-swap
12 Charging Your Watch
15 Using the battery efficiently
16 If the Screen Freezes
16 Turning the Watch On and Off
17 Waking Your Watch Up
17 Dimming the Screen
17 Using the Touch Screen

02

Connecting the Watch to Your Companion Device

21 Setting Up Your Companion Device
22 Pairing Your Watch with Your Companion Device
23 Connecting to Another Companion Device

03

How to Use Your Watch

25 Watch Face Home Screen
25 Changing the Watch Face
27 Notification Cards
28 Managing the Quick Settings
29 JustWatch
30 Sending a Text
30 Apps Screen
31 Master Tools
35 Google Fit
38 Opening the Apps Installed On Your Watch
39 Downloading Other Apps

04

Tasks Using Voice Command

41 Getting help from your Google Assistant on Your Watch
41 Setting a Reminder
42 Seeing Your Step Count
42 Sending a Text
43 Setting a Timer
44 Using the Stopwatch
44 Setting an Alarm
44 Managing Your Alarms

05

Settings

46 Opening the Settings Menu
46 Display
47 Apps & notifications
47 Gestures
48 Connectivity
50 Accessibility
50 Personalisation
51 System

06

More Information

53 Open Source Software Notice Information
53 Trademarks
54 DECLARATION OF CONFORMITY
54 Contact office for compliance of this product
54 Regulatory information (Regulation ID number, E-labeling, etc.)
54 How to Update Your Device

07

Safety Information

56 Safety tips
57 General safety & handling

01

Basic Functions

Accessories

The following accessories are provided with your device.

• Device
• Quick Start Guide
• Charging cradle
• Charger
• USB cable

• The items supplied with the device and any available accessories may vary depending on the region or service provider.
• Always use genuine LG Electronics accessories. Using accessories made by other manufacturers may affect your device's call performance or cause malfunctions. Any issues resulting from usage of accessories made by other manufacturers may not be covered by LG's repair service.
• The accessories are not water-resistant. Do not expose these items to water.

• If any of these basic items are missing, contact the dealer from which you purchased your device.
• To purchase additional basic items, contact the LG Customer Support Centre.
• To purchase optional items, contact the LG Customer Support Centre for available dealers, and then purchase online.
  • Some items in the product box are subject to change without notice.
• The appearance and specifications of your device are subject to change without notice.

Watch Overview

Top right button Power/ Rotating side button Bottom right button

Power/Rotating side button	To turn the watch on:Press and hold for one second to turn the screen on. If it doesn't turn on, press and hold for a few seconds until the LG logo appears.
	When the screen is dimmed:Press once to wake the screen.
	When the screen is on:Press to open the Apps screen when you are on the watch face home screen.Press to return to the previous when you are on any other screen.Press and hold for one second to get help from your Google Assistant.When the screen is off:Press once to wake the screen.
Power/Rotating side button	Rotating the Power/Rotating side button:Rotate to browse the apps list on the Apps screen.Rotate to show or hide notifications in the watch face home screen.
	If the screen freezes:Press and hold until the LG logo appears to restart the watch.
Top right button	Press and hold to see the obscure area when the screen is on.
Bottom right button	When the screen is on:Press once to open the master toolsPress and hold to use JustWatch.
	When the screen is off:Press once to wake the screen.

• See Master Tools for details.
• SeelustWatchfor details.

Barometer Charging terminal Microphone

- Any damage to the barometer or microphone resulting from accidents, unreasonable use, tampering or other causes not arising from defects in material or workmanship may void the Limited Warranty.

• If water enters hole on the device, some features may not work properly. In this case, dry the device thoroughly before using it again.
• Keep the holes clear.
  • If your device receives impact or moves severely, the hour and minutes hands may move slightly. Note that this is a designed performance.
• The hour and minute hands may move if you drop the device or subject it to severe impact. In this case, calibrate the hour and minute hands.

Get ready for snap-and-swap

Switch styles anytime with MODE ^™ snap-and-swap watch bands.

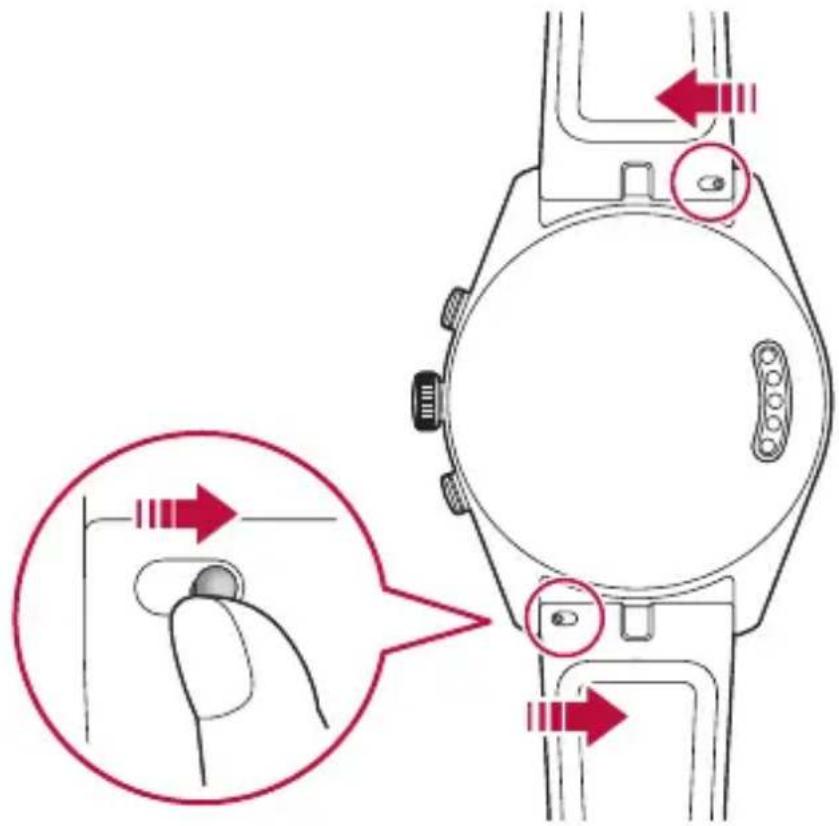

1

Diagram showing a smartwatch with labeled sensor positions and a magnified view of the grip mechanism.

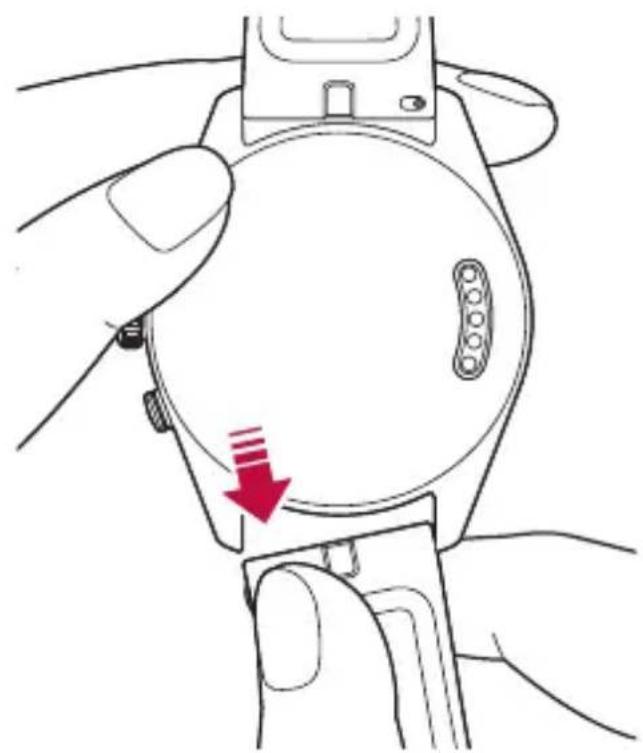

2

Illustration of a hand holding a device with a red arrow pointing to a circular component (no text or symbols)

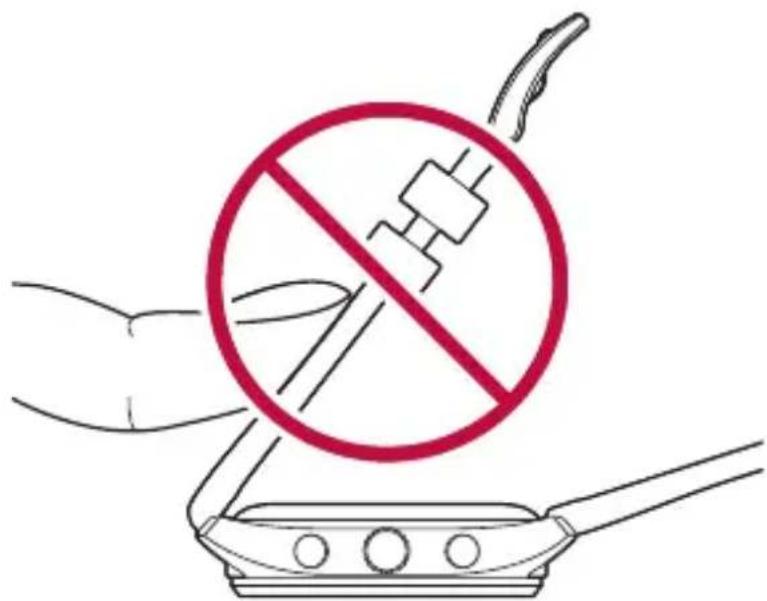

- You can change the snap-and-swap band into other band on the market. The LG limited warranty does not cover the use of third party bands.

Safety warning sign showing a frying pan with a crossed-out electrical plug and no text indicating the prohibition of using a switch.

• Excess force on the watch band may lead to breakage.

Charging Your Watch

Before using your watch for the first time, you should charge the battery. Use the charging cradle provided with your watch to charge its battery.

The supplied charging cable will allow you to charge from a power outlet or from a computer.

- When the battery power is low, the battery icon may show as empty. If the battery charge is completely empty, the watch cannot be turned on immediately after connecting the charger. Leave an empty battery to charge for a few minutes before turning the device on. Some features are not available while the battery is charging.

- To charge your device, always use the power adapter and charging cradle that come with your device. Using third-party charging accessories can cause fire, electric shock, injury, or damage to your device or other property.

Do NOT attempt to remove the back cover.

- This device has a non-removable battery. Do not attempt to remove the back cover. Doing so may severely damage the battery and device, which could cause overheating, fire, and injury.

1 Connect the USB plug on the charging cradle to the charger adapter.
2 Plug the charger adapter into a power outlet.

Diagram showing a cable being inserted into a socket connected to a plug, with no text or symbols present.

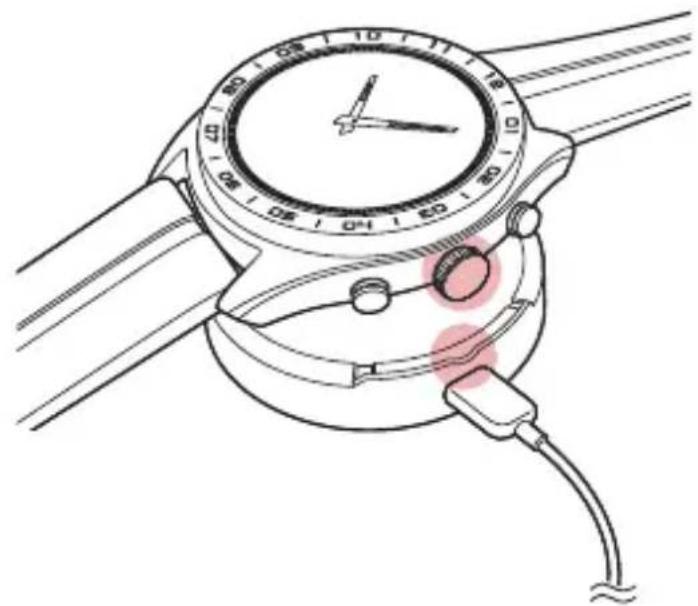

3 Place your device on the charging cradle as shown below.

Illustration of a wristwatch with dial and cable, showing mechanical components (no text or symbols)

4 Press down the device on the charging cradle until you hear the "click" sound.

Diagram showing hands adjusting a wristwatch with red arrows indicating motion or adjustment points.

• The charging cradle is designed to only be used with the watch and is not compatible with other devices.
• To maximise battery life, make sure that the battery is fully charged before you use the device for the first time.
• Exposure to liquids or other foreign materials while using your device may affect the charging cradle, causing it to disconnect from the watch while charging.
• If the charging screen does not display after connecting to a power source, adjust your device's position on the charging cradle.
• Do not charge while the device, charging cradle or charging cable is wet or contains moisture. This can cause fire, electric shock, injury or damage to device.

5 While your watch is charging, the screen will show the time, battery percentage and charging progress (indicated by the ring around the outside).

Charging progress 4:48 Time Battery percentage 100%

6 Once the battery is fully charged, remove it from the charging cradle.

- The watch may become warm while charging. If the device becomes hotter than usual, discontinue charging until it cools.

Using the battery efficiently

To minimise battery consumption, follow these tips.

• Turn off the Always-on screen option when not using your watch for a long time.
• Minimise the screen brightness.
  • Turn off the Wi-Fi network function when not using Wi-Fi.
  • Turn off the Gestures feature.
• If you get notifications on your companion device that you don't want to see on your watch, go to the Wear OS by Google™ app Settings on your companion device and add those apps to the Block app notifications.
• If you feel the battery life is short after installing some specific app, try to uninstall it.

- Battery Saver is automatically enabled at the 15% battery capacity on your watch. In battery saver mode, the ambient display and Wi-Fi are set to off.

If the Screen Freezes

If the device freezes up and stops working, press and hold the Power/ Rotating side button until the device reboots and the LG logo is displayed.

Turning the Watch On and Off

Turning the Watch On

Press and hold the Power/Rotating side button for a few seconds.

Power/Rotating side button

Turning the Watch Off

1 Press the Power/Rotating side button to open the Apps screen.
2 Tap Settings > System > Turn off.
3 When prompted with the message Turn off: Are you sure?, tap √.

Waking Your Watch Up

If the screen is dimmed or off, you can wake up the watch by doing any of the following:

- Touch the screen.

- Raise your wrist such that the display of the watch is pointing towards your eyes.

- Press the Power/Rotating side button on the watch.

Dimming the Screen

Cover the screen with your palm until it vibrates.

Using the Touch Screen

You can familiarise yourself with how to control your device by using touch screen gestures.

Tapping

Lightly tap with your fingertip to select or run an app or option.

Hand pressing a red circular button on a gray circular background (no text or symbols)

Touching and holding

Touch and hold for several seconds to display the available options.

Hand pressing a red circular button on a gray circular background (no text or symbols)

Swiping

Quickly move your finger across the surface of the screen, without pausing when you first touch it.

Hand interacting with a circular interface with four directional arrows pointing at a central node (no text or symbols)

- Do not expose the touch screen to excessive physical shock. It might damage the touch sensor.

• A touch screen failure may occur if you use the device near a magnetic, metallic or conductive material.
• If you use the device under bright lights, such as direct sunlight, the screen may not be visible, depending on your position. Use the device in a shady location or a location with an ambient light that is not too bright and bright enough to read books.
  • Do not press the screen with excessive force.
• Touch control may not work properly if you tap while wearing a glove on or by using the tip of your fingernail.
• The touch screen may not function properly if a screen-protective film or accessory is attached to the device.
• Do not display non-moving images for an extended period. This may cause image burn-in on the screen.
• Applications that show the same screen for more than 10 minutes are not recommended because they may cause screen damage that is not covered by the warranty.

02

Connecting the Watch to Your Companion Device

Setting Up Your Companion Device

Before pairing, follow these steps to set up your companion device that you want to pair with your watch.

1 Make sure the companion device is running Android™ 4.4+ or iOS 9.3+ and supports Bluetooth®.
- If your companion device is not Android 4.4+ or iOS 9.3+, please check with your manufacturer for a possible software update.
2 Make sure your companion device supports Wear OS by Google.
• To find out, visit http://g.co/WearCheck from your companion device.
3 Turn on Bluetooth on your companion device if it isn't already on.
4 Make sure your companion device is next to your watch.
5 On your companion device, download the Wear OS by Google app from the Play Store or App Store and install it. If Wear OS by Google is already on your companion device, make sure you have the most recent version.
6 Make sure your companion device is connected to mobile data or a Wi-Fi network. You need a data connection to set up your watch for the first time.

- Depending on the network connection, the setup process might take over 20 minutes.

Pairing Your Watch with Your Companion Device

Step1. Follow these steps on your watch.

1 Turn on the watch and tap the screen to begin.
2 Tap a language.
3 Swipe up and follow the onscreen instructions until the watch name is displayed.

Step 2. Follow these steps on your companion device.

1 Open the Wear OS by Google app on your companion device.
2 On your companion device, you'll see a list of nearby devices. Tap your watch's name.
3 You'll see a passkey on your companion device and watch. Check that the codes match.
4 Tap PAIR on your companion device to start pairing.

Step 3. Follow these steps to pair your watch with your companion device.

1 You'll see a confirmation message on your watch once it is paired. This may take a few minutes.
2 Follow the onscreen instructions to complete the initial setup.
3 When your watch completes the connection with your companion device, you'll be asked to copy your Google accounts on your companion device to your watch.

- Copying a Google account to your watch allows you to download new apps using the Play Store.

- Once initial setup is complete, you will see a tutorial notification. Follow the tutorial notices before using your watch.

- Copying a Google account to your watch allows you to download new apps using the Play Store. - Once initial setup is complete, you will see a tutorial notification. Follow the tutorial notices before using your watch.

Connecting to Another Companion Device

Your watch connects to one mobile device at a time. If you want to connect your watch to a different device, you must reset your watch using the Disconnect & reset setting on your watch.

Unpairing and Resetting Your Watch

This setting unpairs the watch from your companion device and resets your watch's settings to their factory default values and deletes all of your data.

1 Press the Power/Rotating side button to open the Apps screen
2 Tap Settings > System > Disconnect & reset.
3 When prompted, tap ⓣ to confirm.
4 Connect your watch to another device.

- Performing a factory reset erases all data from your watch's memory and all watch data from your companion device. After resetting, your watch is ready to connect to another companion device.

03

How to Use Your Watch

Watch Face Home Screen

The watch face home screen is the starting point for the default screen. You see the current time and date. You can also show the battery level, and more.

100 75 25 50 W Hemocur 9

• The displayed content depends on the watch face design you select.

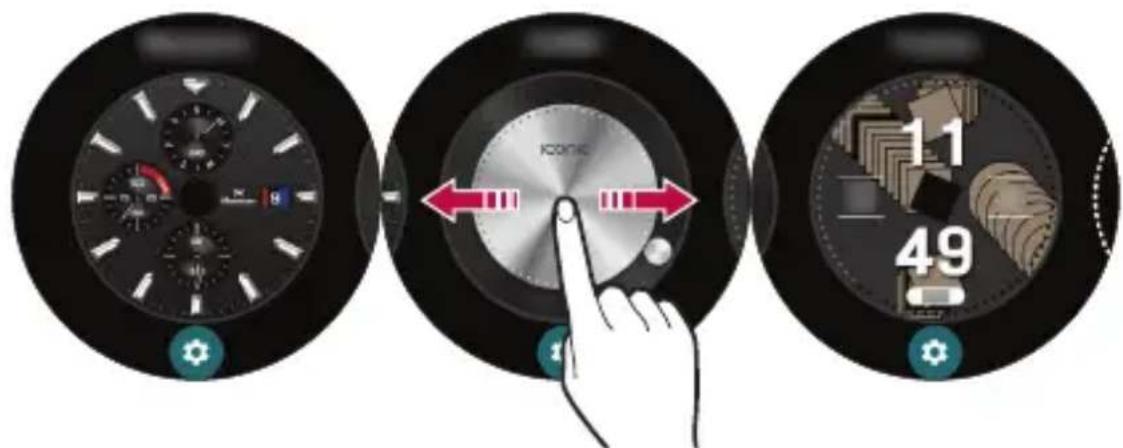

Changing the Watch Face

You can add more watch faces and personalise your watch to your style.

• From the watch face home screen, swipe left or right to the last screen and then tap Add more watch faces
- Tap the desired watch face to add it to your favorites and allow you to choose it.
• After adding your favorites, swipe the screen right or left to browse designs, then tap the one you want to choose.

Three-step smartwatch control interface showing dial, speed slider, and status bar with numeric values

- You can also change and download watch faces through the Wear OS by Google app on your companion device.

Customise the Watch Face Home Screen Menu

1 Touch and hold the watch face home screen for one second.

OR

Swipe left or right from the watch face home screen and then tap

Customise

Customise

2 You can customise the shortcuts and watch face layout displayed on the watch face home screen.

Notification Cards

Most notifications you see on your companion device will also show up on your watch. These include notifications for texts, event reminders, and more.

Notifications are displayed in the form of cards. Card previews appear at the bottom of the watch face home screen.

• To see a notification card, swipe the watch face upwards.
• To see more cards, keep swiping up from the bottom of the screen.
• To get more details, tap the notification card.

80 75 25 50 SEC W Machard 9 Notification cards

Swipe up to view more notifications.

To remove a notification, swipe left or right.

Blocking Notifications

If you get notifications on your companion device that you don't want to see on your watch, you can stop specific apps from showing their notifications on your watch.

1 On your companion device, open the Wear OS by Google app.
2 Tap 🔊 Block app notifications.
3 Select the app you want to block.

Managing the Quick Settings

To open the Quick settings, swipe down on the watch face home screen. The Quick settings allow you to quickly and easily change commonly used settings.

Diagram showing a hand interacting with a circular speedometer, illustrating the change from left to right.

• Set the brightness and theater mode.

• Tap to open the Settings app.

• Tap to disconnect all networks and turn off your device's connectivity on your watch.

- : Your watch will not show any notifications and alerts while this setting is turned on.

- Some content may differ from your companion device depending on the OS version.

JustWatch

You can use the device as a watch only. In the device, you can turn off all features including Wear OS by Google, Watch Face Home Screen, call, messaging, and mobile network to reduce battery consumption.

Activating the JustWatch mode

1 Press and hold the bottom right button on the Watch Face Home Screen.

OR

On the settings screen, tap System > JustWatch > JustWatch.

- The duration for which you can use the device in the JustWatch mode appears on the top of the screen.

2 Tap on the bottom of the screen.

- Wear OS by Google turns off and you can use the device as a watch.

Deactivating the JustWatch mode

To turn on the all features including Wear OS by Google, press and hold the Power/Rotating side button.

The device turns on and automatically pairs with the mobile device.

Sending a Text

You can ask your Google Assistant to send text messages using your watch.

You can also reply to any text message cards that you receive on your watch.

Apps Screen

The Apps screen displays icons for all apps.

• From the watch face home screen, press the Power/Rotating side button to open to the Apps screen.
  • To open an app on the Apps screen, tap an app icon.

Circular icon with a black triangle, three heart symbols inside, and two red hearts below (no text or numbers)

• To set the favorite app, touch and hold a app. Then this app will be appeared at the top of the app list.

Master Tools

You can use various functions.

Compass

Use the compass function to measure the direction.

- Follow the on-screen instructions to calibrate the compass.

N NW DE M E M S 12° N DE OL FR FR FR FR FR MS S

• Calibrate the compass in a place where the magnetic field cannot affect the device, or outdoor. If there are objects to affect the magnetic field including metals or rebar, or if you are inside the building you may not calibrate the compass properly.
• In case of the compass is not calibrated properly, check that there are no objects or materials including metals to affect the magnetic field, and then swipe the compass upwards to calibrate again.

Stopwatch

You can use the stopwatch to record a lap time.

• Press Top right button to initiate or suspend the stopwatch.

• Press Bottom right button to record a lap time or reset.

00:00:00.00

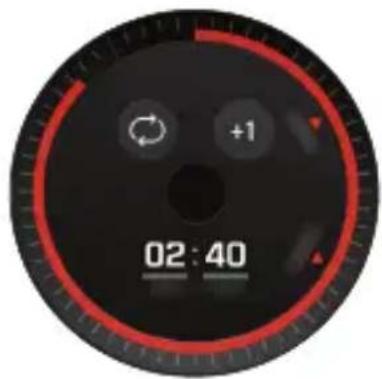

Timer

You can set the timer to trigger an alarm after a specified period of time.

• Tap the desired time to start.

• To suspend or resume the timer, press top right button. To cancel the timer, press bottom right button.

1 1 3 30 5 15 10

02:40 +1

Calibration

To synchronise the time perfectly between your device and the mobile device, calibrate the hour hand and the minute hands. Align the hour and the minute hand to the red dot on the top of the screen, then tap the screen.

• To move the hour hand, tap the Top right button then align the hour hand to the red dot on the top of the screen.
• To move the minute hand, tap the Top right button then align the hour hand to the red dot on the top of the screen.

Close-up of a circular digital dial with measurement scales and control buttons (no readable text or symbols)

Barometer

You can check the atmospheric pressure in the current location.

1009.5 hPa 18°C

• The screen displays current atmospheric pressure and temperature.
- You can set the unit of the atmospheric pressure and temperature by swiping the screen upwards.
- This feature is available only when the GPS feature is activated on your mobile device.

Altimeter

You can check altitude in the current location.

2000 17 18 19 15:00 24h 15:00 12.9 m 18°C 0001 6 8 11 000 5 6 7 8

• The screen displays current altitude and temperature.
• You can set the unit of the altitude and temperature by swiping the screen upwards.
- This feature is available when the Location feature is activating on your mobile device.
• This feature is provided for your convenience only.

Google Fit

Google Fit helps to work out when you're walking, jogging or cycling. Set fitness goals and regularly record and check your progress.

To Open the Google Fit App

Open the Apps screen and then tap Fit.

• If you feel discomfort while using the device, stop using it and remove it from your wrist.
• If your device becomes hot to the touch, please remove it until it cools.
- This feature is provided for user convenience. Please use for reference only.

Using the Google Fit App

Setting up your goal

1 Open the Fit app to personalise your goal.
2 Swipe up and tap Settings > Activity goals 📋 to set one of the following preset goals or create your own: Take 10,000 steps a day, Active 30 min a day, Running 3 times a week, Steps, Distance, Active time, Calories.

200

Viewing your workout report

Your workout log displays your active time, steps, distance, and active calories.

1 Open the Fit app and swipe up until the workout report appears.
2 Tap each goal option to show workout information and a graph depicting weekly data.

Using the Fit Workout App

Open the Fit Workout app

1 Open the Fit app and tap Fit Workout OR

Open the Fit Workout app.

2 Tap the desired workout mode.

3 Tap START to start monitoring your workout.

- Tap to pause or to resume the workout.

- Tap to save and exit your workout and view your workout report.

0:01 0 0

Opening the Apps Installed On Your Watch

The apps list shows you all of the applications installed on the watch.

Swipe up and down to scroll through the list, and then tap one to use it.

The most recently used app is displayed at first top of the circle.

• Default apps on the device are subject to updates. Support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact an LG Service Centre. For user-installed apps, please contact the relevant service provider.
• Modifying the device's operating system or installing software from unofficial sources may damage the device and lead to data corruption or loss. Such actions will violate your LG license agreement and void your warranty.

Viewing the Apps List

1 If your screen is dimmed, tap the screen to wake up the watch.
2 Press the Power/Rotating side button to open the Apps screen.

Downloading Other Apps

After copying you companion device's Google accounts to your watch, you can download more apps on Google Play™ store.

To use the same apps which are already installed on your companion device, download them again on your watch. You can download them easily via the 'Apps on your phone' category on Google Play™ store.

• The apps on your device, and their functions, may vary according to country, region or hardware specifications. LG will not be responsible for any performance issues which arise from using applications developed by providers other than LG.
• LG will not be responsible for performance or incompatibility issues which arise from edited registry settings or modified operating system software.
• Any attempt to customise your operating system may lead to the device or its apps not working correctly.
• Software, audio, wallpaper, images, and other media supplied with your device are licensed for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are entirely responsible for the illegal use of media.
• Additional charges may apply for data services, such as messaging, uploading, downloading, auto-syncing and location services. To avoid additional charges, select a data plan suitable to your needs. Contact your service provider for details.
  • This content is not supported in iOS version.

04

Tasks Using Voice Command

Getting help from your Google Assistant on Your Watch

Your watch has the Google Assistant built in. Ask it questions. Tell it to do things. It's your own personal Google. Just say "OK Google" or press and hold the Power/Rotating side button until you see What can you do?

• To get help from your Google Assistant a data or Wi-Fi connection is required on your companion device, and the devices must be within Bluetooth range.
• This feature may vary or may not be supported, depending on the area, languages, or paired devices.
• IF you can use this function, activate it Tap Settings >Personalisation >'Ok Google' detection.

Setting a Reminder

You can ask your Google Assistant to set a reminder. When a reminder is set, a card will appear at the reminder time.

1 If your screen is dimmed, tap the screen to wake up the watch.
2 From the watch face home screen, say "OK Google" or press and hold the Power/Rotating side button until you see What can you do?
3 Say "Remind me".
4 Complete your reminder when prompted. Your reminder will automatically save after a few seconds (tap the Ⓧ before it finishes saving to cancel it.)

Seeing Your Step Count

You can view your step count goal, the number of steps you have taken today and each day over the last week, as measured by the Fit app.

1 If your screen is dimmed, tap the screen to wake up the watch.
2 From the watch face home screen, say "OK Google" or press and hold the Power/Rotating side button until you see What can you do?
3 Say "Show me my steps". You will see your daily step count information.

Sending a Text

You can ask your Google Voice to send text messages using your watch. You can also reply to any text message cards that you receive on your watch.

Sending a Message

1 If your screen is dimmed, tap the screen to wake up the watch.
2 From the watch face home screen, say "OK Google" or press and hold the Power/Rotating side button until you see What can you do?
3 Say "Send a text".
4 To whom? will appear. Say the name of the contact you want to send a text message to. You can also say a mobile phone number for numbers not saved in your companion device's Contacts list.
5 You will be prompted to say the message you want to send. Say your message.
6 Tap to send the text message (tap to cancel it).

Replying to a Message

When you get message notifications on your companion device, cards will appear on your watch. Tap the notification and swipe up until Reply appears. Tap Reply, then say your message or insert emoticons or input message using the keyboard. To insert an emoticon, like a smiley, into the message, tap 😊.

• This content is not supported in iOS version.

Setting a Timer

You can ask your Google Assistant to set a timer. Once a timer set, a card is displayed with the countdown.

1 If your screen is dimmed, tap the screen to wake up the watch.
2 From the watch face home screen, say "OK Google" or press and hold the Power/Rotating side button until you see What can you do?
3 Say "Set a timer".

Using the Stopwatch

Measure how much time has passed by starting a stopwatch.

1 If your screen is dimmed, tap the screen to wake up the watch.
2 From the watch face home screen, say "OK Google" or press and hold the Power/Rotating side button until you see What can you do?
3 Say "Start stopwatch".
4 Press Top right button to start.

Setting an Alarm

Multiple alarms can be set on your watch separately from alarms set on your companion device. Alarms set on your watch will not transfer to your companion device, but alarms activated on your companion device will display an alarm card (with vibration and sound, if set) on your watch.

1 If your screen is dimmed, tap the screen to wake up the watch.
2 From the watch face home screen, say "OK Google" or press and hold the Power/Rotating side button until you see What can you do?
3 Say "Set an alarm".

Managing Your Alarms

You can view, edit, and delete the alarms that you set on your watch.

1 If your screen is dimmed, tap the screen to wake up the watch.
2 From the watch face home screen, say "OK Google" or press and hold the Power/Rotating side button until you see What can you do?
3 Say "Show alarms".

• Tap√ next to an alarm to edit or delete it.
• Tap+ to manually set an alarm.

05

Settings

Opening the Settings Menu

If your screen is dimmed, tap the screen to wake up the watch.

- Press the Power/Rotating side button to open the Apps screen, then tap Settings ⚙.

OR

Swipe down on the watch face home screen, then tap Settings

- Tap a setting to turn it on or off, open a list of choices, or view information.

Display

From the Settings ⚙, tap Display.

• Change watch face: You can set the watch's face. See Changing the Watch Face for details.
• Adjust brightness: You can set the level of brightness for your watch's display.
• Font size: You can set the size of the font displayed on your watch's screen.
• Always-on screen: When you're not using the watch, the screen can either turn off or on, depending on your settings.
• Touch lock: You can set the lock of the touch screen. To unlock the touch screen, press Power/Rotating side button.

Apps & notifications

From the Settings ⚙, tap Apps & notifications.

• App info: You can see information about installed apps.
• App notifications: You can set how app alerts are sent.
- App permissions: You can check permissions of installed apps.
- Notification previews: Enables or disables notification previews.
- Override Do Not Disturb for...: Select apps to receive notifications in Do Not Disturb mode.
• Vibration pattern: Select the vibration pattern.

Gestures

From the Settings ⚙, tap Gestures.

• Tilt-to-wake: You can set to tilt your watch to turn on the screen.
• Touch to wake: You can set to touch your watch to turn on the screen
• Wrist gestures: You can set to flick your wrist to browse the screen.
• Launch tutorial: View a tutorial about using gestures on your watch.
• More tips: Opens a webpage on your companion device to help you with more tips for gestures.

Connectivity

From the Settings ⚙, tap Connectivity.

Bluetooth

• Bluetooth: Tap the switch to toggle it On or Off. On allows you to pair and connect with other Bluetooth devices.
• Available devices: Displays all of the Bluetooth devices that are within your companion device's range. Tap one to pair and connect.

• When using Bluetooth to connect to other mobile devices, the devices must be positioned close to each other. If not, it may cause abnormal operation or noise, depending on the use environment.
• In an open space, the Bluetooth communication range usually spans approximately 10m. This range may vary depending on the use environment.
• Do not place obstacles between your product and connected devices. Outgoing/incoming signals can weaken due to user's body, walls, corners or obstacles. Use where there is no obstacle.
• Only Bluetooth devices that support the A2DP and HFP profile are supported.

Wi-Fi

• Wi-Fi: Tap the switch to toggle it On or Off. On connects to a Wi-Fi network (from your list of available, detected networks).
• Add network: Allows you to manually add a Wi-Fi network by entering its name (SSID), security, and password.
• Saved networks: Displays your saved Wi-Fi networks allowing you to manage them.
• About Wi-Fi: Help is displayed when the product is using a Wi-Fi network.

• When using a Wi-Fi connection, your watch can get notifications from your device even if Bluetooth is unavailable.
• Your watch will search and connect to the nearest Wi-Fi network based on the Wi-Fi list registered on your device.

Aeroplane mode

Tap the switch to toggle it On or Off. When Aeroplane mode is on, you can use still many of the features on your watch when you are on an aeroplane or anywhere else where sending or receiving data is prohibited.

- Turning on Aeroplane mode on your watch does not activate it on the your companion device. If you want to activate aeroplane mode on your companion device, you'll need to turn it on separately.

Location

Tap the switch to toggle it On or Off. You can manage your location services for determining your approximate location. Some apps like Weather and Maps need your location to work.

- When paired with a companion device, the watch will use the location of the companion device. To improve location accuracy when paired with a device, turn on High accuracy in your companion device's location settings.

Accessibility

From the Settings ⚙, tap Accessibility.

- Magnification gestures: You can set to enable magnification to zoom in and out with triple tap.

Personalisation

From the Settings ⚙, tap Personalisation.

• Input methods: You can customise keyboard settings for your device.
  • Accounts: You can add or remove a Google account to your watch.
• Customise hardware buttons: You can customise the Bottom right button.
• 'Ok Google' detection: Allows you to use Ok Google.
• Device administration: Allows you to view and disable your device administrators.
• Enable alternate launcher: Allows you to use alternate launcher.

System

From the Settings ⚙, tap System.

• Battery Saver: Reduce battery consumption by cutting down some device settings.
• JustWatch: You can only use a watch. All features can be turned off to use the watch, saving battery life.
• Date & time: You can set how your watch syncs and displays the date, time, and time zone.
  • Restart: You can restart your device.
  • Turn off: You can turn off your device
• Disconnect & reset: You can unpair the watch from your companion device and reset your watch's settings to their factory default values. Please note that this deletes all of your data on your watch.
• About: Displays the Model, Device name, Versions (for Google and Android software), Serial number, Build number, Connection, and Battery information. The following options are also available:
• System updates, Legal notices and Terms of USE for LG apps
  • Regulatory information: Displays regulatory information.

06

More Information

Open Source Software Notice Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [e-mail].

This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information.

Trademarks

• Copyright ©2018 LG Electronics Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities.
- Bluetooth® is a registered trademark of Bluetooth SIG, Inc. worldwide.
- Wi-Fi and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.
• App Store is a registered trademark of Apple Inc.
- Google and Wear OS by Google are registered trademark of Google LLC.

Wear OS by Google

- All other trademarks and copyrights are the property of their respective owners.

DECLARATION OF CONFORMITY

Hereby, LG Electronics declares that this LM-W315 product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

A copy of the Declaration of Conformity can be found at http://www.lg.com/global/declaration.

Contact office for compliance of this product

LG Electronics European Shared Service Center B.V. Krijgsman 1, 1186 DM Amstelveen, The Netherlands

Regulatory information (Regulation ID number, E-labeling, etc.)

For regulatory details, go to Settings >System >Regulatory information.

How to Update Your Device

Access to latest firmware releases, new software functions and improvements.

- Press the Power/Rotating side button and tap Settings > System > About > System updates.

07

Safety Information

Before turning on your product, review the basic safety information provided here.

Safety tips

To avoid damaging your product and reduce the risk of fire or electric shock, explosion, or other hazards, observe the following safety precautions:

- To charge your device, always use the included power adapter, USB cable, and charging cradle that come with your device. Using third-party charging solutions can cause fire, electric shock, injury, or damage to your device or other property.

• Available accessories may vary depending on your region, country or service provider.

- Some contents and illustrations may differ from your device depending on the region, service provider, software version, or OS version, and are subject to change without prior notice.

- Do not damage the power cord by bending, twisting, pulling, heating, or placing heavy items on it.

- This product is equipped with a charging cradle for connecting to a desktop or notebook computer or to the charger. Be sure your computer is properly grounded before connecting your product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

- Do not open, disassemble, crush, bend or deform, puncture, or shred the product.

• Do not insert foreign objects into the product.

• Do not place the product in a microwave oven.

• Do not expose the product to fire, explosion, or other hazards.

- Like many electronic devices, your product generates heat during normal operation. Extremely prolonged, direct skin contact in the absence of adequate ventilation may result in discomfort or minor burns. Therefore, use care when handling your product during or immediately after operation.

- If you have a problem with using the product, please stop using it and consult with the authorised LG Electronics customer service center.

General safety & handling

While using your product, be aware of the following common-sense guidelines.

Your environment

• Safe operating temperatures. Use and store your product in temperatures between 0°C/32°F and 35°C/95°F. Exposing your product to extremely low or high temperatures may result in damage, malfunction, or even explosion.
• While driving. When driving a car, driving is your first responsibility. Using a mobile device or accessory for a call or other application while driving may cause distraction. Keep your eyes on the road.
• Around explosives. Do not use in areas where sparks from the product might cause a fire or explosion.
• On airplanes. Observe all rules and instructions for use of electronic devices. Most airlines allow electronic use only between and not during takeoffs and landings. There are three main types of airport security devices: X-ray machines (used on items placed on conveyor belts), magnetic detectors (used on people walking through security checks), and magnetic wands (hand-held devices used on people or individual items). You can pass your product through airport X-ray machines. But do not send it through airport magnetic detectors or expose it to magnetic wands.
  • Always follow any special regulations in a given area. Turn your device off in areas where use is forbidden or when it may cause interference or danger.

Battery warnings

• Do not disassemble, open, crush, bend or deform, puncture or shred the device.
• Do not modify or re-manufacture the device, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, or expose to fire, explosion or other hazard.

• Make sure that no sharp-edged items such as animal's teeth or claws, come into contact with the battery. This could cause a fire.
  • Only use the battery for the system for which it is specified.

• Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard.

• Do not short circuit a battery or allow metallic conductive objects to contact battery terminals.
  • Battery usage by children should be supervised.
• Avoid dropping the device. If the device is dropped, especially on a hard surface, and the user suspects damage, take it to a service centre for inspection.
  • Improper battery use may result in a fire, explosion or other hazard.
  • Always unplug the charger from the wall socket after the product is fully charged to save unnecessary power consumption of the charger.
• Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

Embedded battery

Warning Notice for Battery replacement

• Li-Ion Battery is a hazardous component which can cause injury.
- Battery replacement by non-qualified professional can cause damage to your device.
- Do not replace the battery by yourself. The battery can be damaged, which can cause overheat and injury. The battery must be replaced by the authorised service provider. The battery should be recycled or disposed separately from household waste.
- In case this product contains a battery incorporated within the product which cannot be readily removed by end-users, LG recommends that only qualified professionals remove the battery, either for replacement or for recycling at the end of this product's working life. To prevent damage to the product, and for their own safety, users should not attempt to remove the battery and should contact LG Service Helpline, or other independent service providers for advice.
- Removal of the battery will involve dismantling of the product case, disconnection of the electrical cables/ contacts, and careful extraction of the battery cell using specialized tools. If you need the instructions for qualified professionals on how to remove the battery safely, please visit http://www.lge.com/global/sustainability/environment/take-back-recycling

Notes on Water Resistant Properties

This product is water and dust resistant in compliance with the Ingress Protection rating IP68.

Your product has undergone testing in a controlled environment and is proven to be water and dust resistant in certain circumstances (meets the requirements of classification IP68 as described by the international standard IEC 60529 - Degrees of Protection provided by Enclosures [IP Code]; test conditions: 15-35 °C, 86-106kPa, 1.5 meter, for 30 minutes). Do not expose the device in conditions that are different from the test conditions. Results may vary in actual use.

WARNING

Despite a rating of IP68, your device is not impervious to conditions not tested in LG's controlled environment. Please note that any damages that occur due to such causes changes the colour of the LDI (Liquid Damage Indicator). If the colour of LDI located inside the product changes, the product is to be considered ineligible for any free-of-charge repair services provided under the product's limited warranty.

Avoid exposing the product to environments with excessive dust or moisture. Do not use the product in the following environments.

Do not immerse the product in any liquid chemicals (soap, etc.) other than water.

Do not immerse the product in salt water, including seawater.

Do not immerse the product in a hot spring.

Do not swim with this product.

Do not place the product directly on sand (such as at a beach) or mud.

Do not immerse your product in water deeper than approximately 1.5 meters.

Do not immerse your product in water for longer than 30 minutes.

• If your product becomes wet be sure to wipe the microphone and device with a dry cloth before use.
• Should your product or your hands become wet, dry them before handling the product.
• Do not use the product in places where it may be sprayed with high pressure water (e.g. near a faucet or shower head) or submerge it in water for extended periods of time, as the product is not designed to withstand high water pressure.
• This product is not resistant to shock. Do not drop the product or subject it to shock. Doing so might damage or deform the main unit, causing water leakage.
• The product's water and dust resistant features may be damaged by dropping or receiving an impact.
  • If the product gets wet, use a clean, soft cloth to dry it thoroughly.
• The touch screen and other features may not work properly if the device is used while wet.

- Failure to follow the provided instructions may invalidate your device's limited warranty.

Pacemakers and other medical devices

Persons with pacemakers should:

• Always keep the product more than six (6) inches from their pacemaker when the product is turned ON.
• Not carry the product in a breast pocket.
- Use the wrist opposite the pacemaker to minimize the potential for RF interference.
- Turn the product OFF immediately if there is any indication that interference is taking place.

If you use any other personal medical device, consult your physician or the manufacturer of your device to determine if it is adequately shielded from external RF energy.

Tips for using Bluetooth and Wi-Fi on your watch

• When connecting your product to other mobile devices, the devices must be positioned close to each other. If not, it may cause abnormal operation or noise, depending on the use environment.
• In an open space, the Bluetooth communication range usually spans approximately 10m. This range may vary depending on the use environment.
• Do not place obstacles between your product and connected devices. Outgoing/incoming signal can weaken due to user's body, walls, corners or obstacles. Use where there is no obstacle.
• When using a Wi-Fi connection, your watch can get notifications from your device even if Bluetooth is unavailable.
• Your watch will search and connect to the nearest Wi-Fi network based on the Wi-Fi list registered on your phone.

Tips for the display screen

• Do not display non-moving images for an extended period. This may cause image burn-in or stains on the screen.
• Applications that display the same screen for more than 10 minutes are not recommended because the potential screen damage is not covered by the warranty.

Exposure to radio frequency energy

Radio wave exposure and Specific Absorption Rate (SAR) information.

This product has been designed to comply with applicable safety requirements for exposure to radio waves. These requirements are based on scientific guidelines that include safety margins designed to assure the safety of all persons, regardless of age and health.

• The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using standardised methods with the product transmitting at its highest certified power level in all used frequency bands.
• While there may be differences between the SAR levels of various LG product models, they are all designed to meet the relevant guidelines for exposure to radio waves.

- The SAR limit recommended by the International Commission on Non-Ionizing Radiation Protection (ICNIRP) is 2 W/kg averaged over 10g of tissue for the Mouth SAR or 4.0 W/kg averaged over 10g of tissue for the Limb-worn SAR.

- The highest SAR value for this model product when tested for use at Next-to-Mouth(Face) is 0.101 W/kg (10g) and for Limb-worn(Wrist) is 0.208 W/kg (10g).

- This device was tested for typical Limb-worn(Wrist) operations kept 0 cm between the user's body(Wrist) and the back of the device. Additionally this device was tested for typical Next-to-Mouth(Face) operations with the front of the device kept 1 cm between the user's mouth(Face) and the front of the device. To ensure compliance with Radio Equipment SAR requirements, please ensure a minimum separation distance of 1 cm is maintained for next-to-mouth (face) operations.

Information about the RF exposure from FCC

In August 1996, the Federal Communications Commission (FCC) of the United States, with its action in Report and Order FCC 96-326, adopted an updated safety standard for human exposure to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both international and U.S. standards. The design of this device complies with FCC guidelines and these international standards.

Part 15.19 statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Part 15.21 Statement

Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

Body-Worn(Wrist) and Next-to-Mouth Operation

This device was tested for typical body-worn (wrist) operations with 0 inches (0cm) between the user's body (wrist) and the back of the device.

This device was also tested for typical next-to-mouth (face) operations with 0.39 inches (1cm) between the user's mouth (face) and the front of the device.

To comply with FCC RF exposure requirements, a minimum separation distance of 0.39 inches (1 cm) must be maintained between the user's mouth(face) and the front of the device.

Any accessories containing metallic components may not be used.

Part 15.105 Statement

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Laser safety statement

Caution!

This product employs a Laser system. To ensure proper use of this product, please read this owner's manual carefully and retain for future reference. Should the unit require maintenance, contact an authorised service centre.

Use of controls, adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure or make direct contact with the laser.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT CLASSE 1 PRODUIT LASER

Supported Bands Tx Output power
BT 2.4GHz 9 dBm
WLAN 2.4GHz 15 dBm

Disposal of your old appliance

1. This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
2. Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
3. You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling

Disposal of waste batteries/accumulators

1. This symbol may be combined with chemical symbols for mercury (Hg), cadmium (Cd) or lead (Pb) if the battery contains more than 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead.
2. All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health.
4. For more detailed information about disposal of your old batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the product.

Diagram showing a smartwatch with labeled sensor positions and a magnified view of the grip mechanism.

2

Illustration of a hand holding a device with a red arrow pointing to a circular component (no text or symbols)

Safety warning sign showing a crossed pan with a diagonal line and a crossed plate, indicating no protection or resistance.

Diagram showing a cable being inserted into a socket connected to a plug, with no text or symbols present.

Illustration of a wristwatch with dial and cable, showing mechanical components (no text or symbols)

Illustration of hands holding a wristwatch with a cable, showing adjustment arrows (no text or symbols)

Hand interacting with a circular button featuring four red arrows pointing outward from a central circle (no text or symbols)

Close-up of a circular dial with gauge and pointer, showing technical markings and a national flag.

Three-step diagram showing a hand interacting with a circular device, displaying speed, navigation, and status indicators.

Close-up of a circular mechanical dial with multiple dials and a small gear icon (no readable text or symbols)

Personnaliser

Hand interacting with a black circular button featuring red arrows and a finger pointing at it (no text or symbols)

Diagram showing a hand interacting with a circular speedometer, illustrating the change from left to right.

Circular icon with a black triangle, three heart symbols (heart, walking, running) inside, and a red upward arrow symbol (no text or numbers)

N NW DE NE M M 12° N MS S FR FLZ OR BL 100 120 - M

Close-up of a circular mechanical dial with control buttons and indicator lights (no readable text or symbols)

Baromètre

DÉCLARATION DE CONFORMITÉ

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT CLASSE 1 PRODUIT LASER

Diagram of a smartwatch with labeled sensor positions and hand gesture, showing finger placement and adjustment arrows.

2

Illustration of a hand holding a device with a red arrow pointing to a circular component (no text or symbols)

Safety warning sign showing crossed pan with no smoking, indicating no smoking or cooking allowed

Illustration of a wristwatch with dial and cable, showing mechanical components (no text or symbols)

Diagram showing hands holding a watch with red arrows indicating downward motion, likely illustrating speed or speed change.

Hand interacting with a circular interface with four directional arrows pointing at a central node (no text or symbols)

Three-step smartwatch control interface with speedometer, hand cursor, and numeric display showing 11 and 49

Hand interacting with a black circular interface, showing red arrows and a finger pointing at it (no text or symbols)

Diagram showing a hand pressing down on a diper with red arrows indicating motion, alongside a close-up of the diper's dial with German flag and 'W' label.

Circular black object with a white triangle, three circular icons (heart, running figure, upward arrow) on its surface, no text or symbols present.

N NW DE 30 15 M 12° N MS S NE E M S

Circular gauge or dial with three main buttons labeled -, +, and ✓, showing measurement scales and pointer indicators (no readable text or symbols beyond basic markings)

Barometer

LG Electronics European Shared Service Center B.V.

Krijgsman 1, 1186 DM Amstelveen, The Netherlands

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT CLASSE 1 PRODUIT LASER

Diagram of a smartwatch with labeled sensor components and a magnified view showing finger contact details.

2

Illustration of a hand holding a device with a red arrow pointing to a circular component (no text or symbols)

Safety warning sign showing no smoking allowed by a frying pan, with a red prohibition symbol inside the circle.

Illustration of a wristwatch with dial and cable, showing mechanical components (no text or symbols)

Diagram showing hand positioning a watch with red arrows indicating downward motion, likely illustrating speed or speed change.

Hand interacting with a circular button featuring four red arrows pointing outward (no text or symbols)

Three-step smartwatch control interface showing dial, speed slider, and status bar with numeric display

Close-up of a circular mechanical dial with dials and control knobs, no visible text or symbols

Personalizza

Hand interacting with a black circular interface, featuring red arrows and a finger pointing at it (no text or symbols)

Diagram showing a hand interacting with a circular speedometer, illustrating the change from left to right.

Circular icon with a black triangle, three heart symbols (heart, walking, running) inside, and a red upward arrow symbol (no text or numbers)

N NW DE NE M M 12° N MS S FR FLZ OR BL 100 120 - M

Close-up of a circular mechanical dial with control buttons and indicator lights (no readable text or symbols)

Barometro

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT CLASSE 1 PRODUIT LASER

Diagram showing a smartwatch with labeled sensor components and a magnified view of the grip mechanism.

2

Illustration of a hand holding a device with a red arrow pointing to a circular component (no text or symbols)

Safety warning symbol showing a frying pan with a crossed-out electrical plug and no text indicating the prohibition of using it.

Diagram showing a cable being inserted into a socket connected to a plug, with no text or symbols present.

Illustration of a wristwatch with dial and cable, showing mechanical components (no text or symbols)

Diagram showing hand positioning a watch with red arrows indicating downward motion, likely illustrating speed or speed change.

Hand interacting with a circular interface showing four red directional arrows pointing at a central node (no text or symbols)

0 1 2 3 4 5 6 7 8 9 G W H M N O P Q R S T U V W H M N O P Q R S T U V W H M N O P Q W H M N O P Q W H M N O P Q W H M N O P Q W H M N O P Q W H M N O P Q W H M N O P Q W H M N O P Q R

Three-step smartwatch control interface showing dial, speed slider, and status bar with numeric display

Hand interacting with a black circular interface, showing red arrows and a finger pointing at it (no text or symbols)

Diagram showing a hand interacting with a circular speedometer, illustrating the change from left to right.

Circular icon with a black triangle, red heart, white circle with arrow, and circular icons with hearts (no text or symbols)

Circular digital display with control buttons and indicator lights (no readable text or symbols)

Barometer

UW APPARAAT BIJWERKEN

http://www.lge.com/global/sustainability/environment/take-back-recycling

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT CLASSE 1 PRODUIT LASER

Ondersteunde frequentiebanden Tx-uitgangsstroom
BT 2.4GHz 9 dBm
WLAN 2.4GHz 15 dBm
