USER MANUAL TPNC508TLA4 LG

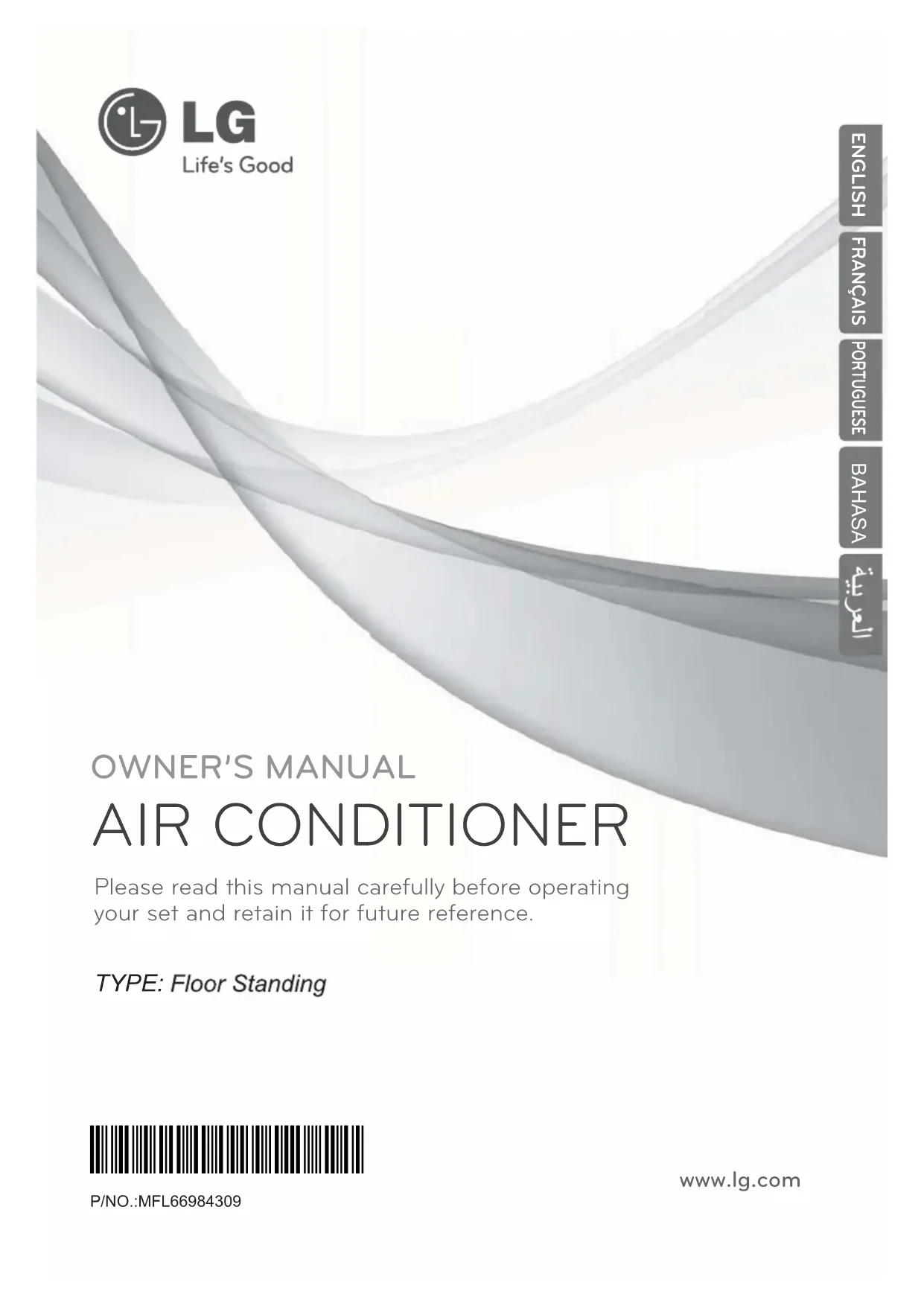

AIR CONDITIONER Please read this manual carefully before operating your set and retain it for future reference.

Write the model and serial numbers here:Model #Serial #You can find them on a label on the side of each unit.Dealer's NameDate PurchasedStaple your receipt to this page in the event you need itto prove date of purchase or for warranty issues.

Inside you will find many helpful hints on how to use andmaintain your air conditioner properly. Just a littlepreventive care on your part can save you a great dealof time and money over the life of your air conditioner.You'll find many answers to common problems in thechart of troubleshooting tips. If you review our chart ofTroubleshooting Tips first, you may not need to call forservice at all. PRECAUTION

• Contact the authorized service technician for repair ormaintenance of this unit.• Contact the installer for installation of this unit.• The air conditioner is not intended for use by youngchildren or invalids without supervision.• Young children should be supervised to ensure thatthey do not play with the air conditioner.• When the power cord is to be replaced, replacementwork shall be performed by authorized personnel onlyusing only genuine replacement parts.• Installation work must be performed in accordancewith the National Electric Code by qualified andauthorized personnel only. Safety Precautions.................3 Operating Instructions...........8 Maintenance and Service ....2Safety Precautions Owner's Manual 3 ENGLISH Safety Precautions To prevent injury to the user or other people and property damage, the following instructionsmust be followed. ■ Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications.■ Meanings of symbols used in this manual are as shown below. WARNING CAUTION This symbol indicates the possibility of death or serious injury.This symbol indicates the possibility of injury or damage. Be sure not to do. Be sure to follow the instruction. WARNING ■ InstallationDo not use a defective orunderrated circuit breaker.Use this appliance on adedicated circuit.• There is risk of fire or electricshock.For electrical work, contactthe dealer, seller, a qualifiedelectrician, or an AuthorizedService Center.• Do not disassemble or repair theproduct. There is risk of fire orelectric shock.Always ground the product.• There is risk of fire or electricshock.Install the panel and thecover of control boxsecurely.• There is risk of fire or electricshock.Always install a dedicatedcircuit and breaker.• Improper wiring or installationmay cause fire or electric shockUse the correctly ratedbreaker or fuse.• There is risk of fire or electricshock. ENGLISHSafety Precautions 4 Floor Standing-Type Air Conditioner ■ Operation Do not modify or extend the power cable.

• There is risk of fire or electric shock. Do not install, remove, or re- install the unit by yourself (customer).

• There is risk of fire, electric shock, explosion, or injury. Be cautious when unpacking and installing the product.

• Sharp edges could cause injury. Be especially careful of the case edges and the fins on the condenser and evaporator. For installation, always contact the dealer or an Authorized Service Center.

• There is risk of fire, electric shock, explosion, or injury. Do not install the product on a defective installation stand.

• It may cause injury, accident, or damage to the product. Be sure the installation area does not deteriorate with age.

• If the base collapses, the air conditioner could fall with it, causing property damage, product failure, and personal injury. Do not plug or unplug the power supply plug during operation.

• There is risk of fire or electric shock. Do not touch(operate) the product with wet hands.

• There is risk of fire or electrical shock. Do not place a heater or other appliances near the power cable.

• There is risk of fire and electric shock. Do not let the air conditioner run for a long time when the humidity is very high and a door or a window is left open

• Moisture may condense and wet or damage furniture. Take care to ensure that power cable could not be pulled out or damaged during operation.

• There is risk of fire or electric shock. Do not place anything on the power cable.

• There is risk of fire or electric shock.Safety Precautions Owner's Manual 5 ENGLISH Do not allow water to run into electric parts.
• It may cause There is risk of fire,failure of the product, or electricshock. Do not store or use flammable gas or combustibles near the product.
• There is risk of fire or failure ofproduct. Do not use the product in a tightly closed space for a long time.
• Oxygen deficiency could occur. When flammable gas leaks, turn off the gas and open a window for ventilation before turn the product on.
• Do not use the telephone or turnswitches on or off. There is risk of explosion or fire If strange sounds, or small or smoke comes from product. Turn the breaker off or disconnect the power supply cable.
• There is risk of electric shock orfire. Stop operation and close the window in storm or hurricane. If possible, remove the product from the window before the hurricane arrives.
• There is risk of property damage,failure of product, or electric shock. Do not open the inlet grill of the product during operation. (Do not touch the electrostatic filter, if the unit is so equipped.)
• There is risk of physical injury,electric shock, or product failure. When the product is soaked (flooded or submerged), contact an Authorized Service Center.
• There is risk of fire or electricshock. Be cautious that water could not enter the product.
• There is risk of fire, electric shock,or product damage. Gasolin Ventilate the product from time to time when operating it together with a stove, etc.
• There is risk of fire or electric shock. Turn the main power off when cleaning or maintaining the product.
• There is risk of electric shock. ENGLISHSafety Precautions 6 Floor Standing-Type Air Conditioner ■ Installation CAUTION ■ Operation Always check for gas (refrigerant) leakage after installation or repair of product.

• Low refrigerant levels may cause failure of product. Install the drain hose to ensure that water is drained away properly.

• A bad connection may cause water leakage. Keep level even when installing the product.

• To avoid vibration or water leakage. Do not install the product where the noise or hot air from the outdoor unit could damage the neighborhoods.

• It may cause a problem for your neighbors. Use two or more people to lift and transport the product.

• Avoid personal injury. Do not install the product where it will be exposed to sea wind (salt spray) directly.

• It may cause corrosion on the product. Corrosion, particularly on the condenser and evaporator fins, could cause product malfunction or inefficient operation. 90˚ When the product is not be used for a long time, disconnect the power supply plug or turn off the breaker.

• There is risk of product damage or failure, or unintended operation. Take care to ensure that nobody could step on or fall onto the outdoor unit.

• This could result in personal injury and product damage. Do not expose the skin directly to cool air for long periods of time. (Don't sit in the draft.)

• This could harm to your health. Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a consumer air conditioner, not a precision refrigeration system.

• There is risk of damage or loss of property.Safety Precautions Owner's Manual 7 ENGLISH Do not block the inlet or outlet of air flow.
• It may cause product failure. Use a soft cloth to clean. Do not use harsh detergents, solvents, etc.
• There is risk of fire, electric shock,or damage to the plastic parts ofthe product. Do not touch the metal parts of the product when removing the air filter. They are very sharp!
• There is risk of personal injury. Wax Thinner Do not step on or put anyting on the product. (outdoor units)
• There is risk of personal injuryand failure of product. Always insert the filter securely. Clean the filter every two weeks or more often if necessary.
• A dirty filter reduces the efficiencyof the air conditioner and couldcause product malfunction ordamage. Do not insert hands or other objects through the air inlet or outlet while the product is operated.
• There are sharp and moving partsthat could cause personal injury. Do not drink the water drained from the product.
• It is not sanitary and could causeserious health issues. Use a firm stool or ladder when cleaning or maintaining the product.
• Be careful and avoid personalinjury. Replace the all batteries in the remote control with new ones of the same type. Do not mix old and new batteries or different types of batteries.
• There is risk of fire or explosion Do not recharge or disassemble the batteries. Do not dispose of batteries in a fire.
• They may burn or explode. If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not use the remote if the batteries have leaked.
• The chemicals in batteries could cause burns or otherhealth hazards. ENGLISH8 Floor Standing-Type Air Conditioner Operating Instructions Operating Instructions Features and Specifications Air Intake Vent (Rear) Air Outlet Vent Piping Air Outlet Vent Remote Signal Receptor Air Intake Vent

1. Design for cooling and heating

2. Super energy efficiency

4. Wireless remote control

5. 3 cooling/heating speeds

6. Removable air filter

Operation starts when this button is pressed and stops when the button is pressed again.

BUTTONS Used to select the room temperature.

4. INDOOR FAN SPEED SELECTION

Used to select fan speed in three steps-low, mid, hi.

LAMP Indoor Unit Controls and Indicators

• Transmits the signals to the floor standing type air conditioner

2. Operation Display of the Remote Control

6. Indoor Fan Speed Selection Button

To select the desired fan speed in three steps [Low, Mid, Hi]

• Operation will start when this button is pressed, and stop when the button is pressed again.

The vertical louvers swing left and right. Auto Operation Mode Button (C/O Model)

3. Indoor Fan Operation Button

• Each time the button is pressed, the mode is changed in the following process. Time set (1, 2, 3, 4, 5, 6, 7 hours) If you select "0" the off Timer function will be cancelled.

8. Soft Dry Operation Button

12. Electric Heater On/Off Button (Z Model)

Handling the remote control

• Aim at the signal receptor on the floor standing type air conditioner when operating.

• The remote control signal can be received at a distance of up to about 7meters.

• Be sure that there are no obstructions between the remote control and the signal receptor.

• Do not drop or throw the remote control.

• Do not place the remote control in a location exposed to direct sunlight, or next to a heating unit, or other heat source.

13. Air Cleaner Operation Button(A/CL Model)

How to insert batteries

1. Remove the cover from the back of the

• Slide the cover according to the arrow direction.

2. Insert two batteries.

• Be sure that the (+) and (-) directions are correct.

• Be sure that both batteries are new.

3. Re-attach the cover.

• Slide the cover into back position.

• Do not use rechargeable batteries such batteries as different from standard dry cells in shape, dimensions, and performance.

• Change the batteries with a new one if the remote control does not work properly after using for an extended length of time.Owner's Manual 13 Operating Instructions Cooling Operation (Heat pump Model) Soft Dry OperationHeating OperationCooling OperationAuto Operation (Cooling Model) Soft Dry Operation How to use the Operation Mode Button How to use the Fan speed Button

• Each time the Operation Mode Selection Button is pressed, the Operation Mode is shifted in the arrow direction.

• Each time the Fan speed Button is pressed, the Fan speed is shifted in the arrow direction. Mid Low

To raise the temperatureTo lower the temperature Cooling Operation Mode Press the Start/Stop Button. Select Cooling Operation Press the Operation Mode Selection Button. Press the Cooling Operation Button on the remote controller. Set the temperature lower than the room temperature. The temperature can be set within a range of Set the Fan Speed. Each time the Fan Speed Button is pressed, the Fan Speed mode is shifted in the arrow direction. 16Owner's Manual 15 Operating Instructions

To raise the temperatureTo lower the temperature Soft Dry Operation Mode Press the Start/Stop Button.Select Soft Dry Operation.Press the Operation Mode Selection Button.Press the Soft Dry Operation Button on the remote controller.Set the temperature lower than the room temperature.The temperature can be set within a range of During softy Dry Operation

To raise the temperatureTo lower the temperature Heating Operation Mode(Heat Pump Model) Press the Start/Stop Button. Select heating Operation. Press the Operation Mode Selection Button. Press the heating Operation Button on the remote controller. Set the temperature upper than the room temperature. The temperature can be set within a range of Set the Fan Speed. Each time the Button is pressed, the Fan Speed mode is shifted. &a&E\& 16Owner's Manual 17 Operating Instructions

To raise the temperature. (When you feel too cool or cold)To lower the temperature. (When you feel too warm or hot)Cold Cool Proper Auto Operation Mode(C/O Model) Press the Start/Stop Button.Select Auto Operation.Press the Operation Mode Selection Button.Press Auto Operation Button.Set the temperature upper or lower than the standard temperature.The temperature can be set within a range of by 1 level.(This indication will be shifted to the initial Auto Mode Display state after 4 seconds.) During Auto Operation

• It is impossible to switch the indoor fan speed because of being already set to the bestconditioner by fuzzy rule. ENGLISHOperating Instructions 18 Floor Standing-Type Air Conditioner

To raise the temperatureTo lower the temperature Electric Heater Operation Mode(Z MODEL) Press the Start/Stop Button. Select heating Operation by pressing the Opertion Mode Selection button. Press the Heater Operation Button on the remote controller. Set the temperature upper than the room temperature. The temperature can be set within a range of Set the Fan Speed. Each time the Button is pressed, the Fan Speed mode is shifted. &a&E\&

16Owner's Manual 19 Operating Instructions

• If you press the button, the selected off timer is displayed as follows;• If you select ‘ ’, the Off Timer function will be cancelled. After 4 seconds OFF Timer Setting Procedure When you finish the Off Timer setting, the Timer indicator lights off. Press the Start/Stop Button. Select Function. Press the Timer Button. During off-timer operation if you press the Timer Button, the rest time will be displayed. ENGLISH20 Floor Standing-Type Air Conditioner Operating Instructions

Press the Start/Stop Button. (Operation will start when the button is pressed, and stop when the button is pressed again.) Press the Auto Swing Button and then louvers will swing left and right. Press the Airflow Direction Control Button again to set the Vertical louver at the desired airflow direction. The vertical louver swing left and right. Press the Start/Stop Button. Set the Fan Speed. Each time the Button is pressed, the Fan Speed mode is shifted. Press Fan Operation Button. Fan Operation Mode Airflow Direction ProcedureOwner's Manual 21 Operating Instructions

Air Cleaner Operation onlyAir Cleaner Operation with Cooling or any other Operateion.Press the A/CL Operation Start/Stop Button.(Operation will start when the button is pressed, and stop when the button is pressed again.)Select Fan speed.The display shows low fan speed at the initial condition.• You can operate the Plasma Air Purifying under the unit operation of cooling, heating, softdry or Auto mode.

1. Press the Start/Stop Button.

2. Select the desired Operation Mode.

Each time the Fan Speed Button ispressed, the Fan Speed mode isshifted in the arrow direction. A/CL ENGLISH22 Floor Standing-Type Air Conditioner Operating Instructions

After 3 second, it will shift After 3 seconds, it will shift After pressing the buttons it will shift immediately After 3 seconds, it will shift Child Lock Operation Procedure Press the fan speed button and High temperature setting buttons simultaneously for 3 conds. The unit will respond with beep. During Child Lock Operation Whenever you press any Button on Display Panel, it will immediately display “ ”, which means Display panel is Locked. All the Button on the indoor unit Display panel will not work. But the Button on the remote controller will work. For releasing child lock Operation Press the fan speed button and High temperature setting buttons simultaneously for 3 conds. The unit will respond with beep, Child Lock Operation will removed. Auto restart In case the power comes on again after a power failure, Auto Restarting Operation is the function to operate procedures automatically to the previous operating conditions.Owner's Manual 23 Maintenance and Service +6,/*1( &$87,21&$87,21 During the season When the air conditioner is not going to be used for a long time. Operation Tips Maintenance and Service Remove the Air Filter.Take hold of the tab and pull slightly forward toremove the filter.Clean. To remove the dust adhering to the filters, either use avacuum cleaner, or wash them in water and dry in theshade.噝 Re-insert the filter to the original position.Cleaning of the air filters.Recommended about once every two weeksCleaning of the air conditioner噝 Donÿt wash with water.噝 Wipe with a soft dry cloth.At the end of the seasonOperate the air conditioner at the followingsettings for 2 to 3 hours.噝 Type of operation : Cooling.噝 Temperature setting : 30°C.This will dry out the internal mechanisms.Remove the batteries from the Remote Control.Turn off the circuit breaker.Turn off the circuit breaker when the air conditioneris not going to be used for a long time. Dirt may collect and may cause a fire.Clean the air filters, re-insert, then operatethe air conditioner.Be sure that nothing obstructs the air outletand intake vents.At the start of the season噝 Water hotter than 40e&Could cause deformationand/or discoloration.噝 Volatile substances.Could damage the surfacesof the air conditioner.Never use any of the followings.Cleaning of the air cleaner.Recommended about once every three monthsRemove the Air Cleaner.Take hold of the tab and pull slightly forward toremove the air cleaner.Clean.噝 Dip the air cleaner into the water mixed withdetergent, for 20~30 minutes, and dry in the shade.噝 Re-insert the air cleaner to the original position.CAUTION: Before performing any maintenance, turn off the main power to the system.Do not overcool the room.This is not good for your health andwastes electricity.Make sure that the doors and windowsare shut tight.Avoid opening doors and windows asmuch as possible to keep the cool air inthe room.Keep blinds or curtains closed.Do not let direct sunshine enter the roomwhen the air conditioner is in operation.Clean the air filter regularly.Blockages in the air filter reduce theairflow and lower cooling anddehumidifying effects. Clean at least onceevery two weeks.Keep the room temperature uniform.Adjust the vertical and horizontal airflowdirection to ensure a uniform temperaturein the room.Ventilate the room occasionally.Since windows are kept closed, it is agood idea to open them and ventilate theroom now and then. ENGLISHMaintenance and Service 24 Floor Standing-Type Air Conditioner Troubleshooting Check the following points before requesting repairs or service.... If the malfunction persist, please contact your dealer. Case Explanation See page Does not operate. The room has a peculiar odor. It seems that condensation is leaking from the air conditioner. Air conditioner does not operate for about 3 minutes when restarted. Does not cool effectively. The air conditioner operation is noisy. Remote controller display is faint, or no display at all.

• Have you made a mistake in timer operation?

• Has the fuse blown or has the circuit breaker been tripped?

• Is the power Switch at Off?

• Is the unit at the starting of Heating Operation? If yes, Hot-start is activating.

• Is the unit in the Deicing? If yes, wait for finishing the Deicing.

• Check that this is not a damp smell exuded by the walls, carpet, furniture, or cloth items in the room.

• Condensation occurs when the airflow from the air conditioner cools the warm room air.

• This is the Protection device of the air conditioner .

• Wait about three minutes and operation will begin.

• If the airflow begins before its temperature become warm, it will cause an undesired cooling effect. In order to prevent this, the airflow will not begin until it is sufficiently warm.

• Is the air filter dirty? See air filter cleaning instructions.

• The room may have been very hot when the room air conditioner was first turned on. Allow time for it to cool down.

• Has the temperature been set incorrectly?

• Are the indoor unit's air inlet or outlet vents obstructed?

• For a noise that sounds like water flowing. -This is the sound of freon flowing inside the air conditioner unit.

• For a noise that sounds like the compressed air releasing into atmosphere. -This is the sound of the dehumidifying water being processed inside the air conditioning unit.

• Are the batteries depleted?

• Are the batteries inserted in the opposite (+) and (-) directions?
