PAS14 - Power bank Aukey - Free user manual and instructions

Brand	Aukey
Model	PB-N64
Product Type	External battery (power bank)
Capacity	10,000 mAh / 37 Wh
Battery Technology	Lithium-polymer
Input (Micro-USB)	5 V / 2 A
Input (Lightning)	5 V / 2 A
USB Output (x2)	5 V / 2.4 A each (max total 3.4 A)
Dimensions	107 x 69 x 24 mm
Weight	182 g
Functions	Standard AiPower charging, low-current mode (for bracelets, earphones), LED battery level indicator
Box Contents	External battery, Micro-USB cable, user manual, warranty card
Power Supply	Recharge via mains adapter (not included) or USB port
Estimated Battery Life	Varies by device; up to 500 recharge cycles
Safety	Overheating, overvoltage, short-circuit protection
Maintenance	Store away from moisture and heat sources; recharge every 3 months
Cleaning	Use a dry cloth; do not use abrasive products
Recycling	Do not dispose of with household waste; follow local regulations
Warranty	Manufacturer's warranty; customer support by email: [e-mail]
Manufacturer	Aukey (China)
Color	Black (estimated)
Included Accessories	Micro-USB cable only
Compatibility	Smartphones, tablets, GPS devices, etc.
Charge Indicator	Flashing LED in low-current mode

Frequently Asked Questions - PAS14 Aukey

How to charge the external battery?

Use the included Micro-USB cable (or a certified MFi Lightning cable) plugged into a 5V/2A USB charger. Connect the other end to the corresponding input on the battery. The battery fully charges in a few hours; unplug it once charged.

Can I charge my phone while charging the battery?

No, it is not recommended to charge your devices while charging the battery itself. Please charge the battery first, then use it to charge your devices.

What is low-current mode and how to use it?

Low-current mode is designed for low-power devices (smart bracelets, wireless earphones). To activate it, press the power button twice. The LEDs will flash. After 2 hours, the battery automatically returns to standard mode.

How to check the remaining battery level?

Press the power button once. The indicator LEDs light up to show the charge level: 1 LED = 25%, 2 LED = 50%, 3 LED = 75%, 4 LED = 100%.

How long does it take to fully charge the battery?

With a 5V/2A charger, the charging time is approximately 5-6 hours for a 10,000 mAh capacity.

Can I use a Lightning cable to charge the battery?

Yes, the battery has a dedicated Lightning input (5V/2A). Use a certified MFi Lightning cable to charge it.

Is the battery compatible with Apple devices?

Yes, the external battery can charge any device using a USB connection, including iPhones, iPads, and iPods. Use the appropriate cable.

How to maintain my external battery?

Avoid exposure to liquids and extreme heat. Do not charge devices while the battery is being recharged. Recharge the battery at least once every 3 months to extend its lifespan.

What to do if the battery does not charge my device?

Make sure the cable is properly connected. Check that the battery is sufficiently charged. For small devices, try low-current mode (press the button twice). Contact support if the problem persists.

Where can I find after-sales service?

For any questions or warranty claims, contact [e-mail] (for Amazon Europe orders). Please provide your Amazon order number and model number (PB-N64).

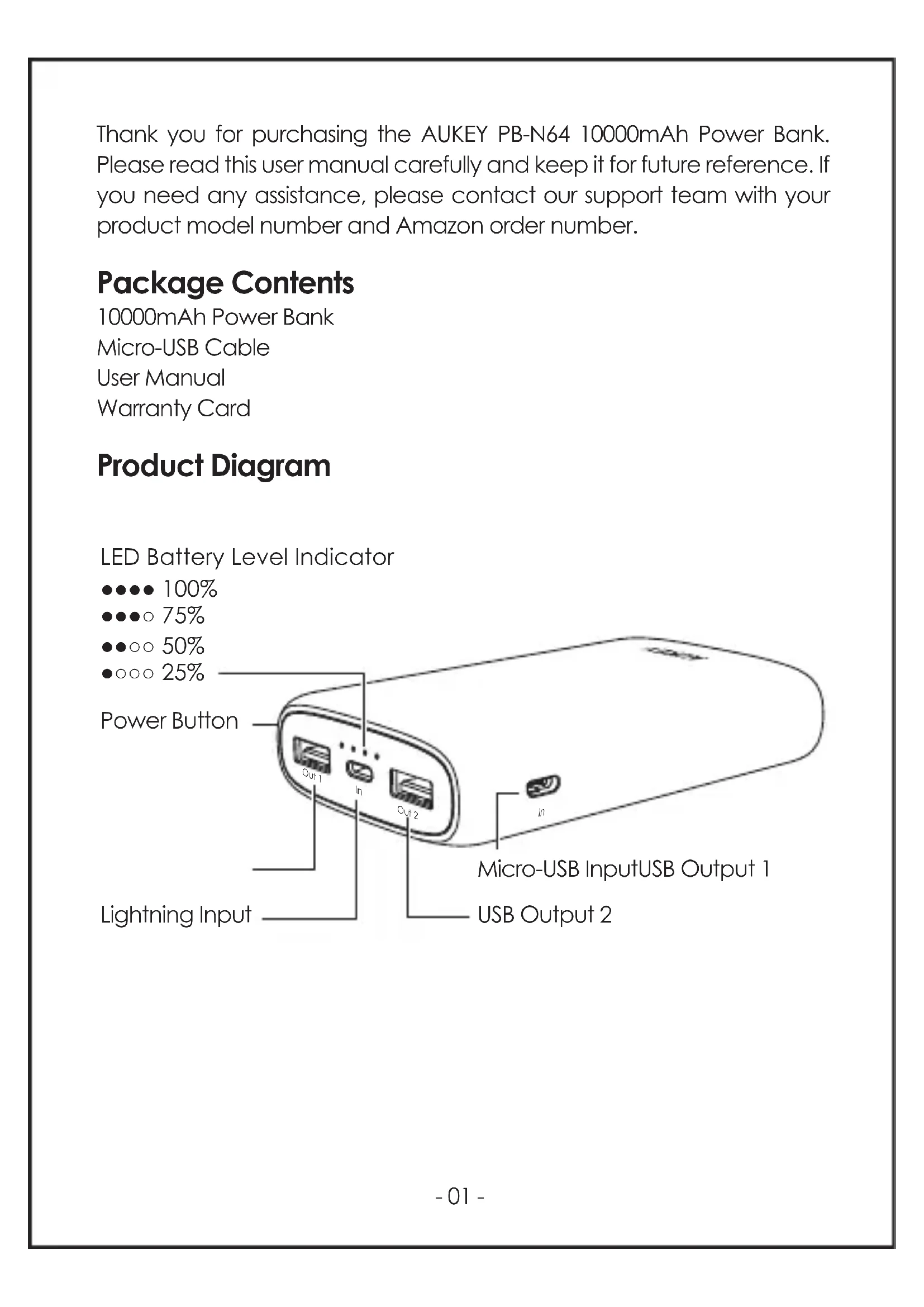

USER MANUAL PAS14 Aukey

Thank you for purchasing the AUKEY PB-N64 10000mAh Power Bank. Please read this user manual carefully and keep it for future reference. If you need any assistance, please contact our support team with your product model number and Amazon order number.

Package Contents

10000mAh Power Bank
Micro-USB Cable
User Manual
Warranty Card

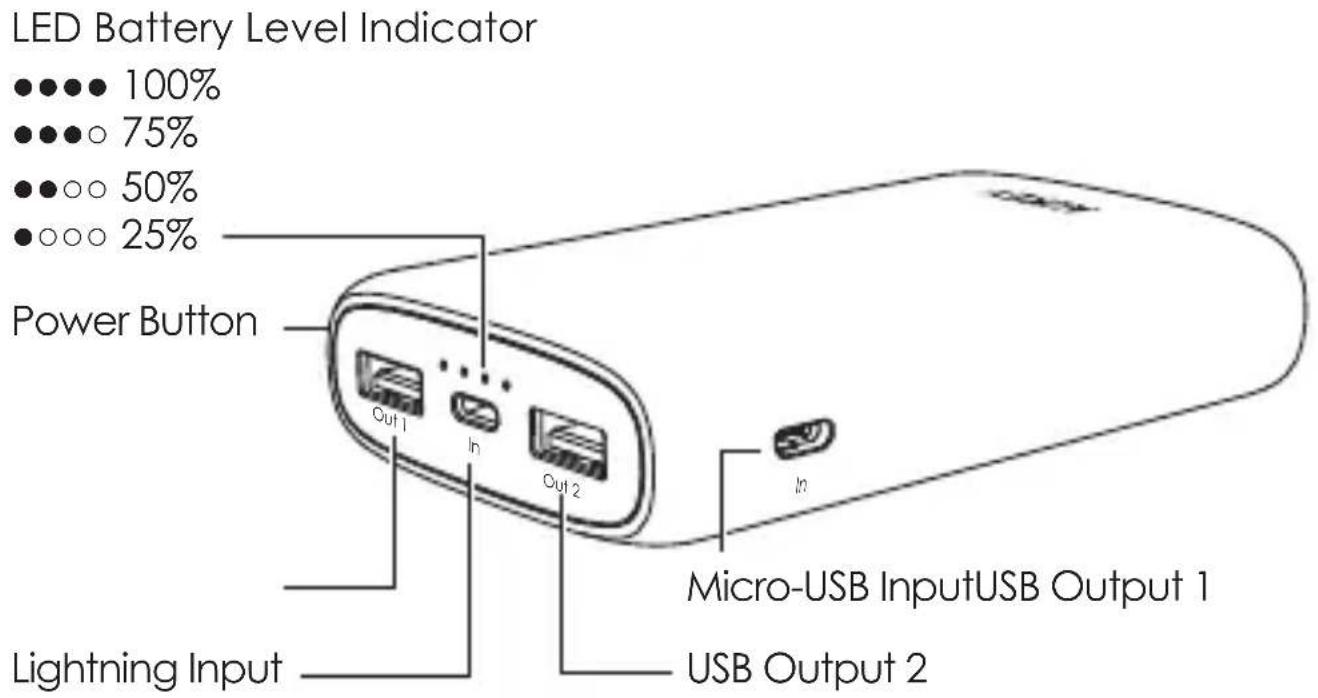

Product Diagram

Specifications

Model	PB-N64
Technology	AiPower
Capacity	10000mAh / 37Wh
Battery Type	Lithium polymer
Lightning Input	DC 5V 2A
Micro-USB Input	DC 5V 2A
USB Output 1 / 2	DC 5V 2.4A (5V 3.4A total)
Dimensions	107 x 69 x 24 mm / 4.22" x 2.71" x 0.93"
Weight	182g / 6.42oz

Getting Started

Charging the Power Bank

Fully charge the power bank before first use.

1. Connect the included micro-USB cable or your own MFi-certified Lightning cable to a USB charger or charging port
2. Connect the other end to the micro-USB / Lightning input port on the power bank
3. Unplug the power bank when fully charged

Note: Recharging using micro-USB and Lightning inputs simultaneously isn't supported

Charging Your Device

1. Connect the charging cable to your device's charging port
2. Connect the other end to a USB output port on PB-N64
3. Unplug your device when fully charged
4. To check the remaining battery level, press the power button

Low-Current Charging Mode

This mode is customized to charge low-current devices (below 60mA). Try switching to this mode if a low-powered device (such as a fitness tracker or wireless headphones) isn't charged in the standard charging mode.

• Double-press the power button to enter or exit low-current charging mode. The LED indicator lights will flash sequentially while charging in this mode and display battery level when exiting it
• After 2 hours of charging in this mode, power bank automatically switches back to standard charging mode and turns off
• To end charging early, exit low-current charging mode. However, extra charging in this mode won't harm your device battery

Product Care & Use

• Keep away from liquids and extreme heat
• Don't charge your devices while recharging the power bank
• Recharge the PB-N64 at least once every 3 months
• Dispose of battery according to local environmental law

Warranty & Customer Support

For questions, support, or warranty claims, contact us at the address below that corresponds with your region. Please include your Amazon order number and product model number.

Amazon US order: [e-mail]

Amazon EU order: [e-mail]

Amazon CA order: [e-mail]

Amazon JP order: [e-mail]

*Please note, AUKEY can only provide after sales service for products purchased directly from AUKEY. If you have purchased from a different seller, please contact them directly for service or warranty issues.

Amazon EU orders: [e-mail]

100%
75%
- - - - - 50%
0.0025%

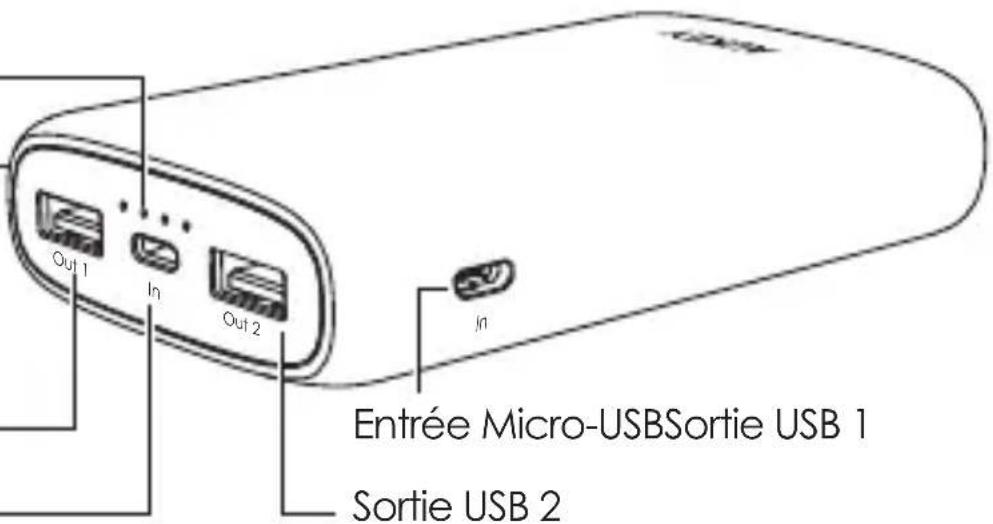

Bouton Marche/

Arré

Entree Lightning

Caracteristiques

www.aukey.com | [e-mail]

No.102, Building P09, Electronics Trade Center

Huanan City, Pinghu Town, Longgang District

Shenzhen, Guangdong, 518111, CN

Made in China
