O3M970 - Lighting IFM - Free user manual and instructions

Product type	Infrared lighting for 3D sensors
Brand	IFM
Model	O3M970
Power supply	9 to 32 V DC, protection class III (PELV)
Power connector	M12, 4-pin, A-coded
Sensor interface	MCI (Modulation and Communication Interface) via dedicated cable
Compatible sensors	O3M150/151/160/161/250/251/260/261/271
Light type	Invisible infrared, risk group 1 (IEC 62471)
Sensor-lighting mounting distance	0 to 2.80 m
Mounting accessories	U-bracket mounting kit (E3M100/E3M102), Round profile kit (E3M103)
Recommended cables	MCI: E3M121/E3M122/E3M123; Power: E3M131/E3M132/E3M133
Protection rating	Guaranteed only with M12 connectors tightened properly (see datasheet)
Approvals	EU declaration of conformity available at www.ifm.com
Embedded software	Contains open source software (GNU licenses available)
Delivery contents	O3M970 lighting, brief instruction
Protection class	III (Protective Extra Low Voltage)

Frequently Asked Questions - O3M970 IFM

What type of light is emitted by the O3M970?

The O3M970 emits invisible infrared light, classified as risk group 1 according to IEC 62471. Do not look directly into the beam.

Which sensors are compatible with this lighting?

The lighting is designed for use with mobile or intelligent 3D sensors from the O3M150, O3M160, O3M250, O3M260 series and their variants (O3M151, O3M161, O3M251, O3M261, O3M271).

How to connect the lighting to the sensor?

Use an ifm original MCI cable (references E3M121/E3M122/E3M123) between the sensor and the lighting. The distance between them must not exceed 2.80 m.

What supply voltage is required?

The power supply must be 9 to 32 V DC, via a PELV circuit (Protective Extra Low Voltage). Use the 4 wires of the M12 connector and an ifm original cable (E3M131/E3M132/E3M133).

What are the risks associated with infrared light?

The lighting emits infrared light of risk group 1, which can damage the retina if directly exposed. Do not look into the beam and follow safety instructions.

How to mount the lighting?

Mount the lighting at a distance of 0 to 2.80 m from the sensor, keeping the illuminated area free of obstacles within 50 cm. Use the appropriate mounting accessories (U-bracket kit or round profile kit).

Is the lighting delivered with the sensor?

No, the lighting is supplied alone (without sensor, mounting accessories or cables). You must purchase the sensor and accessories separately.

What maintenance is required?

No specific maintenance is mentioned. Ensure that the M12 connectors are tightened properly to guarantee the protection rating. Clean the exterior with a soft cloth if necessary.

Where to find spare parts and accessories?

Mounting accessories and cables are available at www.ifm.com or from authorized dealers. Use only ifm original parts.

How to commission the lighting?

After turning off the power, connect the sensor and lighting via the MCI cable, connect the power supply, then power on. The first connection may take up to 60 seconds.

USER MANUAL O3M970 IFM

O3M950 O3M960 O3M970

DE

UK

FR

80258599/00 04/2020

Simple line drawing of a rectangular frame with a vertical divider (no text or symbols)

Inhalt

Warning symbol with a black triangle containing a sun and radiating lines, set against a yellow background (no text or numbers)

Line drawing of a rectangular electronic device casing with internal compartments and ventilation slots (no text or symbols)

DE

SensorIllumination unit

6.1 Montagezubehör

1 About these instructions .... 4
1.1 Symbols used.... 4
1.2 Warnings used 4
2 Safety instructions 4
2.1 Safety note 5
3 Functions and features 6
4 Items supplied....6
5 Accessories....6
6 Installation....7
6.1 Mounting accessory 8
7 Electrical connection....8
7.1 Wiring illumination unit 9
8 Set-up.... 10
8.1 Put the sensor into operation 10
9 Approvals/standards 10
10 Note on the software.... 10

Licences and trademarks

Microsoft ^® , Windows ^® , Windows XP ^® and Windows Vista ^® are registered trademarks of Microsoft Corporation.

Adobe ^® and Acrobat ^® are registered trademarks of Adobe Systems Inc.

All trademarks and company names are subject to the copyright of the respective companies.

1 About these instructions

This document is intended for specialists. These specialists are people who are qualified by their appropriate training and their experience to see risks and to avoid possible hazards that may be caused during operation or maintenance of the device. The document contains information about the correct handling of the device.

Read this document before use to familiarise yourself with operating conditions, installation and operation. Keep this document during the entire duration of use of the device.

For a detailed description of the device please read the operating instructions and the programming manual.

1.1 Symbols used

▶ Instructions

Reaction, result

[...] Designation of keys, buttons or indications

→ Cross-reference

Important note

Non-compliance may result in malfunction or interference.

Information

Supplementary note

1.2 Warnings used

CAUTION

Warning of personal injury.

Slight reversible injuries may result.

2 Safety instructions

These instructions are part of the device. They contain texts and figures concerning the correct handling of the device and must be read before installation or use.

Note the safety instructions. Use the device as intended.

The installation and connection must comply with the applicable national and international standards. Responsibility lies with the person installing the unit.

Only the signals indicated in the technical data or on the device label may be supplied to the connections or wires.

CAUTION

Invisible infrared light

The illumination unit emits infrared light of risk group 1 (IEC 62471:2006) invisible to the human eye.

The infrared light can cause damage to the retina.

▶ Use the illumination unit with the described devices and settings.
▶ Avoid staring into the infrared beam.
▶ Observe the safety note ( 2.1).

2.1 Safety note

Warning symbol with black triangle and sunburst pattern on yellow background (no text)

NOTICE IR light emitted from this product.

Classification acc. to IEC 62471:2006 Risk Group 1

3 Functions and features

The illumination unit illuminates a scene using infrared light. A sensor processes the infrared light reflected by the surfaces.

The illumination unit may be used as a component of a photoelectric system only with the following devices:

• O3M150 Mobile 3D Sensor
• O3M160 Mobile 3D Sensor
• O3M151 Smart Sensor
• O3M161 Smart Sensor
• O3M250 Mobile 3D Camera
• O3M260 Mobile 3D Camera
• O3M251 Mobile 3D Smart Camera
• O3M261 Mobile 3D Smart Camera
• O3M271 Mobile 3D Smart Camera

4 Items supplied

• O3M950 / O3M960 / O3M970 illumination unit
- Brief instructions

The illumination unit is supplied without sensor, installation and connection accessories and software.

5 Accessories

The following accessories are needed for the operation of the illumination unit:

Description Article no.
Mobile 3D sensor O3M150 / O3M160 / O3M250 / O3M260
Smart Sensor O3M151 / O3M161 / O3M251 / O3M261 /	O3M271
MCI connection cable between sensor and illumination unit E3M121 (alternatives: E3M122, E3M123)
Power supply cable for illumination unit E3M131	(alternatives: E3M132, E3M133)

You can find more information about the accessories at:

www.ifm.com

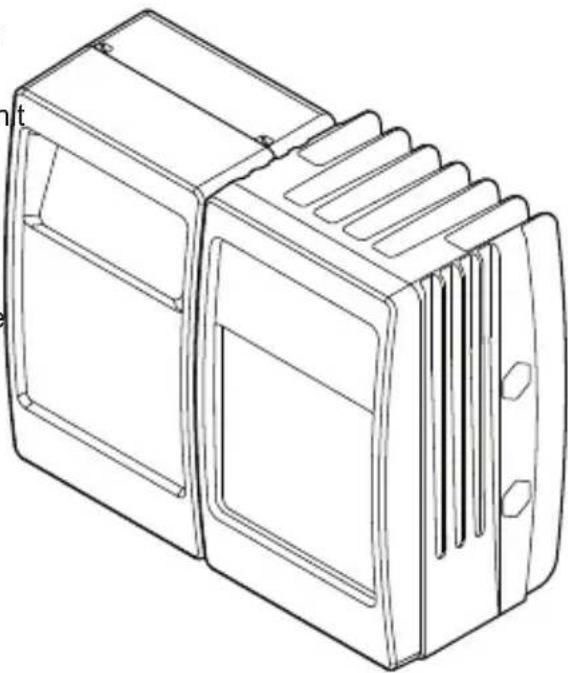

6 Installation

The sensor is operated as a system together with the illumination unit.

During installation note the following:

▶ Operate sensor and illumination unit in combination.
▶ Install sensor and illumination un between 0 and 2.80 m apart.

Select the matching MCI connection cable depending on the distance.

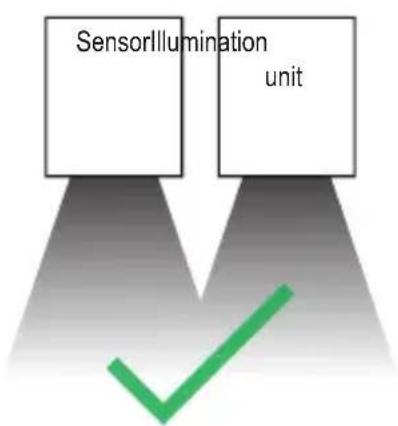

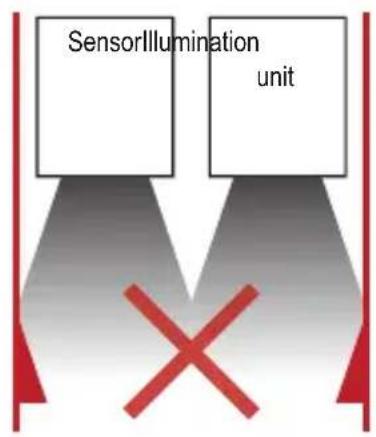

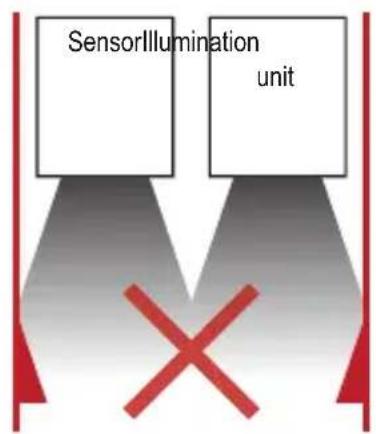

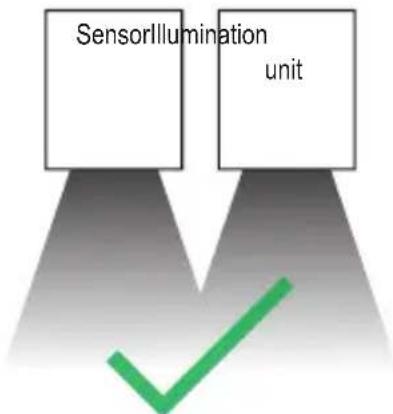

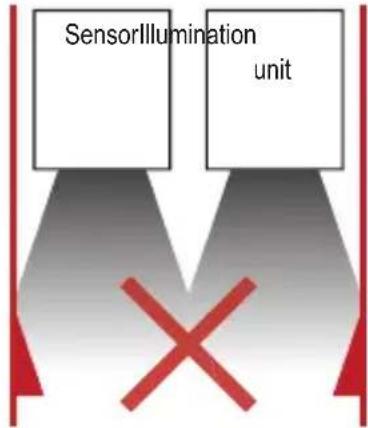

▶ Keep the area illuminated by the illumination unit free from any obstructions in a close range (up to 50 cm).
▶ Use cables with strain relief.

Line drawing of a 3D mechanical housing or enclosure with internal compartments and mounting holes (no text or symbols)

UK

SensorIllumination unit

6.1 Mounting accessory

Depending on the intended location and type of mounting the following mounting accessories are available:

Description Article no.
Mounting set U-shaped(U-shaped fixture, adjustable for types O3Mxxx)	E3M100
Mounting set U-shaped, black(U-shaped fixture, adjustable for types O3Mxxx)	E3M102
Mounting set for rod mounting ∅ 14 mm(clamp and bracket for types O3Mxxx)	E3M103
Mounting rod straight ∅ 14 mm, length 130 mm, M12 E20939
Rod, angled ∅ 14 mm, length 200 mm, M12 E20941

You can find more information about the accessories at: www.ifm.com

7 Electrical connection

NOTE

The unit must be connected by a qualified electrician.

Device of protection class III (PC III)

The electric supply must only be made via PELV circuits.

▶ Switch off the power supply before electrical connection.

NOTE

The IP rating given in the data sheet is only guaranteed if the M12 connectors are firmly screwed.

The unit can be damaged by insufficiently tightened M12 connectors.

▶ Firmly screw the M12 connectors to the unit.

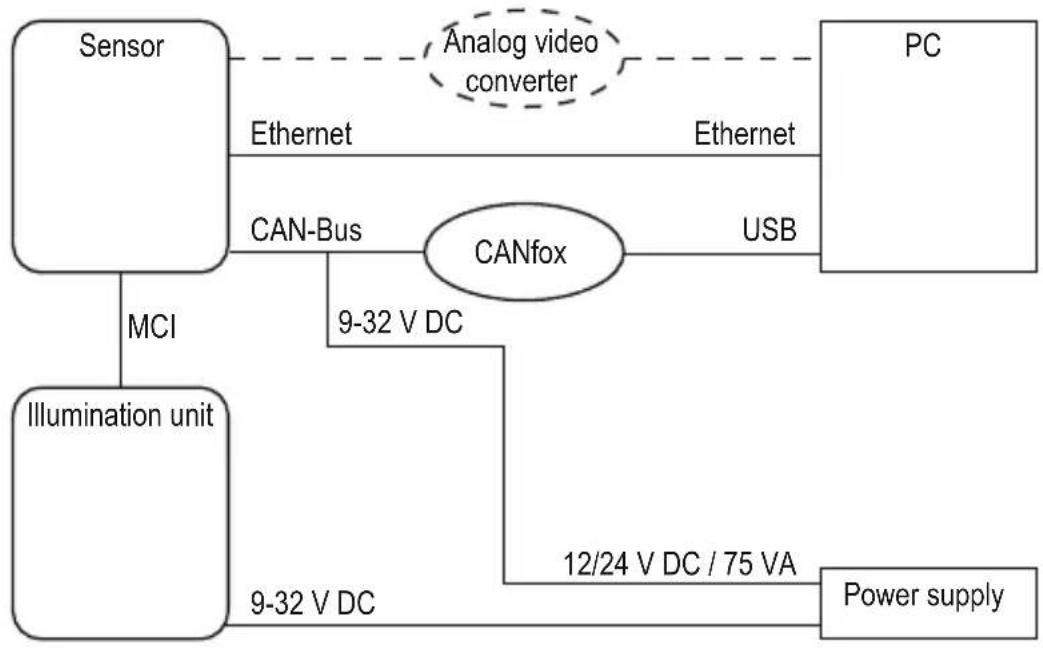


UK

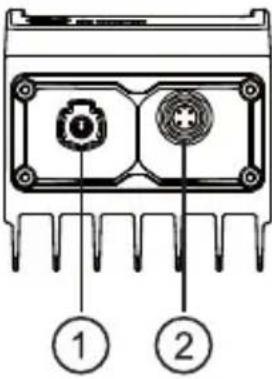

7.1 Wiring illumination unit

	(1) MCI - Modulation and communication interface
	Connection sensor - illumination unit
	Only use original ifm cables E3M121, E3M122 or E3M123.
	(2) Power supply
	M12 connector, A-coded, 4 poles
		1 GND2 9..32 V3 9..32 V4 GND

Before wiring note the following:

▶ Use all 4 wires of the M12 connector for the power supply.

▶ Unnecessarily long cables cause an additional voltage drop. For the power supply keep the cable short.

▶ Up to 14 A may flow via the cable for the power supply. Ensure a sufficiently dimensioned core cross-section.
▶ Use original ifm cables E3M131, E3M132 or E3M133.

8 Set-up

8.1 Put the sensor into operation

To put the sensor into operation follow the instructions below.

1. Switch off the power supply.
2. Use MCI cable to connect sensor and illumination unit.
3. Connect sensor with Ethernet cable.
4. Connect the sensor with the sensor cable for CAN bus and power supply.

The sensor cable connects the power supply and CAN with the sensor.

1. Connect illumination unit with power supply.

2. Connect CANfox USB interface with PC via USB and with CAN via adapter cable.

3. Establish power supply.

During the first set-up the sensor connects with the illumination unit. Connection may take up to 60 s.

9 Approvals/standards

The EU Declaration of Conformity is available on our website:

www.ifm.com

10 Note on the software

This unit contains (maybe modified) Open Source software which is subject to special licensing terms.

For copyright information and licensing terms please refer to: www.ifm.com/int/GNU

For software subject to the GNU General Public License or the GNU Lesser General Public License the source code can be requested against payment of the copying and shipping costs.
