Product type	Inductive sensor
Brand	IFM
Model	IF5793
Main function	Contactless metal detection with switching signal
Nominal range (Sn)	Indicated on the label (varies according to flush or non-flush version)
Mounting type	Flush (Sn = Xmm f) or non-flush (Sn = Xmm nf)
Minimum clearance distance	According to figure 2 of the manual (area around the active face)
Minimum distance between multiple detectors	According to figures 3 and 4 of the manual (e.g., 8 x Sn)
Supply voltage	Indicated on the label (must be stabilized or with capacitor if not stabilized)
Max output current	Respect the values indicated on the label (minimum and maximum)
Output type	Switching (2-wire or 3-wire depending on variant)
Electrical connection	Unshielded cable up to 30 m (beyond that, shielded cable or distance 50 cm from parasitic sources)
Overload protection	Do not connect low-resistance loads directly (use a relay)
Inductive load compatibility	Install an RC circuit in parallel with the load
Capacitive load compatibility	Ensure that the output current at inrush is not exceeded
Series mounting	Possible by taking into account the voltage drop of each device
Parallel mounting	Avoid for 2-wire versions (except exceptional cases with verification)
Active face material	Plastic or metal depending on version (not specified, estimated: standard plastic)
Operating temperature	Not specified; estimated: -25°C to +70°C (typical for IFM inductive sensors)
Protection rating	Not specified; estimated: IP67 (typical)
Maintenance and cleaning	No maintenance required. Clean with a dry cloth if necessary.
Safety	Disconnect the installation from power before any connection. Respect the electrical limits.
Weight	Not specified; estimated: approx. 30 g (typical for a small cylindrical sensor)
Dimensions	Not specified; estimated: diameter 12 mm, length 50 mm (standard M12 format)

Frequently Asked Questions - IF5793 IFM

How to mount the IF5793 sensor?

The sensor can be mounted flush or non-flush. Check the label for the associated nominal range Sn. Respect the clearance distances around the active face (figure 2) and the minimum distances between multiple detectors (figures 3 and 4).

What is the supply voltage?

The supply voltage must match that indicated on the label. If it is not stabilized, it is recommended to add a capacitor (e.g., 1000 μF, 50 WV for 24 V and 1 A).

How to connect the sensor?

Before any connection, disconnect the installation from power. Use a suitable cable: up to 30 m with cross-section < 0.5 mm², beyond that use a shielded cable or keep it 50 cm away from parasitic sources. Connect the load before turning on power.

Can I connect a lamp directly?

No, do not connect low-resistance loads such as lamps directly to the detector. Use a relay to switch these loads (figure 6).

What to do for inductive loads?

For inductive loads (coils, motors), install an RC circuit in parallel with the load to protect the detector (figure 7).

My 2-wire sensor does not work correctly, why?

A load that is too small can cause malfunction for 2-wire detectors. Install a resistor in parallel with the load (figure 8).

Can I mount several sensors in series?

Yes, but the voltage drop of each device must be taken into account to ensure the overall operation.

Is it possible to mount 2-wire sensors in parallel?

Avoid parallel mounting of 2-wire sensors except in exceptional cases. If necessary, verify proper operation according to the diagram in figure 9.

Which metals does the sensor detect?

The sensor detects all metals. The nominal range Sn is defined with steel 37. For other metals, the range may be less than Sn.

How to maintain the IF5793 sensor?

The sensor requires no special maintenance. Clean it with a dry cloth if necessary. Avoid aggressive products.

USER MANUAL IF5793 IFM

Installation Instructions

Inductive sensor

DC / unipolar

Notice de Montage

Détecteur inductif

DC / non polarisé

取扱説明書

高周波誘導式近接スイッチ

直流2線式／無極性型

efector100

人体の保護を目的とした安全回

路に組込むことを禁止します。

6 DC DC DC

n7 R C DC

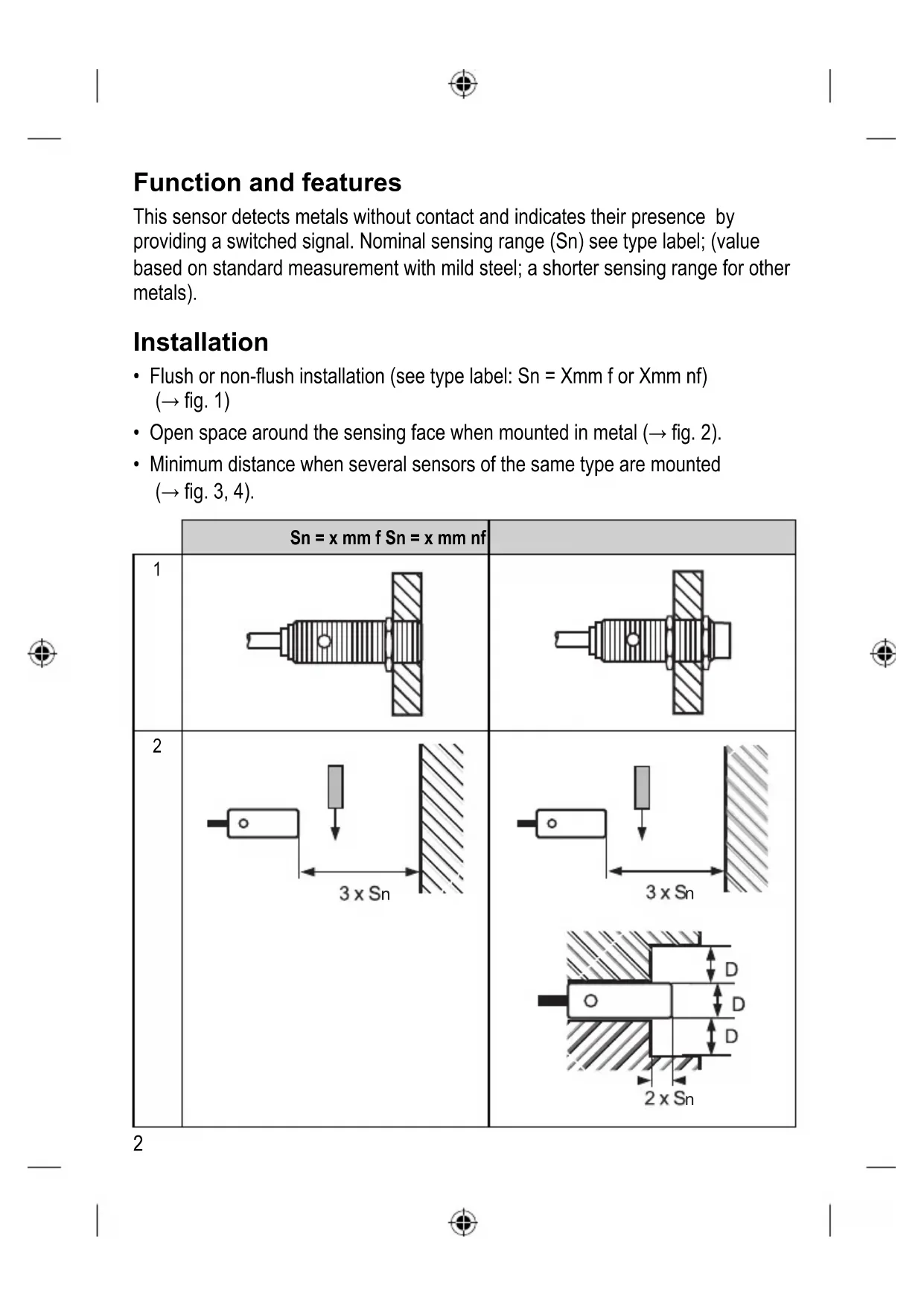

Function and features

This sensor detects metals without contact and indicates their presence by providing a switched signal. Nominal sensing range (Sn) see type label; (value based on standard measurement with mild steel; a shorter sensing range for other metals).

Installation

• Flush or non-flush installation (see type label: Sn = Xmm f or Xmm nf) (→ fig. 1)

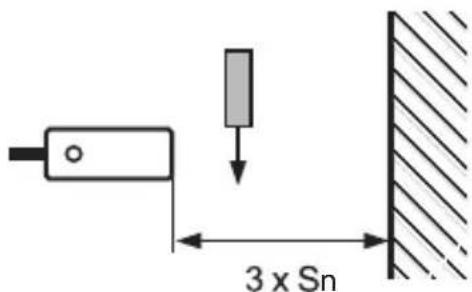

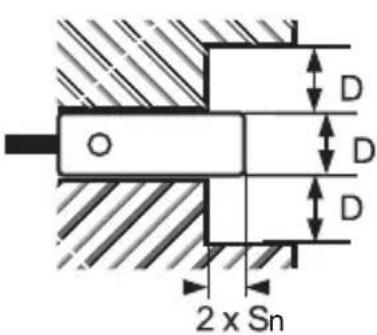

• Open space around the sensing face when mounted in metal (→ fig. 2).
• Minimum distance when several sensors of the same type are mounted ( fig. 3, 4).

	Sn = x mm f Sn = x mm nf
1
2
3
4

Electrical connection

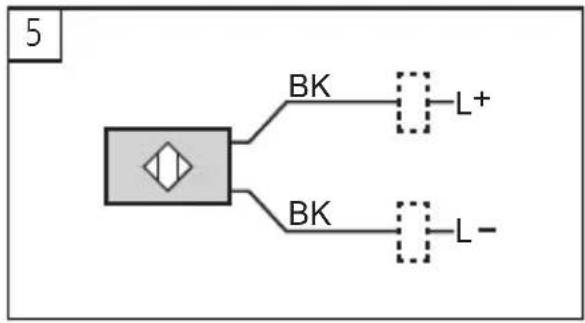

▶ Disconnect power before connecting the proximity switch; connection: → fig. 5).

• For cables longer than 30 ~m and wires greater than 0.5 ~mm^2 the cable should be laid separately from sources of interference (at a distance of about 50 ~cm ) or a screened cable should be used.
• Connect the load before applying the operating voltage.
• Observe the values for current rating and minimum load current.
• If capacitive loads are used, ensure that the peak current rating is not exceeded.

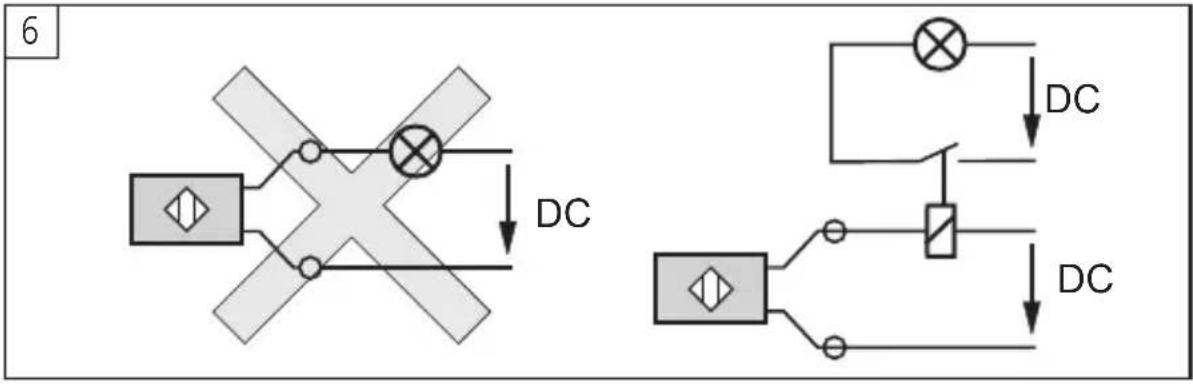

▶ Do not connect loads of low resistance (e.g. lamps) directly to the sensor. Switch these loads via a relay ( fig. 6):

6 DC DC DC

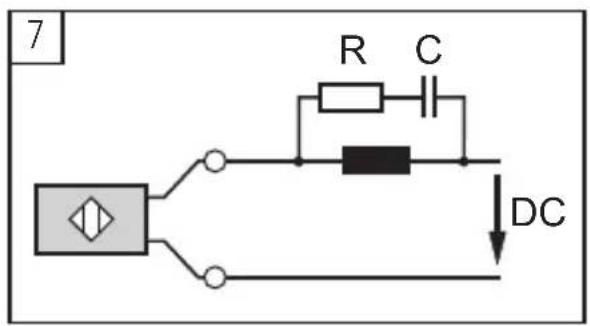

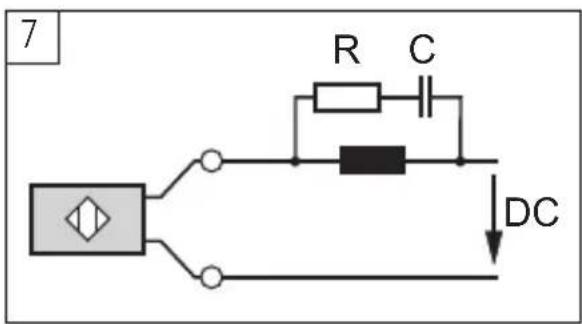

▶ For inductive loads a RC circuit should be connected in parallel to the load ( fig. 7).

7 R C DC

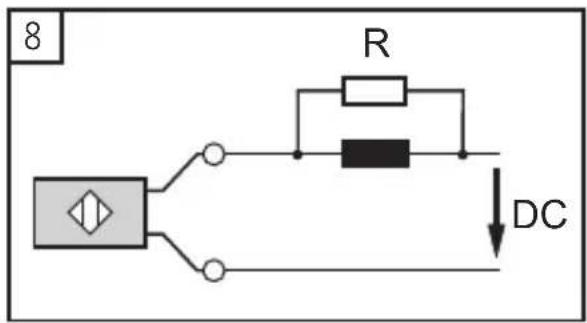

▶ A load which is too low for 2-wire sensors may lead to malfunction. In such a case a resistor should be connected in parallel to the load ( fig. 8).

8 R DC

- For series connection consider the voltage drop of each unit.

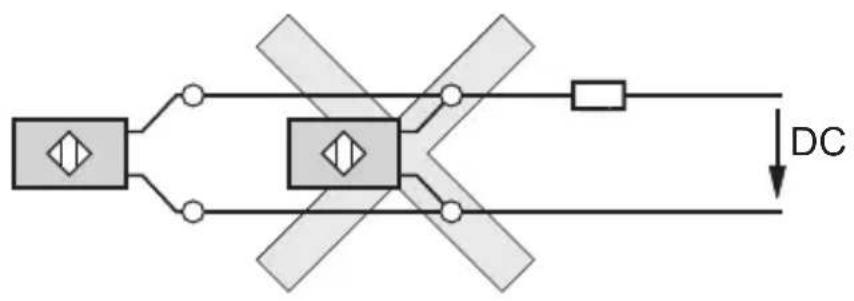

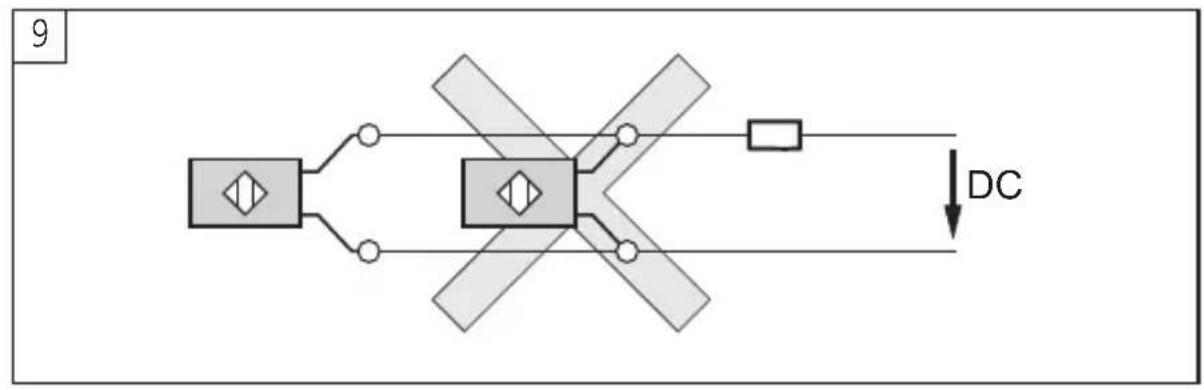

▶ As a rule avoid connecting 2-wire units in parallel (only in exceptional cases, check the safe function, → fig. 9):

9

UK

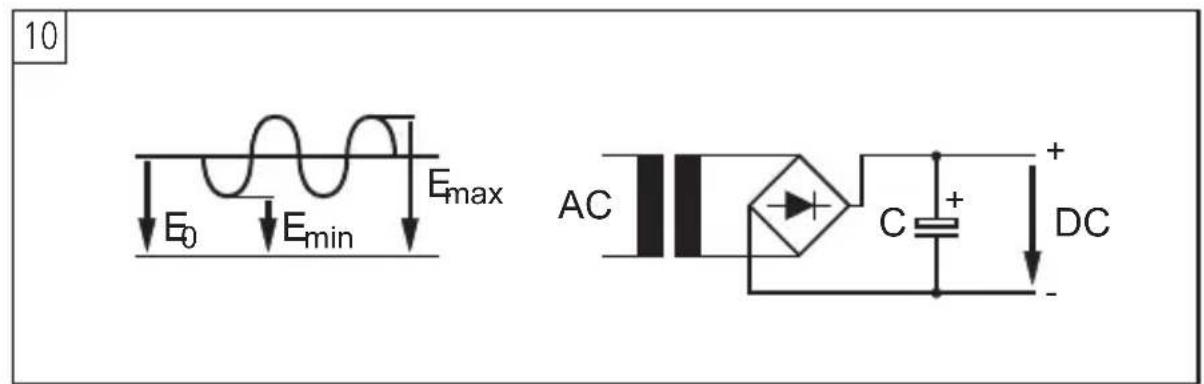

The supply voltage must correspond to the values indicated on the label. If it is not stabilised, a capacitor should be connected (at 24 V and 1 A for example a capacitor of 1000 μF, 50 WV → fig. 10):

10

E₀ Eₘᵢₙ Eₘₐₓ

AC C + DC

6 DC DC DC

6 DC DC DC

7 R C DC

8 R DC

10 E₀ Eₘᵢₙ Eₘₐₓ AC C + DC + -
