Product type	Hand-held welding mask
Brand	GYS
Model	Hand Mask
Filter dimensions	105 x 50 mm
Field of view	93 x 38 mm
Weight	395 g
Power supply	None (manual operation)
Light shade	0
Dark shade	11
Reaction time	Manual
Compatible welding processes	MMA (25-175 A), MIG/MAG, TIG, air arc gouging, plasma cutting, plasma welding
Warranty	2 years (parts and labor)
Storage temperature	-20°C to +70°C
Operating temperature	-5°C to +5°C
Recommended service life	5 years (depending on use and maintenance)
Shell material	Polypropylene plastic
Cleaning	Neutral disinfectant detergent, do not use solvent
Spare parts	UV/IR filter, inner and outer protective screen
Compliance standards	EN 175:1997, EN 166:2002 ; EU Regulation 2016/425
Prohibited use	Oxyacetylene, laser, gas welding; overhead welding

Frequently Asked Questions - Hand Mask GYS

What is the difference between a passive welding mask and an automatic mask?

The Hand Mask is a passive mask: the shade is fixed (light shade 0 or dark shade 11 depending on the filter). It does not darken automatically like an LCD mask.

How do I clean my GYS Hand Mask?

Clean the inside and outside with a neutral disinfectant detergent. Never use solvent. Clean the filter with a clean cotton or a special optical cloth.

What welding processes can I use with this mask?

This mask is suitable for MMA, MIG/MAG, TIG, air arc gouging, plasma cutting and plasma welding. It is prohibited for oxyacetylene, laser or gas welding.

Can I weld overhead with this mask?

No, it is not recommended to weld or cut above your head with this mask for safety reasons.

How do I replace the filter or the outer protective screen?

First remove the protective film from the new screen before placing it. Immediately replace worn or damaged parts. Do not use any tool to remove parts from the mask.

What is the service life of this mask?

The recommended service life is 5 years, but it depends on use, cleaning, storage and maintenance. Check the condition before each use.

Does the mask protect against impacts?

The mask and protective screens do not guarantee unlimited protection against major shocks or impacts, explosive mechanisms or corrosive liquids.

How do I choose the shade level for my welding?

Refer to the welding processes table in the manual. For example, for MMA between 100 and 175 A, use shade 11 (dark shade).

What if the UV/IR filter does not darken during welding?

Immediately stop welding and consult the manual. Check that the filter is not obstructed or damaged.

Is the mask under warranty?

Yes, the warranty is 2 years (parts and labor) from the date of purchase, covering manufacturing defects. It does not cover damage due to misuse.

USER MANUAL Hand Mask GYS

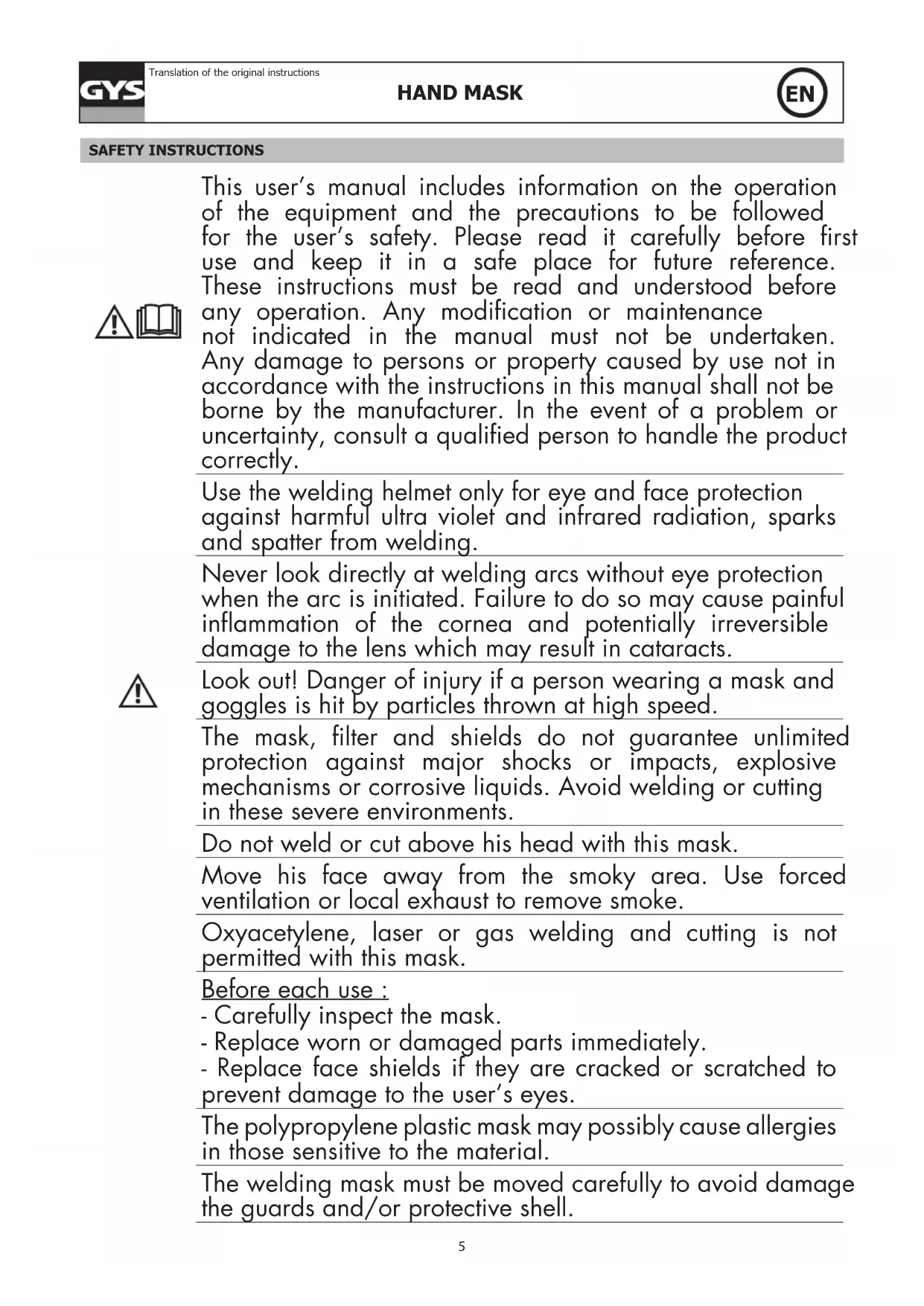

This user's manual includes information on the operation of the equipment and the precautions to be followed for the user's safety. Please read it carefully before first use and keep it in a safe place for future reference. These instructions must be read and understood before any operation. Any modification or maintenance not indicated in the manual must not be undertaken. Any damage to persons or property caused by use not in accordance with the instructions in this manual shall not be borne by the manufacturer. In the event of a problem or uncertainty, consult a qualified person to handle the product correctly.

Use the welding helmet only for eye and face protection against harmful ultra violet and infrared radiation, sparks and spatter from welding.

Never look directly at welding arcs without eye protection when the arc is initiated. Failure to do so may cause painful inflammation of the cornea and potentially irreversible damage to the lens which may result in cataracts.

Look out! Danger of injury if a person wearing a mask and goggles is hit by particles thrown at high speed.

The mask, filter and shields do not guarantee unlimited protection against major shocks or impacts, explosive mechanisms or corrosive liquids. Avoid welding or cutting in these severe environments.

Do not weld or cut above his head with this mask.

Move his face away from the smoky area. Use forced ventilation or local exhaust to remove smoke.

Oxyacetylene, laser or gas welding and cutting is not permitted with this mask.

Before each use :

• Carefully inspect the mask.
• Replace worn or damaged parts immediately.
• Replace face shields if they are cracked or scratched to prevent damage to the user's eyes.

The polypropylene plastic mask may possibly cause allergies in those sensitive to the material.

The welding mask must be moved carefully to avoid damage the guards and/or protective shell.

Maintenance :

• Do not place heavy objects or tools on or in the facepiece to avoid damage to the face shields.

Mask storage temperatures range from -20^ to +70^ .

• Regularly clean and change the guard screens.

• Clean the inside and outside of the mask with a neutral detergent-disinfectant. Do not use solvents.

• Make sure that the sensors and cell are not obstructed by dust or debris.

• We recommend using the mask and visors for 5 years.

The length of use depends on various factors such as type of use, cleaning, storage and maintenance.

BEFORE WELDING

• Check that the welding helmet is in good condition and headband adjustment.
• Check whether the front cover lens, the front frame and filter are inserted and fixed in place. In case of anomalie, please proceed to its reconditioning.
• Make sure that the protection films on both screens are removed.
• Check that the protection level matches your welding processes. Please refer to the following chart to help your choice (cf. welding process board)

OPERATION

• When welding, hold the welding mask with one hand by the internal handle.
• Take away the mask at the end of the weld.

PRECAUTIONS

The welding helmet is suitable for use with virtually all welding processes except Oxy-Acetylene welding, laser welding and gas welding.
- Standard protective screens must be installed on both inside and outside surfaces of the module. Failure to use protective screens may constitute a safety hazard or result in irreparable damage to the module.

Clear shade 0
Dark shade 11
Filter dimension 105 x 50 mm
Reaction speed Manual
Power supply no
Weight 395gr
Field of vision 93x38mm
Applications MMA 25>175
Warranty 2 years
Application temperature -5°C / + 55°C
Storage temperature -20°C / + 70°C

MAINTENANCE

• Expiration date : No expiration date for this product but the state of the welding helmet must be checked before each use.
• The welding helmet must not fall down.
• The deterioration of the filter or its protective screen can reduce the vision field or the protection level. Replace the damaged parts.
• Clean the filter with a clean cotton or with a special rag for lens.
• Do not use any tools or other sharp objects to remove any components of filter or helmet. Doing so may damage filter or helmet preventing proper function, possibly causing injury or cancellation of the warranty.

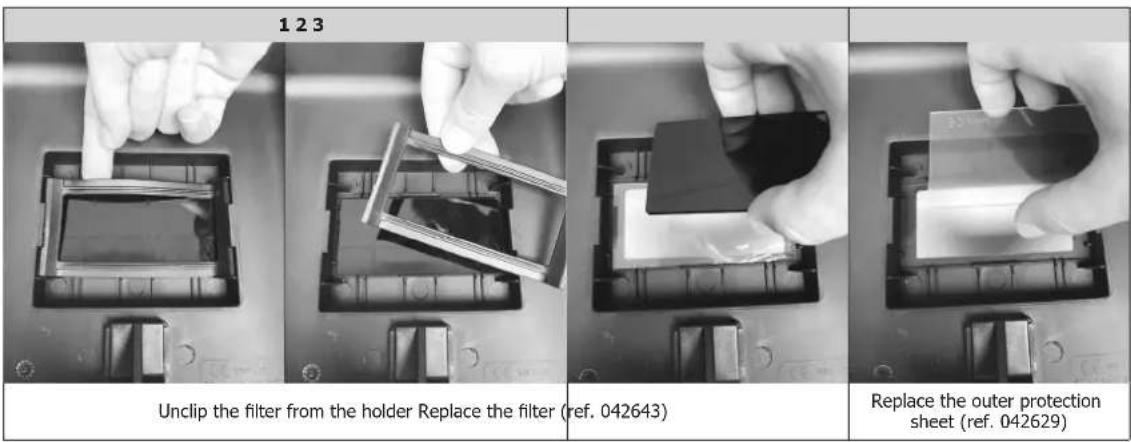

REPLACING THE FILTER AND OUTER PROTECTION SHEET

When changing the outer protection screen, remember to remove the protective film beforehand. This film cannot be removed when the screen is already positioned within the mask.

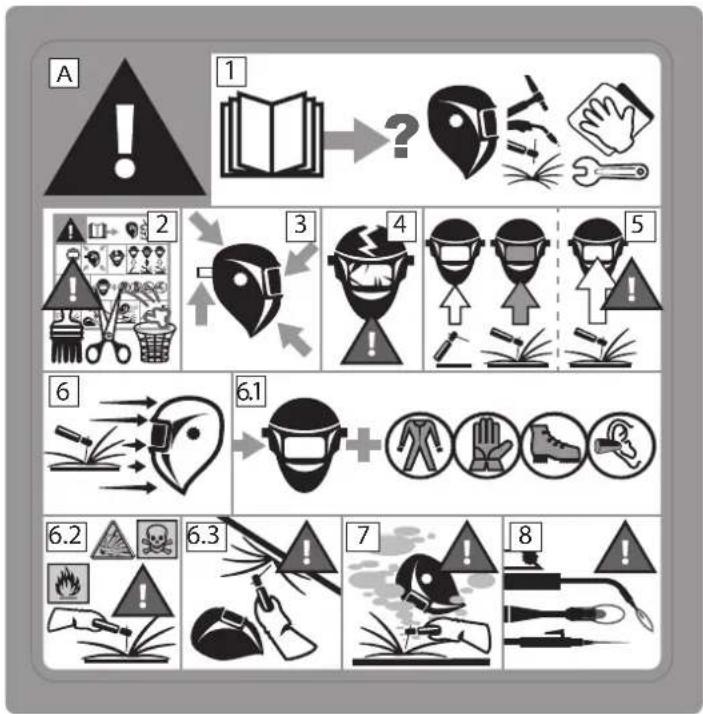

SAFETY LABEL

This label is displayed inside the welding helmet. It is important that the user understands the safety symbols signification. The list numbers match image numbers.

Legend :

A. Warning! Beware! There are possible dangers as per the different symbols.
1. Read the instructions carefully before using the product or before welding.
2. Do not remove the warning label and do not paint on it.
3. Follow settings instructions and maintenance of the filter, the protective screens, the headband and the hood.
4. Inspect the helmet carefully. Replace damaged or worn parts immediately. Cracked, scratched, filter glasses and protective screens decrease protection. Replace them immediately to avoid damaging your eyes.
5. Warning, if the UV/IR filter does not tint whilst welding or cutting, stop immediately and consult the user manual.
6. Arc radiation can cause eyes and skin burns.
6.1. Use a welding helmet with a good filtration or opacity. Wear complete protective clothing..
6.2. The helmet, filter and protective screen do not guarantee unlimited protection against, shocks, impacts, explosions or corrosive liquid. Avoid welding or cutting in rough environment.
6.3. Do not weld or cut above your head with this helmet.
7. Keep your head away from the smoke-filled area. Use a forced ventilation or a local aspiration system to eliminate smoke.
8. The oxyacetylene welding-cutting, laser or gas is not authorised with this helmet.

OkcaeTnHeHOBa, Ia3epHa NII Ra3OBa CBapKa n pe3Ka 3ToMacko He pa3peWeHbI.

IpeedKaJdbIMNCIOb3OBaHHeM：

• BHHMaTeIbHo OcmOTpIte Macky I ee YΦ/IK-ΦnIbTp.
• HemeIeHNO 3aMeHnte n3HOseHHbIe IIN NOBpeKdEHHbIe DeTaII.
• 3aMeHnte IINH3bI ΦIINbTp a NII INIeBbI eKpaHbI, ecNI OHNOTpeckaJIncb NII INOcapanaIncb, UTO6bl npeDToBpaTNTbNOBpeJdEHeIe rla3 NOlb30BaTeJIa.

OrolOBbe MoKET BbI3BaTb aJIleprnIO y ChyBCTBNTbHbIX IIOJe.

Pa6o7a TeMnepaTypa oTTo3JIeKTPoHHoro fIINbTp a coCTaBnraTe O T -5°C dO +55°C.

MaCKa, n3rOToBJIeHHa N3 NOIINpONIIeHOBOrO plaCTnKa, nOTeHcuaJIbHO MOKeT Bbl3BaTb MOKeT Bbl3BaTb aJIpePrnO y CyBCTBNTeJIbHbIX IIODei.

Cbapouhyo Macky cIeIyET nepemeaTb OCTOpOxHo, yTo6bl He NOBpeINtB fInlTp, 3aunTHbIe orpaXdEHHn I/nn 3aunTHyIO oboIoUky.

06cnyxmbaHne:

-Bo n36exkHne NOBpeKdEHHa 0nIbTpa nn IInuCeBbIX uNTOB He KlaIte TjXeJIbIe PpeMTeblnn HNCTpyMeHTbl Ha IInuCeByIO naHeJIb nn B Hee.
- Temnepaotypa xpaheHna MacOK oT -20°C do +70°C.
- OuHsaiTe onTo3JIeKTPoHHbI ΦnIbTp C NOMOJIO YNCTOJ XlONHaTO6yMaXHOJ INCneUaJIbHOJ TKAHN JIINH3.
- Perylarypno ouuuaTe n MeHnTe 3aunTHbIe 3KpaHbl.
- OuHuaTe Macky n3HyTpN i ChapxN HeHTpaJIbHbIM MOIOUIM CpeIcTBOM
- De3nHΦnIuPuyoIcpeIcTBOM. He nCnoJIb3yIte paCTBOpNTeJI.
- CnéĐnte 3a Tem, yTo6bI dαTчИКи nЯчěнka He 6bIIN 3a6NtBi nblbIO nIIIM MycopOM.
- Мы pekomeHdyeM ИспОь3OBaТь Мackу И КOSTырБКИВ TeueHne 5 leT. ПюдОлжИтЕльНоctь ИспОь3OBaHЯ 3aВиСИТ OT pa3ЛиЧьIX ФakTopOB, ТAKИXΚАК TИП ИспОь3OBaHЯ, OчИСТka, XpaHeHne I TexHnueckoeобсluyЖиВане.

NEPEDIHCIOJIb3OBAHnEM

-86eHntecb, yTO MACKA B XOPOIeM COCToHHN I OTPERyIINpyTe 06xBAT 06pyu.
-Поверпгпьтпарильhoe noioxkeHne n coctoHnne 3aunTHbix 3kaPahOB nФльТр. Ппн haNUnm anHomamn, npBBeNTe Macky B nCnpaBHOe coCTOHne.
-76eDITcB, yTO 2 daTnka (6) nIeMeHT (4) He NOKpbITb I bIbIO HAI HAJEtOM.
-76eHntecb, yTo 3aunTHbIe NnEHK C BHyTpEHero HBeHHeO EKpaHa 6bln OTKneHbI.
-86eHTecb,TO yPOBHe 3aunHb COOTBETCTBYET PnIMMeHREMOMy MeOy CBAPKn. T06bI NMOCb Bam B Bawem BbIope CmOTpnte Ta5hny «MeTobCBapKn

PINHcHnDcHCTBnA

-BoBpemCbapKnDepknteOHTOKoHoi pyko3a BHTpeHHIOpyky.
-B KOHcE CBAPK OTBeDNTe UNTOK B CTOPOHy.

MEPbI IPEIOCTOPOXHOCTN

• Macka MoKet 6bItb NcNoJIb3OBAHa dIg BcEx MeTODOB CBAPKn KpOme AuTeINHe-KnCInOpDHO, Ja3epHou n Ra3OBoCBapKn.

BHeHn HByTpeHHn 3aunthbte kpaHb doJnxhbl 6bItb CNTemaTneckn nomeeHb no obe cToPOhbl fInlbtpa. OTCyTCTBne 3kpaHa MoKeT Bly3BaTb HeNonpaBmbl yueep n onachoctb dnn Baew 6e3onacnoctn.

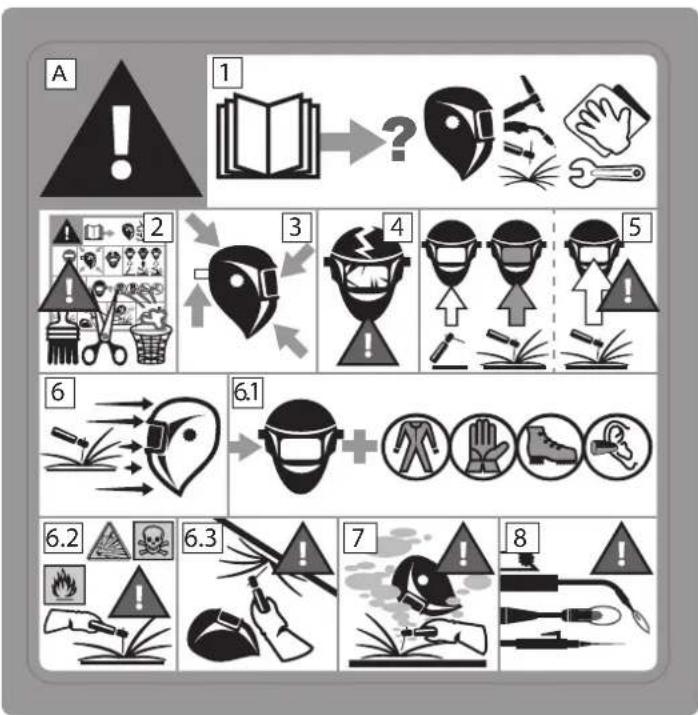

CTNKEP TEXHNI K B3ONACHOCTN
