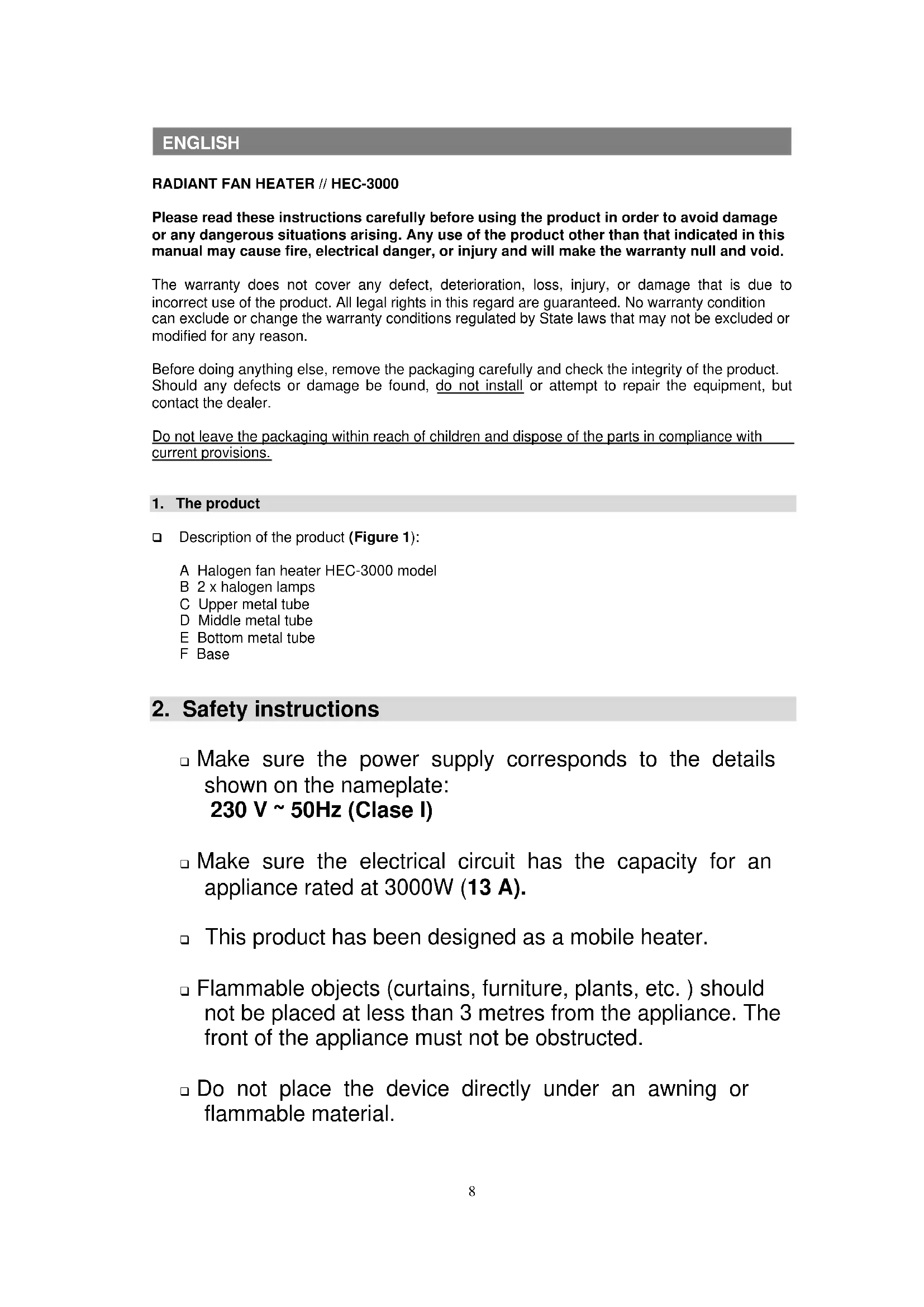

USER MANUAL HEC3000 Soler & Palau

Please read these instructions carefully before using the product in order to avoid damage or any dangerous situations arising. Any use of the product other than that indicated in this manual may cause fire, electrical danger, or injury and will make the warranty null and void. The warranty does not cover any defect, deterioration, loss, injury, or damage that is due to incorrect use of the product. All legal rights in this regard are guaranteed. No warranty condition can exclude or change the warranty conditions regulated by State laws that may not be excluded or modified for any reason. Before doing anything else, remove the packaging carefully and check the integrity of the product. Should any defects or damage be found, do not install or attempt to repair the equipment, but contact the dealer. Do not leave the packaging within reach of children and dispose of the parts in compliance with current provisions.

Make sure the power supply corresponds to the details shown on the nameplate: 230 V ~ 50Hz (Clase I) Make sure the electrical circuit has the capacity for an appliance rated at 3000W (13 A). This product has been designed as a mobile heater. Flammable objects (curtains, furniture, plants, etc. ) should not be placed at less than 3 metres from the appliance. The front of the appliance must not be obstructed. Do not place the device directly under an awning or flammable material. ENGLISH9 The unit can operate outside, if always under cover. Do not use this heater near a bath, shower or a swimming pool. The heater should be situated only in areas where the air can circulate. Do not use the product in rooms filled with explosive gases or vapours generated by solvents and paints or that are inflammable. Make sure the surface is flat and firm to prevent movement or vibration that could adversely affect the life of the lamps. The means of disconnection must be incorporated in the fixed installation, for disconnection from the power supply the switch must have a contact separation of at least 3 mm at all poles, so as to allow a complete disconnection in accordance with the conditions over Voltage category III. Never leave your home with the product still running. If you do go out make sure that the switch is disconnected. Do not move or shift the device when it is connected to the electrical supply. The device has high surface temperatures, which must not be touched, even after it has been switched off. Never cover the product, even after disconnecting. Do not allow animals or children to play with or touch the product. Warning! When working the air outlet grille can get very hot. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experienceand knowledge if they have been given supervision or instruction concerning10 use of the appliance in a safe way and understand the hazards involved. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. CAUTION: Some parts of this product may be become hot and cause burns. Particular attention should be when children and vulnerable people are present. Do not clean the product while it is working and do not immerse it in water. Do not handle the heater with wet hands. Do not coil the power cable around or on top of the product while it is working. Prevent the power cable from touching the body of the device during is working. If the cable gets damaged and has to be changed, do not do this yourself – take the equipment to an authorised repair centre because the work must be done by specialist personnel to avoid any risk of damage. Do not use the heater as a clothes or towel dryer. Do not hang anything on the device.11 Once assembled, choose the place of use, making sure the base of the heater is located at least 1.80 m above the ground. This heater is not equipped with a device of room temperatu- re control. Do not use this heater in small rooms that are occupied by people who can not leave the room by themselves, unless ongoing monitoring is assured.

3. Mounting (Figure 1)

Read the safety warnings before starting to mount the product. We recommend a minimum of 2 people for mounting the base. Do not connect the device to the electrical supply until it is fully mounted. Screw the bottom metal tube (E) to the base (F). Screw the middle metal tube (D) to the bottom tube (E). Screw the upper metal tube (C) to the rest of the set. Make sure the two holes are at the top to ensure the heater can be locked in place (Detail 1). With the help of another person take the heater and then spend all wire and plug from inside the base. Insert the heater into the top tube and secure with the two screws provided (Detail 1) Pull the power supply wire through and fix it to the bottom of the base by the two fasteners and screws (Detail 2).

Make sure the power supply corresponds to the details shown on the nameplate: 230 V ~ 50Hz. Connect the plug into the wall socket. Using the light switches (Detail 1), you can turn the lamps on and/or turn off manually.

Before carrying out any maintenance work, make sure that the device has been disconnected from the mains and let the heater cool down for a few minutes.12 This product does not require special maintenance. It needs to be cleaned periodically to prevent accumulation of dust on the lamps, as this may cause overheating of the heater. Clean the lamp with a brush and the body of the product with a damp cloth. The replacement of the lamps must be performed by qualified personnel, so contact the Official Service network of S&P, to ensure adequate technical assistence. Do not immerse the device or spray with water. If the appliance is not to be used for any length of time, we recommend returning it to its original package and storing it in a dry, dust-free place.

6. Removal from service and recycling

EU regulations and our commitment to future generations oblige us to recycle used materials; please remember to dispose of all unwanted packaging materials at the appropriate recycling points, and to drop off obsolete equipment at the nearest waste management point

S&P’s large Technical Service network will guarantee adequate technical assistance. If a fault is observed in the unit, please contact any of the mentioned technical service offices and they will attend to your problem. Any modification of the appliance by personnel not belonging to the Official S&P Services will result in your guarantee being void. For any queries regarding S&P products please contact any branch of our After Sales Service network if you are in Spain, or your regular dealer in the rest of the world. To find your nearest dealer, visit our website at www.solerpalau.com.

THE MANUFACTURER WILL NOT BE HELD LIABLE FOR DAMAGES TO PEOPLE AND/OR PROPERTY DUE TO NON-COMPLIANCE WITH THESE WARNINGS. S&P reserves the right to modify the product without prior notification.13

3. Installation (Figure 1)

7. Assistance technique
