Product type	Infrared mobile heater
Brand	Soler & Palau
Model	HET1800
Total power	1800 W (2 x 900 W)
Lamp type	Carbon lamps
Power supply	230 V ~ 50 Hz
Main functions	Infrared heating, remote control, independent lamp control, on/off switch
Maintenance and cleaning	Clean the lamps with a brush and the casing with a damp cloth
Safety instructions	Do not cover; keep a distance of 3 m from flammable objects; do not use near water; supervise children
Spare parts and repairability	Lamps replaceable by a qualified professional
Included accessories	Base, 4 screws, Allen key, remote control with batteries
Outdoor use	Yes, provided it is sheltered from the weather
Weight	Not specified

Frequently Asked Questions - HET1800 Soler & Palau

How to install the base of the HET1800 heater?

Place the body on a smooth surface, then assemble the base using the 4 screws provided and the Allen key. It is recommended to do this with two people.

Can I use the HET1800 heater outdoors?

Yes, provided it is sheltered from the weather. Do not use it in rain or snow.

How does the remote control work?

The remote control allows you to turn each lamp on or off independently. Point it at the control panel on the device.

What is the power of each lamp?

Each lamp has a power of 900 W, for a total power of 1800 W.

What to do if a lamp no longer lights up?

First check that the device is powered and that the rear switch is in the on position. If the problem persists, contact a qualified professional to replace the lamp.

What safety distance should I maintain?

Keep a distance of at least 3 meters from any flammable objects (curtains, furniture, etc.). The space in front of the device must be clear.

Can I leave the heater on unattended?

No, never leave the device running unattended. Always unplug it when leaving the house.

How to clean the device?

Before any cleaning, unplug the device and wait for it to cool completely. Clean the lamps with a brush and the casing with a damp cloth. Never immerse it in water.

Is the heater suitable for children?

This device can be used by children over 8 years of age under supervision. Children aged 3 to 8 can only turn it on or off. Children under 3 must be kept away.

What to do if the power cord is damaged?

Do not replace the cable yourself. It must be replaced by a qualified professional to avoid any risk.

USER MANUAL HET1800 Soler & Palau

Exterior view of a modern office building (no signage)

Fig.1

A B C G H D E F

Fig.2

Diagram of a cylindrical device with internal components and external wiring, showing no text or symbols.

ESPAÑOL

CALEFACTOR INFRAROJO - HET-1800

Please read these instructions carefully before using the product in order to avoid damage or any dangerous situations arising. Any use of the product other than that indicated in this manual may cause fire, electrical danger, or injury and will make the warranty null and void.

The warranty does not cover any defect, deterioration, loss, injury, or damage that is due to incorrect use of the product. All legal rights in this regard are guaranteed. No warranty condition can exclude or change the warranty conditions regulated by State laws that may not be excluded or modified for any reason.

Before doing anything else, remove the packaging carefully and check the integrity of the product. Should any defects or damage be found, do not install or attempt to repair the equipment, but contact the dealer.

Do not leave the packaging within reach of children and dispose of the parts in compliance with current provisions.

1. The product

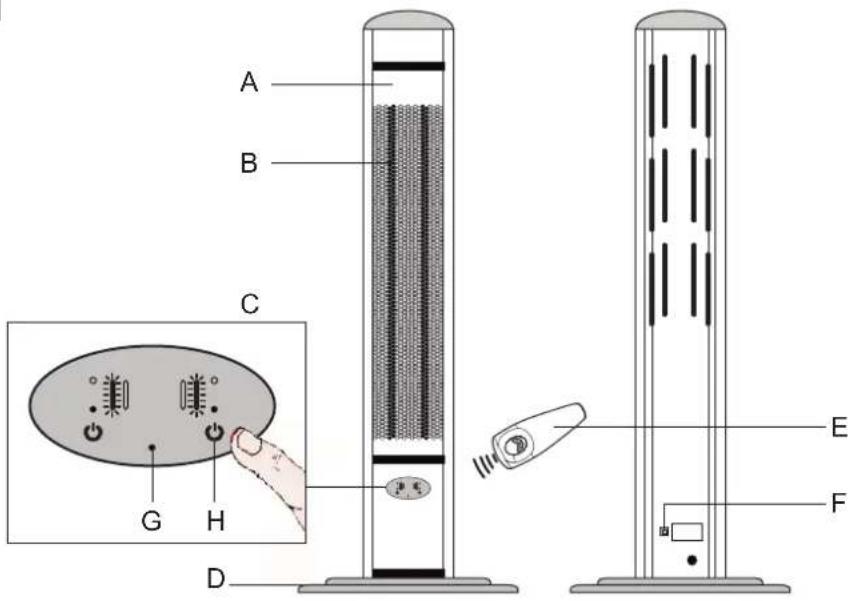

☐ Description of the product (Figure 1):

A Radiant fan heater HET-1800 model
B 2 x carbon lamps 900W
C Control panel
D Base
E Remote control with 2 x Batteries AAA 1.5V model

□ Along with the equipment you have bought, the pack also contains:

• 4 x screws
• 1 x Allen key
• 1 x Installation manual and instructions for use

Should any part be missing, contact your dealer.

2. Safety instructions

☐ Make sure the power supply corresponds to the details shown on the nameplate: 230 V \~ 50Hz.
☐ This product has been designed as a mobile heater.
☐ Flammable objects (curtains, furniture, plants, etc.) should not be placed at less 3 meters from the appliance. The front of the appliance must be free of objects.
☐ The unit can operate in the outside, if always is covered.

☐ Do not use this heater near a bath, shower or a swimming pool.

☐ The heater should be situated only in areas where the air can circulate.

☐ Do not use the product in rooms filled with explosive gases or vapours generated by solvents and paints or that are inflammable.

☐ Make sure the surface is flat and firm to prevent movement or vibration that adversely affect the life of the lamps.

☐ The means of disconnection must be incorporated in the fixed installation, for disconnection from the power supply the switch must have a contact separation of at least 3 mm at all poles, so as to allow a complete disconnection in accordance with the conditions over Voltage category III.

□ Never leave your home with the product still running. If you do go out make sure that the switch is disconnected.

☐ The device has high surface temperatures, which must not be touched, even after it has been switched off.

□ Never cover the product, even after disconnecting.

☐ Do not allow animals or children to play with or touch the product.

Warning! When working the air outlet grille can get very hot.

☐ This product must not be used by people (including children) with limited physical, sensorial, or mental capacity or with inadequate experience or knowledge that are not supervised by a person that is responsible for their safety or until they have been adequately trained. Children must be supervised to ensure that they do not play with the product.
☐ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
□ Children of less than 3 years should be kept away unless continuously supervised.
Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved.
□ Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

CAUTION: Some parts of this product may be become hot and cause burns. Particular attention should be when children and vulnerable people are present.

☐ Do not clean the product while it is working and do not immerse it in water.
☐ Do not handle the heater with wet hands.
☐ Do not coil the power cable around or on top of the product while it is working.

• Prevent the power cable from touching the body of the device during is working.
  ☐ If the cable gets damaged and has to be changed, do not do this yourself – take the equipment to an authorised repair centre because the work must be done by specialist personnel to avoid any risk of damage.
  ☐ Do not use the heater as a clothes or towel dryer.
  ☐ This heater is not equipped with a device of room temperature control. Do not use this heater in small rooms that are occupied by people who can not leave the room by themselves, unless ongoing monitoring is assured.

3. Mounting

Read the safety warnings before starting product mounting.
☐ We recommend a minimum of 2 people for mounting the base.

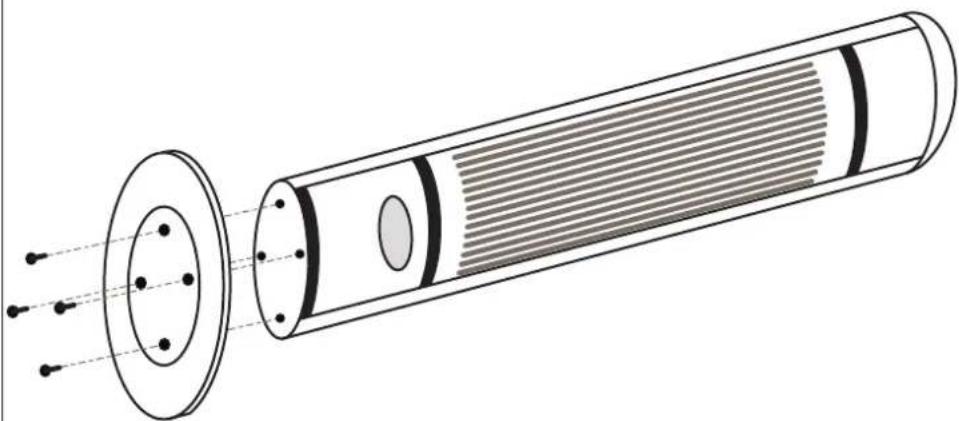

☐ Lay on a soft surface on the body. Using the allen wrench, assemble the base to the body using the 4 screws provided (Figure 2).

4. Use of equipment

☐ Connect the plug into the power point. Use the switch (Figure 1F), to connect and disconnect power to the device.
☐ The led (Figure 1G) indicates if the device is connected.
☐ With the remote control you can turn on and/or turn off each lamp at a distance. Point the remote control to the control panel (Figure 1C).
☐ Using the control panel switches (Figure 1H) it is also possible to turn the lamps on and off manually.

Model	Lamps	Lamp power	Total power
HET-1800	2	2 x 900W	1800W

5. Maintenance

Before carrying out any maintenance work, make sure that the device has been disconnected from the mains and let the heater cool down for a few minutes.
☐ This product does not require special maintenance. It needs to be cleaned periodically to prevent accumulation of dust on the lamps, as this may cause overheating of the heater. Clean the lamp with a brush and the body of the product with a damp cloth.

☐ The replacement of the lamps must be performed by qualified personnel, so contact the Official Service network of S&P, to ensure adequate technical assistance.
☐ Do not immerse the device or spray with water.
☐ If the appliance is not to be used for any length of time, we recommend returning it to its original package and storing it in a dry, dust-free place.

6. Removal from service and recycling

EU regulations and our commitment to future generations oblige us to recycle used materials; please remember to dispose of all unwanted packaging materials at the appropriate recycling points, and to drop off obsolete equipment at the nearest waste management point.

7. Technical assistance

□ S&P's large Technical Service network will guarantee adequate technical assistance.
☐ If a fault is observed in the unit, please contact any of the mentioned technical service offices and they will attend to your problem.
☐ Any manipulation of the appliance by personnel not belonging to the Official S&P Services will result in your guarantee being void.
☐ For any queries regarding S&P products please contact any branch of our After Sales Service network if you are in Spain, or your regular dealer in the rest of the world. To find your nearest dealer, visit our website at www.solerpalau.com.

THE MANUFACTURER WILL NOT BE HELD LIABLE FOR DAMAGES TO PEOPLE AND/OR PROPERTY DUE TO NON-COMPLIANCE WITH THESE WARNINGS.

S&P reserves the right to modify the product without prior notification.
