Brand	LIFT-MASTER
Model	87504267 (series 87504-267)
Product type	Automatic residential garage door opener
Drive type	Belt (models 87504-267, 84501) / Chain (models 87802, 84602)
Power supply	120 V, 60 Hz (hardwiring optional)
Backup battery	12 V, model 485LM (available on select models)

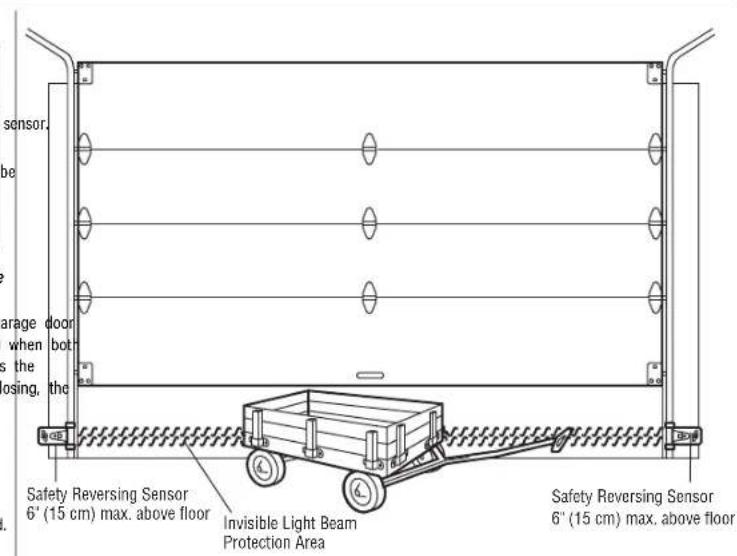

Safety sensors	Protector System (2 infrared sensors, max height 15 cm above floor)
Connectivity	Wi-Fi 2.4 GHz, myQ, Security+ 2.0 compatible
Main functions	Opening/closing, obstacle detection, automatic close timer (TTC), LED light, integrated camera (model 87504-267), motion sensor (optional)

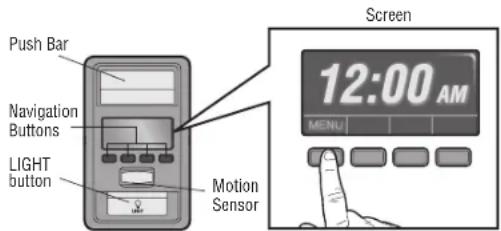

Control panel	Smart Control Panel with screen and programming menu
Included remote controls	2 remote controls (model 893LM)
Compatible door type	Sectional doors (recommended), one-piece doors (without unattended close)
Available rail length	7 ft (2.1 m), 8 ft (2.4 m), 10 ft (3.0 m) depending on model
Warranty	Motor lifetime, parts 1 to 5 years depending on model; battery 1 year; camera 1 year
Recommended maintenance	Monthly reversal test, rail lubrication, sensor check
Additional safety	Emergency release, automatic lock (optional 841LM), maintenance alerts (MAS)
Country of manufacture	United States (LiftMaster, Oak Brook, IL)

Frequently Asked Questions - 87504267 LIFT-MASTER

How to program a remote control?

To add a remote control, press the LEARN button on the door opener. The LED turns on. Then press the button on the remote control you wish to use. Release when the lights flash or two clicks are heard. You can also use the control panel: PROGRAM menu > REMOTE.

What to do if the door does not close completely?

First, check that the safety reversing sensors are aligned and unobstructed. Clean the lenses. Ensure the door is balanced (it should stay at mid-height). If the problem persists, re-run the travel programming using the adjustment button. Then test the force.

How to connect the door opener to Wi-Fi?

Download the myQ app on your smartphone. Create an account or log in. Make sure the Wi-Fi signal (2.4 GHz) is strong in the garage. Follow the instructions in the app to sync the door opener. The LED on the unit turns solid blue then solid green when the connection is established.

The backup battery does not work, what to do?

Check that the battery is correctly connected (red (+) and black (-) wires). If the status LED is red, the battery needs to be replaced (model 485LM). Recharge the battery for 24 hours. In battery mode, the door operates more slowly and some functions (lights, Wi-Fi) are disabled.

How to test the safety reversal system?

Place a block of wood (2x4) flat in the center of the door. Close the door with the remote control. The door should stop and reverse when contacting the block. Obstruct the sensor beam with an object; the door should not close. Perform this test monthly.

Can I use a one-piece door?

Yes, but only if you do not use the unattended closing functions (automatic close timer, myQ app, etc.). These functions are reserved for sectional doors. Install the door opener following the manual warnings.

How to replace the battery?

Unplug the door opener from power. Open the battery panel. Disconnect the red and black wires. Replace with a LiftMaster 485LM battery. Reconnect the wires (red to red, black to black) respecting polarity. Close the panel and plug the unit back in.

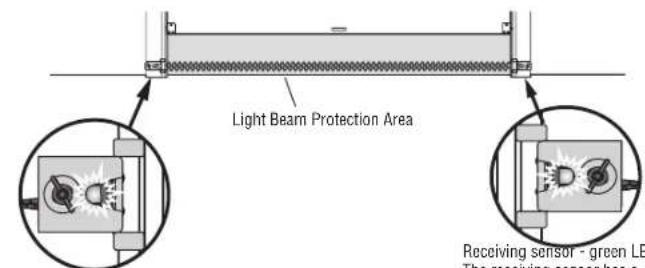

The sensor lights are flashing, what to do?

If the receiving sensor LED (green) is flashing, the sensors are misaligned or an obstacle obstructs the beam. Check that no object is in the way. Loosen the wing nuts, adjust the sensor orientation until the green LED is solid. If the LED is off, check the wiring and power.

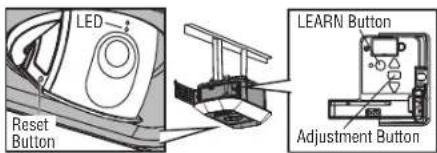

How to erase all remote control codes?

Press and hold the LEARN button on the door opener for about 6 seconds, until the LED turns off. All codes are erased. You will need to reprogram each remote or keypad. Use the same method to delete camera settings (Reset button).

Where to find the serial numbers?

The myQ serial number is located on the side of the garage door opener (end panel). The product serial number is on the back label. Note these numbers for warranty and app registration. Refer to the manual’s preparation page for exact locations.

USER MANUAL 87504267 LIFT-MASTER

Smart LED Garage Door Openers

Belt Drive Models - 87504-267, 84501

Chain Drive Models - 87802, 84602

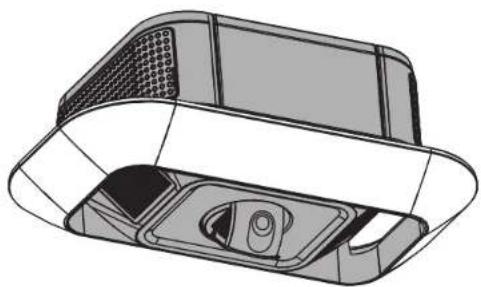

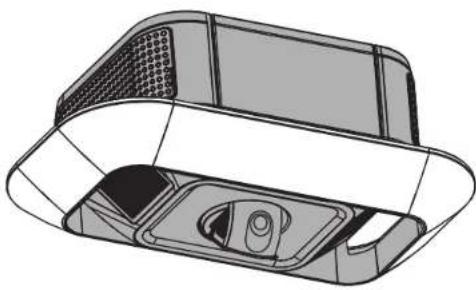

Technical line drawing of a mechanical device with a perforated top and side panel (no text or symbols)

Technical line drawing of a car interior panel with ventilation grilles and central vent (no text or symbols)

• Please read this manual and the safety materials carefully!
• Periodic checks of the garage door opener are required to ensure safe operation.
• This garage door opener is ONLY compatible with myQ® and Security+ 2.0® accessories.
• DO NOT install on a one-piece dc if using devices or features providir unattended close. Unattended devices and features are to be us ONLY with sectional doors.
• Attach warning labels to the location indicated on label.

LiftMaster

300 Windsor Drive

Oak Brook, IL 60523

LiftMaster®

Table of Contents

Preparation 3

Carton Inventory 87504-267 6

Carton Inventory 87802 7

Carton Inventory 84501 8

Carton Inventory 84602 9

Assembly 10

87504-267, 84501 10

84602 11

87802 12

Installation 14

Control Panel 22

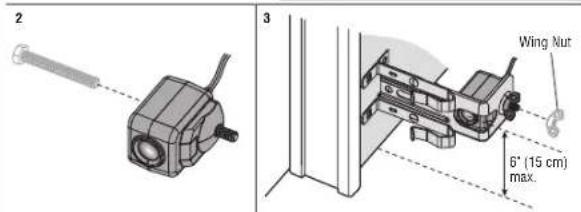

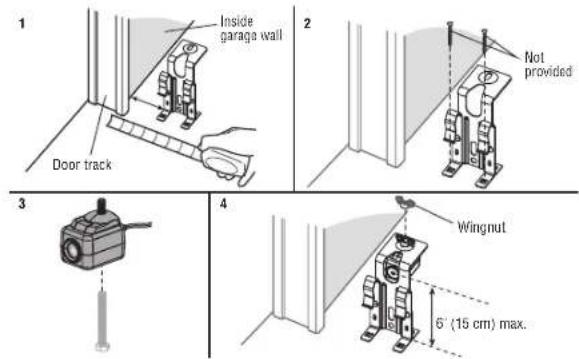

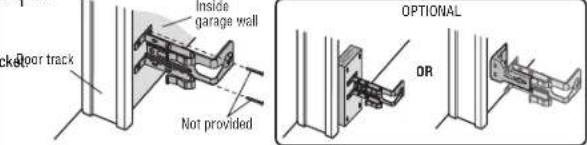

Install the Protector System 24

Power 28

Adjustments 30

Battery Backup 32

Operation 34

Maintenance 42

Troubleshooting 43

Accessories 45

Warranty 46

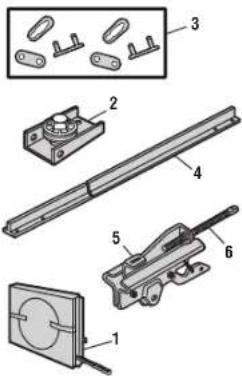

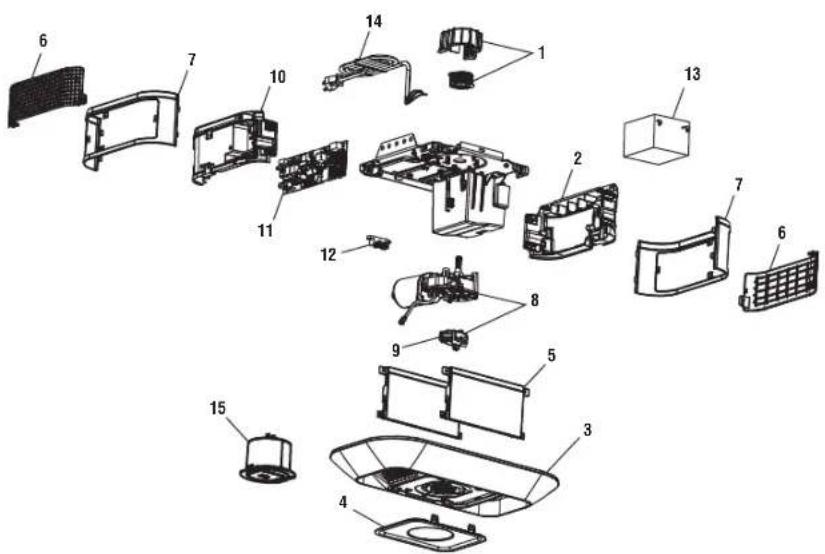

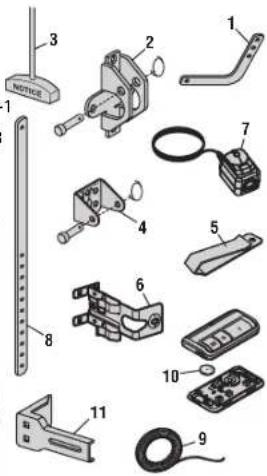

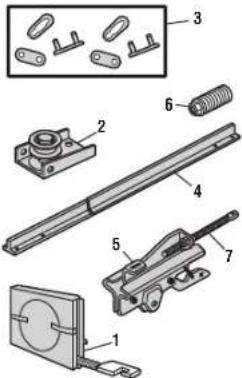

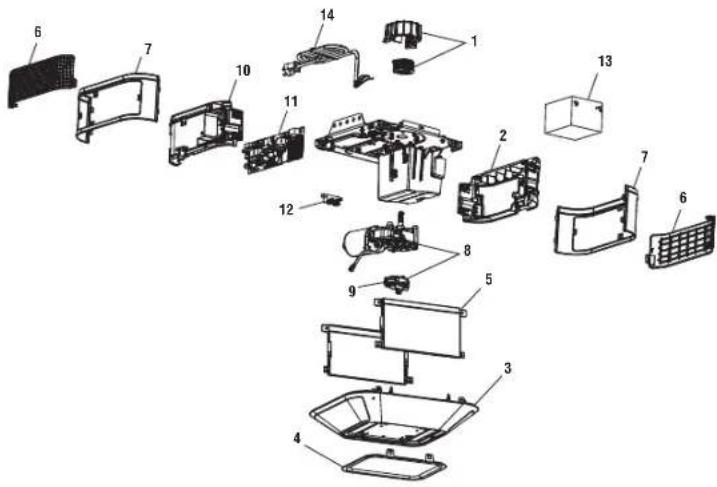

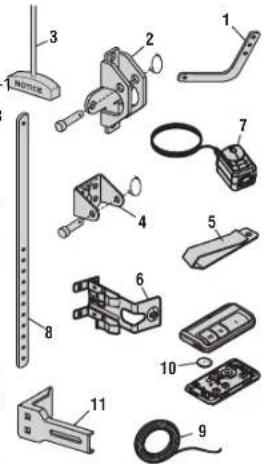

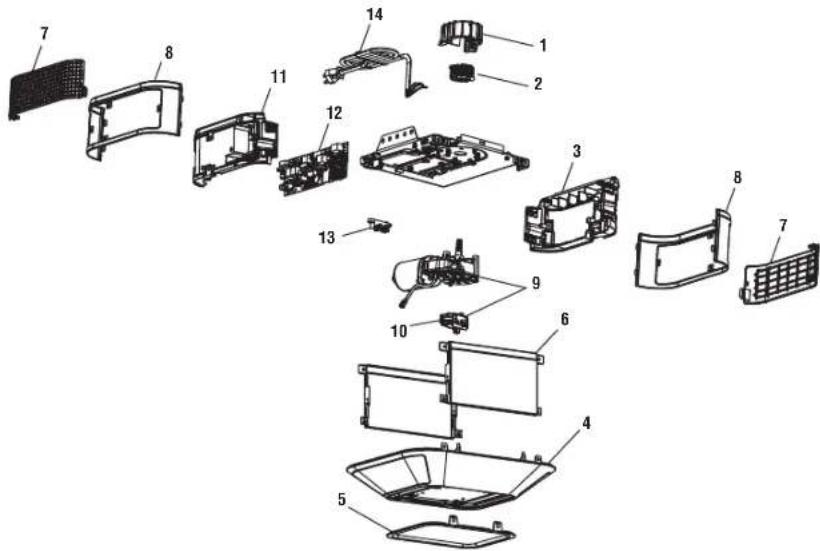

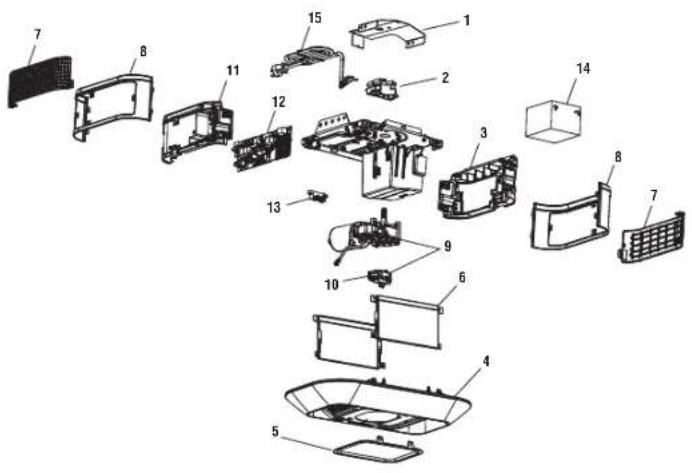

Repair Parts 49

Model 87504-267 49

Model 87802 51

Model 84602 53

Model 84501 55

Preparation

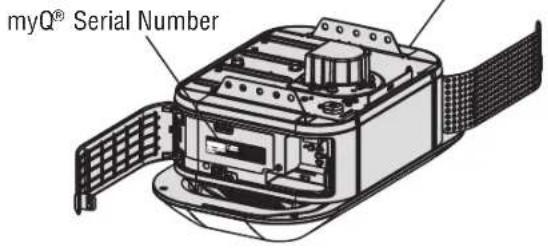

myQ® Serial Number

Write down the following information for future reference:

myQ ^® Serial Number:

Product Serial Number:

Date of Purchase:

/ /

Product Serial Number

myQ® Serial Number

Safety Symbol and Signal Word Review

This garage door opener has been designed and tested to offer safe service provided it operated, maintained and tested in strict accordance with the instructions and warnings cont manual.

When you see these Safety Symbols and Signal Words on the following pages, they will possibility of serious injury or death if you do not comply with the warnings that accom hazard may come from something mechanical or from electric shock. Read the warnings c

Mechanical

Electrical

When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your garage door and/or the garage door opener if you do not comply with the cautionary statements that accompany it. Read them carefully.

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Unattended Operation

The Timer-to-Close (TTC) feature, the myQ® App, and myQ® Garage Door and Gate Monitor are examples of unattended close and are to be used ONLY with sectional doors. Any device or feature that allows the door to close without being in the line of sight of the door is considered unattended close. The Timer-to-Close (TTC) feature, the myQ® App, and any other myQ® devices are to be used ONLY with sectional doors.

Preparation

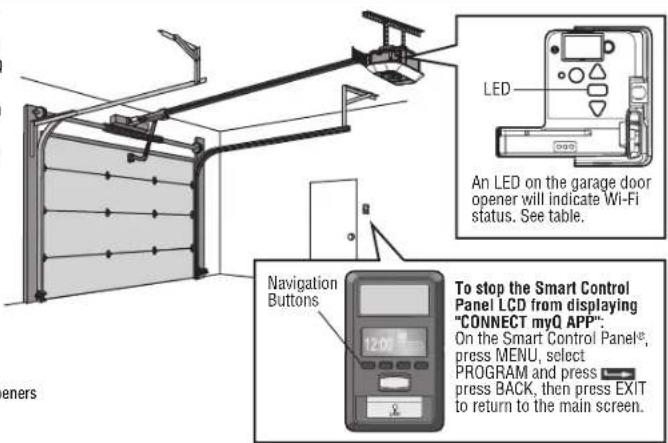

Before You Connect with Your Smartphone

Monitor and control your garage door from anywhere using the myQ® App. You will need:

• Wi-Fi® enabled smartphone, tablet or laptop
• Broadband Internet Connection
• Wi-Fi ^TM signal in the garage (2.4 GHz, 802.11b/g/n required)
• Password for your home network (router's main account, not guest network)

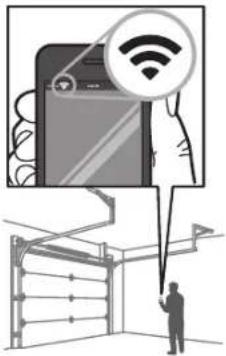

TEST THE WI-FI® SIGNAL STRENGTH

Make sure your mobile device is connected to your Wi-Fi® network. Hold your mobile device in the place your garage door opener will be installed and check the Wi-Fi® signal strength.

Diagram illustrating Wi-Fi connectivity with a smartphone displaying a Wi-Fi icon and a person holding a device, likely for smart home or digital access.

Check Signal Strength. If you see:

Wi-Fi signal is strong.

The garage door opener will connect to your Wi-Fi network.

Wi-Fi signal is weak.

The garage door opener may connect to your Wi-Fi network. If not, try one of the options below to improve the Wi-Fi signal:

No Wi-Fi signal.

The garage door opener will not be able to connect to your Wi-Fi network. Try one of the options below to improve the Wi-Fi signal:

• Move your router closer to the garage door opener to minimize interference from walls and other objects
• Buy a Wi-Fi range extender

For compatible router specifications and help, visit support.liftmaster.com.

See page 36 to connect the garage door opener to a mobile device.

Check the Door

WARNING

To prevent possible SERIOUS INJURY or DEATH:

• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An unbalanced garage door may NOT reverse when required.
• NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their hardware, ALL of which are under EXTREME tension.
• Disable ALL locks and remove ALL ropes connected to garage door BEFORE installation and operating garage door opener to avoid entanglement.
• DO NOT install on a one-piece door if using devices or features providing unattended close. Unattended devices and features are to be used ONLY with sectional doors.

CAUTION

To prevent damage to garage door and opener:

• ALWAYS disable locks BEFORE installing and operating the opener.
• ONLY operate garage door opener at 120V, 60 Hz to avoid malfunction and damage.

Before you begin:

1. Disable locks and remove any ropes connected to the garage door.
2. Lift the door halfway up. Release the door. If balanced, it should stay in place, supported entirely by its springs.
3. Raise and lower the door to check for binding or sticking. If your door bir sticks, or is out of balance, call a trained door systems technician.
4. Check the seal on the bottom of the door. Any gap between the floor and bottom of the door must not exceed 1/4" (6 mm). Otherwise, the safety system may not work properly.
5. The opener should be installed above the center of the door. If there is a torsion spring or center bearing plate in the way of the header bracket, it may be installed within 4 feet (1.2 m) to the left or right of the door center. See page 15.

Preparation

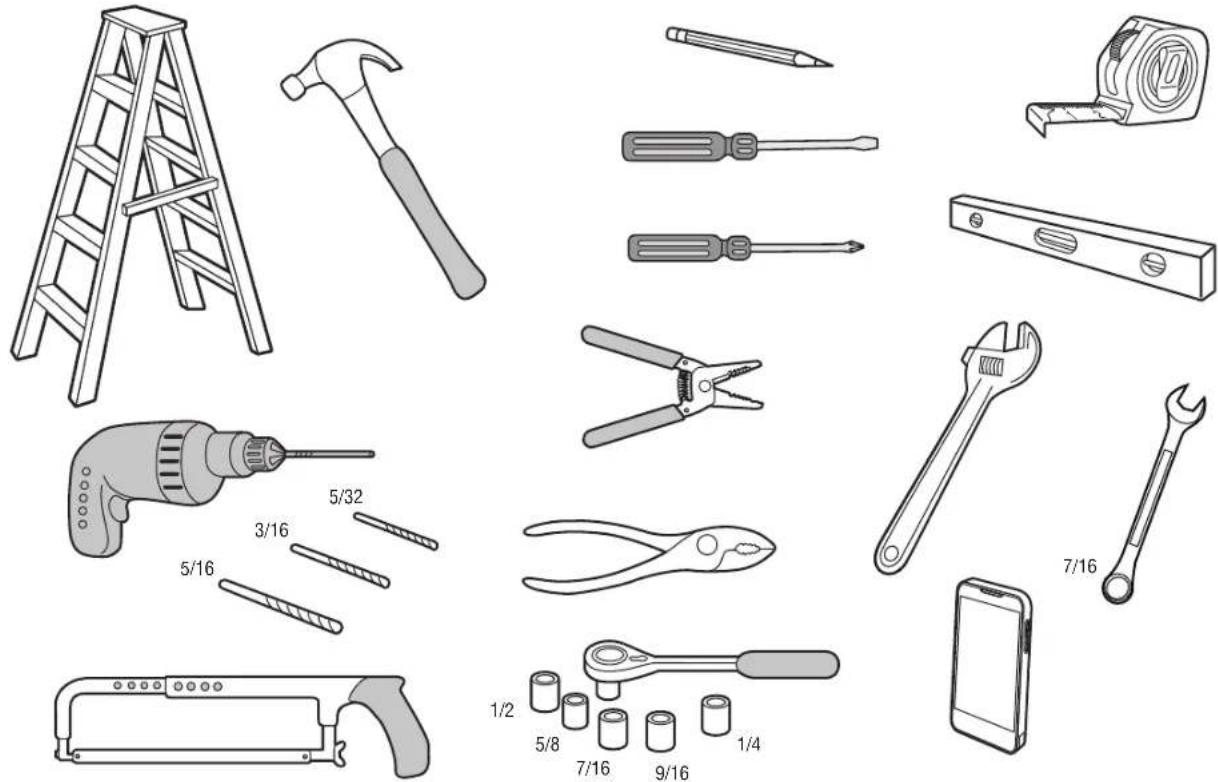

ToolsNeeded

Preparation

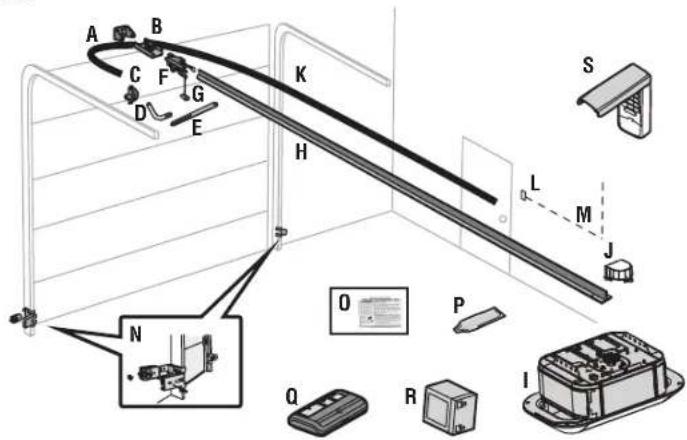

Carton Inventory 87504-267

Accessories will vary depending on the garage door opener model purchased. Depending on your spe model, other accessories may be included with your garage door opener. The instructions for these a will be attached to the accessory and are not included in this manual. The images throughout this manual are for reference and your product may look different.

A. Header bracket

B. Pulley and bracket

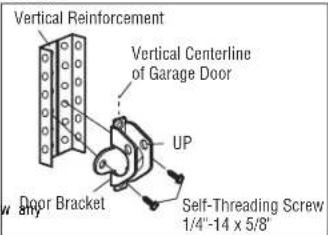

C. Door bracket

D. Curved door arm

G. Emergency release rope and handle

H. Rail

J. Pulley cover with hex screws

K. Belt

L. Control Panel®

M. White and red/white wire

N. The Protector System®

Safety reversing sensors with white and white/black wire attached: Sending senor (1), receiving sensor (1), and safety sensor brackets (2)

O. Safety labels and literature

P. Rail grease

Q. Remote control (2)

R. Battery

S. Keyless Entry

RAIL HARDWARE

Washed Bolt 5/16"-18 x 1/2" (2) [mounted in the top of the garage door opener]

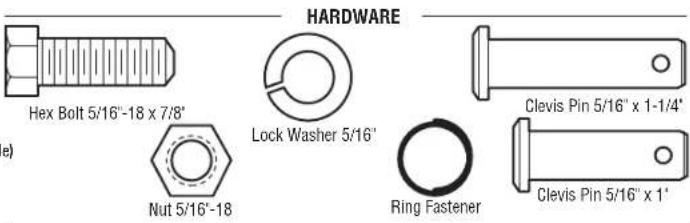

INSTALLATION HARDWARE

Hex Bolt 5/16"-18 x 7/8" (4) Lock Washer 5/16" (4)

Lag Screw 5/16"-9 x 1-5/8" (2) Self-Threading Screw 1/4"-14 x 5/8" (2)

Clevis Pin 5/16" x 2-3/4" (1) Ring Fastener (3)

Clevis Pin 5/16" x 1-1/4" (1) Hex Screw 10-24 (2)

Clevis Pin 5/16" x 1" (1) Wing Nut (2)

Nut 5/16"-18 (4)

CONTROL PANEL HARDWARE

Screw 6AB x 1-1/4" (2) Drywall Anchors (2) Screw 6-32 x 1" (2)

Diagram of a mechanical or electrical device with labeled components and an inset photo showing a device with internal components.

Preparation

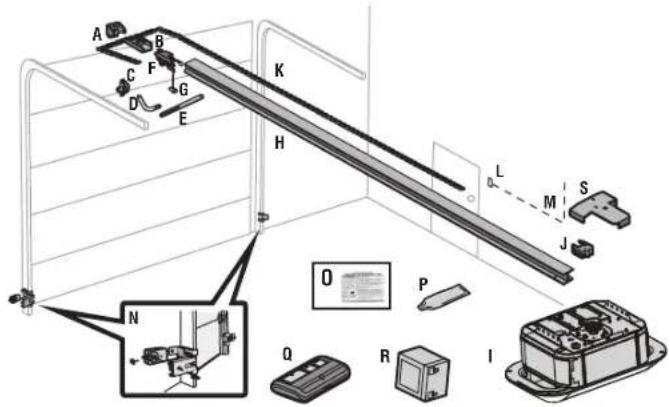

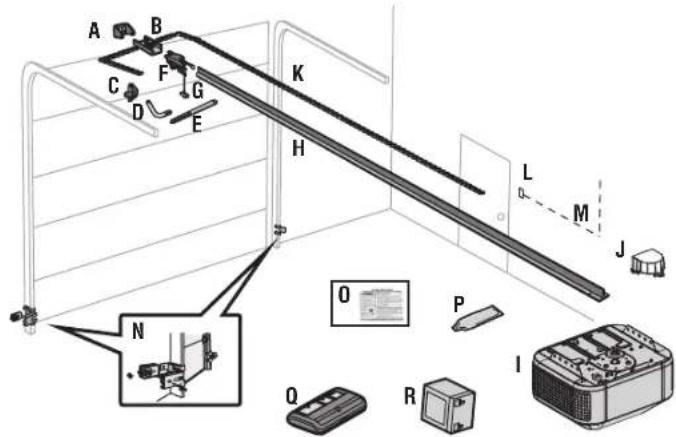

Carton Inventory 87802

Accessories will vary depending on the garage door opener model purchased. Depending on your specific model, other accessories may be included with your garage door opener. The instructions for these acces will be attached to the accessory and are not included in this manual. The images throughout this manual are for reference and your product may look different.

A. Header bracket
B. Pulley and bracket
C. Door bracket

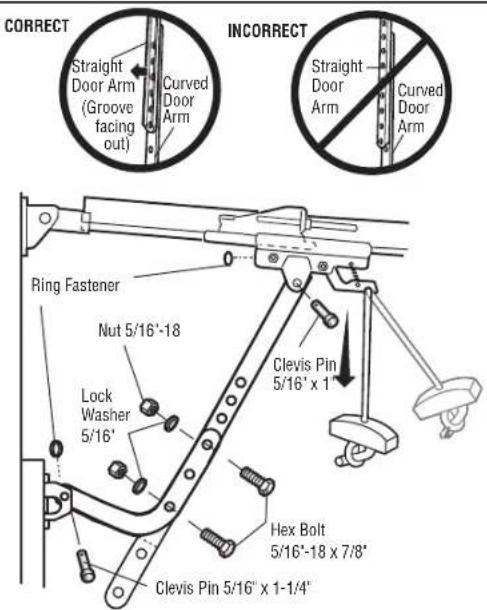

D. Curved door arm
E. Straight door arm
F. Trolley
G. Emergency release rope and handle
H. Rail
I. Garage door opener
J. Chain spreader with hex screws
K. Chain
L. Control Panel®
M. White and red/white wire
N. The Protector System®

Safety reversing sensors with white and white/black wire attached: Sending senor (1), receiving sensor (1), and safety sensor brackets (2)

O. Safety labels and literature
P. Rail grease
Q. Remote control(s)
R. Battery

S. Chassis support bracket

Hardware

Chassis Support Bracket Hardware Chain Spreader Hardware

Screw #8-32 x 3/8" (1) Screw #8-32 x 3/8" (2)

Hex Bolts 1/4"-20 x 5/8" (2) Rail Hardware

Lock Washers (2)

Washed Bolt 5/16"-18 x 1/2" (2)

Washed Bolts (mounted in the top of the garage door opener)

Installation Hardware

Hex Bolt 5/16"-18 x 7/8" (4) Self-Threading Screw 1/4"-14 x 5/8" (2)

datesScrew 5/16"-9 x 1-5/8" (2) Ring Fastener (3)

Clevis Pin 5/16" x 2-3/4" (1) Hex Screw 10-24 (2)

Clevis Pin 5/16" x 1-1/4" (1) Wing Nut (2)

Clevis Pin 5/16" x 1" (1) Hex Bolt 1/4"-20 x 5/8" (2)

Nut 5/16"-18 (4) Lock Nut 1/4"-20 (2)

Lock Washer 5/16" (4)

Lag Screw 1/4" x 1-1/2" (4)

Control Panel Hardware

Screw 6AB x 1" (2)

Drywall Anchors (2)

Screw 6-32 x 1" (2)

Technical diagram of a mechanical assembly with labeled components and a zoomed-in view showing internal components.

Preparation

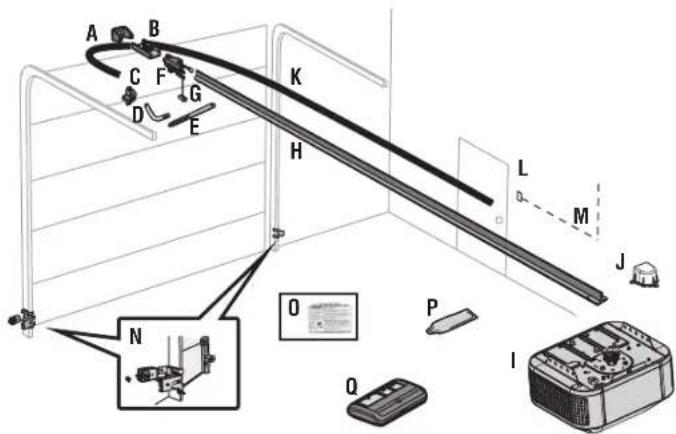

Carton Inventory 84501

Accessories will vary depending on the garage door opener model purchased. Depending on your specific model, other accessories may be included with your garage door opener. The instructions for these acces will be attached to the accessory and are not included in this manual. The images throughout this manual are for reference and your product may look different.

A. Header bracket
B. Pulley and bracket
C. Door bracket
D. Curved door arm
E. Straight door arm
F. Trolley
G. Emergency release rope and handle
H. Rail
I. Garage door opener
J. Pulley cover with hex screws
K. Belt
L. Control panel
M. White and red/white wire
N. The Protector System®

Safety reversing sensors with white and white/black wire attached: Sending senor (1), receiving sensor (1), and safety sensor brackets (2)

O. Safety labels and literature
P. Rail grease
Q. Remote control

RAIL HARDWARE

Washed Bolt 5/16"-18 x 1/2" (2) (mounted in the top of the garage door opener) Lock Washer 5/16" (4)

Hex Bolt 5/16"-18 x 7/8" (4) Self-Threading Screw 1/4"-14 x 5/8" (2)

Lag Screw 5/16"-9 x 1-5/8" (2) Ring Fastener (3)

Clevis Pin 5/16" x 2-3/4" (1) Hex Screw 10-24 (2)

Clevis Pin 5/16" x 1-1/4" (1) Wing Nut (2)

Clevis Pin 5/16" x 1" (1)

Nut 5/16"-18 (4)

CONTROL PANEL HARDWARE

Screw 6AB x 1-1/4" (2) Drywall Anchors (2)

Screw 6-32 x 1" (2)

Diagram of a mechanical or electrical device with labeled components and an inset image showing a device with a photo and a battery.

Preparation

Carton Inventory 84602

Accessories will vary depending on the garage door opener model purchased. Depending on your spe model, other accessories may be included with your garage door opener. The instructions for these a will be attached to the accessory and are not included in this manual. The images throughout this manual are for reference and your product may look different.

A. Header bracket

B. Pulley and bracket

C. Door bracket

D. Curved door arm

G. Emergency release rope and handle

H. Rail

J. Sprocket cover with hex screws

K. Chain

L. Control panel

M. White and red/white wire

N. The Protector System® Safety reversing sensors with white and white/black wire attached: Sending senor (1), receiving sensor (1), and safety sensor brackets (2)

O. Safety labels and literature

P. Remote control

Q. Remote control

R. Battery

RAIL HARDWARE

Washed Bolt 5/16"-18 x 1/2" (2) (mounted in the top of the garage door opener) Lock Washer 5/16"-16 (4)

Hex Bolt 5/16"-18 x 7/8" (4) Self-Threading Screw 1/4"-14 x 5/8" (2)

Lag Screw 5/16"-9 x 1-5/8" (2) Ring Fastener (3)

Clevis Pin 5/16" x 2-3/4" (1) Hex Screw 10-24 (2)

Clevis Pin 5/16" x 1-1/4" (1) Wing Nut (2)

Clevis Pin 5/16" x 1" (1)

Nut 5/16"-18 (4)

CONTROL PANEL HARDWARE

Screw 6AB x 1-1/4" (2) Drywall Anchors (2) Screw 6-32 x 1" (2)

Diagram of a mechanical or electrical device with labeled components and an inset image showing a device with parts O, P, R, Q, N, H, K, L, M.

Assembly

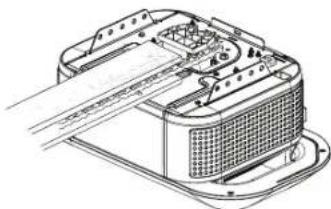

1 Attach the Belt Rail to the Garage Door Opener 87504-267, 84501

WARNING

To avoid possible SERIOUS INJURY to finger from moving garage door opener:

• ALWAYS keep hand clear of sprocket while operating opener.
- Securely attach sprocket cover BEFORE operating.

CAUTION

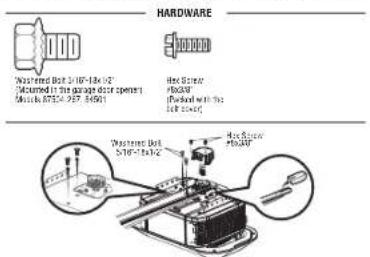

To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the the opener.

NOTE: ONLY use the bolts removed from the garage door opener. Place the garage door opener on the packing material to prevent scratching.

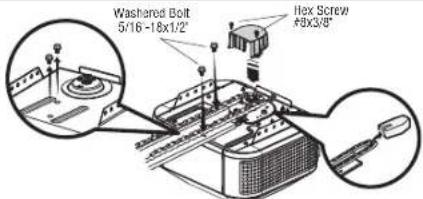

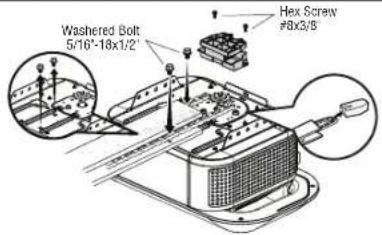

1. Models 87504-267 and 84501 Remove the two bolts from the top of the garage door opener.
2. Align the holes in the rail with the holes in the garage door opener..
3. Fasten the rail with the previously mentioned bolts. Cut away and discard the tape and Styrofoam around the rail.
4. Position the belt around the garage door opener sprocket.
5. Position the sprocket cover over the garage door opener sprocket and attach with hex screws.

HARDWARE Waistened Bolt 10F-12e-02 Plotted in the range door open Madder (PTC-3.927.846) Max Screw RMS/MP (Worked with the Soft Motor) Waistened Bolt Screw-12e-02 Max Screw RMS/MP

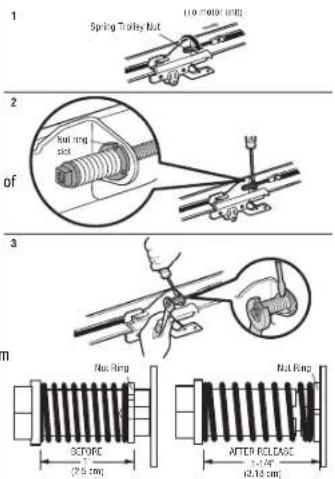

2 Tighten the Belt

1. Insert a flathead screwdriver tip into one of the nut ring slots and brace it firmly against the trolley.
2. Tighten the spring trolley nut with an adjustable wrench or a 7/16" open end wrench about a quarter turn until the spring releases and snaps the nut ring against the trolley. This sets the spring to optimum bell tension.

Spring Trolley Nut 11.0" (200K UFS) 2 Nut ring slot 3 Nut Ring SCTOFE (2.5 cm) Nut Ring AFTER RELEASE t=1.5" (2.18 cm)

Assembly

1 Attach Chain Rail to the Garage Door Opener Model 84602

WARNING

To avoid possible SERIOUS INJURY to finger from moving garage door opener:

• ALWAYS keep hand clear of sprocket while operating opener.
- Securely attach sprocket cover BEFORE operating.

CAUTION

To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the top of the opener.

NOTE: ONLY use the bolts removed from the garage door opener. Place the garage door opener on the packing material to prevent scratching.

1. Remove the two bolts from the top of the garage door opener.
2. Align the holes in the rail with the holes in the garage door opener.
3. Fasten the rail with the previously mentioned bolts. Cut away and discard the tape and Styrofoam around the rail.
4. Position the chain around the garage door opener sprocket.
5. Position the sprocket cover over the garage door opener sprocket and attach with hex screws.

Washed Bolt 5/16"-18x1/2"

(Mounted in the garage door opener)

Models 87504-267. 84501

HARDWARE

Hex Screw

8×3/8"

(Packed with the

sprocket cover)

Washed Bolt 5/16-18x1/2" Flex Screw 49x3/8"

2 Tighten the Chain for Model 84602

1. Loosen the inner nut and lock washer on the trolley threaded shaft.
2. Tighten the outer nut until the chain is a 1/2" above the base of the rail at the midpoint of the rail.
3. Re-tighten the inner nut.

Slack in the chain is normal when the door is closed. No readjustment is necessary.

Assembly

1 Attach the I-Beam Chain Rail to the Garage Door Opener 2 Attach the Chassis Support Bracket 87802

CAUTION

To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the top the opener.

NOTE: ONLY use the bolts removed from the garage door opener. Place the garage door opener on the packing material to prevent scratching.

1. Remove the two bolts from the top of the garage door opener.
2. Align the holes in the rail with the holes in the garage door opener.
3. Fasten the rail with the previously mentioned bolts. Cut away and discard the tape and Styrofoam from around the rail.
4. Position the chain around the garage door opener sprocket.
5. Attach the chain spreader to the garage door opener with screws.
6. Guide the chain around the selected groove in the chain spreader.

HARDWARE

Washed Bolt 5/15'-18x1/2" (Mounted in the garage door opener)

Hex Screw

8x3/8"

(Packed with the sprocket cover)

Washed Bolt 5/10'-18x1/2' Hex Screw #8x3/8

WARNING

To avoid possible SERIOUS INJURY to finger from moving garage door opener:

f • ALWAYS keep hand clear of sprocket while operating opener.
- Securely attach sprocket cover BEFORE operating.

1. Position the chassis support bracket on the unit.
2. Attach the bracket to the rail with 1/4"-20 x 5/8" hex bolts and lock washers. Do not overtighten.
3. Attach the bracket to the opener by inserting a 5/16"-18 x 1/2" washed screw through a hole in each s flange and a matching hole in the bracket. Complete the connection by inserting the #8-32 x 3/8" screw through the back flange and the hole in rail support.

Lock Washer Hex Bolt 1/4"-20x5/8" Screw #8-32x3/8" Washerd Bolt 5/16"-18x1/2"

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Assembly

3 Tighten the Chain

1. Loosen the inner nut and lock washer on the trolley threaded shaft.
2. Tighten the outer nut until the chain is a 1/2" above the base of the rail at the midpoint of the rail.
3. Re-tighten the inner nut.
   Slack in the chain is normal when the door is closed. No readjustment is necessary.

1/2" (13 mm)

Installation

IMPORTANT INSTALLATION INSTRUCTIONS

WARNING

To reduce the risk of SEVERE INJURY or DEATH:

1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.
2. Install garage door opener ONLY on properly balanced and lubricated garage door. An improperly balanced door may NOT reverse when required and could result in SEVERE INJURY or DEATH.
3. ALL repairs to cables, spring assemblies and other hardware MUST be made by a trained door systems technician BEFORE installing opener.
4. Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing opener to avoid entanglement.
5. Where possible, install the door opener 7 feet (2.13 m) or more above the floor.
6. Mount the emergency release within reach, but at least 6 feet (1.83 m) above the floor and avoiding contact with vehicles to avoid accidental release.
7. NEVER connect garage door opener to power source until instructed to do so.

8. NEVER wear watches, rings or loose clothing while installing or servicing opener. They could be caught in garage door or opener mechanisms.

9. Install wall-mounted garage control panel:
   • within sight of the garage door.

10. out of reach of small children at a minimum height of 5 feet (1.5 m) above floors, landings, steps or any other adjacent walking surface.
    • away from ALL moving parts of the door.
11. Place entrapment warning label on wall next to garage control panel in a prominent location.
12. Place emergency release/safety reverse test label in plain view on inside of garage door.
13. Upon completion of installation, test safety reversal system. Door MUST reverse on contact with a 1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the floor.

14. DO NOT install on a one-piece door if using devices or features providing unattended close. Unattended devices and features are to be used ONLY with sectional doors.

15. SAVE THESE INSTRUCTIONS.

Installation

1 1 Determine the Header Bracket Location

WARNING

To prevent possible SERIOUS INJURY or DEATH:

• Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise garage door might NOT reverse when required. DO NOT install header bracket over drywall.
• Concrete anchors MUST be used if mounting header bracket or 2x4 into masonry.
• NEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or their hardware, ALL of which are under EXTREME tension.
• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An unbalanced garage door might NOT reverse when required.

Close the door and mark the inside vertical centerline of the garage door.

Extend the line onto the header wall above the door. You can fasten the header bracket within 4 feet (1.22 m) of the left or right of the door center only if a torsion spring or center bearing plate is in the way; or you can attach it to the ceiling when clearance is minimal. (It may be mounted on the wall upside down if necessary, to gain approximately 1/2" (1 cm). If you need to install the header bracket on a 2x4 (on wall or ceiling), use lag screws (not provided) to securely fasten the 2x4 to structural supports.

Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on the header wall 2" (5 cm) above the high point. This height will provide travel clearance for the top edge of the door.

NOTE: If the total number of inches exceeds the height available in your garage, use the maximum height possible, or refer to page 16 for ceiling installation.

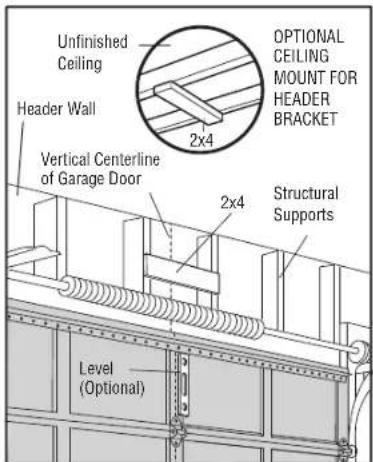

Unfinished Ceiling Header Wall 2x4 OPTIONAL CEILING MOUNT FOR HEADER BRACKET Vertical Centerline of Garage Door 2x4 Structural Supports Level (Optional)

Header Wall 2" (5 cm) Track Highest Point of Travel Door

Sectional door with curved track

Installation

2 Install the Header Bracket

You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow instructions which will work best for your particular requirements. Do not install the header bracket over drywall. If installing into masonry, use concrete anchors (not provided).

HARDWARE Lag Screw 5/16"-9x1-5/8"

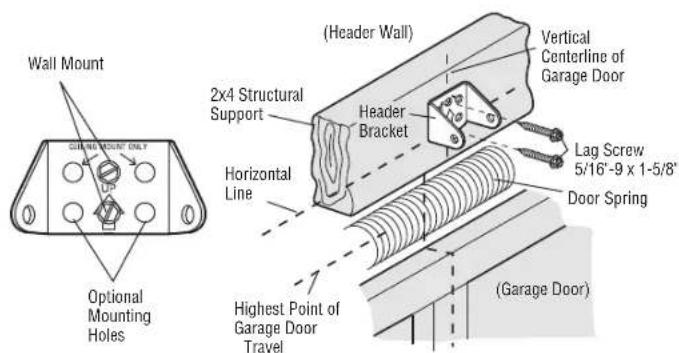

OPTION A - WALL INSTALLATION

1. Center the bracket on the vertical centerline with the bottom edge of the bracket on the horizontal shown (with the arrow pointing toward the ceiling).

Wall Mount QUARTING MOUNT ONLY Optional Mounting Holes (Header Wall) 2x4 Structural Support Header Bracket Horizontal Line (Highest Point of Garage Door Travel) (Garage Door) Vertical Centerline of Garage Door Lag Screw 5/16"-9 x 1-5/8" Door Spring

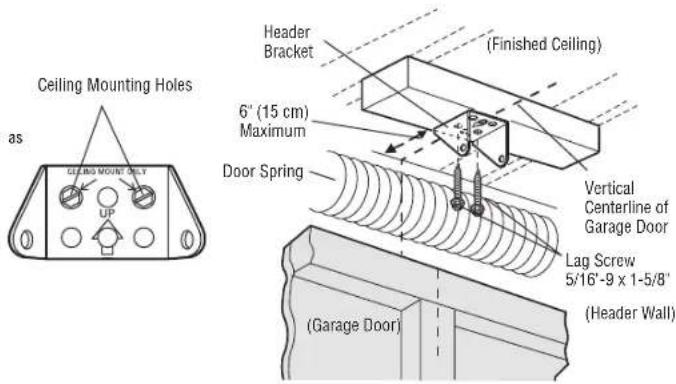

OPTION B- CEILING INSTALLATION

1. Extend the vertical centerline onto the ceiling as shown.

2. Mark the side holes. Drill 3/16" pilot holes and fasten bracket securely to a structural support with the hardware provided.

Ceiling Mounting Holes as Ceiling Mount DLY UP Header Bracket (Finished Ceiling) 6" (15 cm) Maximum Door Spring Vertical Centerline of Garage Door Lag Screw 5/16"-9 x 1-5/8" ( Garage Door ) ( Header Wall )

Installation

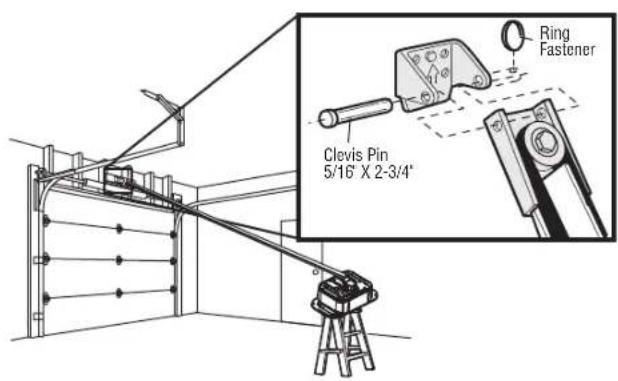

3 Attach the Rail to the Header Bracket

1. Align the rail with the header bracket. Insert the clevis pin through the holes in the header bracket Secure with the ring fastener.

NOTE: Use the packing material as a protective base for the garage door opener.

HARDWARE

Clevis Pin 5/16' x 2-3/4' Ring Fastener

Ring Fastener Clevis Pin 5/16" X 2-3/4"

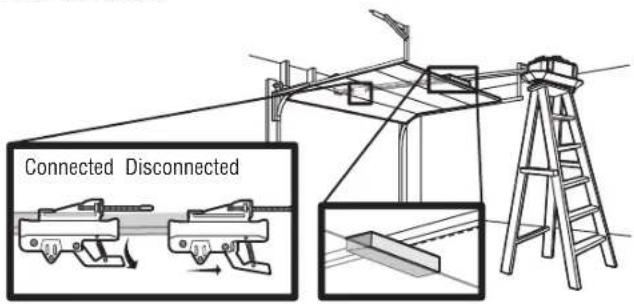

4 Position the Garage Door Opener

and rail.

CAUTION

To prevent damage to garage door, rest garage door opener rail on 2x4 placed on top section of door.

1. Remove the packing material and lift the garage door opener onto a ladder.
2. Fully open the door and place a 2x4 (laid flat) under the rail.
   A 2x4 is ideal for setting the distance between the rail and the door. If the ladder is not tall enough you w help at this point. If the door hits the trolley when it is raised, pull the trolley release arm down to disconnect inner and outer trolley. Slide the outer trolley toward the garage door opener. The trolley can remain disconnected until instructed.

Connected Disconnected

Installation

5 Hang the Garage Door Opener

WARNING

To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural supports of the garage. Concrete anchors MUST be used if installing ANY brackets into masonry.

Hanging your garage door opener will vary depending on your garage. Two representative installations are shown. Yours may be different. Hanging brackets should be angled (Figure 1) to provide rigid support. On finished ceilings (Figure 2), attach a sturdy metal bracket to structural supports before installing the opener. This bracket and fastening hardware are not provided.

1. Measure the distance from each side of the motor unit to the structural support.
2. Cut both pieces of the hanging bracket to required lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end of each bracket to a support with 5/16"-18 x 1-7/8" lag screws (not provided).
5. Fasten the opener to the hanging brackets with 5/16"-18 x 7/8" hex bolts, lock washers and nuts.
6. Check to make sure the rail is centered over the door (or in line with the header bracket if the bracket is not centered above the door).
7. Remove the 2x4. Operate the door manually. If the door hits the rail, raise the header bracket. NOTE: DO NOT connect power to opener at this time.

HARDWARE

Hex Bolt 5/16"-18x7/8" Nut 5/16"-18 Lock Washer 5/16

FIGURE 1
Unfinished Ceiling

Diagram of a cable car with overhead wiring and a suspended frame (no text or symbols)

FIGURE 2
Finished Ceiling

Not Provided

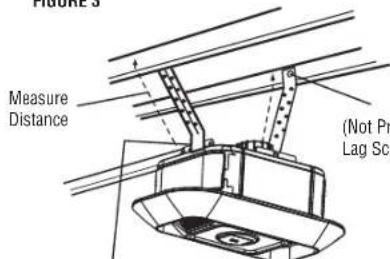

FIGURE 3

Measure Distance (Not Pr Lag Scr

Hex Bolt 5/16"-18x7/8", Lock Washer 5/16", Nut 5/16"-18

Installation

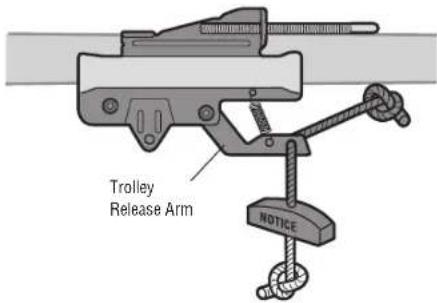

6 Attach the Emergency Release Rope and Handle

WARNING

To prevent possible SERIOUS INJURY or DEATH from a falling garage door:

• If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.
• NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.

• NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.

• Insert one end of the emergency release rope through the handle. Make sure that "NOTICE" is right side up. Secure with an overhand knot at least 1" (2.5 cm) from the end of the rope to prevent slipping.

• Insert the other end of the emergency release rope through the hole in the trolley release arm. Mount the emergency release within reach, but at least 6 feet (1.83 m) above floor, avoiding contact with vehicles to prevent accidental release and secure with an overhand knot.

NOTE: If it is necessary to cut the emergency release rope, seal the cut end with a match or lighter to prevent unraveling. Ensure the emergency release rope and handle are above the top of all vehicles to avoid entanglement.

Trolley Release Arm NOTICE

Installation

7 Install the Door Bracket

CAUTION

Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE installation of door bracket. Contact the garage door manufacturer or installing dealer for opener reinforcement instructions or reinforcement kit.

A horizontal and vertical reinforcement is needed for lightweight garage doors (fiberglass, aluminum, steel, doors with glass panel, etc.) (not provided). A horizontal reinforcement brace should be long enough to be secured to two or three vertical supports. A vertical reinforcement brace should cover the height of the top panel. Contact the garage door manufacturer or installing dealer for opener reinforcement instructions or reinforcement kit.

Technical diagram of a mechanical assembly with directional arrows indicating movement (no text or symbols)

NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In this case you will not need the door bracket; proceed to the next step.

SECTIONAL DOORS

1. Center the door bracket on the previously marked vertical centerline used for the header bracket installation. Note correct UP placement, as stamped inside the bracket.
2. Position the top edge of the bracket 2"-4" (5-10 cm) below the top edge of the door, OR directly structural support across the top of the door.
3. Mark, drill holes and install as follows, depending on your door's construction:

Metal or light weight doors using a vertical angle iron brace between the and the door bracket:

• Drill 3/16" fastening holes. Secure the door bracket using the two self threading screws. (Figure 1)
  • Alternately, use two 5/16"-18x2" bolts, lock washers and nuts (not provided). (Figure 2)

Metal, insulated or light weight factory reinforced doors:

- Drill 3/16" fastening holes. Secure the door bracket using the self-threading screws. (Figure 3)

Wood Doors:

- Use top and bottom or side to side door bracket holes. Drill 5/16" holes through the door and secure bracket with 5/16"-18 x 2" carriage bolts, lock washers and nuts (not provided). (Figure 4)

NOTE: The 1/4"-14 x 5/8" self-threading screws are not intended for use on wood doors.

HARDWARE

Self-Threading Screw 1/4"-14 x 5/8"

FIGURE 1

Vertical Reinforcement Vertical Centerline of Garage Door UP Door Bracket Self-Threading Screw 1/4"-14 x 5/8"

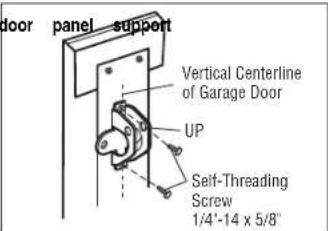

FIGURE 3

door panel support Vertical Centerline of Garage Door UP Self-Threading Screw 1/4'-14 x 5/8"

FIGURE 2

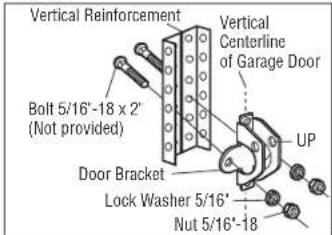

Vertical Reinforcement Bolt 5/16'-18 x 2" (Not provided) Vertical Centerline of Garage Door UP Door Bracket Lock Washer 5/16' Nut 5/16'-18

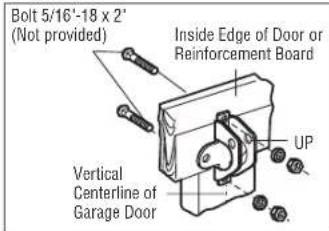

FIGURE 4

Bolt 5/16'-18 x 2' (Not provided) Inside Edge of Door or Reinforcement Board UP Vertical Centerline of Garage Door

Installation

8 Connect the Door Arm to the Trolley

IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm.

1. Close the door. Disconnect the trolley by pulling the emergency release handle. Slide the outer trolley back (away from the door) about 2" (5 cm).
2. Attach the straight door arm to the outer trolley using the clevis pin. Attach with the ring fastener.
3. Attach the curved door arm to the door bracket using the clevis pin. Attach with the ring fastener.
4. Align the straight door arm with the curved door arm. Select two aligned holes (as far apart as possible) and attach using the bolts, nuts and lock washers.

NOTE: If the holes do not line up, reverse the straight door arm. Select two aligned holes (as far apart as possible) and attach using the bolts, nuts and lock washers.

1. Pull the emergency release handle toward the garage door opener until the trolley release arm is horizontal. The trolley will re-engage automatically when the garage door opener is activated.

HARDWARE Hex Bolt 5/16"-18 x 7/8" Lock Washer 5/16" Clevis Pin 5/16" x 1-1/4" Nutm 5/16"-18 Ring Fastener Clevis Pin 5/16" x 1"

CORRECT Straight Door Arm (Groove facing out) Curved Door Arm INCORRECT Straight Door Arm Curved Door Arm Ring Fastener Nut 5/16'-18 Lock Washer 5/16' Clevis Pin 5/16' x 1" Hex Bolt 5/16'-18 x 7/8" Clevis Pin 5/16" x 1-1/4"

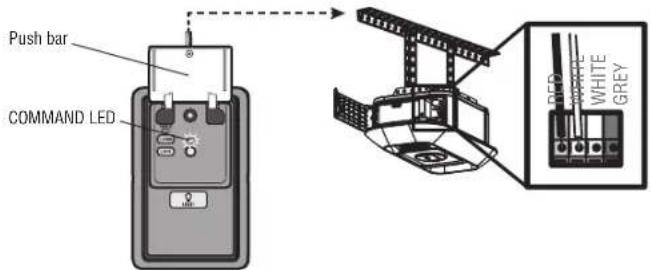

Control Panel

1 Install the Control Panel

WARNING

To prevent possible SERIOUS INJURY or DEATH from electrocution:

• Be sure power is NOT connected BEFORE installing control panel.
• Connect control panel ONLY to 12 VOLT low voltage wires.
  To prevent possible SERIOUS INJURY or DEATH from a closing garage door:
  • Install control panel within sight of garage door, out of reach of small children at a minimum 5 feet (1.5 m) above floors, landings, steps or any other adjacent walking surface, and away from moving parts of door.
• NEVER permit children to operate or play with control panel push buttons or remote control transmitters.
• Activate door ONLY when it can be seen clearly, is properly adjusted, and there are no obstruct door travel.
• ALWAYS keep garage door in sight until completely closed. NEVER permit anyone to cross path closing garage door.

INTRODUCTION

Compatible with myQand Security+ 2.0 accessories, see page 36. Your garage door opener is compatible up to 2 Smart Control Panels or 4 of any other Security+ 2.0 control panels. NOTE: Older control panels and third party products are not compatible.

Install door control within sight of garage door, out of reach of small children at a minimum height of (1.5 m) above floors, landings, steps or any other adjacent walking surface, and away from ALL moving door. For gang box installations it is not necessary to drill holes or install the drywall anchors. Use the holes in the gang box.

NOTE: Your product may look different than the illustrations.

Screw 6-32 x 1" (2)

Drywall Anchors (2)
HARDWARE

Screw 6AB x 1' (2)

1. Strip 7/16" (11 mm) of insulation from one end of the wire and separate the wires.
2. Connect one wire to each of the two screws on the back of the control panel. The wires can be connect to either screw.

PRE-WIRED INSTALLATIONS: Choose any two wires to connect, note which wires are used so the correct wires are connected at the garage door opener in a later step.

1. Mark the location of the bottom mounting hole and drill a 5/32" hole.
2. Install the bottom screw, allowing 1/8" (3 mm) to protrude from the wall.
3. Position the bottom hole of the control panel over the screw and slide down into place.
4. Lift the push bar up and mark the top hole.

It. Remove the control panel from the wall and drill a 5/32" hole for the top screw.

B. Position the bottom hole of the control panel over the screw and slide down into place. Attach the top screw.

1

23

4-5

DRYWALL

Drywall Drywall Anchor 6AB x 1" 6-32 x 1" 5 feet parts of existing

6

7

5

Control Panel

2 Wire the Control Panel to the Garage Door Opener

PRE-WIRED INSTALLATIONS: When wiring the control panel to the garage door opener make sure you use the same wires that are connected to the control panel.

1. Run the white and red/white wire from the control panel to the garage door opener. Attach the wire wall and ceiling with staples (not applicable for gang box or pre-wired installations). Do not pierce with the staple as this may cause a short or an open circuit.
2. Strip 7/16" (11 mm) of insulation from the end of the wire near the garage door opener.
3. Connect the wire to the red and white terminals on the garage door opener. To insert or release the terminal, push in the tab with screwdriver tip.

Push bar COMMAND LED LED WHITE GREY

3 Attach the Warning Labels

1. Attach the entrapment warning label on the wall near the control panel with tacks or staples.
2. Attach the manual release/safety reverse test label in a visible location on the inside of the garage door.

to the

be wire

to this

he wire

he wire

he wire

he wire

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

2.2

2.2

2.2

2.2

2.2

2.2

2.2

2.2

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es trop-
es from
es from
es from
es from
1
1
1
1
1
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
1
1
1
1
1
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
es from
1
1
1
1
1
1
1
1
1
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
1
1
1
1
es from
es from
es from
es from
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
es from
es from
es from
es from
es from
es from
es from
as top
es from
es from
es from
es from
-
es from
es from
es from
es from

Install the Protector System®

Introduction

WARNING

Be sure power is NOT connected to the garage door opener BEFORE installing the safety reversing. To prevent SERIOUS INJURY or DEATH from closing garage door:

• Correctly connect and align the safety reversing sensor. This required safety device MUST NOT disabled.
  • Install the safety reversing sensor so beam is NO HIGHER than 6" (15 cm) above garage floor.

IMPORTANT: The safety reversing sensors MUST be connected and aligned correctly before the garage door opener will move in the down direction.

The Protector System® includes two safety reversing sensors which use a light beam to prevent the garage from closing. The sending sensor (amber LED) transmits the beam to the receiving sensor (green LED) when are powered and aligned. The receiving sensor (green LED) has a label on the sensor to identify it as the receiving sensor before it is powered on. If an obstruction breaks the light beam while the door is closing, door will stop, and reverse to the full open position.

When installing the safety reversing sensors, check:

• Sensors are installed INSIDE the garage.
• Sensor lenses are facing each other. IMPORTANT: Do not allow direct sunlight to the receiving sensor (green LED).
• Sensor beam is NO HIGHER than 6" (15 cm) above the floor and the light beam is unobstructed.
  • The receiving sensor has a warning sticker on the back.

sensor. be garage door when both is the Closing, the Safety Reversing Sensor 6' (15 cm) max. above floor Invisible Light Beam Protection Area Safety Reversing Sensor 6" (15 cm) max. above floor

Install the Protector System®

1 Install the Safety Reversing Sensors

Hex Screw 10-24 (2) HARDWARE Wing Nut (2)

The safety reversing sensors are designed to clip onto the door track with the provided sensor brackets. Door track will not support the sensor bracket a wall installation is recommended. The sensor beam should NO HIGHER than 6" (15 cm) above the floor.

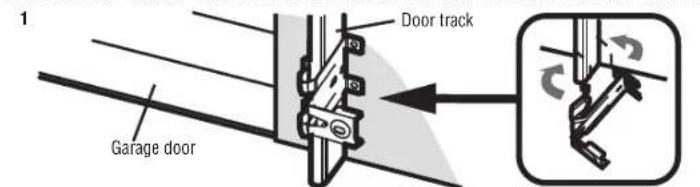

DOORTRACKINSTALLATION

1. Slide the curved arms of the sensor bracket around the edge of the door track. Snap into place so sensor bracket is flush against the track.

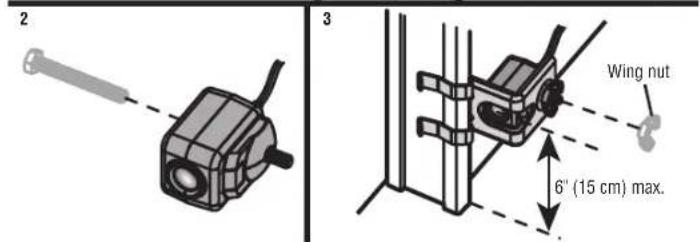

2. Slide the hex screw through the sensor.
3. Attach the sensor to the bracket with the wing nut. Make sure the lens is not obstructed by the br. Repeat the steps with the other sensor on the opposite door track. Both lenses must face each other.

1 Garage door Door track

2 3 Wing nut 6" (15 cm) max.

WALL INSTALLATION

Make sure the brackets on each side are clear of the door track and have the same amount of clearance so sensors will align correctly. If additional clearance is needed, use extension brackets 041A5281-1 (not provider or wood blocks.

1. Attach the sensor bracket against the wall with two lag screws (not provided).

2. tSlide the hex screw through the sensor.

3. Attach the sensor to the bracket with the wing nut. Make sure the lens is not obstructed by the bracket.

Repeat the steps with the other sensor on the opposite side of the garage door. Both lenses must face each

other. hat the

inside garage wall floor track Not provided OPTIONAL OR

2 3 Wing Nut 6' (15 cm) max.

Install the Protector System®

FLOORINSTALLATION

1. Measure the position of both sensor brackets so they will be the same distance from the wall and unobstructed.
2. Attach the bracket to the floor with concrete anchors (not provided).
3. Slide the hex screw through the sensor.
4. Attach the sensor to the bracket with the wing nut. Make sure the lens is not obstructed by the bra
   Repeat the steps with the other sensor on the opposite side of the garage door. Both lenses must face other.

1 Inside garaga wall 2 Not provided Door track 3 4 Wingnut 6' (15 cm) max.

2 Wire the Safety Reversing Sensors

PRE-WIRED INSTALLATIONS: If your garage already has wires installed for the safety reversing sensors, see

page 27.

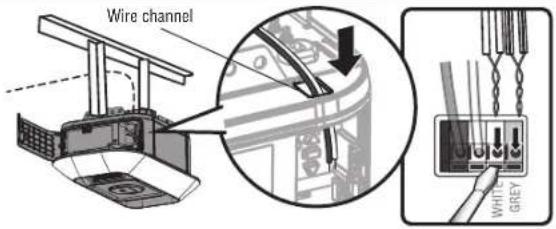

OPTION A - INSTALLATION WITHOUT PRE-WIRING

1. Run the wire from both sensors to the garage door opener. Attach with staples, but DO NOT puncture the socket. wire.
   a) Separate the sensor wires and strip insulation from each end. Twist the two white wires together. Then twist the two white/black wires together.
2. Using a screwdriver, push in the terminal tabs, and insert the white wires into the white terminal. Insert the white/black wires into the grey terminal.

1 Staple

2 7/16" (11 mm)

3

Wire channel WHITE GREY

Install the Protector System®

OPTION B- PRE-WIRED INSTALLATION

1. Cut the sensor wires, making sure there is enough wire to reach the pre-installed wires from the wall.
2. Separate the sensor wires and strip insulation from each end. Choose two of the pre-installed wires and strip insulation from each end. Choose the same color pre-installed wires for each sensor.

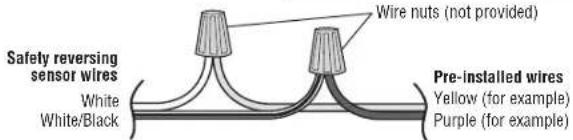

3. Connect the pre-installed wires to the sensor wires with wire nuts making sure the colors correspond for each sensor.
4. At the garage door opener, strip the end of the wires previously connected to the sensors. Twist the like-colored wires together.

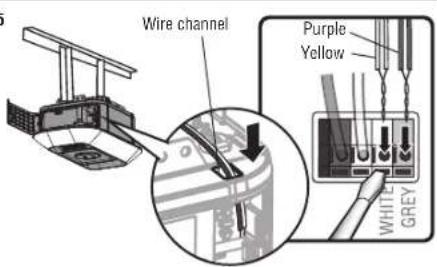

5. Using a screwdriver, push in the terminal tabs, and insert the wire color connected to the sensor's white wire into the white terminal. Insert the other wire color connected to the sensor's white/black wire into the grey terminal.

1

Pre-installed wires

Safety reversing sensor wires

2 7/16" (11 mm)

3

Safety reversing sensor wires White White/Black Wire nuts (not provided) Pre-installed wires Yellow (for example) Purple (for example)

4

Pre-installed wires Yellow Purple 7/16" (11 mm)

5

Wire channel Purple Yellow WHITE GREY

Power

1 Connect Power

WARNING

To prevent possible SERIOUS INJURY or DEATH from electrocution or fire:

• Be sure power is NOT connected to the opener, and disconnect power to circuit BEFORE removing cover to establish permanent wiring connection.
• Garage door installation and wiring MUST be in compliance with ALL local electrical and building codes.
• NEVER use an extension cord, 2-wire adapter, or change plug in ANY way to make it fit outlet. the opener is grounded.

To avoid installation difficulties, do not activate the garage door opener at this time.

To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third pin. This plug will only fit into a grounding type outlet. If the plug doesn't fit into your outlet, contact electrician to install the proper outlet.

THERE ARE TWO OPTIONS FOR CONNECTING POWER:

OPTION A - TYPICAL WIRING

1. Plug in the garage door opener into a grounded outlet.
2. DO NOT run garage door opener at this time.

TYPICAL WIRING

OPTION B - PERMANENT WIRING

If permanent wiring is required by your local code, refer to the following procedure. To make a permanent connection through the 7/8" hole in the top of the motor unit (according to local code):

1. Remove the motor unit cover screws and set the cover aside.
2. Remove the attached 3-prong cord.
3. Connect the black (line) wire to the screw on the brass terminal; the white (neutral) wire to the screw on silver terminal; and the ground wire to the green ground screw. The opener must be grounded.
4. Reinstall the cover.

PERMANENT WIRING

Ground Tab Green Ground Screw Black Wire Ground Wire White Wire Black Wire

Power

2 Align the Safety Reversing Sensors

IMPORTANT: The safety reversing sensors MUST be connected and aligned correctly before the garage door opener will move in the down direction.

When the garage door opener has power, check the safety reversing sensors. If the sensors are aligned wired correctly, both LEDs will glow steadily.

Light Beam Protection Area Receiving sensor - green LE The receiving sensor has a

Sending sensor - amber LED
Receiving sensor - green LED The receiving sensor has a sticker on the back.

To align the safety reversing sensors:

1. Loosen the wing nuts.
2. Adjust the sensors up or down until both LEDs glow steady indicating alignment.
3. Tighten the wing nut to secure the sensor.

Wing nut

SAFETY SENSORTROUBLESHOOTING

If either of the sensor LEDs are off, there is no power to the sensor:

1. Check that you have power to the garage door opener.
2. Check the sensor wire is not shorted or broken.
3. Check that the sensors are wired correctly; white wires to white terminal and white/black wires to grey terminal.

If the green receiving sensor LED is blinking, the sensors are obstructed or misaligned:

1. Check for obstructions in the sensor light beam.
2. Align the sensors.
3. If the receiving sensor (green LED) faces direct sunlight, switch the receiving sensor with the sending sensor and repeat 1 Install the Safety Reversing Sensors page 25 to assure proper operation.

3 Ensure the Control Panel is Wired Correctly

If the control panel has been installed and wired correctly, the command LED behind the push bar will blink.

Adjustments

1 - Program the Travel

WARNING

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Incorrect adjustment of garage door travel limits will interfere with proper operation of safety rev system.
• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on floor.

Note: While programming the travel, the UP and DOWN buttons can be used to move the door as needed. During the Automatic Force Setup, the door will automatically open and close.

1 Press and hold the Adjustment Button until the UP Button begins to flash and/or a beep is heard. The Safety Reversing Sensors will be disconnected of process.

2 Press and hold the UP Button until

the door is in the desired UP position.

3 Once the door is in the desired UP position press and release the Adjustment Button. The garage door opener lights will flash twice and the DOWN Button will begin to flat

4 Press and hold the DOWN button until the

door is in the desired DOWN position.

5 Once the door is in the desired DOWN position press and release the Adjustment Button. The garage door opener lights will aflash twice. Program

the Travel is now complete. If the garage door opener lights flash 5 times, then programming has timed out and the Travel Limits have not been set. Please restart the Program the Travel process.

2 - Automatic Force Set Up

Once both the up and down positions have been manually set, the Safety Reversing Sensors will reconnect a become operational. Then, the opener will enter a force-sensing operation by automatically moving the door open and close. The garage door opener will sound an audible and visual alert before automatically opening and closing the door. The garage door opener will beep three times, confirming that the Automatic Force Set completed successfully. Adjustment is complete.

If you hear one long beep after the door attempts to move, then the Automatic Force Set Up has not compl successfully. Please start over at step 1 of Program the Travel.

Adjustments

3 - Test the Safety Reversal System

WARNING

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Safety reversal system MUST be tested every month.
- After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on the floor.

1 With the door fully open, place a 1-1/2 inch (3.8 cm) board (or a 2x4 laid flat) on the floor, centered under the garage door.

2 Press the remote control push button to close the door. The door MUST reverse when it makes contact with the board.

Hand holding a small object next to a house model (no text or symbols visible)

If the door stops but does not reverse:
1. Repeat Program the Travel (see Adjustment Step 1);
2. Repeat the Safety Reversal test.
If the test continues to fail, call a trained door systems technician.

4 - Test the Protector System®

WARNING

Without a properly installed safety reversing sensor, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

1 Open the door. Place an obstruction in the path of the door.

2 Press the remote control push button to close the door. The door will not move more than an inch (2.5 cm).

The garage door opener will not close from a remote control if the LED in either safety reversing sensor is off (alerting you to the fact that the sensor is misaligned or obstructed).

If the garage door opener closes the door when the safety reversing sensor is obstructed (and the sensors are no more than 6 inches [15 cm] above the floor), call for a trained door systems technician.

Battery Backup\*

1 Install the Battery

WARNING

To reduce the risk of FIRE or INJURY to persons:

• Disconnect ALL electric and battery power BEFORE performing ANY service or maintenance.
  • Use ONLY LiftMaster part # 485LM for replacement battery.
• DO NOT dispose of battery in fire. Battery may explode. Check with local codes for disposal instructions.

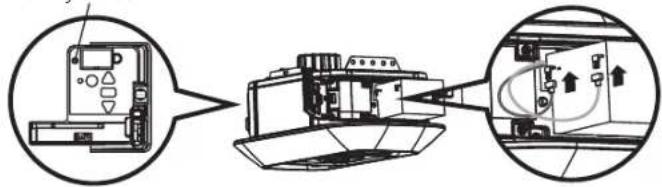

CAUTION

ALWAYS wear protective gloves and eye protection when changing the battery or working around the battery compartment.

The automatic garage door lock will unlock when the garage door is opened, and will remain disabled power is restored.*

1. Unplug the garage door opener.
2. Open the control door panel.
3. Partially insert the battery into the battery compartment with the terminals as shown.

4. Connect red (+) and black (-) wires from the garage door opener to the corresponding terminals on the battery.

5. Fully insert the battery and close the control door panel.

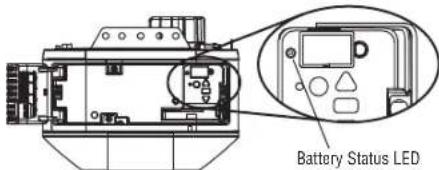

Battery Status LED

Diagram showing a device connected to a control panel, with magnified views highlighting internal components.

* If applicable.

2 Test the Battery

Depending on the power level, the battery may need to charge before performing the test. The garage door opener must be unplugged to test the battery.

1. Unplug the garage door opener. The battery status LED will either glow solid orange indicating opener is operating on battery power or will flash indicating low battery power. NOTE: Make sure the garage door opener is unplugged.
2. Open and close the door using the remote control or control panel. NOTE: The garage door opener may run slower if the battery is not fully charged. The battery will take 24 hours to fully charge.
3. Open and close the door using the remote control or control panel. While the motor is on, the battery status LED will either glow solid orange indicating opener is operating on battery power or will flash indicating low battery power. NOTE: The garage door opener may run slower if the battery is not fully charged.
4. Plug in the garage door opener. Verify the battery status LED is flashing green, indicating the battery is charging.

•

Illustration of a house with a garage and a car, no text or symbols present

3

3 Charge the Battery

The battery charges when the garage door opener is plugged into a 120 Vac electrical outlet that has power requires 24 hours to fully charge. A fully charged battery supplies 12 Vdc to the garage door opener for up 24 hours of normal operation during an electrical power outage. After the electrical power has been restored, the battery will recharge within 24 hours. The battery will last approximately 1 to 2 years with normal usage. NOTE: When the garage door opener is in battery backup mode the garage door opener lights, Timer-to-Close, remote close, and camera features are unavailable.

In battery backup mode, the Automatic Garage Door Lock will unlock when the garage door is opened, and I remain disabled until power is restored.*

* If applicable.

Battery Backup\*

Battery Status LED

GREEN LED:

All systems are normal.

• A solid green LED light indicates the battery is fully charged.
- A flashing green LED indicates the battery is being charged.

ORANGE LED:

The garage door opener has lost power and is in battery backup mode.

• Solid orange LED while the motor is on, indicates the garage door opener is operating on battery power.
• A flashing orange LED while the motor is on, indicates the battery is low.
  • The opener beeps every 2 seconds while operating on battery power.

RED LED:

The battery needs to be replaced.

- A solid red LED with beep indicates the battery will no longer hold a charge. Purchase a replacement battery to allow your system to operate during a power outage.

Battery Status LED

* If applicable.

Operation

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of SEVERE INJURY or DEATH:

1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS.
2. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play garage control panel push buttons or remote controls.
3. ONLY activate garage door when it can be seen clearly, it is properly adjusted, and there are no obstructions to door travel.
4. ALWAYS keep garage door in sight and away from people and objects until completely closed. NO SHOULD CROSS THE PATH OF THE MOVING DOOR.
5. NO ONE SHOULD GO UNDER A STOPPED, PARTIALLY OPENED DOOR.
6. If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED caution when using this release with the door open. Weak or broken springs or unbalanced door result in an open door falling rapidly and/or unexpectedly and increasing the risk of SEVERE INJ DEATH.
7. NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.
8. NEVER use handle to pull garage door open or closed. If rope knot becomes untied, you could fa
9. After ANY adjustments are made, the safety reversal system MUST be tested.
10. Safety reversal system MUST be tested every month. Garage door MUST reverse on contact with 1-1/2" with (3.8 cm) high object (or a 2x4 laid flat) on the floor. Failure to adjust the garage door opener properly increases the risk of SEVERE INJURY or DEATH.
11. ALWAYS KEEP GARAGE DOOR PROPERLY BALANCED (see page 4). An improperly balanced door may NOT reverse when required and could result in SEVERE INJURY or DEATH.
    ONEALL repairs to cables, spring assemblies and other hardware, ALL of which are under EXTREME tension, MUST be made by a trained door systems technician.
12. To avoid interference with the proper operation of the garage door opener when using a welder in the Use garage, unplug garage door opener before operating welder.
    could This operator system is equipped with an unattended operation feature. The door could move unexpectedly. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.
13. DO NOT install on a one-piece door if using devices or features providing unattended close. Unattended devices and features are to be used ONLY with sectional doors.

17. SAVE THESE INSTRUCTIONS.

Operation

Features

Your garage door opener is equipped with features to provide you with greater control over your garage operation.

ALERT2CLOSE

The Alert2Close feature provides a visual and an audible alert that an unattended door is closing. TIMER-TO-CLOSE(TTC)*

The TTC feature automatically closes the door after a specified time period that can be adjusted using enabled control panel (Models 881LMW or 880LMW). Prior to and during the door closing the garage opener lights will flash and the garage door opener will beep.

MYQ

myQ* allows you to control your garage door opener from your mobile device from anywhere. myQ* te uses a 900 Mhz signal to provide two way communication between the garage door opener and myQ* accessories.

The garage door opener has an internal gateway that allows the garage door opener to communicate with a home Wi-Fi® network and access your myQ® account.

THE PROTECTORSYSTEM(SAFETY REVERSING SENSORS)

When properly connected and aligned, the safety reversing sensors will detect an obstruction in the pat infrared beam. If an obstruction breaks the infrared beam while the door is closing, the door will stop reverse to full open position. If the door is fully open, and the safety reversing sensors are not installed misaligned, the door will not close from a remote control. However, you can close the door if you hold button on the control panel or keyless entry until the door is fully closed. The safety reversing sensors affect the opening cycle. For more information see page 24.

LIGHTS

The garage door opener Integrated LED lights will turn on when the opener is initially plugged in; power is restored after interruption, or when the garage door opener is activated. The lights will turn off automatically after 4-1/2 minutes.

USING YOURGARAGE DOOROPENER

When the door is closed and the garage door opener is activated the door will open. If the door makes con with an obstruction while opening, the door will stop, opener beeps and lights flash 5 times. When the door any position other than closed and the garage door opener is activated, the door will close. If the garage dc makes contact with an obstruction while closing, the door will reverse, opener beeps and lights flash 5 times. However, you can close the door if you hold the button on the control panel or keyless entry until the door fully closed.

The safety reversing sensors do not affect the opening cycle. The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction.

BATTERY BACKUP\*

The battery backup system allows access in and out of your garage, even when the power is out. When the garage door opener is operating on battery power, the garage door opener will run slower, the light will not function, the Battery Status LED will glow solid orange, and a beep will sound approximately every 2 seconds camera*

Live steam what is happening in your garage with your garage door opener's built-in camera. Just connect your opener to Wi-Fi and set up an account with the AppQFor more information, see page 37.

AUTOMATIC GARAGE DOORLOCK\*

Garage door opener models featuring the Security Shield are compatible with the LiftMaster Automatic Garage Door Lock (Model 841LM). If applicable.

Operation

Connect With Your Smartphone

The Wi-Fi Garage Door Opener is compatible with up to 1000000000 accessories. Up to 10 devices can be paired to the Wi-Fi garage door opener's internal gateway. These devices can be controlled with the myQ. These devices include any combination of flyqage door openers, Wi-Fi garage door openers, light controls, myQ gate operators or myCommercial door operators. A LiftMaster Internet Gateway (828LM) can be added if you need to control more than 10 devices using the myUp to 6 devices can be paired to garage door opener itself (controlled by garage door opener through 900MHz). These devices include any combination of myLight controls or a garage door and gate monitor.

YOU WILL NEED:

• Wi-Fi enabled smartphone, tablet or laptop
- Broadband Internet Connection
• Wi-Fi signal in the garage (2.4 GHz, 802.11b/g/n required), see page 3
- Password for your home network (router's main account, not guest network)
- myQ* serial number located on the garage door opener

DOWNLOAD THEMYQ®APPTO SET UPAN ACCOUNT AND CONNECT

Open and close your door, get alerts and set schedules from anywhere. Connected smart garage door also receive software updates to ensure the opener has the latest operational features. The garage door opener must run through a complete cycle before it will activate or refining.

1. Download the myQ® App.
2. Set up an account and connect.

If you already have the myApp installed:

1. Check that your mobile device has the latest software.
2. Download the latest version of the myApp.

GET IT ON Google Play

Download on the App Store

For more information on connecting your garage door opener, visit support.LiftMaster.com.

Google Play and the Google Play logo are trademarks of Google LLC.

App Store and the Apple and App Store logos are trademarks of Apple Inc.

LED An LED on the garage door opener will indicate Wi-Fi status. See table. Navigation Buttons To stop the Smart Control Panel LCD from displaying "CONNECT myQ APP". On the Smart Control Panel®, press MENU, select PROGRAM and press press BACK, then press EXIT to return to the main screen.

Wi-Fi Status
LED Definition
Blue Off - Wi-	Fi ^® is not turned on.Blinking - Garage door opener is in Wi-Fi ^® learn mode.Solid - Mobile device connected to the garage door opener.
Blue and Green	Blinking - Attempting to connect to router.
Green Blinking	- Attempting to connect to the Internet server.Solid - Wi-Fi ^® has been set up and garage door opener is connected to the

NOTES:

myQ® App control WILL NOT work if the garage door opener is operating on battery power. To erase the Wi-Fi settings, see page 1.

Operation

Set Up the Camera - Model 87504-267

1. Download the myQ" app and setup your account if you haven't already, see page 36.
2. Follow the instructions in the app to setup and use the camera.
   The camera powers up when it is opened and powers down when closed.

LED Camera Reset Button

Camera Status
LED Definition
Flashing Blue Camera	is attempting to connect to the mobile device.
Solid Blue Camera is connected to the mobile device.
Flashing Blue and Green	Camera is attempting to connect to the router.
Flashing Green Camera	is connected to the router and attempting to connect to myQ *server.
Solid Green Camera is connected and working normally.
Solid White Camera is powering up.
Flashing Red	Camera is overheating.
Flashing Purple	Camera firmware is updating.

Operation

Using the Control Panel

SYNCHRONIZETHE CONTROL PANEL

To synchronize the control panel to the garage door opener, press the push bar until the garage door activates (it may take up to 3 presses). Test the control panel by pressing the push bar, each press of push bar will activate the garage door opener.

NOTE: Your control panel may look different than the illustrations.

Up to 2 Smart Control Panels ^9 or 4 of any other Security+ 2.0 control panels can be connected to the door opener.

Push Bar Navigation Buttons LIGHT button Motion Sensor Screen 12:00 AM MENU

PUSH BAR

Press the push bar to open or close the door.

NAVIGATION BUTTONS

Use the navigation buttons to make selections and program features.

LIGHT BUTTON

Press the LIGHT button to turn the garage door opener lights on or off. When the lights are turned on they will stay on until the LIGHT button is pressed again, or until the garage door opener is activated. Once the garage door opener is activated the lights will turn off after the specified period of time (the factory setting is 4-1/2 minutes). The LIGHT button will not control the lights when the door is in motion.

SCREEN\*

The screen will display the time and temperature until the menu button is pressed, and then it will display the menu options. If there is a problem with the garage door opener the screen will display the Diagnostic Code. Refer to the Troubleshooting section.

The following features are accessible through the screen using the navigation buttons:

LEARN A DEVICE

Program compatible remote controls, wireless keyless entries, Wi-Fi garage door openers, or myQ® accessories to the garage door opener.

LOCK

The LOCK feature is designed to prevent activation of the garage door opener from remote controls while still allowing activation from the control panel and keyless entry. This feature is useful for added peace of mind when the home is empty (i.e. vacation).

TIMER-TO-CLOSE (TTC)\*

DO NOT enable TTC if operating a one-piece door. TTC is to be used ONLY with sectional doors. Factory del is set to off. TTC can be set to automatically close your garage door from the fully open position after a sp period of time (1, 5, 10 minute intervals or a custom setting up to 99 minutes). The garage door opener will send and the lights will Flash before closing the door. The screen on the control panel can display the status of the TTC. TTC WILL NOT work if the garage door opener is operating by battery power or if the safety revers sensors are misaligned. This feature is NOT intended to be the primary method of closing the door. A keyless entry should be installed in the event of an accidental lock out when using this feature.

AUTOMATIC LIGHT

Motion Sensor \*

Factory default is set to on. This feature automatically turns on the garage door opener lights when motion is sensed. The lights will come on for the set period of time, then shut off. If using the garage door opener light a work light disable the motion sensor, otherwise the light will turn off automatically if you are beyond the r of the sensor.

MAINTENANCEALERT (MAS)

This feature assists the homeowner in ensuring the garage door opener system stays in good working condition. When the garage door opener needs to be serviced (approximately 4500 garage door opener cycles) the command (yellow) and service (red) LEDs will begin to alternately flash back and forth. The factory setting for the MAS feature is off and can be activated at time of installation. Contact your installing dealer for service. *If applicable

Operation

Using the Smart Control Panel®\*

SETUP

The features on the control panel can be programmed through a series of menus on the screen and the navigation buttons. Refer to the descriptions below.

SCREEN

The main screen displays the time, temperature, and current battery charge (if applicable).

FEATURES

Press the navigation button below "MENU" to view the Features menu.

Set the time, choose 12 or 24 hour clock and show/hide clock. For sectional doors ONLY. Set the Timer-to-Close feature off/on and set the time interval before door closes. NOTE: DO NOT enable TTC if operating a one-piece door. TTC is to be used ONLY with sectional doors. Enable/disable lock.

Set up Wi-Fi ^* , add remote controls, myQ ^ devices, an extra remote button to control your garage door opener lights, or a keyless entry.

* The garage door opener must run through a complete cycle before it will activate Wi-Fi® programming.

*If applicable

SETTINGS

Press the navigation button below the down arrow till you see TEMPERATURE to view the Settings menu.

TEMPERATURE LANGUAGE ENGLISH LIGHT SETTINGS CONTRAST ADJUST 50 EXIT

Display the temperature in Fahrenheit or Celsius and show/hide the temperature.

Select a language.

Set duration for garage door opener light to stay on after operation, selectable range of 1-1/2 to 4-1/2 minutes. Turn the Motion sensor off/on, and turn the entry light feature off/on.

Adjust the contrast of the screen.

SERVICE

Press and hold the LIGHT button, then press the second navigation button to view the Service menu.

Displays software version information.

Turn the Maintenance Alert (MAS) on/off.

Displays the number of remote controls, myQ ^® devices, control panels, and keyless entries currently programmed to operate the garage door opener.

Displays any errors that have occurred.

Remote Control

Your remote control has been programmed at the factory to operate with your garage door opener.

TO ADD, REPROGRAM, OR CHANGE A REMOTE CONTROL/KEYLESS ENT USING THE CONTROL PANEL

1. Press the navigation button below "MENU" to view the Features menu.
2. Use the navigation buttons to scroll to "PROGRAM".
3. Select "REMOTE" or "KEYPAD" to program from the program menu.
4. Remote Control: Press the button on the remote control that you wish to operate your garage door. Keyless Entry: Enter a 4-digit personal identification number (PIN) of your choice on the keyless entry keypad. Then press the ENTER button.

The garage door opener lights will flash (or two clicks will be heard) when the code has been programmed. Repeat the steps above for programming additional remote controls or keyless entry devices. If programming is unsuccessful, program the remote using the learn button.

Operation

1

2

-

4

OR

TO ADD, REPROGRAM, OR CHANGE A REMOTE CONTROL USING BUTTON

1. Press and release the LEARN Button on the garage door opener.
2. Press and hold the button on the remote control that you wish to use. Release the button when the garage door opener lights blink or two clicks are heard.

1

LEARN LED LEARN Button

2

"click" "click"

To Erase the Memory

ERASEALL REMOTECONTROLS AND KEYLESSENTRIES

1. Press and hold the LEARN button on garage door opener until the learn LED goes out (approximately 6 seconds). All remote control and keyless entry codes are now erased. Reprogram any accessory you wish to use.
2. Press and hold the LEARN button on garage door opener until the learn LED goes out (approximately 6 seconds).

3. Immediately press and hold the LEARN button again until the learn LED goes out. All codes are now erased. Reprogram any accessory you wish to use.

4. Press and hold the black adjustment button on the garage door opener until 3 beeps are heard (Approximately 6 seconds).

ERASETHE CAMERA SETTINGS

1. Press and hold the reset button on the side of the camera for 10 seconds. The LED light will turn off, the flash red.

You will need to set up your camera again after resetting it.

LED Reset Button LEARN Button Adjustment Button

Operation

To Open the Door Manually

WARNING

To prevent possible SERIOUS INJURY or DEATH from a falling garage door:

• If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.
• NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.
• NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.

1. The door should be fully closed if possible.

2. Pull down on the emergency release handle.

The lockout feature prevents the trolley from reconnecting automatically.
1. Pull the emergency release handle down and back (toward the opener). The door can then be raised and lowered manually as often as necessary.
2. To disengage the lockout feature, pull the handle straight down. The trolley will reconnect on the next UP or DOWN operation, either manually or by using the control panel or remote control.

TO MANUALLY DISENGAGE AUTOMATIC GARAGEDOORLOCK (MODEL 841LM)\*

1. The door should be fully closed if possible.
2. Disengage the automatic garage door lock by sliding the manual release to the open position.
3. Pull the emergency release handle down and back (toward the garage door opener). The garage door can then be raised and lowered manually as necessary.
4. To reconnect the trolley, pull the emergency release handle straight down. The trolley will reconnect on the next UP or DOWN operation.

NOTE: The automatic garage door lock will re-engage when garage door opener operation resumes.

Manual release

* If applicable.

Maintenance

Maintenance Schedule

EVERY MONTH

- Manually operate door. If it is unbalanced or binding, call a trained door systems technician.

• Check to be sure door opens and closes fully. Adjust if necessary, see page 30.
• Test the safety reversal system. Adjust if necessary, see page 31.

EVERY YEAR

• Oil door rollers, bearings and hinges. The garage door opener does not require additional lubrication not grease the door tracks.
• Test the battery and consider replacing the battery to ensure the garage door opener will operate d an electrical power outage, see page 32 to test the battery backup.

EVERY TWO TO THREEYEARS

- Use a rag to wipe away the existing grease from the garage door opener rail. Reapply a small layer lithium grease to the top and underside of the rail surface where the trolley slides.

NOTICE: This device complies with part 15 of the FCC rules and Innovation, Science and Economic Development Canada license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules and Industry Canada ICES standard. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

The Remote Control Battery

WARNING

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.
Do If battery is swallowed, immediately notify doctor.

To reduce risk of fire, explosion or chemical burn:

Replace ONLY with 3V CR2032 coin batteries.
- DO NOT recharge, disassemble, heat above 212°F (100°C) or incinerate.

of white

To replace the battery, pry open the case in the middle, then at each side with the visor clip. Insert replacement battery positive side up (+). Replace the batteries with only 3V CR2032 coin cell batteries. Dispose of old batteries properly.

Troubleshooting

DiagnosticChart

Your garage door opener is programmed with self-diagnostic capabilities. The UP and DOWN arrows on the garage door opener flash the diagnostic codes.

DIAGNOSTIC CODE SYMPTOM SOLUTION
Up Arrow Flash(es)	Down Arrow Flash(es)
1	1	The garage door opener will not close.	Safety reversing sensors are not installed, connected, or wires may be cut. Inspect sensor wires for a disconnected or cut wire.
1	2	The garage door opener will not close.	There is a short or reversed wire for the safety reversing sensors. Inspect safety sensor wire at all staple and connection points, replace wire or correct as needed.
1	3	The control panel will not function.	The wires for the control panel are shorted or the control panel is faulty. Inspect control panel wires at all staple and connection points, replace wire or correct as needed.
1	4	The garage door opener will not close.	Safety reversing sensors are misaligned or were momentarily obstructed. Realign both sensors until both LEDs are glowing steady. Make sure nothing is hanging or mounted on the door that would interrupt the sensor's pi while closing.
1	5	Door moves 6-8" (15-20 cm) stops or reverses.	Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as needed. Check wiring connections at travel module and at the logic board. Replace travel module if necessary.
		No movement, only a single click.	Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as needed. Replace logic board if necessary.
		Opener hums for 1-2 seconds no movement.	Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as needed. Replace motor if necessary.
1	6	Door coasts after it has come to a complete stop.	Program travel to coasting position or have door balanced by a trained door systems technician.
2	1-5	No movement, or sound.	Replace logic board.
3	2	Unable to set the travel or retain position.	Check travel module for proper assembly, replace if necessary.
3	3	The battery status LED is constantly flashing green.	Battery backup charging circuit error, replace the logic board.

Troubleshooting

DIAGNOSTIC CODE SYMPTOM SOLUTION
Up Arrow Flash(es)	Down Arrow Flash(es)
4	1-4	Door is moving, stops or reverses. Opener beeps and lights flash.	Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as needed. If the door is binding or sticking, contact a trained door systems technician. If door is not binding or sticking attempt to reprogram travel (refer to 31).
4	5	Opener runs approximately 6-8" (15-20 cm), stops and reverses.	Communication error to travel module. Check travel module connections, replace travel module if necessary.
4	6	The garage door opener will not close.	Safety reversing sensors are misaligned or were momentarily obstructed. Realign both sensors to ensure both LEDs are steady and not flickering. Make sure nothing is hanging or mounted on the door that would interrupt the sensor's path while closing.

The garage door opener will NOT enter Wi-Fi® learn mode:

• After the initial installation of the garage door opener, the garage door opener must complete a (open and closed) before the Wi-Fi® learn mode can be activated.
• If there has been a recent power outage, the garage door opener must complete a full cycle before Wi-Fi® LEARN MODE can be activated.

See 36 to activate Wi-Fi® learn mode.

LEDs are not working:

Cycle wiring on both Integrated LED Light Modules to connector. If loose, then reconnect. If the lights do r turn on, a new Integrated LED Light Module may be needed. Connect customer service or certified door professional to determine if a new Integrated LED Light Module is needed.

My neighbor's remote control opens my garage door:

Erase the memory from your garage door opener and reprogram the remote control(s).

Cannot connect garage door opener to home Wi-Fi® network:

• Ensure the myQ ^ Serial number was entered correctly and try again. The myQ ^ characters are bet F and 0-9 only.
• Weak Wi-Fi ^ signal in the garage. Ensure the Wi-Fi ^ signal is reaching the garage, see 4 or visit support.chamberlaingroup.com for more information.

My door will not close:

The safety reversing sensor must be connected and aligned correctly before the garage door opener will in the down direction.

• Check for binding or obstructions anywhere along the track to garage floor.

• The safety reversing sensor must be connected and aligned correctly before the garage door opene move in the down direction.

• Verify the safety reversing sensors are properly installed, aligned and free of any obstructions.

• If the receiving sensor (green LED) faces direct sunlight, switch the receiving sensor with the sending sensor so the receiving sensor is not in direct sunlight.

My Vehicle's Homelink" is not programming to my garage door opener:

Depending on the make, model, and year of your vehicle an external adapter may be required. Visit www.homelink.com for additional information.

My camera won't connect to the router:

• Move your router closer to the garage door opener to minimize interference from walls and other objects: moveBuy a Wi-Fi ^® range extender.
  For issues with the camera, press and hold the reset button on the camera for 10 seconds. Then, follow the myQ™ app instructions to set up the camera.
  Telltroubleshoot the optional automatic garage door lock model 841LM, see the instructions provided with it.

Accessories

878MAX MAX Wireless Keyless Entry:

For use outside of the home to enable access to the garage using a 4-digit PIN. Works with ALL LiftMaster openers from 1993-present.

893MAX 3-Button MAX Remote Control:

Compatible with LiftMaster garage door openers manufactured since 1993. Includes visor clip.

880LMW Smart Control Panel:

Displays temperature, time and system diagnostics; includes a push bar to open and close the door and a lock feature for extra security. Security+ 2.0 and Wi-Fi compatible.

819LMB myQ

* Home Bridge:

Add Apple HomeKit™ compatibility to your myQ enabled garage door opener. Use Siwi open, close and check the status of your door.

Apple is a trademark of Apple Inc., registered in the U.S. and other countries. HomoKit is a trademark of Apple Inc.

891LM

Compatible with LiftMaster garage door openers manufactured since 1993. Includes visor clip.

882LMW Multi-Function Control Panel:

Security+ 2.0 and Wi-Fi compatible.

374UT Mini Universal Remote Control:

The Mini Universal Remote Control can be programmed to activate up to two products, such as a garage door opener, my@light controls, gate operator, or commercial door operator.

380UT Universal Remote Control:

The Universal Remote Control can be programmed to activate up to two products such as a garage door opener, gate operator or commercial door operator.

841LM Automatic Garage Door Lock:

Compatible with 87802. Provides added security by automatically locking garage door travel at the garage door track.

881LMW Motion Detecting Control Panel with Timer-to-Close

Control:

Multi-function control panel with motion sensor that automatically turns opener lights on when it detects person entering the garage. Security+ 2.0 and Wi-Fi compatible.

886LMW Motion Detecting Control Panel:

Multi-function control panel with motion sensor that automatically turns opener lights on when it detects a person entering the garage. Security+ 2.0 and Wi-Fi compatible.

Warranty

LiftMaster ^® ("Seller") warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defects in materials and/or workmanship for a specific period of time as defined below (the "Warranty Period"). The warranty period commences from the date of purchase.

WARRANTY PERIOD
Models Parts Motor Accessories Belt Battery Backup	Integrated LED Camera
84501 1 year Lifetime 1 year Lifetime N/A 1 year	N/A
84602 1 year Lifetime 1 year N/A 1 year	1 year N/A
87802	5 years	Lifetime	1 year	Lifetime	1 year	5 years	N/A
87504-267	5 years	Lifetime	1 year	Lifetime	1 year	5 years	1 year

The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, and maintenance and testing. Failure to comply strictly with those instructions will void this limited warranty in its entirety.

If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, visit LiftMaster.com, before dismantling this product. You will be advised of disassembly and shipping instructions. Then send the product or component, pre-paid and insured, as directed to our service center for warranty repair. Please include a brief description of the problem and a dated proof-of-purchase receipt with any product returned for warranty repair. Products returned to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and covered by this limited warranty, will be repaired or replaced (at Seller's sole option) at no cost to you and returned pre-paid. Defective parts will be repaired or replaced with new or factory-rebuilt parts at Seller's sole option. [You are responsible for any costs incurred in removing and/or reinstalling the product or any component].

ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE APPLICABLE LIMITED WARRANTY PERIOD SET FORTH ABOVE FOR THE RELATED COMPONENT(S), AND NO IMPLIED WARRANTIES WILL EXIST OR APPLY AFTER SUCH PERIOD. Some States and Provinces do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE, UNAUTHORIZED REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED OR REPLACED UNIT, REPLACEMENT OF CONSUMABLE ITEMS (E.G., BATTERIES IN REMOTE CONTROL TRANSMITTERS), OR UNITS INSTALLED FOR NON-RESIDENTIAL USE. THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING TO, THE GARAGE DOOR OR GARAGE DOOR HARDWARE, INCLUDING BUT NOT LIMITED TO THE DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES. THIS LIMITED WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER'S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT.

Some states and provinces do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights, which vary from state to state and province to province.

Automatic Garage Door Opener Safety & Maintenance Guide

Garage Door Opener Safety – An Automatic Decision

A garage door is the largest moving object in the home. An improperly adjusted garage door and opener can exert deadly force when the door closes – which could lead to entrapment of children or adults and subsequent injury or death.

Proper installation, operation, maintenance, and testing of the garage door and automatic opener are necessary to provide a safe, trouble-free system. Careless operation or allowing children to play with or use garage door opener controls are also dangerous situations that can lead to tragic results. A few simple precautions can protect your family and friends from potential harm. Please review the safety and maintenance tips in this guide carefully and keep it for reference. Check the operation of your garage door and opener to ensure they function in a safe and trouble-free manner. Be sure to read all Important Safety Information found in your garage door opener's manual as it provides more details and safety considerations than can be supplied with this guide.

Garage Door Openers are Not Toys

Discuss garage door and opener safety with your children. Explain the danger of being trapped under the door.

Prohibition sign with silhouette of person using scooter and downward arrow, enclosed in a building window

Stay away from a moving door. The wall-mounted push button

should be out of reach of

children, at least 5 feet from the nearest standing surface and away from all moving parts. Mount and use the button where you can clearly see the closing garage door.

Illustration of a person sitting with a crossed-out no-smoking symbol (no text or numbers present)

Keep transmitters and remote controls out of reach of children. Do not let children play with or use transmitters or other remote control devices.

Note

Keep the door in sight until it completely closes when using the wall-mounted push button or transmitter.

Routine Maintenance Can Prevent Tragedies

Make monthly inspection and testing of your garage door and opener system a part of your regular routine. Review your owner's manual for both the door and door opener. If you don't have the owner's manuals, contact the manufacturer(s) and request a copy for your specific model(s). Look for the opener model number on the back of the power unit.

WARNING – SPRINGS ARE UNDER HIGH TENSION. ONLY QUALIFIED INDIVIDUALS SHOULD ADJUST THEM.

Illustration of a hand holding a spray bottle, with a tool interacting with a mechanical component (no text or symbols visible)

Visually check the door and installation:

• Starting with the door in the closed position, use the manual disconnect on the opener to disconnect the door.
• Look for signs of wear or damage on hinges, rollers, springs, and door panels.
  • These parts may require periodic lubrication. Check the owner's manual for suggested maintenance.
  • If any signs of damage are evident, contact a trained door systems technician for assistance.
• Verify the photoeye height is no higher than 6" from the garage floor.

Exterior view of a modern garage with a white upward arrow indicating clearance (no text or symbols)

Test the door for proper operation:

• Open and close the door manually using handles or suitable gripping points.
  • The door should move freely and without difficulty.
  • The door should balance and stay partially open 3–4 feet above the floor.
  • If you detect any signs of improper operation, contact a trained door systems technician for assistance.

Interior view of a room with a person holding a wall-mounted device and a window, no visible text or symbols

Test the opener safety features:

• Reconnect the opener to the door using the manual disconnect and open the door.
• Place a 2x4 board flat in the path of the door (1) and try to close it (2). The door should stop when it comes in contact with the 2x4 and then reverse direction.
• Block the photoelectric sensor by waving an object in front of the sensor and attempt to close the door. The door should not close unless the wall-mounted push button is manually held during operation.
  • If the opener does not perform as described, contact a trained door systems technician for assistance.

DASMA

Door & Access Systems Manufacturers Association International

Repair Parts

Rail Assembly Parts 87504-267

Description Part Number
1 Belt - for 7 foot door 041A5434-11ABelt - for 8 foot door	041A5434-13A
Belt - for 10 foot door	041A5434-14A
2 Belt Pulley Bracket 041B5424
3 Master link 004A1008
4 One-Piece Rail 7 feet (2.1 m) 2777BDOne-Piece Rail 8 feet (2.4 m)	2778BD
One-Piece Rail 10 feet (3 m)	2770BD
5 Trolley Assembly Includes: Master Link(2), Clevis Pin (1), Ring (1), Belt Clip (1),Threaded Shaft (1), andTensioner Assembly (1)	041B3869-3A
6 Tensioner Assembly 041B4103
7 Trolley Threaded Shaft	041A6689

Exploded view diagram of a mechanical assembly with numbered parts for identification

Installation Parts

Description		Part Number
1	Curved door arm	041B0035E
2	Door bracket with clevis pin and fastener	041A504
3	Emergency release rope and handle	041A282
4	Header bracket with clevis pin and fastener	041A4353-1
5	Remote control visor clip	K029B013
6	Safety sensor bracket 041-0155-000
7	Safety sensor kit with receiving and sending sensors with 3 feet (.9 m) 2-conductor wire	041-0136
8	Straight door arm	4178B0034B
9	White and red/white wire	041B4494-
10	3V CR2032 lithium battery	K010A002
11	Extension bracket (optional)	041A5281-1
Not Shown
	Installation hardware bag	041A2770-17
	User's Guide	114A5288
	Owner's Manual	114-5710-000

Exploded view diagram of mechanical components with numbered parts for identification

Repair Parts

Garage Door Opener Parts Model 87504-267

Exploded view diagram of a smart home appliance with numbered parts for identification

Description Part Number
1 Sprocket and Sprocket Cover with Screws 041C0589-2
2 End panel 041-0185-000
3 Integrated LED Light Module 041-0186-000
4 Badge with camera 041-0195-000
5 Main Enclosure Cover 041-0190-000
6 Control door panel 041-0192-000
7 End panel cover	041-0193-000
8 Motor with travel module	041-0236-000
9 Travel Module	041D8071-4
10 Logic board end panel	041-0183-00
11 Logic board	050DCTB
12 Terminal block	041A3150
13 Backup battery	485LM
14 Line cord	041B4245-1
15 Camera	041-0041
Not Shown
Wire harness	041-0180-000
Transformer 041D0277-1

Repair Parts

Rail Assembly Parts Models 87802

Description Part	Number
1 Chain - for 7 foot door 041D3484
Chain - for 8 foot door	041D3483
Chain - for 10 foot door	041D3485
Chain - for 12 foot door	19-5812
Chain - for 14 foot door	19-5814
2 Chain Pulley Bracket 041A2780
3 Master link 004A1008
4 One - piece rail 7 feet 3707CH
One - piece rail 8 feet	3708CH
One - piece rail 10 feet	3710CH
One - piece rail 12 feet	3712RV
One - piece rail 14 feet	3714RV
5 Trolley Assembly Includes: Master Link (2), Clevis Pin (1), Ring (1), Belt Clip (1), Threaded Shaft (1), and Tensioner Assembly (1)	041A3489
6 Chain Tensioner 041B4103-1
7 Trolley Threaded Shaft	K109B0018

Technical diagram showing exploded view of mechanical components with numbered parts for identification

Installation Parts

Description		Part Number
1	Curved door arm	041B0035B
2	Door bracket with clevis pin and fastener	041A504
3	Emergency release rope and handle	041A282
4	Header bracket with clevis pin and fastener	041A4353-1
5	Remote control visor clip	K029B013
6	Safety sensor bracket	041-0155-000
7	Safety sensor kit with receiving and sending sensors with 3 feet (.9 m) 2-conductor wire	041-0136
8	Straight door arm	4178B0034B
9	White and red/white wire	041B4494-
10	3V CR2032 lithium battery	K010A0020
11	Extension bracket (optional)	041A5281-1
Not Shown
	Owner's manual	114-5518-000
	Multi-function Control Panel	880LMW
	Remote Control	B93LM
	Installation hardware bag	041A2770-17

Exploded view diagram of mechanical components with numbered parts for identification

Repair Parts

Garage Door Opener Parts Model 87802

Exploded view diagram of a smart home control module with numbered parts for identification

Description Part Number

1 Chassis Support Bracket 041C5069
2 Chain Spreader & Sprocket 041-0035
3 End Panel, Battery Acces 041-0185-000
4 Light Pod Kit, No Camera 041-0187-000
5 Badge 041-0196-000
6 Main Enclosure Cover 041-0190-000
7 Control Door Panel	041-0192-000
8 End panel cover	041-0193-000
9 Motor with travel module	041-0236-000
10 Travel Module	041D8071-4
11 Logic board end panel	041-0182-000
12 Logic board	050DCTBLK
13 Terminal Block	041A3150
14 Backup battery	485LM
15 Line cord	041B4245-1
Not Shown
Wire harness	041-0180-000
Transformer 041D0277-1

Repair Parts

Rail Assembly Parts 84602

Description Part Number
1 Chain - for 7 foot door 041D3484Chain - for 8 foot doorChain - for 10 foot door	041D3483041D3485
2 Chain Pulley Bracket 041A4813
3 Master link 004A1008
4 One-Piece Rail 7 feet (2.1 m) 1707LMOne-Piece Rail 8 feet (2.4 m)One-Piece Rail 10 feet (3 m)	1708LM1710LM
5 Trolley Assembly Includes: Master Link(2), Clevis Pin (1), Ring (1), Belt Clip (1),Threaded Shaft (1), andTensioner Assembly (1)	041A3489
6 Tensioner Assembly 041B4103
7 Trolley Threaded Shaft	041A6689

Technical diagram showing exploded view of mechanical components with numbered parts for identification

Installation Parts

Description		Part Number
1	Curved door arm	041B0035B
2	Door bracket with clevis pin and fastener	041A504
3	Emergency release rope and handle	041A282
4	Header bracket with clevis pin and fastener	041A4353-1
5	Remote control visor clip	K029B013
6	Safety sensor bracket	041-0155-000
7	Safety sensor kit with receiving and sending sensors with 3 feet (.9 m) 2-conductor wire	041-0136
8	Straight door arm	4178B0034B
9	White and red/white wire	041B4494-
10	3V CR2032 lithium battery	K010A002
11	Extension bracket (optional)	041A5281-1
Not Shown
	Owner's manual	114-5518-000
	Multi-function Control Panel	886LMW
	Remote Control	893LM
	Installation hardware bag	041A2770-17

Exploded view diagram of mechanical components with numbered parts for identification

Repair Parts

Garage Door Opener Parts Model 84602

Exploded view diagram of a device with numbered parts for identification

Description Part Number

1 Sprocket and Sprocket Cover with Screws 041B5348-2
2 Non-logic borad end panel 041-0185-000
3 Integrated LED Light Module 041-0189-000
4 Badge 041-0196-000
5 Main Enclosure Cover 041-0191-000
6 Control door panel 041-0192-000
7 End panel cover	041-0194-000
8 Motor with travel module	041-0236-000
9 Travel Module	041D8071-4
10 Logic board end panel	041-0183-000
11 Logic board	050DCTB
12 Terminal block	041A3150
13 Backup battery	485LM
14 Line cord	041B4245-1
Not Shown
Wire harness	041-0180-000
Transformer	041A7635

Repair Parts

Rail Assembly Parts Model 84501

Description Part Number
1 Belt - for 7 foot door 041A5434-11ABelt - for 8 foot door	041A5434-13A
Belt - for 10 foot door	041A5434-14A
2 Belt Pulley Bracket 041B5424
3 Master link 004A1008
4 One-Piece Rail 7 feet (2.1 m) 2777BDOne-Piece Rail 8 feet (2.4 m)	2778BD
One-Piece Rail 10 feet (3 m)	2770BD
5 Trolley Assembly Includes: Master Link(2), Clevis Pin (1), Ring (1), Belt Clip (1),Threaded Shaft (1), andTensioner Assembly (1)	041B3869-3A
6 Tensioner Assembly 041B4103
7 Trolley Threaded Shaft	041A6689

Exploded view diagram of a mechanical assembly with numbered parts for identification

Installation Parts

Description		Part Number
1	Curved door arm	041B0035E
2	Door bracket with clevis pin and fastener	041A504
3	Emergency release rope and handle	041A282
4	Header bracket with clevis pin and fastener	041A4353-1
5	Remote control visor clip	K029B013
6	Safety sensor bracket 041-0155-000
7	Safety sensor kit with receiving and sending sensors with 3 feet (.9 m) 2-conductor wire	041-0136
8	Straight door arm	4178B0034B
9	White and red/white wire	041B4494-
10	3V CR2032 lithium battery	K010A002
11	Extension bracket (optional)	041A5281-1
Not Shown
	Installation hardware bag	041A2770-17
	Multi-function Control Panel	882LMW
	Owner's manual	114-5518-000

Exploded view diagram of mechanical components with numbered parts for identification

Repair Parts

Garage Door Opener Parts 84501

Exploded view diagram of a vehicle's internal components with numbered parts for identification

Description Part Number
1 Sprocket cover 041A4371
2 Gear and sprocket 041C589-2
3 End panel, No Battery Access 041-0184-000
4 Dual Light Pod Kit, No Camera 041-0189-000
5 Badge 041-0196-000
6 Main Enclosure cover 041-0191-000
7 Control door panel	041-0192-000
8 End panel cover	041-0194-000
9 Motor with travel module	041-0236-000
10 Travel module	041D8071-4
11 Logic Board End PanelCover	041-0183-000
12 Logic board	050DCTB
13 Terminal Block	041A3150
14 Line Cord	041B4245-1
Not Shown
Wire harness	041-0180-000
Transformer, Wi-Fi Non-Battery Backup	041D0277-2

CONTACT INFORMATION

Visit us online at:

LiftMaster.com or myLiftMaster.com

Before calling, please have the model number of the garage door opener. If you are calling about a troubleshooting issue, it is recommended that you have access to your garage door opener while calling. If you are ordering a repair part please have the following information: part number, part name, and model number.

Wi-Fi® is a registered trademark of Wi-Fi Alliance.

HomeLink ^® is a registered trademark of Gentex Corporation.

© 2022, LiftMaster

All Rights Reserved

Technical line drawing of a mechanical component with a perforated top and base (no text or symbols)

Technical line drawing of a car interior panel with ventilation grilles and central vent (no text or symbols)

Diagram illustrating Wi-Fi connectivity with a smartphone, hand icon, and person holding a device near a staircase

A B C D E F G H K L M J N O P Q R I capteur

Préparation

A B C F G D E K H L M S J capteur N O P Q R I

Préparation

B. Poulie et support

C. Support de porte

A B C F G D E K H L M J capteur N O P Q R I

Assemblage

Hand holding a small car with a grid-patterned roof, next to a two-story house (no text or symbols visible)

Simple line drawing of a two-story house with a garage and parked space (no text or symbols)

Illustration of a hand holding a small car near a two-story house (no text or symbols)

Diagram showing a device being processed into a machine, with magnified views highlighting internal components.

Illustration of a house with a door and a hand holding a car, no text or symbols present

3

Safety warning sign with pictogram of a person using a scooter and no stop sign, indicating no accessibility restrictions.

Silhouette of a person reaching for a wall while another car is parked nearby (no text or symbols visible)

Illustration of a person sitting with a crossed-out hand and a large 'no' symbol in the background (no text or symbols present)

Illustration of a hand holding a spray bottle, with no visible text or symbols

Door & Access Systems Manufacturers Association International

Pièces détachées

Exploded view diagram of a mechanical assembly with numbered parts for identification

Exploded view diagram of mechanical components with numbered parts and labels

Pièces détachées

Exploded view diagram of a smart appliance with numbered parts for identification

Technical diagram showing exploded view of mechanical components with numbered parts for identification

Exploded view diagram of a multi-case appliance assembly with numbered parts for identification

Technical diagram showing exploded view of mechanical components with numbered parts for identification

Exploded view diagram of a refrigerator internal components with numbered parts for identification

Exploded view diagram of a mechanical assembly with numbered parts for identification

Exploded view diagram of a vehicle's internal components with numbered parts for identification

3D rendering of a mechanical device with a perforated grille and tray (no text or symbols)

Technical line drawing of a car interior panel with ventilation grilles and central vent (no text or symbols)

Diagram illustrating Wi-Fi connectivity with a smartphone, hand icon, and person holding a device

A B C F G D E K H L M J S N O P Q R I emisor (1).

Preparación

A B C D E F G H K L M S J emisor (1). N O P Q R I

superior del

Preparación

A B C F G D E emisor (1) K H L M J N O P I

Preparación

A B C D E F G K H L M J N O P Q R I (2)

Conjunto

1 Take an attached pin motor 2 Take a close diameter of the wire 3 Tensile mode(s) 4 ANSYS 1 (0.5 cm) Tensile mode(s) CREATURES OF 1.4 (RIPACT)M 1 (0.5 (0.10 cm)

Conjunto

Simple line drawing of a cylindrical object with a flange and a circular hole, no text or symbols present.

Perno hexagonal de 5/16'-18x7/8"

Tuerca de 5/16'-18

FIGURA 1

tasselucasriradely certa

Illustration of a hand holding a small object next to a house with a grid-patterned door (no text or symbols)

Simple line drawing of a two-story house with a garage and parked space (no text or symbols)

Illustration of a hand holding a small car near a two-story house (no text or symbols)

Diagram showing a device connected to a machine, with magnified views highlighting internal components and directional arrows.

* Si es aplicable.

servicio o

locales las

trabajar cerca del

Simple line drawing of a two-story house with a garage and a hand holding a vehicle (no text or symbols)

3 Cargue la batería

"clic" "clic"

Safety warning sign with pictogram of a person using an overpass and a 'No' symbol, indicating no overpass or no sign.

Illustration of a person sitting with a crossed-out hand and a large 'no' symbol in the background (no text or symbols present)

Illustration of a hand holding a spray bottle, with a tool interacting with a mechanical component (no text or symbols visible)

Exterior view of a modern garage with a white upward arrow indicating storage (no text or symbols)

Interior view of a room with a person holding a wall-mounted device and a window, no visible text or symbols

Door & Access Systems Manufacturers Association International

Piezas de repuesto

Exploded view diagram of a mechanical assembly with numbered parts for identification

Exploded view diagram of a smart appliance with numbered parts for identification

Technical diagram showing exploded view of mechanical components with numbered parts for identification

Exploded view diagram of a multi-case electronic device with numbered components for identification.

Technical diagram showing exploded view of mechanical components with numbered parts for identification

Exploded view diagram of a device with numbered parts for identification

Exploded view diagram of a mechanical assembly with numbered parts for identification

Exploded view diagram of a refrigerator assembly with numbered parts for identification

LiftMaster.com o myLiftMaster.com
