ZIELB70 - Auger Zipper - Free user manual and instructions

Product type	Thermal auger (soil drill)
Brand	Zipper
Model	ZIELB70
Engine type	2-stroke
Fuel mixture ratio	Unleaded gasoline / oil 40:1
Tank capacity	Approximately 1.2 L (estimate)
Maximum bit diameter	Up to 200 mm (estimate)
Maximum drilling depth	Up to 80 cm (estimate)
Weight	Approximately 25 kg
Ignition	Spark plug (gap 0.5-0.7 mm)
Air filter	Washable with water, clean every 25-30 h
Gearbox lubrication	Every 25 h
Intended use	Drilling holes in soil (clay, earth, sand)
Prohibited use	Ice, rock, areas with buried cables/gas/water
Required safety equipment	Close-fitting clothing, EN 388 gloves, helmet, glasses, hearing protection, S1 shoes
Warranty	2 years (DIY use), 1 year (professional)
Cleaning	After each use, with damp cloth and mild detergent
Storage	Empty tank, dry and clean place, out of reach of children
Emergency stop	Release the throttle trigger and set the switch to STOP
Break-in	First 10 hours at half throttle

Frequently Asked Questions - ZIELB70 Zipper

What fuel mixture to use?

Use a mixture of unleaded gasoline / synthetic 2-stroke oil at a 40:1 ratio. Shake the tank before each use.

How to start the machine cold?

Set the choke to closed position, turn on the switch, press the primer bulb 3-5 times, lock the throttle, then pull the starting cord. Let it warm up for 2-3 minutes before opening the choke.

How to stop the machine in an emergency?

Immediately release the throttle trigger and set the switch to STOP. Wait for complete stop before placing the machine.

What is the maximum drilling depth?

The depth depends on the soil and the bit. Drill in several passes (2-3 stages) for deep holes. The extension bar allows increasing depth up to about 80 cm.

How to maintain the air filter?

Clean the air filter every 25-30 hours of work. Remove the cover, take out the filter, wash it with running water, squeeze it dry, then soak it with a few drops of engine oil before reinstalling.

What to do if the engine does not start?

Check the correct starting sequence, fuel, air filter, spark plug (cleanliness and gap), and that the choke is properly positioned. If the engine is flooded, remove the spark plug, dry it, pull the cord several times without the plug, then reinstall it.

Which bit to use?

Use only bits suitable for the machine, in good condition. Never use a damaged bit. Secure it with the provided shear pin.

Can the auger be used on frozen or rocky soil?

No, use on ice, frozen ground, or rock is prohibited. Use it only in clay, earth, or sand.

What safety equipment to wear?

Wear close-fitting clothing, protective gloves (EN 388, class 3111), a helmet with visor or glasses, hearing protection, and S1 safety shoes.

How to store the machine during winter?

Completely empty the tank and carburetor, clean the machine, and store it in a dry and clean place, out of reach of children. Do not leave fuel in the tank for long periods.

USER MANUAL ZIELB70 Zipper

Electric drill bit with black and white components, no visible text or symbols

ZI-ELB70

EAN: 9120039232201

CE

1 INHALT / INDEX

1 INHALT / INDEX 2

10.1 Intended Use....20
13.1 Security instructions 21
13.2 Remaining risk factors.... 21

14 OPERATION 23

14.1 Operation instructions....23
14.2 Operation 23

14.2.1 Mounting drill 23
14.2.2 Refueling.... 23
14.2.3 Cold starting.... 24
14.2.4 Warm starting 24
14.2.5 Stopping the engine 24

14.3 Operating 24

15 MAINTENANCE 25

15.1 Maintenance plan 25
15.2 Cleaning 25

15.2.1 Clean the air filter 25
15.2.2 Clean the spark plug 25
15.2.3 Carburettor 25
15.2.4 Storage.... 26
15.2.5 Disposal 26

16 TROUBLE SHOOTING 26

17 MODE D'EMPLOI (FR) 27

18 SÉCUTITÉ 28

FIG. C C-1 CHOKE ON

FIG. E

Close-up of a black plastic mechanical component with green and yellow highlights (no visible text or symbols)

FIG. G

Black plastic mechanical component with two circular features and a separate ring (no text or symbols visible)

FIG. J

a b

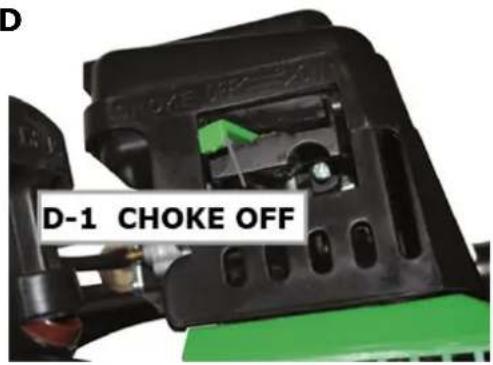

FIG. D

D-1 CHOKE OFF

FIG. F

Close-up of a mechanical component with black housing and green background (no visible text or symbols)

FIG. H

H H-1 H-2 H-3 H-4 H-5

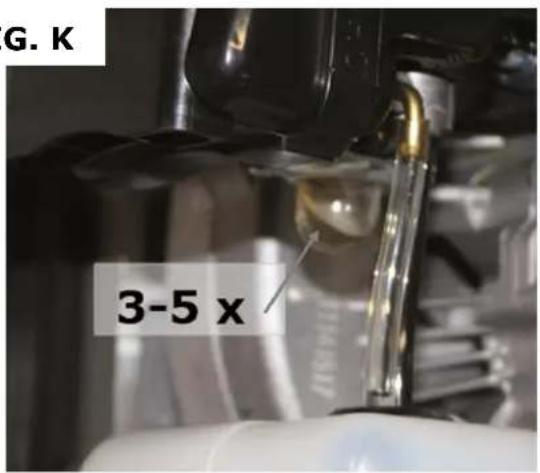

FIG. K

G. K 3-5 x

EN EC-CONFORM - This product complies with the EC-directives.

EN READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and to avoid injuries and machine defects.

EN Danger of Intoxication! Only use outdoors and far from open windows and vents!

EN ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.

Vertical sequence of blue circular icons representing various safety and protective symbols (no text or labels)

EN Protective clothing! (ear protectors, safety gloves, safety shoes, safety goggles or face protection and safety helmet, working wear)

EN Solid Objects can be thrown away!

EN Don't touch rotating parts!

EN Keep safe distance!

I-4 I-3 I-5 I-6 I-1 I-2 I-7 I-9 I-8

ZI-ELB 70 (FIG I)

I-1	Haltegriff / Bar holder / Soporte de fijación de barra / Support de fixation de la barre / Držák fixační tyče / Ročaj / Ručka za nošenje / Fogantyú
I-2	Zündkerzenstecker / Spark plug cap / Tapa de la bujía / Bouchon de bougie / Zapalovací kabel / Vtič za svečko / Utikač za svjećicu / Gyújtógyertya
I-3	Luftfilter / Air filter / Filtro de aire / Filtre à air / Vzduchový filtr / Zračni filter / Filtar za zrak / Levegőszűrő
I-4	Seilzugstarter / Recoil starter / Bobina de arranque / Démarreur à rappel / Startovací šňůra / Zaganjalnik na poteg vrvi / Potezni starter / Berántószerkezet
I-5	Tankdeckel / Fuel tank cap / Tapón del depósito / Bouchon du réservoir / Víčko palivové nádrže / Pokrov rezervoarja / Poklopac spremnika za gorivo /Tanksapka
I-6	Treibstoff-Tank / Fuel tank / Depósito de combustible / Réservoir de carburant / Palivová nádrž / Rezervoar za gorivo / Spremnik za gorivo / Üzemanyaqtartály
I-7	Bediengriff / Operating handle / Manija de control / Poignée de contrôle / Ročaj za upravljanje / Ručka za upravljanje / Gázkar és ki-be kapcsológom, valamint fogantyú
I-8	Bohreraufnahme / Drill adapter / Adaptador de taladros / Adaptateur de la mèche / Upínací otvor vrtáku / Vpenjalo za sveder / Prihvat za svrdlo / Fúrószár csatlakozás
I-9	Primärpumpe / Fuel pump / Bomba de combustible / Pompe à essence / Primární pumpa / Primarna črpalka / Pumpa za gorivo / Szivató buborék

3.2 Lieferumfang / delivery content

FIG. A

Product photo of a portable electric drill with four spiral blades and a green-and-white powertrain (no text or symbols visible)

FIG. B

Black cylindrical object with a hole, labeled '6' in the top-left corner (no other text or symbols visible)

ZI-ELB70 (FIG. A)

1	Bohraggregat / Aggregate / Conjunto principal / Ensemble principal / Agregát vrtáku / Vrtalni agregat / Agregat / Alapgép
2	Bohrer ∅ 100mm / drill ∅ 100mm / Taladro ∅ 100mm / Mèche ∅ 100mm / Vrták ∅ 100mm / Sveder ∅ 100mm / Svrdlo ∅ 100mm / Fúrószár ∅ 100mm
3	Bohrer ∅ 150mm / drill ∅ 150mm / Taladro ∅ 150mm / Mèche ∅ 150mm / Vrták ∅ 150mm / Sveder ∅ 150mm / Svrdlo ∅ 150mm / Fúrószár ∅ 150mm
4	Bohrer ∅ 200mm / drill ∅ 200mm / Taladro ∅ 200mm / Mèche ∅ 200mm / Vrták ∅ 200mm / Sveder ∅ 200mm / Svrdlo ∅ 200mm / Fúrószár ∅ 200mm
5	Bedienwerkzeug / tools / Herramientas / Outils / Nářadí pro údržbu / Priloženo orodje / Kutija s alatom / Szerszámok
7	Betriebsanleitung / operation manual / Manual de instrucciones / Mode d'emploi / Návod k použití / navodilo za uporabo / Upute za uporabu / Használati utasítás
8	Handkurbel / manual crank / manivela manual / manivelle / ruční kliky / ročno crank / Ručna okretaljka / Kézi tekerő

ZI-ELB70 (FIG: B) optional

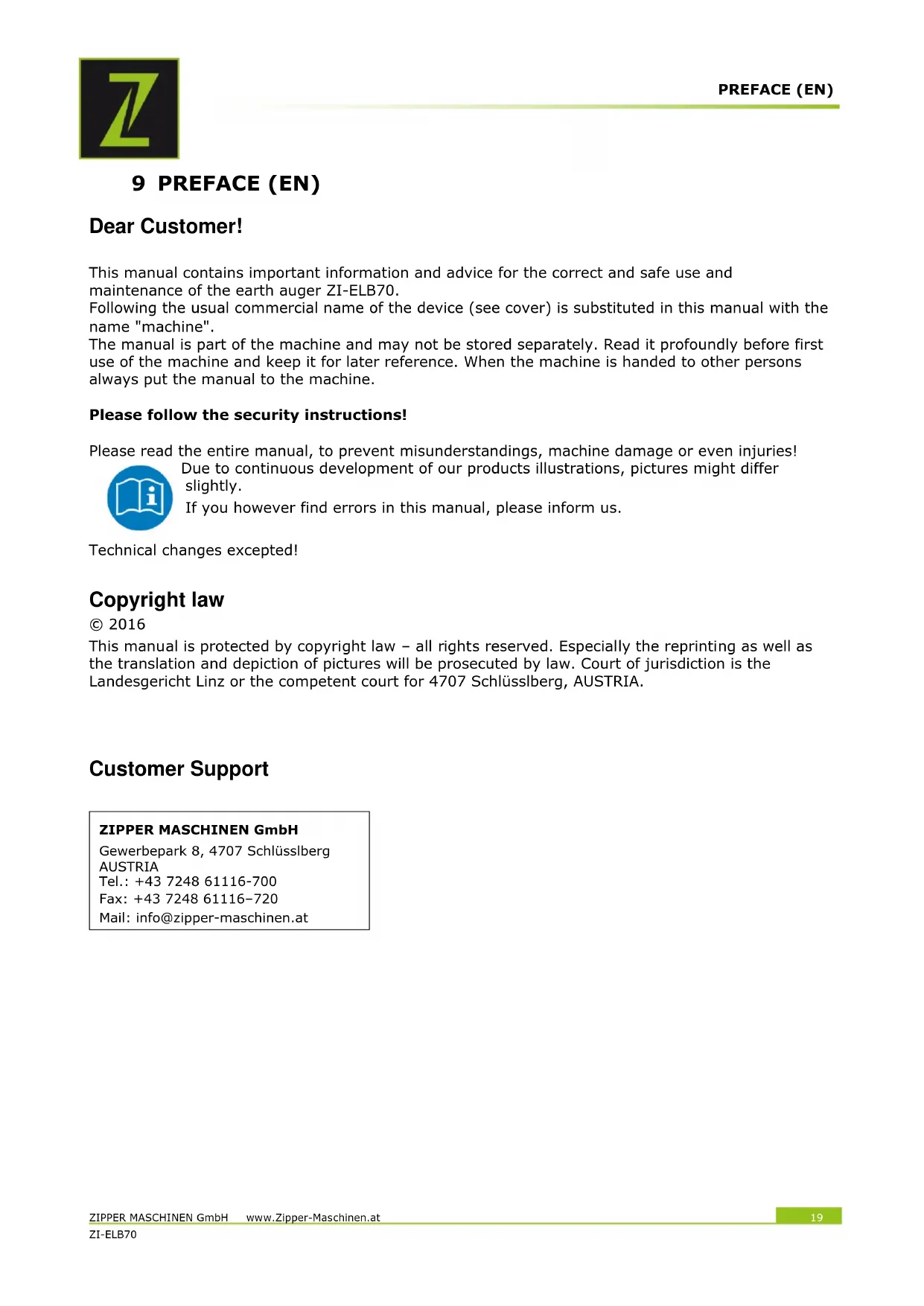

This manual contains important information and advice for the correct and safe use and maintenance of the earth auger ZI-ELB70.

Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine".

The manual is part of the machine and may not be stored separately. Read it profoundly before first use of the machine and keep it for later reference. When the machine is handed to other persons always put the manual to the machine.

Please follow the security instructions!

Please read the entire manual, to prevent misunderstandings, machine damage or even injuries!

Due to continuous development of our products illustrations, pictures might differ slightly.

If you however find errors in this manual, please inform us.

Technical changes excepted!

Copyright law

© 2016

This manual is protected by copyright law – all rights reserved. Especially the reprinting as well as the translation and depiction of pictures will be prosecuted by law. Court of jurisdiction is the Landesgericht Linz or the competent court for 4707 Schlüsslberg, AUSTRIA.

Customer Support

The machine must only be used for its intended purpose! Any other use is deemed to be a case of misuse.

To use the machine properly you must also observe and follow all safety regulations, the assembly instructions, operating and maintenance instructions lay down in this manual.

All people who use and service the machine have to be acquainted with this manual and must be informed about the machine's potential hazards.

It is also imperative to observe the accident prevention regulations in force in your area.

The same applies for the general rules of occupational health and safety.

The machine is used for:

Drilling cylindrical holes in soil (loam, topsoil, sand, or the like). This can be holes for planting small trees, for installing fencing posts or the like.

Any manipulation of the machine or its parts is a misuse, in this case ZIPPER-MASCHINEN and its sales partners cannot be made liable for ANY direct or indirect damage.

Even when the machine is used as prescribed it is still impossible to eliminate certain residual risk factors.

WAR NING

• Use only drills allowable for this machine!
• Never use a damaged drill!
• Use the machine never with defective or without mounted guard
• The earth auger may only be used in its vertical position (drill downwards)!
• This machine is only designed for outdoor use (garden) and must be held with both hands during operation!
• If possible position yourself downwind to avoid inhaling the exhaust gases!

Ambient conditions

The machine may be operated:

humidity

max. 70%

temperature

+5^ to +40^ (+41^ to +104^)

The machine shall not be operated in areas exposed to increased fire or explosion hazard.

Prohibited use

• The operation of the machine outside the stated technical limits described in this manual is forbidden.
  • the machine may not be used:

• in ice, stone or rock

• in areas where electric cables, gas, water or telephone lines are buried

• in a pit or sewer (missing ventilation!)

• The use of the machine not according with the required dimensions is forbidden.

• The use of the machine not being suitable for the use of the machine and not being certified is forbidden.
• Any manipulation of the machine and parts is forbidden.
• The use of the machine for any purposes other than described in this user-manual is forbidden.
  • The unattended operation on the machine during the working process is forbidden!
• It is not allowed to leave the immediate work area during the work is being performed.

13.1 Security instructions

Missing or non-readable security stickers have to be replaced immediately!

To avoid malfunction, machine defects and injuries, read the following security instructions!

The locally applicable laws and regulations may specify the minimum age of the operator and limit the use of this machine!

• Use the machine only in good enough light to allow a safe operation can be guaranteed.
• In tiredness, decreased concentration or under the influence of alcohol or drugs, the work on the machine is prohibited!
• Caution in slippery conditions - slip hazard - risk of injury. When working, robust and non-slip footwear. Slides / stumble / traps are a major cause of serious injury
• When operating the max. allowable slope of the working environment is 15^ !
• Keep attention by working on uneven ground or ground with slope!
• Working on icy or slippery ground is forbidden!
• No other person, children or pets shall remain within 15m!
• The machine must be operated only by trained persons (knowledge and understanding of this manual), which have no limitations of motor skills compared with conventional workers.
• Unauthorized persons, especially children and not trained personnel must be kept away from the running machine!
• Do not wear loose clothing, long hair openly or loose jewellery like necklaces etc. when operating the machine
  • They might be caught by rotating parts and cause serious injuries.
• Use personal safety equipment: ear protectors, safety gloves in EN 388, class 3111, safety shoes S1, safety goggles or face protection and safety helmet when working with the machine
• WARNING: Gasoline is highly flammable!
• Smoking and open flames are prohibited during refuelling. Do not refuel when the engine and carburettor are still very hot.
• Refuel only outdoors or in a well ventilated area.
• Avoid contact with skin and clothes (fire hazard).
• Check after refuelling tank cap and check for leaks.
• Danger of burns! During the operation flow of hot exhaust gases and engine parts such as the muffler and engine become hot.
• Never place a hot machine in dry grass or other easily flammable materials.
  • After the operation, the machine must cool down. Otherwise there is an imminent risk of burns
• Ensure yourself that there are neither water or gas pipes nor electric lines installed underground in the working area.
• Ensure yourself that there are no loose objects lying around in the working area.
• Eliminate high grass, bushes etc. from the immediate working area. They might be winded up by the rotating drill and block it.
• Take especially care, if the ground contains many stones or roots. An unattended stalling of the drill might easily cause an accident
• Never leave the machine running unattended!
• Switch off the machine before maintenance or adjustment.
• Never lift or carry the machine with the engine running
• Store in a dry, out of reach of children place and empty Tank completely

NOTICE

Emergency procedure

A first aid kitin accordance with ISO 3864 shouldalwaysbe readily availablefor apossible accident. Initiatetheviolationin accordance with thenecessaryfirst aidmeasures. Whenrequesting support,provide the following details:

1. Place of accident	2. Type of accident
3. Number of injured people	4. Injury type(s)

13.2 Remaining risk factors

Even if the machine is used as required it is still impossible to eliminate certain residual risk factors totally. The following hazards may arise in connection with the machine's construction and design:

- Risk of noise:

Working for a long time can damage your hearing if you do not use a very good hearing protection.

- Risk to the hands or fingers:

Access while it is working in the mowing apparatus. After the operation, the machine must cool down. Otherwise, there is an acute risk of scalding!

- Vibration:

The declared vibration emission value has been for a standardized test is measured and can be used to compare one tool with another electric are.

The declared vibration emission value may also be used for a preliminary assessment of exposure.

Warning:

Emission level of vibration can be different from the specified value during the actual use of the electric tool, depending on the manner in which the power tool is used. When you feel uncomfortable or notice discoloration of skin on your hands during the use of the machine, stop working immediately. Observe sufficient break times to rest. Failure to have sufficient break times may result in a hand-arm vibration syndrome.

The extent of exposure depending on the type of work or machine use should be estimated and appropriate breaks taken. In this way, the extent of exposure can be considerably reduced over the entire work time. Minimize the risk caused by vibrations. Maintain this machine according to the instructions in the manual.

- Risk of thrown out objects:

When working with earth augers there is a danger that stones and other objects are thrown out with injury potential by drilling. The risk of injury can be reduced by wearing appropriate safety equipment but not entirely eliminated. Make sure that other people or animals are not staying within the danger area.

- Risks of working area:

Ensure yourself that there are neither water or gas pipes nor electric lines installed underground in the working area.

- Risk of burns:

Touching the mufflers, exhaust and other machine components which can be hot after prolonged continuous operation or when the engine is hot cause severe burns.

- Risk of fire and explosion:

Gasoline is highly flammable and explosive under certain conditions.

NEVER refuel fuel or engine oil while the machine is in operation or is hot.

When refueling and at places where fuel is stored not smoke or allow open flames or sparks.

Do not overfill the fuel tank and avoid the spillage of gasoline during refueling. If fuel is spilled make sure the area is completely dry and cleaned before starting the engine.

Make sure that the filler cap is tightly closed again after refueling safely.

- Chemical risks:

Never use or refuel a gasoline or diesel engine in a closed area without adequate ventilation.

Carbon monoxide emissions from the internal drive units of the engine can cause in confined spaces through inhalation health effects and death. Therefore use the machine only in well-ventilated rooms or outdoors in operation.

Liquid fuels can cause serious damage on the skin and the environment.

- Risk of kickback

Through sudden blocking of the drill, it may, until the slip clutch begins to come to a sudden twist of the body.

These risk factors can be minimized through obeying all security and operation instructions, proper machine maintenance, proficient and appropriate operation by persons with technical knowledge and experience.

In spite of all safety is and remains her healthy common sense and their corresponding technical qualification / training for use of the machines most important safety factor!

14 OPERATION

Unpack the machine and check the machine for any transport damage and for completeness of delivery.

14.1 Operation instructions

NOTICE

• The machine is delivered pre-assembled, only the drill must be fitted before operation.
• If the rotating parts (drills) are mounted incorrectly, it can lead to serious accidents! Check before starting work the correct mounting of the drill.
• Mount the drill only with the supplied shear pin and split pin.
• Drill deeper holes within 2-3 working steps!
• Is the ground with many roots and / or stones keep extreme caution: Be especially careful that you do not meet an unexpected blocking of the drill by jamming in a root or a large stone unprepared.
• Before use check the earth auger to dust and dirt particles, particularly the engine cooling air inlet, carburetor and air filter. Clean if necessary.
• The first 10 hours of operation the machine shall not be operated but only at medium engine speed. Do not operate the engine at max. speed right from the start, as the engine itself as well as the gearing components need a running-in time. The engine itself reaches its max. capacity after the first 10 hours of operation. Non-compliance with this instruction reduces your engine lifespan substantially. To reduce the max. possible engine speed, turn the adjustment knob (H-5), so that the throttle lever (H-4) cannot be pushed entirely in

14.2 Operation

14.2.1 Mounting drill

• To mount the drill (Fig. A) turn the aggregate upside down
• Put the drill to the drill adapter that you can plug the shear pin through the holes.
• Insert the shear pin (Fig. J;b) through the drill and drill adapter and secure the shear pin with the split pin.

By using the drill extension bar (Fig. B) mount it like a drill and mount the drill like described above.

14.2.2 Refueling

The machine is run by a gasoline (bezenefree engine fuel)-oil mixture. You need for the 2-Stroke engine a fuel mixture of 40:1.Ensure yourself that no particles get into the fuel tank when refueling. Use a filter.

ZIPPER MASCHINEN strongly recommends the usage of HQ premixed fuels especially recommended for 2-stroke motors. Many of them keep their consistency even after long periods of storage.

If you prefer to mix your own fuel please use HQ Synthetic Oil for 2-stroke engines.

Synthetic oil reduces accumulation of soot on the spark plug, cylinder, engine cock and exhaust pipe. This increases the degree of lubrication and prolongs the engines lifespan.

HIN WEIS

Shake fuel tank prior to every usage! During storage oil descents slowly in the fuel tank. If you start the engine under this condition, it has barely any lubrication which would lead to severe engine damage. No warranty

14.2.3 Cold starting

1. Put the machine with the drill to the ground. The drill must be moved freely.
2. Put the choke into position ON as shown in (Fig. C).
3. Put the switch (H-3) into position START.
4. Push the fuel pump (I-9) 3-5 times (Fig. K).
5. Press the security lever (H-1) with the heel of your hand.
6. Operate the throttle lever (H-4).
7. Push the locking lever (H-2) in order to block the throttle lever to increased idling.
8. Now grab the bar holder (I-1) and with the other hand the starter handle (I-4) and pull it out briskly! Repeat if necessary
9. The engine starts with increased idle speed!
10. After engine has started push the throttle lever (H-4) and the locking lever (H-2) will be unlocked. Now the engine runs in normal idle speed.
11. If the engine runs clear put the choke into position OFF as shown in (Fig. D).
12. Let the engine run in idle speed for 2-3 Minutes!

14.2.4 Warm starting

1. Put the machine with the drill to the ground. The drill must be moved freely.
2. Put the switch (H-3) into position START.
3. Now grab the bar holder (I-1) and with the other hand the starter handle (I-4) and pull it out briskly! Repeat if necessary.

If the machine does not start after several attempts repeat the procedure as for cold starting.

14.2.5 Stopping the engine

The engine can stopped any time (especially in danger) by releasing the throttle lever and put the switch (H-3) into STOP position.

We recommend to first lift the drill out of the hole than release the throttle and then to put the switch (H-3) in position STOP.

Wait until the drill stands still. Now you can put down the machine.

WARNING

Stop the engine immediately in case of imminent danger!

14.3 Operating

• Remove loose objects lying around in the immediate working area. They might be winded up by the rotating drill and block it.
  • Take a safe position and hold the auger firmly on both handles.
• Put the tip of the auger on the ground and start the process carefully and increase gradually the speed.
• Drill holes without exerting too much body weight on the auger. Allow the auger to advance by its own weight.
• If the auger drill is jammed in the soil and cannot be pulled out, stop the engine remove the aggregate, mount the manual crank and turn out the drill counterclockwise.

15 MAINTENANCE

ATTENTI ON

No cleaning, upkeep, checks or maintenance when machine is running

Shut off the machine and let it cool down before start servicing!

The machine does not require intense maintenance. However, to ensure a long lifespan, we strongly recommend following the upkeep and maintenance plan.

Repairs must be carried out by specialists! Use original ZIPPER parts only!

Ware safety gloves if you mount or demount drills!

Damaged drills may never be straightened or welded!

NOTICE

Only a properly maintained equipment may be a satisfactory tool. Care and maintenance deficiencies can cause unpredictable accidents and injuries.

Repairs should be performed only by authorized service centers.

Improper operation may damage the equipment or endanger your safety.

15.1 Maintenance plan

Controls for the maintenance of the machine
Loose or lost screws, nuts, bolts	Regularly prior to each operation
Damage of any part of the machine	Regularly prior to each operation
Damage of drills	Regularly prior to each operation
Fuel tank of tightness	Regularly prior to each operation
Machine cleaning	Regularly after operation
Cleaning spark plug	Every 25 working hours
Cleaning air filter	Every 20-30 working hours

15.2 Cleaning

Clean the machine and the working attachment from soil, dust, grass, chips, and small twigs, etc. Clean the machine housing with a wet cloth and a mild cleaning solution.

Put on all coatless flats a thin coat of oil.

NOTICE

The usage of solvents, aggressive chemicals or scouring agents damages the machine housing.

15.2.1 Clean the air filter

A clogged air filter reduces the engines power output drastically and causes engine disfunction. Furthermore it reduces the engines lifespan!

Loosen with a hex-key the screw fixing the air filter cover (Fig. E).

Take off the cover and remove the filter (Fig. F).

Clean the air filter (Fig G) with water. Wring it out strongly. Let it dry. Drip some drops of oil onto the filter. Mount the filter back and mount on the cover again.

15.2.2 Clean the spark plug

Take off the spark plug cap (I-2). Loosen and remove the spark plug. Clean it with a small brush from soot debris.

The contact distance shall account approx. 0, 5mm or \~ credit card thickness.

15.2.3 Carburettor

NOTE

Carburettor adjustments should be carried out only by trained specialist personnel!

15.2.4 Storage

If you store the machine longer than 30 days:

• Allow the engine to cool down before storing the machine
• Drain fuel from fuel tank and carburettor and store the fuel in a suitable container.
  • Store the unused machine in a dry place out of the reach of children.

15.2.5 Disposal

Do not dispose the machine, machine components fuel and oil in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old.

16 TROUBLE SHOOTING

Trouble	Possible cause	Solution
Engine does not start	Incorrect starting sequence	Observe the correct starting sequence
	Dirty air filter	Clean/replace air filter
	No fuel supply	Refuel
	Fault in the fuel line	Check the fuel line for kinks or damages
	Engine flooded.	Screw off, clean and dry the spark plug. Then pull the cranking rope several times and reinstall the spark plug
	Spark plug connector not placed on.	Place on the spark plug connector
	No ignition spark	Clean/replace spark plugCheck ignition cable
Engine starts and is stalled immediately	Incorrect idle adjustment	Contact customer service
Machine works with interruptions	Carburetor incorrectly adjusted	Contact customer service
	Spark plug fouled	Clean/replace spark plugCheck spark plug connector
Smoke	Incorrect fuel mixture	Use correct fuel mixture
	Carburetor incorrectly adjusted	Contact customer service
Machine does not work with full performance	Machine overloaded	Too much pressuresoil too tough
	Dirty air filter	Clean/replace air filter
	Carburetor incorrectly adjusted	Contact customer service
Drill rotates at idling	Idle speed too high	Adjust a lower idle speed
Drill rotates but has no power	Choke is ON	Set Choke to OFF
Drill jumps	Drill damaged	Replace a new drill
	Unsuitable, stony soil	impossible

NOT ICE

Should you in necessary repairs not able to properly to perform or you have not the prescribed training for it always attract a workshop to fix the problem.

17 MODE D'EMPLOI (FR)

Cher Client!

(EN) With original ZIPPER spare parts you use parts that are attuned to each other shorten the installation time and elongate your machines lifespan.

IMPORTANT

The installation of other than original spare parts voids the warranty! So you always have to use original spare parts

When you place a spare parts order please use the service formular you can find in the last chapter of this manual. Always take a note of the machine type, spare parts number and partname. We recommend to copy the spare parts diagram and mark the spare part you need.

You find the order address in the preface of this operation manual.

Exploded view diagram of a mechanical assembly with numbered parts for identification

1	engine	1
2	connecting plate	1
3	inner hexagon screw M6x20	4
4	gear case assy	1
5	inner hexagon combination screw M6x45	4
6	shock absorbing rubber	2
7	handle cover	1
8	earth driller frame	1
9	switch & gas lever & cable	1
10	switch assy	1
11	hex screw M12*16	1
12	straight pin & R shape pin	1
13	inner hexagon combination screw M6x30	4
14	driller bit	1

Company ZIPPER Maschinen GmbH grants for mechanical and electrical components a warranty period of 2 years for amateur use; and warranty period of 1 year for professional use, starting with the purchase of the final consumer. In case of defects during this period, which are not excluded by paragraph 3, ZIPPER will repair or replace the machine at its own discretion.

2.) Report:

In order to check the legitimacy of warranty claims, the final consumer must contact his dealer. The dealer has to report in written form the occurred defect to ZIPPER. If the warranty claim is legitimate, ZIPPER will pick up the defective machine from the dealer. Returned shippings by dealers which have not been coordinated with ZIPPER, will not be accepted and refused.

3.) Regulations:

a) Warranty claims will only be accepted, when a copy of the original invoice or cash voucher from the trading partner of ZIPPER is enclosed to the machine. The warranty claim expires if the accessories belonging to the machine are missing.
b) The warranty does not include free checking, maintenance, inspection or service works on the machine. Defects due to incorrect usage of the final consumer or his dealer will not be accepted as warranty claims either. Some examples: usage of wrong fuel, frost damages in water tanks, leaving fuel in the tank during the winter, etc.
c) Defects on wear parts are excluded, e.g. carbon brushes, collection bags, knives, cylinders, cutting blades, clutches, sealings, wheels, saw blades, splitting crosses, riving knives, riving knife extensions, hydraulic oils, oil/air/fuel filters, chains, spark plugs, sliding blocks, etc.
d) Also excluded are damages on the machine caused by incorrect or inappropriate usage, if it was used for a purpose which the machine is not supposed to, ignoring the user manual, force majeure, repairs or technical manipulations by not authorized workshops or by the customer himself, usage of non-original ZIPPER spare parts or accessories.
e) After inspection by our qualified personnel, resulted costs (like freight charges) and expenses for not legitimated warranty claims will be charged to the final customer or dealer.
f) In case of defective machines outside the warranty period, we will only repair after advance payment or dealer's invoice according to the cost estimate (incl. freight costs) of ZIPPER.
g) Warranty claims can only be granted for customers of an authorized ZIPPER dealer who directly purchased the machine from ZIPPER. These claims are not transferable in case of multiple sales of the machine.

4.) Claims for compensation and other liabilities:

The liability of company ZIPPER is limited to the value of goods in all cases. Claims for compensation because of poor performance, lacks, damages or loss of earnings due to defects during the warranty period will not be accepted. ZIPPER insists on its right to subsequent improvement of the machine.

61 GARANTI ET SERVICE (FR)

1.) Garantie:

Product experience form

We observe the quality of our delivered products in the frame of a Quality Management policy.

Your opinion is essential for further product development and product choice. Please let us know about your:

• Impressions and suggestions for improvement.
• experiences that may be useful for other users and for product design
• Experiences with malfunctions that occur in specific operation modes

We would like to ask you to note down your experiences and observations and send them to us via FAX, E-Mail or by post:

Erworben von / purchased from:

E-Mail/ e-mail:

service inquiry spare part inquiry guarantee claim

Please describe amongst others in the problem: What has cause the problem/defect, what was the last activity before you noticed the problem/defect? For electrical problems: Have you had checked you electric supply and the machine already by a certified electrician?

3. Bitte beachten

/ Additional information

INCOMPLETELY FILLED SERVICE FORMS CANNOT BE PROCESSED! FOR GUARANTEE CLAIMS PLEASE ADD A COPY OF YOUR ORIGINAL SALES / DELIVERY RECEIPT OTHERWISE IT CANNOT BE ACCEPTED. FOR SPARE PART ORDERS PLEASE ADD TO THIS SERVICE FORM A COPY OF THE RESPECTIVE EXPLODED DRAWING WITH THE REQUIRED SPARE PARTS BEING MARKED CLEARLY AND UNMISTAKABLE. THIS HELPS US TO IDENTIFY THE REQUIRED SPARE PARTS FASTLY AND ACCEL- LERATES THE HANDLING OF YOUR INQUIRY.
