OM540RVS - Oven Pelgrim - Free user manual and instructions

Product type	Combi microwave oven
Brand	Pelgrim
Model	OM540RVS
Power supply	230 V ~ 50 Hz
Max microwave power	1000 W
Cooking functions	Hot air, Double grill, Natural convection, Slow cooking, AirBake, Microwave, Combined hot air + microwave, etc.
Microwave power levels	5 levels (90 W to 1000 W)

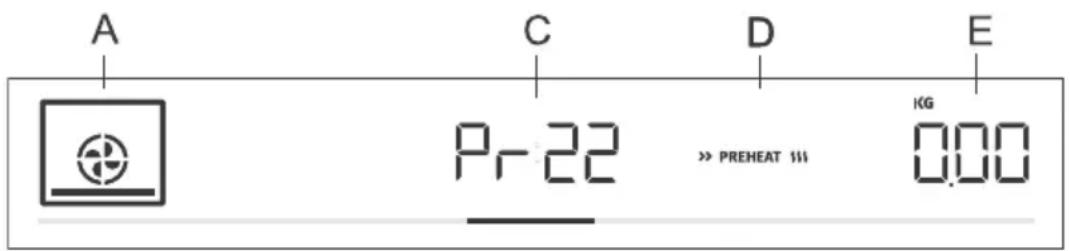

Automatic programs	22 programs (cookies, pizza, meat, fish, etc.)
Rapid preheating	Yes
Professional mode (ProBake)	Free settings for temperature, duration, cooking system
Automatic mode (AutoBake)	Special systems and predefined automatic programs
Additional function	AquaClean (steam cleaning), Defrost, Reheat, Plate warming
Timer	Yes, up to 24 h
Delayed start	Yes (except with rapid preheating)
Sabbath mode	Yes (24 to 72 h)
Child safety	Yes (touch lock)
Cleaning	AquaClean program, manual cleaning with soapy water
Accessories supplied	Rack, shallow baking tray, deep multi-purpose baking tray (perforated)
Interior lighting	Halogen lamp G9, 25 W, 230 V
Number of cooking levels	4
Installation type	Built-in (fixed wiring with disconnect device)
Country of origin	Not specified

Frequently Asked Questions - OM540RVS Pelgrim

How to set the clock on the Pelgrim OM540RVS oven?

After power-on, 12:00 flashes. Turn the SELECTOR knob to set the minutes, press to confirm, then set the hours and confirm. You can also change the clock via the general settings menu (hold the extra bake key).

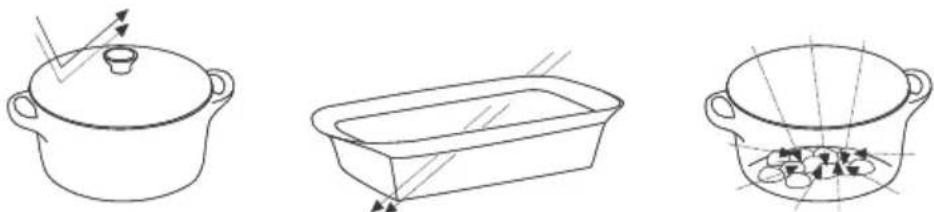

Which utensils can I use in microwave mode?

Use only microwave-safe containers (glass, ceramic, microwave-safe plastic). Avoid metal, gold or silver rims. The provided racks and metal trays should not be used in microwave-only mode.

How to activate the child lock?

Hold the light key for 5 seconds. 'Loc' appears. To deactivate, repeat the same procedure. In locked mode, the oven cannot be used without unlocking.

What to do if the display shows an error code ErrX or ErXX?

Unplug the appliance from the mains for a few minutes, then plug it back in. If the code persists, contact an authorized maintenance technician. Do not attempt to repair it yourself.

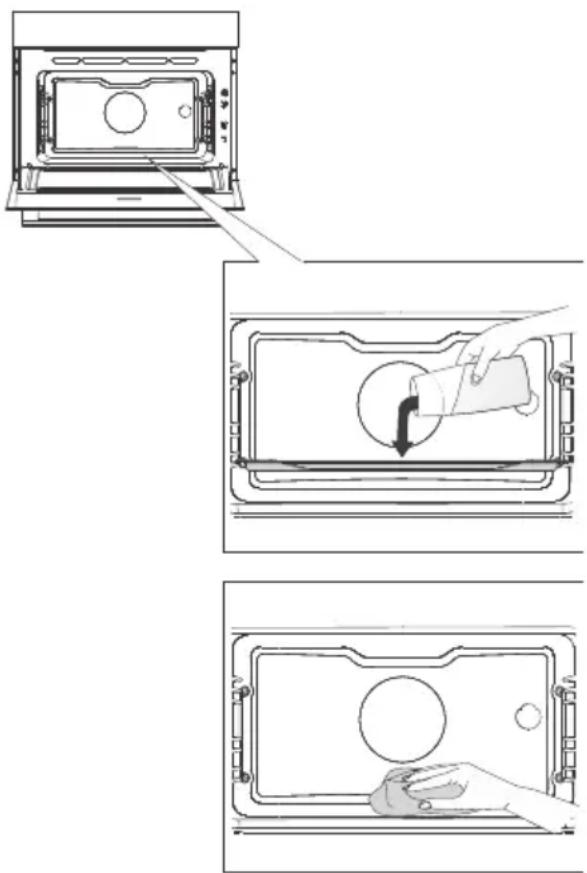

How to use the AquaClean program to clean the oven?

Place a glass dish with 1.5 dl of hot water on the first guide level. Press the extra bake key, select the AquaClean symbol and start the program (8 min). Then wipe off dirt with a damp cloth.

Can I use the delayed start function with rapid preheating?

No, delayed start is not possible when rapid preheating is activated. You must choose one or the other option.

How to replace the oven bulb?

Unplug the appliance. Remove the accessories. The bulb is a halogen G9, 25 W, 230 V. Unscrew the cover, replace the bulb, screw back firmly. Do not remove the cover gasket.

What are the available microwave power levels?

The levels are: 90 W (defrost), 180 W, 360 W, 600 W, 750 W, 1000 W. Adjust according to the food: 1000 W for heating liquids, 600 W for cooking meat, 180 W for defrosting.

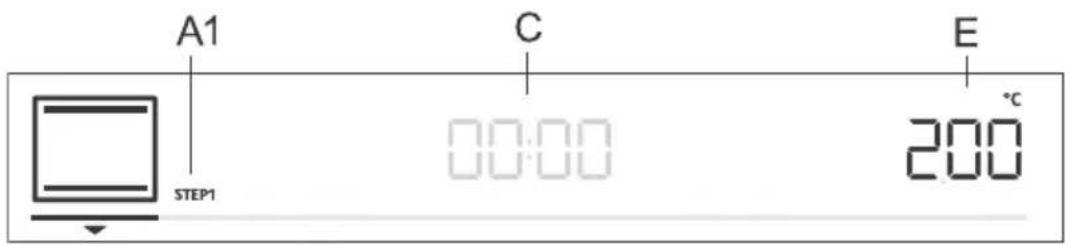

How to set a two-step cooking (STEP mode)?

In professional mode, first set the system and temperature for STEP1, then the duration. Then hold the extra bake key to access STEP2, set system, temperature and duration. Start with the start/stop key.

What does the PREHEAT!!! symbol on the display mean?

This is the rapid preheating function. To activate it, turn the SELECTOR knob to PREHEAT!!!, confirm, then select the fully lit symbol. The oven heats up quickly. Once the temperature is reached, a beep sounds and 'door' is displayed; insert the food.

USER MANUAL OM540RVS Pelgrim

Simple line drawing of a rectangular object above a horizontal bar with a circular element, no text or symbols present.

OM540...

Technical diagram of an oven with numbered components for identification

Technical line drawing of a mechanical component with cross-sectional views (no text or symbols)

Line drawing of a rectangular basin or basin with no text, numbers, or symbols

GLAZENBAKSCHAALkanwordengebruikt bijallebak/braadsystemenindeovenen magnetronofalsserveerblad.

Simple line drawing of a rectangular tray or container with no text or symbols

Line drawing of a rectangular tray with multiple slots and a central slot (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows and internal components (no text or symbols)

Ditzijndekenmerken:

Line drawing of a cooking pot with lid and side handles (no text or symbols)

Simple line drawing of a rectangular basin with no text or symbols

Line drawing of a cooking pot with arrows indicating heating direction (no text or symbols)

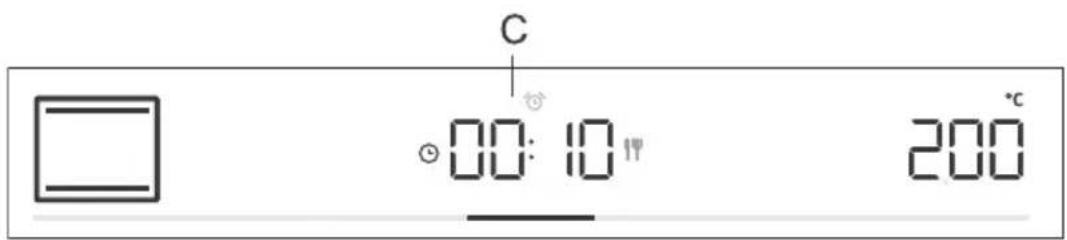

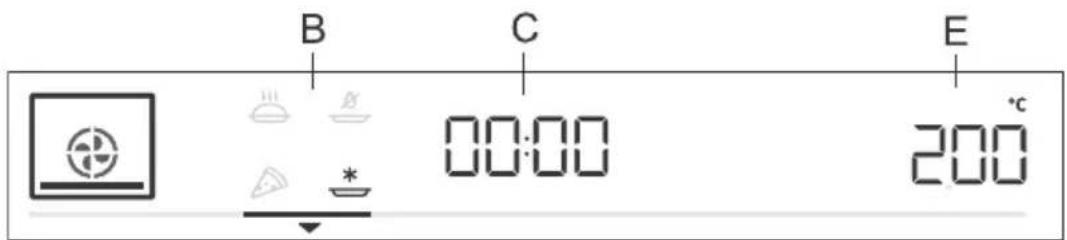

C 00:10 200°C

Kokenoptijd

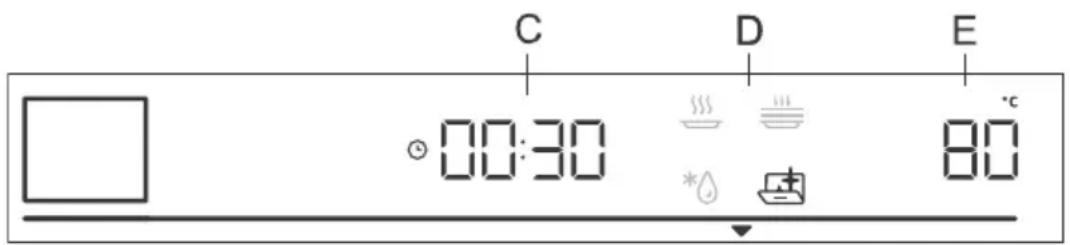

C D E 00:30 °C 80

C.bereidingstijd

D.programma

Diagram showing a device being inserted into a rack, with no visible text or symbols

Diagram showing three steps of a kitchen appliance opening, with Chinese text labels indicating the process.

1 Plaatsdeondiepebakplaatinheteerste geleideniveauengieter1,5dlheetwaterin.

Technical diagram showing a mechanical assembly with a rotating tool and a base, no text or symbols present.

Pure electrical circuit lines without any symbols

Pure technical diagram of a mechanical or structural assembly with no text, numbers, or symbols

Technical diagram showing installation steps of a microwave oven, including mounting, switch, and internal components with numbered parts.

Warning symbol with exclamation mark inside a triangle

Simple line drawing of a rectangular object above a horizontal bar with a circular element, no text or symbols present.

OM540...

Technical diagram of an oven with numbered components for identification

8Indicationsetsymbolesdeconformité4Marque

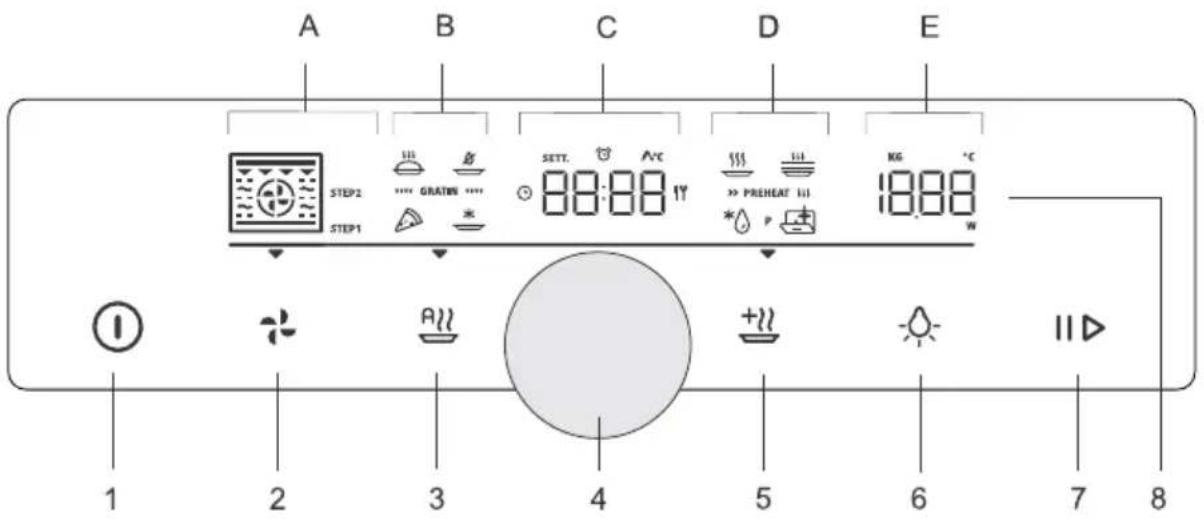

Bandeaudecommandes

(selonlemodèle)

A B C D E STEP2 STEP1 GRATM SETT. 88:88 PREHEAT KG 1888 W 1 2 3 4 5 6 7 8

Technical line drawing of a mechanical component with cross-sectional views (no text or symbols)

Interrupteursurlaportedufour

Simple line drawing of a rectangular basin or basin (no text or symbols)

LEPLATEAUDECUISSONENVERREest

Simple line drawing of a rectangular tray or container with no text or symbols

LaPLAQUEDECUISSONPEUPROFONDE

Line drawing of a rectangular tray with multiple slots and a central slot (no text or symbols)

LaFLACHEPERFORIERTEBACKBLECHest

Diagram of a mechanical or electrical component with directional arrows and internal components (no text or symbols)

Line drawing of a cooking pot with lid and side handles (no text or symbols)

Simple line drawing of a rectangular container with a handle and side lines, no text or symbols present.

Line drawing of a cooking pot with food items inside (no text or symbols)

C 00:10 °C 200

Cuissonprogrammée

C D E 00:30 °C 80

C.cookingduration

D.program

E.presettemperature

Diagram showing a device being inserted into a rack, with no visible text or symbols

Diagram showing three steps of a kitchen appliance opening, with Chinese text labels indicating the process.

Technical diagram showing a mechanical assembly with a lever mechanism (no text or symbols present)

Pure technical diagram of a heat exchanger or cooling unit with no text, numbers, or symbols

Pure technical diagram showing parallel lines and arrows without any text, numbers, or symbols

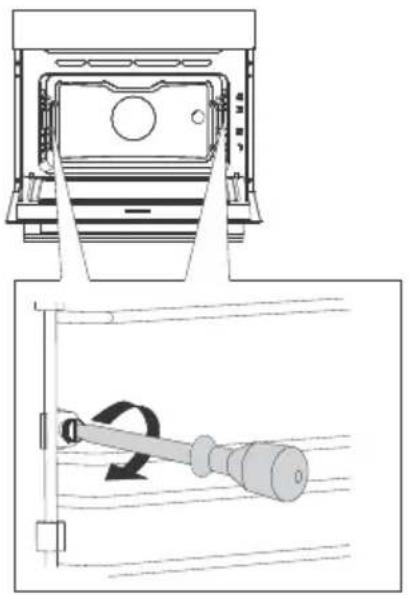

1 Dévissezlavis.Utilisezuntournevis.

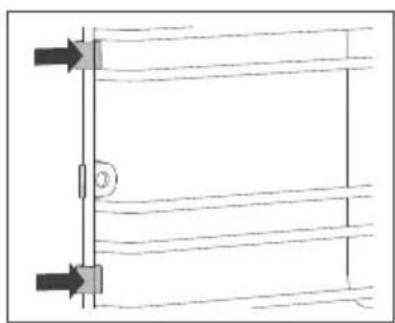

2 Retirezlesguidesdestrousdanslaparoi arrière.

INFORMATION

Technical diagram showing installation steps of a microwave oven, including mounting, switch, and internal components with numbered parts.

1 Dévissezlesquatrevis.Retirezlecouvercle etlavitre.

2 Retirezl'ampoulehalogèneetremplacez-la paruneneuve.

INFORMATION

Warning symbol with exclamation mark inside a triangle

Simple line drawing of a rectangular object above a horizontal bar with a circular element, no text or symbols present.

OM540...

Bedienungsanleitung

Kombi-Mikrowellenherd

Technical diagram of an oven with numbered components for identification

A B C D E STEP2 STEP1 GRATM SETT. 88:88 PREHEAT KG 1888 W 1 2 3 4 5 6 7 8

Technical line drawing of a mechanical component with cross-sectional views (no text or symbols)

Line drawing of a rectangular basin or basin with no text, numbers, or symbols

Simple line drawing of a rectangular tray or container with no text or symbols

Line drawing of a rectangular tray with multiple slots and a central slot (no text or symbols)

Das FLACHEPERFORIERTEBACKBLECH

Diagram of a mechanical or electrical component with directional arrows and internal components (no text or symbols)

Line drawing of a cooking pot with lid and side handles (no text or symbols)

Simple line drawing of a rectangular container with a handle and side lines, no text or symbols present.

Line drawing of a cooking pot with a side dish and arrows indicating heating (no text or symbols)

C 00:10 °C 200

C D E 00:30 °C 80

Diagram showing a device being inserted into a rack, with no visible text or symbols

Three-step diagram showing a kitchen oven with a hand holding a container, illustrating the process (no text or symbols)

Technical diagram showing a mechanical assembly with a rotating tool and a base, no text or symbols present.

Pure electrical circuit lines without any symbols

Pure schematic diagram of parallel lines with arrows indicating direction, no text or symbols present

Technical diagram showing installation steps of a microwave oven, including mounting, switch, and internal components with numbered parts.

Warning symbol with exclamation mark inside a triangle

Simple line drawing of a rectangular object above a horizontal bar with a circular element, no text or symbols present.

OM540...

Instructions for use

Combined microwave oven

Wethankyouforyourtrustandthepurchaseofourappliance.

This detailed instruction manual is supplied to make the use of this product easier. The instructions should allow you to learn about your new appliance as quickly as possible.

Makesureyouhavereceivedanundamagedappliance.Ifyoudofindtransportdamage, pleasecontactthesellerfromwhichyoupurchasedtheappliance,ortheregional warehousefromwhichitwassupplied.Thetelephonumbercanbefoundonthe invoiceoronthedeliverynote.

Instructions for installation and connection aresupplied on a separate sheet.

The following symbols are used throughout the manual and they have the following meanings:

INFORMATION!

Information, advice, tip, or recommendation

WARNING!

Warning-general danger

It is important that you carefully read the instructions.

Contents

Safety precautions 4

Safe use of the microwave oven 6

Other important safety warnings 8

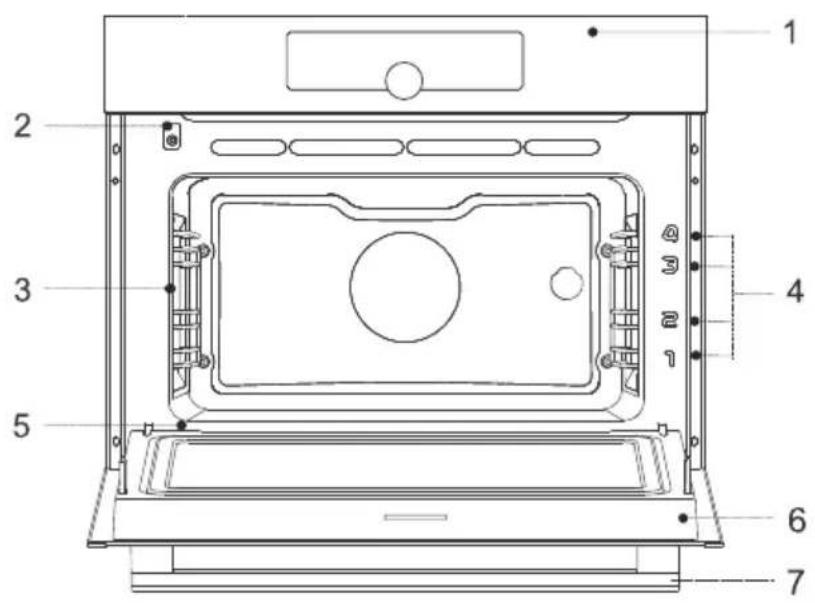

Appliance description 10

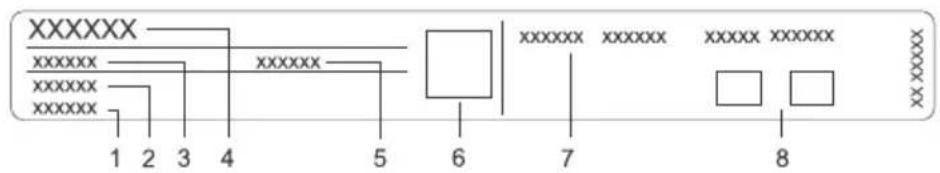

Rating plate – product information 10

Control unit 11

Appliance equipment 12

Control lights 12

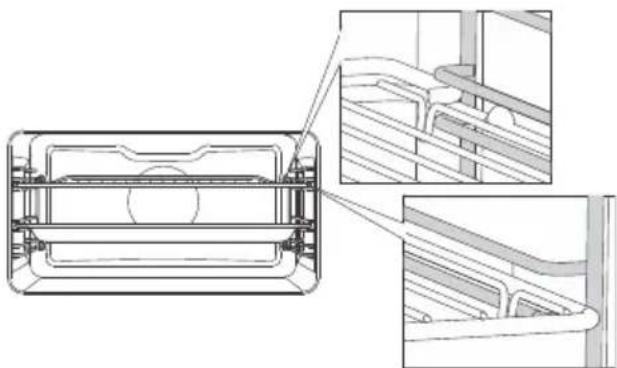

Guides 12

Oven door switch 12

Cooling fan 12

Oven equipment and accessories 13

Before first use 14

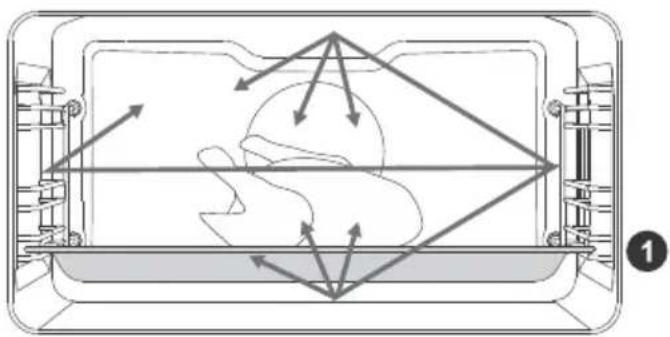

Microwave function 14

Switching on for the first time 15

Choosing the settings 16

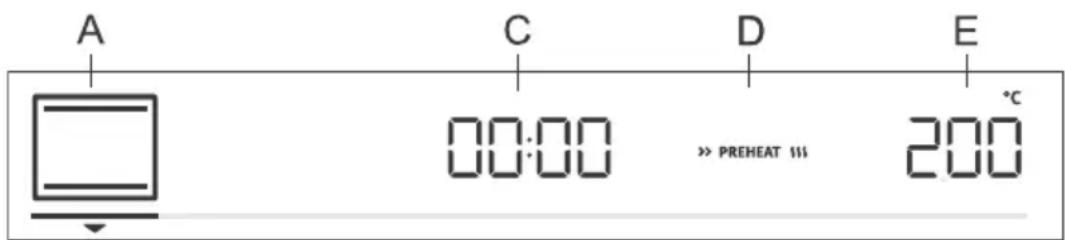

PROFESSIONAL MODE (pro bake) 16

AUTOMATIC MODE (auto bake) 22

25CHOOSII

Child lock 26

Starting the cooking process 28

28Endofco

Choosing the general settings 29

General tips and advice for baking 31

Cleaning and maintenance 32

33Usingthe

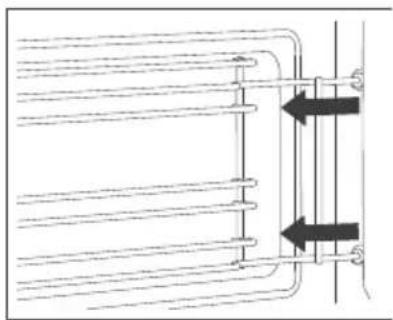

Removing and cleaning the wire guides 34

Replacing the bulb 35

Troubleshooting table 36

Special warnings and fault reporting 36

Disposal 37

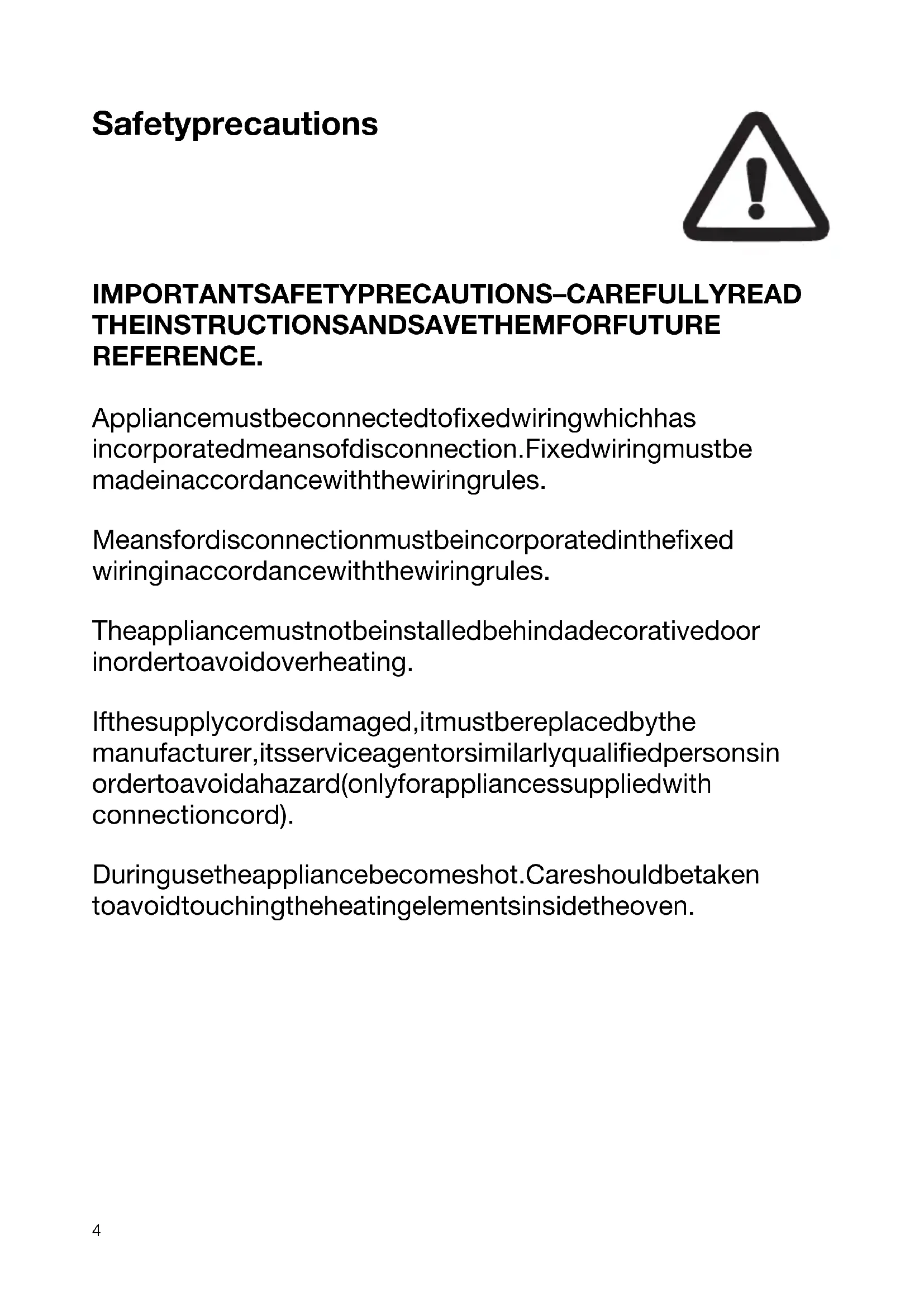

Safetyprecautions

Warning symbol: black exclamation mark inside a triangle (no text or numbers)

IMPORTANTSAFETYPRECAUTIONS-CAREFULLYREAD THEINSTRUCTION SANDSAVETHEMFORFUTURE REFERENCE.

Appliancemustbeconnectedtofixedwiringwhichhas incorporatedmeansofdisconnection.Fixedwiringmustbe madeinaccordancewiththewiringrules.

Meansfordisconnectionmustbeincorporatedinthefixed wiringinaccordancewiththewiringrules.

Theappliancemustnotbeinstalledbehindadecorativedoor inordertoavoidoverheating.

If the supply cord is damaged, it must bere placed by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard (only for appliance supplied with connection cord).

During usethe appliance becomeshot. Careshould betaken to avoid touching the heating elements inside the oven.

This appliance can be used by children aged 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in asafeway, and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

WARNING: Accessible parts may become hot during use. Young children should be kept away.

WARNING:Theapplianceandsomeofitsaccessibleparts maybecomeveryhotduringuse.Careshouldbetakentoavoid touchingheatingelements.Childrenlessthan8yearsofage shallbekeptawayunlesscontinuouslysupervised.

The appliance is not intended to be controlled by external timers or separateremote control system.

Donotuseharshabrasivecleanersorsharpmetalscrapersto cleantheovendoorglass/theglassofhingedlidsofthehob (asappropriate),sincetheycanscratchthesurface,whichmay resultinshatteringoftheglass.

Donotusesteamcleanersorhigh-pressurecleanerstoclean theapplianceasthismayresultinanelectricshock.

WARNING: Before replacing the light bulb, makes sure the appliance has been disconnected from themains power, in ordertoprevent the hazard of an electric shock.

Neverpourwaterdirectlyonthebottomoftheovencavity. Temperaturedifferencescouldresultindamagetotheenamel coating.

Safeuseofthemicrowaveoven

WARNING: Duetotheextremelyhightemperaturesgenerated when the appliance is used in combination mode, it is recommended that children only use the oven under adult supervision.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is extremely hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of covers protecting against exposure to microwave energy.

WARNING: Liquids and other foodsmust not be heated in sealed containers since they are liable to explode.

The appliance is intended for use in households and similar environments, such as:

• staffpantriesinstoresandotherworkingenvironments;
• familyfarms;
• accommodationunitsforguestsathotels,motels,andother accommodationorlodgingestablishments;
  • bedandbreakfastestablishments.

Onlyuseutensilssuitableforuseinmicrowaveovens.

When cooking with microwaves, donotuse metal containers for food or beverages.

Whenheatingfoodinplasticorpapercontainers,keepaneye ontheoven,assuchpackagingmayignite.

Microwaveheatingofbeveragescanresultindelayederuptive boiling.Therefore,takecarewhenhandlingthecontainerwith theheatedbeverage.Topreventthis,placeanon-metalobject (e.g.,awooden,glass,orplasticspoon)intothecontainer duringtheheating-upprocess.

Toavoidburns,thecontentsofbabybottlesandbabyfood jarsshouldbeshakenorstirred,andtheirtemperaturechecked beforefeeding.

Eggsintheirshellshouldnotbeheatedinmicrowaveovens sincetheymayexplodeevenaftermicrowaveheatinghas ended.

If you observe smoke, switch off for unplug the appliance and keep the oven door closed to stiffly flames.

Themicrowaveovenisintendedforheatingfoodand beverages.Dryingfoodorclothingandheatingofhotpacks orpads,slippers,sponges,moistclothsetc.mayresultininjury, ignition,orfire.

Theovenshouldbecleanedregularly,andanyfooddeposits shouldberemoved.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in an hazardous situation.

If the appliance is integrated into a kitchen cupboard with a door, the cupboard should be open while the appliance is in use.

Otherimportantsafetywarnings

The appliance is intended for household use. Donot use it for any other purpose, such as room heating, drying of pets or other animals, paper, fabrics, herb setc. Asthism may lead to injury or fire hazard.

Appliancemustbeconnectedtofixedwiringwhichhasincorporatedmeansofdisconnection.Fixed wiringmustbemadeinaccordancewiththewiringrules.

Donotlifttheappliancebyholdingitbythedoorhandle.

Ovendoorhingesmaybedamagedwhenunderexcessiveload.Donotstandorsitontheopenoven door, anddonotleanagainstit. Also, donotplaceanyheavyobjectsontotheovendoor.

If the power cord so of other appliances placed near this appliance get entangled in the ovendoor, they can be damaged, which in turn can result in a short circuit. Therefore, makes sure the power cord so of other appliances are always at as a fast distance.

Ovendoorbecomeveryhotduringoperation.Athirdglassisinstalledforextraprotection,reducing thetemperatureoftheoutsidesurface(onlywithsomemodels).

Makesuretheventsarenevercoveredorobstructedinanyotherway.

Donotlinetheovencavitywithaluminiumfoil, and donotplaceanybakingtraysorothercookware ontheovenbottom. This would obstruct and reduce aircirculation in the oven, slowdown the baking process, and destroy the enamel coating.

Werecommendyouavoidopeningtheovendoorduringbaking,asthisincreasespowerconsumption andincreasescondensateaccumulation.

Attheendofthebakingprocess, and during baking, be careful when opening the ovendoor, asthere is dangerofscalding.

Topreventlimescaleaccumulation,leavetheovendooropenafterbakingorusingtheoven,toallow theovencavitytocooldowntoroomtemperature.

Cleantheovenwhenithascompletelycooleddown.

Eventualmismatchesincolourshadesbetweendifferentappliancesorcomponentswithinasingledesignlinemayoccurduetovariousfactors,suchasdifferentanglesunderwhichtheappliancesareobserved,differentcolouredbackgrounds,materials,androomillumination.

Neverpourwaterontotheovencavitybottom. Temperaturedifferencescouldresultindamagetothe enamelcoating.

Donotusetheapplianceifitisdamaged.Callanauthorizedservicecentre.

Heedtheminimumdistancebetweentheupperedgeoftheovenandtheclosestobjectaboveit.

Themicrowaveovenisintendedforheatingfoodandbeverages.Dryingfoodorclothingandheating ofhotpacksorpads,slippers,sponges,moistclothsetc.mayresultininjury,ignition,orfire.

Alwaysuseovenmittstoremovedishesfromtheoven.Somepots,pans,ortraysmayabsorbthe heatfromthefoodandthusbecomeveryhot.

Make sure to only use the cookware that is suitable for use in a microwave oven. Do not use steel cookware or cookware with goldenorsilverdecorative edgesorornaments.

Donotleaveanyaccessoriesorutensilsinyourovenwhenitisoff.Donotswitchonanempty oventoavoiddamagingit.

Donotuseporcelain, ceramic, oearthenwarecookwareifsuchmaterialsareporousorifsuch cookwareisnotglazedontheinside.Onceheatedup,themoisturethatwouldpenetratethesepores couldcausecracking.Onlyusecookwareintendedforuseinamicrowaveoven.

Alwaysreadandobservetheinstructionsforheatinginamicrowaveoven,specifiedonthefood packaging.

Be careful when heating alcohol-containing food, as a combustible mixture of alcohol and air may forminsidetheoven. Becarefulwhenopeningthedoor.

Useofmetalcookware,forks,spoons,knivesorstaplesorfastenersonfrozenfoodpackagesisnot recommendedwhencookingorheatingwithmicrowavesoracombinationofmicrowavesand convectionbaking.Afterheating,stirthefoodorleaveittorestuntiltheheatisevenlydistributed.

DonotconnecttheappliancetopowersupplyifanELCB(earth-leakagecircuitbreaker)isinstalled inthepowersupplycircuit.

WARNING!

Carefullyreadtheinstructionsforusebeforeconnectingtheappliance.Repairorany warrantyclaimresultingfromincorrectconnectionoruseoftheapplianceshallnotbe coveredbythewarranty.

Appliancedescription

INFORMATION!

Appliancefunctionsandequipmentdependonthemodel.

Basicequipmentofyourapplianceincludeswireguides,shallowbakingtray,andawirerack.

Technical diagram of an oven with numbered components for identification

5Ratingplate1Controlunit

6Ovendoor2Doorswitch

7Doorhandle3Lighting

4Guides-cooking levels

Ratingplate-productinformation

Aratingplatewithbasicinformationabouttheapplianceisattachedtotheedgeoftheoven.Precise informationonappliancetypeandmodelcanalsobefoundonthewarrantysheet.

XXXXXX xxxxxx xxxxxx xxxxxx 1 2 3 4 5 6 7 8

Oven light: oven light is switched on when you open or close the oven door, when you switch on the oven, attheendofthebakingprocess, and whenyoutouchtheovenlightkeyonthecontrolunit.

Guides

•Theguidesallowcookingorbakingon4racklevels.
• The height levels of guides into which the racks can be inserted shall be counted from bottom up.
•Guides3and4areintendedforgrilling.
- Wheninsertingequipment, it should be correctly rotated.

Wireguides

Technical line drawing of a mechanical component with cross-sectional views (no text or symbols)

Incaseofwireguides,alwaysinsertthewire rackandthebakingtrayintotheslotbetween theupperandlowerpartofeachguidelevel.

Ovendoorswitch

Iftheovendoorisopenedduringovenoperation,theswitchturnsofftheheaters,microwaves,and fanintheovencavity.Whenthedoorisclosed,theswitchturnstheapplianceoperationbackon.

Coolingfan

The appliance is fitted with a cooling fan that cool the housing, the door, and the appliance control unit. After the oven is switched off, the cooling fan continues to operate for a short while in order to cooldown the oven.

Ovenequipmentandaccessories

WARNING!

Neverusethewirerack, the shallow baking tray or the deep baking tray or any other metal partor accessory when operating as system with microwaves.

Simple line drawing of a rectangular basin or container (no text or symbols)

GLASSBAKINGDISHisintendedforcooking withallovensystemsandforcookingwith microwaves.Itcanalsobeusedasaserving tray.

The WIRERACK is used for grilling/broiling or support forapan, baking tray or baking dish with the foody you are baking.

INFORMATION!

Thereisasafetylatchonthewirerack. Therefore, the wirerack hastobelifted slightly at the front when pulling it out from the oven.

Simple line drawing of a rectangular tray or container with no text or symbols

SHALLOWBAKINGTRAYisusedforflatand smallpastry.Itcanalsobeusedasadriptray.

WARNING!

Theshallowbakingtraymaydeformas itheatsupintheoven.Onceitcools down,itreturnstotheinitialshape. Suchdeformationdoesnotaffectits function.

Line drawing of a rectangular tray with multiple slots and a central slot (no text or symbols)

The AIRFRYBAKINGTRAY is used for cooking with system that feature steaminjection and for Air Bake. The perforation improves Air Bake around the food for acrispier crust. When cooking food with high liquid content (water, fat), placetheshallow baking tray or all-purposed deep baking tray on eracklow to serve as driptray.

WARNING!

The appliance and some of the accessible part tend to heat up during cooking.

Beforefirstuse

• Removeovenaccessoriesandanypackaging(cardboard.polystvrenefoam)fromtheoven.
• Wipetheovenaccessoriesandinteriorwithadampcloth.Donotuseabrasiveoraggressive clothsorcleaners.
• Heatanemptyovenforapproximatelyonehourwiththetopandbottomheatersystemata temperatureof250°C.Thecharacteristic"newovenscent"willbereleased;therefore,ventilate theroomthoroughlyduringthisprocess.

Microwavefunction

Microwaves are used for cooking, roasting, and defrosting of food. They allow quick and efficient cookingwithoutchangingthecolourorshapeofthefood.

Microwavesareatypeofelectromagneticradiation. Suchradiationiscommonlyfoundinour environmentintheformofradio-electricwaves, lightorinfraredrays. Microwavefrequencyisinthe 2,450MHzrange.

Diagram of a mechanical or electrical component with directional arrows and internal components (no text or symbols)

Followingaretheircharacteristics:

-microwavesarereflectedbymetals, -microwavestravelthroughothermaterials, -microwavesareabsorbedbywater,fat,andsugarmolecules.

Three line drawings of cooking pots: a lid, a rectangular basin, and a pot with a bowl containing food items (no text or symbols)

Whenfoodisexposedtomicrowaves,themoleculesbegintomoverapidly,therebygeneratingheat. Themicrowavespenetrateapproximately2.5cmdeepintothefood.Ifthefoodisthicker,thecoreof thefoodwillbecookedbyconduction,asinconventionalcooking.

WARNING!

Neveruseoractivateamicrowavesystemiftheovenisempty.

Switchingonforthefirsttime

Afterconnectingyourapplianceorafteranextendedpoweroutage,12:00willflashonthedisplay.

First, choose and confirm the following basic settings.

INFORMATION!

Change them by rotating the KNOB. To confirm the desired setting, press the KNOB or touch the key.

1.CLOCKSETTING

Settheclock/timeofday.First,setandconfirmtheminutes;thenset and confirmthehours.

INFORMATION!

Tosetoradjusttheclocklateron,seechapterExtrafunctions.

2.ACOUSTIC SIGNALVOLUME

Mediumvolumeisthedefaultsetting.ThesignVoLandthecurrentlyset valuefortheacousticsignalvolumewillappearonthedisplayunit.Rotate theKNOBtoincreaseordecreasethekeyvolume.

3.DISPLAYDIMMER

Mediumlightintensityisthedefaultsetting.Thesignbrhtandthe currentlysetvalueforthedisplaylightintensitywillappearonthedisplay unit.RotatetheKNOBtoincreaseordecreaselightingintensity.

Afteryouconfirmtheselectedsettings, theclockwillappearonthedisplayunit. Theapplianceisin standbymode.

Choosingthesettings

The interface allows choosing several operating modes:

•Professionalmode(probake)
•Automaticmode(autobake)
•Extrafunctions(extrabake)
- Stepprogram(STEP)intheprofessionalmode(probake)
•Automaticprogramsinautomaticmode(autobake)

INFORMATION!

• RotatetheKNOBtoscrollthroughthesettings.
• First, confirm these selected setting bypassing the KNOB; then, changethesetting.
• ConfirmeachsettingbypassingtheKNOB.
• Alineandanarrowindicate the location of the parameter that you are looking to set.
  • Pressthekeytostarttheprogram.
  • Operationofthekey:
  -brieftouch:switchtheovenonoroff,stopthebakingprocessorfunction.
  -longtouch:theovenswitchestolowpowerconsumption(powersaving)mode.

NokeyorKNOBareactive,exceptforthekey.Toswitchontheoven,long-touchthis key.

PROFESSIONALMODE(probake)

This function allows setting the baking parameters – baking system, temperature, fast preheating, and bakingtime–freely, attheuser'sdiscretion.

Touchthekeyandsetthefollowing:

A C D E 00:00 >> PREHEAT 111 200 °C

A.bakingsystem

C.programduration

D.fastpreheating

E.temperature/power(forsystemswithmicrowaves)

INFORMATION!

Incombinedsystemswithmicrowaves,setthetemperaturefirst.Confirmyourselectionby pressingontheKNOB;then,setthemicrowavepower.

Additionally, the following can beset:

-timerfunctions(seechapterTimerfunctions)

-stepbakingmode(STEP)(seechapterStepprogram)

-gratin(GRATIN)(seechapterStartingthecookingprocess)

Fastpreheat

Usethefastpreheatingfunctionifyouwishtoheattheoventothedesiredtemperatureasquicklyas possible.

Toactivatefastpreheating, rotatetheKNOBtothesetting(seeimage, labelD).

Confirmtheselection. RotatetheKNOBtoselectthefullylitsignandconfirmit. Thefunctionisnow activated.

When theselectedtemperatureisreached, the preheating process stops and an acoustic signal is emitted. door will appear on the display unit. Open the door and insert the food. The program will automatically continue baking with selected settings.

INFORMATION!

Whenthefastpreheatfunctionisactivated,delayedstartfunctioncannotbeused.

Appliancefunctionsandequipmentdependonthemodel.

	UseSymbol
	HOTAIRHotairallowsbetterflowofhotairaroundthefood. Thisway, itdriesoutthesurface and createsathickercrust. Usethisystemtocookmeat, pastryandvegetables, andtodryfoodonasinglerackormultiplerackssimultaneously.
	HOTAIRANDBOTTOMHEATERThissystemisoptimalforbakinghomemadepizzaandpastrywithhigherwater content. Useittobakeonasinglerack, whenyouwantthefoodtobedonefaster andtobecrunchy.
	HOTAIRANDTOPHEATERThiscookingmethodresultsinacrunchycrustwithoutaddedfat. Thisahealthy versionoffast-foodfrying, withfewercaloriesinthecookedfood. Suitable for smallercutsofmeat, fish, vegetables, andfrozenproductsreadyforfrying (French fries, chickennuggets).
	GRILLWITHHOTAIRHotairallowsbetterflowofhotairaroundthefood. Thiswilldryoutthesurface. Incombinationwiththegrillheater/broiler, thiswillalsoresultinamoreintensive colour.Forfasterbakingofmeatandvegetables.
	TURBOBAKEFordisheswhereevencrispinessfromallsidesidesirable. Thesystemisalso suitableasthefirststepinthestepbakingmode, asitallowsquickbrowningof thesurfaceinthefirststageandslowbakinginthesecondstage. Themeatwillbe juicywithanicelybrownedcrust.
	LARGEGRILLUsethissystemtogrillargeamountsofflat-shapedfoodliketoast, open sandwiches, grillsausages, steaks, fish, skewersetc., aswellasforcookingau gratinandforbrowningthecrust. Theheatersmountedonthetopoftheovencavity evenlyheattheentiresurface.Maximumallowedtemperature: 240°C

Tablecontinuedfromlastpage

	UseSymbol
	TOPANDBOTTOMHEATERUsethissystemforconventionalbakingonasinglerack,makingsoufflés,and bakingatlowtemperatures(slowcooking).
	GENTLEBAKINGForgentleandcontrolledslowcookingofdelicatefood(softcutsofmeat)and bakingpastrywithacrunchybottom.
	TOPANDBOTTOMHEATERWITHFANForevenbakingoffoodonasinglerack,andformakingsoufflés.
	LARGEGRILLWITHFANForroastingpoultryandlargercutsofmeatunderabroiler.
	LARGEGRILLANDBOTTOMHEATERForfasterbakingonasinglerackandforcrisplybrowningthetopofyourpastry.
	GRILLWITHBOTTOMHEATERANDFANForoptimumbakingofyeast-leaveneddough,alltypesofbread,andfor preservation.
	MICROWAVESTheseareusedforfastreheating,defrosting,andcookingoffood.
	HOTAIRANDMICROWAVESInthissystem,theflowofhotairaroundthefoodisimprovedtodryoutthesurface andcreateathickercrust.Microwavessupportandspeedupthecookingprocess.Intendedforfastercookingorroastingofmeat,pastry,andvegetables.
	LARGEGRILLWITHFANForfasterroastingofpoultry,fish,andlargercutsofmeatunderabroiler.Microwavessupportandspeedupthecookingprocess.
	CONVENTIONALCOOKINGWITHFANANDMICROWAVESForfastercookingofdishesaugratin.Microwavessupportandspeedupthecookingprocess.
	AIRBAKE(INTENSIVEBAKING)WITHMICROWAVESThiscookingmethodresultsinacrunchycrust,withoutaddedfat.Thisisahealthy versionoffast-foodfrying,withfewercaloriesinthecookedfood.Intendedfor smallercutsofmeat,fish,andvegetables.Microwavessupportandspeedupthecookingprocess.

INFORMATION!

Inthesesystems, except for system with MICROWAVES, it is possible to set theegratin function (see chapter "Starting the cooking process").

Microwavepowerlevel

	UsePower
1000W	Quicklyreheatingbeverages,wateranddishescontainingalargevolume ofliquid.
	Cookingfreshorfrozenvegetables.750W
600W	Meltingchocolate.Cookingmeatandseafood.Cookingsidedishes.
	Reheatingandcookingofdelicateegg-baseddishes.360W
	Defrostingotherfood,softeningbutter,softeningicecream.180W
	Defrostingcreampastry,fruit,vegetables,andground/mincedmeat.90W

Touchthekeytostartthecookingprocess.Selectedsettingswillappearondisplayunit.

TIMERFUNCTIONS

RotatetheKNOBtoselectthetimerfunctions.

C 00:10 200°C

Timedcooking

Inthismode, you can specify the duration of oven operation (cooking time).

The cooking durations symbol will appear on the display unit. Rotate the KNOB to set the desired cooking time. Confirm these setting bypassing on the KNOB.

Touchthekeytostartbaking.

Settingthedelayedstart

INFORMATION!

Delayedstartisnotpossiblewhenthepreheatingfunctionis activated.

Use this function when you wish to start cooking the food in the oven after certain period of time. Place the food into the oven, then set the system and temperature. Then, set the program duration and the time when you wish your food done.

Example:

Currenttime:12:00(noon)

Cookingtime:2hours

Endofcooking:at18:00(6p.m.)

Thecookingdurationsymbolwillappearonthedisplayunit.Choose thesettingandconfirmitbypassingtheKNOB(inourcase,2:00).Press theKNOBagainandrotateittoselectthesymbol.Confirmandset thetimewhenyouwishyourfoodtobedone(inourcase,thisis18:00, or6p.m.).Desiredcookingendtimewillappearonthedisplayunit (18:00).ConfirmthesettingbypassingontheKNOB.

Touchthekeytostartbaking.

Whilewaitingtobeactivated, theovenswitchestoapartialstand-by (thedisplayunitgoesdark). Theovenwillswitchonwiththeselected settingsautomatically(inourcaseat16:00,or4p.m.). Theovenwill switchoffatthesetime(inourcase,thisis18:00,or6p.m.).

INFORMATION!

Cookingendtimeandtheclockwillalternateonthedisplayunit.

Afterthesettimeexpires, theovenwillautomaticallystopoperating.

Sign End and 00.00 will alternate on the display unit. An acoustic signal willbeemitted, which can be turned off by touching any key. Afterone minute, the acousticsignal will be switched off automatically.

WARNING!

Thisfunctionisnotsuitableforfoodrequiringfastpreheating.

Perishablefoodshouldnotbekeptintheovenforalongtime. Beforeusingthismode, checkwhethertheclockonthe applianceisaccuratelyset.

Minutemindersetting

Theminutemindercanbeusedindependentlyofovenoperation.The longestpossiblesettingis24hours.Duringthelastminute,theminiteminderisdisplayedinseconds.

RotatetheKNOBtoselectthesymbolandconfirmyoursetting.

RotatetheKNOBandsettheminuteminderduration.Confirmthesetting bypassingontheKNOB.

INFORMATION!

Theselecttimerfunctioncanberesetto00:00bylong-pressingtheKNOB.

INFORMATION!

Themostrecentlyusedtimerfunctionvaluescanbestoredandofferedaspresetvaluesthenexttimeyouusethetimer.Asafactorysetting,thisfunctionisoff,butitcanbeactivated(seechapterSelectingextrafunctions,Adaptivefunction).

STEPPROGRAM

Thisfunctionallowsbakingintwostepsorstages(twoconsecutivebakingstepsarecombinedina singlecookingprocess).

A1 STEP1 C 00:00 E °C 200

A1.firstcookingstepSTEP1,(STEP2)

C.programduration/endofprogram(seechapterTimerFunctions)

E.temperature

Step:STEP1

Inthemode, setthebakingsystemandtemperature. Youcanalsochoosetherapidpreheating function. Then, setthebakingdurationforSTEP1(seechapterTimerFunctions). Confirmthesetting bypassingontheKNOB.

INFORMATION!

InSTEP1,youcansetthedelayedstart;however,ifyoudoso,youcannotactivatefastpreheating.

Step:STEP2

Pressandholdthekey.STEP2(secondcookingstep)willappearonthedisplayunit(thefirst onehasalreadybeenset).Setthebakingsystem,temperature,andduration.Confirmthesettingby pressingontheKNOB.

If you wish, you can also modify STEP1 or STEP2 before starting them.

TouchthekeyandselectSTEP1.Nowyoucanchangethesettings.Then,dothesamefor STEP2.

Todeletethestepmode, pressandholdthekey.

Touchthekeytostartbaking.Theovenfirststartstooperatewiththesettingsselectedfor STEP1.WhentheSTEP1isdone,STEP2isactivated.

AUTOMATICMODE(autobake)

In this mode, you may choose between special bakings systems or automatic programs (preset programs for particular types of food).

Specialbakingsystems

Touchthekeyandsetthefollowing:

B C E 00:00 200 °C

B.cookingduration

C.program

E.presettemperature/power

RotatetheKNOBandchooseyoursettings.Presetvalueswillbedisplayed:Youcanchangethe temperatureandprogramduration.

	UseSymbol
	BAKINGFROZENFOOD1)Thismethodallowsbakingfrozenfoodinashorterperiodoftimewithout pre-heating.Optimumforpre-bakedfrozenproducts(bakeryproducts,croissants, lasagne,Frenchfries,chickennuggets),meatandvegetables.
	PIZZASYSTEM1)Thissystemisoptimalforbakinghomemadepizzaandpastrywithhigherwater content.Useittobakeonasinglerack,whenyouwantthefoodtobedonefaster andtobecrunchy.
	SLOWBAKING2)Forgentle,slowandevencookingofmeat,fishandpastryonasinglerack.This cookingmethodwillleavethemeatwithahigherwatercontent,makingitjuicier andmoretender,whilepastrywillbeevenlybrowned/baked.Thissystemisused inthetemperaturerangebetween 140^ Cand 220^ C.
	AIRBAKE1)Thiscookingmethodresultsinacrunchycrustwithoutaddedfat.Thisisahealthy versionoffast-foodfrying,withfewercaloriesinthecookedfood.Suitablefor smallercutsofmeat,fish,vegetables,andfrozenproductsreadyforfrying(French fries,chickennuggets).

1) Inthesesystems,itispossibletousethegratinfunction(seechapterStartingthecookingprocess).
2) ThisfunctionisusedfordeterminingtheenergyefficiencyclasspursuanttotheEN60350-1standard.

Fastpreheat

Cookingproceduresforsomedishesintheautobakemodealsoincludethefastpreheatingfunction. Thesignwillbefullylit.Whentheselectedtemperatureisreached,thepreheatingprocessstopsand an acoustic signal is emitted. door will appear on the display unit. Open the door and insert the food. Theprogramwillautomaticallycontinuebakingwithselectedsettings.

Automaticprograms

Intheautomaticmode(autobake),youmaychoosebetweennumerousautomaticprograms(the appliancewillrecommendtheoptimumcookingmethod,temperature,andcookingdurationdependingonthetypeoffoodspecified).

Pressandholdthekeytodisplaytheautomaticprogramsonthedisplayunit(seetable).

Suggestedbakingsystem, temperature and duration can also be changed at your discretion. Where possible, you can also set the weight of the food.

ConfirmyoursettingbypassingtheKNOB.Touchthekeytostartbaking.Presetvalueswill appearonthedisplayunit.

A C D E Pr-22 >> PREHEAT III 0.00

A.bakingsystem

C. automaticprogramindication/programduration

D.fastpreheating

E.selectedamount

					TurningPreheatingl
					noyes3shallowbal
					noyes3shallowbal
Pr03	spongecake	wirerack			noyes2bakingpan
Pr04	smallpastry				noyes2shallowbal
					noyes2shallowbal
Pr06	applepie	wirerack	2bakingpan/dishon	no
Pr07	apple strudel	shallow baking tray	2	no	no
Pr08	chocolatesoufflé	wirerack			noyes3bakingpan
Pr09	rising and proofing	shallow baking tray	2	no	no
					noyes2shallowbal
Pr11	porkroast	wirerack	2smallbakingdishon	no
Pr12	roastedbeef	wirerack	2smallbakingdishon	no
Pr13	poultry-whole	tray	2wirerackwithadrip	after2/3of cooking time

Tablecontinuedfromlastpage

					TurningPreheatingI
Pr14	poultry-smaller pieces	tray		no3wirerafterwith/adfip cooking time	kickingpan/
	meatloafPr15	wirerack			nono2bakingpan/
Pr16	oven-bakedbeef steak	tray		no4wirerafterwith/adfip cooking time	smallbakin
Pr17	meat-slow cooking	wirerack			noyes2s
	baked/grilledfishPr18	tray		no4wirerafterwith/adfip cooking time	allowbak
Pr19	wedges				nono3shallowbak
	VegetablesouffléPr20	wirerack			nono2bakingpan/
	lasagnePr21	wirerack			nono2bakingpan/
					noyes1shallowbal

INFORMATION!

Gratinfunctioncanbeusedwithsomeautomaticprograms(seechapterStartingthecooking process).

CHOOSINGEXTRAFUNCTIONS(extrabake)

Touch the extra bake key to display extra functions with their respective preset values on the display unit.

C D E 00:30 °C 80

C.cookingduration

D.program

E.presettemperature

RotatetheKNOBandselecttheprogram.Presetvalueswillbedisplayed:Someprogramsallow settingthetemperatureandcookingtime.

INFORMATION!

RotatetheKNOBtoscrollthroughtheprograms.ConfirmeachsettingbypassingtheKNOB.

Aquaclean

Thisprogramallowseasyremovalofstainsfromtheoven(seechapterCleaningandMaintenance.)

Defrosting

Usethisfunctiontoslowlydefrostfrozenfood(cakes,pastry,bread,rolls,anddeep-frozenfruit).Presetprogramvaluesmaybechanged (temperature,cookingduration).

Halfwaythroughedefrosttime, thepiececesshouldbeturnedover, stirredandseparatediftheywerefrozentogether.

Reheating

This is used to keep warm the food that has already been cooked. You may set the temperature and reheating start and end time.

Platewarming

Usethisfunctiontoreheatyourdinnerware(plates,cups)beforeserving foodinittokeepthefoodwarmlonger.Youmaysetthetemperature andreheatingstartandendtime.

Childlock

To activate the child lock, press and hold (for 5 seconds) the light key 🔍. Loc will appear on the displayunit.Whenyoulong-pressthelightkeyagain,thechildlockisdeactivated.

- If the child lock is activated with no timer function engaged (only clock is displayed), then the oven will not operate.

• If the child lock is activated after a timer function has been set, then the oven will operate normally; however, it will not be possible to change the settings.
• When the child lock is activated, cooking or baking systems (modes) or additional functions cannot be changed. The cooking/baking/roasting process can only bestopped or switched off.
• Child lock will remain active after the oven is switched off. To select a new system, the child lock mustfirstbedeactivated.

Startingthecookingprocess

Startthecookingprocessbypassingthekey.

Until the set temperature is reached for the first time, the current and the set temperature will alternate on the display unit. The temperatures symbol flashes at first. Whenthes desired temperature is reached, it goes off.

INFORMATION!

If notimerfunctionisselected, cooking timewillappearonthedisplayunit. Ashortacoustic signalisemitted when the ovenreachestheselected temperature.

*** GRATIN ***

Extragratin

You may only activate this function 10 minutes after the start of the cooking process (thesymbol will appear on the display unit).

PresstheKNOBtoopensettings.RotatetheKNOBtothesign

*** GRATIN *** andconfirmyourselection.RotatetheKNOBagainand selectthefullylitsign.Confirmyourselection.Thefunctionisnow activated.Cookingtimeof10minutes(10:00)willappearonthedisplay unit.

Tochangetheduration, pressontheKNOBtwiceandrotateittoadjust thetime(max.30min). Confirmyourselection.

The function is used in the last stage of the cooking process when you add sauce/wetrubordryrubonto the food, or when you wish to additionally brown the crust. A golden-brown crust will form the dish during the gratin process, which protect the food from drying out, while also imparting amore pleasant appearance and better flavour.

INFORMATION!

The function can also be switched off while it is in progress. Rotate the KNOB to setting. Choose the immed sign and confirm by pressing on the KNOB.

Endofcookingandswitchingofftheoven

Stopthecookingprocessbytouchingthekey. Endappearsondisplayunitandanacoustic signalisemitted.

INFORMATION!

Aftertheoperationiscompleted, alltimersettingsarealsostoppedanddeleted, exceptforthe minuteminder.Timeofday(clock)willbedisplayed.Thecoolingfanwillcontinuetooperatefor awhile.

Aftertheuseoftheoven, somewhat may be left in the condensate channel (underneath the door). Wipethechannel with as spongeoracloth.

Choosing the general settings

Press and hold the ⏻ key. SEtt will appear on the display unit for a few seconds. Then, the general settingsmenuwillappear.

INFORMATION!

RotatetheKNOBtoscrollthroughthesettings.ConfirmeachsettingbypassingtheKNOBor thekey.

Clockdisplay

RotatetheKNOBtosettheclock.CLocwillappearonthedisplayunit. Afterconfirming,youcanchoosebetweenthe12hand24hclockdisplay. Confirm,thensettheclock/timeofday.First,settheminutes.Confirm, andthensetthehoursandconfirmagain.

Acousticsignalvolume

Choosebetweenthreeacousticsignalvolumelevels.RotatetheKNOB tochoosetheVoLsetting.Confirmthesettingandsetthevolume.There arefouravailablevolumelevels(zerobars-OFF,one,twoorthreebars).

Displayillumination

Choosebetweenthreelevelsofdisplaylightintensity. RotatetheKNOB toselectthebrhtsetting. Confirmyourselectionandchooseloweror higherintensity. Therearethreeavailableilluminationlevels(one,twoor threebars).

Displayunit-nightmode

Thisfunctionwillautomaticallydimthedisplay(switchfromhightolow displayilluminationlevel)duringnighttime(8:00p.m.to6:00a.m.). ChoosethenGhtsetting RotatetheKNOBtoswitchOnorOFF.

Standby

Thisfunctionswitchestheclockdisplayonoroff.SelectthehidEsetting. RotatetheKNOBtoswitchOnorOFF.

Adaptivefunction

The function allows adjusting the set cooking temperature and the cooking time. As a factory default, this function is deactivated, but you can activate it. When the function is activated, the most recent cooking time is displayed. Settings for the most recent cooking session lasting at least 1 minute are taken into account.

AdPtwillappearonthedisplayunit. Todeactivatethefunction, rotate theKNOBtopositionOFF. Followthesameproceduretoactivate the function. Select "On" onthedisplayunit.

Automaticfastpreheating

Thisfunctionallowsautomaticadditionoffastpreheatingtothebaking systemsthatallowit.

RotatetheKNOBtoselecttheAutosetting.ChooseOnorOFF.

Sabbath

The Sabbath function allows keeping the food warmtine hoven without having to switch the oven on or off.

RotatetheKNOBtoselectSAbb.ChooseOnorOFF.

Settheduration(between24and72hours)andtemperature. Confirm eachsettingbypassingtheKNOB.

If you wish the oven light to be on all the time, switch it on by touching the symbol.

Touchthekeybstartthecountdown.SAbbwillappearonthe displayunit.

Allsoundsandoperation,exceptforthekey,willbedeactivated.

INFORMATION!

In case of a power outage, the Sabbath modewill bedeactivated and the oven will return to the initial state.

Factorysettings

Thisfunctionallowsresettingtheappliancetofactorysettings.FActwill appearonthedisplayunit.RotatetheKNOBtoselectrES.Pressthe // keyuntiltheendoftheanimationtoconfirm.

WARNING!

Afterapoweroutageoraftertheapplianceisswitchedoff,additionalfunctionsettings willremainstoredfornomorethanafewminutes.Then,allsettings,exceptfortheacoustic signalvolumeanddisplaydimmerwillberesettofactorydefaults.

Generaltipsandadviceforbaking

- Remove all unnecessary equipment from theovenduringbaking

- Use equipment made of heat-resistant non-reflective materials (supplied baking trays and dishes, enamel-coatedcookware,temperedglasscookware).Bright-colouredmaterials(stainlesssteel oraluminium)materialsreflectheat.Asaresult,thermalprocessingoffoodinthemislesseffective.

- Always insert the baking sheets and trays to the end of the guides. When baking on the wire rack, placethebakingdishesortraysinthemiddleoftherack.

- Foroptimumfoodpreparation, were recommendobservingtheguidelinessspecifiedinthecooking table.Choosethelowerspecifiedtemperatureandtheshortestspecifiedcookingtime.Whenthis timeexpires,checktheresultsandthenadjustthesettingsasnecessary.

- Unlessitisabsolutelynecessary, donotopentheovendoorduringbaking.

- Donotplacethebakingtraysdirectlyontotheovencavitybottom.

- Do not use the all-purpose deep baking tray on the 1st guide level while the appliance is operating.

- Donotcovertheovencavitybottomorthewirerackwithaluminiumfoil.

- Withlongercookingprograms,youcanswitchchofftheovenapproximately10minutesbeforethe endofcookingtimetomakeuseoftheaccumulatedheat.

•Alwaysplacethebakingdishesontothewirerack.

- When baking on several levels at the same time, insert the all-purpose deep baking tray into the lowerlevel.

- When cooking according to recipes from older cookbooks, use the bottom and top theaters system (asin conventionallovens) and set the temperature 10^ Clower than specified in the recipe.

- If you are using parchment paper, make sure it is resistant to high-temperatures. Always trim it accordingly. Parchmentpaperpreventsthefoodfromstickingtothebakingtrayandmakesit easiertoremovethefoodfromthebakingtray.

- When cooking larger cut of meat or pastry with higher water content, alot of steam will be generated inside the oven, which inturn may condense on the ov endoor. This is an normal phenomenon which will not affect the operation of the appliance. After the cooking process, wipe the door and the doorglass dry.

- When baking directly on the wire rack, insert the all-purpose deep tray one level lower to serve asadriptray.

Fast preheating of the oven: If you are using the fast preheating function, do not insert the food into theovenuntiltheovenisfullyheated.Temperaturehasasubstantialeffectonthefinalresult.Fast preheatingisrecommendedfordelicatecutsofmeat(sirloin),andforyeast-leavenedandsponge doughthatrequireashorterbakingtime.Heatinganemptyovenconsumesalotofenergy.Therefore, ifpossible,werecommendcookingseveraldishesinsuccession,ormakingseveraldishes simultaneously.

GentleBake: Allows slow and controlled cooking at a low temperature. The meat juices are distributed evenly, and themeatremainsjuicyandtender. The Gentle Bakeslowcooking method dissuitable for delicate bonelessmeatcuts. Before slow cooking, searthemeatthoroughly from all sidesinafrying pan.

Useofmicrowaves:

Usesuitablecookware(glass,ceramicetc.).

Usecookwarewithalidforcookingvegetables.Add1tablespoonofwaterper100goffood.

Turnorstirthefoodduringthedefrostingprocess.

Cleaningandmaintenance

WARNING!

Beforecleaning, unplugtheappliance from the power mains and wait for the appliance to cooldown.

Childrenshouldnotcleantheapplianceorperformmaintenancetaskswithoutproper supervision.

Foreasiercleaning, ovencavity and baking tray are coated with special enamelforasmooth and resistant surface.

Regularlycleantheapplianceandusewarmwaterandhanddishwashingliquidtoremovelarger impuritiesandlimescale.Useacleansoftclothorspongecloth.

Appliance exterior: use hot soapsuds and a soft cloth to remove impurities, then wipe the surfaces dry.

Appliance interior: for stubborn dirt and grime, use conventional oven cleaners. When using such cleaners, thoroughlywipetheappliancewithawetclothtoremoveallcleanerresidue.

Accessoriesandguides:cleanwithhotsoapsudsandadampcloth.Forstubborndirtandgrime, werecommendpriorsoakinganduseofabrush.

INFORMATION!

Neveruseaggressiveorabrasivecleanersandaccessories(abrasivespongesanddetergents, stainandrustremovers,scrapersforglassceramicplates).

Ovenequipmentisdishwasher-safe.

Foodresidue(fat,sugar,protein)canigniteduringtheuseoftheappliance.Therefore,remove largerchunksofdirtfromtheoveninteriorandaccessoriesbeforeeachuse.

Appliancedoorisattachedtotheapplianceandmaynotberemoved.Also,thedoormaynotbedisassembledorotherwisetamperedwith.

This oven has a 'Soft close door system'. When closing the oven door, this system dampens the movement, from acertainangle, and silently closest the ovendoor.

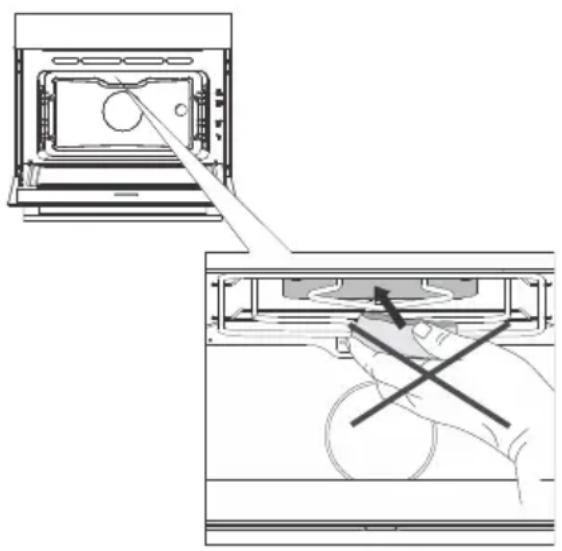

Diagram showing two steps of a device interior: top view with a tray and arrow, bottom view with hand holding a circular component (no text or symbols)

Neveruseaggressivecleaners,abrasive cleanersorsponges,stainandrustremovers etc.ontheovencavityceilingcover.

UsingtheAquaCleanprogramtocleantheoven

Thisprogrammakesiteasiertoremoveanystainsfrominsidetheoven.

The functionisthemosteffectiveifusedregularly,aftereachuse.

Before running the cleaning program, remove all large visible chunks of dirt and food residues from the ovencavity.

Diagram showing three steps of a kitchen appliance opening, with a hand pouring liquid into a container.

1 Insert the glass baking dish into the first guide level and pour 1.5 dlof warm water into it.

2 Touchthekeytodisplayextra functionsonthedisplayunit.RotatetheKNOB tothesymbol.Presetvalueswillappear onthedisplayunit.

3 The program will operate for 8 minutes. Whenthe program is complete, End will appear on the display unit.

4 When the program is completed, carefully removethebaking tray, using oven mitts (there can still besomewater on the baking tray). Wipedown the stains with damp cloth and soapsuds. Thoroughly wipethe appliance with awet cloth to remove all cleaner residue.

WARNING!

UsetheAquaCleansystemwhentheovenhasfullycooleddown.

Removingandcleaningthewireguides

Technical diagram showing a mechanical assembly with a lever mechanism (no text or symbols present)

Pure electrical circuit lines without any symbols

Pure schematic diagram of parallel lines with arrows indicating direction, no text or symbols present

1 Undothescrew.Useascrewdriver.

2Removetheguidesfromtheholesinthe backwall.

INFORMATION!

Takecarenottolosethespacersfitted onthewireguides.Replacethespacers aftercleaning;otherwise,sparksmay appear.

WARNING!

Aftercleaning, re-tightenthescrewsontheguideswithascrewdriver.

Whenreplacingthewireguides,makesureyoumountthemonthesamesidetheywere installedonpriortoremoval.

Replacingthebulb

Thebulbisaconsumableandthereforenotcoveredbywarranty.Beforereplacingthebulb,remove allaccessoriesfromtheoven.

Theovenisfittedwithahalogenlamp.

Thisproductcontainsalightsourceofenergyefficiencyclass(G).

Halogenlamp:G9,230V,25W

Technical diagram showing installation steps of a microwave oven, including mounting, switch, and internal components with numbered parts.

1 Undothefourscrews.Removethecover andtheglass.

2Removethehalogenlightbulbandreplace itwithanewone.

INFORMATION!

Useprotectiontoavoidburns.

Thereisagasketonthecoverwhich shouldnotberemoved. Thegasketshould fitontotheovencavitywall.

WARNING!

Onlyreplacethelightbulbwhentheapplianceisdisconnectedfrompowersupply.

Firmlyre-tightenthescrewsonthecoverusingascrewdriver;otherwise,sparksmay appear.

Troubleshootingtable

Specialwarningsandfaultreporting

Duringthewarrantyperiod,onlyaservicecenterauthorizedbythemanufacturermaycarryout anyrepairs.

Beforemakinganyrepairs, makesuretheapplianceisdisconnectedfromthepowermainseitherby removingthefuseorbydisconnectingthepowerplugfromthewalloutlet.

Anyunauthorizedrepairsoftheappliancemayresultinelectricshockandshortcircuithazard;therefore, donotperformthem.Leavesuchworktoanexpertoraservicetechnician.

In caseofminorproblemswithapplianceoperation, check this manual to see if you can fix the problem yourself.

If the appliance is not operating properly or at all duetoin appropriate operation or handling, a visit from as servicetechnicians shall not be free of charge, even during the warranty period.

Savetheinstructionsforfuturereferenceandpassthemontoanysubsequentownersorusersofthe appliance.

Followingissomeadviceonrectifyingsomecommonproblems.

	CauseProblem/error
often.	Callaservicetechnician.Themainfuseinyourhometrips
Theovenlightingdoesnotwork.	Theprocessofchangingthelightbulbintheovenis describedinthechapterReplacingthebulb.
Controlunitisnotresponding,the screenisfrozen.	Disconnectttheappliancefromthepowermainsforafew minutes(undothefuseorswitchoffthemainswitch);then, reconnecttheapplianceandswitchiton.
ErrorCodeErrXisdisplayed.Incaseofadouble-digiterrorcode, ErXXwillbedisplayed.	Thereisanerrorintheelectronicmoduleoperation.Disconnectttheappliancefromthepowermainsforafew minutes.Iftheerrorisstillindicated,callaservicetechnician.
Sparksappearintheoven	Makesureallampcoversaresecurelyfastenedandthat allspacersarefittedonthewireguides.Makesuretheguidesintheovenarecorrectlyplaced.

If the problem persists despite observing the above advice, call an authorized servicetechnician. Repair or any warranty claim resulting from incorrect connection or use of the appliances shall not be covered by the warranty. In this case, the user will cover the cost of repair.

Disposal

Ourproductpackagingismadeofenvironmentallyfriendlymaterialsthat canberecycled, disposedof, ordestroyedwithoutanyhazardtothe environment. To thisend, packagingmaterials are labelled appropriately.

Thesymbolontheproductoritspackagingindicatesthattheproduct shouldnotbetratedasnormalhouseholdwaste.Taketheproductto anauthorizedcollectioncentreforwasteelectricandelectronic equipmentprocessing.

Correctdisposaloftheproductwillhelppreventanynegativeeffects ontheenvironmentandhealthofpeople,whichcouldoccurincaseof incorrectproductremoval.Fordetailedinformationonremovaland processingoftheproduct,pleasecontacttherelevantmunicipalbody inchargeofwastemanagement,yourwastedisposalservice,orthe storewhereyouboughttheproduct.

Wereservetherighttoanychansanderrorsintheinstructionsforuse.

Warning symbol image with exclamation mark inside a triangle

The appliance rating label is located on the inside of the appliance.

When contacting the service department, have the complete type number to hand.

You will find the addresses and phone numbers of the service organisation on the guarantee card.

Pelgrim
