USER MANUAL OKW593 Pelgrim

Exterior view of a modern kitchen oven with digital display and control knobs (no visible text or symbols)

OKW593

OKW595

Pelgrim

Manual

Dear customer!

We sincerely thank you for your purchase. We believe you will soon find ample evidence that you can really rely on our products. To make the use of the appliance

easier, we attach these comprehensive instruction manual.

The instructions should aid you in getting familiar with your new appliance. Please, read them carefully before using the appliance for the first time.

In any case, please make sure the appliance was supplied to you undamaged. Should you identify and transport damage, contact your sales representative or the regional warehouse from where the product was delivered. You will find the telephone number on the receipt or delivery report. We wish you a lot of pleasure with your new household appliance.

Instructions for connection

The connection should be carried out in compliance with the instructions in the section “Connection to the power mains”, and the relevant effective regulations and standards. This should only be performed by a qualified technician.

Rating plate Rating plate

The rating plate indicating the basic information on the appliance is attached to the edge of the oven and it is visible when you open the oven door.

Important warnings ....3

Appliance description ....4

The oven ....5

Food preparation ....15

Cleaning and maintenance ....25

Special warnings and error reporting....30

Instructions for installation and connection ....32

Technical characteristics 35

Important warnings

• The appliance may only be connected to the power mains by a service technician or other qualified expert.
• Unprofessional tampering and repairs may result in serious physical injury and damage to the appliance. The repairs may only be carried out by the service personnel or an authorized technician.
• During cooking, the overheated fat or oil on the hob may ignite. There is a risk of burning and fire; therefore, control the cooking process at all times.
• Attention: the danger of burning is considerable particularly for small children and children who are not fully aware of the danger. There is a risk of burning or scalding. Therefore, keep small children away from the appliance and only let older children use the appliance under suitable supervision.
• Attention: danger of burning. Heating elements, the oven, and parts of the utensils may become very hot during use; therefore, always use a kitchen cloth or kitchen gloves when handling cookware, and take every precaution necessary to avoid burns.
• Power cords of other appliances located in the vicinity of this large appliance may be damaged if they are pinched e.g. by oven door, which can result in a short circuit. Therefore, keep the power cords of any other appliances at a suitable distance.
• Do not use steam cleaners or high-pressure cleaners to clean the appliance, as this may result in an electric shock.
• Pay a special attention when preparing the food in the oven. Baking pans, wire shelf and the whole interior of the oven are very hot due to high temperatures, therefore the use of protective gloves is highly recommended.
• During operation, oven door heats up. A third glass is installed for extra protection, reducing the surface temperature of the outside door (only with some models).
• Do not cover the oven interior in aluminum foil and do not place the baking trays and other containers on the oven bottom. Aluminum foil will prevent air circulation in the oven, thus impeding the cooking process, and damage the enamel coating.
• Oven door hinges can be damaged when overloaded. Do not place heavy pans on the open door, and do not lean against them when cleaning the oven interior. Before cleaning, remove the oven door (see section Removing and replacing the oven door). Do not step on the open oven door or sit on them – this applies particularly for children.
• The appliance is manufactured in compliance with the relevant effective safety standards. Nevertheless, we strongly recommend that persons with impaired physical, motoric, or mental capacity, or persons with inadequate experience or knowledge, do not use the appliance unless attended by a qualified person. The same recommendation applies when the appliance is used by persons of less-than-legal age.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Appliance purpose Appliance The appliance is intended for conventional preparation of food in households and should not be used for any other purpose. Individual options of use are comprehensively described in this instruction manual.

Appliance description

The figure represents one of the appliance models. Since a group of appliances to which these instructions apply, have different features, the instruction manual may describe functions and equipment that may not be available in your appliance.

15:00 2 3

1 2 3 Puglia

1 2 3 Folga

1 On/Off knob and oven operation mode selection knob
2 Program timer (only with some models)
3 Temperature selection knob / dial

4 Oven control light. This light it is lit while the oven is heating up; when the set temperature is reached, it goes off (only featured in some models)

The appliance features a built-in cooling fan which cools the appliance housing and control panel.

Extended operation of the cooling fan

After the oven is switched off, the cooling fan continues to operate for a while in order to additionally cool down the appliance.

Control lamps Control lamps Red lamp

The red lamp is lit when heaters in the oven are operating; when the selected temperature is reached, the lamp goes off.

The oven

Before using the oven for the first time

• Remove all accessories from the oven and clean them with warm water and a conventional detergent. Do not use abrasive cleaning aids.
• When the oven is heated up for the first time, a specific odor of a “new appliance” will be discharged; therefore, ventilate the room thoroughly while the oven heats up.

Important warnings Important warnings black silicon coated or enamel coated baking trays,

• Only preheat the oven if specifically stated in the recipe or in the instruction tables herein.
• Heating up an empty oven uses a lot of energy; therefore, a lot of power is saved if several types of pastry are cooked consecutively, as the oven is already heated up.
• Approximately ten minutes before the anticipated end of the cooking process, the oven may be turned off. This way, you will save some power and make use of the accumulated heat.

6 16:30 A 1 2 3 4 5 B C

Sensor keys:

A Settings selection and confirmation sensor key
B Value decease (minus) sensor key
C Value increase (plus) sensor key

Display:

1 Oven operation duration
2 Oven operation stop time
3 Countdown alarm timer
4 Time of day
5 Child lock
6 Clock – time display

• Select the type of setting you wish to make by pressing the (A) sensor key. The selected symbol on the display flashes quickly, indicating the function that you can set or change. After five seconds, the symbol starts flashing more slowly and the time set is displayed. The symbols that are lit are selected, but not currently shown on the display (6). The most recent setting made is always displayed.
  • Each press / activation of a sensor key is acknowledged by a beep.
• If one of the value settings sensor keys (B) or (C) is touched and kept pressed, the rate at which the value being set is changing will increase.
• When the appliance is connected to the power supply or after a power failure, the word “META” or “GLAS” is first displayed for a short while; then, the display flashes for some time. In order to enable the operation of the oven, use the B and C sensor keys to set the time of day.
• In case of a power failure which lasts less than two minutes, all settings are kept.

improve the response of the sensor keys, touch them with a larger surface of your finger.

Setting the time of day (clock)

• Set the clock to the current time of day by pressing the settings selection sensor key (A). Then, select the symbol (4).
• Use the (B) and (C) sensor key to set the exact time of day.
• Confirm the setting by pressing the (A) sensor key again; if the (A) key is not pressed, the setting is automatically confirmed after a few seconds.

The program timer can be used to program the oven operation in three ways:

• Cooking time setting – immediate start of oven operation; after a set period of time, the oven is turned off automatically.
• Cooking end time setting – the time at which oven operation is to end is set.
• Delayed start setting – automatic start and end of oven operation at a selected time.

Setting the cooking time

With this program mode, the duration of oven operation is set (cooking time). Maximum setting allowed is 10 hours.

• Press the (A) sensor key to select the symbol (1). Use the (B) and (C) sensor keys to set the duration / cooking time.
• Turn on the oven (use the corresponding oven knobs to set the operation mode and temperature). After the expiration of the set time, the oven will automatically stop operating (end of cooking time). An intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute.
• Symbol (1) and the cooking time "0.00" on the display start to flash. If you wish to resume cooking, press the (A) sensor key and set a new duration if necessary.

Setting the cooking end time

This mode allows you to set the time at which the oven should stop operating. Maximum setting allowed is 10 hours relative to the current time of day.

• Make sure the current time of day is set correctly.
• Use the (A) sensor key and select the symbol (2). The current time of day is indicated on the display. Press the (B) and (C) sensor keys to set the cooking end time.
• Turn on the oven (use the corresponding oven knobs to set the operation mode and temperature). The oven starts to operate immediately and stops operation at the set time. An intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute.
• Symbol (1) and the cooking time "0.00" on the display start to flash. If you wish to resume cooking, press the (A) sensor key and set a new duration if necessary.

Setting the oven delayed start

With this operation mode, two settings have to be made: cooking time (duration of oven operation) and cooking end time (tie at which the operation should stop).

Cooking end time can be delayed by a maximum of 24 hours relative to the current time of day.

• Make sure the current time of day is set correctly.
• First, set the cooking time: Press the (A) sensor key to select the symbol (1). Use the (B) and (C) sensor keys to set the duration / cooking time.
• Then, set the cooking end time: Use the (A) sensor key and select the symbol (2). (A sum of the current time of day and the oven operation time is automatically shown on the display). Press the (B) and (C) sensor keys to set the cooking end time.

- The timer will wait for the start of the cooking – both symbols (1 and 2) are lit.

- Turn on the oven (use the corresponding oven knobs to set the operation mode and temperature). At the corresponding time, the oven starts operating automatically (the symbol (2) goes off upon the start of operation), and switches off when the set cooking time has elapsed. An intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute.

- Symbol (1) and the cooking time "0.00" on the display start to flash. If you wish to resume cooking, press the (A) sensor key and set a new duration if necessary.

Setting the alarm timer

The clock can also be used independently of the oven operation, as an alarm timer that sounds an alarm after the expiration of a preset time.

- Use the (A) sensor key to select the symbol (3). Then, use the (B) and (C) sensor keys to set the

time before the alarm sounds. Maximum setting allowed is 10 hours.

- When the set time has elapsed, an intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute. The symbol (3) will go off.

The last minute of the timer countdown is displayed in second intervals.

Setting the beep volume (loudness)

The alarm volume can be set when no timer function is activated (only current time of day is displayed).

• Press the (B) sensor key and hold it approximately three seconds; a volume indicator will appear, and the corresponding sample sound will sound. "oooo" indicates maximum volume, and "o" indicates minimum volume. Use the (B) sensor key to select among the four loudness levels.
• Confirm the selected volume level by pressing the (A) sensor key; if the (A) sensor key is not pressed, the setting will be confirmed and stored automatically after a few seconds.

Setting the child lock

The clock may be locked only after one of time functions had been previously set (period of operation, end of operation, or alarm). The oven will function normally, but you will not be able to change settings.

Activation: Press the (A) sensor key to select the symbol (5). Use the (B) and (C) sensor keys to activate the child lock; the display will read "ON". Confirm the setting by pressing the (A) sensor key.

Deactivation: Press the (B) or (C) sensor to deactivate the child lock; "OFF" is displayed.

The setting must be confirmed by pressing the (A) sensor key.

Display dimmer

Between midnight and 6 AM, the display automatically lights with less intensity, if no timer function is set.

Deleting the timer settings

• All timer settings can be deleted any time by pressing the (B) and (C) sensor keys simultaneously and holding them for three seconds. The set programs are automatically interrupted and the timer switches to display of the current time of day.
• Any timer setting can also be deleted in the following way: selecting it using the (A) sensor key, then press the (B) and (C) sensor keys simultaneously. Another way to delete a setting is by setting the timer value to "0.00".

Operating the oven

The oven is operated by the on/off and operation mode selection knob and the temperature setting knob / dial.

Temperature setting knob / dial

0 50 100 275 250 200 150

Note: When using the operation mode Large grill or Grill, set the temperature selection knob to the position indicated, as appropriate for these two operation modes.

On/off and operation mode knob.

Circular metallic object with internal vertical bar and surrounding symbols (no readable text or labels)

Circular industrial knob with gradient shading and surrounding symbols (no readable text or labels)

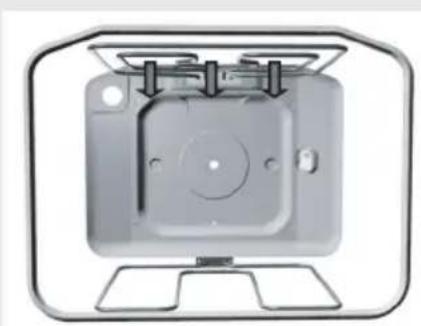

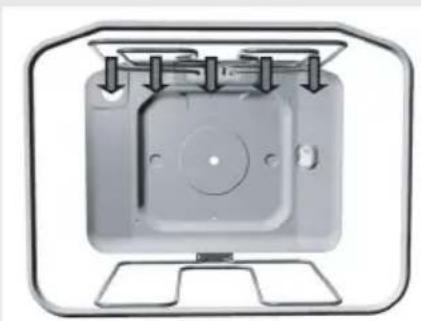

The oven may be operated in the following modes

Diagram of a mechanical component with mounting holes and directional arrows indicating force or movement (no text or symbols)

Diagram of a device with a central button and mounting base, showing internal components (no text or symbols)

Diagram of a mechanical device with mounting base and internal components (no text or symbols)

Diagram of a heat exchanger or cooling unit with airflow paths and fan blades (no text or labels)

Oven lighting

With some models, there are two interior lighting lamps: one on the upper part of the back wall, and the other, additional lamp on middle of the right side wall. Oven lighting can be selected independently, without selecting another function. With all other modes of operation, the oven lighting is turned on automatically when the operation mode is selected.

- Upper / lower heater

The heaters on the upper and lower side of the oven radiate heat uniformly and evenly into the oven interior. Pastry and meat can be cooked on one shelf level only.

Large grill

With this operation mode, the upper heater and the infra heater are activated simultaneously. The infra heater installed on the oven interior ceiling radiates heat directly. To boost the heating effect or to make optimal use of the entire area of the oven grid, the upper heater is also activated. This operation mode is appropriate for cooking smaller chunks of meat, such as steaks, roasts, chops, ribs, etc.

•▼Grill

Only the infra heater is activated (which also operates, along with the upper heater, in the Large grill mode). This mode is appropriate for grilling smaller quantities of toasted sandwiches, grill sausages, or simply for toasting bread.

Grill & fan

With this operation mode, the infra heater and the fan are activated simultaneously. It is appropriate for grilling meat and large chunks of meat or poultry on one shelf level. Also appropriate for cooking food au gratin or browning.

Diagram of a fan or vent system with radial flow arrows, no text or symbols present

Hot air and lower heater

With this operation mode, the lower heater and the hot air fan operate simultaneously. This is particularly convenient for making pizza. Also ideal for moist or heavy pastry, fruit cakes made of leavened dough, short pastry, or cheesecakes.

Diagram of a mechanical or fluidic component with symmetrical flow paths and central vortex (no text or symbols)

Hot air

With this operation mode, the round heater and the fan operate simultaneously. The fan at the oven back wall causes the hot air to circulate constantly around a roast of pastry. This operation mode is appropriate for roasting meat and making pastry on several shelves simultaneously. Cooking temperature should be set lower than with conventional operation modes.

Diagram of a refrigerator with airflow arrows indicating circulation or ventilation (no text or symbols)

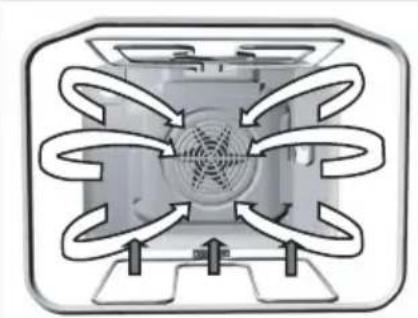

\* Defrosting

With this mode, the air is circulating without any heater being turned on. Only the fan is in operation. This is used for slow defrosting or thawing of frozen food.

Diagram of a mechanical or electrical component with symmetrical flow arrows around a central circular element (no text or symbols)

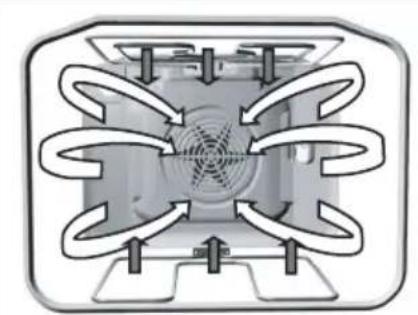

2 . Lower heater and fan

With this operation mode, the lower heater and the fan operate simultaneously. Used for baking low leavened dough and preserving fruit and vegetables. Use the first shelf position from the bottom and shallow rather than deep baking trays to allow the warm air circulate around the upper side of the dish as well.

Pure diagram of a symmetrical mechanical or electrical component with radial arrows, no text or symbols present.

Upper and lower heater plus the fan

The upper and the lower heater operate simultaneously. The fan enables uniform circulation of hot air in the oven. The system is suitable for making all kinds of pastry, for defrosting food, and drying fruit and vegetables. Before placing food into the preheated oven, wait for the signal lamp (heater operation lamp) to go off for the first time. For best results, cook on a single shelf level only; with cooking on two levels simultaneously, the results are somewhat inferior. The oven must be preheated. Use the second and fourth shelf level (from the bottom). The temperature should be set lower than with conventional heating combinations.

Diagram of a mechanical component with mounting holes and internal features (no text or symbols)

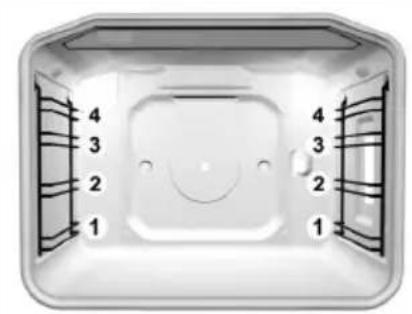

Shelf levels (depending on the model)

Top-down view of a white plastic enclosure with numbered compartments (1-4) and a central smiley face, no text or symbols present.

Top-down view of a white rectangular device with numbered slots and internal compartments (no text or symbols)

Top-down view of a white rectangular device with numbered compartments (2, 3, 4) and internal structure, no visible text or symbols.

. Aqua Clean

The heat is only radiated by the heater installed in the bottom of the oven. Select this operation mode when you wish to bake / cook the bottom side of the dish more thoroughly (e.g. for moist pastry with fruit filling). Set the temperature with the temperature selection knob /dial.

• Accessories (grid, shallow and deep baking tray) can be inserted into the oven at four levels.
• Please note that the shelf levels are always referred to by consecutive numbers starting from the bottom (particular shelf levels are described in the cooking tables below)
• The guides may be drawn, wire, or telescopic (depending on the appliance model). Telescopic (pull-out or, retractable) guides are installed for the second, third, and fourth level. In case of wire guides, the grid and the trays should always be inserted into the leading slot formed by adjacent wire profi les.

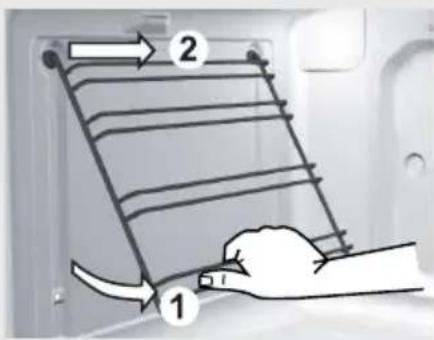

Telescopic pull-out guides (depending on the model)

Diagram of a refrigerator with three horizontal bars and directional arrows indicating airflow or movement (no text or symbols)

3D rendering of a mechanical component with internal features and directional arrows indicating movement (no text or symbols)

Oven accessories (depending on the model)

Simple line drawing of a rectangular metal grate or rack with vertical slats (no text or symbols)

Solid black rectangular object with a slightly irregular edge, resembling a plastic or metal sheet (no text or symbols visible)

Black rectangular object with a flat top and rounded bottom, resembling a tray or container (no text or symbols visible)

Telescopic (pull-out or, retractable) guides are installed for the second, third, and fourth level. They are installed on the left and right side wall of the oven interior at three levels.

Pull-out levels consist of (depending on the model):

• three guides that can be pulled out partially,
• one guide that can be pulled out completely and two that can be pulled out partially, or
• three guides that can be pulled out completely.

Telescopic pull-out guides and other parts of oven accessories will heat up! Use a kitchen glove or similar protection when handling them.

• To insert the grid, baking tray, or drip tray, first pull out the telescopic guides of the desired level.
• Place the grid or the shallow or deep baking tray on the pull-out guides and push it into the oven with your hand. Close the oven door only when the telescopic guides have been fully retracted.

The grid onto which the container with food, or the food directly, is placed.

Shallow baking tray is only intended for baking pastry and cakes.

Deep baking tray is intended for baking meat and moist pastry; it is also intended as a drip tray.

Unless you are using the grill, or the deep baking tray is used only as a drip tray when spit-roasting, the deep tray should not be inserted into the first guide.

Fat fi Iter (depending on the model)

Close-up of a metallic camera lens component (no text or symbols visible)

The fat filter installed on the back oven interior wall protects the fan, round heater, and the oven from impurity, particularly spattering fat. When cooking meat, we recommend using the fat filter. When baking pastry, always remove the filter! If the filter is installed when baking pastry or cakes, the results can be quite poor.

Food preparation

Baking pastryBaking pastry

• For baking pastry, use the ‘;’ mode of operation. (Oven operation with the selected mode, or system, depends on the appliance model).
• When baking pastry, always remove the fat fi iter.

Instructions

• When baking pastry, always observe the instructions on the shelf / guide level, temperature, and cooking time indicated in the pastry baking table. Do not be prejudiced by experience you may have with other ovens. The values indicated in the cooking table are defined and checked especially for this particular oven.
• If the baking table does not specifi cally address a particular type of pastry, see the information for a similar type of pastry.

Diagram of a mechanical component with mounting holes and directional arrows indicating force or movement (no text or symbols)

Baking pastry with upper and lower heater

• Bake the pastry at one level only.
• Upper / lower heater combination is particularly appropriate for baking various types of pastry, bread, and meat.
• Use dark-colored baking trays. Light-colored trays reflect the heat, which leads to poorer cooking (browning) results. Always place the models on the grid. If you are using the supplied baking tray, remove the grid.
• Preheating will shorten the cooking time. Place the dish into the oven only when the selected temperature has been reached, i.e. when the control lamp (heater operation lamp) goes off for the first time.

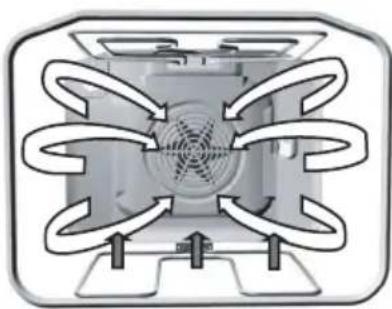

Diagram of a four-way air duct system inside a rectangular frame (no text or labels)

Baking pastry with hot air

Baking pastry with hot air is particularly convenient when you wish to bake on several shelf / guide levels simultaneously, especially when preparing bite-size pastry in shallow trays. Preheating is recommended, and the use of the second and third guide level. This mode is also appropriate for moist pastry and fruit cakes (in this case, bake on a single level only).

• The temperature is normally set lower than when baking with the upper/lower heater combination (see also the pastry baking table).
• Various types of pastry can be baked simultaneously, if the required temperature is at least approximately the same for all.
• Baking time can vary, even for equal baking trays. When baking in several baking trays simultaneously – on two or even three levels, baking time for each tray can e different. You may have to remove one of the trays sooner (normally, this would be the uppermost tray.

- If possible, prepare bite-size pastry, such as cupcakes, in the same thickness and height. Unevenly sized pastry will be unevenly browned!

- When baking several types of pastry simultaneously, there will be a signifi cant amount of vapor in the oven, resulting in accumulation of condensate on the oven door.

Tips on baking pastry Is the pastry completely done?

Use a wooden stick to pierce the pastry at the highest point. If there are no traces of dough when the stick is removed, the pastry is done. Turn off the oven and use the remaining accumulated heat.

The pastry has collapsed

Check the recipe. Next time, use less liquid. Observe the instructions on mixing / kneading time, especially when using small household appliances.

The pastry is too light-colored

Next time, use a dark-colored baking tray, place the tray one guide level lower, or turn on the lower heater towards the end of the cooking process.

The pastry with a moist fi lling (e.g. cheesecake) is not completely done

Next time, reduce the temperature and extend the cooking time.

Notes on the pastry baking table:

• Two values are indicated for temperature, lower and upper. Initially, set the lower temperature; if the pastry is not brown enough, increase the temperature next time.
• Cooking times are given as an estimate and may vary subject to a number of circumstances.
• The value printed in bold in the temperature table indicates the most appropriate operating mode for a particular type of pastry.
• The indication * means that the oven should be preheated with the corresponding operating mode selected.
• When using baking paper, make sure it is resistant to high temperature.

Pastry baking table for combined upper and lower heater or hot air operating mode

Type of pastry Guide	(from the bottom)	Temperature (°C) =	Guide (from the bottom)	Temperature (°C) *	Cooking time (minutes)
Sweet pastry
Marble cake, ring cake 1 160-170	1 150-160	50-70
Rectangle-shaped cake 1 160-170	1 150-160	55-70
Cake made in cake tin 1 160-170	2 150-160	45-60
Cake tin cheesecake 1 170-180	2 150-160	65-85
Fruit cake, short pastry 1 180-190	2 160-170	50-70
Fruit cake with dressing 1 170-180	2 160-170	60-70
Sponge cake* 1 170-180	2 150-160	30-40
Cake with icing 2 180-190	2 160-170	25-35
Fruit cake, mixed dough 2 170-180	2 150-160	45-65
Cherry cake 2 180-200	2 150-160	35-60
Sponge cake roll* 2 180-190	2 160-170	15-25
Leavened dough cake	2 160-170	2 150-160	25-35
Hefezopf (leavened dough) 2 180-200	2 160-170	35-50
Christmas cake	2 170-180	2 150-160	45-70
Apple pie	2 180-200	2 170-180	40-60
Oven-baked donuts	1 170-180	2 150-160	40-55
Savory pastry
Quiche Lorraine	1 190-210	2 170-180	50-65
Pizza*	2 210-230	2 190-210	25-45
Bread	2 190-210	2 170-180	50-60
Buns*	2 200-220	2 180-190	30-40
Bite-size pastry
Short pastry - cookies *	2 160-170	2 150-160	15-25
Merengue *	2 160-170	2 150-160	15-28
Leavened dough	2 180-190	2 170-180	20-35
Puff pastry	2 190-200	2 170-180	20-30
Choux pastry (cream filled)	2	180-190	2	180-190	25-45
Soufflés
Rice soufflé	1	190-200	2	180-190	35-50
Fresh cheese soufflé	1	190-200	2	180-190	40-50
Frozen pastry
Apple, cheese pie	2 180-200	2 170-180	50-70
Cheesecake	2 180-190	2 160-170			65-85
Pizza	2 200-220	2 170-180	20-30
French fries for oven *	2 200-220	2 170-180	20-35
Croquettes	2 200-220	2 170-180	20-35

Note: Guide number refers to the grid onto which smaller baking trays or cake tins are placed, and to shallow baking tray. The deep baking tray should not be inserted into the first guide.

Settings table for baking pastry with hot air and lower heater

Type of pastry Guide (from the bottom) Temperature (°C) Cooking time. (minutes)
Cheesecake (750g cheese) - short pastry	2 150-160 65-80
Pizza * - leavened dough 2 200-210 15-20
Quiche Loraine - short crust dough	2 180-200 35-40
Apple pie with icing - leavened dough	2 150-160 35-40
Fruit cake - mixed dough 2 150-160 45-55
Apple pie - flaky pastry 2 170-180 45-65

Pastry baking table for upper and lower heater with fan operating mode

Type of pastry Guide	(from the bottom)	Temperature (°C) Cooking time
		3	(minutes)
Sweet pastry
Marble cake, ring cake 1 150-160	50-60
Rectangle-shaped cake 1 150-160	55-65
Cake made in cake tin 1 150-160	45-55
Cake tin cheesecake 1 150-160	65-75
Fruit cake, short pastry 1 160-170	45-65
Fruit cake with dressing 1 160-170	55-65
Sponge cake*	1 150-160 25-35
Cake with icing	2 160-170 25-35
Fruit cake, mixed dough	2 150-160 45-60
Cherry cake	2 150-160 30-40
Sponge cake roll* 2 160-170 15-23
Leavened dough cake	2 150-160 25-35
Hefezopf (leavened dough)	2 160-170 35-45
Christmas cake	2 150-160 45-65
Apple pie	2 160-170 50-60
Oven-baked donuts	1 150-160 35-45
Savory pastry
Quiche Lorraine	1 170-180 45-55
Pizza*	2 190-200 20-25
Bread	2 170-180 50-60
Buns*	2 180-190 15-20
Bite - size pastry
Short pastry - cookies	2 150-160 15-25
Merengue *	2 150-160 15-25
Leavened dough	2 160-170 18-23
Puff pastry	2 170-180 20-30
Choux pastry (cream filled)	2	170-180	20-30
Frozen pastry
Apple, cheese pie	2 170-180 50-70
Cheesecake	2 160-170 65-85
Pizza	2 170-180 20-30

Note: Guide number refers to the grid onto which smaller baking trays or cake tins are placed.

Cooking / roasting meatCooking / roasting meat operating modes and .

• Data printed in bold represent the most appropriate operation mode for a particular type of meat.
• When cooking meat, the use of the fat filter is recommended (depending on the model).

Tips on using the cookware

• Meat can be cooked in enamel coated cookware, tempered glass (Pyrex) cookware, clay, or cast iron cookware.
• Stainless steel baking trays are less appropriate because they reflect the heat.
• If the roast is covered, it will remain juicier, and the oven will not be as dirty.
• In an open baking tray, the roast will brown sooner.

Some notes on cooking meat

• The meat cooking table indicates recommended temperatures, guide/shelf level, and cooking time. Since cooking times depend strongly on the type, weight, and quality of meat, they may have to be adjusted.
• Cooking meat, poultry, and fish in an oven is economical only at weights exceeding 1 kg.
• When cooking meat, add enough liquid to prevent the fat and juices from the meat to be burnt onto the baking tray. This means that, in case of longer cooking times, the roast should be checked upon every one in a while, and liquid should be added.
• After approximately half of cooking time, turn the roast around, especially when baking in a tray. For better results, start the cooking with the upper side turned downwards.
• When cooking larger chunks of meat, condensate may accumulate on the oven door. This is a natural phenomenon which does not affect the operation of the appliance. After cooking, wipe the door and door glass dry.
• In order to prevent accumulation of condensate, do not let the dishes to cool down in the oven.

Meat cooking table for upper/lower heater combination or with hot air

Type of meat Weight	(g)	Guide (from bottom)	Tempera-ture (°C) =	Guide (from bottom)	Tempera-ture (°C) ≈	Cooking time (min.)
Beef
Beef roast 1000 2 200-220 2	180-190 1	00-120
Beef roast 1500 2 200-220 2	170-180 1	20-150
Roastbeef, medium done 10	00 2 220-23	0 2 180-200 3	0-50
Roastbeef, well done 1000 2	220-230 2	180-200 40-60
Pork
Pork roast, incl. skin 1500 2	180-190 2	170-180 140-160
Pork belly 1500 2 190-200 2	170-180 1	20-150
Pork belly 2000 2 180-200 2	160-170 1	0-180
Shoulder 1500 2 200-210 2	160-170 1	20-140
Pork roll 1500 2 200-210 2 1	60-170 1	20-140
Cutlet 1500 2 180-200 2 160	-170 100-120
Minced meet roast (pork meat loaf)	1500 2	210-220 2 170	180 60-70
Veal
Veal roll 1500 2 180-200 2 1	70-190 90-1	20
Veal joint	1700 2	180-200 2 170	180 120-130
Lamb
Lamb loin	1500 2	190-200 2 170	180 100-120
Sheep joint	1500 2	190-200 2 170	180 120-130
Venison
Rabbit loin	1500 2	190-210 2 180	190 100-120
Deer joint	1500 2	190-210 2 170	180 100-120
Wild boar joint	1500 2	190-210 2 170	180 100-120
Poultry
Chicken, whole	1200 2	200-210 2 180	190 60-70
Chicken	1500 2	200-210 2 180	190 70-90
Duck	1700 2	180-200 2 160	170 120-150
Goose	4000 2	160-170 2 150	160 180-200
Turkey	5000 2	150-160 2 140	150 180-240
Fish
Whole fish	1000	2	200-210	2	170-180	50-60
Fish soufflé	1500	2	180-200	2	150-170	50-70

Note: The indication of recommended guide relates to the deep tray; smaller trays should be placed on the grid inserted into the first or second guide (do not insert the deep tray on the first guide).

Grilling and browningGrilling

and browning eat, you should be particularly careful. The high temperatures and infra heater heat the grid and other parts of the oven to very high degrees; use protective kitchen gloves and special meat tongs.

• Hot fat may squirt out of pierced meat (e.g. from sausages). To avoid burning your skin or eyes, use meat tongs.
• When grilling meat, control the process at all times. Due to high temperature, meat can be burnt quickly!
• Do not let children anywhere near the grill.
• Roasting with infra heater is recommended for crisp and low-fat preparation of grilled sausages. meat chunks, and fi sh (steak, chops, salmon fi llets, etc.) or toasted bread, as well as for browning.

Some tips on using the grill function

• When using the grill, oven door should always be closed.
• The cooking table for grilling indicates recommended temperature, guide level, and cooking time. Since cooking time depends strongly on the type, quality, weight, and quality of meat, it may have to be adjusted.
• When cooking meat, the use of fat filter is recommended (depending on the model).
• The infra heater (Large grill and Grill operating mode) should be preheated for five minutes.
• When cooking on a grid, spread some oil over it to prevent the meat from sticking onto it.
• Place thin slices of meat on the grid and insert it into the fourth guide level.
• Insert a baking tray, which will serve as a drip tray in this case, into the first or second guide level to collect the dripping fat and meat juices.
• Grilled meat should be turned halfway through the cooking. Cook the first side somewhat longer than the other one.
• When grilling larger chunks of meat on a grid (chicken, fi sh), insert the grid into the second level and the drip tray into the fi rst level.
• Thinner slices of meat should only be turned once, while the thicker ones should be turned several times. Use meat tongs to turn the meat around, to prevent too much juice to be lost.
• Darker meat will brown better and sooner than pork or veal.
• After using the grill, clean the oven and accessories each time to prevent the dirt to be burnt onto the oven the ext time you use it.

Cooking table - Large grill

Type of food Weight	(g)	Guide level (from bottom)	Temperature (°C)	Temperature (°C)	Cooking time (min)
Meat and sausages
4 beef loin chops, rare 180g/pc 4			Level	-14-16
4 beef loin chops, medium “ 4			‡	-16-20
4 beef loin chops, well done “ 4			‡	-	18-21
4 pork neck chops “ 4 - 19-23			‡
4 cutlets “ 4 - 20-24			‡
4 veal steaks “ 4 - 19-22			‡
6 lamb cutlets 100g/pc 4			‡	-15-19
8 grill sausages 100g/pc 4 - 11-14			‡
3 pcs of meatloaf	200g/pc 4	-	9-15 ‡
1/2 chicken	600g	2	-	180-190	25 (1.side)20 (2. side)
Fish
Salmon slices	600	3 - 19-22	‡
4 trout	200g/pc	2	-	170-180	45-50
Toasted bread
6 slices white bread	/ 4		‡	-	1,5-3
4 slices of mixed flour bread	/	4	‡	-	2-3
Toasted sandwich	/ 4 -	3,5-7 ‡
Meat / poultry*
Duck*	2000	2	210	150-170	80-100
Chicken*	1500	2	210-220	160-170	60-85
Pork roast	1500	2	-	150-160	90-120
Pork shoulder	1500	2	-	150-160	120-160
Pork joint	1000	2	-	150-160	120-140
Roastbeef / beef loin	1500	2	-	170-180	40-80
Vegetables au gratin **
Cauliflower, kale	750	2	-	210-230	15-25
Asparagus	750	2	-	210-230	15-25

Note: the guide level refers to the grid on which you place the meat; in the section meat/poultry, the guide level refers to the deep tray, while with chicken, it refers to the grid.

When cooking meat in a tray, make sure there is enough liquid in the tray to prevent the meat from burning; approximately halfway through the cooking progress, turn the chunk of meat around. When grilling meat on the grid, insert the deep tray into the first or second guide; this way, it will serve as a drip tray (see tips on grilling meat).

Recommendation: Dry the trout with a paper towel. Put some parsley, salt, and garlic into the fish abdomen, oil it from the outside, and place it on the grid. Do not turn during grilling.

* This type of meat can also be prepared on a roast spit (see instructions for spit roasting).
** Vegetables are first partly cooked and covered in béchamel sauce and grated cheese. Use the smaller glass baking tray and place it on the grid.

Cooking table - grill

Food type Weight (g) Guide		level (from bottom)	Temperature (°C)	Temperature (°C)	Cooking time (min.)
Meat and sausages
2 beef loin stakes, well done 180g/pc 4			Level	- 180-21
2 cutlets 4			▼	- 20-22
2 pork neck steaks 180g/pc 4			▼		18-22
4 grill sausages 100g/pc 4			▼	- 11-14
4 toasted sandwiches 4			▼	-	5-7
Toast - browning		4	▼		3-4
3 trout - on the grid	200g/pc	2	-	160-170	40-50
Chicken - on the grid	1500g	2	-	160-170	60-80
Pork shoulder - deep tray	1500g	2	-	150-160	120-160

PreservationPreservation

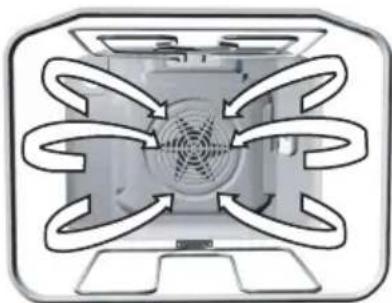

Diagram of a fan or vent system with six curved arrows indicating flow or direction, no text or symbols present.

For food preservation, use the lower heater + fan operating mode.

Prepare the food to be preserved and the jars as usually. Use conventional jars with a rubber sealing and glass cover. Do not use jars with threaded or metal covers and metal cans / tins. Preferably, the jars should be of the same size, filled with the same type of food, and tightly sealed. Up to six one-liter jars can be placed into the oven simultaneously.

• Only use fresh food.
• Pour approximately one liter of hot water (about 70°C) into the deep baking tray to provide the required humidity level in the oven. Place the jars into the oven in such way that they are not in contact with the walls and each other (see figure). Rubber seals should be wetted before use.
• Insert the deep tray with the jars into the second guide level from bottom up. During preservation, observe the jars; cook until the contents of the jars starts to boil – bubbles appear in the first jar. Pleas note the cooking times from the preservation table below.

Preservation table

Food to be preserved Quantity		T=170-180°C, until boiling / bubbling (min.)	After appearance of bubbles	Standing time (in the oven (min)
Fruit
Strawberries 6x1 liter approx. 40-55 turn off 25
Stone fruit 6x1 liter approx. 40-55 turn off 30
Apple puree 6x1 liter approx. 40-55 turn off 35
Vegetables
Sour gherkin 6x1 liter approx. 40 do 55 turn off 30
Beans, carrots	6x1 liter approx. 40 do 55 Set to 120°C, 60 min			30

Durations: given in the chart are approximate only. Actual time may vary de to differences in room temperature, number of jars, quantity and temperature of the fruit an vegetables to be preserved, etc. Before turning off the oven (for fruit) or setting a lower temperature (for some types of vegetables), make sure there are actually visible bubbles in the jars.

Important: Observe carefully when the bubbles appear in the first jar.

Defrosting (only with some models)

Diagram of a refrigerator interior with six curved arrows indicating airflow or circulation around the central panel (no text or labels)

- Air circulating in the oven may speed up the process of defrosting frozen food. To do this, set the oven to "Defrosting" mode * .

If the temperature setting button is accidentally activated, the oven control lamp will light up, but the heaters will not be activated.

• Food appropriate for defrosting includes cakes with heavy cream or butter-based filling, other cakes and pastry, bread, buns, and deep-frozen fruit.
• For reasons of hygiene, meat and poultry should not be defrosted in an oven.

If possible, turn the food around or mix several times to make sure they are defrosted evenly.

Cleaning and maintenance

Do not use a steam cleaner or a high-pressure steam cleaner to clean the appliance. Before you start cleaning the appliance, disconnect it from the power mains and let it cool down.

Appliance housing front

Clean the surfaces with liquid non-abrasive detergents intended for smooth surfaces, and a soft cloth. Apply the detergent on the cloth and wipe off the dirt; then, rinse with water. Do not apply the detergent directly on the surfaces. Do not use aggressive or abrasive cleaners, sharp objects or steel wool, as these will scratch the appliance.

Aluminum surfaces

Aluminum surfaces should be cleaned with non-abrasive liquid detergents intended for such materials. Apply the detergent on a wet cloth and clean the surface; then, rinse the surface with water. Do not apply the cleaner directly on the aluminum surface. Do not use abrasive cleaners or abrasive sponges. The surface should not come into contact with oven cleaning sprays.

Stainless steel front panels

(only with some models)

Clean the surface with a mild cleaner (soapsuds) and a soft sponge that will not scratch the material. Do not use abrasive or solvent-based cleaners. If these instructions are ignored, the housing surface can be damaged.

Lacquer-coated and plastic surfaces

(only with some models)

Clean the buttons / knobs and the door handle with a soft cloth and liquid detergents intended for cleaning smooth lacquer-coated surfaces. You may also use the cleaners made especially for this type of surfaces; in this case, follow the manufacturer's instructions.

WARNING: The above surfaces should never come into contact with oven cleaning sprays, as these will permanently damage the aluminum parts.

CleaningCleaning

Oven

• The oven can be cleaned in conventional manner (with detergents, oven spray), but only when it is very dirty and when the stains are particularly stubborn.
• For regular cleaning of your oven (after each use), the following procedure is recommended: rotate the operation mode selection knob to the position ⚙. . Set the temperature selection knob / dial to 70°C. Pour 0.6 liter of water into a baking tray and insert it into the lowermost guide. After thirty minutes, the food residues on the enamel will have softened, allowing you to wipe them with a damp cloth.

When dealing with stubborn stains, please note the following:

The oven should be cooled down before each cleaning process.

• Clean the oven and accessories after each use to prevent the dirt from being burnt onto the oven.
• The easiest way to remove grease is by using warm soapsuds while the oven is still warm.
• In case of particularly stubborn dirt, use the conventional oven cleaners. Then, rinse the oven thoroughly with clean water to remove all residues of the cleaner.
• Never use aggressive cleaners such as steel wool, abrasive dishwashing sponges, stain removers, etc.
• Lacquer-coated, stainless steel, and zinc-coated surfaces, as well as aluminum parts, should never come into contact with oven cleaning sprays, as these may cause damage and discoloration. The same applies for the thermostat sensor (if the cooker features a timer with a probe) and the heaters accessible at the upper part.
• When purchasing and dispensing detergents, consider the environment and observe the instructions provided by respective cleaning agent manufacturers.

Practical tip

• When cooking larger fatty chunks of meat, we recommend wrapping them in aluminum foil of a suitable cooking bag, to prevent the grease from being spattered on the oven interior walls.
• When grilling meat on the grid, place a drip tray underneath.

Maintenance (depending on the model)

Diagram showing a hand holding a ladder with two numbered arrows indicating positions of the ladder and handle.

Cleaning the oven interior ceiling (only with some models)

• To facilitate cleaning of the oven interior upper wall, some appliances feature a foldable upper infra heater.
• Before lowering the heater, the cooker must be disconnected from the power mains by removing the fuse or tripping the main switch.
• The heater should be cooled down; otherwise there is a risk of burning!
• Do not use the heater when it is lowered!

Before cleaning the oven, remove the baking trays, the grid, and the guides. Then, pull the horizontal heater towards yourself. Pull the heater until the crossbar is released from the supports on the left and right side of the oven (see figure). After cleaning, replace the heater following the same procedure; the crossbar must be reinserted into the two support brackets.

Accessories

Wash the accessories (baking trays, grid, etc.) with hot water and some conventional detergent.

Grease fi Iter (only with some models)

After each use, clean the grease fi Iter with a soft brush in hot water and some detergent, or wash it in a dishwasher.

Special enamel coating

The oven, interior side of the door, and baking trays, are covered with special enamel that has a smooth and resistant surface. This special layer enables easier cleaning at room temperature.

Removing the telescopic pull-out guides

To facilitate cleaning of the oven interior side walls, the telescopic pull-out guides can be removed

• Hold the guide rack by its lower end and rotate it inwards; then, remove them from the holes on the upper side.
• Clean the racks with telescopic guides only with conventional cleaners.
• Do not wash the telescopic pull-out guides in a dishwasher.

Do not attempt to grease the telescopic retractable guides.

After cleaning, simply replace the guide rack by following the procedure in reverse order.

Diagram showing a hand holding a ladder-like structure with numbered arrows indicating steps 1 and 2.

Diagram of a device with numbered components and directional arrows indicating flow or movement

fi gure 1

2 1

fi gure 2

① ②

fi gure 3

Removing wire guide racks

To facilitate cleaning of the oven interior side walls, the wire guide rack can be removed.

• Hold the guide rack by its lower end and rotate it inwards; then, remove them from the holes on the upper side.
• Clean the guide racks guides only with conventional cleaners.
  • After cleaning, simply re-hang the guide rack in the holes provided and pull the downwards.

Removing the inner glass pane (only applies to the Premium fully glass door)

Door glass panes can also be cleaned from the inside; however, they must first be removed as follows:

• Remove the oven door (see section on removing and inserting the oven door).
• Hold the door glass pane by its lower edge. Pull it gently towards yourself and lift it slightly – but not too far – by a maximum of 10 mm, until the glass support wedge slips out of the groove (Figure 1).
• Remove the glass (in the direction of arrow 3).
• Interior glass (only in some models) is removed by first undoing the screws on the glass supports and then by lifting it (Figure 2). Remove the supports before cleaning the glass pane.
• Reinstall the door by following the same procedure in reverse order.

Note: Insert the glass into the slot and push it forward (Figure 3).

Mechanical component with a curved arrow indicating rotational motion (no text or symbols)

fi gure 1

15°

fi gure 2

Door lock (only with some models)

Hand pressing a button on a road surface with directional arrows indicating motion (no text or symbols)

Replacing appliance parts

Removing and inserting the oven door with a single-axis hinge

Completely open the oven door and rotate the attachment clips completely backwards (Figure 1).

• Slowly close the door until the clips are pressed against the supports / seats. At approximately 15^ (relative to the closed door position), pull the door slightly upward and pull them out of the both hinge supports on the appliances (Figure 2).
• Replace the door in the reverse order. Insert the door under an angle of 15^ into the hinge supports at the front side of the appliance and push them downwards and to the front until they slide into their supports / seats.
• Then, completely open the door and rotate the attachment clips back to their initial position. Slowly close the door and check, if they close properly. If the door does not open or close correctly, make sure whether the hinge notches are correctly placed in their seat hinges.

Attention

Always make sure the hinge attachment clips are firmly seated in their supports when installing the door. If this is not the case, the main hinge that is operated by a strong spring may be released any time while installing or removing the door. Risk of physical injury.

• Oven door is fitted with a door lock that prevents it from being open until the lock is released. Door lock is opened by a slightly pressing your thumb to the right and simultaneously pulling the door outwards.
• When the oven door is closed, the door lock automatically returns to its initial position.

Note: If the door lock is supplied with the appliance, attach it under the appliance control panel in compliance with the instructions for installation, which are supplied with the lock.

The oven lamp base and socket are under voltage. There is a risk of electric shock!

Before replacing the oven lighting bulb, disconnect the appliance from the power mains by removing the fuses or tripping the main network switch.

Interior view of a kitchen appliance showing a button and a circular diagram with a rotational arrow (no text or symbols)

Oven bulb

(only with some models)

Oven bulb is considered a replacement ware part and is not covered by the warranty. Replace the bulb with a new one with the following specifications: socket E 14, 230 V, 25 W, 300°C.

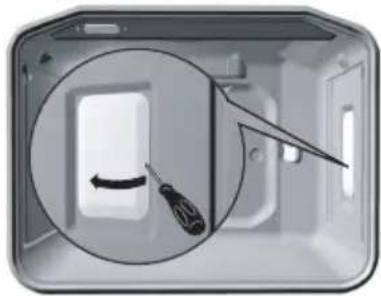

- Unscrew the glass cover in the counterclockwise direction, replace the bulb, and replace the cover.

Interior view of a modern kitchen appliance with a screwdriver inserted, showing a circular diagram highlighting the interior (no text or symbols)

Special warnings and error reporting

During the warranty period, any repairs may only be performed by service technicians authorized by the appliance manufacturer.

Before starting the repair, the appliance must be disconnected from the power mains by removing the fuse or by removing the mains cord from the wall outlet.

Unauthorized tampering and repairs may cause the risk of electric shock and short circuit; therefore, do not attempt them yourselves. Leave such tasks to an expert or an authorized service technician.

In case of minor faults or problems with the appliance operation, check the following instructions to see whether you can eliminate the causes by yourselves.

Important Important

A visit by a service technician during the warranty period will be charged if the appliance is not functioning because of improper use. Store these instructions in a place where they are always readily accessible; if pas the appliance on to another person, the instructions should also be included.

Following is some advice on rectifying some common problems.

Sensors do not respond, the display has frozen	· Disconnect the cooker from the power network for a few minutes (remove the fuse or trip the main switch); then, reconnect it to the power network and turn on the oven
The main fuse is tripped repetitively	· Call a service technician!
Oven interior lighting does not work	· The process of replacing the bulb is described in the section “Appliance part replacement”.
The oven does not heat up...	· Was the temperature and operating mode selected appropriately? · Is the oven door closed?
The pastry is not cooked thoroughly...	· Have you removed the grease fi lter? · Did you observe the instructions and tips from the section “Baking pastry”? · Did you follow the instructions in the baking table closely?
The program timer shows extraordinary fi gures or is turned on and off uncontrolled	· In case of faulty operation of the program timer, disconnect the cooker from the power mains for a few minutes (remove the fuse or trip the main switch); then, reconnect it to the mains and set the time of day.
Program timer display is blinking	· There was a power supply failure, or your cooker was just connected to the power mains. All set times have been deleted. · Set the time of day to enable operation of the appliance. · After the end of program timer controlled operation (automatic operation), the oven goes off, the time of day is displayed, and an audible signal is emitted for a certain period of time. Take the dish out of the oven, return the operation mode selection knob and the temperature knob/dial back to the starting position. Select the “Manual mode” function to be able to use the oven in the conventional way (without the program timer).
Operation control lamp is not lit...	· Did you activate all necessary controls? · Did the main fuse in your home network trip? · Are the temperature knob /dial and the operating mode selection knob set properly?

If the problem persists despite observing the instructions above, call an authorized service technician. Elimination of any errors or warranty claims that resulted from improper connection or use of the appliance is not covered by our warranty. In such cases, the costs of repair are borne by the user.

Important warnings

• The appliance may only be connected by a qualified expert.
• The appliance should be fitted with a device that disconnects it from all poles of the home network (an omnipolar switch), with at least 3 mm of distance between the contacts in open position. LS-switches or fuses are appropriate.
• To connect the appliance, use the rubber mains cords (type HO5RR-F with the green/yellow earth wire), PVC insulated (type HO5VV-F with the green/yellow earth wire), or other equivalent or superior cables.
• Veneer, glue, or plastic finish of the furniture next to which the cooker is installed, should be treated heat resistant ( >75^ ). If the veneers are not high temperature resistant, they may be deformed.
• Packaging (plastic foil, polystyrene, etc.) must be kept out of reach of children, as it can be a source or threat to them. Small parts can be swallowed by the children, and the foils are hazardous because of the risk of suffocation.

InstallationInstallation

Technical line drawing of a mechanical component with a screwdriver inserted, showing no text or symbols

• Veneer or other finish of the furniture the appliance is being built into should be processed with heat-resistant glue (100°C); otherwise, high temperatures may cause them to deform.
• Before installing the appliance, remove the back wall from the piece of kitchen furniture the appliance is being built into, along the entire length of the cutout.

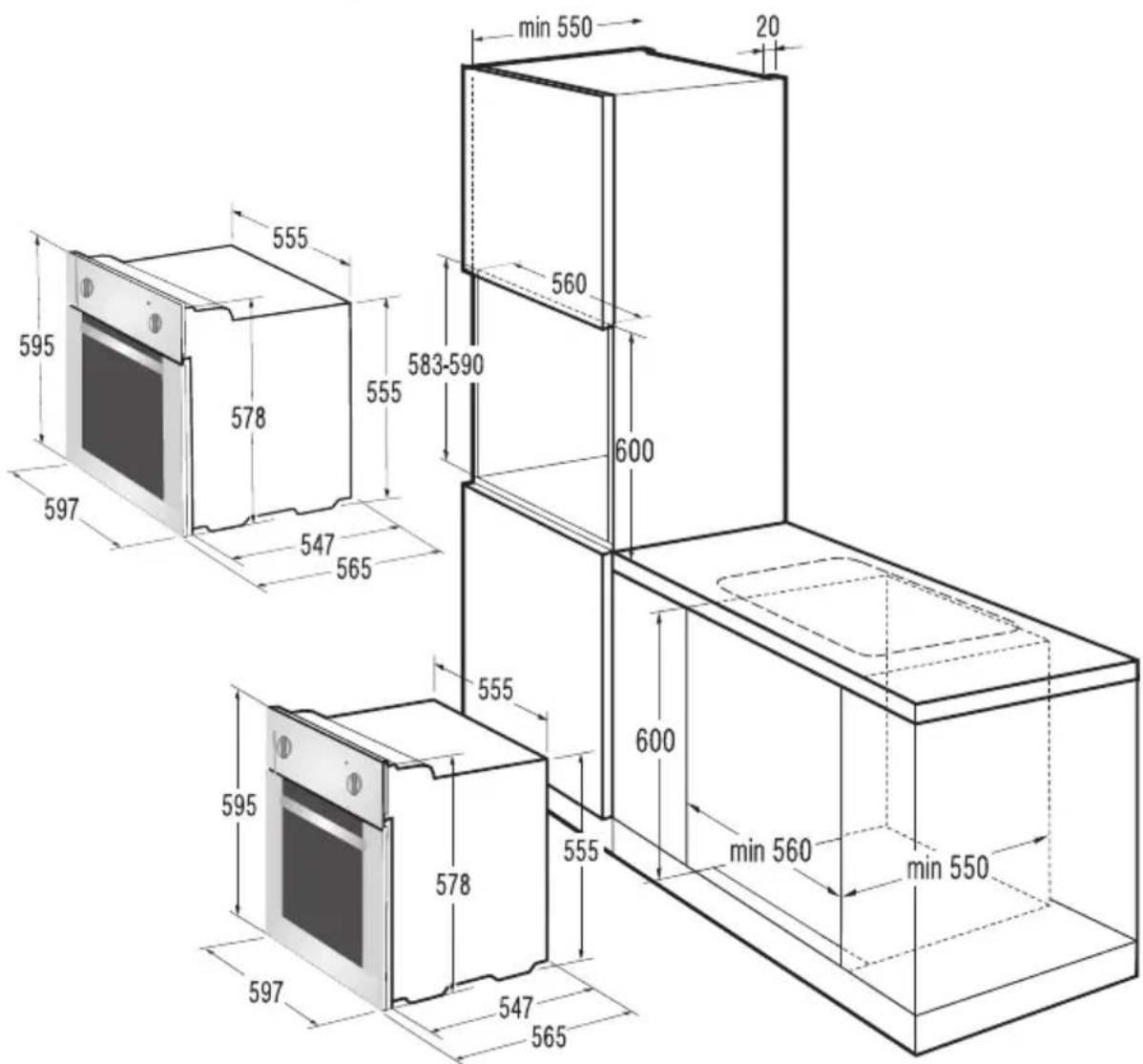

• The installation cutout should be dimensioned as indicated in the figure.
• The bottom panel of the piece of kitchen furniture (max. 530 mm) should always be shorter than the side walls to enable adequate air circulation.
• Level the piece of furniture the appliance was built into with a spirit level.
• The piece of kitchen furniture the appliance is built into must be secured against movement, e.g. attached to the adjacent pieces of kitchen furniture.
• Push the appliance into the kitchen furniture element enough that the guides for the screws that are inserted in the oven frame holes are placed against the kitchen element side walls.
• When attaching the appliance, make sure the screws are not fastened too strongly as this may damage the furniture or the appliance enamel coating.

min 550 20 595 555 583-590 560 578 555 600 597 547 565 595 555 600 597 578 555 min 560 min 550 547 565

Electrical connection Electrical connection may only be connected to the power mains by an authorized service technician or a registered electrician! Incorrect connection may result in damage to or destruction of respective parts of the appliance; in such cases, the warranty is void.

• Open the connection clip using a screwdriver, as indicated on the figure on the cover.
• The voltage (230V against N) in your home network must be checked by an expert using appropriate equipment!
• The connection bridges must be placed in compliance with the network connection!
• Before connection, make sure the voltage on the rating plate is consistent with the actual network voltage.
• The length of the power cord should be at least 1.5 meters; thus, the appliance can be connected before it is pushed to the wall.
• The length of the power cord should be adjusted in such way that in case of pulling load on the cable, the ground wire is strained later than the voltage wires.

Technical line drawing of a mechanical device with a base and two components, no visible text or symbols

230V~ N L1 PE

Procedure

• Use a screwdriver to open the cover of the connection terminal on the back of the appliance. Release the two clips as indicated on the cover of the connection terminal.
• The mains cord must be inserted into the strain release device which protects the cable from being pulled out. If the strain release device is not installed yet, install it in such way that it gets stuck in the connection terminal housing at one end.
• Then, connect the appliance according to the instructions indicated on the fi gures. If network voltage is different, the connection bridges should be replaced.
• Firmly fasten the strain release device and close the cover.

Lead colors

L1, L2, L3 = external leads under voltage. Normally, the lead colors are black, black, brown.

N = neutral lead, normally blue.

Make sure the N-lead is connected correctly!

PE = protection, or earth (ground) lead, normally green-yellow.

Technical characteristics

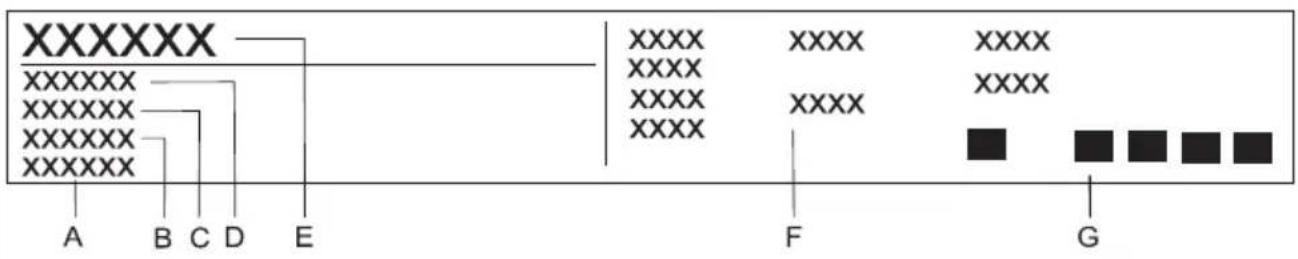

Rating plate

Warning symbol with exclamation mark inside triangle

The appliance identification card is located on the bottom of the appliance.

Stick the appliance identification card here.

When contacting the service department, have the complete type number to hand.

You will find the addresses and phone numbers of the service organisation on the guarantee card.
