USER MANUAL M18 Fuel Angler 2873A22 MILWAUKEE

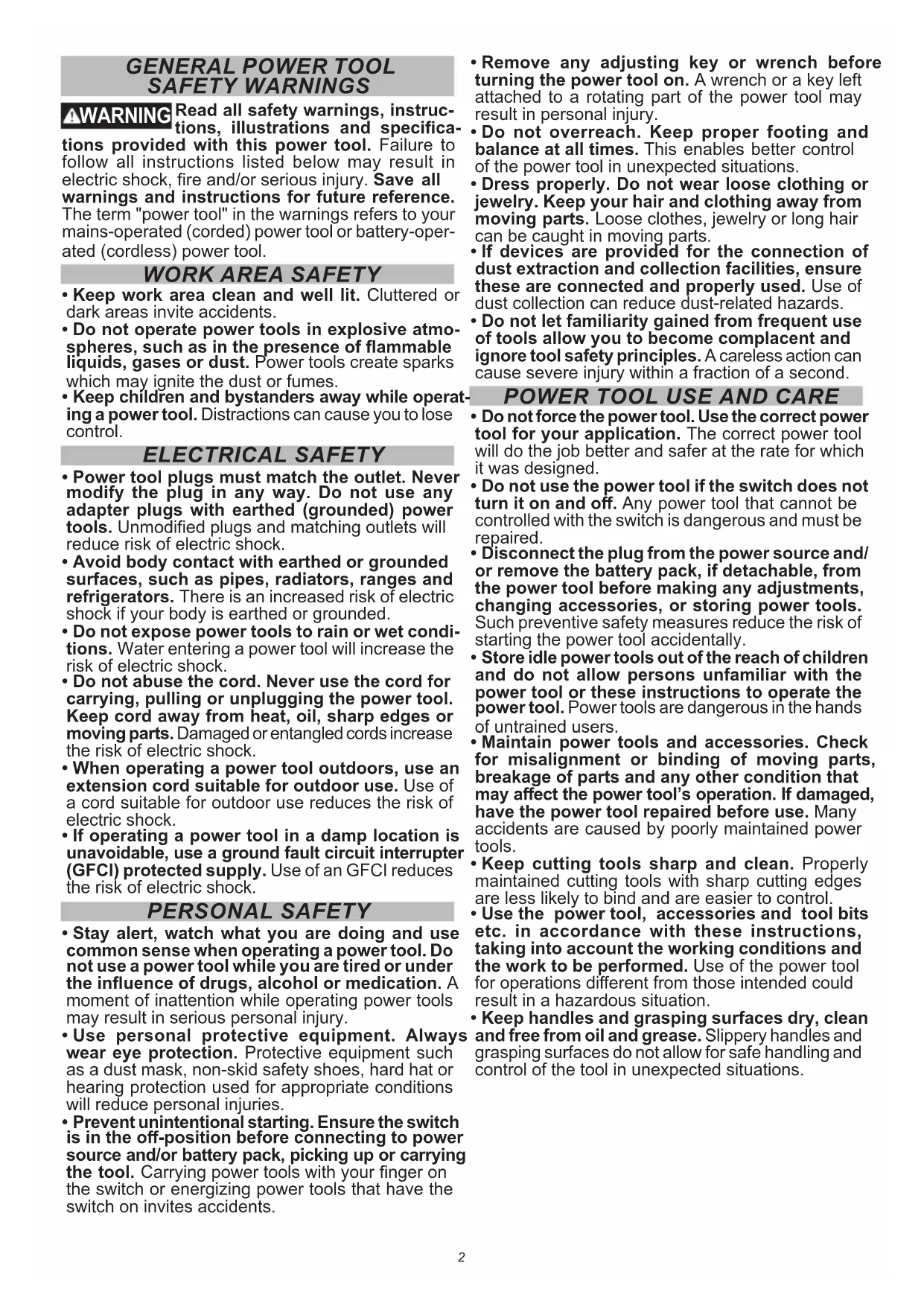

SAFETY WARNINGS WARNING Read all safety warnings, instruc- tions, illustrations and specica- tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-oper- ated (cordless) power tool.

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate power tools in explosive atmo- spheres, such as in the presence of ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operat- ing a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet condi- tions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock. PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

• Prevent unintentional starting. Ensure the switch is in the o󰀨-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energizing power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

• Do not use the power tool if the switch does not turn it on and o󰀨. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may a󰀨ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations di󰀨erent from those intended could result in a hazardous situation.

• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.3

BATTERY TOOL USE AND CARE

• Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.

• Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.

• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact ac- cidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is dam- aged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.

• Do not expose a battery pack or tool to re or excessive temperature. Exposure to re or tem- perature above 265°F (130°C) may cause explosion.

• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specied in the instructions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re. SERVICE

• Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

• Do not use on or near live circuits. When working near electrical equipment, use extreme caution. When pulling through conduit which contains any other wires, be certain that power to those wires has been turned o󰀨 or disconnected.

• Maintain proper footing and balance when performing pulling operations. Do not pull from a ladder. If a snag or resistance is encountered, a ladder could become unstable which may result in a loss of balance or control.

• Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact Milwaukee Tool or a trained professional for additional information or training.

• Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paint

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to lter out microscopic particles. SYMBOLOGY Volts Direct Current Revolutions per Minute (RPM) Read operator's manual Wear eye protection Do not use on or near live circuits

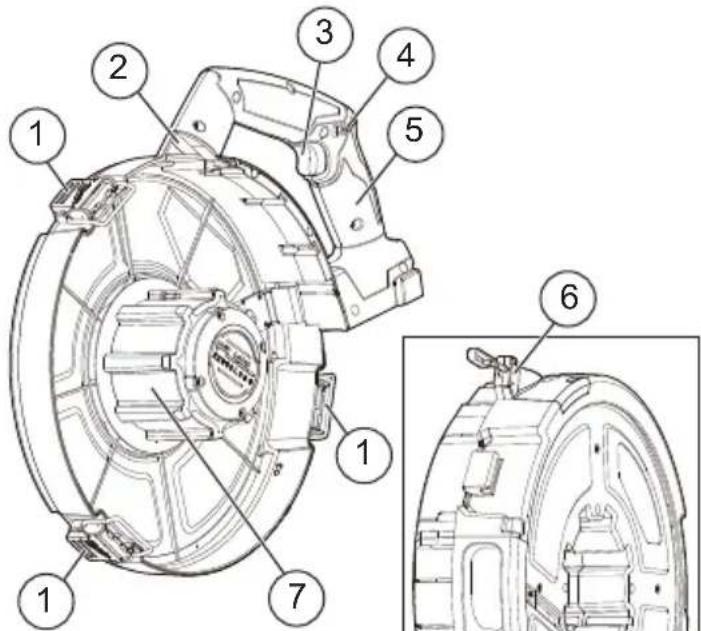

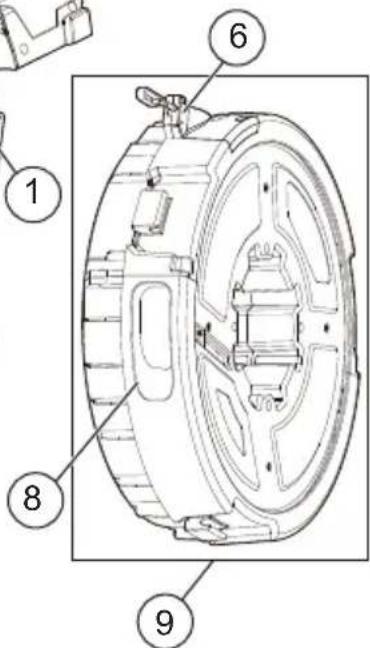

UL Listing for Canada and U.S. SPECIFICATIONS Cat. No. ..................................................... 2873-20 Volts.............................................................. 18 DC Battery Type .................................................M18™ Charger Type................................................M18™ RPM .....................................................................37 Recommended Ambient Operating Temperature ......................0°F to 125°F Compatible Replacement Cartridges 120' x 1/8" Steel Pulling Fish Tape Replacement Cartridge ..................... 48-44-5176 240' x 1/8" Steel Pulling Fish Tape Replacement Cartridge...................... 48-44-5178 100' Non-Conductive Polyester Pulling Fish Tape Replacement Cartridge...................... 48-44-51954 OPERATION WARNING To reduce the risk of injury, always wear proper eye protection marked to comply with ANSI Z87.1. WARNING Maintain proper footing and bal- ance when performing pulling operations. Do not pull from a ladder. If a snag or resistance is encountered, a ladder could become unstable which may result in a loss of balance or control. Using the Control Switch The control switch may be set to three positions: feed, retract and lock. Due to a lockout mechanism, the control switch can only be adjusted when the trigger is not pulled. Always allow the motor to come to a complete stop before using the control switch.

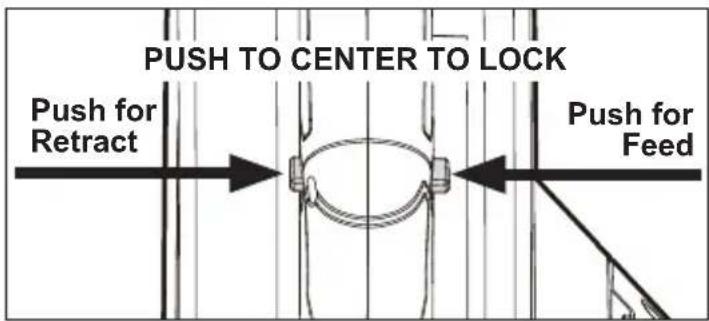

1. To feed the sh tape, push the control switch in

the direction shown. Push for Retract Push for Feed

PUSH TO CENTER TO LOCK

2. To retract the sh tape, push the control switch in

the direction shown.

3. To lock the trigger, push the control switch to the

center position. The trigger will not work when the control switch is in the locked position. Always remove the battery pack before performing maintenance, changing accessories, storing the tool and any time the tool is not in use. General Operation

1. Install the battery pack.

2. Support sh tape during use.

3. To feed the conduit run, move the control switch

to the feed position and pull the trigger.

4. To vary the speed, increase or decrease pressure

on the trigger. The further the trigger is pulled, the greater the speed.

5. While extending, monitor the sh tape. When

nearing full extension, the sh tape will be marked with yellow paint. Once yellow paint is visible, stop extending. Further extension could damage or break the sh tape.

6. Once the sh tape has been extended out to the

pulling point, release the trigger.

7. Move the control switch to the lock position or

remove the battery pack.

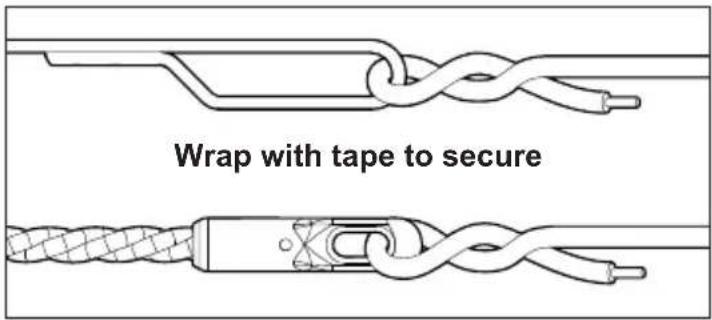

8. Fasten your wire or pull line to the sh tape se-

curely. Wrapping the connection with plastic tape may help prevent it from unraveling during pulling. FUNCTIONAL DESCRIPTION

ASSEMBLY WARNING Recharge only with the charger specied for the battery. For spe- cic charging instructions, read the operator’s manual supplied with your charger and battery. Removing/Inserting the Battery To remove the battery, push in the release buttons and pull the battery pack away from the tool. WARNING Always remove battery pack before changing or removing accessories. To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place. WARNING Only use accessories specically recommended for this tool. Others may be hazardous. Installing a Cartridge

1. Align the nozzle of the cartridge to the nozzle notch

of the tool and place the cartridge around the tool hub until fully seated.

2. Secure the cartridge to the tool with the three

3. To remove, unlatch and use cartridge removal grips

to separate the cartridge from the tool.5 Wrap with tape to secure WARNING Maintain proper footing and bal- ance when performing pulling operations. Do not pull from a ladder. If a snag or resistance is encountered, a ladder could become unstable which may result in a loss of balance or control.

9. Before pulling wire through, be mindful of your

surroundings and potential nearby hazards to yourself and others in the event the tape breaks free during pulling.

10. Do not force a pull that has snagged or encoun-

terd a point of resistance. Instead, remove the wire and clear the obstruction.

11. To retract the sh tape, move the control switch

to the retract position and pull the trigger. Stop retracting once the sh tape has returned to the starting position. Continuing to retract further could damage or break the cartridge.

12. If the tool shuts down during feed:

a. Release the trigger. b. Push the control switch to the retract position. c. Pull the trigger for 3-4 seconds. d. Push the control switch to the feed position. e. Pull the trigger and attempt to feed again. f. Repeat the above steps up to 5 times if needed. g. If tool continues to shut down during feed, the cartridge must be replaced.

13. If the non-conductive tape begins retracting into

the cartridge during feed: a. Release the trigger. b. Push the control switch to the retract position. c. Grasp the tape just outside the cartridge using a rm handshake grip. d. Pull the trigger while applying tension to the tape with your other hand as the tape pulls back into the cartridge. e. Release the trigger. f. Push the control switch to the feed position. g. Pull the trigger and attempt to feed again. h. Repeat the above steps up to 5 times if needed.

i. If tool continues to retract during feed, the

cartridge must be replaced. MAINTENANCE WARNING To reduce the risk of injury, always unplug the charger and remove the battery pack from the charger or tool before performing any maintenance. Never disassemble the tool, battery pack or charger. Contact a MILWAUKEE service facility for ALL repairs. Maintaining Tool Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may a󰀨ect the tool operation. Return the tool, battery pack, and charger to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool, battery pack and charger to a MILWAUKEE service facility for inspection. If the tool does not start or operate at full power with a fully charged battery pack, clean the contacts on the battery pack. If the tool still does not work prop- erly, return the tool, charger and battery pack, to a MILWAUKEE service facility for repairs. WARNING To reduce the risk of personal in- jury and damage, never immerse your tool, battery pack or charger in liquid or allow a liquid to ow inside them. Cleaning Clean dust and debris from vents. Keep handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain clean- ing agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household deter- gents containing ammonia. Never use ammable or combustible solvents around tools. Repairs For repairs, return the tool, battery pack and charger to the nearest authorized service center. ACCESSORIES WARNING Use only recommended accesso- ries. Others may be hazardous. For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878) Monday-Friday, 7:00 AM - 6:30 PM CST or visit www.milwaukeetool.com Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions. Email: [e-mail] Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notications regarding your tool purchases.6

Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeetool.ca LIMITED WARRANTY USA & CANADA Every MILWAUKEE power tool* (see exceptions below) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on an electric power tool which, after examination, is determined by MILWAUKEE to be defective in material or workman- ship for a period of ve (5) years** after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents. Normal Wear: Many power tools need periodic parts replacement and service to achieve best performance. This warranty does not cover repair when normal use has exhausted the life of a part including, but not limited to, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bumpers, driver blades, pistons, strikers, lifters, and bumper cover washers. *This warranty does not cover Air Nailers & Staplers; Airless Paint Sprayer; Cordless Battery Packs; Gasoline Driven Portable Power Generators; Hand Tools; Hoist – Electric, Lever & Hand Chain; M12™ Heated Gear; Reconditioned Product; and Test & Measure- ment Products. There are separate and distinct warranties available for these products. **The warranty period for Job Site Radios, M12™ Power Port, M18™ Power Source, Jobsite Fan and Trade Titan™ Industrial Work Carts is one (1) year from the date of purchase. The warranty period for the M18 FUEL™ 1" D-Handle High Torque Impact Wrenches, Drain Cleaning Cables, AIRSNAKE™ Drain Cleaning Air Gun Accessories, and REDLITHIUM™ USB Laser Levels is two (2) years from the date of purchase. The warranty period for the M18™ Compact Heat Gun, 8 Gallon Dust Extractor, M18™ Framing Nailers, M18 FUEL™ 1/2" Ext. Anvil Controlled Torque Impact Wrench w/ ONE-KEY™, M18 FUEL™ 1" High Torque Impact Wrench w/ ONE-KEY™, M18 FUEL™ 2 Gal. Compact Quiet Compressor, and M12™ Laser Levels is three (3) years from the date of purchase. The warranty period for the LED in the LED Work Light and the LED Upgrade Bulb for the Work Light is the lifetime of the product subject to the limitations above. If during normal use the LED or LED Bulb fails, the part will be replaced free of charge. Warranty Registration is not necessary to obtain the applicable war- ranty on a MILWAUKEE power tool product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested. ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CON- TRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CON- SEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EX- CLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS

ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION

ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WAR- RANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WAR- RANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. This warranty applies to product sold in the U.S.A. and Canada only. Please consult the ‘Service Center Search’ in the Parts & Service sec- tion of MILWAUKEE’s website www.milwaukeetool.com or call 1.800. SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a Milwaukee electric power tool. RÈGLES DE SÉCURITÉ GÉNÉRALES

Monday-Friday, 7:00 AM - 4:30 PM CST www.milwaukeetool.ca
