Product type	Rear view camera
Brand	Blaupunkt
Model	RVC 4.2 W
Power supply	12 V DC (tolerance ±10 %)
Current consumption	< 40 mA
Power	< 0.35 W
Video signal	CVBS, NTSC
Effective pixel count	688 x 528
Ingress protection rating	IP67
Minimum illumination	0.1 lux
Operating temperature range	-20 °C to +65 °C
Storage temperature range	-30 °C to +80 °C
Main functions	Rear view with guide line, mirror/image switch, guide line switch, up/down image switch, dual coil control
Included accessories	VK-RVC 4.X (10 m RCA extension cable), SF-RVC 4.X (signal filter)
Maintenance and cleaning	Clean regularly with a soft cloth; do not use high-pressure water jet; turn on license plate light for better night visibility
Safety	Disconnect battery before installation; do not modify the device; installation by a specialist recommended; observe voltage limits; keep cables away from heat sources
Spare parts and repairability	No user-serviceable parts; repairs by a professional only
General information	Driver assistance camera; does not replace vigilance; specifications subject to change without notice

Frequently Asked Questions - RVC 4.2 W BLAUPUNKT

How to install the Blaupunkt RVC 4.2 W rear view camera?

Installation can be done in two ways: on the bumper (drill a hole of the same diameter as the camera, point the arrow upward) or on a bracket (choose a flat spot near the license plate light, drill two holes and screw). Connect the red wire to the reverse light (+12 V) and the black wire to ground. Refer to the wiring diagram in the manual for details.

What type of video signal does this camera use?

The camera uses a CVBS signal in NTSC standard.

How to adjust the image if it is inverted?

The camera has a mirror/image switch (cut the blue loop to switch to front view) and an up/down image switch (depending on model). Follow the switching loop instructions in the manual.

Can I use this camera in a 24 V vehicle?

No, the camera is designed for a 12 V DC electrical system (tolerance ±10 %). 24 V supply poses a fire risk.

How to enable or disable the guide line?

The guide line is enabled by default. To disable it, cut the purple or white loop on the camera cable (depending on model).

Is the camera waterproof?

Yes, the camera has an IP67 ingress protection rating. However, avoid cleaning it with a high-pressure water jet to prevent damage to the lens.

What is the power consumption of the camera?

Current consumption is less than 40 mA and power is less than 0.35 W.

What accessories are included with the camera?

Accessories include the 10-meter RCA extension cable (VK-RVC 4.X) and the signal filter (SF-RVC 4.X).

Can I install the camera myself?

It is recommended to have experience installing this type of device and to know the vehicle's electrical system. Always disconnect the battery before installation and follow the connector markings.

How to clean the camera?

Clean the lens regularly with a soft cloth to remove dirt, water drops, or snow. Do not use harsh cleaners or high-pressure water jets.

USER MANUAL RVC 4.2 W BLAUPUNKT

RVC 4.1 KH | RVC 4.2 W | RVC 4.3 U | RVC 4.4 A

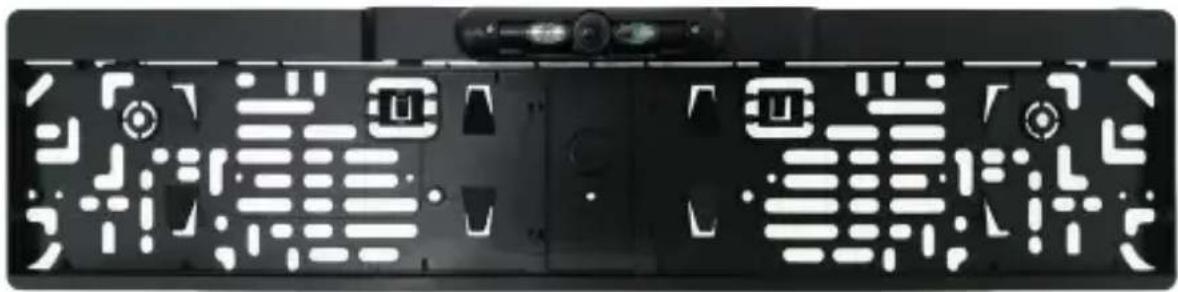

Front view of a black automotive license plate with white decorative patterns and control buttons (no text or symbols visible)

Close-up of a black camera lens mounted on a tripod stand (no visible text or symbols)

Close-up of a black mechanical component with a threaded bolt and curved base (no visible text or symbols)

Close-up of a black, glossy, triangular object with a small circular feature (no text or symbols visible)

Enjoy it.

Line drawing of a hand holding a tool with a pen, no text or symbols present

Line drawing of hands holding a small mechanical component (no text or symbols)

Line drawing of hands using a tool to install a component into a tank (no text or symbols)

Line drawing of hands using scissors to cut a piece of paper or tape (no text or symbols present)

Line drawing of a hand holding a small object above a window frame (no text or symbols)

Line drawing of a hand using a tool to install or install a component inside a vehicle (no text or symbols)

Line drawing of hands using scissors to cut a piece of paper or tape (no text or symbols)

Exterior view of a modern urban plaza with two cars parked on the road, no visible text or signage

Two cars parked on a paved road with colored directional arrows indicating navigation or movement (no text or symbols visible)

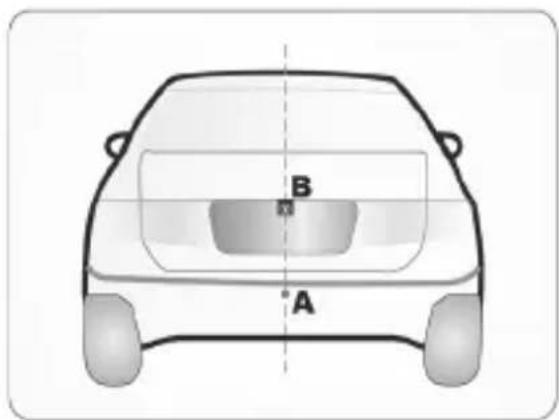

Universal type installation location

B A

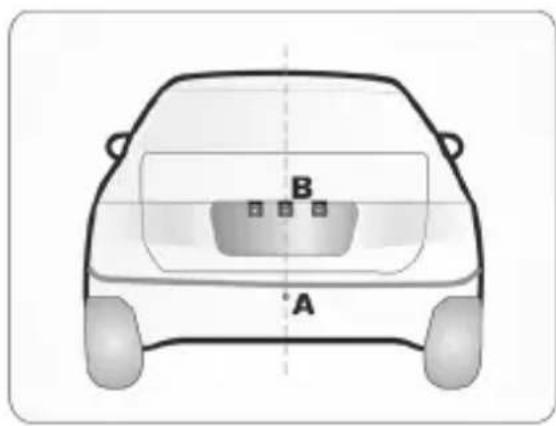

Special type installation location

A. Installation Guide For Flush-Mount Camera

Equal Diameter

1. Check to be sure the hole saw used is with equal diameter to that of camera.

UP UP

1. Adjust the camera to turn the UP arrow mark straight upwards.

Line drawing of a hand holding a tool with a pointer, no text or symbols present

1. Put the harness through the hole made on bumper before fixing the camera.

Line drawing of hands holding a small circular object (no text or symbols)

1. Put the camera into the hole and use your two thumbs to press it evenly for tight and flat mounting.

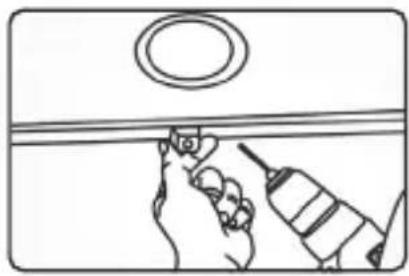

B. Installation Guide For Bracket-Mount Camera

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

1. Choose a flat position near license plate light and make a small hole for the first screw with a drill.

Line drawing of hands using scissors to cut a piece of paper or tape (no text or symbols present)

1. Use a screw driver to fix the first screw (but not tightly).

Line drawing of a hand holding a small object near a window (no text or symbols)

1. Get the power/video cables connected, and then adjust the camera properly to find the best position for the other screw according to the camera image in monitor.

Line drawing of a hand using a screwdriver to install a component (no text or symbols)

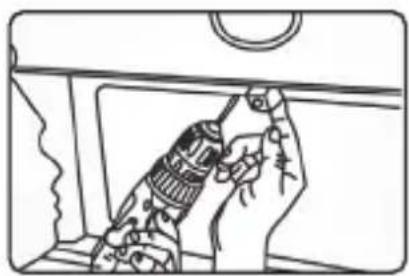

1. Mark the position found for second screw and make a hole with a drill.

Line drawing of hands using a tool to adjust or install a component (no text or symbols present)

1. Fix the second screw with a screw driver.

Remarks:

Beside flush and bracket mount cameras, we also have bolt mount camera series, which is mounted by following steps:

1. Select suitable flat position near the license plate light and mark it.
2. Drill a hole according to the bolt diameter.
3. Put the bolt vertically (against ground) into the hole and fix the bolt with the screw supplied from inside.
4. Some models come with up/down image switch option, and can be mounted with its bolt horizontal (against ground) and its lens downward.

Video signal CVBS Current			Consumption	<40mA
Signal NTSC Power <0.35W
Effective Pixels 688X528 Waterproof Grade IP67
Voltage DC12V Operating			temperature range	-20 °C ~ +65 °C
Min Illumination 0.1 Lux Storage			temperature range	-30 °C ~ +80 °C
Optional accessories VK-RVC 4.X (10 meter RCA extension cable); SF-RVC 4.X (signal filter)
Other Rear view with parking line, formal/ mirror switch, parking line switch, dual-coil control dual functions

WIRING DIAGRAM

LCD Monitor Camera to reverse light to Ground

The wiring diagram applies to most (but not all) camera models, and when making the connections, please also refer to the labels or marks on the wires.

Exterior view of a modern parking lot with two cars parked on the road, no visible text or signage

Exterior view of a modern urban plaza with parked cars and road markings (no readable text or symbols)

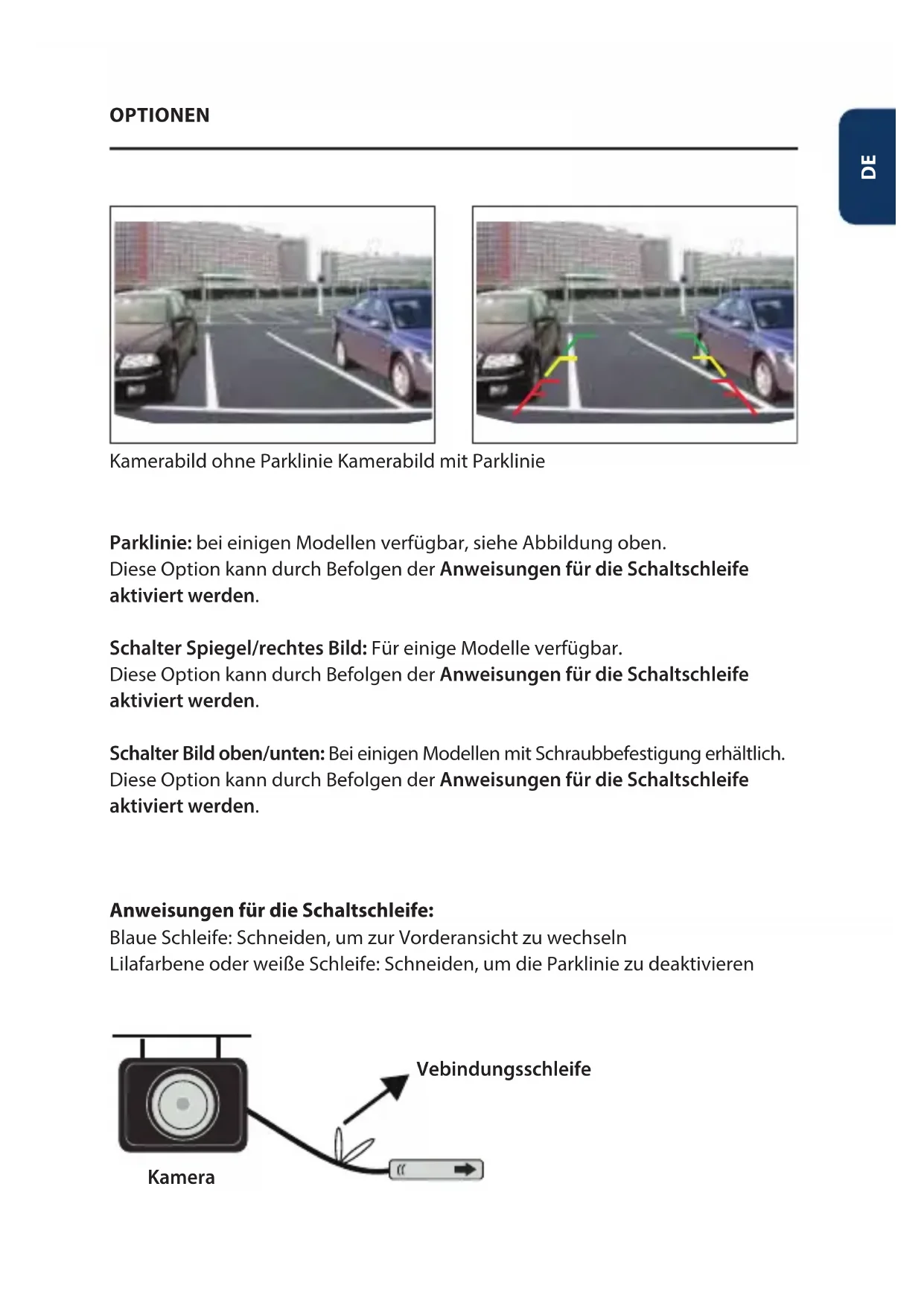

Camera Image w/o parking guide line Camera image with parking guide line

Parking Guide Line: Available on partial models, refer to image above. Option can be realized by following Switch Loop Instructions.

Mirror/right image switch: Available on partial models. Option can be realized by following Switch Loop Instructions.

Up/down image switch: Available on partial bolt mount type models. Option can be realized by following Switch Loop Instructions.

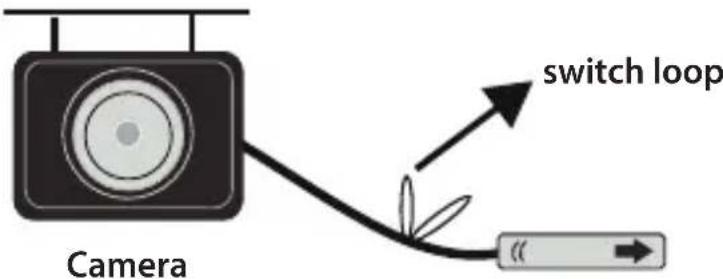

Switch Loop Instructions:

Blue loop: Cut to switch to front view Purple or white loop: Cut to turn off parking line

Camera switch loop

1. Some of the functions described in the instructions may be model-specific and may not be supported by every model.
2. Do not modify or tamper with the device. There are no user-serviceable parts inside.
3. Observe the performance limits of the device. Have repairs and, if necessary, installation done by a professional.
4. Install the device only if you have needed experience installing such devices and are familiar with the vehicle's electrical system. Observe the information marked on the unit connections.
5. Ensure that all wires transfer the correct signals or voltages.
6. The installation of the radio must not interfere with or prevent the activation of airbags and other safety devices and/or controls.
7. Disconnect the vehicle battery (negative terminal, ground) before installing the device, as doing otherwise may cause malfunctions or damage to the device or the vehicle electronics. Observe the vehicle manufacturer's safety instructions (airbag, alarm system, on-board computer, immobiliser, etc.).
8. The rear (front) view camera functions technically as a driver assistance device, which cannot be taken as substitute for driver's responsibility when operating the vehicle.
9. To keep the camera/monitor working properly, please clean the camera/monitor regularly to free it from dirt, water drops, snowdrops etc.
10. Although the camera is designed to be waterproof, please do NOT use high-pressure water jet to wash the camera as this may break the glass lens.
11. Keep the cables of the camera/monitor away from high temperature objects such as engine or exhaust.
12. If the camera model you have comes without in-built LED lights, please turn on your license plate light for better vision at night or in dark areas.
13. The camera/monitor are applicable to vehicles with DC 12V power output (10 % higher or lower allowed), please do NOT use the 5.1 model on vehicles with DC 24V or other power output out of this range, otherwise it is very likely to get burned.
14. The specifications of the camera/monitor are subject to change without prior notice.

B A

Line drawing of a hand holding a tool with a pen, no text or symbols present

Line drawing of two hands holding a small circular object (no text or symbols)

Line drawing of hands using a tool to adjust or install a component above a circular object (no text or symbols)

Line drawing of hands using a tool to cut or wire around a circular object (no text or symbols)

Line drawing of a hand holding a small object near a window (no text or symbols)

Line drawing of a hand using a tool to install or install a component inside a container (no text or symbols)

Line drawing of hands using a tool to cut or mark a piece of material on a surface (no text or symbols)

Exterior view of a modern parking lot with two cars parked on the road, no visible text or signage

Two cars parked on a road with colored directional arrows indicating traffic flow (no text or symbols)

Line drawing of a hand holding a tool with a circular object, no text or symbols present

Line drawing of two hands holding a small circular object (no text or symbols)

Exterior view of a modern urban plaza with two cars parked on the road, no visible text or signage

Exterior view of a modern urban road with parked cars and buildings in the background (no visible text or symbols)

Line drawing of a hand holding a tool with a pointer, no text or symbols present

Line drawing of hands holding a small mechanical component (no text or symbols)

Line drawing of hands using a tool to install a component into a tank (no text or symbols)

Line drawing of hands using a tool to cut or wire around a curved surface (no text or symbols)

Line drawing of a hand holding a small object above a window frame (no text or symbols)

Line drawing of a hand using a tool to install or install an electronic component (no text or symbols present)

Line drawing of hands using a tool to cut or mark a piece of material on a surface (no text or symbols)

Exterior view of a modern parking lot with two cars parked on the road, no visible text or signage

Two cars parked on a road with colored directional arrows indicating traffic or navigation zones (no text or symbols visible)

Line drawing of a hand holding a tool with a circular component, no text or symbols present

Line drawing of hands holding a small circular object (no text or symbols)

Line drawing of a hand using a tool to adjust or install a component, with no visible text or symbols.

Line drawing of hands using scissors to cut a piece of paper or tape (no text or symbols present)

Line drawing of a hand holding a small object near a window (no text or symbols)

Line drawing of a hand using a screwdriver to install a component (no text or symbols)

Line drawing of hands using a tool to adjust or install a component (no text or symbols present)

Exterior view of a modern urban plaza with two cars parked on the road, no visible text or signage

Exterior view of a modern urban road with parked cars and buildings in the background (no visible text or symbols)

Subject to technical changes, errors and misprints.
