With the 3-phase 400 Volt / 50Hz motor, the log splitter should be connected to a standard 400V± 10% / 50Hz± 1% mains supply. The electrical supply must be equipped with protective devices against undervoltage, overvoltage, overcurrent and with a residual current protective device with a maximum rated residual current of 0.03 A. The mains connection cable must be connected to the mains supply.

Mains connection cable and extension cable must be 5-core = 3P + N + PE (3/N/PE). The mains connection must be fused with a maximum of 16 A. Rubber power cables must comply with EN60245 and be marked with the symbol "H 07 RN". The marking of the cables is required by law.

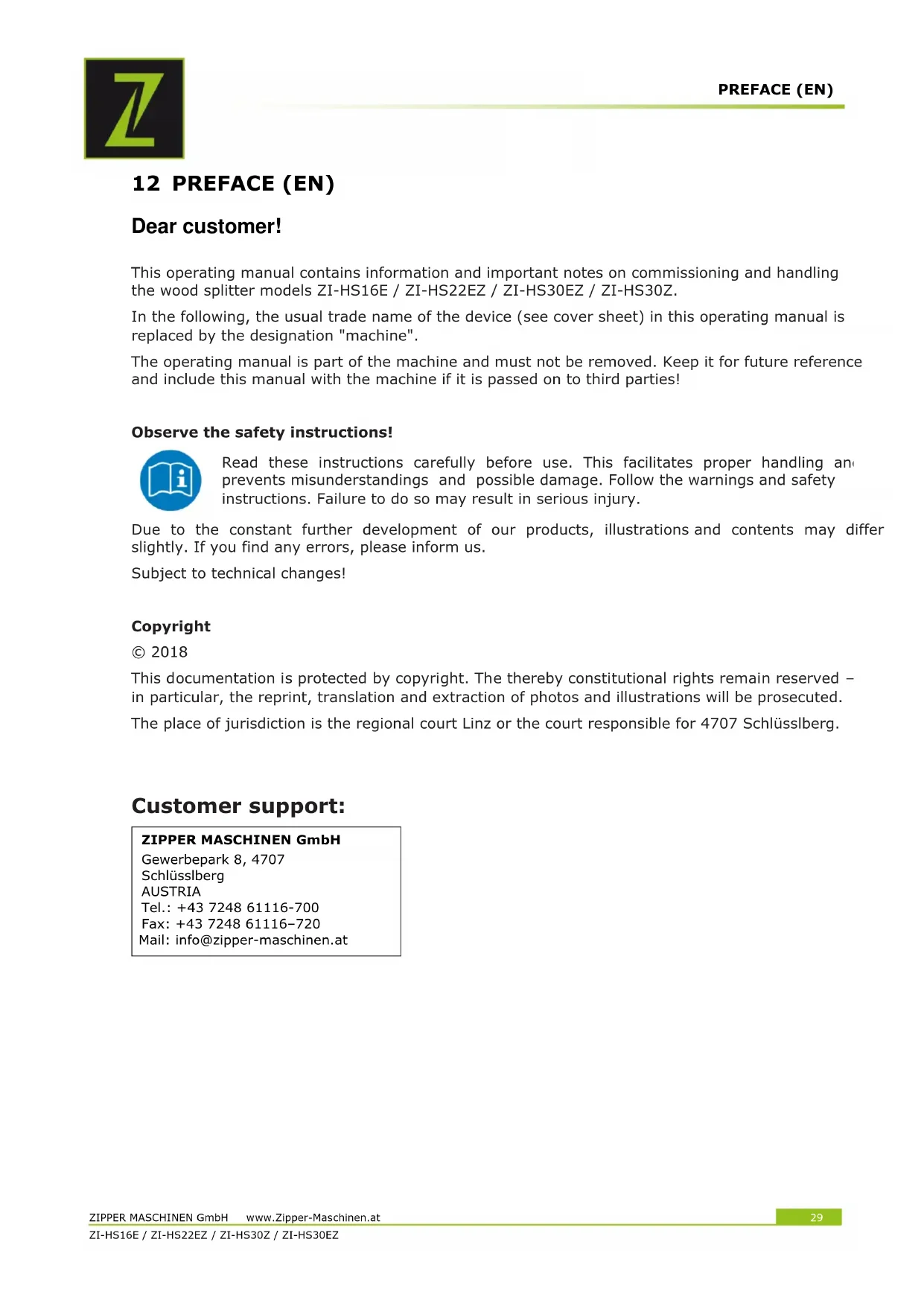

This operating manual contains information and important notes on commissioning and handling the wood splitter models ZI-HS16E / ZI-HS22EZ / ZI-HS30EZ / ZI-HS30Z.

In the following, the usual trade name of the device (see cover sheet) in this operating manual is replaced by the designation "machine".

The operating manual is part of the machine and must not be removed. Keep it for future reference and include this manual with the machine if it is passed on to third parties!

Observe the safety instructions!

Read these instructions carefully before use. This facilitates proper handling and prevents misunderstandings and possible damage. Follow the warnings and safety instructions. Failure to do so may result in serious injury.

Due to the constant further development of our products, illustrations and contents may differ slightly. If you find any errors, please inform us.

Subject to technical changes!

Copyright

© 2018

This documentation is protected by copyright. The thereby constitutional rights remain reserved – in particular, the reprint, translation and extraction of photos and illustrations will be prosecuted.

The place of jurisdiction is the regional court Linz or the court responsible for 4707 Schlusslberg.

Customer support:

Only use the machine in a technically perfect condition and in accordance with its intended use, safety-conscious and aware of the dangers! Have faults which could impair safety rectified immediately!

The machine is intended exclusively for the following activities:

For splitting wood in the direction of the grain, with dimensions that are within the limits specified in the "Technical data" section.

The splitting process of the machine is intended for operation by only one person.

ZIPPER-MASCHINEN assumes no responsibility or warranty for any other use or use beyond this and for any resulting damage to property or injuries.

Operating conditions:

The machine is intended for use under the following conditions:

Humidity: max. 50%

Temperature +5^ to +40^

Altitude above sea up to 1.000 m

level

Any improper use or disregard of the information and instructions given in this manual will invalidate all warranty claims and claims for damages against Zipper GmbH.

Unauthorised use:

Operation of the machine without adequate physical and mental aptitude
- Operating the machine without knowledge of the operating instructions
Changes in the design of the machine
- Operating the machine under explosive conditions
- Operating the machine outside the specified power range
- Remove the safety markings attached to the machine.
- Modify, circumvent or disable the safety devices of the machine.

13.1 Safety instructions

Warning signs and/or stickers on the machine which are illegible or have been removed must be replaced immediately!

Local laws and regulations can determine the minimum age of the operator and restrict the use of this machine!

In order to avoid malfunctions, damage and health impairments, the following measures for safe working must also be observed:

• Do not split soaked wood.
• Only split the wood upright in the direction of the grain!
• Do not split wood that contains foreign objects such as nails, cables, etc.
• Operate the machine only in well-ventilated rooms or outdoors.
• Never operate the machine outdoors when it is raining.
• Choose a level, vibration-free, non-slip surface as the installation location.
• Ensure sufficient lighting conditions at the workplace.
• Keep the working area free of obstacles (e.g. pieces of wood, leftover wood, etc.).
• Before each use, check the machine for its perfect condition (tight fit of hoses and screws, operability of the switch-off devices, etc.).
• Never leave the running machine unattended.
• The machine may only be operated, serviced or repaired by persons who are familiar with it and who have been informed of the dangers arising during this work.

• Although it is possible that several operators could work on the machine (e.g. for loading and unloading), only one person should ever operate the splitting process.

• As the operator of the machine, make sure that unauthorised persons maintain an appropriate safety distance from the machine and, in particular, keep children away from the machine.

• Wear suitable work clothing (eye protection, work gloves, safety shoes and close-fitting work protective clothing, never loose clothing, ties, jewellery, etc. - danger of being drawn in!
• Keep your hands away from crevices and cracks that open in the trunk.
• Do not reach into the splitting area.
• Do not work on the machine if you are tired, not concentrated or under the influence of medication, alcohol or drugs!
• Keep the unit away from potential ignition sources such as pilot lights and/or open flames (danger of fire and explosion).
• Do not smoke in the immediate vicinity of the machine.
• Make sure that the on/off switch is in the "Off" position before switching on the machine.
  Make sure that the machine is earthed if necessary.
• Only use suitable extension cords.
• Before cleaning, maintenance or repair work, always disconnect the device from the power or drive source and secure it against unintentional reconnection.
• Only use intact tools.

13.2 Residual risks

Despite proper use, certain residual risks remain. Due to the design and construction of the machine, hazardous situations may occur which are indicated as follows in these operating instructions:

DANGER

A safety instruction of this type indicates an imminently dangerous situation which, if not avoided, will result in death or serious injury.

WARNING

This type of safety information indicates a potentially hazardous situation which, if not avoided, could result in serious injury or even death.

CAUTION

This safety information indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE

Such a safety notice indicates a potentially hazardous situation which, if not avoided, may result in property damage.

Irrespective of all safety regulations, your common sense and corresponding technical suitability and/or training remain the most important safety factor for fault-free operation of the machine. Safe working depends on you!

14 ASSEMBLY

14.1 ZI-HS16E

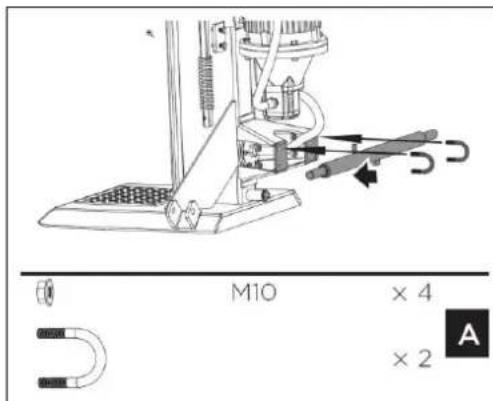

A. Attaching the wheel shaft: Attach the wheel shaft with U-bolts and lock nuts to the splitter.

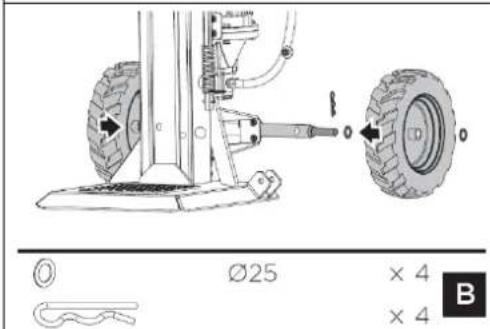

B. Mounting the wheels: Place a washer onto the axle, then a wheel followed by another washer, and secure with a cotter pin. Repeat procedure for the other side.

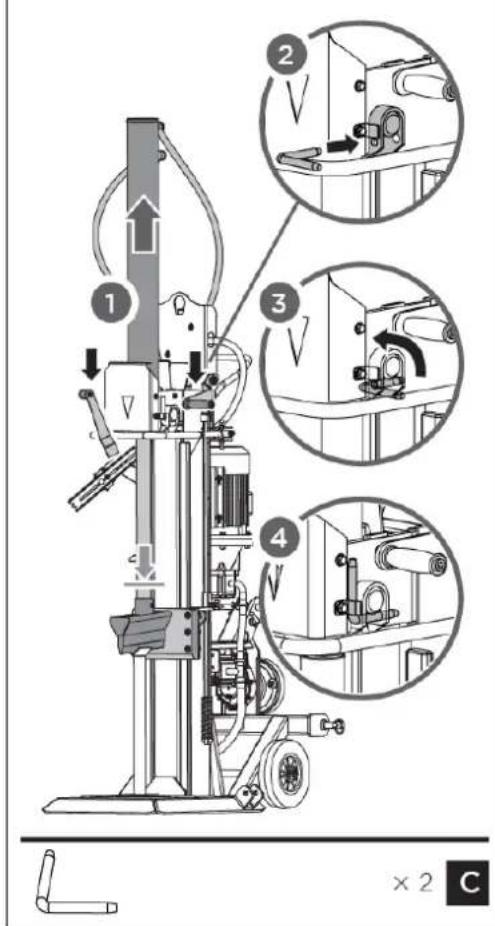

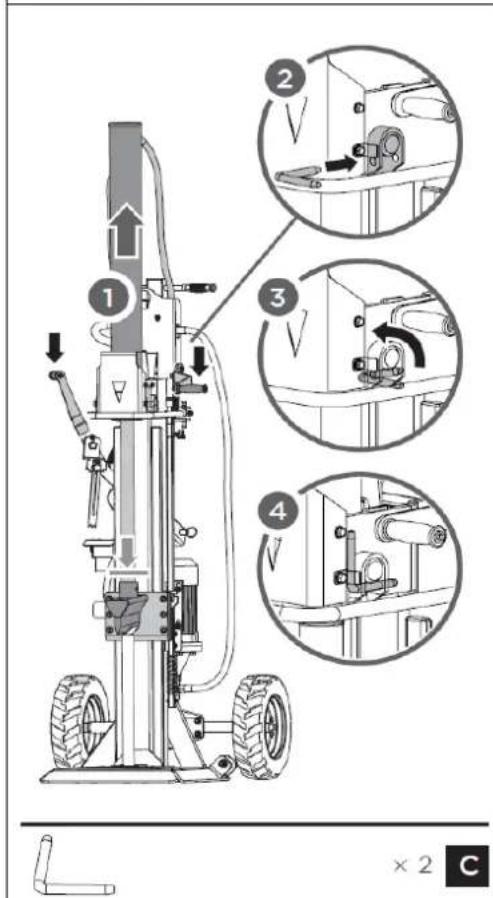

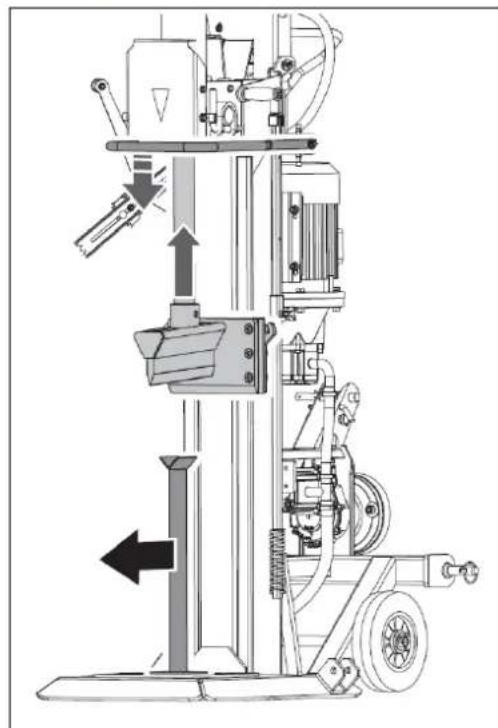

C. Expanding the wedge ram: Keeping the support stand against the wedge, lower both control handles to expand wedge ram (1). Insert the L pins to secure the cylinder to the splitter (2). Lock the pins into the spring tabs (3,4).

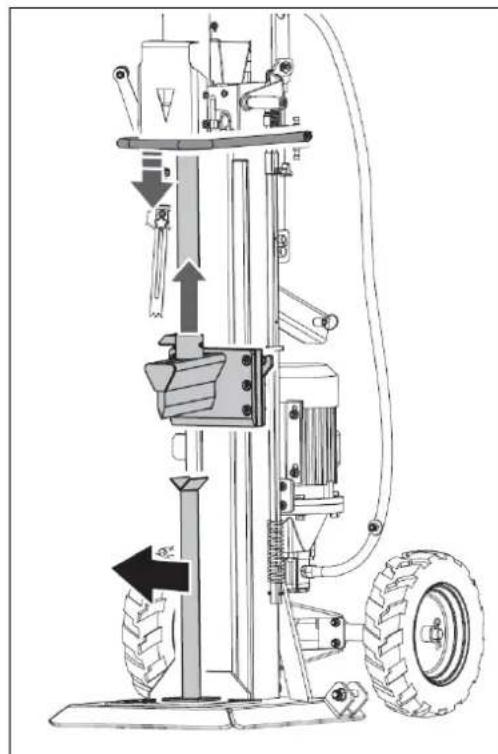

D. Removing the support stand: Release both control handles to retract the wedge ram. Remove the support stand.

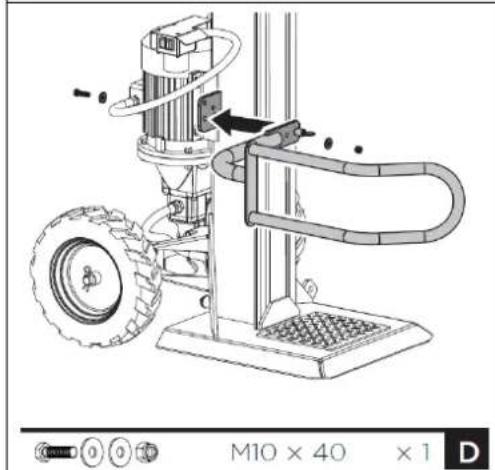

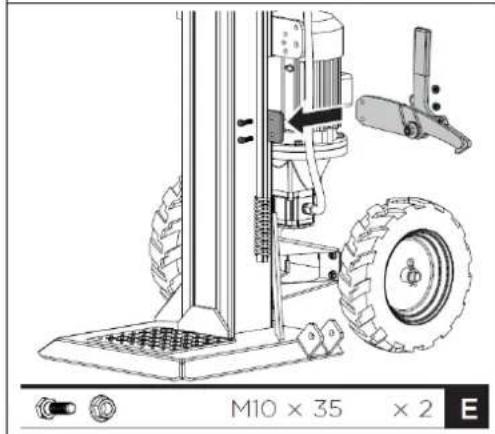

E. Mounting the guard arm: Align the hole and locking pin of the guard arm with the mount bracket. Secure the guard arm with a M10 × 40 hex bolts, two washers and a nut from the hardwar bag.

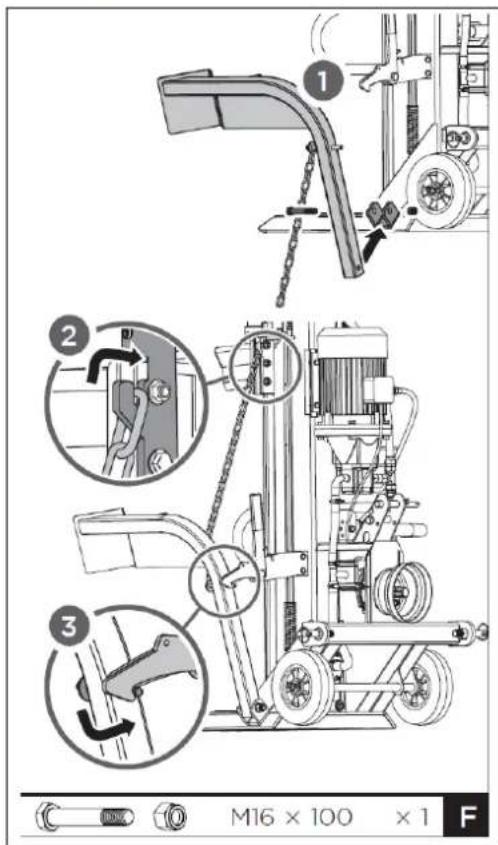

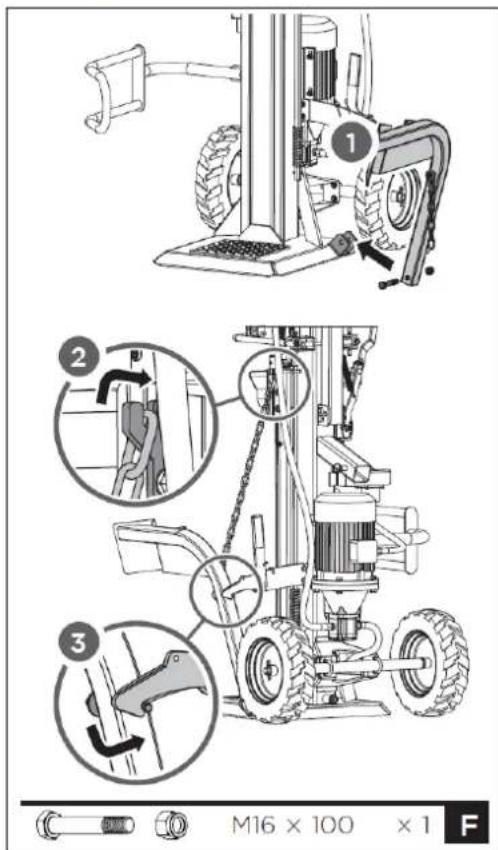

F. Mounting the retaining hook: Position the retaining hook onto the frame and secure with two M10×35 hex bolts and nuts.

G. Mounting the log lift: Position the log lift inside the mounting bracket and align with mounting bracket holes. Secure with a M16×100 hex bolt and nut. Hook the lift chain to wedge slide guide.

A. Mounting the hookup pins: Secure the hookup pins to hitchbracket.

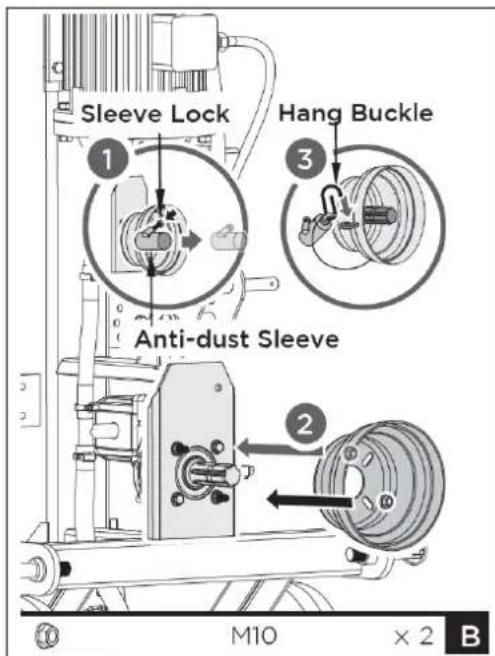

B. Attaching the PTO cover: Attach the PTO cover with two M10 nuts to the splitter.

NOTICE

Motor does not start if PTO cover not attached (safety switch)

C. Expanding the wedge ram: Keeping the support stand against the wedge, lower both control handles to expand wedge ram. Insert the L pins to secure the cylinder to the splitter. Lock the L pins into the spring tabs.

D. Removing the support stand: Release both control handles to retract the wedge ram. Remove the support stand.

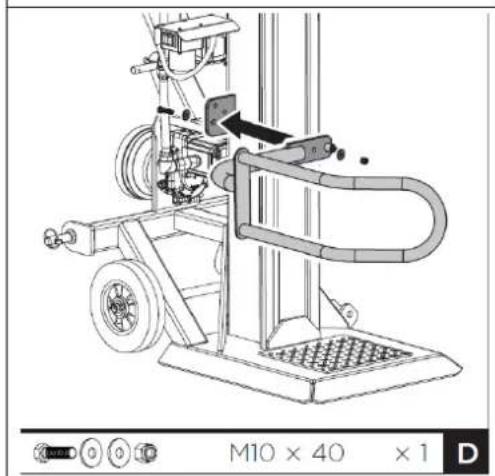

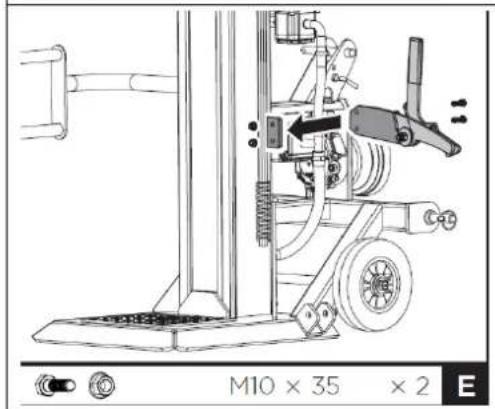

E. Mounting the guard arm: Align the hole and locking pin of the guard arm with the mount bracket. Secure the guard arm with a M10 × 40 hex bolts, two washers and a nut from the hardwar bag.

F. Mounting the retaining hook: Position the retaining hook onto the frame and secure with two M10×35 hex bolts and nuts.

G. Mounting the log lift: Position the log lift inside the mounting bracket and align with mounting bracket holes. Secure with a M16×100 hex bolt and nut. Hook the lift chain to wedge slide guide.

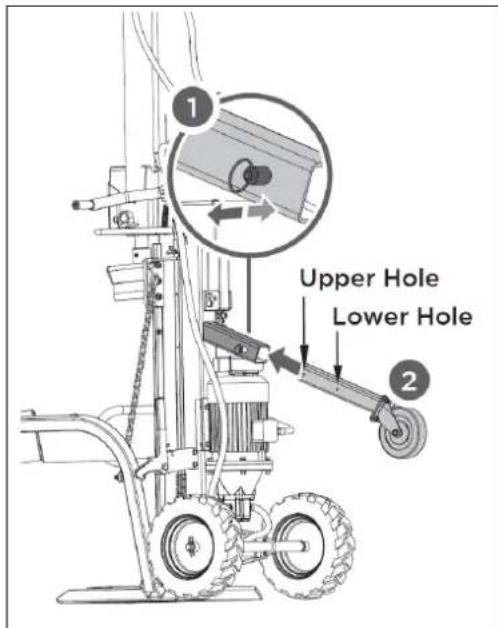

H. Mounting the support wheel: Mount the support wheel with the lock pin and pivot bolt.

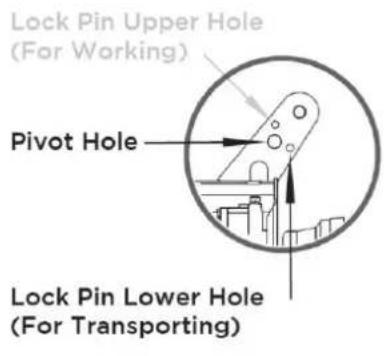

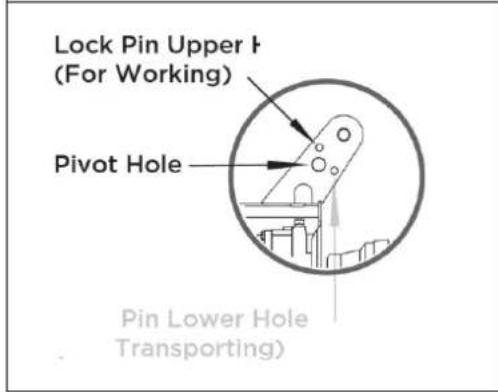

Insert the lock pin into the upper hole for working and insert it into the lower hole for transporting.

14.2.1 Coupling the PTO shaft

The log splitter can be driven by means of a PTO shaft which transmits the torque from the tractor during normal operation. (Attention: The PTO shaft is not included in the scope of delivery of the log splitter!). The PTO end of the gearbox has a diameter of 34.8mm (1 3/8") and a hexagonal connection (standard category 1 PTO).

NOTICE

The PTO shaft represents a potential source of danger. Read the operating instructions supplied with the PTO shaft carefully and in particular pay attention to the safety instructions.

1. Back the rear of the tractor toward the log splitter Position the lower draft arms close enough to the splitter's hookup pins. Apply the tractor parking brake and turn the engine off.
2. Block the rear wheels on both sides in front and back with wedges or other appropriate objects.

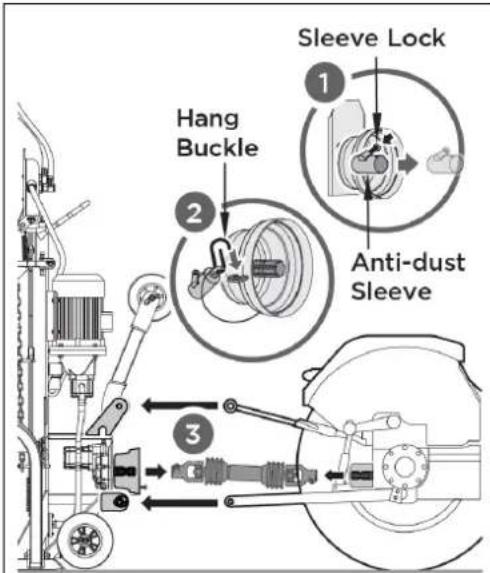

3. Remove the plastic self-locking sleeve of the log splitter and hang it on the PTO shield.

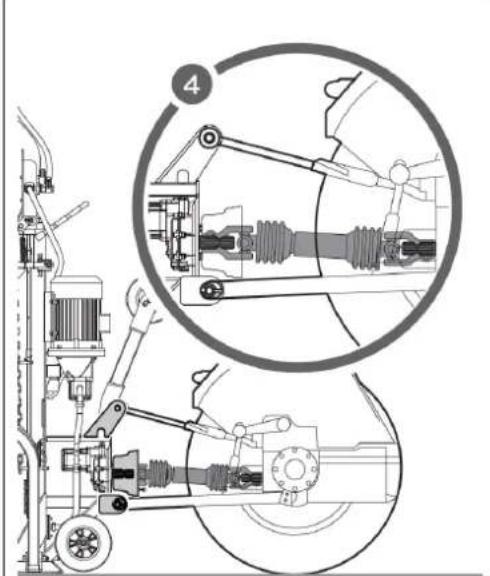

4. Slide the lower draft arms onto the splitter hookup pins and secure withlocking pins.

1. Position the upper draft arm inside the mounting bracket and align with the mounting bracket holes. Insert the hitch pin to secure the upper draft arm in place.
2. Slide the PTO driveshaft over the PTO shaft ends on the gearbox and tractor respectively. Press inward on the spring pins that are located on both ends of the PTO driveshaft. Continue sliding the driveshaft over the PTO shaft ends until the spring pins pop out and lock into the detents in the PTO shaft ends.
3. Secure the PTO shaft safety chains to stationary parts of the log splitter and tractor to stop the guard from turning.

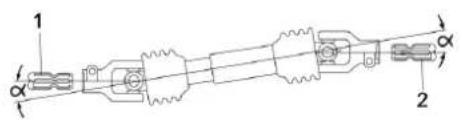

Note: Keep splitter PTO shaft end (1) and tractor PTO shaft end (2) parallel as viewed from above and from the sides of the shafts. Maintain PTO shaft joint angles () as small as possible.

14.2.2 Uncoupling the PTO shaft

NOTICE

There is a motor contact device inside the self-locking sleeve. When the sleeve removed, the motor cannot start. So the machine only works when it is connected to motor only or to PTO only.

To uncouple the PTO shaft proceed as follows:

1. Reduce tractor throttle to IDLE before disengaging PTO. Apply the parking brake and turn off the engine.
2. Pull up the locking pins and slide the lower draft arms of the tractor off from the splitter hookup pins.
3. Pull up the hitch pin and slide the upper draft arm off from the mounting bracket.
4. Release the spring pins located on both ends of the driveshaft. Slide the PTO driveshaft off from the PTO shaft ends on the gearbox and tractor respectively.
5. Mount the plastic self-locking sleeve.

15 TRANSPORT

15.1 ZI-HS16E

For easier transport, the log splitter has two wheels, a support wheel and a transport handle.

NOT ICE

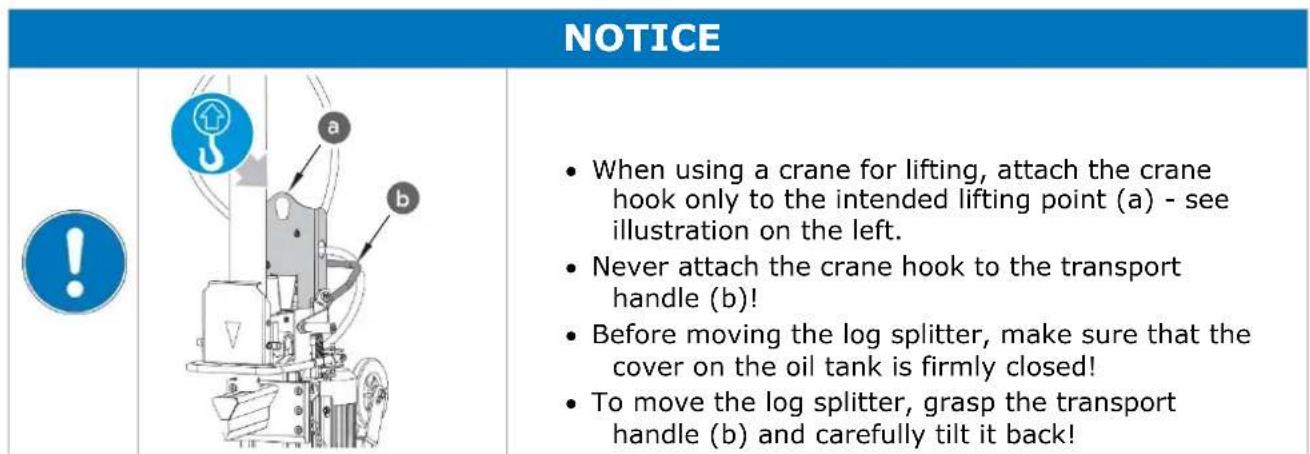

	·When using a crane for lifting, attach the crane hook only to the intended lifting point (a) - see illustration on the left. ·Never attach the crane hook to the transport handle (b)! ·Before moving the log splitter, make sure that the cover on the oil tank is firmly closed! ·To move the splitter, grasp the handle (b) and carefully tilt machine backwards!

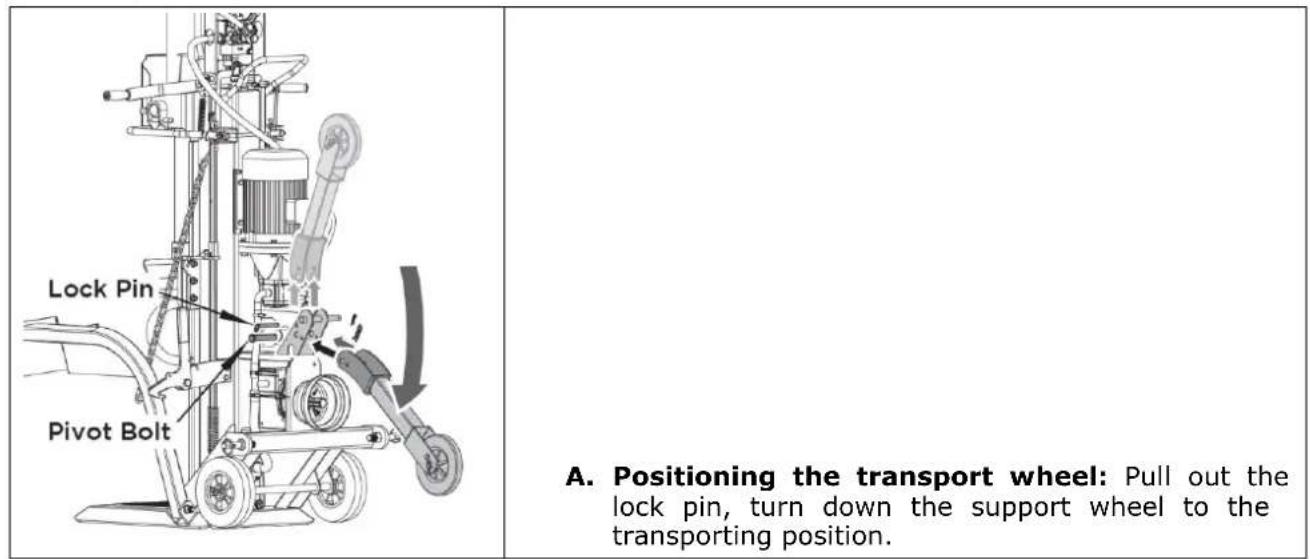

A. Moving support wheel to the transport position: To mount the support wheel, remove the spring bolt and push the square tube with the support wheel into the holder (1). Then select the appropriate hole and fix the square tube in the desired position using the spring bolt (2).

B. Fold out the transport handle: The transport handle is normally fixed in an upright position. To transport the log splitter, the transport handle must be folded out as shown in the illustration on the left. To unfold, release the pin (1), unfold the transport handle (2) and fix it in the unfolded position using the pin (3).

The 3-point attachment to the tractor makes the log splitter easy to move. Before transport, make sure that the log splitter is correctly and securely attached to the tractor and that the safety chains are in place. Make sure that the splitter is raised high enough to avoid obstacles during transport. Never transport the log splitter when the PTO shaft switched on! In driving situations, e.g. when turning, parking or passing crossings, take into account the excess length caused by the attached log splitter.

B. Insert the lock pin to the lower hole and fix it by Rpin!

16 OPERATION

16.1 Preparatory activities

16.1.1 Greasing the splitting wedge

Apply a thin layer of grease to the splitting wedge of your log splitter before starting work. This will prolong the life of the tool.

16.1.2 Bleeding the hydraulic system

NOTICE

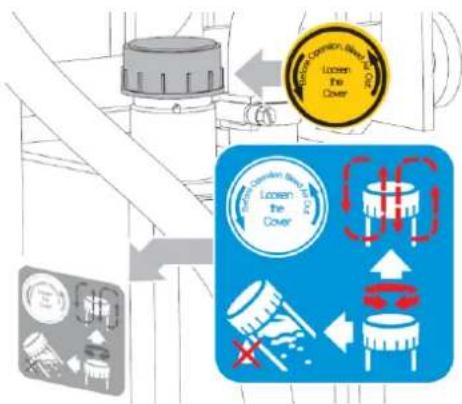

Never forget to loosen the oil tank cap! Otherwise the air in the system will be compressed and released again and again, which will destroy the seals of the hydraulic circuit and make the log splitter unusable.

Vent the hydraulic system before starting the log splitter. To do this, loosen the cover of the hydraulic oil tank by a few turns until the air can flow in and out gently. The air flow through the oil tank should be visible during operation. To prevent oil from leaking out, the oil tank cover must be tightly closed before each transport!

16.1.3 Checking the rotation direction of the motor - for models ZI-HS16E, ZI-HS22EZ and ZI-HS30EZ only

NOTICE

Never run the motor in the wrong rotation direction. This will damage the pump and void the warranty.

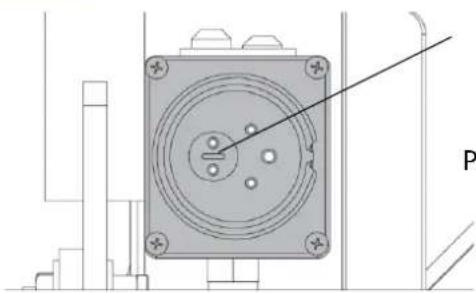

Phase inverter

Check the rotation direction of the motor if necessary please change direction by using the phase inverter. (phase inverter inside the plug - see picture on the left)

16.2 Operating

16.2.1 Splitting lever

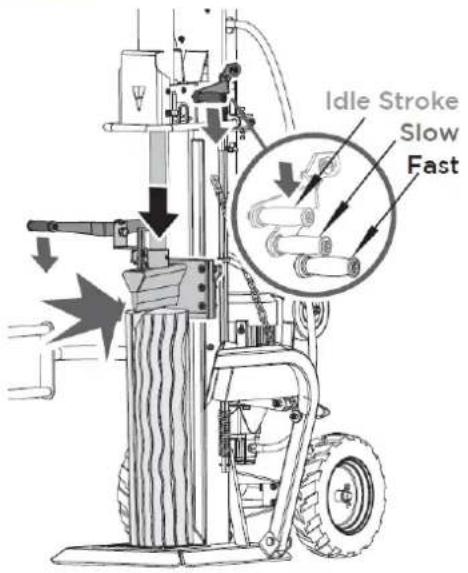

Splitting force and splitting speed are controlled by the splitting lever. The splitting lever is simply raised or lowered for operation.

The first half stroke of the splitting lever is idle speed; press the splitting lever to the half stroke for maximum splitting force at slower speed to split the log at the beginning or particularly hard and seasoned logs.

Press the splitting lever to the end for faster speed at less splitting force to finish the splitting or to split usual logs.

16.2.2 Splitting

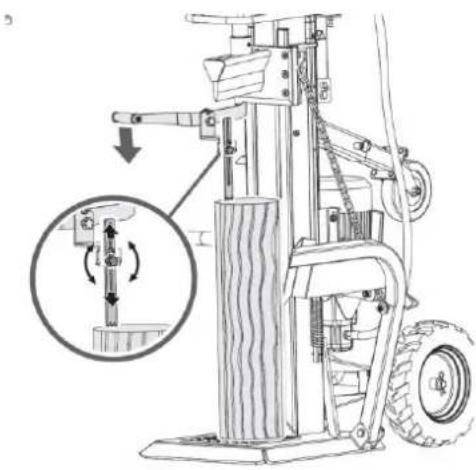

1. Place the log vertically on the support table, so that it lies flat on its face. Press the left lever to lower the extended log fixing claw against the log to secure it. The extended log fixin claw can be adjusted to fit logs with different heights.

1. Hold the left press lever. Meanwhile, move the splitter wedge down by pressing the right splitting lever to the half stroke to split the log slowly first and then press it to the end until the log is completely split.

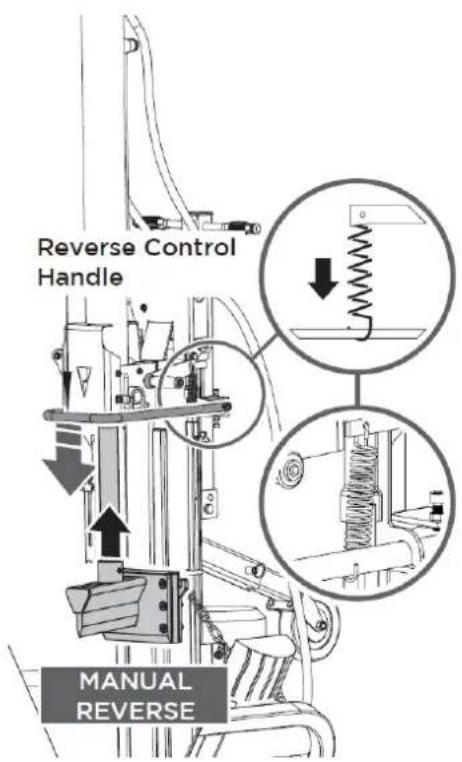

1. Return the splitter wedge to the starting position. Operate the spring-loaded retract control lever to lift wedge above the height of log to be split.

16.2.3 Free a jammed log

Stack as you work. This will provide a safer work area, by keeping it uncluttered, and avoid the danger of tripping, or damaging the power cord.

17 MAINTENANCE

WARNING

Before carrying out any maintenance work, ensure that moving parts are stationary, that the machine is disconnected from the mains supply and / or that the PTO shaft is uncoupled.

17.1 Maintenance Schedule

Activity	Model
	ZI-HS16E	ZI-HS22EZ	ZI-HS30EZ	ZI-HS30Z
Check oil level	After each oil change or every 8 oh*	After each oil change or every 8 oh	After each oil change or every 8 oh	After each oil change or every 8 oh
Change hydraulic oil	1 x per year	1 x per year	1 x per year	1 x per year
Change gear oil		after 25 oh, subsequently every six months or every 250 oh	after 25 oh, subsequently every six months or every 250 oh	after 25 oh, subsequently every six months or every 250 oh

*) oh ... operating hours

17.2 Replacing Oil

NOT ICE

Check the oil level regularly. Change the hydraulic oil completely at least once a year. Always dispose of used oil correctly and never throw it into household waste or sewage!

The hydraulic system of the log splitter is a closed system with oil tank, oil pump and control valve. The oil should be changed completely once a year.

The following hydraulic oils are recommended for the hydraulic transmission system of the log splitter:

Shell Tellus 22
Mobil DTE 11
- Aral Vitam GF 22 or
BP Energol HLP-HM 2

If the oil level is too low, the oil pump can be damaged, whereas overfilling can lead to overheating of the hydraulic system. Therefore check the oil level regularly with the dipstick - see picture on the left!

Waste oils are toxic and must never be discharged into the environment. If necessary, contact your local authorities for information on proper disposal.

Change the hydraulic oil:

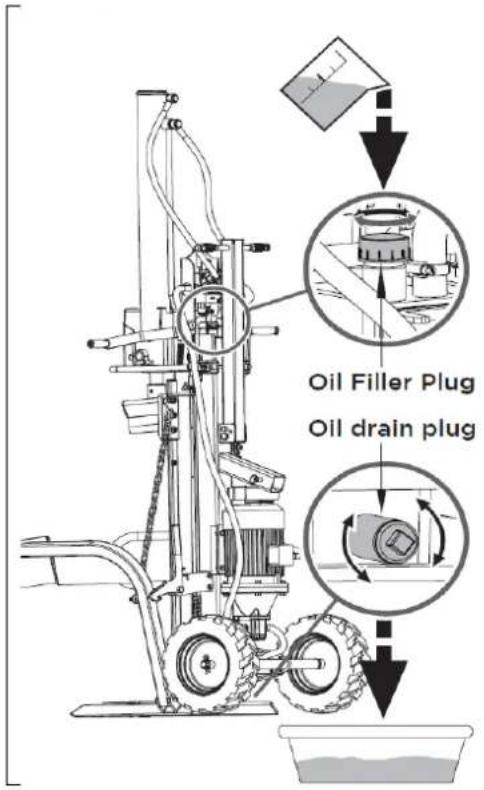

• Remove the oil drain plug to drain the oil from the hydraulic system.
• Use a drip pan to collect waste oil and particles.
• Inspect the oil for metal chips. (Metal chips in the oil are an indication of increased wear.)
  After the oil has been completely drained from the machine, reinstall the drain plug.
• Top up the recommended fresh hydraulic oil via the oil filler plug.
  After changing the oil, actuate the wood splitter several times without actually splitting any wood.

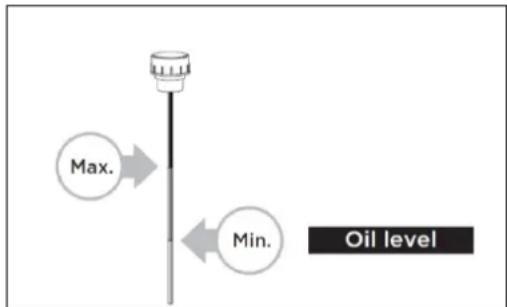

• Use a dipstick to check the oil level.

17.3 Sharpening Wedge

This log splitter is equipped with reinforced splitting wedge which blade is specially treated. After long periods of operation, and when required, sharpen the wedge using a fine toothed file removing any burrs or flat spots on the edge.

17.4 Gearbox Lubrication- for models ZI-HS22EZ and ZI-HS30(E)Z only

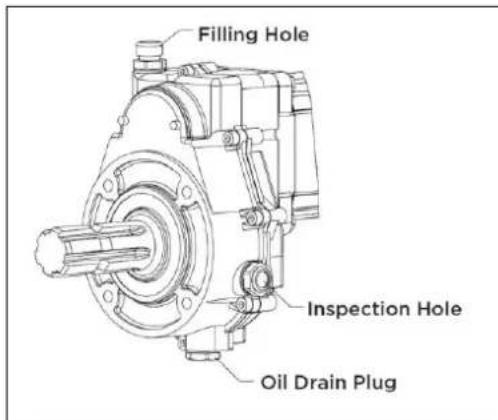

The gearbox is pre-serviced using SAE90 gear oil.

• Drain the gear oil after first 25 hours of use and refill with fresh oil as specified.
• Then change after every 250 hours of use or every six months, whichever is earlier.
  After each oil change check that the correct amount of oil has been poured into the gearbox.
• Check oil level every 8 hours: Oil level is correct if the lower edge of the inspection hole is nearly covered with oil.

18 DISPOSAL

Observe the national waste disposal regulations. Do not dispose of the machine, machine components or equipment in residual waste. If necessary, contact your local authorities for information on the disposal options available. If you buy a new machine or an equivalent device from your specialist dealer, he is obliged in certain countries to dispose of your old machine properly.

Altöle sind giftig und dürfen nicht in die Umwelt gelangen. Kontaktieren Sie gegebenenfalls ihre lokalen Behörden für Informationen bezüglich der ordnungsgemäßen Entsorgung.

19 TROUBLESHOOTING

PROBLEM	PROBABLE CAUSE	REMEDY SUGGESTED
Motor does not start	Switch is OFFSelf-locking sleeve is disconnected (see chapters 14.2.1 and 14.2.2).	Set switch to ONConnect self-locking sleeve
Incorrect motor rotation direction	Incorrect connection	Reverse polarity (by an electrician)
Log Splitter does not work while motor running	Valve is not opened owing to the connection parts loosening Control Levers or connection parts bentLower hydraulic oil level	Check and tighten the partsRepair the bent partsCheck and refill hydraulic oil
Log Splitter works with abnormal vibration and noise	Lower hydraulic oil level	Check and refill hydraulic oil

All repairs on this machine must be carried out by a specialist for this product!

20 PREFACIO (ES)

Estimado cliente,

Cher client, chere clientele,

(EN) With original ZIPPER spare parts you use parts that are attuned to each other shorten the installation time and elongate your machines lifespan.

IMP OR TAN T

The installation of other than original spare parts voids the warranty!

So you always have to use original spare parts

When you place a spare parts order please use the service formular you can find in the last chapter of this manual. Always take a note of the machine type, spare parts number and partname. We recommend to copy the spare parts diagram and mark the spare part you need.

You find the order address in the preface of this operation manual.

Parts with grey background are not in use for ZI-HS30Z!

Parts with grey background are not in use for ZI-HS30Z!

Company ZIPPER Maschinen GmbH grants for mechanical and electrical components a warranty period of 2 years for amateur use; and warranty period of 1 year for professional use, starting with the purchase of the final consumer. In case of defects during this period, which are not excluded by paragraph 3, ZIPPER will repair or replace the machine at its own discretion.

2.) Report:

In order to check the legitimacy of warranty claims, the final consumer must contact his dealer. The dealer has to report in written form the occurred defect to ZIPPER. If the warranty claim is legitimate, ZIPPER will pick up the defective machine from the dealer. Returned shipments by dealers which have not been coordinated with ZIPPER, will not be accepted and refused.

3.) Regulations:

a) Warranty claims will only be accepted, when a copy of the original invoice or cash voucher from the trading partner of ZIPPER is enclosed to the machine. The warranty claim expires if the accessories belonging to the machine are missing.
b) The warranty does not include free checking, maintenance, inspection or service works on the machine. Defects due to incorrect usage of the final consumer or his dealer will not be accepted as warranty claims either. Some examples: usage of wrong fuel, frost damages in water tanks, leaving fuel in the tank during the winter, etc.
c) Defects on wear parts are excluded, e.g. carbon brushes, collection bags, knives, cylinders, cutting blades, clutches, sealings, wheels, saw blades, splitting crosses, riving knives, riving knife extensions, hydraulic oils, oil/air/fuel filters, chains, spark plugs, sliding blocks, etc.
d) Also excluded are damages on the machine caused by incorrect or inappropriate usage, if it was used for a purpose which the machine is not supposed to, ignoring the user manual, force majeure, repairs or technical manipulations by not authorized workshops or by the customer himself, usage of non-origina ZIPPER spare parts or accessories.
e) After inspection by our qualified personnel, resulted costs (like freight charges) and expenses for not legitimated warranty claims will be charged to the final customer or dealer.
f) In case of defective machines outside the warranty period, we will only repair after advance payment or dealer's invoice according to the cost estimate (incl. freight costs) of ZIPPER.
g) Warranty claims can only be granted for customers of an authorized ZIPPER dealer who directly purchased the machine from ZIPPER. These claims are not transferable in case of multiple sales of the machine.

4.) Claims for compensation and other liabilities:

The liability of company ZIPPER is limited to the value of goods in all cases. Claims for compensation because of poor performance, lacks, damages or loss of earnings due to defects during the warranty period will not be accepted. ZIPPER insists on its right to subsequent improvement of the machine.

42 GARANTÍA Y SERVICIO (ES)

1.) Garantia:

We monitor the quality of our delivered products in the frame of a Quality Management policy.

Your opinion is essential for further product development and product choice. Please let us know about your:

• Impressions and suggestions for improvement.
• experiences that may be useful for other users and for product design
• Experiences with malfunctions that occur in specific operation modes

We would like to ask you to note down your experiences and observations and send them to us via FAX, E-Mail or by post

Please describe amongst others in the problem: What has caused the problem/defect, what was the last activity before you noticed the problem/defect? For electrical problems: Have you had checked you electric supply and the machine already by a certified electrician?

3. Bitebeachten

Additional information

INCOMPLETELY Filled SERVICE FORMS CANNOT BE PROCESSED!
FOR GUARANTEE CLAIMS PLEASE ADD A COPY OF YOUR ORIGINAL SALES/ DELIVERY RECEIPT OTHERWISE IT CANNOT BE ACCEPTED.
FOR SPARE PART ORDERS PLEASE ADD TO THIS SERVICE FORM A COPY OF THE RESPECTIVE EXPLODED DRAWING WITH THE REQUIRED SPARE PARTS BEING MARKED CLEARLY AND UNMISTAKABLE.
THIS HELPS US TO IDENTIFY THE REQUIRED SPARE PARTS FASTLY AND ACCELERATES THE HANDLING OF YOUR INQUIRY.
