USER MANUAL DRY Electrodes Oven 5.150 GYS
FR 2-4
EN 5-7
DE 8-10
ES 11-13
RU 14-16
NL 17-19
IT 20-22
ÉTÜVES ÉLECTRODES
ELECTRODE OVEN
ELEKTKRODENOFEN
ESTUFA ELECTRODOS
CulnHbIE 1KAPKIN DJIa 3JEKTPOIDOB
ELEKTRODE OVEN
FORNO PER ELETTRODI
INSTRUCTIONS DE SECURITE

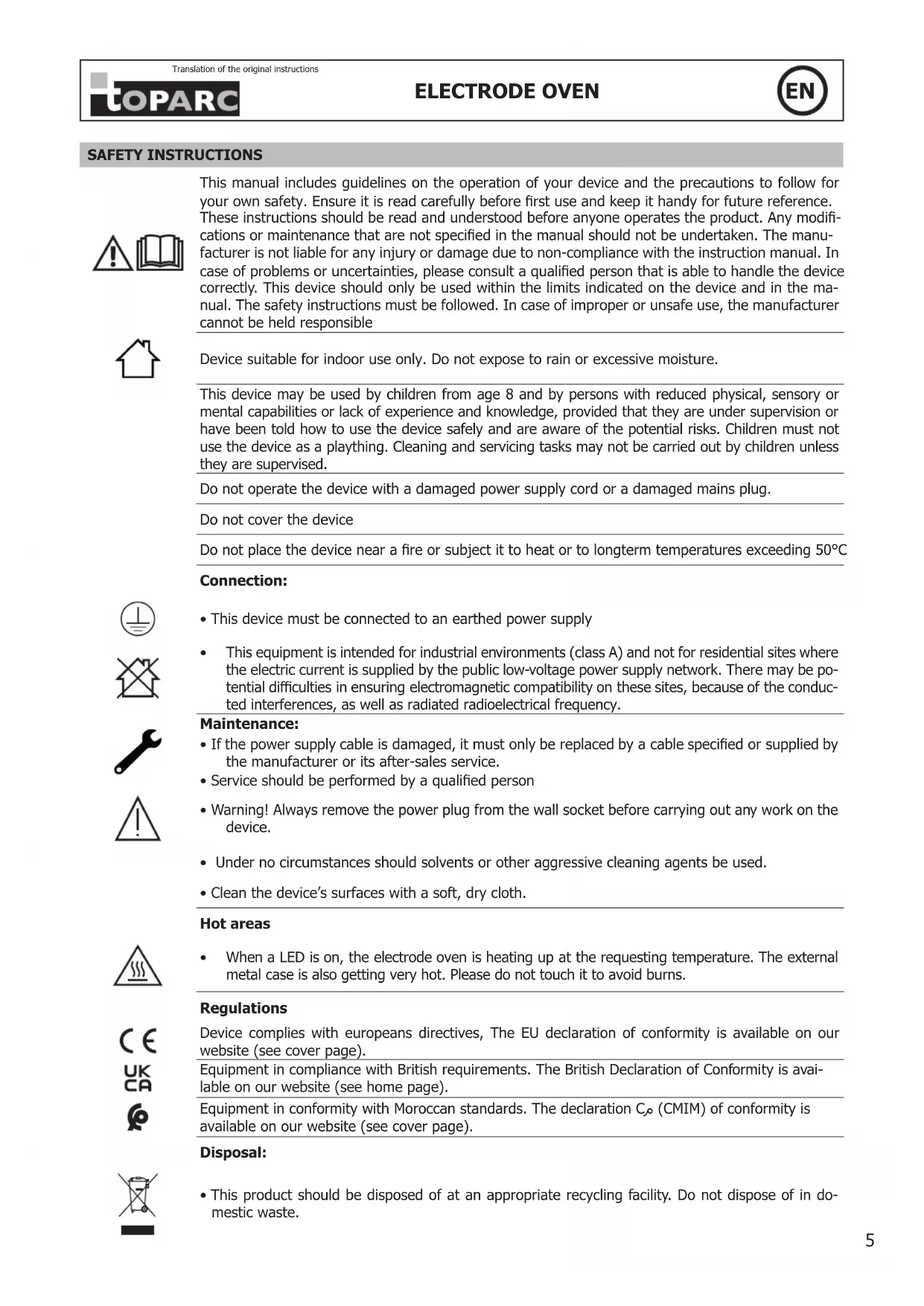

This manual includes guidelines on the operation of your device and the precautions to follow for your own safety. Ensure it is read carefully before first use and keep it handy for future reference. These instructions should be read and understood before anyone operates the product. Any modifications or maintenance that are not specified in the manual should not be undertaken. The manufacturer is not liable for any injury or damage due to non-compliance with the instruction manual. In case of problems or uncertainties, please consult a qualified person that is able to handle the device correctly. This device should only be used within the limits indicated on the device and in the manual. The safety instructions must be followed. In case of improper or unsafe use, the manufacturer cannot be held responsible
Device suitable for indoor use only. Do not expose to rain or excessive moisture.
This device may be used by children from age 8 and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the device safely and are aware of the potential risks. Children must not use the device as a plaything. Cleaning and servicing tasks may not be carried out by children unless they are supervised.
Do not operate the device with a damaged power supply cord or a damaged mains plug.
Do not cover the device
Do not place the device near a fire or subject it to heat or to longterm temperatures exceeding 50^
Connection:
- This device must be connected to an earthed power supply
- This equipment is intended for industrial environments (class A) and not for residential sites where the electric current is supplied by the public low-voltage power supply network. There may be potential difficulties in ensuring electromagnetic compatibility on these sites, because of the conducted interferences, as well as radiated radioelectrical frequency.
Maintenance:
- If the power supply cable is damaged, it must only be replaced by a cable specified or supplied by the manufacturer or its after-sales service.
Service should be performed by a qualified person - Warning! Always remove the power plug from the wall socket before carrying out any work on the device.
- Under no circumstances should solvents or other aggressive cleaning agents be used.
- Clean the device's surfaces with a soft, dry cloth.
Hot areas
- When a LED is on, the electrode oven is heating up at the requesting temperature. The external metal case is also getting very hot. Please do not touch it to avoid burns.
Regulations
Device complies with Europeans directives, The EU declaration of conformity is available on our website (see cover page).
Equipment in compliance with British requirements. The British Declaration of Conformity is available on our website (see home page).
Equipment in conformity with Moroccan standards. The declaration C_ (CMIM) of conformity is available on our website (see cover page).
Disposal:
- This product should be disposed of at an appropriate recycling facility. Do not dispose of in domestic waste.
DESCRIPTION
An electrode oven is a device in which coated electrodes are kept at high temperature in order to optimise their use during work in workshop or on site. DRY ovens are designed to hold 5 to 10kg of electrodes with a maximum length of 450~mm .
The 3 ovens are supplied with a mains power cord.
TECHNICAL SPECIFICATIONS
| DRY 5.150 DRY | 5.200 R DRY 10.350 | R | ||
| Voltage | AC 230 V | |||
| DC | 60 V - 110 V | |||
| Power | 230 V 238 | W 800 W | ||
| 60 V - 110 V | 50 - 100 W | |||
| Electrodes capacity 5 kg 10 kg | ||||
| Ø Power supply cable 0,5 mm² 1 mm² | ||||
| Dimensions 168 x 188 x 610 cm 228 x 228 x | 605 cm | |||
| Weight 3,2 kg 5,8 kg | ||||
APPLICATION
DRY 5.150
1 - Connect the power supply cable.
2 - Connect the mains power cord.
| Average temperature reached by the oven | |
| DRY5 .150 (060685) 150°C Maximum | |
DRY 5.200 R
1 - Connect the power supply cable.
2 - Connect the mains power cord.
3 - Set the temperature (between 50^ and 200^ )
| Average temperature reached by the oven | |
| DRY 5.200R (060692) | 200°C Maximum |
DRY 10.350 R
1 - Connect the mains power cord.
2 - Press the «ON» button
3 - Set the temperature (between 50^ and 350^ )
| Average temperature reached by the oven | |
| DRY10.350R (060708) 350°C | Maximum |
HEATING INDICATORS
The three ovens are fitted with a light system to indicate the heating status:
- Red LED: the heating is in progress, the device has not yet reached the desired temperature.
- Green LED: the device has reached the desired temperature. Coated electrodes can be placed in the oven.
As soon as a LED is on, the oven heats up to the desired temperature. The outer casing also heats up to a high temperature. DO NOT TOUCH THE DEVICE WHILE IT IS OPERATING. AFTER TURNOING OFF THE DEVICE, WAIT FOR COMPLETE COOLING BEFORE HANDLING.
WARRANTY
The warranty covers faulty workmanship for 2 years from the date of purchase (parts and labour).
The warranty does not cover:
- Transit damage.
- Normal wear of parts (eg.: cables, clamps, etc..).
- Damages due to misuse (power supply error, dropping of equipment, disassembling).
- Environment related failures (pollution, rust, dust).
In case of failure, return the unit to your distributor together with:
- The proof of purchase (receipt etc ...)
- A description of the fault reported
He nokpbbAaTe annapaT.
He yctaHaBnBaTb annapa TpaDM c HcToUHkOM TeNla n He noDbepraTb BbICOKM TempePaTypaM (BbIe 50^ ) B TeueHnn dInTeNbHoro nepnoda.
IopKluoyene:
-3TO yCTPOIcTB DOJIKHO 6bITB B pO3ETKy C 3a3EMJIeHnEM.
- 3TOT annapat klacca A, npedha3hauehbbi dI pyomblneHHbIX NOMEeHNI, He noXoNT IINcnoIb3OBaHnB XINbIX KBapTaJax, rIe 3JIeKtpuueckn TK NOaetcO6IeCTBeHHoCnCTeMOI HHTAHN H3KOHO HApjxHeHn. B TAKNX KBAPTaJAX MOYr BO3HKNHyTB TpyHDCTOn o6ecNeHnE3JIeKTPOMarHHTHyO COBMeCTMIOCTb I3-3a KOHNyKTNBbIX INHNyKTNBbIX NOMex Ha paAnOaCTOTE.
yxo4:
- EcnI WnHyp nITaHnI NOBpeXKeH, OH dONJKeH 6bITb 3aMeHEn Ha WnHyp nIN HAp BkJIouHaOuIshyn Hpy nOCTabJIeMbI npOn3BOdnteJeM nIN erO cepBcHOn cLyX6oN.
-Texnueckoe 06clnykBaHne DOnJXHO npON3BODITbCra TOnbKO KBaJIHcNIpObaHHbIM CNEuaJIHCTOM.
BHHMaHHe! OTKJIIOHTe annapat OT po3eTkn Do hauana peMOHTbIX pa60T.
- Hn B KOem cnyae He nCnoNb3OBA Tb paCTBOpNTeIN IIN dpYrNe Koppo3HbIe MOIOUne cpeCTBa.
OuHCTnTb NOBepxHOCTb annapaT C NOMOUIO CYXON TpRNIK.
Topyra noBepxHocTb
- KaK TOnIbKO 3aRopaEtCRA OINH I3 CBEToDIOoB, NeY BnIg IpocUyKn 3JIeKTpOoB HarpeBaetc DO 3aDaHHO Tempepatpybl. BHeuHn KOpTyc Neu ToXe CInbHo HArpeBaETc. He npKacaiTecb K Hemy BO n36ekAHne OxOrOB.
HopMbl npabvla:
YCTPOIcTBO COOTBeTCTByET INpeKTHBAM EbpocOHO3a. DeKJIapauJIO O COOTBeTCTBnN DoCTynHa dIy npOCMOtpa Ha Hauem caTe (CbIka Ha o6IoXke).
MaTePnA COOTBeCTByeT Tpe6OBaHnM BeIko6pntAHn. 3aBJIeHne O COOTBeCTBnN dJa BeIko6pntAHn DOCTyHnHO Ha Hauem Be6-caYte (CM. rnaBHyO cTpaHnU)
Tobap cootBeTCTByeH HOpMaM Mapokko. JeKnapaunca Cc (CMIM) DocTynHa dJa cKaUBaHna Ha haWe mCaTe (mHa TtTyIbHoN CTpaHnCe).
YTNH3aunr:
- 3TOT annapaT noIeKnT nepepa6oTke. He bIb6paCbIBaTB B o6uN MycOpoc6OpHNK.
PIMETbI
3NeKtpoHnay neyb - 3TO yCTpoHCTBO, B KOTOpOM 3NeKtpoDbI C NOKpbITnEM NODepxNBaOTc npN BBICOKO TemnepaType nIOnTmU3aun INX NCIOJIb3OBAHnR BO Bpemra pa60TbI B MaCTepckOuHa MeTe. Neu DRY paccHTaHb I Ha 5-10 ueJOBek.
10K3JIeKToPOoB C MaKcImaJIbHoN dINHOH 450 MM.
3 neu nocTbIaIOTc Ka6eIem NITaHn, NOdklIOueHHbIM Kpo3ETke 3neKtpoCeTI.
TEXHNUECKNE YCIOBNA
| DRY 5.150 DRY | 5.200 R DRY 10.350 | R | ||
| Наряжени | AC 230 V | |||
| DC | 60 V - 110 V | |||
| ПOT repe lienце зергий | 230 V 238 | W 800 W | ||
| 60 V - 110 V | 50 - 100 W | |||
| Мошность заektroюв 5 kg 10 kg | ||||
| Ø силовский Kaбель 0,5 mm² 1 mm² | ||||
| Разmersы 168 x 188 x 610 cm 228 x 228 x 605 cm | ||||
| Вес 3,0 kg 3,2 kg 5,8 kg | ||||
ER3
DRY 5.150
1-ⅠoKJIIOHTe Ka6eIb NITaHnI.
2-Подклioчnte cteBoi wTekep.
| Средная Temпература,does not appear in the text. | |
| DRY5 .150 (060685) 150°C | MakcimmaNbHbI |
DRY 5.200 R
1-ⅠoKJIIOHTe Ka6eIb NITaHnI.
2-Подклочи teceBoi uTekep.
3 - YCTaHOBInTe TEMnepaTypy (OT 50^ Do 200^)
