DRY Electrodes Oven 5.200R - Oven GYS - Free user manual and instructions

Product Type	Drying oven for coated electrodes
Brand	GYS
Model	DRY Electrodes Oven 5.200R
Electrode capacity	5 kg
Max electrode length	450 mm
Temperature range	50 °C – 200 °C (adjustable)
Maximum temperature reached	200 °C
Mains power supply	230 V AC, 50/60 Hz
Power consumption (230 V)	800 W
Alternative power supply	60 – 110 V DC, 50 – 100 W
Dimensions (L × W × H)	168 × 188 × 610 mm
Weight	3.2 kg
Heating indicators	Red LED (heating in progress), green LED (temperature reached)
Main function	Maintains electrode temperature for optimal use
Safety	Hot surfaces – do not touch; do not cover; unplug before maintenance
Maintenance	Clean with a dry cloth; do not use solvents
Power cable	Cross-section 1 mm², with ground plug
Warranty	2 years (parts and labor)
Usage	Indoor use only, do not expose to rain
Electrical class	Class I (grounding mandatory)

Frequently Asked Questions - DRY Electrodes Oven 5.200R GYS

How to set the temperature on the DRY 5.200R?

Plug the device into a mains socket, then turn the adjustment knob to select a temperature between 50 °C and 200 °C. The red LED lights up during the temperature rise.

What is the maximum electrode capacity?

The oven can hold up to 5 kg of coated electrodes with a maximum length of 450 mm.

What do the red and green LEDs mean?

The red LED indicates that heating is in progress (temperature not reached). The green LED lights up when the set temperature is reached and the oven is ready for use.

Can I use the oven outdoors?

No, the device is intended for indoor use only. It must not be exposed to rain or humidity.

How to clean the oven?

Unplug the device and let it cool down. Clean the surfaces with a dry cloth. Never use solvents or harsh products.

What to do if the power cord is damaged?

If the cable is damaged, it must be replaced by a special cable available from the manufacturer or its after-sales service.

Does the oven heat up quickly?

The oven heats up gradually. The heating time depends on the set temperature. The 800 W power allows reaching 200 °C in a few tens of minutes.

What is the maximum temperature reached?

The maximum temperature reached by the DRY 5.200R model is 200 °C. Do not exceed this limit.

Can I leave the oven on unattended?

It is not recommended to leave the device unattended. When using, place it on a stable surface, away from flammable materials, and never cover it.

How to know if the oven is ready for use?

When the green LED lights up, the set temperature is reached and the oven is ready to receive the electrodes. The internal temperature is then homogeneous.

USER MANUAL DRY Electrodes Oven 5.200R GYS

Three industrial water purifier designs with control knobs and gauges, displayed side by side (no visible text or symbols on the devices themselves)

FR 2-4

EN 5-7

DE 8-10

ES 11-13

RU 14-16

NL 17-19

IT 20-22

ÉTUVES ÉLECTRODES

ELECTRODE OVEN

ELEKTRODENOFEN

ESTUFA ELECTRODOS

Close-up of a mechanical component with a coiled spring and handle, no visible text or symbols

Close-up of a hand pouring liquid into a container with a stand, showing an upward arrow (no text or symbols)

Close-up of a mechanical component with rods inserted into a housing, no visible text or symbols

Close-up of a metallic pocket watch with a fan-shaped design and a small handle (no visible text or symbols)

Close-up of a mechanical device with a knife inserted into a cylindrical container (no visible text or symbols)

Close-up of a metallic cylindrical device with a black handle and mounting bracket (no visible text or symbols)

DRY 5.150

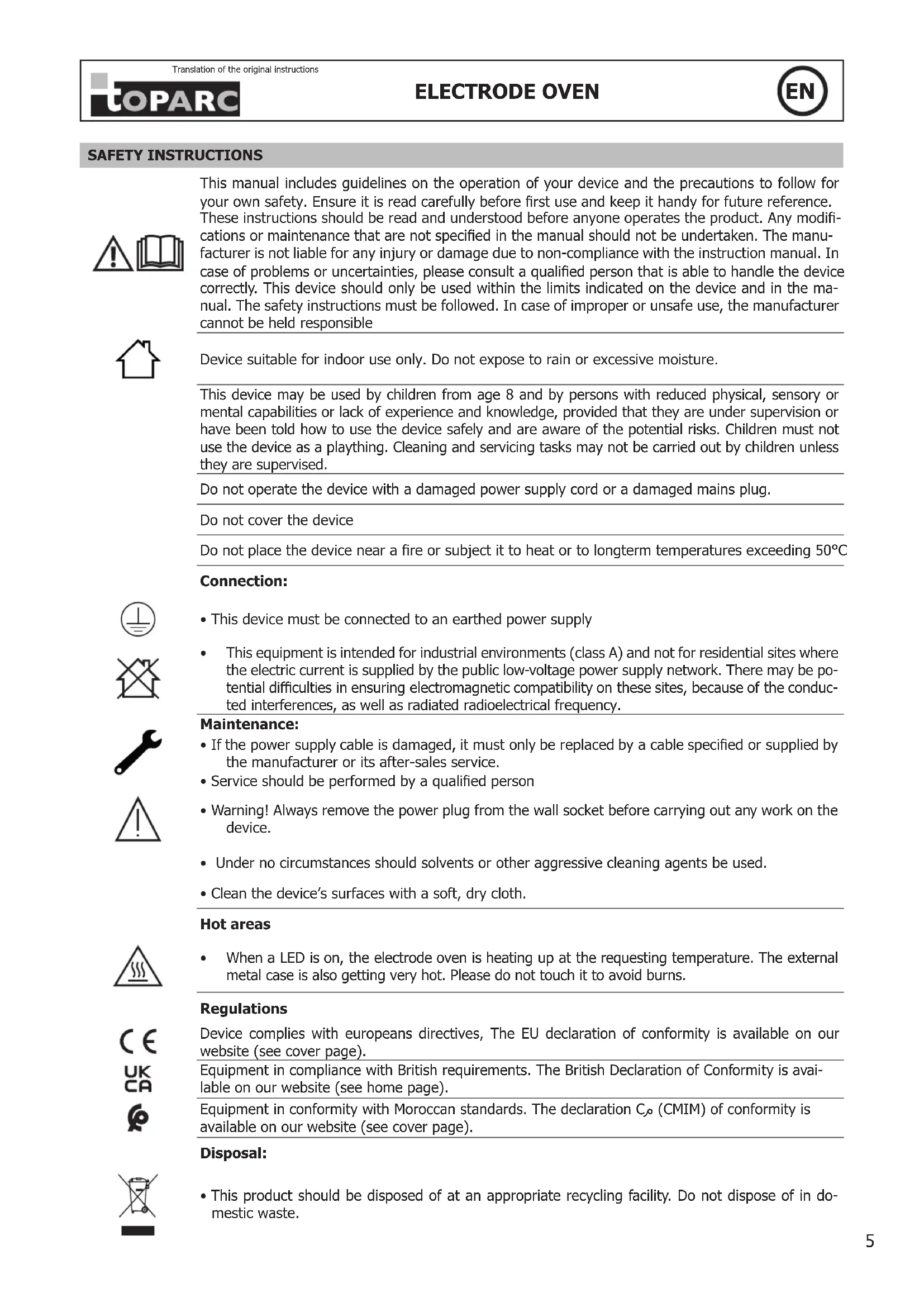

This manual includes guidelines on the operation of your device and the precautions to follow for your own safety. Ensure it is read carefully before first use and keep it handy for future reference. These instructions should be read and understood before anyone operates the product. Any modifications or maintenance that are not specified in the manual should not be undertaken. The manufacturer is not liable for any injury or damage due to non-compliance with the instruction manual. In case of problems or uncertainties, please consult a qualified person that is able to handle the device correctly. This device should only be used within the limits indicated on the device and in the manual. The safety instructions must be followed. In case of improper or unsafe use, the manufacturer cannot be held responsible
