USER MANUAL P0519ED Magic Vac
Se先进技术, including the use of a computer and a variety of databases, have been developed. These technologies are used to improve the performance of the system.
GB
Mod. P0519ED
We compliment you on your purchase and thank you for your confidence in us. You are advised to carefully read these directions, which will enable you to use the EFFENNE Agila properly and obtain optimal results in terms of food preservation. Furthermore, we suggest you keep these instructions handy for further reference.

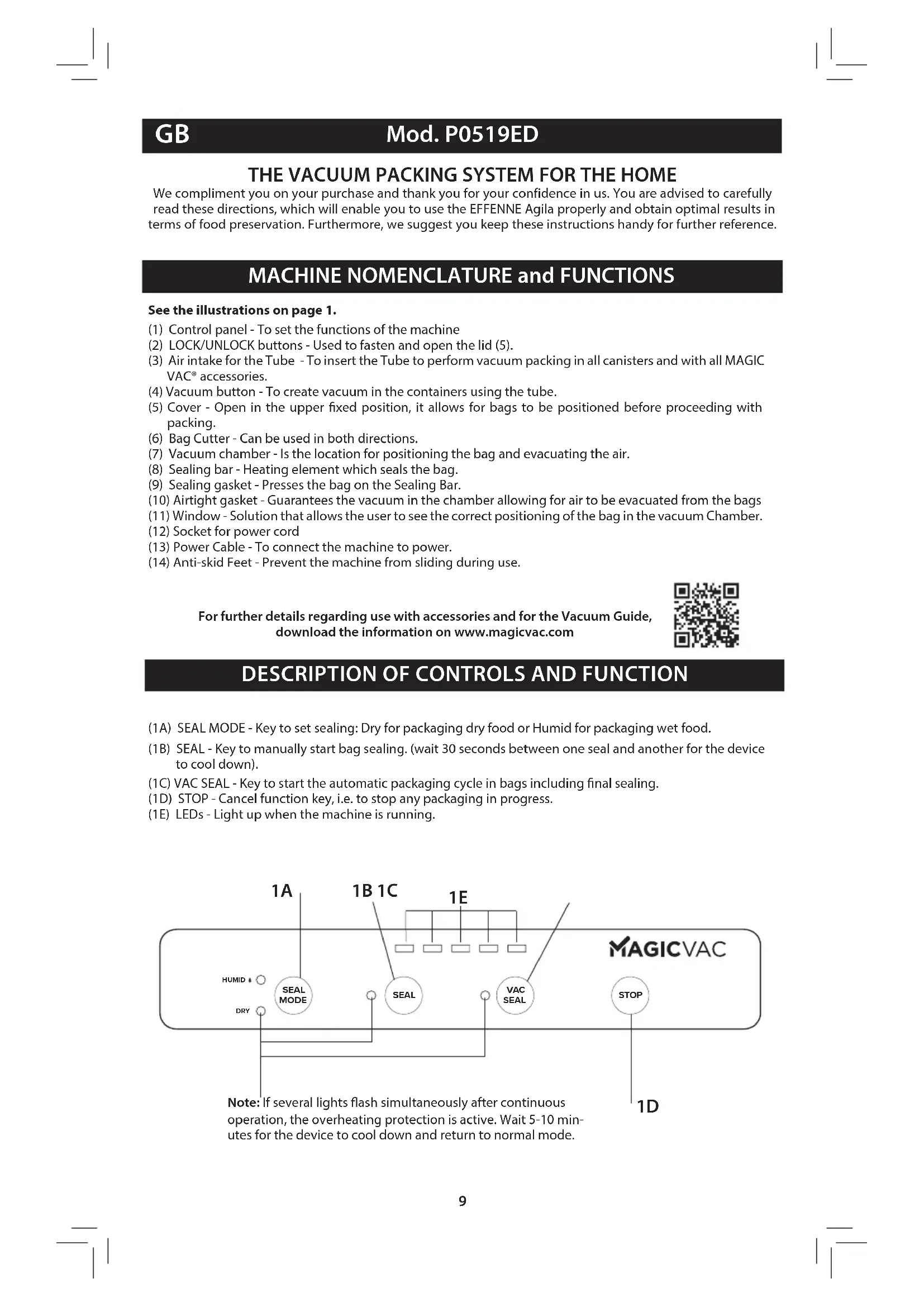

MACHINE NOMENCLATURE and FUNCTIONS
See the illustrations on page 1.
(1) Control panel - To set the functions of the machine
(2) LOCK/UNLOCK buttons - Used to fasten and open the lid (5).
(3) Air intake for the Tube - To insert the Tube to perform vacuum packing in all canisters and with all MAGIC VAC® accessories.
(4) Vacuum button - To create vacuum in the containers using the tube.
(5) Cover - Open in the upper fixed position, it allows for bags to be positioned before proceeding with packing.
(6) Bag Cutter - Can be used in both directions.
(7) Vacuum chamber - Is the location for positioning the bag and evacuating the air.
(8) Sealing bar - Heating element which seals the bag.
(9) Sealing gasket - Presses the bag on the Sealing Bar.
(10) Airtight gasket - Guarantees the vacuum in the chamber allowing for air to be evacuated from the bags
(11) Window - Solution that allows the user to see the correct positioning of the bag in the vacuum Chamber.
(12) Socket for power cord
(13) Power Cable - To connect the machine to power.
(14) Anti-skid Feet - Prevent the machine from sliding during use.
For further details regarding use with accessories and for the Vacuum Guide, download the information on www.magicvac.com
DESCRIPTION OF CONTROLS AND FUNCTION
(1A) SEAL MODE - Key to set sealing: Dry for packaging dry food or Humid for packaging wet food.
(1B) SEAL - Key to manually start bag sealing. (wait 30 seconds between one seal and another for the device to cool down).
(1C) VAC SEAL - Key to start the automatic packaging cycle in bags including final sealing.
(1D) STOP - Cancel function key, i.e. to stop any packaging in progress.
(1E) LEDs - Light up when the machine is running.
Note: If several lights flash simultaneously after continuous operation, the overheating protection is active. Wait 5-10 minutes for the device to cool down and return to normal mode.
IMPORTANT SAFEGUARDS
The manufacturer takes every step necessary to ensure utmost product quality and safety. However, as for all electrical appliances, you should follow some basic safety rules to avoid creating a hazard for people, animals and/or property.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Before using for the first time, and periodically during the life of the product, check the power cable to make sure there is no damage; If the supply cord is damage, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid hazard.
- Carefully read the directions before using your EFFENNE Agila and keep them handy for future reference.
- The appliance is not designed for continuous operation. Do not carry out more than one complete cycle every 2 minutes. The operating cycle is 20 seconds approx and after then there's the break until 2 minutes. In extreme ambient conditions, an intensive use of the appliance may trigger the automatic thermal protection devices. In such a case allow the appliance to cool down sufficiently to enable resetting of the protection devices.
- Do not use the appliance on or in proximity to hot surfaces.
- The casing of this unit is not protected again the penetration of liquids.
- Do not draw liquids into the vacuum chamber. Should this happen, immediately dry the vacuum chamber.
- Do not immerse the appliance in water and do not use it if the cord or plug are wet; should they get wet during use, immediately pull out the plug wearing dry rubber gloves. Do not remove or touch the appliance under water until you have pulled out the plug. Do not use the appliance after its removal from water (take it immediately to an authorised service centre or your dealer).
- To avoid burns, do not touch the sealing bar while using the appliance.
- Never use adapters for power supplies different from the one indicated on the bottom of the unit (plate details).
- Always unplug the appliance after you finish using it.
- Do not open or tamper with the appliance. Servicing may be performed by authorised personnel only. Any unauthorised repairs will invalidate the warranty.
- The Manufacturer, the Retailer and the Importer are responsible for safety, reliability and performance only if: a) the unit is used following the instructions for use; b) the electrical system of the premises where the appliance is used is in conformity with current laws.
- The use of original bags is highly recommended. If other types of vacuum bags are used to carry out multiple vacuum packaging operations, the plain side of the film should be laid face down onto the sealing bar.
- No lids or use containers that have cracks or is damaged!
This text is for users in countries except European countries:
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
Use only original bags and accessories
OPERATING INSTRUCTIONS
ATTENTION: Do not store the machine with the LOCK buttons hooked.
After several uses, the sealing gaskets (10) could wear out and the machine may no longer be able to create vacuum. In this case, you must replace the seals, as they are considered consumable materials and are not under warranty.
Before use, always thoroughly clean your appliance and any accessories coming in contact with food (containers, caps, jars etc.) as directed in the "INSTRUCTIONS FOR CLEANING" paragraph.
1 Positioning the appliance
Position the appliance in a dry place on a level surface, making sure that the work area in front of the appliance itself is clear of obstacles and there is enough room to accommodate the bags with the food to be packed.
2 Connecting the machine
Plug the power cable (13) into the socket (12) and then connect it to a mains power outlet matching the machine voltage (see technical data). The Dry LED of key 1A (SEAL MODE) will be on. Standby: After 10^ downtime the machine goes into standby mode. To restart it, press any key on the control keyboard.
3 Set the sealing type
The sealing type must be set whenever the power cable (13) is plugged into the mains power outlet. With MAGIC VAC® (Mod. P0519ED), the sealing type can be adjusted. As a matter of fact, the final bag sealing result is affected by the type of food to be packaged or by the ambient temperature in which sealing is performed. Therefore, to optimise the final result, 2 sealing modes can be selected:
Dry - for dry food such as biscuits, rice and coffee
Humid - for red meat and fish that release liquids or blood, for fragile food items
4 Tips on using bags
The bags are available in two widths: 20 and 30~cm . Choose the bag size suited for the food you intend to preserve. Check that the bag you are going to use is at least 8cm longer than the food to be packaged, taking into account an additional 2cm for each time the bag will be subsequently reused.
5 Making bags from rolls
- Pull out the desired bag length and place it on the closed lid of the device; hold the bag with one hand, then slide the cutter through the roller to cut the bag to the desired length (fig A), then seal an open side of the piece following these steps:
- Lift the lid (1) and turn it in the open position.
-
- Seal an open side of the piece by placing one of the two open ends of the bag on the sealing bar (8) with the smooth part facing downwards (fig. B).
Attention: do not allow the bag to protrude into the vacuum chamber (8) or on the seal (6). See the dotted line (fig. B)
- Close the Cover (5) and press the two opposite ends (fig. C), you will hear a click, which means that the cover is latched.
- Press the SEAL key (1B) to perform the sealing process. Wait for the SEAL led (1B) to switch off.
- Press the LOCK/UNLOCK Buttons (2) (fig D) to be able to open the Cover (5).
- Lift the lid and turn it in the open position.
- Check the quality of the seal obtained, which should appear as a regular, wrinkle-free crosswise strip with no internal ridges in the bag (fig. E).
6 Vacuum packing with bags cut from a roll or pre-cut bags
- Lift the lid (5) and turn it in the open position.
- Place food in the bag without creasing it excessively or stretching surfaces. Eliminate any liquids or food residues from the area inside the bag that will be sealed.
- Place the bag and its contents in front of the appliance and place the open end inside the vacuum chamber (7) with the smooth side facing down (fig. F).
ATTENTION: have the end of the bag protrude inside the VACUUM CHAMBER(7). See the dotted line (fig. F)
-
Close the Cover (5) and press the two opposite ends (fig. G), you will hear a click, which means that the cover is latched.
-
Press the VAC & SEAL key (1C) to perform the packing cycle. Wait for the VAC SEAL led (1C) to switch off.
- Press the LOCK/UNLOCK Buttons (2) (fig H) to be able to open the Cover (5).
- Lift the lid and turn it in the open position.
- Check the quality of the seal obtained, which should appear as a regular, wrinkle-free crosswise strip with no internal ridges in the bag. (fig. B)
- The packaging cycle already started can be interrupted at any time by pressing the STOP key (1D).
7 Vacuum packing in Executive containers or in containers sealed with Universal Caps
ATTENTION: Only use MAGIC VAC canisters since they are resistant to the vacuum created by the Mod. P0519ED, while other types of canisters could impode due to the vacuum created by the machine and cause injury.
Executive containers and the Universal Caps with star-shaped knob (see fig. L) make vacuum packing easier, because the connection hose can be directly introduced into the knob central hole.
Universal Caps, available in two diameters (100 mm and 125 mm), are to be used on jars for preserving food and bowls and receptacles made of tempered glass. The Universal Caps work just like the Caps for Executive containers.
WARNING: When using Universal Caps do not use plastic or glass containers that are not suitable since they could implode under the vacuum pressure of the appliance and cause injury.
- Fill the container leaving at least 3cm of room between the contents and upper rim. Place the lid on the container and turn the knob to the "VACUUM" position (fig. L).
- Connect the container lid knob to the appliance air inlet (15) by means of the connection hose (fig. L).
- Press the VAC button (4) and the machine will create vacuum and switch off when the operation has been completed.
- Remove the hose from the container lid knob.
- Turn the knob to the "CLOSED" position.
- To open the containers turn the knob to the "OPEN" position, you should hear a hissing of air as it enters the container. This sound guarantees that the contents have been packed in a vacuum.
8 Vacuum packing in Family containers
Multipurpose containers ideal for storage of frequently used products such as dry and fragile foods; powder foodstuffs; fresh, pureed or strained fruit and vegetables. Their transparency and design makes them attractive to display on kitchen shelves while ensuring that their contents are clearly visible.
- Fill the container leaving at least 3cm of room between the contents and upper rim and position the cap on the container.
- Connect the container lid to the air inlet (3) of the appliance (fig. M and fig. N) by means of the connection hose (15).
- Press the VAC button (4) and the machine will create vacuum and switch off when the operation has been completed.
- Remove the hose from the container lid.
- To open round canisters, press the center button, to open square canisters, first press the release (16) and then open the safety closure (fig. M).
9 Vacuum packing in glass jars sealed with metal caps (Leifheit type)
Use the cap attachment to pack foods in glass jars with a metal cap.
- Fill the container leaving at least 3cm of room between the contents and upper rim.
- Connect the cap attachment (17) to the air inlet (3) of the appliance by means of the connection hose (15). Place the cap attachment directly on the jar with the metal cap only (18) and press down, making sure it fits correctly. (fig. O)
- Press the VAC button (4) and the machine will create vacuum and switch off when the operation has been completed. Make sure that the cap attachment holds firmly by keeping it pressed with your hand.
- Disconnect the hose from the cap attachment. Remove the cap attachment from the jar.
- Apply the ring (19) supplied with the jar and screw it down all the way (fig. O).
- To open a glass jar vacuum-sealed with a metal cap, use the cap opener provided (the side with writing should be turned up). Position the cap opener as shown in (fig. P) and gently pry open the cap until the vacuum is released. Remove the metal cap. This accessory allows you to reuse the cap.
10 Vacuum packing with bottle caps
The Bottle Cap may be used to seal partly filled bottles of wine or non-fizzy beverages. Using the Bottle Cap will allow you to create a vacuum inside the bottle so as to slow down oxidisation and preserve the freshness and flavour of its contents for a longer time.
- By means of the connection hose (15) connect the air inlet (3) of the appliance to the Bottle Cap (20) (fig. Q). Press the Cap firmly into the bottle.
- Press the VAC button (4) and the machine will create vacuum and switch off when the operation has been completed.
- Disconnect the hose from both the Bottle Cap and the appliance immediately.
- To open a bottle sealed with the Bottle Cap, simply pull the cap out of the bottle. You will hear the air rushing into the bottle.
11 Vacuum packing with the cap attachment in Executive containers or in containers sealed with Universal Caps with the previous model of knob
To use the Cap Attachment in Executive containers or in containers sealed with Universal Caps with the previ
ous model of knob, read the instructions supplied in our web page www.flaemnuova.it.
INSTRUCTIONS FOR CLEANING
IMPORTANT: Before cleaning the device, disconnect it from the mains, then remove the plug from the socket (12) and cover it with a rubber cap.
- Carefully wash your hands before proceeding to clean the appliance and its accessories.
- Both before and after use, clean the exposed surfaces of the using a sponge moistened with a mild, non-abrasive dishwashing detergent. If any liquids accidentally get inside the appliance, do not connect it to the mains electricity supply and do not use it; contact your nearest dealer or authorised service centre.
- Please refer to the instructions on the accessory pack.
TECHNICAL SPECIFICATIONS
Voltage 220V-240~50/60Hz 110W
Dimensions 38 (L) x 10 (P) x 6 (H) cm
Weight 0,94 Kg
Marked
Electromagnetic compatibility
The P0519ED model has been engineered to meet current electromagnetic compatibility requirements. However if you suspect that the appliance is interfering with the operation of your TV, radio or other electrical appliance, try relocating the unit until the interference ceases. Alternatively try plugging the appliance into a different power socket.
Disposal: In conformity with Directive 2012/19/EC, the symbol shown on the appliance to be disposed of indicates that this is considered as waste and must therefore undergo "sorted waste collection". The user must therefore take (or have taken) the above waste to a pre-sorted waste collection centre set up
by the local authorities, or else give it back to the dealer when purchasing a new appliance of the same type. Presorted waste collection and the subsequent treatment, recovery and disposal operations favour the production of appliances made of recycled materials and limit the negative effects of any incorrect waste management on the environment and public health. The unlawful disposal of the product by the user could result in administrative fines as provided by the laws transposing Directive 2012/19/EC of the European member state in which the product is disposed of.
TROUBLESHOOTING
The appliance does not work
- Make sure the power cable is properly connected to the electrical outlet and to the device. Check the electric socket by plugging another appliance into it.
- The appliance will stop automatically if overheated. Allow it to cool down for 15 minutes and try again.
- Check for faults in the power cord or the plug. Should you detect a fault, do not use the appliance.
The appliance fails to apply the first seal on the bag cut from the roll
- Make sure the bag cut from the roll is properly positioned as described in the paragraph: "Making bags from appliance rolls"
The appliance does not create a complete vacuum in the bags
To seal the bag properly, you must make sure that the open end remains completely inside the Vacuum Chamber.
- Make sure that the sealing bar, the sealing gaskets and airtight gaskets are free of impurities. After cleaning them, put them properly back in place.
- The bag might have a hole in it. To check it, seal the bag with air on the inside. Dip the bag in water and apply pressure. The appearance of bubbles means that there is a leak.
Reseal or use another bag.
The appliance does not seal the bag properly
- If the sealing bar overheats and melts the bag, you may have to raise the Lid and allow the sealing bar to cool down for a few minutes.
- The appliance is built in conformity with current safety standards. Overheating will cause it to turn off automatically. Allow the appliance to cool down for 15 minutes and try again.
The appliance bag does not maintain a vacuum after being sealed
Leaks along the seam may be caused by creases, crumbs, grease or liquids. Reopen the bag, clean the upper inside part of the bag and remove any foreign material from the Sealing Bar before resealing it.
- Check that the bag has no holes in it which have caused air to leak in. Use paper napkins to protect any sharp edges on the contents of the bag.
The appliance does not create a vacuum in the containers
- By means of the Connection Hose, connect the container lid (or the Cap Attachment if necessary) to the Air Inlet of the appliance.
- Leave enough room (at least 3cm ) between the contents and the top of the jar or container.
If liquids come out during the vacuum-packing process, remember that they must first be chilled in a refrigerator, not left at room temperature. - Check that the rim of the jar or container and the universal lid are not damaged in the sealing area. Wipe the rim and cap clean with a cloth moistened with lukewarm water and repeat the vacuum-packing process.
- Make sure that the gasket of the container cap or the universal cap is set properly in place and is not damaged.
Executive containers or Universal Caps do not maintain a vacuum
- Make sure that the arrow on the knob of the container cap is positioned on "VACUUM" before creating a vacuum in the container and it is positioned on "CLOSED" after a vacuum is formed.
- Make sure that the O-ring beneath the knob of the container cap or the universal cap is set properly in place.
Family containers do not maintain a vacuum
- Make sure that the gasket beneath the central button (16) of the container cap is set properly in place and is not damaged.
