PARTYBTHPL - Loudspeaker BIGBEN - Free user manual and instructions

Product type	Bluetooth speaker with wired microphone, remote control, LED light
Brand	Bigben
Model	PARTYBTHPL
Dimensions (L x D x H)	550 x 245 x 270 mm
Net weight (including accessories)	4.35 kg
Power supply	AC adapter 9V / 2A (18 W), lithium battery 3000 mAh
Battery life	5 to 6 hours (moderate volume), approximately 1.5 hours at 100% volume
Bluetooth	Version 5.3, pairing name PARTYBTHPLH, range 10 m
RMS power	20 W (2 x 10 W)
Speakers	2 x 6.5" (16.5 cm), 4 ohms
Frequency response	100 Hz - 20 kHz
Signal-to-noise ratio	≥ 70 dB
Supported audio formats (USB/SD)	MP3, WAV (card up to 32 GB)
Main functions	Bluetooth, AUX-IN, USB, micro-SD, wired microphone, remote control, LED lighting effects, bass/treble/echo control
Care and cleaning	Disconnect before cleaning, use a soft cloth, do not use abrasive products
Safety instructions	Do not expose to water or heat, use indoors only, keep at 20 cm from body
Spare parts / repairability	2-year warranty, Bigben technical support (09 69 39 79 59, www.bigben.fr/support)
General information	Made in China, distributed by Bigben Interactive Belgium, adapter model BX18W-0902000A

Frequently Asked Questions - PARTYBTHPL BIGBEN

How to connect the speaker via Bluetooth?

Turn on the speaker, it automatically goes into search mode. On your mobile device, look for PARTYBTHPLH in Bluetooth devices and select it. A beep confirms the connection. The screen displays 'Blue' steady when paired.

How to charge the speaker and how long does the battery last?

Use the supplied AC adapter (9V/2A). Plug it into the DC 5V port on the speaker. The red light turns on during charging and turns off when fully charged. Battery life is about 5 to 6 hours at moderate volume, and 1.5 hours at maximum volume.

Can I use a microphone with this speaker?

Yes, plug the included wired microphone into the MIC IN port. Adjust the volume with the M.VOL knob, and adjust the bass, treble, and echo with the corresponding knobs. Unplug the microphone after use.

How to play music from a USB flash drive or SD card?

Insert a USB flash drive or micro-SD card (max 32 GB) into the slots. Playback starts automatically. Use the Next/Previous buttons to change tracks, and the RPT button to repeat a track or the entire list. Supported formats: MP3 and WAV.

How to change the lighting effects?

Make sure the LED switch is set to ON. Press and hold the MODE button to change the lighting effect. You can also use the LED button on the remote control to vary the effects.

What to do if the speaker does not turn on?

Check if the battery is charged. Plug in the AC adapter and wait a few minutes. If it still does not turn on, try another power outlet. If the problem persists, contact Bigben support.

How to use the remote control?

The remote control allows you to: power on/off (POWER), change mode (MODE), navigate between tracks (NEXT/PREV), adjust volume (VOL+/VOL-), choose an equalizer (EQ: Jazz, Rock, Bass, Normal), change LEDs, repeat (RPT), play/pause (PLAY/PAUSE), and mute (MUTE).

The speaker goes into standby automatically, how to wake it up?

The speaker goes into standby after 10 minutes of inactivity. To wake it up, press the Power button. If connected via Bluetooth, pressing Play may also wake it up.

Can I use the speaker outdoors?

The speaker is designed for indoor use only. Do not expose it to rain, humidity, or direct sunlight. It does not have a waterproof certification.

How to clean the speaker?

Always unplug the speaker before cleaning. Use a soft, dry cloth. Never use abrasive products, solvents, or harsh cleaners. Do not lubricate any parts.

USER MANUAL PARTYBTHPL BIGBEN

MODE D'EMPLOI

AVANT D'UTILISER CET APPAREIL, VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI ET LE CONSERVER AFIN DE POUVOIR LE CONSULTER ULTÉRIEUREMENT.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THIS UNIT AND RETAIN FOR FUTURE REFERENCE.

Getting started 12	Technical specifications of the adapter	18
Safety warning and notice 12	Warning about batteries 18
Contents of the box 14	Care for the environment	19
Description of parts 14	Additional information	19
Features and Operation 15	Declaration of conformity	20
Appliance technical specifications 17	Warranty	20

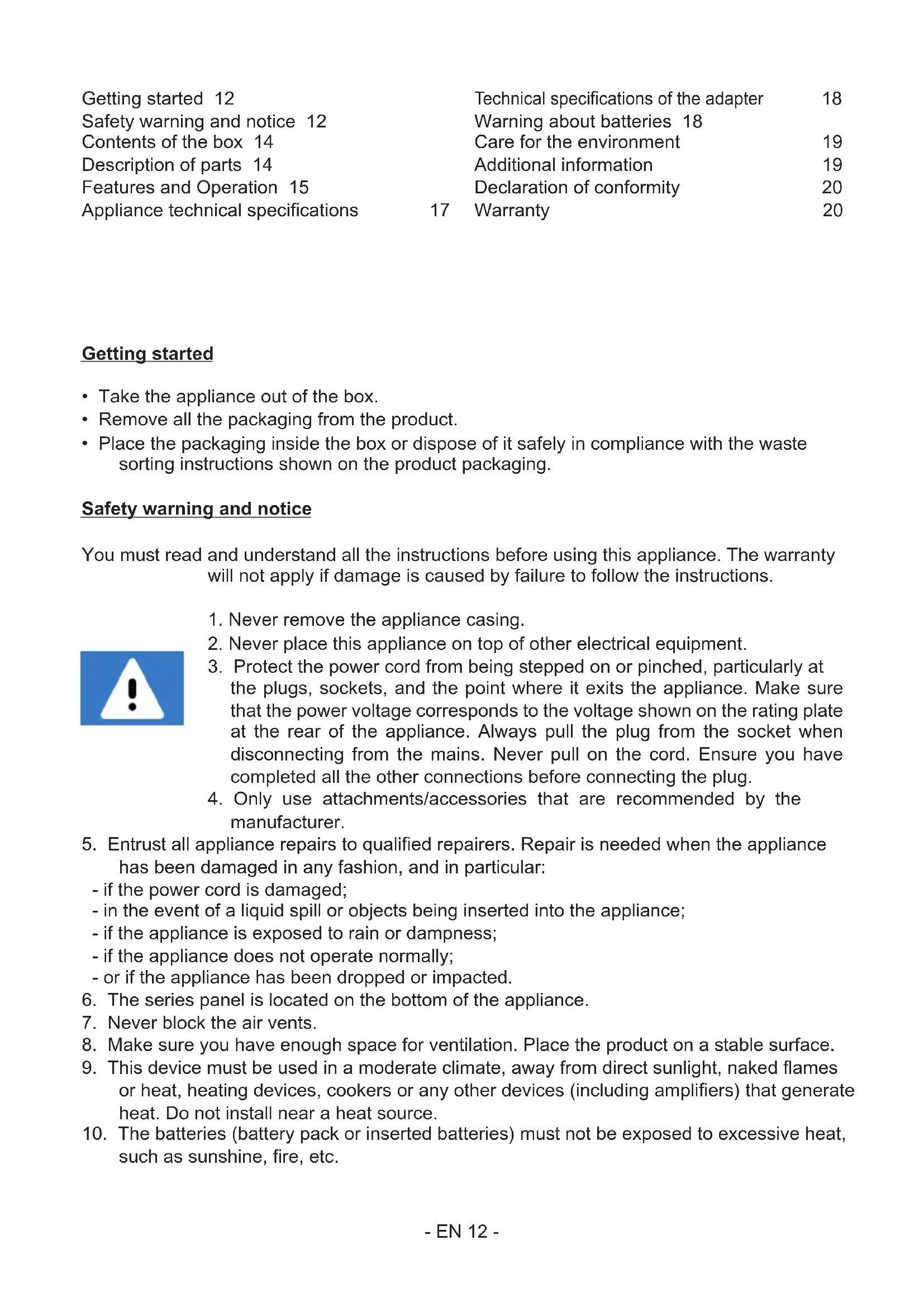

Getting started

• Take the appliance out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the product packaging.

Safety warning and notice

You must read and understand all the instructions before using this appliance. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the appliance casing.
2. Never place this appliance on top of other electrical equipment.
3. Protect the power cord from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the appliance. Make sure that the power voltage corresponds to the voltage shown on the rating plate at the rear of the appliance. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the plug.

4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all appliance repairs to qualified repairers. Repair is needed when the appliance has been damaged in any fashion, and in particular:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the appliance;
8. if the appliance is exposed to rain or dampness;
9. if the appliance does not operate normally;

10. or if the appliance has been dropped or impacted.

11. The series panel is located on the bottom of the appliance.

12. Never block the air vents.
13. Make sure you have enough space for ventilation. Place the product on a stable surface.
14. This device must be used in a moderate climate, away from direct sunlight, naked flames or heat, heating devices, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.

15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

16. Always unplug the device before cleaning it. Never lubricate any part of this appliance. Clean it with a soft cloth. Do not use abrasive products or harsh cleaners.

17. Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this appliance from the mains if necessary.
18. Do not use this appliance near water. It must not be dripped on or splashed. Do not use this appliance in a damp or wet environment.
19. Disconnect this appliance in the event of a storm or if you are not going to use it for a long period of time.
20. This appliance can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the appliance, and they understand the risks involved. Children must not play with the appliance or power cord (risk of strangulation). Children must not clean or maintain the appliance without supervision.
21. This device must only be supplied with very low safety voltage corresponding to the marking on the device.
22. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.
23. The product must be at a minimal distance of 20 cm from the human body when working.
24. This appliance is for household use only; do not use outdoors.

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated electrical voltages inside the device that are strong enough to present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the appliance.

Class II material
Direct current
Alternating current
For indoor use only

Contents of the box

Check and identify the contents of your box:

• 1 speaker
• 1 remote control
• 1 audio cable
• 1 mains adapter
  • 1 microphone with cable
• 1 shoulder strap

Description of parts

Features and Operation

Power button:

Press the "Power" button to turn the speaker on and off.

Choice of mode:

Press the “mode” button to switch from LINE IN mode to USB and BT (Bluetooth®) modes. The chosen mode will appear on the screen.

Bluetooth connection:

• When switched on, the speaker automatically switches to Bluetooth search mode.
• Find the device called “PARTYBTHPLH” on your mobile device and select it. Once found, you’ll hear a beep indicating that the speaker is connected to the device.
• During pairing, the text "Blue" flashes during the search and remains fixed once paired.
• Short-press the Next/Previous button to select the next/previous track.
• Short-press the Play/Pause button on the device, and the speaker will play or stop the music.

AUX-IN mode:

• Press the "mode" button to select AUX mode. The word "AUX" appears on the screen.
• Use the 3.5mm audio cable to connect your device.
• Listen to music via USB/micro-SD card
• Insert a USB key/micro-SD card into the slot, and the music will start automatically.

NB: Maximum supported capacity of 32 GB for playing USB/SD cards. This device plays This device plays MP3, WAV formats. The device does not play SanDisk Ultra 32GB SD cards.

EQ light:

The light turns on when the speaker is turned on and the LED light button is set to ON. Press and hold the MODE button to change the light effects.

Fast rewind: In USB or micro-SD card mode, you can long-press the "previous" button to get the fast rewind function.

Fast forward: In USB or micro-SD card mode, you can long-press the "next" button to get the fast forward function.

Standby mode: The speaker will go into standby mode after 10 minutes without use.

How to recharge:

• Do not use a power source greater than 9V 2A.
• Recharge your speaker with our standard 9V/2A USB adapter. During charging, the LED indicator lights up red. The LED charging indicator turns off when charging is complete.
• An audible signal will remind you to recharge the battery when it's low. As soon as the beep sounds, remember to plug in your speaker to recharge it.

Microphone:

• Connect the microphone cable to the MIC port on the speaker.
• Turn the M.VOL dial to adjust the volume.
• Turn the Bass/Treble dials to adjust the level of bass and treble tones.
• Turn the Echo dial on the speaker to adjust the reverb effect.
  • After use, unplug the microphone and store it when not in use.

WARNING! Risk of hearing damage

Adjust the player to a low volume before connecting the headphones to the sound source.

Avoid any excessive volume, particularly for long periods of time or in the event of frequent use. Excessive volume can lead to permanent hearing loss.

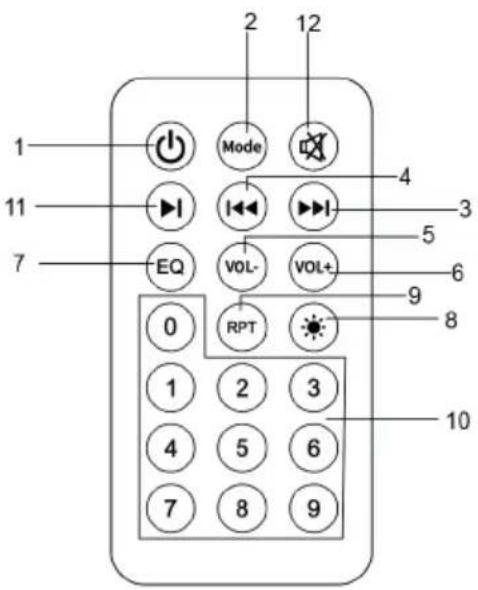

Remote control:

1. POWER: Press this button to turn the speaker on/off.

2.MODE: Press this button to switch from Bluetooth mode to Aux mode.

3.NEXT: In Bluetooth, USB or micro-SD card mode, short-press this button to go to the next track. In USB or micro-SD card mode, long-press to fast forward the music.

4.PREV: Plug in the USB key or micro-SD card, short-press this button to skip to the next track. In USB or micro-SD card mode, long-press to fast-rewind.

5.VOL-: Press this button to reduce the volume.

6.VOL+: Press this button to increase the volume.

7.EQ: Press this button to choose Jazz, Rock, Bass or Normal modes

1. LED: Press to change light effects.
2. RPT: Connect the USB stick or micro-SD card, briefly press "RPT" (the screen will show "ALL") to replay the entire playlist, and press "PRT" twice (the screen will show "ONE") to replay the track.
3. figures "0 to 9": Press a number from 0 to 9 to switch from one track to another on the USB key/SD card.
   11.Play/pause: Short-press to pause the music. Press again to resume the music.
   12.MUTE: Press this button to mute the music.

Appliance technical specifications

Type Specifications	Type Specifications
Speaker 2 x 6.5" (2x10W)	Charging time 5-6 hours
Bluetooth pairing name	PARTYBTHPLH Bluetooth version 5.3
RMS power 20 W Playback time 100% volume about			1.5 hours, 50% volume about 3.5 hours
Speaker frequency 100 Hz - 20 KHz Bluetooth frequency 2.40 - 2.48 GHz
Power supply 9V 2A Speaker 16.5 cm, 4 ohm			speaker
S/B ratio	≥70dB	Transmission range	10 m
EIRP	2.24 dBm	Battery type	Battery 3000mAh - Lithium
Dimensions (WxDxH)	550*245*270mm	Net weight	4.35 kg accessories included

Technical specifications of the adapter

• Manufacturer name or adapter brand: Shenzhen Boshenggao Technology co.,Ltd
- Adapter model number: BX18W-0902000A
• Supply voltage and frequency: 100-240V 50/60Hz
• Output voltage, current, electrical power: 9.0V, 2A, 18W
• Average efficiency in active mode: 85%
- Low-load efficiency (10%): _75_%
- No-load power consumption: _0.1_W

Warning about batteries

This product contains one or more batteries.

• Do not swallow the battery/ies. If swallowed, a battery can cause severe internal burns in 2 hours and can cause death. If batteries are swallowed, contact a poison centre immediately and consult a physician.
• The batteries (or battery pack) must not be exposed to excessive heat, such as sunlight, fire, etc.
• Do not heat batteries and do not dispose of them in fire or water.
• Do not use metal pliers or metal objects such as the point of a pen or tweezers to remove batteries. Avoid deforming, crushing or piercing batteries.
• Do not disassemble the batteries.
• Cover the ends of the batteries with tape to prevent explosions and combustion when these need to be scrapped.
• Be environmentally friendly when scrapping batteries
• Do not dispose of batteries in ordinary household waste.
• When scrapping batteries, be sure to comply with the local regulations in force in this matter.

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When this crossed-out wheelie bin symbol is applied to a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are also helping to prevent potentially negative consequences for the environment and human health.

Additional information

• To save energy, when the appliance does not issue any audio output for a certain amount of time, it will automatically go into standby mode. It can be switched ON by using the POWER selector again
• If there is an incoming call while the PARTYBTHPLH system is connected to your mobile phone during music playback, the music will immediately pause when you answer the call and resume after the call ends (depending on the type of mobile phone, playback may sometimes stay paused after the end of the call).
• The word Bluetooth ^® , the mark and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners.

Declaration of conformity

- Bigben Interactive hereby declares that the PARTYBTHPLH type radio equipment complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.
