| Product type | Surveillance camera |
| Brand | Overmax |
| Model | Camspot 4.9 Pro |
| Frequency | 2.412 - 2.472 GHz |
| Power supply | 12 V DC 2 A |
| Video resolution | Full HD (1080p) / HD |
| Night vision | Infrared LEDs and white light |
| Audio | Built-in microphone and speaker, two-way communication |
| Storage | microSD card up to 128 GB (FAT32 format) |
| Connectivity | Wi-Fi 2.4 GHz, RJ45 port |
| Mobile app | Overmax Control (iOS, Android) |
| Voice assistant | Compatible with Google Assistant and Alexa (via Tuya Smart) |
| Motion detection | Yes, with push notifications |
| Sound detection | Yes |
| Privacy mode | Allows to cut the camera power supply |
| Patrol function | Yes |
| Alarm | Automatically turns off after 10 seconds |
| Mounting | Wall or ceiling mount, screws and anchors included |
| Maintenance | Clean with a soft, dry cloth. Do not use abrasive products. |
| Safety | Do not expose to water or excessive humidity. Unplug before cleaning. |
| Spare parts | Not provided. Contact customer service. |
| Compliance | Compliant with European directives. Recycle according to WEEE. |
Frequently Asked Questions - Camspot 4.9 Pro Overmax
User questions about Camspot 4.9 Pro Overmax
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Surveillance Camera in PDF format for free! Find your manual Camspot 4.9 Pro - Overmax and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Camspot 4.9 Pro by Overmax.
USER MANUAL Camspot 4.9 Pro Overmax
EN: The product complies with requirements of EU directives.
Pursuant to the Directive 2012/19/EU, this product is subject to selective collection. The product must not be disposed of along with domestic waste as it may pose a threat to the environment and human health. The worn-out product must be handed over to the electrics and electronics recycling center.
Drogi Kliencie!
https://ipc-eu.ismartlife.me/login
Montaž
Thank you for placing trust in us and choosing Overmax.
EN
Thanks to high-quality materials and modern solutions, we provide you with a product perfect for everyday use. We are convinced that the product will satisfy your requirements as it has been manufactured with utmost care. Before you use the product, please read this manual carefully.
Should you have any remarks or questions concerning the product, please do not hesitate to contact us: pomoctechniczna@overmax.pl
Information about the device
Frequency: 2.412-2.472 GHz
Power supply: 12V DC 2A
The set (fig. A)
-
Camera
-
RJ45 connector cover
-
Screws x4 and mounting pins x4
-
Power supply (12V DC 2A
Device description (fig. B)
-
Reset
-
Microphone
-
Light sensor
-
White light
-
Lens
-
Infrared diodes
-
RJ45 connector
-
Power cord
-
Antenna
-
Bracket
-
Speaker
-
MicroSD card slot
1. Downloading by application (fig. 1)
Search for the „Overmax Control” app in the iOS Store / Google Play or scan the QR code and download the app. You can download it for iOS and Android.

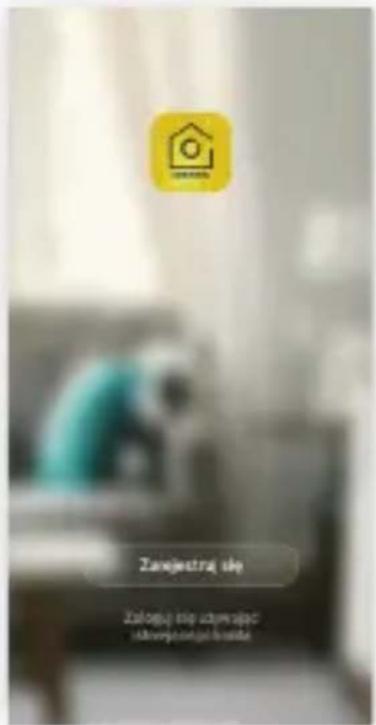

2. Registering a new user (fig. 2 and 3)
EN
- To register for the application, click on the „Register” box and then read and accept the Privacy Policy.
- Enter your email address to receive your verification code.
- Enter your verification code in the blank field.
- Enter your individual password and select "Finish".
3. Logging in to an existing account
- In order to log in to an existing account, select “Log in using an existing account” (fig. 2).
- Select the appropriate country/region.
- Enter your email address and password, then log in.
4. Manually adding the device in the application (fig. 4)
The product only supports 2.4GHz Wi-Fi and does not support 5GHz Wi-Fi. Before setting up Wi-Fi, set your router parameters. The Wi-Fi password should not contain special characters.
• Make sure the router and camera are as close together as possible to allow for quick setup of the device.
- Connect your mobile device to the local Wi-Fi network to which the camera will be connected, then select “My home”. Select “Add device” and “Add manually”, then select the “Camspot 4.9 Pro” device.
- Select your Wi-Fi network and enter your password.
- You can add the device using Auto Scan, which allows your phone to automatically search for nearby Wi-Fi enabled devices.
EN
- Press and hold the „Reset” button for 5 seconds to restore the factory settings. Click „Next step” and continue.
- To pair the camera, scan the QR code from the phone screen through the camera lens, holding the camera 15-20cm away. Try to hold your mobile phone in a stable position while scanning.
- When you hear the sound signal, click „I heard the sound”. Wait for the device to complete the configuration.
• After adding the device, click „Finish” to finish adding the device (fig. 5).
5. Description of the mobile application functions (fig. 6)
Real-time preview interface:
- HD/SD - change recording resolution FullHD / HD
- Volume control
- Zoom
- Full screen
- Photo
- Two-way audio communication
- Video recording
- Play (microSD card FAT32 required, max. 128 GB)
- Gallery
- Bright/dark application mode
- Private mode (allows you to limit data transfer by turning off the camera)
- Night mode
- Motion tracking
- Motion sensor
- Sound sensor
- Control
- Locations
-
Cloud
-
Smart functions
- Patrol function
- Alarm (switches off automatically after 10 seconds)
- Edition
In order to access the camera view via a web browser, turn on the „Overmax Control” application, click on add the device, then scan the QR code displayed in the browser of your computer.
Live camera preview at: https://ipc-eu.ismartlife.me/login
EN
Mounting
- To mount the camera on a wall, screw the camera bracket to the ceiling/wall (fig. 7).
Google Assistant/Alexa function
• If you wish to use this function, you will need to download the Tuya Smart app.
- The Tuya Smart app is free and available for Android (Google Play) and iOS (App Store) devices.
Record saving
Videos recorded on the memory card must at first be saved in the mobile device memory through OverMax Control application. Data on the card are encoded so if you fail to save them in the device memory, you will not be able to read them afterwards.
Troubleshooting
| Question Answer | |
| How do I restore the factory settings on my device? | Remove the camera from the device list in the app or press and hold the reset button for 8 seconds until you hear the sound. |
EN
| After selecting the 2.4GHz Wi-Fi network and entering the correct password, the camera still cannot connect. | Make sure your phone and camera are connected to the same network.Make sure that the DHCP protocol is enabled.Press and hold the reset button for 5 seconds to reset the device.Make sure the Wi-Fi signal strength is high. |
| How can I change the router the camera is connected to? | Remove the camera from the device list in the app or press and hold the reset button for 8 seconds until you hear the sound. Then reconfigure the device. |
| The microSD card is not recognized by the device. | Check the camera settings and make sure you have enabled saving to a microSD card. The device can support up to 128GB cards. Make sure the card is not damaged and supports the FAT32 format. |
| Why am I not receiving a notification when the device detects movement? | Make sure your phone and app have push notifications enabled. |
Illustrations are provided for information purposes only. The actual appearance of the products may differ from the images shown.
