| Product Type | Coil Roofing Nailer |
| Brand | Porter-Cable |
| Model | RN175C |
| Dimensions (L x W x H) | 267 mm x 120 mm x 261 mm |
| Weight | 2.42 kg |
| Power Source | Clean, regulated compressed air |
| Operating Pressure | 5 to 8.5 kg/cm² (70 to 120 p.s.i.g.) |
| Air Consumption | 100 L/min at 80 p.s.i. and 100 fasteners/min |
| Magazine Capacity | 120 nails (coil) |
| Fastener Type | Coil roofing nails (15°) |
| Fastener Diameter | 3 mm (0.120 in) |
| Fastener Length | 19 mm to 44.5 mm (3/4 in - 1-3/4 in) |
| Trigger Modes | Contact trip (place and contact actuation); sequential trip |
| Depth Adjustment | Adjustment wheel with detents (quarter turn) |

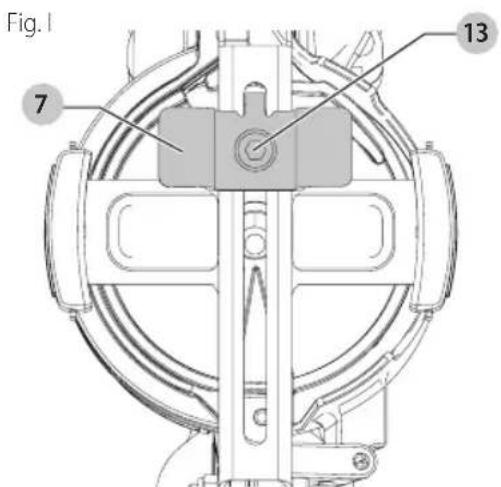

| Shingle Guide | Adjustable (hex screw) |
| Intended Use | Professional roofing applications |
| Warranty | 7 years (U.S. and Canada, original purchaser) |
| Maintenance and Cleaning | Clean vents with dry compressed air at least once a week; lubricate with pneumatic tool oil |
| Spare Parts and Repairability | Use only original PORTER-CABLE replacement parts; have repairs done at an authorized service center |
| Safety | Wear ANSI Z87.1 safety glasses, ANSI S12.6 hearing protection, dust mask if needed; disconnect power supply before maintenance |
Frequently Asked Questions - RN175C Porter-Cable
User questions about RN175C Porter-Cable
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Stapler in PDF format for free! Find your manual RN175C - Porter-Cable and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RN175C by Porter-Cable.
USER MANUAL RN175C Porter-Cable
OPERATING INSTRUCTION, SERVICE CENTERS AND GUARANTEE POLICY.
WARNING: READ THIS INSTRUCTION BEFORE USING THE PRODUCT.
MERCI D'AVOIR CHOISI PORTER-CABLE! CONSULTER LE SITE WEB
WWW.PORTERCABLE.COM/SERVICEANDSUPPORT/PRODUCTREGISTRATION.ASPX POUR ENREGISTRER VOTRE NOUVEAU PRODUIT.
INSTRUCTIONS DE FONCTIONNEMENT, CENTRES DE SERVICE ET POLITIQUE DE GARANTIE.
▲ AVERTISSEMENT: LISEZ CETTE INSTRUCTION AVANT D'UTILISER LE PRODUIT.
GRACIAS POR ELEGIR PORTER-CABLE USTED! PARA REGISTRAR SU NUEVO PRODUCTO, VISITE:
WWW.PORTERCABLE.COM/ SERVICEANDSUPPORT / PRODUCTREGISTRATION.ASPX
Definitions: Safety Alert Symbols and Words
This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
(### without word) Indicates a safety related message.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

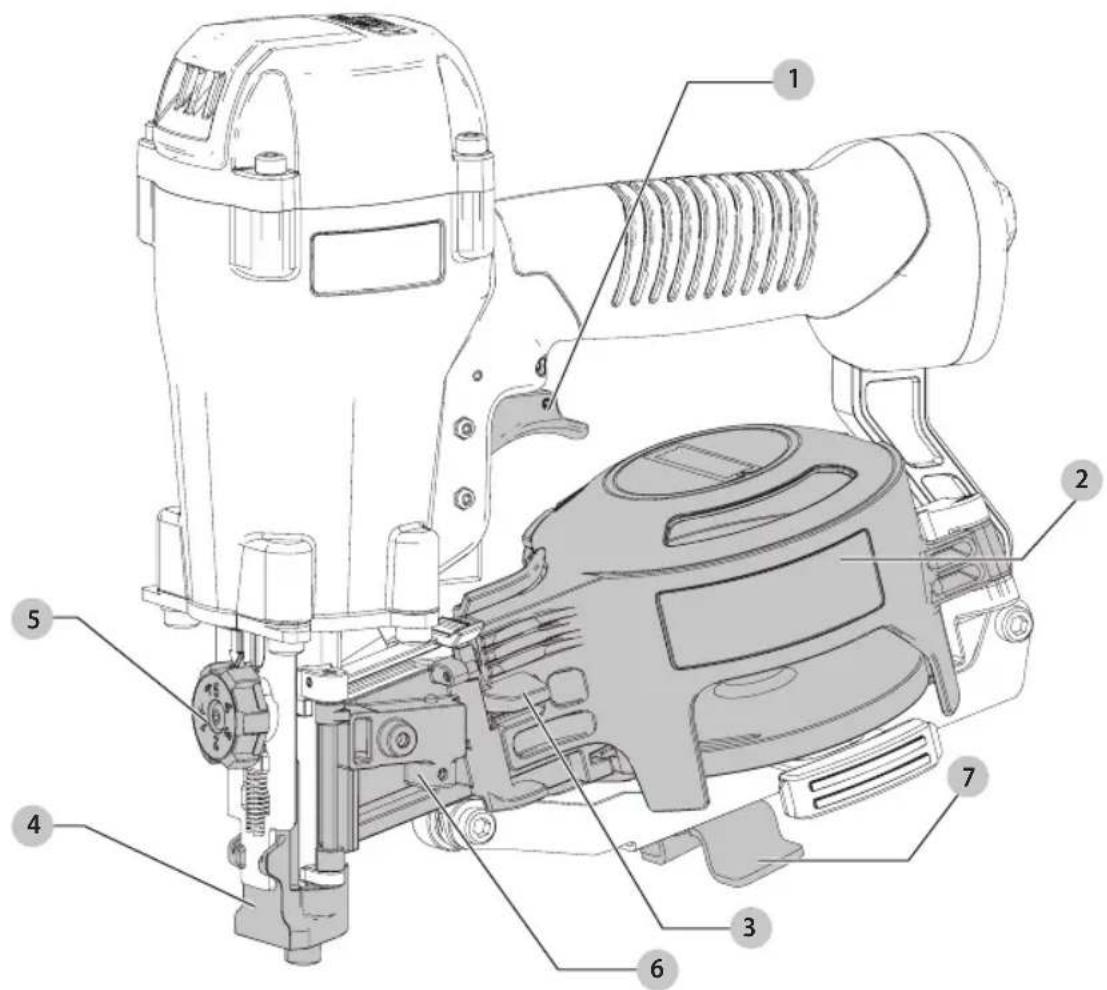

Fig. A
2 Canister
3 Door latch
4 Contact trip
5 Depth adjustment wheel
6 Nail guide door
7 Shingle guide
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
WARNING: To reduce the risk of injury, read the instruction manual.
ENGLISH
PORTER-CABLE tools are precision-built tools, designed for precise, high volume nailing. These tools will deliver efficient, dependable service when used correctly and with care. As with any fine power tool, for best performance the manufacturer's instructions must be followed. Please study this manual before operating the tool and understand the safety warnings and cautions. The instructions on installation, operation and maintenance should be read carefully, and the manual kept for reference.
NOTE: Additional safety measures may be required because of your particular application of the tool. Contact your PORTER-CABLE representative or distributor with any questions concerning the tool and its use.
PORTER-CABLE, 701 E. Joppa Road, Towson, Maryland 21286, U.S. & Canada Only.
PORTER-CABLE tools have been engineered to provide excellent customer satisfaction and are designed to achieve maximum performance when used with precision PORTER-CABLE fasteners engineered to the same exacting standards.
PORTER-CABLE cannot assume responsibility for product performance if our tools are used with fasteners or accessories not meeting the specific requirements established for genuine PORTER-CABLE nails, staples and accessories.
Limited Warranty
U.S. and Canada Only
PORTER-CABLE warrants to the original retail purchaser that the product purchased is free from defects in material and workmanship, and agrees to repair or replace, at PORTER-CABLE's option, any defective PORTER-CABLE branded pneumatic stapler or nailer for a period of seven (7) years from date of purchase [one (1) year from the date
of purchase for compressors and tools used in production applications]. Warranty is not transferable. Proof of purchase date required. This warranty covers only damage resulting from defects in material or workmanship; it does not cover conditions or malfunctions resulting from normal wear, neglect, abuse, accident or repairs attempted or made by other than our national repair center or authorized warranty service centers. Driver blades, bumpers, o-rings, pistons and piston rings are considered normally wearing parts. For optimal performance of your PORTER-CABLE tool always use genuine PORTER-CABLE fasteners and replacement parts. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. PORTER-CABLE SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states and countries do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state and country to country. To obtain warranty service in the U.S. return the product, together with proof of purchase, to the U.S. PORTER-CABLE National or Regional Independent Authorized Warranty Service Center. In the U.S. you may call us at or visit www.portercable.com for the location most convenient for you. In Canada please call us at or visit www.portercable.com
Coil Roofing Nailer: RN175C
Tool Specifications
| Model Length Height Width Weight | |||
| RN175C 10.51" | 10.28" | 4.72" | 5.34 lbs |
| (267 mm) | (261 mm) | (120 mm) | (2.42 kg) |
All dimentions in inches unless otherwise specified.
Fastener Specifications
| Model Fastener Diameter Fastener Range Loading | |||
| Capacity | |||
| RN175C 15" coil | 0.120" | 3/4"-1-3/4" | 120 nails |
| roofing nails | (3 mm) | (19 mm-44.5 mm) | |
Tool Air Fitting: This tool uses a 1/4" N.P.T. male plug. The inside diameter should be .275" (7 mm) or larger. The fitting must be capable of discharging tool air pressure when disconnected from the air supply. A 3/8" (9.5 mm) male quick connector coupling is available from PORTER-CABLE and may be used when a 1/4" (6.4 mm) supply line is not available.
NOTE: A 3/8" (9.5 mm) supply line (and fittings) are required for maximum tool performance.
Operating Pressure: 70-120 p.s.i.g (5 to 8.5 kg/cm²/4.8 to 8.3 bar). Select the operating pressure within this range for best fastener performance. DO NOT EXCEED THIS RECOMMENDED OPERATING PRESSURE.
Air Consumption: The RN175C requires 4.13 cubic feet per minute (100 liters per minute) of free air to operate at the rate of 100 fasteners per minute, at 80 p.s.i. (5.6 kg/cm ^2 ). Take the actual rate at which the tool will be run to determine the amount of air required. For instance, if your fastener usage averages 50 fasteners per minute, you need 50% of the tool's c.f.m. of free air which is required to operate the tool at 100 fasteners per minute.
Trigger: The RN175C is equipped with a contact trigger. Refer to the Actuating Tool section for more information.
Safety Information
WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:
• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.
WARNING: Eye protection must always be worn by the operator and other people in the work area.
WARNING: An employer must ensure that proper eye protection is available and used by anyone in the work area and any persons operating this tool.
WARNING: Some dust created by power sanding, sanding, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
- lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.
WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19)
during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.
WARNING: (Air and Supply)
- Be not use oxygen, combustible gases, or bottled gases as a power source for this tool as tool may explode, possibly causing injury.
- Do not use supply sources which can potentially exceed 200 P.S.I.G. (14kg/cm ^2 ) as tool may burst, possibly causing injury.
- The connector on the tool must not hold pressure when air supply is disconnected. If a wrong fitting is used, the tool can remain charged with air after disconnecting and thus will be able to drive a fastener even after the air line is disconnected possibly causing injury.
- Do not pull trigger or depress contact arm while connected to the air supply as the tool may cycle, possibly causing injury.
• Always disconnect air supply: 1.) Before making adjustments; 2.) When servicing the tool; 3.) When clearing a jam; 4.) When tool is not in use; 5.) When moving to a different work area, as accidental actuation may occur, possibly causing injury.
WARNING: When loading tool:
- Never place a hand or any part of body in fastener discharge area of tool;
- Never point tool at anyone;
- Do not pull the trigger or depress the trip as accidental actuation may occur, possibly causing injury.
WARNING: When operating the tool:
Always handle the tool with care:
- Never engage in horseplay;
- Never pull the trigger unless nose is directed toward the work;
- Keep others a safe distance from the tool while tool is in operation as accidental actuation may occur, possibly causing injury.
- Assume that the tool always contains fasteners.
- Respect the tool as a working implement.
- Stay alert, focus on your work and use common sense when working with tools.
- Do not use tool while tired, after having consumed drugs or alcohol, or while under the influence of medication.
- Do not overreach. Keep proper footing and balance at all times.
- Drive fasteners into proper work surface only.
- Keep fingers AWAY from the trigger when not driving fasteners to avoid accidental actuation. Never carry a tool with finger on the trigger. The tool will drive a fastener if the contact trip is bumped while the trigger is depressed. Serious injury could result if the trip accidentally contacted someone or something, causing the tool to cycle.
- Keep hands, face and body away from the discharge area of the tool. A contact trip tool may bounce from the recoil of driving a fastener and an unwanted second fastener may be driven possibly causing injury.
• Always select an actuation system that is appropriate to the the fastener application and the training of the operator.
- Check operation of the contact arm mechanism frequently. Do not use the tool if the arm is not working correctly as accidental driving of a fastener may result. Do not interfere with the proper operation of the contact arm mechanism.
- Do not use the tool if trigger, contact trip, housing or any part of the tool is damaged.
- Do not drive fasteners on top of other fasteners or with the tool at an overly steep angle as this may cause deflection of fasteners which could cause injury.
- Do not drive fasteners close to the edge of the work piece as the wood may split, allowing the fastener to be deflected possibly causing injury.
- This nailer produces SPARKS during operation. NEVER use the nailer near flammable substances, gases or vapors including lacquer, paint, benzine, thinner,
ENGLISH
gasoline, adhesives, mastics, glues or any other material that is—or the vapors, fumes or byproducts of which are—flammable, combustible or explosive. Using the nailer in any such environment could cause an EXPLOSION resulting in personal injury or death to user and bystanders.
- Use extra caution when driving fasteners into existing walls or other blind areas to prevent contact with hidden objects or person on other side (e.g., wires, pipes)
WARNING: When maintaining the tool:
When working on air tools, note the warnings in this manual and use extra care when evaluating problem tools.
Additional Safety Warnings
- Use the PORTER-CABLE pneumatic tool only for the purpose for which it was designed.
- Never use this tool in a manner that could cause a fastener to be directed toward the user or others in the work area.
- Do not use the tool as a hammer.
• Always carry the tool by the handle. Never carry the tool by the air hose. - Do not alter or modify this tool from the original design or function without approval from PORTER-CABLE.
• Always be aware that misuse and improper handling of this tool can cause injury to yourself and others. - Never leave a tool unattended with the air hose attached.
- Do not operate this tool if it does not contain a legible WARNING LABEL.
- Do not continue to use a tool that leaks air or does not function properly. Notify your nearest PORTER-CABLE representative if your tool continues to experience functional problems.
TO PREVENT ACCIDENTAL INJURIES:
- Never place a hand or any other part of the body in nail discharge area of tool while the air supply is connected.
- Never point the tool at anyone else.
- Never engage in horseplay.
- Never actuate the tool unless nose is directed at the work.
• Always handle the tool with care. - Do not actuate the tool while loading.
COMPONENTS (FIG. A)
WARNING: Never modify the power tool or any part of damage or personal injury could result.
Refer to Figure A at the beginning of this manual for a complete list of components.
Intended Use
Your roofing nailer has been designed for professional roofing applications.
Your nailer is a professional power tool.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use this tool.
ASSEMBLY AND USAGE PREP
Air Supply and Connections
WARNING: Do not use oxygen, combustible gases, or bottled gases as a power source for this tool as tool may explode, possibly causing injury.
Fittings
Install a male plug on the tool which is free flowing and which will release air pressure from the tool when disconnected from the supply source.
Hoses
Air hoses should have a minimum of 150 p.s.i. (10.6 kg/cm ^2 ) working pressure rating or 150 percent of the maximum pressure that could be produced in the air system. The supply hose should contain a fitting that will provide “quick disconnecting” from the male plug on the tool.
Supply Source
Use only clean regulated compressed air as a power source for this tool. NEVER USE OXYGEN, COMBUSTIBLE GASES, OR BOTTLED GASES, AS A POWER SOURCE FOR THIS TOOL AS TOOL MAY EXPLODE.
Regulator
A pressure regulator with an operating pressure of 0–125 p.s.i. (0 - 8.79 kg/cm ^2 ) is required to control the operating pressure for safe operation of this tool. Do not connect this tool to air pressure which can potentially exceed 200 p.s.i. (14 kg/cm ^2 ) as tool may fracture or burst, possibly causing injury.
Operating Pressure
Do not exceed recommended maximum operating pressure as tool wear will be greatly increased. The air supply must be capable of maintaining the operating pressure at the tool. Pressure drops in the air supply can reduce the tool's driving power. Refer to Tool Specifications for setting the correct operating pressure for the tool.
Filter
Dirt and water in the air supply are major causes of wear in pneumatic tools. A filter will help get the best performance and minimize wear of the tool. The filter must have adequate flow capacity for the specific installation. The filter has to be kept clean to be effective in providing clean compressed air to the tool. Consult the manufacturer's instructions on proper maintenance of your filter. A dirty and clogged filter will cause a pressure drop which will reduce the tool's performance.
Lubrication
Frequent, but not excessive, lubrication is required for best performance. Use Air Tool Lubricant, Mobil Velocite #10, or equivalent. Do not use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance. Only a few drops of oil at a time is necessary inserted into air fitting opening. Too much oil will only collect inside the tool and will be noticeable in the exhaust cycle.
OPERATION
WARNING: To reduce the risk of personal injury, disconnect tool from air supply before performing maintenance, when loading or removing fasteners, clearing a jammed fastener, leaving work area, moving tool to another location or handing the tool to another person.

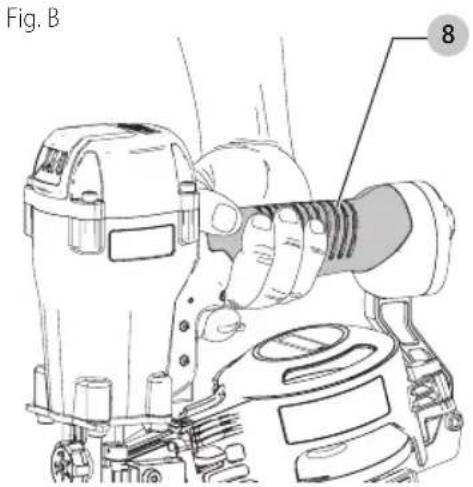

Proper Hand Position (Fig. B)
WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.
Proper hand position requires one hand on the main handle 8.
WARNING: Keep the tool pointed away from yourself and others. Serious personal injury may result.
WARNING: Never load nails with the contact trip or 100% or activated. Personal injury may result.
NOTICE: Use only BOSTITCH-, PORTER-CABLE-, or DEWALT-approved fasteners. Refer to Fastener Specifications.
- Disconnect the air supply to the tool.

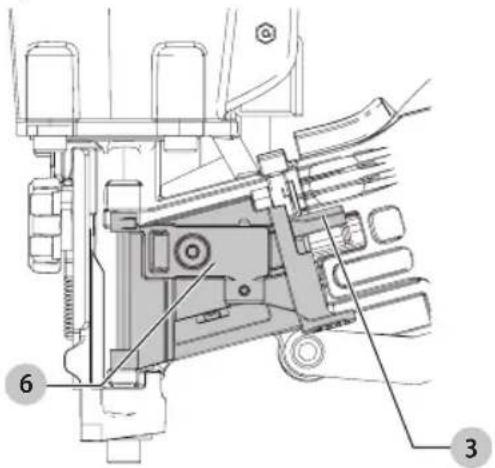

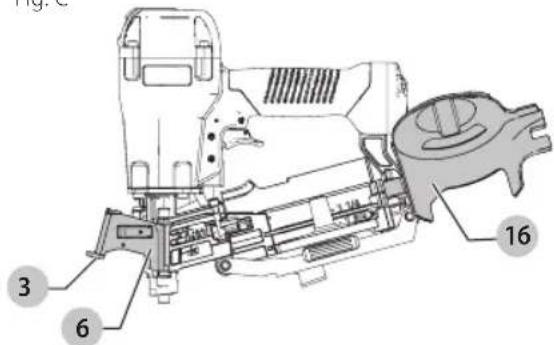

- Lift the canister door latch 3 to open the nail guide door 6.
- Rotate the canister door 16 open. Fig. C


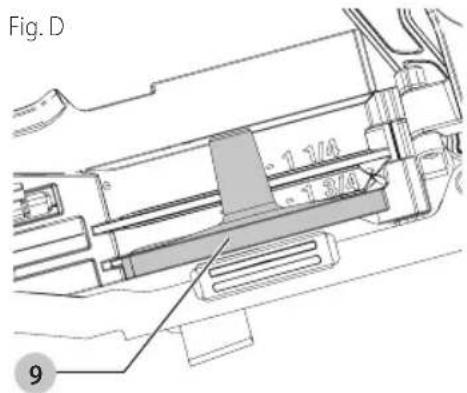

Fig. D 7 3/4 7 8/4 9Platform Position Nail Length
lowest position 1-1/2" (38 mm) - 1-3/4" (44.5 mm)
center position 1–1/4" (32 mm)
upper position 3/4" (19 mm) - 1" (25 mm)
- Place the coil on the nail platform 9. NOTE: Observe fastener icon 10.. Insert fasteners 11 with points down.


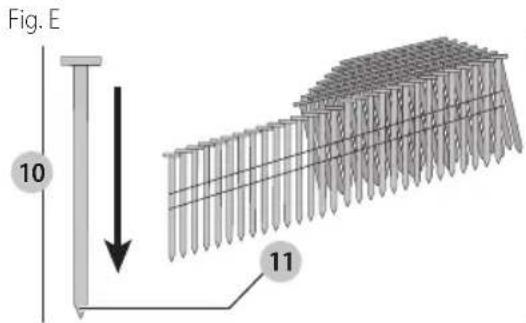

Fig. E 10 11- Uncoil enough nails [approximately 3" (76 mm)] to reach the nose of the tool.
- Insert the first nail into the nose and the second nail 12 between the two rails of the feed pawl as shown in Figure F.


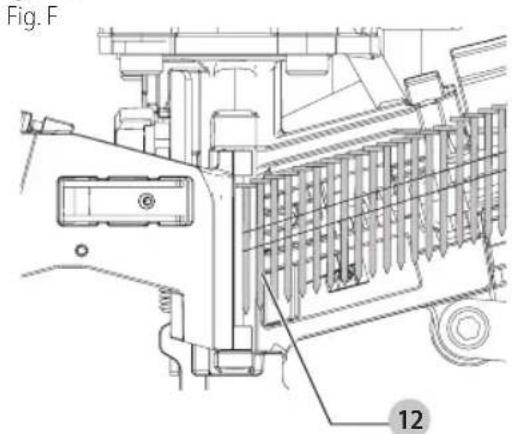

Fig. F 12NOTE: Be careful not to deform the coil of nails during the loading process. Otherwise, the nail guide door will not close and the nails might not feed consistently.
- Close the canister door 16 completely.
- Close the nail guide door 6 making sure the door latch 3 is completely engaged as shown in Figure G.
ENGLISH
Fig. G
WARNING: To reduce the risk of injury, ALWAYS when proper eye ANSI Z87.1 (CAN/CSA Z94.3) and hearing protection ANSI S12.6 (S3.19) when operating this tool.
WARNING: Keep fingers AWAY from the trigger when driving fasteners to avoid accidental actuation. Never carry a tool with finger on the trigger. The tool will drive a fastener if the contact trip is bumped while the trigger is depressed. Serious injury could result if the trip accidentally contacted someone or something, causing the tool to cycle.
Contact Actuation Trigger - /Fig. A)
The contact trigger 1 is intended for rapid fastening on flat, stationary surfaces.
Using the contact trigger, two methods are available: place actuation and contact actuation.
To Operate the Tool Using the PLACE ACTUATION Method
- Depress the contact trip 4 against the work surface.
- Pull the trigger to drive the fastener.
- Allow the tool to recoil off the work surface
To Operate the Tool Using the CONTACT ACTUATION Method
- Pull the trigger.
- Depress the contact trip 4 against the work surface. As long as the trigger is pulled, the tool will drive a fastener every time the contact trip is depressed. This allows the user to rapidly drive multiple fastener in sequence.
Single Sequential Trigger - /
WARNING: Allow the tool to recoil off the work before after actuation. If the contact trip remains depressed, a nail will be driven each time the trigger is released and pulled, which could result in accidental actuation, possibly causing injury.
The sequential actuation trigger's intended use is for intermittent fastening where accurate fastener placement is desired.
To operate the tool in single sequential actuation mode
- Depress the contact trip 4 firmly against the work surface.
- Pull the trigger.
- Allow the tool to recoil from the work surface.

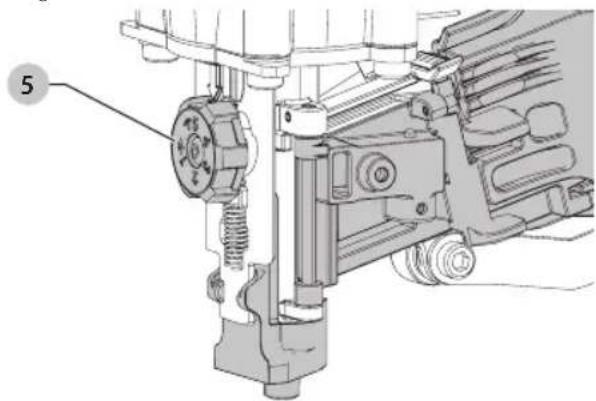

Adjusting Depth (Fig. H)
WARNING: To reduce risk of serious injury from occidental actuation when attempting to adjust depth, ALWAYS:
- Disconnect air supply.
- Avoid contact with trigger during adjustments.
The depth that the fastener is driven can be adjusted using the depth adjustment next to the trigger of the tool. The depth of drive is factory adjusted to a nominal setting. Test drive a fastener and check depth. If a change is desired:
- To drive the nail shallower, rotate the depth adjustment wheel 5 to the right.
- To drive a nail deeper, rotate the depth adjustment wheel 5 to the left.
The adjustment wheel has detents every 1/4 turn. Test drive another fastener and check depth. Repeat as necessary to achieve desired results. The amount of air pressure required will vary depending on the size of the fastener and the material being fastened. Experiment with the air pressure setting to determine the lowest setting that will consistently perform the job at hand. Air pressure in excess of that required can cause premature wear and/or damage to the tool.
Fig. H


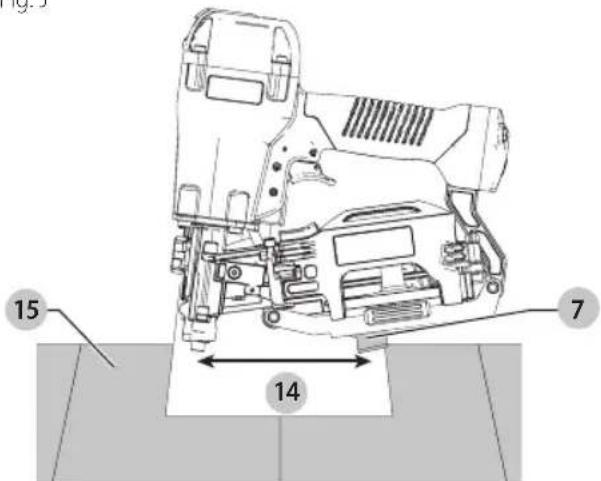

5Shingle Guide (Fig. I, J)
Adjust Shingle Guide
- Loosen the screw 13 with a hex wrench and slide the shingle guide 7 to the desired position.
- Retighten the screw with firmly.
Fig. J


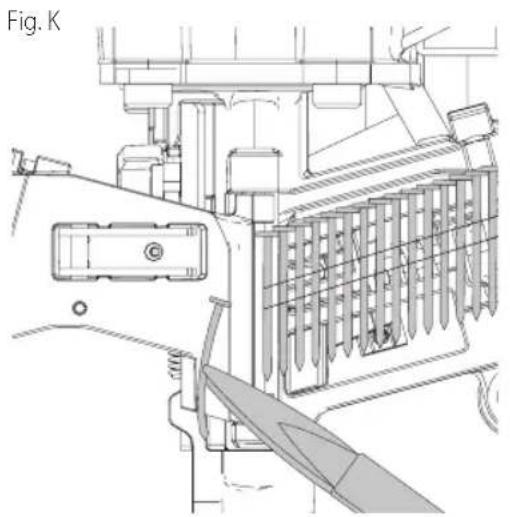

15 7 14Clearing a Jammed Nail (Fig. A, K)
WARNING: To reduce the risk of personal injury, disconnect tool from air supply before performing maintenance, when loading or removing fasteners, clearing a jammed fastener, leaving work area, moving tool to another location or handing the tool to another person.
If a nail becomes jammed in the nosepiece, keep the tool pointed away from you and follow these instructions to clear:
- Disconnect the air supply from the tool.
- Lift the canister door latch 3 to open the nail guide door 6.
- Open the canister door.
- Remove the jammed nail.
- Correct any deformation that may have occurred to the nail coil.
NOTE: Should nails continue to jam frequently in nosepiece, have tool serviced by an authorized PORTER-CABLE service center.
English
For cold weather operation, near and below freezing, the moisture in the air line may freeze and prevent tool operation. We recommend the use of winter formula air tool lubricant or permanent antifreeze (ethylene glycol) as a cold weather lubricant.
CAUTION: Do not store tools in a cold weather environment to prevent frost or ice formation on the tools operating valves and mechanisms that could cause tool failure.
NOTE: Some commercial air line drying liquids are harmful to "O"-rings and seals—do not use these low temperature air dryers without checking compatibility.
Hot Weather Operation
Tool should operate normally. However, keep tool out of direct sunlight as excessive heat can deteriorate bumpers, O-rings and other rubber parts resulting in increased maintenance.
MAINTENANCE
WARNING: To reduce the risk of personal injury, disconnect tool from air supply before performing maintenance, when loading or removing fasteners, clearing a jammed fastener, leaving work area, moving tool to another location or handing the tool to another person.
Cleaning
WARNING: Blow dirt and dust out of all air vents with dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this.
WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.
ENGLISH
Replacement Parts
PORTER-CABLE replacement parts are recommended. Do not use modified parts or parts which will not give equivalent performance to the original equipment.
Air Supply-Pressure and Volume
Air volume is as important as air pressure. The air volume supplied to the tool may be inadequate because of undersize fittings and hoses, or from the effects of dirt and water in the system. Restricted air flow will prevent the tool from receiving an adequate volume of air, even though the pressure reading is high. The results will be slow operation, misfeeds or reduced driving power. Before evaluating tool problems for these symptoms, trace the air supply from the tool to the supply source for restrictive connectors, swivel fittings, low points containing water and anything else that would prevent full volume flow of air to the tool.
Register Online
Thank you for your purchase. Register your product now for:
- WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
- CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
Register online at www.portercable.com/register.
Accessories
WARNING: Since accessories, other than those offered by PORTER-CABLE have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only PORTER-CABLE recommended accessories should be used with this product.
Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact PORTER-CABLE, call 1-888-848-5175.
TROUBLE SHOOTING
| Problem Cause Correction | ||
| Trigger valve housing leaks air O-ring cut or cracked Replace O-ring | ||
| Trigger valve stem leaks air O-ring/seals cut or cracked Replace trigger valve assembly | ||
| Frame/nose leaks air Loose nose screws Tighten and recheck | ||
| O-ring or Gasket is cut or cracked Replace O-ring or gasket | ||
| Bumper cracked/worn Replace bumper | ||
| Frame/cap leaks air Damaged gasket or seal Replace gasket or seal | ||
| Cracked/worn head valve bumper Replace bumper | ||
| Loose cap screws Tighten and recheck | ||
| Failure to cycle Air supply restriction | Check air supply equipment | |
| Tool dry, lack of lubrication | Use Air Tool Lubricant | |
| Worn head valve O-rings | Replace O-rings | |
| Broken cylinder cap spring | Replace cylinder cap spring | |
| Head valve stuck in cap | Disassemble/Check/Lubricate | |
| Lack of power; slow to cycle | Tool dry, lacks lubrication | Use Air Tool Lubricant |
| Broken cylinder cap spring | Replace cap spring | |
| O-rings/seals cut or cracked | Replace O-rings/seals | |
| Exhaust blocked | Check bumper, head valve spring, muffler | |
| Trigger assembly worn/leaks | Replace trigger assembly | |
| Dirt/tar build up on driver | Disassemble nose/driver to clean | |
| Cylinder sleeve not seated correctlyon bottom bumper | Disassemble to correct | |
| Head valve dry | Disassemble/lubricate | |
| Air pressure too low | Check air supply equipment | |
| Skipping fasteners; intermittent feed | Worn bumper | Replace bumper |
| Tar/dirt in driver channel | Disassemble and clean nose and driver | |
| Air restriction/inadequate air flow through quick disconnect socket and plug | Replace quick disconnect fittings | |
| Worn piston O-ring | Replace O-ring, check driver | |
| Tool dry, lacks lubrication | Use Air Tool Lubricant | |
| Damaged pusher spring Replace spring | ||
| Low air pressure | Check air supply system to tool | |
| Loose magazine nose screws | Tighten all screws | |
| Fasteners too short for tool Use only recommended fasteners | ||
| Bent fasteners | Discontinue using these fasteners | |
| Wrong size fasteners | Use only recommended fasteners | |
| Leaking head cap gasket | Tighten screws/replace gasket | |
| Trigger valve O-ring cut/worn | Replace O-ring | |
| Broken/chipped driver Replace driver (check piston O-ring) | ||
| Dry/dirty magazine | Clean/lubricate use Air Tool Lubricant | |
| Worn magazine | Replace magazine | |
| Fasteners jam in tool | Driver channel worn | Replace nose/check door |
| Wrong size fasteners | Use only recommended fasteners | |
| Bent fasteners | Discontinue using these fasteners | |
| Loose magazine/nose screws | Tighten all screws | |
| Broken/chipped driver Replace driver | ||
| Skipping fasteners; intermittent feed | Feed piston dry | Use Air Tool Lubricant in hole in feed piston cover |
| Feed piston O-rings cracked/worn | Replace O-rings/check bumper and spring. Lubricate | |
| Check Pawl binding | Inspect Pawl and spring on door. Must work freely | |
| Canister post not set correctly | Set canister post for length of nails being used | |
| Broken weld wires in nail coil | Remove coil of nails and use another coil | |
| Fasteners jam in tool/canister | Wrong size fasteners for tool | Use only recommended fasteners/check canister bottom adjustment |
| Broken welded wires in nail coil | Remove coil of nails and use another coil | |
Technical diagram of a mechanical device with numbered components labeled 3, 6, and 16text_image
Fig. D 7 9/48 7 36/48 9text_image
Technical diagram of a mechanical assembly with numbered components and labeled partsnatural_image
Mechanical assembly diagram showing a mechanical component with gears and springs (no text or labels)Guide-bardeau (Fig. I, J)
Technical line drawing of a mechanical assembly (no text or symbols visible)text_image
Technical diagram of a sewing machine with numbered parts for identificationtext_image
Technical diagram of a sewing machine with numbered parts labeled 3, 6, and 16text_image
Fig. D 7 17/48 7 3/48 9text_image
Technical diagram of a mechanical device with labeled parts, showing internal components and part number 12.text_image
Technical diagram of a mechanical assembly with numbered components, likely for engineering or manufacturing documentation.text_image
Technical diagram of a mechanical device with numbered components and dimension annotationsnatural_image
Technical line drawing of a mechanical assembly (no text or symbols)PORTER-CABLE, 701 East Joppa Road, Towson, MD 21286
Copyright © 2017
