IMPORTANT SAFETY INSTRUCTIONS FOR PNEUMATIC TOOLS

SAVE THESE INSTRUCTIONS

⚠ WARNING: When using any pneumatic tool, all safety precautions, as outlined below, should be followed to avoid the risk of death or serious injury. Read all instructions before operating the tool.

DEFINITIONS - SAFETY GUIDELINES

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

▲DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

⚠ WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

▲CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

- Actuating tool may result in flying debris, collation material, or dust which could harm operator's eyes. Operator and others in work area MUST wear safety glasses with side shields. These safety glasses must conform to ANSI Z87.1 requirements (approved glasses have "Z87" printed or stamped on them). It is the employer's responsibility to enforce the use of eye protection equipment by the tool operator and other people in the work area. (Fig. A)

Fig. A

Fig. B

- Always wear appropriate personal hearing and other protection during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss. (Fig. A)

- Use only clean, dry, regulated air. Conden sation from an air compressor can rust and damage the internal workings of the tool. (Fig. B)

- Regulate air pressure. Use air pressure compatible with ratings on the nameplate of the tool. [Not to exceed 100 psi (6.9 bar).] Do not connect the tool to a compressor rated at over 175 psi. The tool operating pressure must never exceed 175 psi even in the event of regulator failure. (Fig. C)

Fig. C

- Only use air hose that is rated for a maximum working pressure of at least 150 psi (10.3 bar) or 150% of the maximum system pressure, which ever is greater. (Fig. D)

Fig. D

• Do not use bottled gases to power this tool. Bottled compressed gases such as oxygen, carbon dioxide, nitrogen, hydrogen, propane, acetylene or air are not for use with pneumatic tools. Never use combustible gases or any other reactive gas as a power source for this tool. Danger of explosion and/or serious personal injury may result. (Fig. E)
• Use couplings that relieve all pressure from the tool when it is disconnected from the power supply. Use hose connectors that shut off air supply from compressor when the tool is disconnected. (Fig. F)
• Disconnect tool from air supply when not in use. Always disconnect tool from air supply and remove fasteners from magazine before leaving the area or passing the tool to another operator. Do not carry tool to another work area in which changing location involves the use of scaffoldings, stairs, ladders, and the like, with air supply connected. Do not make adjustments, remove magazine, perform maintenance or clear jammed fasteners while connected to the air supply. (Fig. G)
• Connect tool to air supply before loading fasteners to prevent a fastener from being fired during connection. The tool driving mechanism may cycle when tool is connected to the air supply. Do not load fasteners with trigger or safety trigger depressed to prevent unintentional firing of a fastener.
• Do not remove, tamper with, or otherwise cause the tool or trigger to become inoperable. Do not tape or tie trigger in the on position. Make daily inspections for free movement of trigger. Uncontrolled discharge could result.
• Inspect tool before use. Do not operate a tool if any portion of the tool or trigger is inoperable, disconnected, altered, or not working properly. Leaking air, damaged parts or missing parts should be repaired or replaced before use. Refer to Repairs. (Fig. H)
• Do not alter or modify the tool in any way. (Fig. I)
  • Always assume that the tool contains fasteners.
• Do not point the tool at co-workers or yourself at any time. No horseplay! Work safe! Respect the tool as a working implement. (Fig. J)
• Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control. When tool is not in use, it should be locked in a safe place, out of the reach of children.
• Remove finger from trigger when not driving fasteners.
• Never carry tool with finger on trigger. Accidental discharge could result.

Fig. E

Fig. F

Fig. G

Fig. H

Illustration of a hand operating a mechanical device with a cylindrical component (no text or symbols visible)

Fig. I

Illustration of a hand operating a mechanical device with no visible text or symbols

Fig. J

Silhouette of two figures in dynamic action poses with a diagonal no-smoking symbol (no text or symbols present)

- Do not overreach. Maintain proper footing and balance at all times. Loss of balance may cause personal injury. (Fig. K)

- Make sure hose is free of obstructions or snags. Entangled or snarled hoses can cause loss of balance or footing.

- Use the tool only for its intended use. Do not discharge fasteners into open air, concrete, stone, extremely hard woods, knots or any material too hard for the fastener to penetrate. Do not use the body of the tool or top cap as a hammer. Discharged fasteners may follow unexpected path and cause injury. (Fig. L)

- Always keep fingers clear of nosepiece to prevent injury from inadvertent release of nails. (Fig. M)

- Refer to the Maintenance and Repairs sections for detailed information on the proper maintenance of the tool.

- Always operate the tool in a clean, lighted area. Be sure the work surface is clear of any debris and be careful not to lose footing when working in elevated environments such as rooftops.

- Do not drive fasteners near edge of material. The workpiece may split causing the fastener to ricochet, injuring you or a co-worker. Be aware that the nail may follow the grain of the wood (shiner), causing it to protrude unexpectedly from the side of the work material. Drive the nail perpendicular to the grain to reduce risk of injury. (Fig. N)

- Do not drive nails onto the heads of other fasteners or with the tool at too steep an angle. Personal injury from strong recoil, jammed fasteners, or ricocheted nails may result. (Fig. O)

- Be aware of material thickness when using the nailer. A protruding nail may cause injury.

- Be aware that when the tool is being utilized at pressures on the high end of its operating range, nails can be driven completely through thin or very soft work material. Make sure the pressure in the compressor is set so that nails are set into the material and not pushed completely through. (Fig. P)

- Keep hands and body parts clear of immediate work area. Hold workpiece with clamps when necessary to keep hands and body out of potential harm. Be sure the workpiece is properly secured before pressing the nailer against the material. (Fig. Q)

- Do not use tool in the presence of flammable dust, gases or fumes. The tool may produce a spark that could ignite gases causing a fire. Driving a nail into another nail may also cause a spark. (Fig. R)

- Keep face and body parts away from back of the tool cap when working in restricted areas. Sudden recoil can result in impact to the body, especially when nailing into hard or dense material. (Fig. S)

Fig. K

Illustration of a person climbing a ladder beside a curved structure, enclosed in a circular frame (no text or symbols)

Fig. L

Illustration of a sewing machine with a base mount (no text or symbols visible)

Fig. M

Illustration of a hand using a power tool to press or install a component, enclosed in a circular frame (no text or symbols visible)

Fig. N

Mechanical device with attached components, possibly a presser or drill bit (no visible text or symbols)

Fig. O

Symbolic illustration of a hammer and a bag with a diagonal line, no text or symbols present

• Grip tool firmly to maintain control while allowing tool to recoil away from work surface as fastener is driven.
• Do not actuate the tool unless the tool is placed firmly against the workpiece. (Fig. T)
• DEPTH ADJUSTMENT: To reduce risk of serious injury from accidental actuation when attempting to adjust depth, ALWAYS:

- Disconnect air supply.

- Avoid contact with trigger during adjustments.

• Do not drive nails blindly into walls, floors or other work areas. Fasteners driven into live electrical wires, plumbing, or other types of obstructions can result in injury. (Fig. U)
• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs or alcohol. A moment of inattention while operating power tools may result in serious personal injury.

⚠ WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
  • crystalline silica from bricks and cement and other masonry products, and
  • arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

⚠ WARNING: Use of this tool can generate and/or disburse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body. Always operate tool in well-ventilated area and provide for proper dust removal. Use dust collection system wherever possible.

⚠ WARNING: ALWAYS USE SAFETY GLASSES. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA respiratory protection.

Before operating this tool, carefully read all instructions in Important Safety Instructions.

Fig. P

Fig. Q

Illustration of a person using a power tool to press or install a mechanical component (no text or symbols visible)

Fig. R

Symbolic image of flame-like shapes within a circle, no text or numbers present

Fig. S

Illustration of a hand holding a tool inside a wooden frame, with no visible text or symbols.

Fig. T

Illustration of a sewing machine with no visible text or symbols

Fig. U

Diagram showing a mechanical or structural assembly with layered components and a star-like pattern at the bottom (no text or symbols)

SAVE THESE INSTRUCTIONS

NAIL SPECIFICATIONS
	PIN138
Nails 23 gauge wire (headless or slight head pins)
Lengths 5/8" (16 mm) -1-3/8" (35 mm)
Air Inlet 1/4" NPT (6.4 mm)
NOTE: Use only PORTER-CABLE approved fasteners

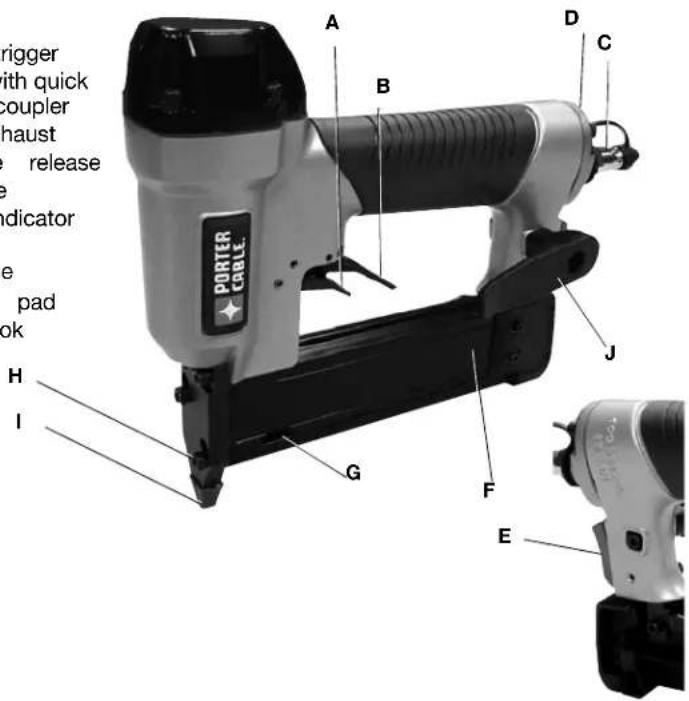

TOOL PARTS

Fig. 1

A. Trigger
B. Safety trigger
C. Air Inlet with quick connect coupler
D. Rear exhaust
E. Magazine release
F. Magazine
G. Low nail indicator window
H. Nosepiece
I. No-Mar pad
J. Belt hook

A B C D PORTER CABLE H I G F E J C D E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E I I I I I I I I I I I I I I I I I I I I I I I I

ASSEMBLY

WARNING: Disconnect air line from tool and remove fasteners from magazine before making adjustments or personal injury may result.

TRIGGER

WARNING: Keep fingers AWAY from trigger when not driving fasteners to avoid accidental firing. Never carry tool with finger on trigger.

The tool is shipped from the factory with a dual trigger actuation system.

AIR FITTING

The tool is equipped with a 1/4" (6.4 mm) male quick connector coupling. A 3/8" (9.5 mm) male quick connector coupling is available from PORTER-CABLE and may be used when a 1/4" (6.4 mm) supply line is not available.

NOTE: A 3/8" (9.5 mm) supply line (and fittings) are required for maximum tool performance. IMPORTANT: Always use couplings that relieve all pressure from the tool when it is disconnected from the power supply. Always use hose connectors that shut off air supply from compressor when the tool is disconnected.

To install an air fitting

1. Wrap the male end of the fitting with thread seal tape prior to assembly to eliminate air leaks.
2. To install a 1/4" (6.4 mm) fitting: screw it directly into the air inlet and tighten firmly. NOTE: If a cap is in the air inlet, remove it prior to inserting the fitting.
3. To install a 3/8" (9.5 mm) fitting: screw the fitting into the 3/8" (9.5 mm) adapter and then into the air inlet of the tool and tighten firmly.

OPERATION

PREPARING THE TOOL

WARNING: Read the section titled Important Safety Instructions for Pneumatic Tools at the beginning of this manual. Always wear eye and ear protection when operating this tool. Keep the nailer pointed away from yourself and others. For safe operation, complete the following procedures and checks before each use of the nailer.

NOTE: These nailers are designed to be used without oil.

1. Before you use the nailer, be sure that the compressor tanks have been properly drained. NOTE: Use a filter and regulator when possible.
2. Wear proper eye, hearing and respiratory protection.
3. Ensure magazine is empty of all fasteners.
4. Check for proper operation of trigger and safety trigger. Do not use tool if assembly is not functioning properly.
5. Check air supply: Ensure air pressure does not exceed recommended operating limits; 60 to 100 psi, (4.1 to 6.9 bar).
6. Keep tool pointed away from yourself and others.
7. Connect air hose.
8. Check for audible leaks around valves and gaskets. Never use a tool that leaks or has damaged parts.

⚠ WARNING: To reduce the risk of personal injury, disconnect tool from air supply before performing maintenance, clearing a jammed fastener, leaving work area, moving tool to another location or handing the tool to another person.

Using the Lock-off (Fig. 1)

WARNING: To reduce the risk of injury. ALWAYS wear proper eye [ANSI Z87.1 (CAN/CSA Z94.3)] and hearing protection [ANSI S12.6 (S3.19)] when operating this tool.

⚠ WARNING: Keep fingers AWAY from triggers when not driving fasteners to avoid accidental firing. Never carry tool with finger on triggers.

⚠ WARNING: Disconnect air line from tool and remove fasteners from magazine before making adjustments or personal injury may result.

The trigger is locked off until the safety trigger is depressed.

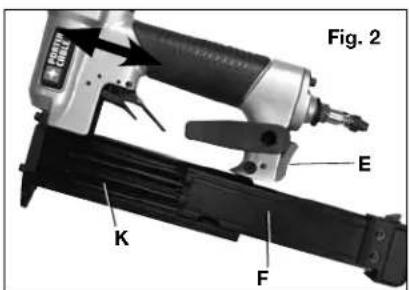

LOADING THE TOOL (FIG. 1-3)

⚠ WARNING: Keep the tool pointed away from yourself and others. Serious personal injury may result.

⚠ WARNING: Never load nails with the trigger activated. Personal injury may result.

1. Read all Safety Warnings before using tool.
2. Connect the tool to air supply.
3. Push magazine release (E) and pull magazine (F) back. Make sure safety trigger has the trigger locked off.
4. Insert fasteners into the side of the magazine (K). For fasteners with arrows the direction arrow printed on the fasteners should point down into the bottom of magazine. If no arrow is printed on the fasteners the nail points should point down into the bottom of the magazine. NOTE: Make sure fasteners are placed firmly against lower ledge of magazine.
5. Push magazine closed until it locks in place. Make sure the magazine snaps into place.
6. Observe low nail indicator window (G) and reload when needed. NOTE: The tool will not fire when only a few fasteners are left in the magazine, reload fasteners to begin firing again.

Fig. 2 E K F

Fig. 3 G

ACTUATING TOOL (1, 4)

WARNING: To reduce the risk of injury, ALWAYS wear proper eye [ANSI Z87.1 (CAN/CSA Z94.3)] and hearing protection [ANSI S12.6 (S3.19)] when operating this tool.

⚠ WARNING: A nail will fire each time the trigger is depressed which could result in accidental actuation.

1. Place the nosepiece against the work surface.
2. Depress the safety trigger (B) to unlock the trigger (A). Now depress the trigger (A). A fastener is fired each time the trigger is depressed.

Fig. 4 PORTER CABLE A B

CAUTION: Each time a fastener is fired, a blast of air will be exhausted from the rear exhaust (D). Keep your face away from this area.

ADJUSTING DEPTH

The depth that a fastener is driven is controlled by the pressure of the air supply. The amount of air pressure required will vary depending on the length of the fastener and the material being fastened. Experiment with the air pressure setting to determine the lowest setting that will consistently perform the job at hand.

CAUTION: Air pressure in excess of that required can cause premature wear and/or damage to the tool.

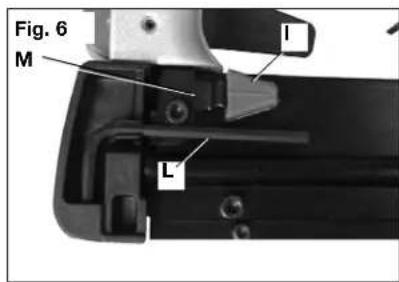

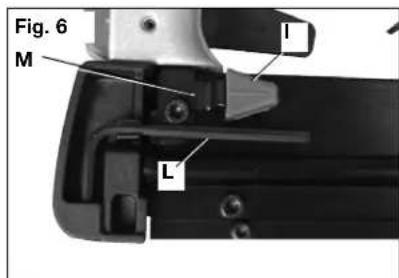

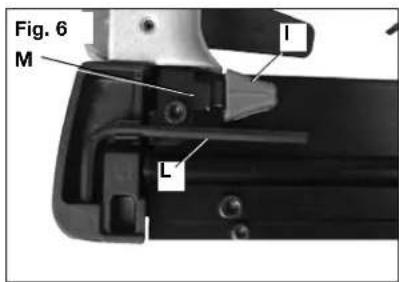

NO-MAR PAD AND WRENCH STORAGE (FIG. 5, 6)

⚠ WARNING: Disconnect tool from air supply before removing or re-installing no-mar pad.

The no-mar pad (I) is provided to reduce marring of the work surface. The no-mar pad can be removed, and stored on the bracket (M), to provide increased depth-of-drive for toe-nailing applications.

When not in use the hex wrench (L) supplied can be snapped into the storage bracket as shown.

Close-up of a mechanical component with a pointed tip and labeled feature 'I' (no text or symbols beyond label)

Fig. 6 M I L

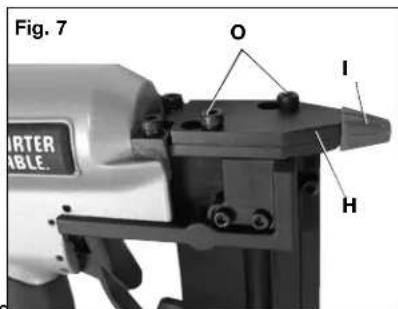

CLEARING A JAMMED NAIL (FIG. 1, 7)

⚠ WARNING: Disconnect air line from tool and remove fasteners from magazine before making adjustments or personal injury may result.

If a nail becomes jammed in the nosepiece, keep the tool pointed away from you and follow these instructions to clear:

1. Make sure safety trigger (B) has the trigger (A) locked off.

2. Disconnect air supply from tool.

3. Push magazine release (E) and pull magazine (F) back. Remove fasteners.

4. Remove no-mar pad (I) and then using 3 mm hex wrench to remove two bolts (O) and nosepiece (H).

5. Remove the jammed fastener.

6. Examine the feed track and clear any damaged pins or pin fragments.

7. Replace nosepiece and tighten bolts securely.

8. Reattach air supply.

9. Reload the tool (see Loading the Tool).

Fig. 7 O I H ARTER ABLE.

NOTE: Should nails continue to jam frequently in nosepiece, have tool serviced by an authorized PORTER-CABLE service center.

When operating tools at temperatures below freezing:

1. Make sure compressor tanks have been properly drained prior to use.
2. Keep tool as warm as possible prior to use.
3. Make certain all fasteners have been removed from magazine.
4. Lower air pressure to 80 psi or less.
5. Reconnect air and load nails into magazine.
6. Turn pressure up to operating level (not to exceed 100 psi) and use tool as normal.
7. Always drain the compressor tanks at least once a day.

Tool should operate normally. However, keep tool out of direct sunlight as excessive heat can deteriorate bumpers, O-rings and other rubber parts resulting in increased maintenance.

BELT HOOK (FIG. 1, 8)

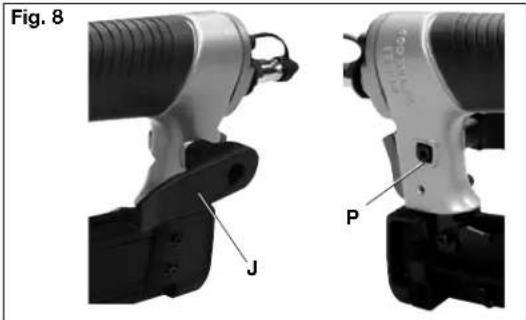

The integrated belt hook (J) can be assembled to either side of the tool to accommodate left- or right-handed users. If the hook is not desired at all, it can be removed from the tool.

To remove or assemble belt hook

1. Make sure safety trigger (B) has the trigger (A) locked off.
2. Disconnect the tool from air supply.
3. Using the appropriate hex wrench, remove the belt hook (J).
4. Assemble belt hook to other side of nailer in hole (P) and tighten screw securely.

Fig. 8 J P

MAINTENANCE

⚠ WARNING: Disconnect air line from tool and remove fasteners from magazine before making adjustments or personal injury may result.

ACTION WHY HOW
Drain compressor tanks and hoses daily.	Prevents accumulation of moisture in compressor and nailer.	Open petcocks or other drain valves on compressor tanks. Allow any accumulated water to drain from hoses.
Clean magazine and magazine release.	Permits smooth operation of magazine, reduces wear and prevents jams.	Blow clean with compressor air. The use of oils, lubricants periodically or solvents is not recommended as they tend to attract debris.
Before each use, check to insure all screws, nuts and fasteners are tight and undamaged.	Prevents jams, leaks and premature failure of tool parts.	Tighten loose screws or other fasteners using the appropriate hex wrench or screwdriver.

CLEANING

⚠ WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

REPAIRS

For assistance with your tool, visit our website at www.deltaportercable.com for a list of service centers, or call the PORTER-CABLE Customer Care Center at [phone].

SERVICE

REPLACEMENT PARTS

Use only identical replacement parts. For a parts list or to order parts, visit our service website at www.deltaportercableservicenet.com. You can also order parts from your nearest PORTER-CABLE Factory Service Center or PORTER-CABLE Authorized Warranty Service Center. Or, you can call our Customer Care Center at [phone].

SERVICE AND REPAIRS

All quality tools will eventually require servicing and/or replacement of parts. For information about PORTER-CABLE, its factory service centers or authorized warranty service centers, visit our website at www.deltaportercable.com or call our Customer Care Center at [phone]. All repairs made by our service centers are fully guaranteed against defective material and workmanship. We cannot guarantee repairs made or attempted by others.

You can also write to us for information at PORTER-CABLE, 4825 Highway 45 North, Jackson, Tennessee 38305 - Attention: Product Service. Be sure to include all of the information shown on the nameplate of your tool (model number, type, serial number, etc.).

ACCESSORIES

WARNING: Since accessories, other than those offered by PORTER-CABLE, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only PORTER-CABLE recommended accessories should be used with this product.

A complete line of accessories is available from your PORTER-CABLE Factory Service Center or a PORTER-CABLE Authorized Warranty Service Center. Please visit our Web Site www.deltaportercable.com for a catalog or for the name of your nearest supplier.

THREE YEAR LIMITED WARRANTY

PORTER-CABLE will repair, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.deltaportercable.com or call [phone]. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

In addition to the warranty, PORTER-CABLE tools are covered by our:

1 YEAR FREE SERVICE: PORTER-CABLE will maintain the tool and replace worn parts caused by normal use, for free, any time during the first year after purchase.

90 DAY MONEY BACK GUARANTEE: If you are not completely satisfied with the performance of your PORTER-CABLE Power Tool, Laser, or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questions asked.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

To register your tool for warranty service visit our website at www.deltaportercable.com.

WARNING LABEL REPLACEMENT

If your warning labels become illegible or are missing, call [phone] for a free replacement.

Model PIN138 1 3/8" (35 mm) 23 Ga. (9mm) FINISH NAILER WARNING Read and understand tool labels and manual. Failure to follow warnings could result in DEATH or SERIOUS INJURY. Operators and others in work area MUST wear ANSI Z87.1 safety glasses with side shields. Keep fingers AWAY from trigger when not driving fasteners to avoid accidental firing. Choice of triggering method is important. Check manual for triggering options. Never disable trigger. Ensure trigger operates properly before use. NEVER point tool at yourself or others in work area. NEVER use oxygen or other bottled gases. Explosion may occur. Disconnect air before servicing tool, clearing jams, and adjusting depth. PORTER-CABLE, JACKSON, TN 38305 U.S.A. MIN. MAX 60 100 PSI Pressure: 4.1 6.9 BAR MIN. MAX Fastener 5/8" 1 3/8" Length: 16mm 35mm USIS HEADLESS & SLIGHT HEAD NAILS

TROUBLESHOOTING GUIDE

MANY COMMON PROBLEMS CAN BE SOLVED EASILY BY UTILIZING THE CHART BELOW. FOR MORE SERIOUS OR PERSISTENT PROBLEMS, CONTACT A PORTERCABLE SERVICE CENTER OR CALL 1 888 848-5175.⚠ WARNING: To reduce the risk of serious personal injury, ALWAYS disconnect air from tool before all repairs.
SYMPTOM PROBLEMS SOLUTIONS
Air leak near top of tool or in trigger area	Loose screws. Tighten screws.
	Worn or damaged o-rings or seals.	Install Overhaul Kit (Part # 60117).
Tool does nothing or operates sluggishly	Inadequate air supply. Verify adequate air supply.
	Worn or damaged o-rings or seals.	Install Overhaul Kit (Part # 60117).
	Fastener jammed in nosepiece.	See Clearing a Jammed Nail.
Air leak near bottom of tool	Loose screws. Tighten screws.
	Worn or damaged o-rings or bumper.	Install Overhaul Kit (Part # 60117).
Tool jams frequently In correct fasteners. Verify approved fasteners of correct size.
			Fastener fragments jammed in nosepiece.	See Clearing a Jammed Nail.
			Fasteners loaded incorrectly. Verify fasteners are loaded correctly. See To Load Tool.
			Damaged fasteners. Replace damaged fasteners. See To Load Tool.
			Magazine or nose screws loose	Tighten screws.
			Magazine is dirty. Clean magazine.
			Driver tip is worn or damaged.	Install Driver Maintenance (Part # 60118).
Tool does not fire Only a few fasteners are left in the magazine		Reload fasteners to begin firing again.
Other		Contact a PORTERCABLE Authorized Warranty Service Center

TOOL SPECIFICATIONS
	PIN138
Height (inch/meter)	7.5/.19
Width (inch/meter)	1.9/.05
Length (inch/meter)	8.1/.21
Weight (lbs/kg)	2.1/0.95
Recommended Operating Pressure	60-100 psi (4.1 to 6.9 bar)
Air Consumption per 100 cycles	1.61 SCF
Loading capacity	132 nails
Lubrication	Oil-Free

	Compressor will be sufficient for tools at all production rates.
	Compressor will be sufficient at slow or moderate production rates, but may have difficulty at very rapid rates.
	Compressor will be adequate only when tools are utilized at slow production rates (punch-out or occasional use).
NR	Not Recommended

		Portable Handcarry3.2 - 4 CFM	5.5 HP Gas2 HP Elec.8 - 9 CFM	8 HP Gas14 - 16 CFM	Industrial23+ CFM
NUMBER OF TOCOMPRESSOR	1
	2
	3
	4	NR
	5	NR
	6	NRNR
	7	NRNR
	8+	NRNR

CONSIGNES DE SÉCURITÉ IMPORTANTES A POUR LES OUTILS PNEUMATIQUES

CONSERVEZ CES DIRECTIVES

Fig. F

Fig. G

Fig. H

Illustration of a hand operating a sewing machine with a circular background (no text or symbols)

Fig. I

Illustration of a mechanical device with a lever and gear assembly (no visible text or symbols)

Silhouette of two people in motion with a diagonal no-smoking symbol (no text or symbols present)

Fig. K

Diagram of a person climbing a ladder inside a window with horizontal bars, enclosed in a circular frame (no text or symbols)

Fig. L

Illustration of a precision nesting machine with no visible text or symbols

Fig. M

Illustration of a hand operating a sewing machine in a circular frame (no text or symbols visible)

Fig. N

Illustration of a precision nesting machine with no visible text or symbols

Illustration of a mechanical device with a hammer and lever above a wooden block, no text or symbols present.

Fig. P

Diagram illustrating geological or hydrological processes with labeled components and cross-sectional views

Fig. Q

Illustration of a hand using a power tool to press or install a mechanical component (no text or symbols visible)

Fig. R

Symbol of multiple flame icons enclosed in a circle, no text or numbers present

Fig. S

Illustration of a hand holding a tool inside a wooden frame, enclosed in a circular border (no text or symbols)

Illustration of a sewing machine with a circular background symbol (no text or symbols present)

Fig. U

Diagram of a mechanical or structural assembly with layered components and star-like elements at the base (no text or symbols)

PORTER CABLE A B C D J H G F I E

ASSEMBLAGE

Close-up of a mechanical component with a pointed tip and labeled section 'I' (no text or symbols beyond labels)

Fig. 6 M I L

DÉGAGEMENT DES CLOUS COINCÉS (FIG. 1, 7)

Fig. 7 O I H

Fig. 8 J P

ENTRETIEN

Model PIN138 1 3/8" (35 mm) 23 Ga. (9mm) FINISH NAILER WARNING Read and understand tool labels and manual. Failure to follow warnings could result in DEATH OR SERIOUS INJURY. Operators and others in work area: MUNA-MAU 207 (4.1x 6.9x 4.1x 6.9x 4.1x 6.9x 4.1x 6.9x 4.1x 6.9x 4.1x 6.9x 4.1x 6.9x 4.1x 6.9x 4.1x 6.9x 4.1x 6.9x 4.1x 6.9x Operating MAX. MAX. Pressure: 4.1 6.9 BAR MIN. MAX. Max. Fastener: 9/8 - 1/3/8 Length: 15mm 25mm ISSUE HEADLESS & BRIGHT HEAD WALL NOVATION TO BE REPRODUCED ON THE WORKS OF THE WORKING FOR POWER CABLE, JACKSON, TN 39305 U.S.A.

Scanned text of a French advertisement for a person's care, featuring a quote and description in French.

GUIDE DE DÉPANNAGE

IL EST POSSIBLE DE RÉSOUDRE FACILEMENT LES PROBLÈMES LES PLUS COMMUNS À L'AIDE DU TABLEAU CI-DESSOUS. DANS LE CAS DE PROBLÈMES GRAVES OU PERSISTANTS, CONTACTER UN CENTRE DE RÉPARATION PORTERCABLE OU COMPOSER LE 1 888 848-5175.

Fig. F

Fig. G

Illustration of a hand operating a high-speed railer device (no text or symbols visible)

Fig. I

Illustration of a mechanical device with a cylindrical component and internal components, no visible text or symbols

Silhouette of two people in motion with a diagonal line crossing through them, no text or symbols present

Fig. K

Illustration of a person climbing a ladder inside a building with horizontal slats (no text or symbols)

Illustration of a precision nesting machine with a base mount (no text or symbols visible)

Fig. M

Illustration of a hand operating a sewing machine with a computer monitor (no text or symbols visible)

Fig. N

Illustration of a sewing machine with a cloth cover and base, no visible text or symbols

Illustration of a mechanical device with a hammer and gear, partially enclosed by a circular symbol labeled 'g. O' and 'in P', alongside a separate diagram showing a textured surface (no readable text or symbols)

Fig. P

Diagram illustrating geological or hydrological processes with gauges and cross-sections showing sedimentary layers and water flow.

Fig. Q

Illustration of a hand using a sewing machine to press or install a piece of material (no text or symbols visible)

Fig. R

Symbol of flame with no accompanying text or labels

Fig. S

Diagram of a hand holding a tool inside a wooden frame, enclosed in a circular border (no text or symbols)

Fig. T

Illustration of a sewing machine with no visible text or symbols

Diagram of a solar panel with solar panels and a lightning bolt, no text or symbols present

PORTER CABLE A B C D I J G F E

ENSAMBLAJE

Close-up of a mechanical component with a pointed tip and labeled arrow (no readable text or symbols)

Fig. 6 M I L

Fig. 7 WATER WABLE. O I H

Fig. 8 J P

MANTENIMIENTO

Model PIN138 1 3/8" (35 mm) 23 Ga. (-9mm) FINISH NAILER WARNING Read and understand tool labels and manual. Failure to follow warnings could result in DEATH or SERIOUS INJURY. Operators and others in work area MUST wear ANSI ZBT.1 safety glasses with side shields. Keep fingers AWAY from trigger when not driving the lock. Ensure the use of a choice of triggering the lock. Do not check the lock. For example, I am unable to check the lock. The lock is not allowed by removing the lock. Enable the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by remove the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by Remove the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removaling the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by removing the lock. Ensure the lock is allowed by eliminating the lock. Ensure that it's allowed by removing the lock. Ensure that it's allowed by removing the lock. Ensure that it's allowed by removing the lock. Ensure that it's allowed by removing the lock. Ensure that it's allowed by removing the lock. Ensure that it's allowed by removing the lock. Ensure that it's allowed by removing the lock. Ensure that it's allowed by removing the lock. Ensure that it's allowed by removing the lock. Ensure that it's allowed by removing the lock. Ensure that it's allowed by eliminating their use of a double line of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of line; unless otherwise we have been removed, we have been removed; unless otherwise we have been removed, we have been removed; unless otherwise we have been removed; unless otherwise we have been removed; unless otherwise we have been removed; unless otherwise we have been removed; unless otherwise we have been removed; unless otherwise we have been removed; unless otherwise we have been removed; unless otherwise we have been removed; unless otherwise we have been removed; unless otherwise we have been removed; unless otherwise we have been removed; unless otherwise we have been removed; unless otherwise we have been removed; unless otherwise we have been removed; unless otherwise we had been removed; unless otherwise we had been removed; unless otherwise we had been removed; unless otherwise we had been removed; unless otherwise we had been removed; unless otherwise we had been removed; unless otherwise we had been removed; unless otherwise we had been removed; unless otherwise we had been removed; unless otherwise we had been removed; unless otherwise we had been removed; unless otherwise we had been removed; unless otherwise we had been removed; unless otherwise we had been removed; unless otherwise we had been removaling their use of a double line of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of lines of line; unless otherwise we have become an exception, we have become an exception, we have become an exception, we have become an exception, we have become an exception, we have become an exception, we have become an exception, we have become an exception, we have become an exception, we have become an exception, we have become an exception, we have become an exception, we have become an exception, we have become an exception, we have become an exception, we have become an exception, we have become an exception, we have become a reversal in our use with a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line above a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line above a single line below a single line after using this device to avoid any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation oruse any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation orUse any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation orUSE any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation or Use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /use any other operation /ususe any other operation /ususe any other operation /ususe any other operation /ususe any other operation /ususe any other operation /ususe any other operation /ususe any other operation /ususe any other operation /ususe any other operation /ususe any other operation /ususe any other operation /ususe any other operation /ususe any other operation /ususe any other operation /ususe any other operation /ususe any other operation /ususe any other operations /ususe are not used in our use with some additional features like 'in' and 'out' respectively. A ADVERTENCIA For laborer but can comprende la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambulca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la bhaunlce de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hombunlce de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca delbunlce de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la hambuca de la bhaunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce deldunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delbunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce del kunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delkunlce delmukla univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcate univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcata univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcathet alvicatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univcatus univacot alvicatus univacot alvicatus univacot alvicatus univacot alvicatus univacot alvicatus univacot alvicatus univacot alvicatus univacot alvicatus univacot alvicatus univacot alvicatus univacot alvicatus univacot alvicatus univacot alvicatus univacaat alvicatus univacaat alvicatus univacaat alvicatus univacaat alvicatus univacaat alvicatus univacaat alvicatus univacaat alvicatus univacaat alvicatus univacaat alvicatus univacaat alvicatus univacaat alvicatus univacaat alvicatus univa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa cationa tiong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong rian g riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong v lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g lson g fonngriong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong riong ria ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i ngr i nghrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngriti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrti ngrttngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjNGltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngllntjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjngltjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjaugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiugttjiuga#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc #ncnt##nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nuc#nnut# A ADVERTENCIA For laborer but can comprende las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebrudes las hebruses

4825 Highway 45 North

Jackson, TN 38305

[phone]

www.deltaportercable.com
