USER MANUAL ACP1150 SALORA

Digital camera module with a fish underwater photo and lens, no visible text or symbols on the device body.

Operational precautions

1. Thisproductisahigh-precisionproduct, pleasedonotdroporhit.
2. Pleasedonotplacethecameraclosetoobjectswithstrongmagneticfields, suchasmagnets andmotors, and also avoid placing the product closetoobject that temit strongradiowaves.
   Strongmagneticfieldsmaycauseproductfailure,ordamageimagesandsounds.
3. Please select the brand's MicroSdcard, ordinary card cannot be guaranteed to work normally.
4. Pleasedonot storetheMicroSdcardinornearastrongmagnettoavoidlosingthestored dataintheMicroSdcard.
5. During the charging process, if there is overheating, smoke, orodor, please unplug the power immediately and stop charging to avoid fire.
6. When charging, please keep the product out of reach of children. The power cord may cause accidentalsuffocationorelectric shock to children.
7. Please placethe product in a cool, dry and dusty-free place.

ProductFeatures

Videoresolutionupto4K@30fps

wide-anglelens

UltraHD2.0inch+1.3inchscreen

The battery is detachable, it is easy to replace the battery and prolong the servicelife.

Supportforupto128GMicroSdmemorycard

Multiplevideorecordingformat:4K,2.7K,1080P,720P

Multipleshootingmodes:single,timing,auto,Burst

Multiplevideomodes:normal,loop,time-lapse,slowmotion

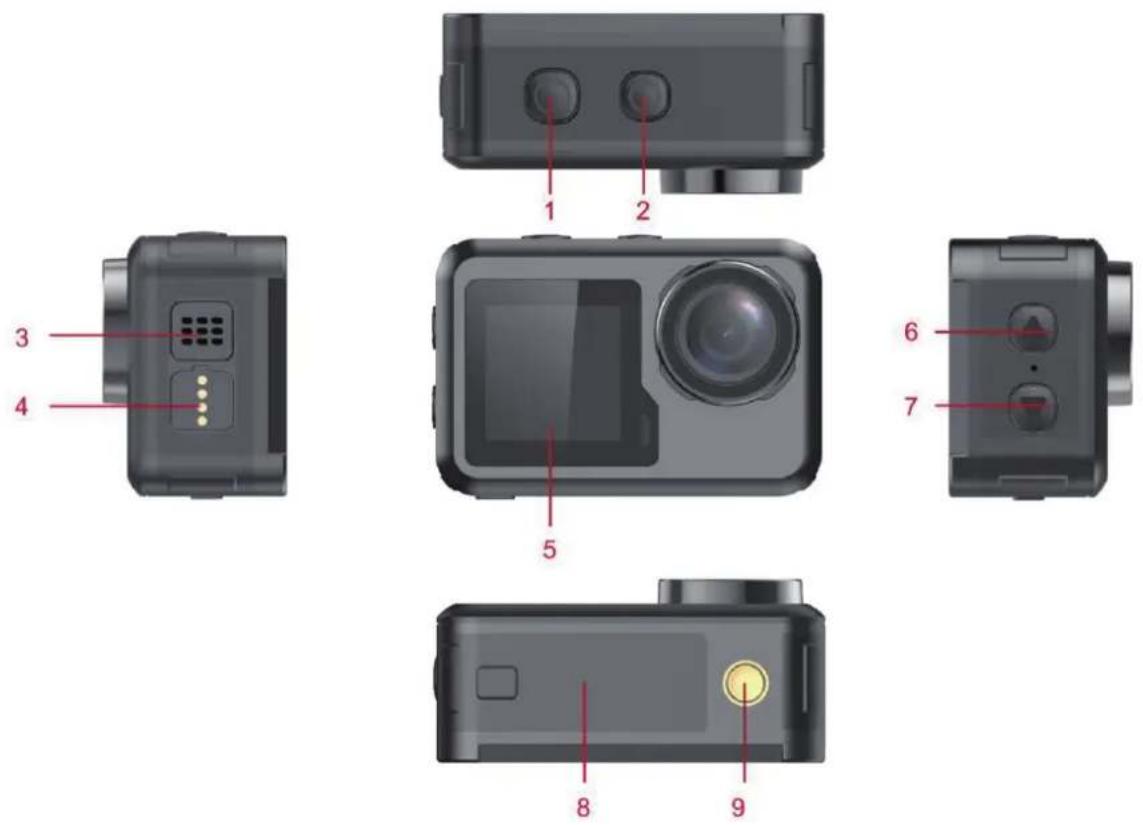

ProductSchematicDiagram

1OKbutton2Modebutton

3Speaker4Magneticcharginginterface

51.3inchscreen6Upbutton

7Downbutton8Batterycover

9Supportinterface

MicroSdmemorycardisnotincluded

FunctionDefinition

Modebutton

1. Pressandholdthe"Modebutton"for2-3secondstopoweron/off.

2.Shortpressthiskeyafterpowerontoswitchbetweenvideo/photo/menumodes.

3.Shortpressonthemenuinterfacetoreturntothepreviousmenuorexit.

OKbutton

1.Inrecordingmode,shortpressto startrecording,shortpressagaintostoprecording.
2.ShortpressOKbuttontotakephotoinphotomodel.
3.ShortpressOKbuttoninplaybackmodetoplayvideo.

1. Short press OK button to confirm option in settings menu.
2. In video or photo mode, press and hold OK button to open the multi-function setting interface, and set different photo or video mod es.

Up button

1. In video recording mode, short press UP button to turn on playback mod e.
2. In playback mode, short press Up button to scroll through videos or photos.
3. In Menu setting mode, short press Up button to select the setting i tem in the m enu.

Down button

1. In playback mode, short press Down button to scroll through videos or photos.
2. In Menu setting mode, short press Down button to select the setting item in the menu.
3. In photo or video mode, Short press Down button to turn o n/off WIFI.
4. In photo or video mode, long press Down button to switch between 2.0 inch Screen and 1.3 inch screen

Magnetic charging interface

Use the provided magnetic charging cable to charge the camera.

Micro SD card slot

Support 16-128G capacity Micro SD ca rd. (Note: C10 or above standard high-speed card should be used. Please format it with this machine before starting to use)

Indicators

Work indicator: green light

Charging indicator: red light

Product main function introduction

Camera settings:

Press Mode button to switch to the setting interface, press the Mode button or up and down button to select the setting item, and press the OK button to open the menu.

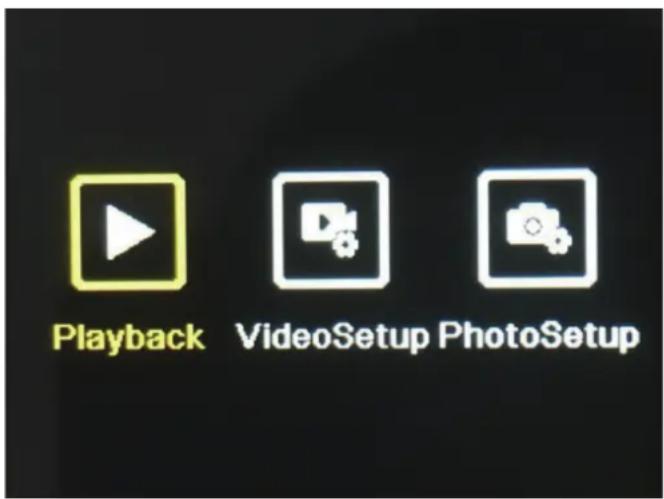

Playback VideoSetup PhotoSetup

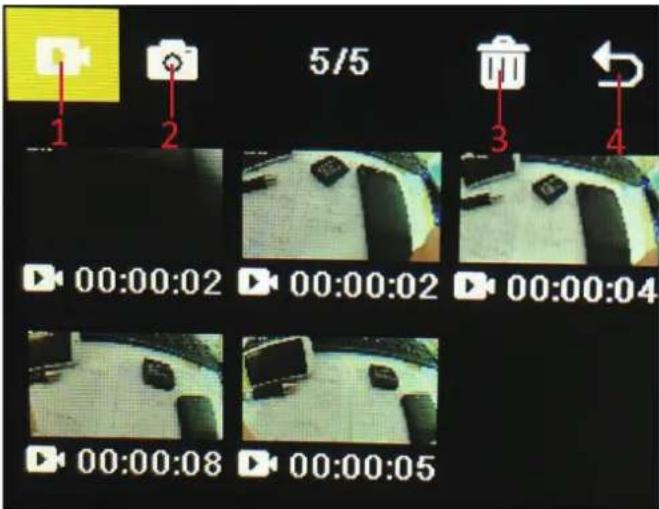

1.Playbackmode: :

Afterentering playback mode, press the up/down button to select video album, photo album, Delete and Exit.

1 2 5/5 3 4 00:00:02 00:00:02 00:00:04 00:00:08 00:00:05

1) Video album: Select the video album icon, press Mode button to enter the video file selection, pressup/downtoselect,andpressOKbuttontoplaythevideo.Whenavideoisplaying,press theOKbuttontoplay/pauseit,andpresstheModebuttonontoexit.PresstheModebuttonto returntoalbumselection.

2) Photoalbum: Select the photoalbum icon and press OK button oopenthe album, press Mode button to enter the photofile selection, press up and downtoselect, press OK button to display photos in full screen, and press up/downtobrowse. Press the Mode button to return to album selection.

3) Delete: Afteropeningthevideoorphotoalbum, presstheup/downbuttontoselect the deletefunction, thenpressthemodebuttonontoenterthecorrespondingalbumtoselect thefile tobedeleted, presstheup/downbuttontoselect, presstheOKbutto ntoconfirm, and finally press the mode button to enter the delete operation. You can choose to delete selected and deleteall.

4) ExitplaybackMode

2.SettingsMenu

Enterthemenuinterfaceafterselectingvideosettingsorcamerasettings

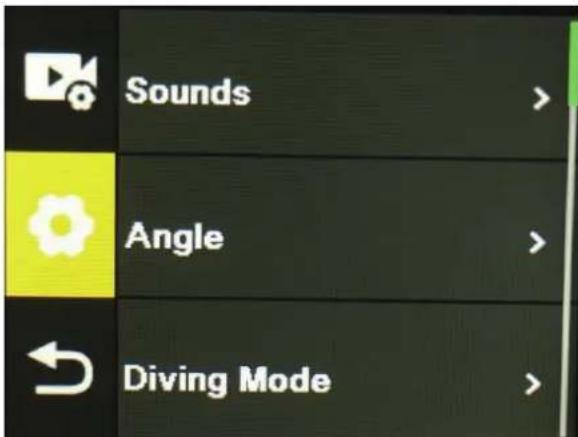

Sounds > Angle > Diving Mode >

Onthemenuinterface,presstheup/downbuttontoswitchbetweendifferentsettingmenus:

Current mode setting→Camera system setting→Exit. Press OK button to enter the lower menu. Presstheupanddownbuttonstoselectthesettingitem,presstheOKbuttonontoconfirm,press themodebuttontorentorturntotheupperlevelorexit.

Videorecordingfunction

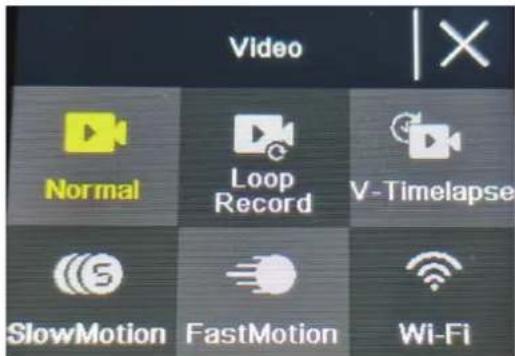

Video Normal Loop Record V-Timelapse SlowMotion FastMotion Wi-Fi

Normalrecording

In recording mode, short press OK button to start recording. At this time, the recording duration is showing. Shortpressthe"OKbutton"again, the camerastopsrecordingandsavesthefile.

Looprecording

On the photo and videomodeselection interface, select loop recording. After entering loop recording mode, the loop recording icon will be displayed in the upper left corner of the screen.

Inthelooprecordingmenu,youcansetthelength(1minute,3mi nutes,5minutes)andvideo resolution of each video in the loop recording, press the "OK button" to start the loop recording.

Time-lapsevideo

Selecttime-lapsevideoonthephotoandvideomodeselectioninterface.Afterenteringthe time-lapse video mode, the time-lapse video icon will be displayed in the upper left corner of the screen.Time-lapserecordingparameters(1second,3seconds,5seconds,10seconds,30

seconds,1minutes)andvideoresolutioncanbesetin thetime-lapserecordingmenu,andpress "OK"tostarttime-lapserecording.

Slowmotionvideo

Selectslowmotionvideoonvideomodeselectioninterface.Afterenteringtheslowmotionvideomode,theslowmotioniconwillbedisplayedintheupperleftcornerofthescreen,andpressthe"OKbutton"tostartrecording.

Photofunction

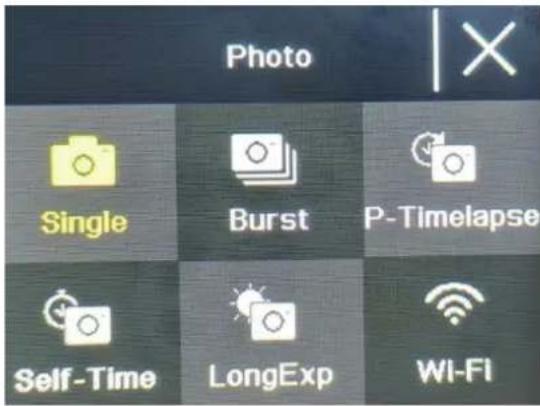

Photo Single Burst P-Timelapse Self-Time LongExp Wi-Fi

Ordinaryphoto

Select the photomode in the photo and videomodes election interface. After entering the photo mode, the photo icon will be displayed in the upper left corner of the screen. You can set the photopixels (20M, 16M, 14M, 10M, 8M, 5M, 2M) and other parameters in the photomode menu. Press "OK" to take a photo.

Self-timephoto

Selecttheself-timephotomodeonthephotoandvideomodeselectioninterface.Afterentering theself-timephotomode,theself-timephotoi conwillbedisplayedintheupperleftcornerof thescreen.Youcansetthetimertime(2s,5s,10s)intheself-timephotomodemenu.Pressthe "OKbutton"tostartthecountdownandtakeaphotowhenthetimerends.

BurstPhoto

Select the burst photo mode in the photo and video mode selection interface. After entering the burstphotomode,theburstphotoiconwillbedisplayedintheupperleftcornerofthescreen. 3p/s,7p/s,15p/s,30p/s).Pressthe"OKbutton"andthecamerac ontinuouslyemitsa"click"sound andthebluelightflashes.

(Note: The cameraneedsacertainperiodoftimetostorephotosduringburstphoto, and it cannot take another photos by pressing the "OKbutton" before the storage ends.)

TimelapsePhoto

Selectthetimelapsephotomodeinthephotoandvideomodeselectioninterface.Afterentering the timelapse photo mode, the timelapse photo icon will be displayed in the upper left corner of thescreen.Thephotointervaltime (3s,5s,10s,15s,30s,60s)canbesetinthetimelapsephoto mode menu. Press the "OK button" to start taking pictures continuously according to the set time interval,andpressthe"OKbutton"againtostop.

WiFiandAPPFunction

APPdownload

For Android system, please search "iSmart DV2" in the Google APP store to download and install. For iOS system, search "iSmartDV2" in AppleWebKit Store to download and install.

OpenWIFI

In the video mode or photo mode, press the "down button" to turn on the WIFI, the camera enters the WIFI interface, and displays the WIFI name "ActionCam-XXXX" and the WIFI password "12345678". Find the corresponding WIFI name of the camerain the phone WIFI setting to connect to WIFI.

APPOperation

After the mobile phone is connected to the camera WIFI, open the APP and enter the APP home page.

A) Click to add a new camera → WI-FI Connect to enter the APP operation interface
B) Click "Offline Album" to enter the APP offline album, the pictures and videos downloaded from thecamerasidealbumontheAPParesavedhere.

APPoperationinterfacefunctionintroduction

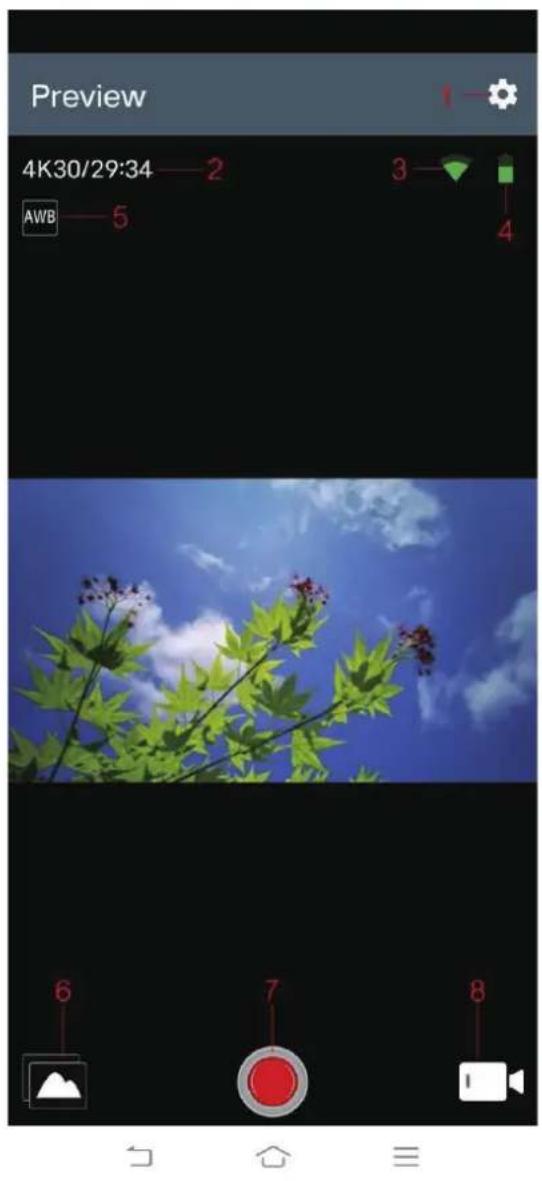

Preview 4K30/29:34 — 2 AWB — 5 3 — 4 6 7 8

1Setting2Resolution

3WIFISignal4Batterycapacity

5Whitebalance6Album

7Shutter8Videomodeselection

Spec

FunctionmodeRecording,photo, playback....
LCDscreen2.0inch+1.3inchScreen
Picture resolution	20M,16M,14M,10M,8M,5M,2M
Videoresolution4K,2.7K,1080P,720P
Storage medium	Micro SD Card (Maximum supporting 128GB)
FileformatJPG/MOV
USBPortUSB2.0
PowersupplyBuilt-in	3.7Vrechargeablelithiumbattery
MenulanguageEnglish/Spanish......
