Brand	TAURUS
Model	Robot 500 Plus Inox
Product type	Multi-function blender
Usage	Domestic
Carafe material	Stainless steel
Carafe capacity (approx.)	600 ml
Chopper bowl capacity (approx.)	200 g
Included accessories	Whisk, chopper, emulsifier mixer, measuring cup
Functions	Blend, chop, beat, emulsify
Speed control	Speed selector (multiple positions)
Maximum continuous operating time	1 minute (with 1 minute rest)
Power supply	Mains (220-240 V)
Cleaning	Removable parts dishwasher safe (whisk, measuring cup, carafe, mixer)
Safety	Do not immerse the motor unit; sharp blades; do not use empty
Warranty	Conforms to legislation; assistance via taurus-home.com
Spare parts	Available separately from the technical service
Usage precautions	Do not blend frozen foods or bones; do not exceed operating times
Motor type	Electric
Recipes included	Yes (recipe table in the manual)

Frequently Asked Questions - Robot 500 Plus Inox TAURUS

How to assemble the chopper accessory?

Assemble the reduction gear (G) to the motor unit by turning in the direction of the arrow. Then, assemble the chopper bowl to the lid until it clicks. Introduce the food cut into cubes, then start. Stop when the desired texture is obtained.

Can I blend hot liquids?

Yes, but fill the carafe only halfway and select the slowest speed on the speed selector. Be careful to avoid splashes.

How to clean the motor unit?

Unplug the appliance and allow it to cool. Clean the motor unit with a damp cloth and dry it. Never immerse it in water or any other liquid.

What is the maximum capacity of the carafe?

The carafe has a MAX mark (Fig. 1). For hot liquids, fill only halfway. Recipes indicate a practical capacity of about 600 ml.

Are the parts dishwasher safe?

Yes, the following parts can be washed in the dishwasher on delicate cycle: whisk, measuring cup, carafe and emulsifier mixer. Dry them well after washing.

How long can I use the appliance continuously?

The maximum continuous operating time is 1 minute. After each cycle, respect a rest time of at least 1 minute. Some recipes (whipped cream) may require up to 2 minutes, but with caution.

What to do if the appliance does not start?

Check that the cable is fully unrolled and plugged in correctly. Ensure that the accessories are properly coupled and that the on/off switch works. If the problem persists, consult the authorized technical service.

Can I chop bones or frozen foods?

No, do not use the appliance with frozen foods or bones. This could damage the blades and the appliance. Use only room temperature or cooked foods.

How to get a perfect texture for whipped cream?

Use the mixer accessory. Pour the very cold liquid cream (0-5°C) into a cold container. Work with the mixer by moving vertically in a clockwise direction. Do not exceed 2 minutes to prevent it from turning into butter.

Where can I find spare parts?

Spare parts can be purchased separately from authorized technical support services. Visit http://taurus-home.com/ to find the nearest service.

USER MANUAL Robot 500 Plus Inox TAURUS

Line drawing of a handheld electric shaver with a vertical shaft and base (no text or symbols)

_

| _

一

1

Diagram of a laboratory apparatus with a central component and side supports, labeled Fig.1 (no text or symbols on the diagram itself)

Fig.3.3

Fig.3

Line drawing of a hand using a handheld device to press or interact with a container filled with food (no text or symbols)

Fig.3.4

Illustration of a hand using a handheld device to press or install a cup, with no text or symbols present.

Fig.3.5

Line drawing of a vertical cylindrical device with a flanged base and top cap, labeled Fig.5 (no text or symbols on the device itself)

Español

Batidora de varilla

Robot 500

Robot 500 Inox

Robot 500 Plus Inox

Robot Unic 500 Plus Inox

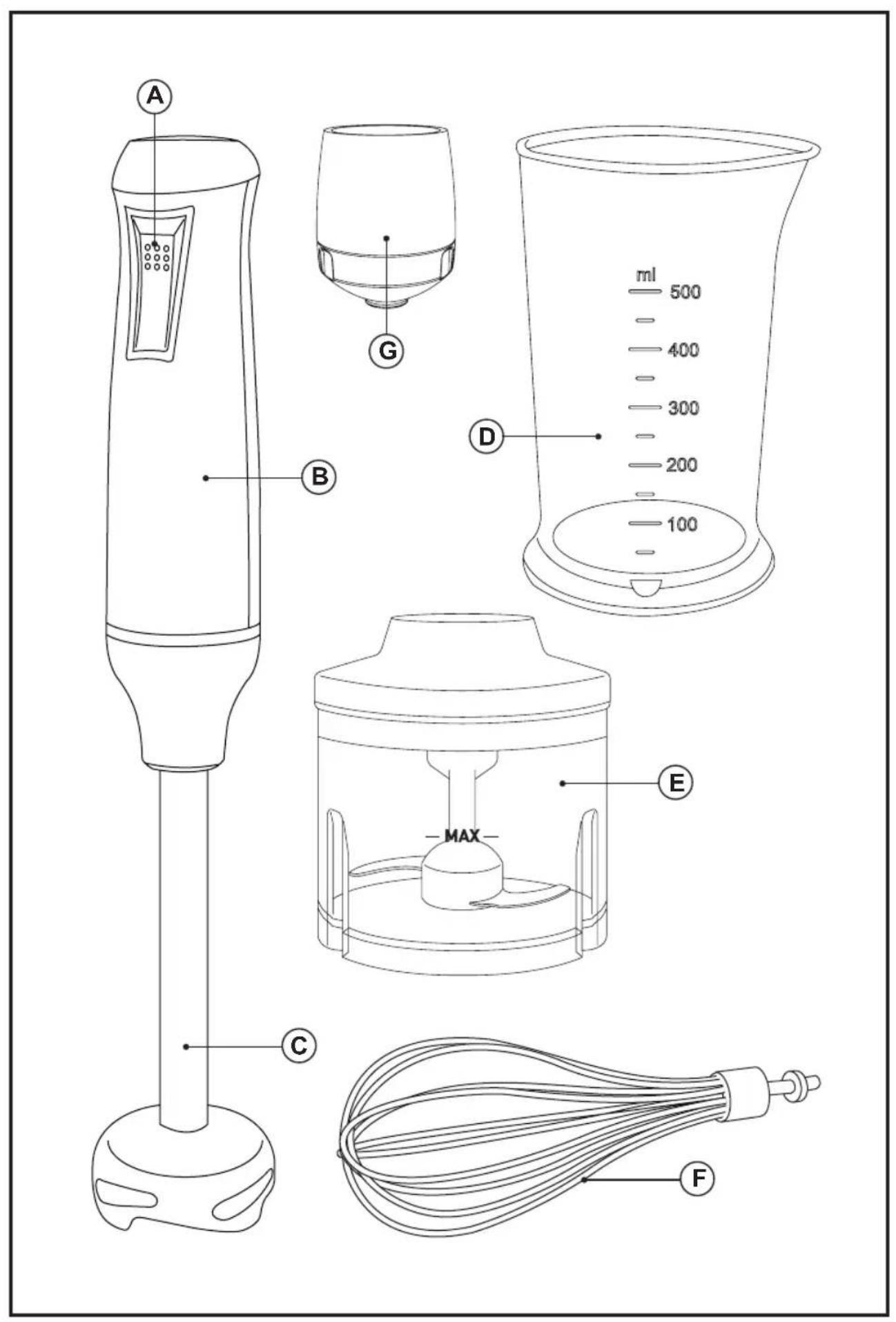

Descripción

A Pulsador

B Cuerpo motor

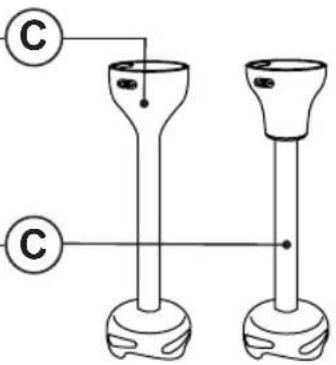

C Varilla

D Vaso medidor*

E Jarra**

F Batidor emulsionador**

G Grupo reductor**

(*) Only available in the model Robot 500 Inox, Robot 500 Plus Inox and Robot Unic 500 Plus Inox

(**) Only available in the model Robot 500 Plus Inox and Robot Unic 500 Plus Inox

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

Use and care:

- Fully unroll the appliance's power cable before each use.

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance if it is empty.

- Do not use the appliance if the on/off switch does not work.

- Do not force the appliance's work capacity.

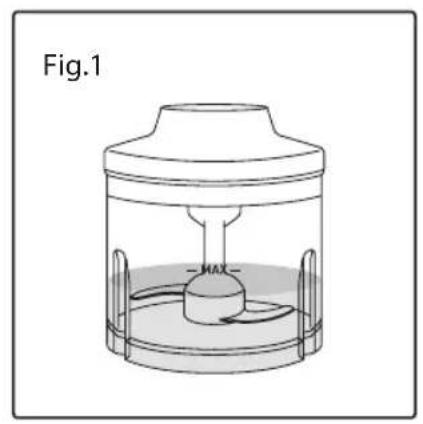

- Respect the MAX level indicator. (Fig. 1)

- When using hot liquids do not fill the jug more than half way. At all times, when mixing hot liquids in the jug, select the slowest speed on the speed selector.

- This appliance is for household use only, not professional, industrial use.

- This appliance should be stored out of reach of children and/or the disabled.

- Do not expose the appliance to extreme temperatures.

- Keep the appliance in good condition. Check that the moving parts are not misaligned or jam-

med and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

• Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Do not use the appliance for more than 1 minute at a time. In case of operate in cycles; allow the appliance a resting period of at least 1 minute between each cycle. Under no circumstances should the appliance be operated for more time than necessary.
• As a reference in the annexed table appears several recipes, that include the amount of food to process, the recommended operating time to elaborate each recipe, as well as the time of maximum operation of the apparatus under each one of these conditions of load.
• Do not use the appliance on any part of the body of a person or animal.
• Do not use the appliance with frozen goods or those containing bones.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Instructions for use

Before use:

• Make sure that all the product's packaging has been removed.
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.
• Prepare the appliance according to the function you wish to use:

Use:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.

• Turn the appliance on, by using the on/off button.

• Select the appliance function desired.

• Select the desired speed.
• Work with the food you want to process.

Once you have finished using the appliance:

- Stop the appliance by releasing the pressure on

the on/off button.

• Unplug the appliance from the mains.
• Put the cable back in the cable housing.
• Clean the appliance.

Accessories:

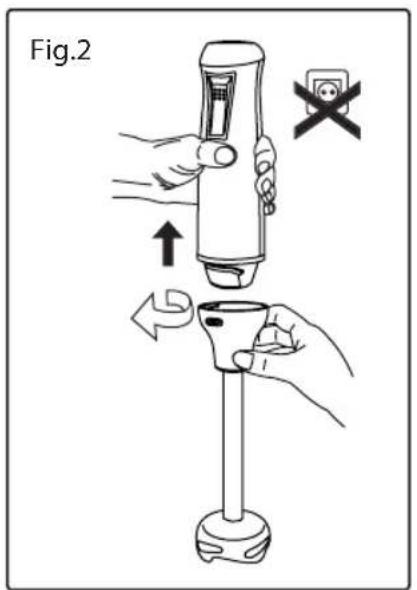

Blender foot accessory (Fig. 2):

• This accessory is used for making sauces, soups, mayonnaise, milkshakes, baby food ...
• Attach the stick to motor body and turn in the direction of the arrow (Fig. 2).
• Put the food to be prepared in the jar and switch the appliance on.
• For further cleaning, detach and remove the stick by turning in the opposite direction of the arrow (Fig. 2).

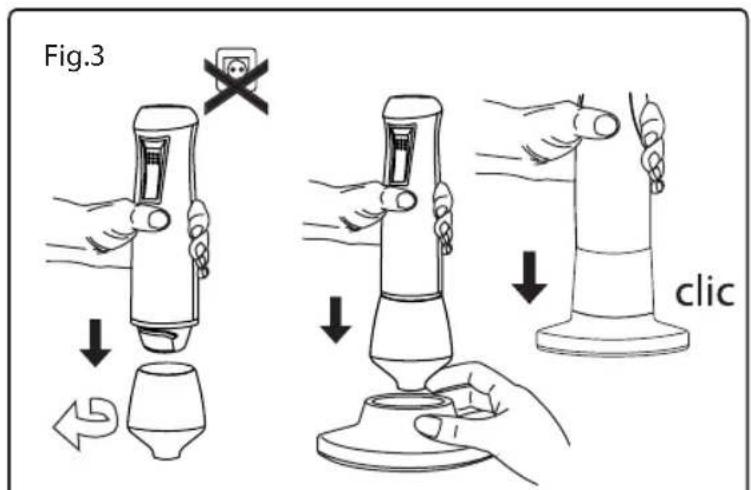

Chopping accessory (fig. 3):

• This accessory is used to chop vegetables, nuts, meat...

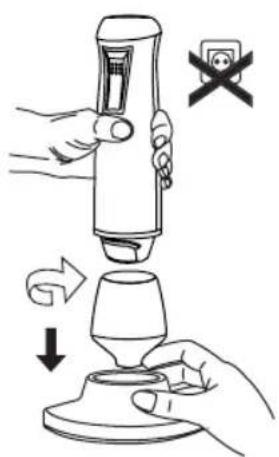

• Fit the adapter fitting to the motor unit by turning it in the direction of the arrow. (Fig. 3.1)

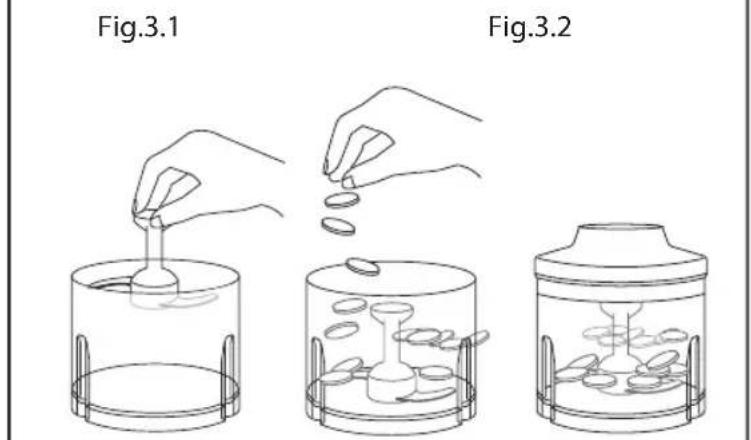

• Fit the unit to the lid until hear the click. (Fig. 3.2)
• Put the food to be prepared in the chopping container and attach the lid firmly. (Fig. 3.3)
• Start the appliance. Warning: do not start the appliance if the entire unit is not properly seated and fitted. (Fig. 3.4)
• Stop the appliance when the food reaches the desired texture.
• Detach the unit from the lid and release the adapter fitting. (Fig. 3.5)

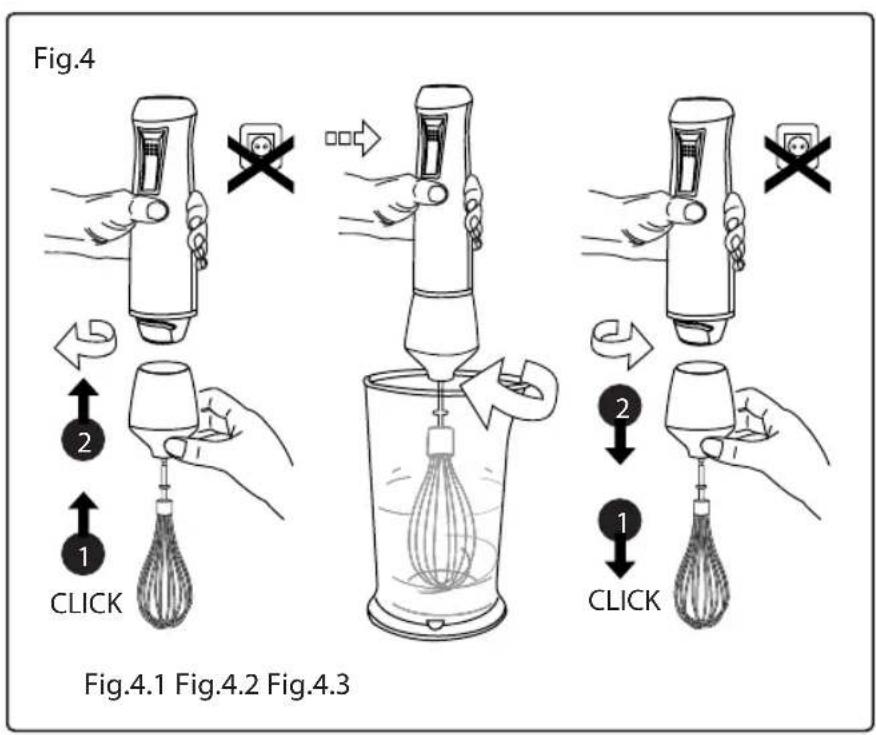

Whisk accessory (Fig. 4):

• This accessory is used to whip cream, beat egg whites...
• Insert the whisk into the motor unit (Fig. 4.1). Fit the adapter fitting to the motor unit by turning it in the direction of the arrow (Fig. 4.1).
• Put the food into a large receptacle and switch the appliance on (Fig. 4.2). For best results, turn the whisk clockwise.
• Remove the whisk accessory and release the adapter fitting (Fig. 4.3)
• Note 2: To free the whisk (F) from the adapter fitting (G), pull the ring on the whisk.

Cleaning

- Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• During the cleaning process, take special care with the blades, as they are very sharp.
• It is advisable to clean the appliance regularly and remove any food remains.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• The appliance is suitable for cleaning in hot soapy water or in a dishwasher (using a soft cleaning program).
• The following pieces may be washed in a dishwasher (using a soft cleaning program):
• Blender foot
• Measuring cup
• Goblet
• Whisk
• The draining/drying position of the articles washable in the dishwasher or in the sink must allow the water to drain away easily (Fig 5).
• Then dry all parts before its assembly and storage.

Food preparation

Recipe Recommended accessory Quantity Method Time
Mayonnaise 250 ml			Add 1 egg, salt, some drops of vinegar or lemon to the receptacle. Fill with oil up to the level indicated and switch on, do not move or agitate until the oil has been bound.	35s
Fruit milkshakes ---- Add th and mix with blender until smooth. ----
Béchamel sauce		600 ml	Melt 30g of butter in a saucepan over a low heat, add 100g of lour and 30g of fried onion (beforehand chop using the mincer attach-ment) and gradually add 500ml of milk.	15 s
Whipped cream		250 ml	Place cold cream (0 to 5°C) into a cold recep-tacle and beat with blender, making vertical movements. Be careful not to overbeat as the cream will turn to butter.	2 min
Whipped egg whites		3 whites	Add the whites to a receptacle and whip with blender, making vertical movements.	2 min
Mashed pota-toes		400 g	Potatoes can be blended while still in the saucepan.	30 s
Baby food 300 g			Cut up 100g of apples, 100g of banana, 50g of biscuits and place into a receptacle. Add orange juice and blend.	25 s
Grated bread 50 g			Cut up stale bread and place into goblet. Blend until desired consistency is achieved.	1,5 min
Grated cheese 100 g			Cut into 1cm cubes and blend until desired consistency is achieved.	30-50 s
Minced boiled egg		2 eggs	Cut into four pieces and blend until desired consistency is achieved.	10 s
Minced meat (raw or cooked)		150 g Before blending, cut into 1cm cubes. 30 s
Carrot 200 g			Peel, dice and blend until desired consistency is achieved.	30 s
Nuts 200 g			Remove shell and blend until desired consistency is achieved.	30 s
Chopped Spa-nish Serrano ham		35 g	Previously chop into 1 cm chunks Mince until the desired texture is obtained	3 s

Français

Mixeur batteur

Robot 500

Robot 500 Inox

Robot 500 Plus Inox

Robot Unic 500 Plus Inox

Description

A Touche

B Corps moteur

C Fouet

D Verre doseur*

E Carafe**

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/
