Product type	Smoke and fog machine for stage effects
Brand	Cameo
Model	CLFDJ5L
Power supply	Mains 230 V / 50 Hz
Rated power	1500 W
Fluid tank capacity	2.5 L
Fluid consumption	Approximately 100 ml/min
Heating time	Approximately 3 minutes
Maximum smoke output	280 m³/min
Compatible fluid	Polyol-based fluid (non-hazardous)
Weight	8 kg
Dimensions (L × W × H)	500 × 300 × 300 mm
Intended use	Live performance, concerts, theater, film production
Fluid storage temperature	Max 60 °C
Fluid hazard classification	Non-hazardous according to CE

Frequently Asked Questions - CLFDJ5L Cameo

What type of fluid should be used with the Cameo CLFDJ5L machine?

Use a professional fluid based on polyols and water. The manufacturer recommends the specific Cameo fluid for optimal performance.

How to clean the machine after use?

Unplug the machine and let it cool. Use a soft, dry cloth for the exterior. For the interior, run a mixture of distilled water and white vinegar (50/50) through the system, then rinse with clean water.

Is the produced smoke dangerous to health?

No, the fluid is classified as non-hazardous according to CE regulations. However, it may irritate eyes or respiratory tract if concentration is excessive. Ensure adequate ventilation.

What to do in case of fluid contact with eyes?

Rinse thoroughly with water for several minutes. If irritation persists, consult a doctor.

How to store smoke fluid?

Store the fluid in its original container, away from heat (max temperature 60 °C) and away from oxidizers and strong alkalis. Keep out of reach of children.

Can the machine be used for extended periods without interruption?

Yes, but follow the operating cycles indicated in the manual. Generally, a 10-minute break every hour is recommended to avoid overheating.

How to avoid fire risks?

Never use the machine near flammable materials. The fluid is not flammable, but the heating element can be hot. Keep a fire extinguisher nearby.

What to do in case of fluid spill?

Absorb with an absorbent material (sand, earth). The product is not dangerous to the environment, but avoid it entering sewers or waterways.

Is the machine compatible with all types of fluids?

No, only use water-based and polyol-based fluids. Oily fluids or those containing solvents can damage the machine and void the warranty.

How to dispose of used fluid or empty containers?

The fluid can be incinerated with household waste after consulting local authorities. Empty, clean containers can be recycled. Do not dispose of fluid into wastewater.

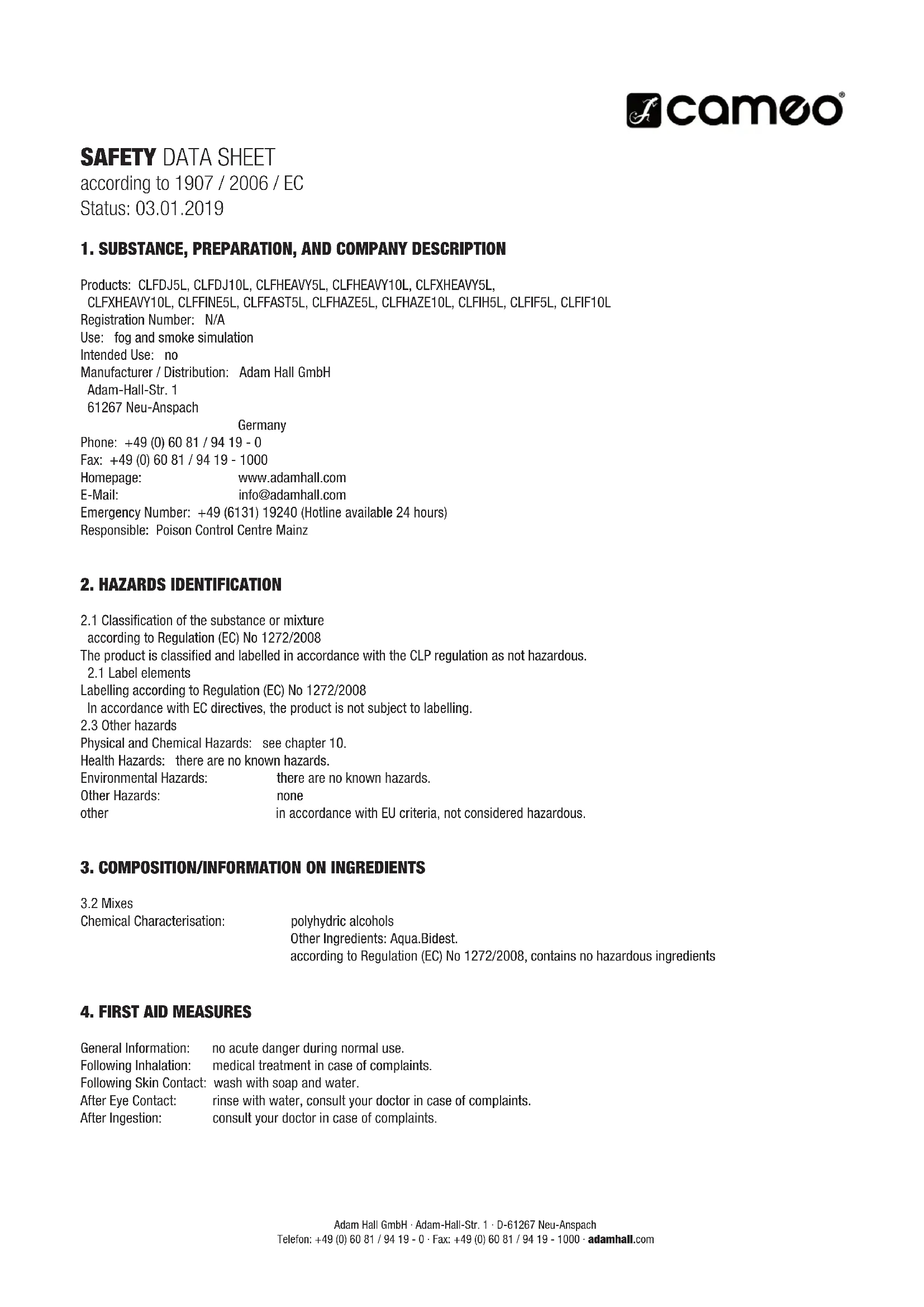

USER MANUAL CLFDJ5L Cameo

according to 1907 / 2006 / EC

Status: 03.01.2019

1. SUBSTANCE, PREPARATION, AND COMPANY DESCRIPTION

Products: CLFDJ5L, CLFDJ10L, CLFHEAVY5L, CLFHEAVY10L, CLFXHEAVY5L,

CLFXHEAVY10L, CLFFINE5L, CLFFAST5L, CLFHAZE5L, CLFHAZE10L, CLFIH5L, CLFIF5L, CLFIF10L

Registration Number: N/A

Use: fog and smoke simulation

Intended Use: no

Manufacturer / Distribution: Adam Hall GmbH

Adam-Hall-Str. 1

61267 Neu-Anspach

Germany

Phone: [phone] / 94 19 - 0

Fax: [phone] / 94 19 - 1000

Homepage: www.adamhall.com

E-Mail: [e-mail]

Emergency Number: [phone] (Hotline available 24 hours)

Responsible: Poison Control Centre Mainz

2. HAZARDS IDENTIFICATION

2.1 Classification of the substance or mixture

according to Regulation (EC) No 1272/2008

The product is classified and labelled in accordance with the CLP regulation as not hazardous.

2.1 Label elements

Labelling according to Regulation (EC) No 1272/2008

In accordance with EC directives, the product is not subject to labelling.

2.3 Other hazards

Physical and Chemical Hazards: see chapter 10.

Health Hazards: there are no known hazards.

Environmental Hazards: there are no known hazards.

Other Hazards: none

other in accordance with EU criteria, not considered hazardous.

3. COMPOSITION/INFORMATION ON INGREDIENTS

3.2 Mixes

Chemical Characterisation:

polyhydric alcohols

Other Ingredients: Aqua.Bidest.

according to Regulation (EC) No 1272/2008, contains no hazardous ingredients

4. FIRST AID MEASURES

General Information: no acute danger during normal use.

Following Inhalation: medical treatment in case of complaints.

Following Skin Contact: wash with soap and water.

After Eye Contact: rinse with water, consult your doctor in case of complaints.

After Ingestion: consult your doctor in case of complaints.

5. FIREFIGHTING MEASURES

5.1 Extinguishing Agents

Suitable Extinguishing Agents: extinguish surrounding fire with foam, dry chemical powder, CO2 or water spray.

5.2 Special hazards arising from the substance or mixture

The formation of hazardous gases in the event of fire is possible

Carbon monoxide (CO)

Nitrogen oxides (NOx).

5.3 Advice for firefighters

Special Protective Equipment for Fire Fighting:

self-contained breathing apparatus

Additional Notes: wear protective equipment.

6. ACCIDENTAL RELEASE MEASURES

6.1 Personal Precautions:

risk of slipping due to leakage / spillage of product.

Keep unprotected persons away.

6.2 Environmental Precautions: the product is not environmentally hazardous.

Do not empty into drains/waterways/ground water.

In case of seepage into waterways or sewage system, notify competent authorities.

In case of seepage into the ground, notify competent authorities.

6.3 Methods and material for containment and cleaning up

Dispose of: using sand, earth or absorbent material,

in accordance with the locally prevailing environmental protection stipulations.

(see point 13)

7. HANDLING AND STORAGE

7.1 Precautions for safe handling

Advice on Safe Handling: keep in unbreakable containers (containers).

Requirements for Storage Rooms

and Containers: store only in closed containers. Containers must be clean, dry and free of rust.

Notes Regarding Fire and

Explosion Protection: no special measures required, follow general operational fire protection rules.

Storage Temperature: ambient temperature up to 60°C

7.2 Conditions for safe storage, including any incompatibilities

Instructions on Joint Storing: do not store together with oxidizing agents

Do not store together with strong alkalis.

Storage Class: ---

8. EXPOSURE CONTROLS AND MONITORING, PERSONAL PROTECTION

8.1 Control parameters

Exposure Limit Values: exposure limit values are not available for this product.

DNEL/DNEL/DMEL Values: n/a

PNEC - Values: n/a

8.2 Exposure control and monitoring of exposure

Respiratory Protection: not necessary

Hand Protection: not necessary

Eye Protection: not necessary

Body Protection: not necessary

Additional Information About Design

of Technical Facilities: none

Components with Workplace

Control

Parameters: none

9. PHYSICAL AND CHEMICAL PROPERTIES

9.1 Information on basic physical and chemical properties

Physical State: liquid

Shape: liquid

Colour: colourless

Odour: neutral

pH value: 6-8

pH Value 1%: not determined

Boiling Point: 100 °C

Flash Point: not determined

Ignition Temperature: not determined

Auto Igniting: no

Oxidising Properties: no

Explosion Hazard: the product is not explosive.

Explosion Limits Lower: ---

Upper: ---

Density: 1.04 to 1.10 g / cm3

Solubility in Water (20°C): any

Viscosity: low viscosity

10. STABILITY AND REACTIVITY

10.1 Reactivity: see section 10.3

10.2 Chemical Stability: stable under normal conditions

10.3 Possibility of Hazardous Reactions:

10.4 Conditions to Avoid: none known

10.5 Incompatible Materials: none known

10.6 Hazardous Decomposition Products:

none known

11. TOXICOLOGICAL INFORMATION

11.1 Information on toxicological effects

Acute Toxicity: the product

Irritation Effect on the Skin: non irritant.

Irritation Effect on the Eye: non irritant.

Sensitisation: not sensitising.

Subacute to Chronic Toxicity: none

the product has not been tested in animal experiments.

non irritant.

non irritant.

not sensitising.

none

12. ECOLOGICAL INFORMATION

12.1 Toxicity

there are no known ecotoxic effects.

12.2 Persistence and Degradability:

information on the degradability

The product is not environmentally hazardous.

It is readily biodegradable in accordance with OECD 301E / EEC 84/449 C3.

When properly introducing low concentrations into adapted biological sewage treatment plants, disruptions in the degradation activity of activated sludge are not to be expected.

12.3 Bioaccumulative Potential: no bioaccumulation

12.4 Mobility in Soil: Transport and Distribution Between Environmental Compartments: not determined

12.5 Results of PBT and vPvB Assessment: no data available

12.6 Other Adverse Effects: none known

General Information:

WGK Water Hazard Class 1: low hazard to water.

Do not allow to seep into the groundwater, waterways or sewage system.

Do not discharge undiluted or unneutralised into the sewage system or the drainage ditch.

13. DISPOSAL CONSIDERATIONS

13.1 Waste treatment methods

Product: Recommendation: can be burnt together with household waste in compliance with official regulations in contact with approved waste disposal companies and with authorities in charge.

Waste Code Number: the waste code classification is to be carried out according to the European Waste Catalogue (EWC) specifically for each industry and process type.

Uncleaned Packagings: Recommendation: contaminated packaging[...] should be emptied as far as possible, and after appropriate cleaning, may be reused.

Packagings that cannot be cleaned should be disposed of in the same manner as the product.

14. TRANSPORT INFORMATION

Sections 14.1 to 14.5,

ADR no dangerous goods

ADN no dangerous goods

RID no dangerous goods

IATA no dangerous goods

IMDG no dangerous goods

15. REGULATORY PROVISIONS

15.1 Safety, health and environmental regulations/legislation specific for the substance or mixture

EU Classification: in accordance with EU criteria, not considered hazardous.

Labelling: not required.

R Ratings: none

S Ratings: none

Notice on Disposal Limitations:

none

Technical Instructions on Air Quality: none

Water Hazard Class: WGK 1 low hazard to water (classification according to VwVwS (Administrative Regulation, Annex 4).

Volatile Organic Compounds

VOC Content: in accordance with Directive 2004/42/EC does not contain VOC-components (VOC: 0.00%)

16. OTHER INFORMATION

Department Issuing Data Sheet: QM

Exposure Scenario: professional fog fluid for the production of short-term, artificial fog and show effects for the event industry, theatre and film production.

Taking into account the visibility and the desired effect,

the fog fluid concentration in the air should be dosed between 25 and maximum of 80 mg/m3.

In particular, the fog density to be dosed in such a way that exits and emergency exits in

enclosed spaces always remain visible. The same applies to the lighting of

escape routes, their markings, stair exits, shafts, drop-off edges, etc.

Visibility of 25 m (according to VStattV max. distance to the next exit)

must be complied with.

With regard to the prevention of anxiety, fogged rooms should never

be sealed.

The product is to be used properly and as delivered.

Keep out of reach of children.

This information is based on our present state of knowledge and experience. The safety data sheet describes products with respect to safety requirements. The data does not claim product properties in terms of quality descriptions.
