| Product Type | Electronic Sander / Polisher |
| Brand | HiKOKI |
| Model | SP 18VA |
| Supply Voltage | 120 V ~, 60 Hz |
| Rated Current | 11.0 A |
| No-load Speed | 0 – 3,400 /min (electronic variable speed) |
| Disc Diameter | 180 mm (7") |
| Center Hole | 22 mm (7/8") |
| Weight | 2.8 kg (6.2 lb) |
| Double Insulation | Yes (Class II) |
| Motor Type | Single-phase series commutator motor |
| Speed Adjustment | 6-position adjustment dial (1 to 6) |
| Lock Function | Lock button for continuous operation |
| Applications | Sanding metal, wood, polishing paint, varnish |
| Included Accessories | Rubber pad, rod key, loop handle |

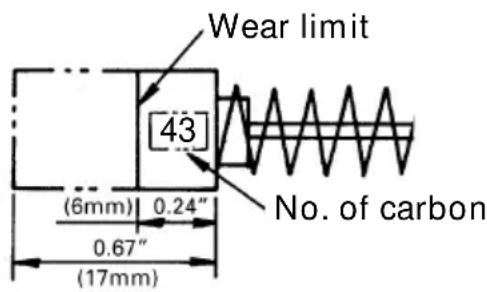

| Maintenance | Replacing carbon brushes (reference in figure) |
| Safety | Turn off switch before connecting, use safety goggles |
Frequently Asked Questions - SP 18VA HiKOKI
User questions about SP 18VA HiKOKI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Sander in PDF format for free! Find your manual SP 18VA - HiKOKI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SP 18VA by HiKOKI.
USER MANUAL SP 18VA HiKOKI
WARNING
IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily injury!
This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place.
INSTRUCTIONS DE SECURITE ET MODE D'EMPLOI
AVERTISSEMENT
IMPORTANT SAFETY INFORMATION .... 3
MEANINGS OF SIGNAL WORDS 3
SAFETY 4
GENERAL SAFETY RULES 4
SPECIFIC SAFETY RULES AND SYMBOLS ...... 6
ASSEMBLING AND DISASSEMBLING THE SANDING DISC AND WOOL BONNET ..... 13
MAINTENANCE AND INSPECTION 14
ACCESSORIES 15
STANDARD ACCESSORIES 15

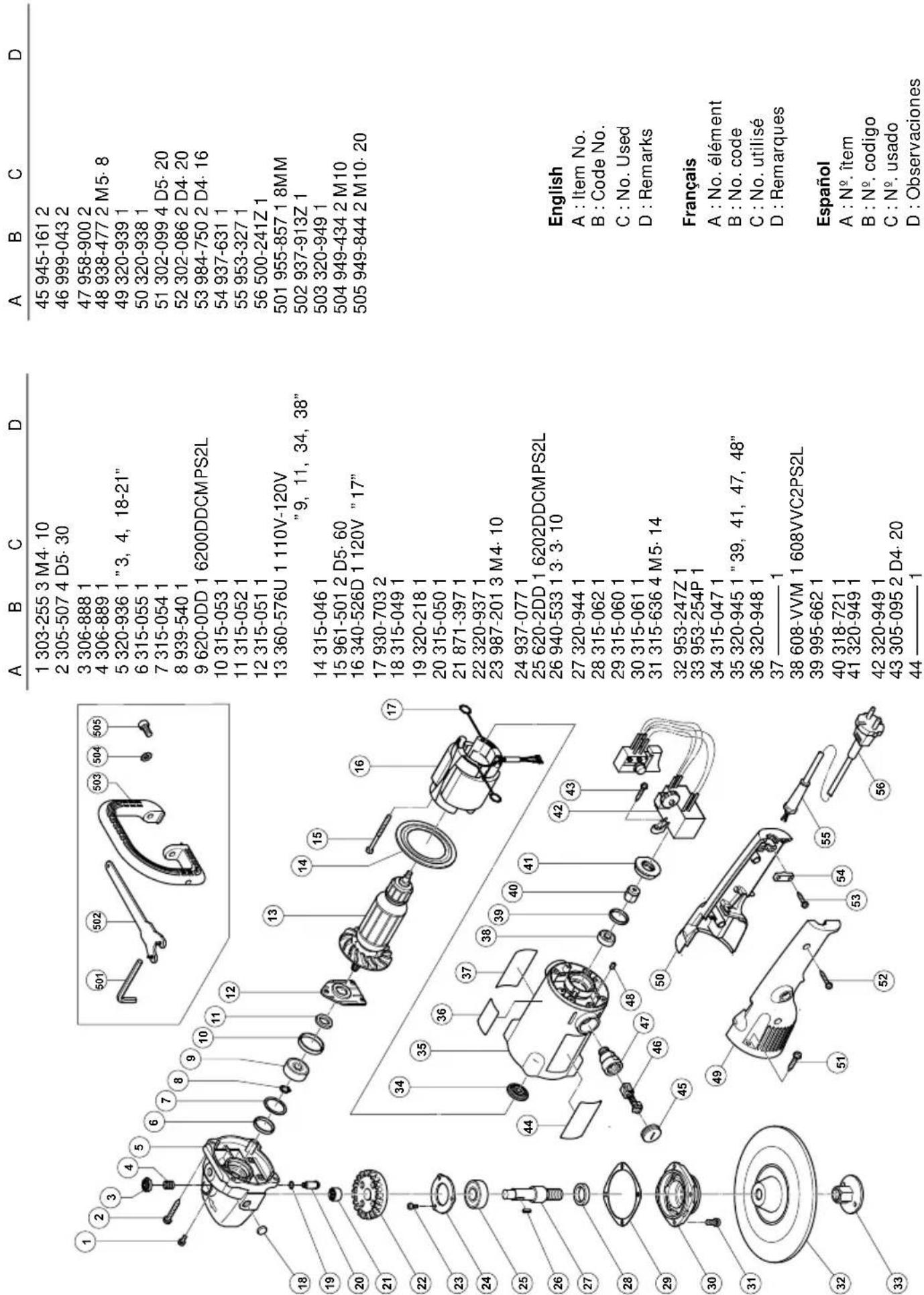

PARTS LIST 47
TABLE DES MATIERES
Français
Page
INFORMATIONS IMPORTANTES DE SÉCURITÉ .... 16
SIGNIFICATION DES MOTS D'AVERTISSEMENT .... 16
SECURITE 17
REGLES GENERALES DE SECURITE ..... 17
REGLES DE SECURITE SPECIFIQUES ET SYMBOLES .... 19
DOUBLE ISOLATION POUR UN FONCTIONNEMENT PLUS SUR .... 21
DESCRIPTION FONCTIONNELLE 23
NOM DES PARTIES 23
SPECIFICATIONS 23
Page
ASSEMBLAGE ET FONCTIONNEMENT 24
APPLICATIONS 24
IMPORTANT SAFETY INFORMATION
Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool.
Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.
Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.
Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual.
NEVER use this power tool in a manner that has not been specifically recommended by HITACHI.
MEANINGS OF SIGNAL WORDS
WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.
CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage.
NOTE emphasizes essential information.
SAFETY
GENERAL SAFETY RULES
WARNING: Read and understand all instructions.
Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
1. Work Area
(1) Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
(2) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust of fumes.
(3) Keep bystanders, children, and visitors away while operating a power tool. Distractions can cause you to lose control.
2. Electrical Safety
(1) Double Insulated tools are equipped with a polarized plug (one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. Double Insulation ☐ eliminates the need for the three wire grounded power cord and grounded power supply system.
(2) Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded.
(3) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
(4) Do not abuse the cord. Never use the cord to carry the tools or pull the plug from a receptacle. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock.
(5) When operating a power tool outside, use an outdoor extension cord marked “W-A” or “W”. These cords are rated for outdoor use and reduce the risk of electric shock.
3. Personal Safety
(1) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
(2) Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
(3) Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch on invites accidents.
(4) Remove adjusting keys or wrenches before turning the tool on. A wrench or a key that is left attached to a rotating part of the tool may result in personal injury.
(5) Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the tool in unexpected situations.
(6) Use safety equipment. Always wear eye protection. Dust mask, nonskid safety shoes, hard hat, or ear plugs must be used for appropriate conditions.
4. Tool Use and Care
(1) Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.
(2) Do not force tool. Use the correct tool for your application. The correct tool will do the job better and safer at the rate for which it is designed.
(3) Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the switch is dangerous and must be repaired.
(4) Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally.
(5) Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users.
(6) Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools, with sharp cutting edges are less likely to bind and are easier to control.
(7) Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool's operation. If damaged, have the tool serviced by a HITACHI authorized service center before using. Many accidents are caused by poorly maintained tools.
(8) Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool, may become hazardous when used with another tool.
5. Service
(1) Tool service must be performed only by a HITACHI authorized service center. Service or maintenance performed by unqualified personnel could result in a risk of injury.
(2) When servicing a tool, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance Instruction may create a risk of electric shock or injury.
SPECIFIC SAFETY RULES AND SYMBOLS
- Hold tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.
- ALWAYS wear ear plugs when using the tool for extended periods.
- NEVER touch moving parts.
NEVER place your hands, fingers or other body parts near the tool's moving parts.
- NEVER operate without all guards in place.
NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.
- Use right tool.
Don't force small tool or attachment to do the job of a heavy-duty tool.
Don't use tool for purpose not intended —for example— don't use circular saw for cutting tree limbs or logs.
- NEVER use a power tool for applications other than those specified.
NEVER use a power tool for applications other than those specified in the Instruction Manual.
- Handle tool correctly.
Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.
- Keep all screws, bolts and covers tightly in place.
Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.
- Do not use power tools if the plastic housing or handle is cracked.
Cracks in the tool's housing or handle can lead to electric shock. Such tools should not be used until repaired.
- Blades and accessories must be securely mounted to the tool.
Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.
- Keep motor air vent clean.
The tool's motor air vent must be kept clean so that air can freely flow at all times. Check for dust build-up frequently.
- Operate power tools at the rated voltage.
Operate the power tool at voltages specified on its nameplate.
If using the power tool at a higher voltage than the rated voltage, it will result in abnormally fast motor revolution and may damage the unit and the motor may burn out.
- NEVER use a tool which is defective or operating abnormally.
If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.
- NEVER leave tool running unattended. Turn power off.
Don't leave tool until it comes to a complete stop.
- Carefully handle power tools.
Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.
- Do not wipe plastic parts with solvent.
Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents.
Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.
- ALWAYS wear eye protection that meets the requirement of the latest revision of ANSI
- Keep away from a revolving sanding disc and wool bonnet.
- Pay strict attention to sparks.
- Use the loop handle to securely grip the Sander Polisher.
- Never use depressed center wheel as a disc grinder.
- Do not use this machine near welding machine.
- Do not operate on direct current.
- Should the revolving speed suddenly decrease due to overload, leave the machine from workpiece and turn the switch OFF and then ON again.
- Do not push the lock pin while the spindle is running.
- Always hold the body handle and loop handle of the power tools firmly. Otherwise the counterforce produced may result in inaccurate and even dangerous operation.
- Definitions for symbols used on this tool
V ...... volts
Hz ...... hertz
A.....amperes
n_0 ...... no load speed
W...... w att
☐...... Class II Construction
---/min ... revolutions per minute
\~ ...... Alternating current
To ensure safer operation of this power tool, HITACHI has adopted a double insulation design. “Double insulation” means that two physically separated insulation systems have been used to insulate the electrically conductive materials connected to the power supply from the outer frame handled by the operator. Therefore, either the symbol “☐” or the words “Double insulation” appear on the power tool or on the nameplate.
Although this system has no external grounding, you must still follow the normal electrical safety precautions given in this Instruction Manual, including not using the power tool in wet environments.
To keep the double insulation system effective, follow these precautions:
○Only HITACHI AUTHORIZED SERVICE CENTER should disassemble or assemble this power tool, and only genuine HITACHI replacement parts should be installed.
○Clean the exterior of the power tool only with a soft cloth moistened with soapy water, and dry thoroughly.
Never use solvents, gasoline or thinners on plastic components; otherwise the plastic may dissolve.
SAVE THESE INSTRUCTIONS AND
MAKE THEM AVAILABLE TO OTHER USERS AND
OWNERS OF THIS TOOL!
FUNCTIONAL DESCRIPTION
NOTE:
The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.
Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.

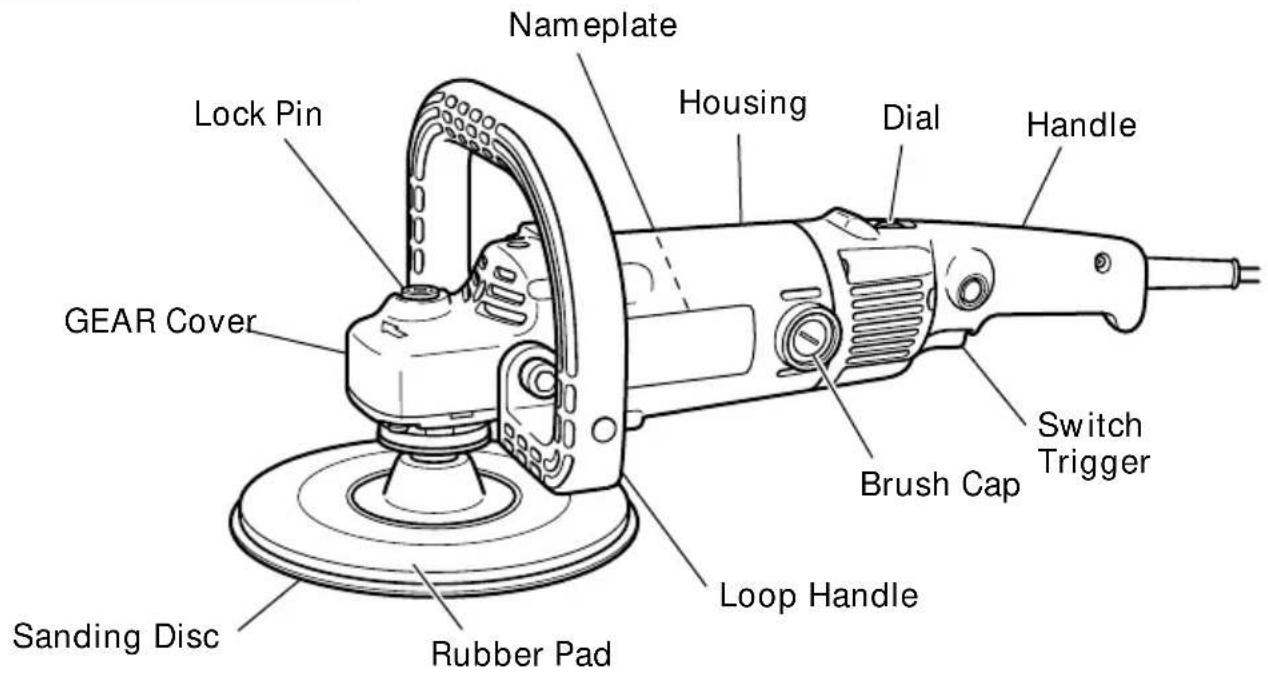

NAME OF PARTS
SPECIFICATIONS
| Motor Single-Phase, Series Commutator Motor | |
| Power Source Single-Phase 120V AC 60Hz | |
| Current 11.0A | |
| No-Load Speed 0–3400/min | |
| Sanding Disc Size:external diam. 7" (180mm)hole diam. 7/8" (22mm) | |
| Weight 6.2lbs (2.8kg) | |
ASSEMBLY AND OPERATION
APPLICATIONS
○Sanding metal surfaces.
☐ Preliminary sanding of metal surfaces before painting, rust removal, removing old paint before repainting.
○Finishing woodwork, correcting projections of timbers from joints or assemblies.
○Preliminary sanding of wood surfaces before applying paint.
○Polishing or shining painted metal surfaces, such as those of automobiles, trains, elevators, refrigerators, sewing machines, washing machines, metal appliances, etc.
○Polishing varnished surfaces of wooden furniture, etc.
○Shining synthetic resin or ebonite products.
PRIOR TO OPERATION
1. Power source
Ensure that the power source to be utilized conforms to the power source requirements specified on the product nameplate.
2. Power switch
Ensure that the switch is in the OFF position. If the plug is connected to a receptacle while the switch is in the ON position, the power tool will start operating immediately and can cause serious injury.
3. Extension cord
When the work area is far away from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.
Damaged cord must be replaced or repaired.
4. Check the receptacle
If the receptacle only loosely accepts the plug, the receptacle must be repaired. Contact a licensed electrician to make appropriate repairs.
If such a faultly receptacle is used, it may cause overheating, resulting in a serious hazard.
- Confirming condition of the environment:
Confirm that the work site is placed under appropriate conditions conforming to prescribed precautions.
When sanding a thin steel plate, depending upon the state of the workbench, a loud noise will be created due to resounding noise from the steel plate being ground. To eliminate unwanted noise in this instance, place a rubber mat beneath the material to be ground.

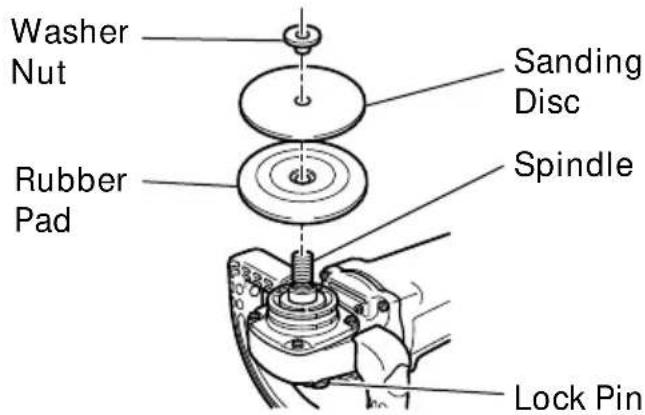

- Confirming and mounting the sanding disc and wool bonnet
Confirm that the sanding disc is mounted under the specified condition and is firmly clamped.
For details, refer to the item “Assembling and Disassembling the Sanding Disc and Wool Bonnet”.
- Confirm the lock pin
Confirm that the lock pin is disengaged by pushing lock pin two or three times before switching the power tool on.
- Fixing the loop handle
Fix the loop handle with a bolt and a washer to the gear cover.
ELECTRONIC SANDER POLISHER OPERATION
Motor speed is increased by increasing pressure on the trigger. Release the trigger to stop. For continuous operation, pull the trigger and then push in the lock button. To stop the motor from the locked position, pull the trigger full, then release it.
Motor speed can be varied as desired by rotating the dial:
It is increased by turning the dial towards “6”, decreased by turning it towards “1” (Fig. 2). Select the motor speed appropriate for the work being done. The following table gives the motor speeds corresponding to each indication on the dial scale and shows the types of work for which they are suitable.
| Dial Indication | /min | Type of works |
| 1 | 600 | For polishing |
| 2 | 1100 | |
| 3 | 1700 | |
| 4 | 2300 | |
| 5 | 2900 | For sanding |
| 6 | 3400 |

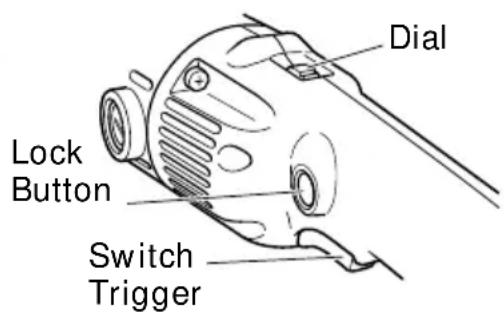

CAUTION: The dial cannot be rotated further than the “6” or “1” on the scale in their respective directions.

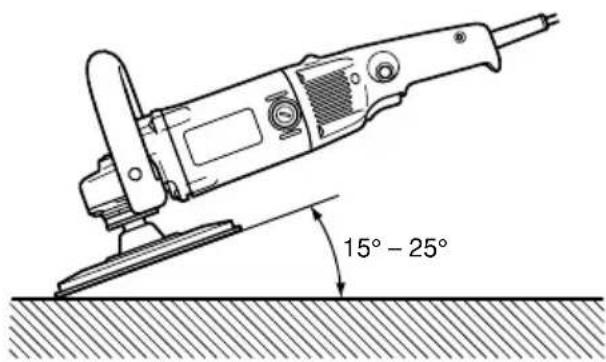

●For use as a Sander
- This unit is designed to provide sufficient polishing (sanding) power with the disc pressed lightly against the sanding/polishing surface: it is equipped with an electronic control circuit to ensure that the motor will not slow down even when loaded. There is therefore no need to press the sanding disc hard against the surface; doing so can overload the motor, subsequently causing the overload cut device to step into operation by cutting
the motor's power supply. If this should happen, cut the power switch and turn it back on to reset the unit: it will resume rotation at the correct motor speed.
-
Rather than applying the entire disc surface to the metal surface to be ground, use the sander by inclining it approximately 15^ 25^ to grind with the disc peripheral portion. (Fig. 3).
-
Precaution after use Do not lay the sander polisher down immediately after use in a place where there are many shavings and much dirt and dust until it has completely stopped revolving.
●For use as a Polisher
-
Curved surface as well as plain one is treated for finishing. It is recommended to hold the polisher without pushing on the material, and make the best of its own weight as the excess pressure on the polishing surface will not only bring unsatisfactory result but also put unnecessary load on the motor.
-
Polishing compound or wax are used corresponding to the state of finishing and the maximum polishing effect will be attained when the following method is taken. Polishing with a sander using fine sanding disc.
Polishing with wool bonnet using compound substance final waxing.
First put the compound and wax in small quantity on the surface to be polished, then, give a polish with the wool bonnet.
CAUTION: Carefully guard against permitting the cord to touch the wool bonnet or sanding disc during operation. If the cord touches them, there is danger that it may become entangled.
ASSEMBLING AND DISASSEMBLING THE SANDING DISC AND WOOL BONNET
⚠ WARNING: Be sure to switch power OFF and disconnect the plug from the receptacle to avoid serious trouble.
●For use as a Sander (Fig. 4)
(1) After placing the sanding disc on the rubber pad, thread the washer nut onto the spindle.
(2) Press the lock pin to secure the spindle and tighten the washer nut with a wrench.
(3) To remove the sanding disc, follow the above-mentioned procedure in reverse order.
●For use as a Polisher (Fig. 5)
(1) Insert the washer nut through the rubber pad and thread it onto the spindle.
(2) Press the lock pin to secure the spindle and tighten the washer nut with a wrench.

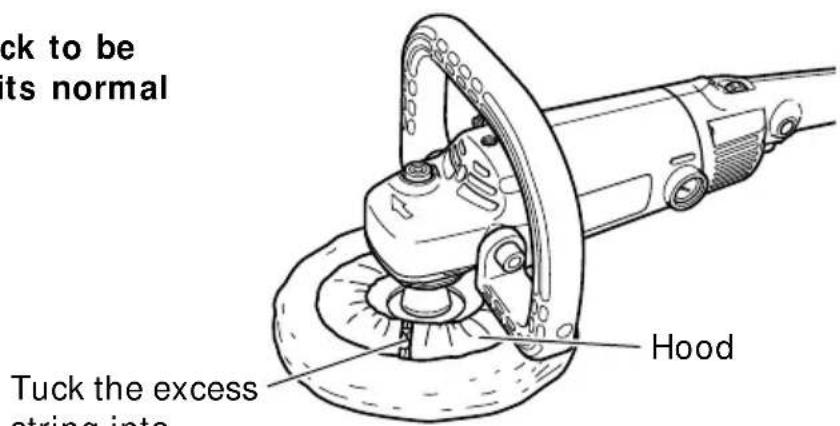

(3) Wrap the rubber pad with the hood of the wool bonnet and firmly secure it by tying a string around it. Be sure the excess string is firmly tucked inside the wool bonnet to prevent it from flying out while polishing. The unbalanced fitting of the wool bonnet may cause vibration (Fig. 6).
(4) To remove the wool bonnet, follow the above-mentioned procedure in reverse order.
CAUTION:
●Use a wrench to tighten the washer nut sufficiently.
●After releasing the lock pin, check to be sure that it has returned to its normal position.
Tuck the excess string into
MAINTENANCE AND INSPECTION
⚠ WARNING: Be sure to switch power OFF and disconnect the plug from the receptacle during maintenance and inspection.
1. Inspecting the screws
Regularly inspect all screws and ensure that they are properly tightened. Should any of the screws be loosened, retighten them immediately.
⚠ WARNING: Using this electronic sander polisher with loosened screws is extremely dangerous.
2. Inspecting the carbon brushes (Fig. 7)
The motor employs carbon brushes which are consumable parts. Replace the carbon brush with a new one when it becomes worn to its wear limit. Always keep carbon brushes clean and ensure that they slide freely within the brush holders.
CAUTION: Using this electronic sander polisher with a carbon brush which is worn in excess of the wear limit will damage the motor.
NOTE: Use HITACHI carbon brush No. indicated in Fig. 7.
○Replacing carbon brushes:
Remove the brush caps (Fig. 1) with a slotted screwdriver. The carbon brushes can then be easily removed.
3. Cleaning lock pin section
If the lock pin section becomes dirty, clean it at once.
4. Service and repairs
All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.
5. Service parts list
CAUTION: Repair, modification and inspection of Hitachi Power Tools must be carried out by an Hitachi Authorized Service Center.
This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
MODIFICATIONS:
Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.
Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.
ACCESSORIES
WARNING: NEVER use any accessories other than those mentioned below.
The use of any accessories other than those mentioned below or attachments not intended for use such as cup wheel, cut-off wheel or saw blade is dangerous and may cause personal injury or property damage.
NOTE: Accessories are subject to change without any obligation on the part of the HITACHI.
STANDARD ACCESSORIES
○ Rubber Pad (Code No. 953255) ...... 1
○ Bar Wrench (Code No. 955857) ...... 1
○ Loop Handle (with bolt and washer)....1
NOTE: Specifications are subject to change without any obligation on the part of the HITACHI.
INFORMATIONS IMPORTANTES DE SÉCURITÉ
Silhouette of a helmet with a visor icon and arrow pointing to the head (no text or symbols)natural_image
Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)⚠ AVERTISSEMENT:
Silhouette of a helmet with a visor icon and arrow pointing to the head (no text or symbols)natural_image
Black and white illustration of a hand with a lightning bolt symbol (no text or numbers)ADVERTENCIA:
WARNING:
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
●Lead from lead-based paints,
●Crystalline silica from bricks and cement and other masonry products, and
●Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
AVERTISSEMENT:
Minato-ku, Tokyo 108-6020, Japan
Distributed by
Hitachi Koki U.S.A., Ltd.
PO Box 970
Braselton, GA 30517
Hitachi Koki Canada Corp.
450 Export Blvd. Unit B,
Mississauga ON L5S 2A4
400
Code No. C99110362 M
Printed in Malaysia
