Product type	Electronic profile cylinder lock
Brand	Burg Wächter
Model	secuENTRY easy plus 5652
Keyboard power supply	2 MIGNON LR6 AA ALKALINE batteries
Interior button power supply	2 MIGNON LR6 AA ALKALINE batteries
Exterior button power supply	1 CR 123A lithium battery
Max. number of users	50 (including 24 fingerprints)
Opening modes	6-digit PIN code, fingerprint, passive transponder, active transponder, KeyApp Bluetooth app
Protection rating (PINCODE keypad)	IP65
Protection rating (Fingerprint keypad)	IP55
Protection rating (cylinder)	IP65

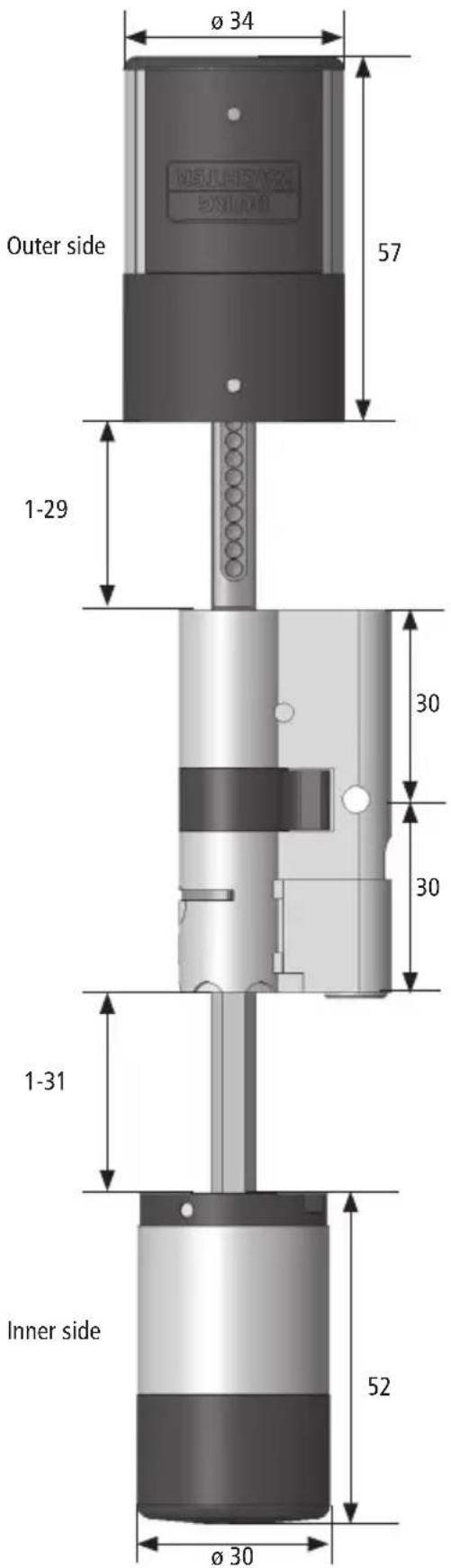

Cylinder dimensions (adjustable)	Up to 119 mm door thickness (61/59 mm from the center of the fixing screw)
Exterior button diameter	34 mm
Interior button diameter	30 mm
Operating temperature	-15°C to +50°C
Permissible humidity	Up to 95% RH (non-condensing)
Connectivity	Bluetooth Low Energy (2.402 - 2.483 GHz, max. power 7.5 dBm)
Factory admin code	1-2-3-4-5-6 (must be changed)
Lockout after error	3 incorrect entries: 1 minute, then 3 minutes
Emergency key	Yes (mechanical, exterior side)
Installation	No drilling, adaptable to profile cylinder lock
Cleaning	Damp cloth, no harsh or alcohol-based detergents

Frequently Asked Questions - secuENTRY easy plus 5652 Burg Wächter

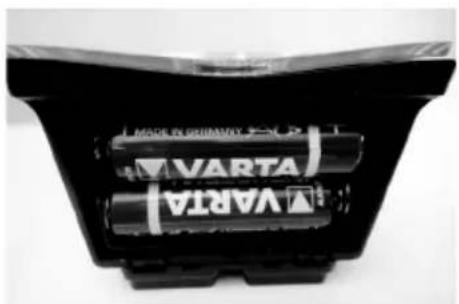

How to change the keyboard batteries?

Remove the housing cover by unscrewing the 2 screws (Tx 8). Remove the battery cover by pulling it down and replace the 2 AA batteries observing polarity. Close the cover and screw it back on.

What to do if I forgot the admin code?

The admin code is also provided on the QR code of the interior button. If you lost both the QR code and the code, it is no longer possible to reprogram the cylinder. Keep this information safe.

How to add a new user with a PIN code?

Activate the keypad with the '' key, press FUNC, select 'admin menu', then 'create user' and 'create user: code'. Enter the admin code, then the new 6-digit code and confirm.

The KeyApp does not detect the cylinder. What to do?

Check that your smartphone's Bluetooth is enabled and that the cylinder is powered (battery inserted). Make sure you are nearby (less than 10 m). If the problem persists, increase the transmission power in the 'installation' menu of the keypad.

How to open the door with the emergency key?

Open the emergency key joint, insert it into the slot of the cover, turn it 90° clockwise while slightly turning the exterior button. The door opens after one full turn. To close, turn the key counterclockwise.

What is the battery life?

Battery life depends on usage. Under normal conditions, the AA batteries of the keypad and interior button last about 1 year, and the lithium battery of the exterior button about 2 years. A light signal (5 flashes) indicates low batteries.

Can I use the lock without a keypad?

Yes, the secuENTRY easy plus PASSIVE TRANSPONDER model does not have a keypad. Opening is done via passive transponder. Transponders can be registered using the optional secuENTRY PC software.

How to reset the fingerprint sensor?

In the 'admin' menu, select 'FP reset'. This operation deletes all fingerprints but keeps the users. Follow the on-screen instructions.

What to do if the cylinder LED flashes 5 times?

This signal indicates that the cylinder battery is low. Replace the interior button batteries (2x AA) and/or the exterior button battery (CR123A) as appropriate.

Is it possible to lock the door remotely with the app?

The KeyApp allows opening the door, but not locking it remotely. Locking is done manually by turning the interior or exterior button. Some advanced functions (such as timer) are available via the optional PC software.

USER MANUAL secuENTRY easy plus 5652 Burg Wächter

1 Tastatur (SN; MAC; AES; Type)
2 Zylinder (SN; MAC; AES; ADM)
3 Transponder (UID; BW; Type)

Diagram showing various electronic components with numbered labels and icons, including a keypad, QR code, and screwdriver.

secuENTRY easy plus FINGERPRINT

Allgemeines

Diagram showing various electronic components with numbered labels and icons, including a keypad, QR code, and display parts.

Diagram showing labeled components of a device with numbered parts and a QR code for scanning.

Two black-and-white photos showing hands using a tool to adjust or install a door lock (no text or symbols visible)

Close-up of a metallic door clip and a vertical door lock (no text or symbols visible)

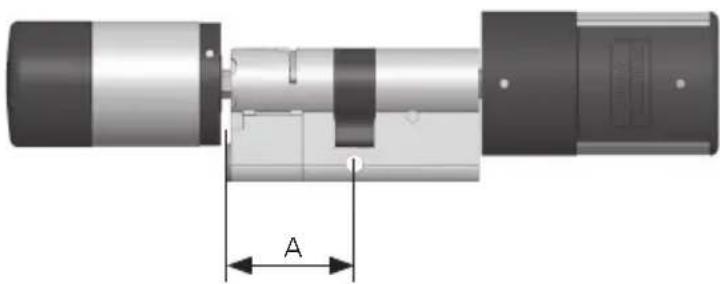

Technical diagram of a mechanical component with labeled dimension A (no text or symbols beyond the label)

Hand holding a small electronic device with white connectors (no visible text or symbols)

Black plastic mechanical component with internal slots and mounting holes (no text or symbols visible)

Black-and-white photo of a handheld electronic device with a vertical arrow indicating measurement or direction (no visible text or symbols)

Reinigungshinweis secuENTRY easy plus Tastatur

Close-up of a black and white object mounted on a wall, possibly a tool or device, with no visible text or symbols.

Black-and-white photo of a closed hard drive with a circular arrow indicating rotation (no visible text or symbols)

Black plastic container with two cylindrical batteries labeled VARTA, no visible text or symbols on the main body.

Black metal bracket with stepped edges and a curved arrow indicating rotation (no text or symbols)

Close-up of a black and white object mounted on a wall, possibly a device or fixture (no visible text or symbols)

Two black-and-white photos showing a hand holding a small object, one with a metal rod inserted into a housing (no visible text or symbols)

Two views of a mechanical component with internal cross-sections, shown from top and side (no text or symbols visible)

Close-up of a hand holding a cylindrical mechanical component, alongside a close-up of its black cylindrical component (no visible text or symbols)

Close-up of a mechanical component with metallic housing and internal structure (no visible text or symbols)

Close-up of a mechanical component with metallic shaft and flange (no visible text or symbols)

Close-up of a mechanical knob or dial component (no visible text or symbols)

Close-up of a hand holding a black cylindrical object with a directional arrow, no visible text or symbols

Close-up of a black cap with a white screwdriver inserted, mounted on a wall (no visible text or symbols)

Black-and-white photo of a CD-ROM drive with a curved arrow pointing downward (no visible text or symbols)

Close-up of a screwdriver inserted into a black plastic electrical socket (no visible text or symbols)

Black and white photo of a handheld electronic device with a vertical arrow indicating measurement or alignment (no visible text or symbols)

Gewährleistung

Thank you very much for deciding on the secuENTRY easy plus electronic locking system by BURG-WÄCHTER. This system has been developed and manufactured using the latest technologies and meets high security requirements.

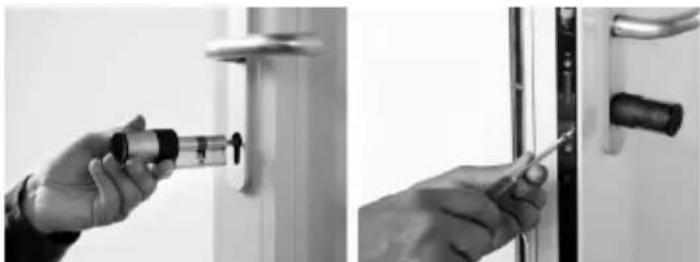

The electronic cylinder can be easily inserted without any drilling into any door prepared for profile cylinder up to a door thickness of 119 mm (61 / 59, measured from the centre of the forend screw) and is ideally suited for both new installations and retrofitting. Besides this, you have diverse additional options, e. g. on which identification medium shall be used. You can find out more on the following pages.

Remove the battery protection strip from the inner knob in order to energise the cylinder.

Important: Please read the entire operating instructions before you start programming. We hope you enjoy your new locking system.

General information on secuENTRY easy plus

The secuENTRY easy plus is available in three equipment configurations:

• secuENTRY easy PINCODE
• secuENTRY easy FINGERPRINT
• secuENTRY easy plus PASSIVE TRANSPONDER

The keypad in the set versions secuENTRY easy plus PINCODE and secuENTRY easy plus FINGERPRINT is already registered in the cylinder.

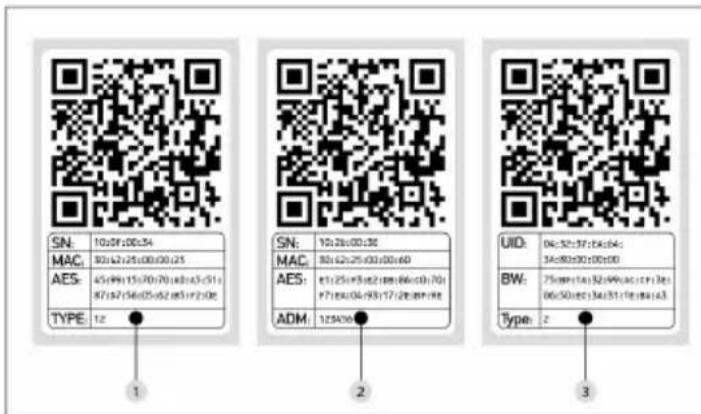

Administrator code / QR code

Each secuENTRY easy plus set with keypad comes with three QR codes, which are required for setting up the opening option via the BURG-WÄCHTER KeyApp as well as for logging on and training a keypad or a cylinder and for firmware updates.

Without an associated keypad, opening media (user, active transponder, passive transponder) can only be programmed into the cylinder via the optional secuENTRY Windows PC software.

The administrator code is also on the QR code of the internal knob (main knob). In secuENTRY easy plus PINCODE and secuENTRY easy plus FINGERPRINT, the administrator code is set to 1 - 2 - 3 - 4 - 5 - 6 at the factory. Please change the factory-set administrator code to an individual code!

Attention! If the administrator and/or QR code is lost, reprogramming or use of all administrator functions is no longer possible. Please keep it in a safe place!

SN: 1029f:00:54 MAC: 30162125:00:00:25 AES: 4519915170/70148143/511 871971560562883192106 TYPE: 12 SN: 1029c:00:58 MAC: 30162125:00:00:60 AES: 4512515322086660701 8718x04931712889198 ADM: 123436 UID: 043253735664: 346805000000 BW: 75mm(7m)32.99(uc.cn)3m: 06501ed30431789a143 Type: 2 1 2 3

1 Keypad (SN; MAC; AES; Type)

2 Cylinder (SN; MAC; AES; ADM)

3 Transponder (UID; BW; Type)

If you have purchased a secuENTRY easy plus PASSIVE TRANSPONDER, the number of the respective transponder is stored in the "Type" field.

Tip: The QR code can also be scanned in electronic form or saved as a photo on a secured data carrier.

The manufacturer accepts no liability for any injuries or damage that may occur during installation or improper handling.

Additional functions available using the optional secuENTRY Software, for example:

• User administration
• Assignment of authorisations
  • History function

Optical signalling inner knob

The optical signal in form of an LED is incorporated in the knob on the outside of the door.

You receive the following information via this LED:

• 1 x short: Cylinder is engaging
- 2 x short: Cylinder is disengaging
- 3 x short: Transponder TAG detected, no opening authorisation
- 4 x short: Permanent opening activated
- 1 x short, 1 × long, 2 sec. pause, repeat: Lock in programming mode
- 5 × short, 2 sec. pause, repeat at 20 sec.: Battery in the cylinder depleted

Optical signalling outer knob

The optical signal in form of an LED is incorporated in the knob on the outside of the door.

You receive the following information via this LED:

• 1 x short: Cylinder is engaging
- 2 x short: Cylinder is disengaging
- 3 x short: Transponder TAG detected, no opening authorisation
- 4 x short: Permanent opening activated
- 1 x short, 1 × long, 2 sec. pause, repeat: Lock in programming mode
- 5 × short, 2 sec. pause, repeat at 20 sec.: Battery in the cylinder depleted

Technical details

Blocking times After	3 x wrongcode is entered 1 minute,then always 3 minutes
Display Can be set in	12 languages
Reliable ambient conditions*	-15 °C / +50 °C / up to 95 % rel. humidity(non-condensing) The display can react slowly or darken under extreme temperature changes.
Protection class Keypad protection class PINCODE IP65Keypad protection class Fingerprint IP55Cylinder protection class IP65
Voltage supply 2 x M	IGNON LR6 AA ALKALINE for the keypad2 x MIGNON LR6 AA ALKALINE for the inner knob1 x CR 123A Lithium for the outer knob
Transmission power and frequency range:	Bluetooth Low Energy, Maximum TransmitOutput Power 7,5dBmFrequency usage range 2.402GHz ... 2.483 GHz

Opening

Depending on the equipment variant, the secuENTRY easy plus set can be operated via a 6-digit numerical code, the BURG-WÄCHTER KeyApp, with the passive transponder, with the active transponder or fingerprint.

Opening with PIN code

• Switch on the keypad using the key ⏻
• Enter the 6-digit PIN code (factory setting "1-2-3-4-5-6"). "Please turn the rotary knob" appears in the display, and the LED integrated in the cylinder flashes once when the opening is successful.
• Turn the cylinder knob

Opening with Fingerprint

• Switch on the keypad using the key ⏻
• Move the programmed finger from the top to bottom centrally over the sensor. "Please turn the rotary knob" appears in the display, and the LED integrated in the cylinder flashes once when the opening is successful.
• Turn the cylinder knob

Opening with Passive transponder

• Hold the transponder at the front at a maximum distance of 1 cm from the cylinder knob. The LED which is integrated in the cylinder flashes once upon successful opening.
• Turn the cylinder knob

Please note that during the opening process with the KeyApp, the active or passive transponder, the keypad must not be switched on via the ⚙key beforehand!

Opening with Active transponder

- Briefly press the opening button x1 at a distance of max. 4 m from the secuENTRY easy plus cylinder knob. The LED which is integrated in the cylinder flashes once upon successful opening.

• Turn the cylinder knob

Open with the BURG-WÄCHTER KeyApp

- Hold your Smart Device in front of the cylinder knob and press the open button of the KeyApp.

- The LED integrated in the cylinder flashes once when the opening is successful.

• Turn the cylinder knob

BURG-WÄCHTER KeyApp

You can download the BURG-WÄCHTER KeyApp from the App Store or Google Play Store. Simply enter the search term "secuENTRY" or "KeyApp". Compatible with Samsung Galaxy S4, S4 mini, S5 and S5 mini, S6, S6-Edge, S7, S7-Edge, S8, S8Plus from Android 4.3 KitKat or 5.0 Lollipop, Apple iPhone 4S, 5, 5S, 6, 6Plus, 6S, 6S-Plus,7 and 7-Plus from iOS 10.3.2.

Please check at: www.burg.biz/ secuentry/description if other smartphones are compatible with the app.

Package contents

secuENTRY easy plus PINCODE

General

The electronic cylinder is operated by entering a pin code. In addition, the lock can be operated via the BURG-WÄCHTER KeyApp, passive and active transponders.

Package contents

1 QR-Code keypad
^2 Keypad
3 Outer knob
4 Fixing material 1 keypad
5 Fixing material 2 keypads (adhesive pads)
6 Rubber cover

7 Screwdriver Tx (size 8)
8 Forend screw
9 Allen key (size 3)
10 Two QR-Codes per cylinder
11 Cylinder
^12 Wall mounting plate
13 Privacy fi Im

Diagram showing 12 labeled electronic components with icons and labels, including a keypad, QR code, and speaker.

secuENTRY easy plus FINGERPRINT

General

Up to 24 fi ngers can be programmed with the secuENTRY fi ingerprint keypad. The users are created separately (USER.xxxx FP). In addition, the lock can be operated via a pin code, the Burg-Wächter Keyapp or transponder.

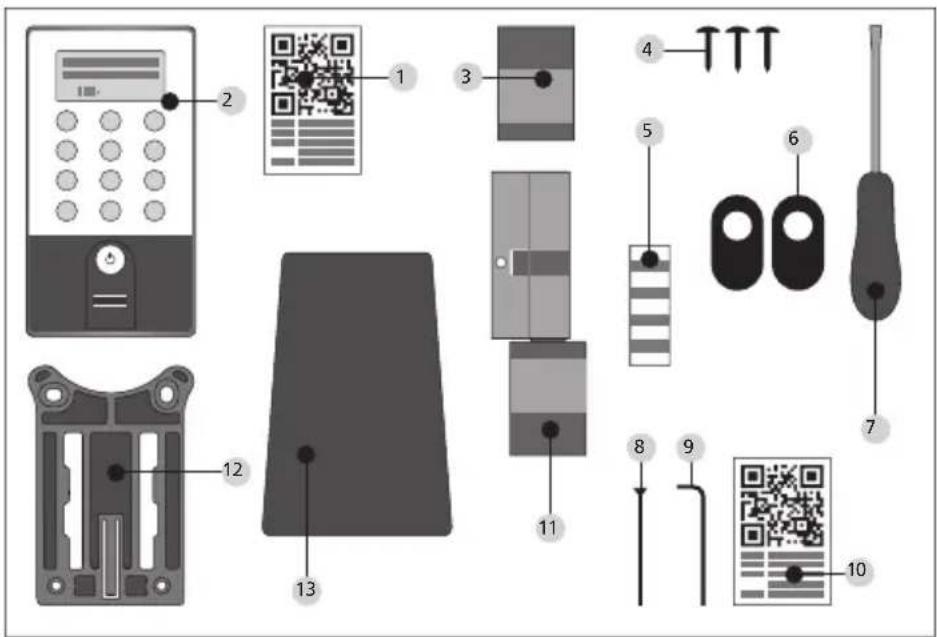

Package contents

1 QR-Code keypad
2 Keypad
3 Outer knob
4 Fixing material 1 keypad
5 Fixing material 2 keypads (adhesive pads)
6 Rubber cover

7 Screwdriver Tx (size 8)
8 Forend screw
9 Allen key (size 3)
10 QR-Code cylinder
11 Cylinder
12 Wall mounting plate
13 Privacy fi lm

Diagram showing various electronic components with numbered labels and icons, including a keypad, QR code, and display parts.

Attention! The fi ingerprint sensor must not be cleaned with detergents. Please use a slightly moist cloth for this purpose.

Functions

- Total number of users: up to 50 of which number of fingerprints: up to 24

secuENTRY easy plus Passive transponder

General

The electronic cylinder is operated via a passive transponder. Additional transponders can be registered via the secuENTRY software or a keypad.

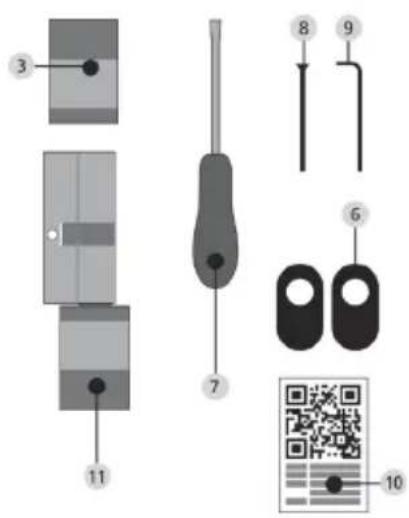

Package contents

3 Outer knob
6 Rubber cover
7 Screwdriver Tx (size 8)
8 Forend screw
9 Allen key (size 3)
10 QR-Code cylinder
11 Cylinder

Diagram showing labeled components of a device with numbered parts and a QR code for scanning.

Schematic representation of menu functions

When the "Func:M" symbol is displayed, the menu can be reached by pressing the "Function" key. In the menu, you then have a scroll function using keys 1 and 2 to navigate through the structure. You reach the next menu level using the ← (Enter) key.

Attention!

The menu structure may vary depending on the software version of the keypad.

Setting up menu structure

Code Change menu

Language menu

Administrator menu

Create User menu

Create: Code

Create: sE key

Create: Transponder 1,2

Create: Fingerprint

Assign User menu

Create: Code

Create: sE key

Create: Transponder 1,2

Create: Fingerprint

Delete menu

Time Functions menu

Setting the time 2,3

Setting the date 2,3

Setup menu

Register

Reorganize

Transmission power

Firmware update

Display contrast

Programming

FP Reset 1,2 menu

Info menu

EE version and serial number info

AE version and serial number info

Running time info

Opening counter info

Start-up date info

Description of the menu structure

The functions for the products ENTRY Pincode and ENTRY Fingerprint are described below.

Change code menu

Changing the administrator code as well as the user code

• Switch on the keypad using the key ⏻
• Then press FUNC
  "Menu/Code Change" appears
• Confirm your selection using
• Now you can use the keys 1 or 2 to scroll until the administrator/user is displayed whose code is supposed to be changed
• Confirm with
• Enter the previously valid (old) code and press
• Enter the new code and confirm it with
• Repeat your entry and confirm it again with←.

Note: When a cylinder is first started up, additional information on the current date and time are requested:

• Enter the day (2 digits) and confirm your selection using
• Enter the month (2 digits) and confirm your selection using
• Enter the year (2 digits) and confirm your selection using
• Enter the hour (2 digits) and confirm your selection using
• Enter the minutes (2 digits) and confirm your selection using
  "Code change accomplished" is displayed after a correct entry

Language menu Language setting

• Switch on the keypad using the key ⏻.
• Then press FUNC; "Menu / Code Change" appears.
• Scroll using the 2 key until the Administrator menu appears
• Confirm with
• Use keys 1 or 2 to scroll until the desired language is displayed
• Confirm with

Administrator menu Different submenus are available in the administrator menu.

Create a submenu user with code

• Switch on the keypad using the ⚫key.
• Then press FUNC; "Menu / Code Change" appears.
• Scroll using the 2 key until the Administrator menu appears.
• Confirm with ←. The "Create User" menu item appears.
• Confirm with
• Scroll using the 2 key until "Create User: Code" appears
• Confirm with
• Enter the administrator code in order to acquire the authorisation for programming.
• The next free memory cell is displayed (e.g. USER.0003)
• Enter the 6-digit code and confirm it 2 x using
• "Data has been saved" appears in the display

Create a submenu user with transponder

• Switch on the keypad using the key.
• Then press FUNC; "Menu / Code Change" appears.
• Scroll using the 2 key until the Administrator menu appears.
• Confirm with ←. The "Create User" menu item appears.
• Confirm with
• Scroll using the 2 key until the "Create transponder" appears
• Confirm with
• Enter the administrator code in order to acquire the authorisation for programming.
• Hold the front of the transponder to be registered on the outer knob "USER.xxxx TR successfully created" appears in the display.

Create User with Fingerprint submenu

(Function only active with ENTRY Fingerprint and ENTRY KP FP keypad)

• Switch on the keypad using the key
• Then press FUNC; "Menu / Code Change" appears
• Scroll using the 2 key until the Administrator menu appears.
• Confirm with ←The "Create User" menu item appears
• Confirm with

- Scroll with the key 2 until you reach the menu item "Create: Fingerprint" appears.

- Enter the administrator code in order to acquire the authorisation for programming.

- "Program Finger" appears in the display.

- Move the finger to be registered several times centrally over the sensor (the number of moves is indicated on the display)

- "User_XXX_FP successfully programmed" appears in the display

Create User with sE key (active transponder) submenu:

• Switch on the keypad using the key .
• Then press FUNC - "Menu/Code Change" appears
• Scroll using the 2 key until the Administrator menu appears
• Confirm your selection using
• The "Create User" menu item appears.
• Confirm your selection using
• Scroll using the 2 key until "Create: "sE key" appears
• Confirm your selection using
• Enter the administrator code in order to acquire the authorisation for programming.
• Move the sE Key in the vicinity of the cylinder
• "USER.xxxx KY successfully created" appears in the display

Assigning a Code submenu

- Using this function, you have the option to subsequently assign a code to an already existing user. For this purpose, proceed as follows:

- Switch on the keypad using the key .

- Then press FUNC - "Menu/Code Change" appears

- Scroll using the 2 key until the Administrator menu appears

- Confirm your selection using

- Scroll using the 2 key until "Assign" appears

- Confirm your selection using

- Scroll using the 2 key until "Create User: Code" appears.

- Confirm your selection using

- Enter the administrator code in order to acquire the authorisation for programming.

- Scroll to the user to whom you want to assign a code and confirm using ←

- Enter a 6-digit code and confirm 2 × using

- "Data has been saved" appears in the display.

Submenu Time functions (only for Premium)

Time and date are set here

Assigning a transponder submenu

Using this function, you have the option to subsequently assign a transponder to an already existing user. For this purpose, proceed as follows:

• Switch on the keypad using the key
• Then press FUNC - "Menu/Code change" appears.
• Scroll using the 2 key until the Administrator menu appears.
• Confirm your selection using
• Scroll using the 2 key until "Assign" appears
• Confirm your selection using
• Scroll using the 2 key until "Create User: Transponder" appears.
• Confirm your selection using
• Enter the administrator code in order to acquire the authorisation for programming
• Scroll to the user to whom you want to assign a transponder and confirm using ←
• Hold the face of the transponder directly in front of the outer knob and confirm on the keypad using
• "User.xxxx.TR successfully created" appears in the display.

Assigning a finger submenu

Using this function, you have the option to subsequently assign a finger to an already existing user. For this purpose, proceed as follows:

• Switch on the keypad using the key
• Then press FUNC - "Menu/Code change" appears.
• Scroll using the 2 key until the Administrator menu appears.
• Confirm your selection using
• Scroll using the 2 key until "Assign" appears
• Confirm your selection using
• Scroll using the 2 key until "Create User: Fingerprint" appears.
• Confirm your selection using
• Enter the administrator code in order to acquire the authorisation for programming.
• Scroll to the user to whom you want to assign a finger and confirm using ←
• Move the finger to be registered several times centrally over the sensor (the number of moves is indicated on the display)
• "User.xxxx.FP successfully created" appears in the display

Delete submenu

You have the option of deleting a user using this menu.

• Switch on the keypad using the key ⏻.
• Then press FUNC - "Menu/Code change" appears
• Scroll using the 2 key until the Administrator menu appears.
• Confirm your selection using
• Scroll using the 2 key until "Admin. "Set-up" Delete" appears
• Confirm your selection using
• Enter the administrator code in order to acquire the authorisation for programming
• Scroll to the identification medium that you want to delete and confirm 2x using ←
• "Data has been deleted" appears in the display.

Setting the time:

Not available in the standard function.

Setting the date:

Not available in the standard function.

Set-up submenu

General system settings

Register

After a replacement of the cylinder or the keypad, the two units have to be newly aligned, so that they can resume communication.

Registration of a keypad

• Switch on the keypad using the key ⏻.
• Then press FUNC; "Menu / Code Change" appears.
• Use keys 1 or 2 to scroll until you reach the "Administrator menu"
• Confirm with
• You can now use keys 1 or 2 to scroll until you reach the Admin. menu "Set-up".

- Confirm with

- You can now use keys 1 or 2 to scroll until you reach the Admin. register Set-up menu.

- Confirm with

- Enter the valid admin. code of the unit to be programmed.

- "Data have been saved" is displayed after a successful registration.

Attention! Please make sure that no other powered secuENTRY unit is placed within direct reach of the device during installation of a new keypad or cylinder, as by mistake such unit could be addressed instead of the intended one. When in doubt, disconnect these units (remove batteries).

Reorganize

The use of this function is recommended when several users have been deleted.

• Switch on the keypad using the key ⏻
• Then press FUNC; "Menu / Code Change" appears
• Scroll using the 2 key until the Administrator menu appears
• Confirm with

- Scroll using the 2 key until the "Set-up" menu item appears

- Confirm with

- The menu item "Reorganize" appears.

- Confirm with

- Enter the administrator code in order to acquire the authorisation for programming

- "Reorganization is running" appears

FP reset submenu

(Function only active with ENTRY Fingerprint and ENTRY KP FP keypad)

Transmission power

The system or power consumption is optimised via the transmission power, and the wireless range of the cylinder and the keypad are increased or reduced. As delivered, a low transmission power is set in order to obtain the longest possible battery life. The transmission power should only be increased if repeated transmission problems should occur. The setting normally does not have to be adjusted.

Firmware update

The secuENTRY keypad can be sequentially updated via the Burg-Wächter ConfigApp. Please refer to the instructions for the ConfigApp for the exact procedure.

Display contrast

• Switch on the keypad using the key .
• Then press FUNC – "Menu/Code Change" appears
• Scroll using the 2 key until the Administrator menu appears
• Confirm your selection using
• Scroll with the 2 key until "Setup" appears
• Confirm your selection using
• Scroll with the 2 key until "Display contrast" appears
• Confirm your selection using
• Select the desire contrast level using the 1 key (weaker) or the 2 key (stronger)

Programming

You can input into the keypad a data set created with the PC software via Programming. The data set can be programmed using the PC software as well as the secuENTRY ConfigApp.

• Switch on the keypad using the key .
• Then press FUNC - "Menu/Code change" appears.
• Scroll using the 2 key until the Administrator menu appears
• Confirm your selection using
• Scroll with the 2 key until "Set-up" appears
• Confirm your selection using
• Scroll with the 2 key until "Programming" appears
• Confirm your selection using
• Enter the administrator code in order to acquire the authorisation for programming
• The message "Start the file transmission" appears in the display. The keypad is now in programming mode and can be programmed using the PC software or the ConfigApp.

All stored fingerprints are deleted; however, the corresponding users are retained. Please select this menu and follow the instructions on the display in case of repeated errors related to the use of fingerprints.

Info menu

Using this function, you can have several pieces of information of the system displayed.

• Switch on the keypad using the key ⏻
• Then press FUNC; "Menu / Code Change" appears
• Scroll using the 2 key until "Info menu" appears.
• Confirm with
• Using the 1 or 2 key, you can scroll between the following information:
• Version and serial number of the keypad
• Version and serial number of the cylinder
• Operating time of the cylinder
• Opening procedures of the cylinder
• Start-up date and time of the cylinder

Note: For security reasons, complete information about the cylinder is only displayed after entering a valid administrator code.

secuENTRY easy plus cylinder assembly

The installation of the secuENTRY easy plus cylinder is explained below. Please read these assembly instructions carefully before installation.

Note:

The base size of the cylinder is 30 mm per side. The cylinder has a special latching system on the inside and an adaptor set is included for the outer knob, which enables you to use the cylinder for door thicknesses up to 119 mm (61/59, measured from the centre of the forend screw). No prior adjustment is necessary. The appropriate screws are included with your set to fit the adaptor lengths.

When delivered, the cylinder inner knob is completely closed (to the smallest door thickness). Before you insert the cylinder into the door, you should adjust it to your door thickness.

The inner knob is loosened and fixed by means of an integrated grub screw in the rotary knob.

Attention! Never pull the inner knob completely off the shaft, as in this case the electronics will be destroyed! The grub screw, which ensures the catch on the shaft, may only be loosened slightly and always remains in the plastic knob. The grub screw serves as a pull-off protection!

Take care during assembly. Avoid impacts or sudden movements. The lock should not be greased or oiled.

When installing the cylinder, proceed as follows:

1 Rough assessment of door thickness (incl. fittings)
2 Pull the outer knob off the shaft, move the inner knob over the locking system (distances 2.85 mm) to the desired dimension.

Inner knob 30 mm adjustment range

Schematic diagram Internal knob adjustment

3 Depending on the door thickness, you have the option of fitting adaptors on the outside to improve the guidance of the emergency key.

The following combinations are possible:

Distance between forend screw / fitting (mm) on the outside	Adaptor 1 Adaptor 2
< 43 --
44-53X -
54-60X X

x: Selection
-: not planned

Tab. 1: Distance between forend screw / fitting [mm] on the outside and the necessary adaptors.

M2 × 10 Adaptor 1

2.9 × 16 Adaptor 2

4 Slide the secuENTRY easy cylinder from inside to outside through the mortise lock in the door and then tighten the forend screw.

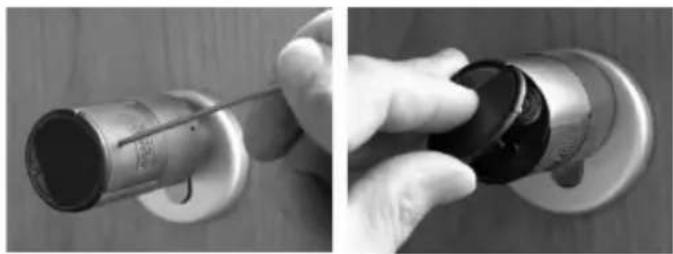

Two black-and-white photos showing hands using a tool to adjust or install a door lock (no text or symbols visible)

5 Slide the inner knob on the shaft until you have reached the desired dimension. Please make sure that the distance between rotary knob and door fitting is at least 1 mm. Then fix the rotary knob using the grub screw.

6 Before fixing the outer knob, please check whether you want to insert the supplied cover for the profile cylinder cut-out. If so, remove the protective sheet and fix the cover panel onto the lock section.

Close-up of a metallic door clip and a vertical door handle (no text or symbols visible)

7 Place the outer knob on the cylinder or the corresponding adaptor and tighten with the screw. Please refer to the table for the appropriate assignment and gradation.

Mounting external knob:

Screw Adaptor

Screws Adaptor length Dimension A
M4x16	7 mm <= 32
M4x20	11 mm	32.5 - 36.0
M4x25	16 mm	36.5 - 41.0
M4x30	21 mm	41.5 - 46.0
M4x35	26 mm	46.5 - 51.0
M4x40	31 mm	51.5 - 56.0
M4x45	36 mm	56.5 - 61.0

Technical diagram of a mechanical component with labeled dimension A (no text or symbols beyond the label)

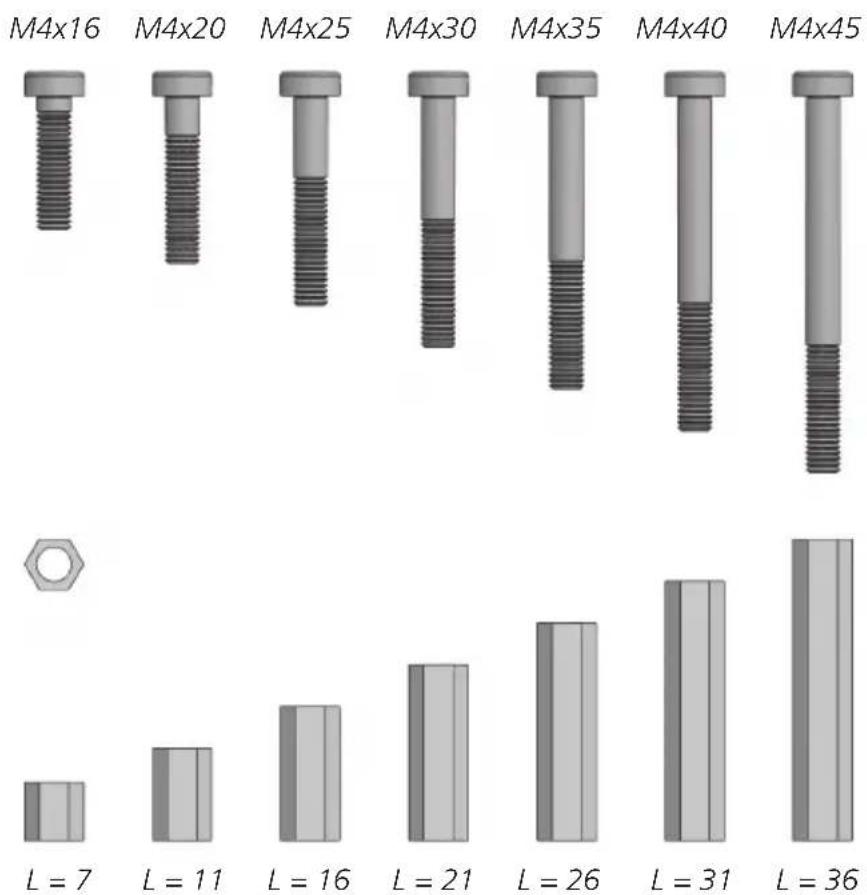

Overview of screws and hexagon adaptors

Fig. on a scale of 1:1

M4x16 M4x20 M4x25 M4x30 M4x35 M4x40 M4x45 L = 7 L = 11 L = 16 L = 21 L = 26 L = 31 L = 36

Adaptor (L = length in mm)

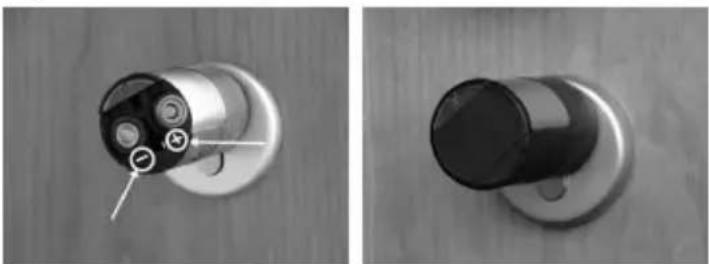

8 Insert the CR123A lithium battery with the correct polarity (positive pole forward).
9 Slide the sleeve onto the outer knob and lock it in place.
10 Remove the battery safety strip on the inner knob.
11 The function test must be made with the door open.

Dimensions secuENTRY easy plus Cylinder

Outer side ø 34 57 1-29 30 30 1-31 Inner side 52 ø 30

Dimensions in mm

secuENTRY easy plus keypad assembly

The keypad is only included in the secuENTRY easy Pincode and secuENTRY easy Fingerprint set.

Attention! Please note that the keypad should not be attached to the door itself so that no vibrations are transmitted when the door is shut. The membrane affixed to the back of the keypad should not be sealed with glue and/or any other substance under any circumstances! Exchange of air must also be possible after the installation!

• Determine the installation position for the keypad.
  For this purpose, enter the opening code (e.g. PIN code, ingerprint...) at the desired mounting location and check whether the lock opens.
• Place the keypad accordingly.

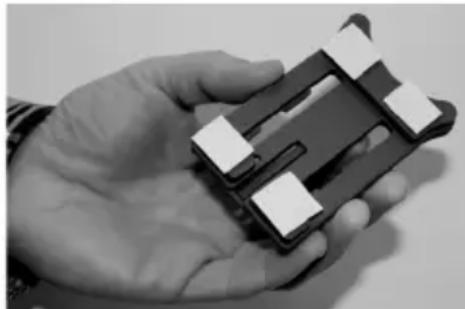

If you decide on gluing the wall holder, please be sure to provide clean surfaces free from e.g. grease, oil and silicon lms or any other impurities. Completely remove the protective lm from the adhesive pads included, attach all the pads on the wall holder and then press rmly onto the desired position. When mounting in colder temperatures, please note that the full adhesive strength is achieved only after 72 hours at 20°C. Heat will accelerate the process (e.g. at 65°C; full adhesive strength is achieved in one hour).

When gluing the holder plate on the colour sight protection lm, the above described conditions relating to cleanliness of surfaces and rmness of the adhesive pad should be observed.

Hand holding a small electronic device with white connectors (no visible text or symbols)

Black plastic mechanical component with internal cavities and mounting holes (no text or symbols visible)

To facilitate a bubble-free application of the colour privacy lm, please proceed as follows:

• Pour some water with a couple of drops of dishwashing detergent into a glass, stir it carefully free of foam, and then use it to gently moisten the surface on which the lm is to be applied.
• Pull off 1 cm of lm at an edge of the white protective sheet and straighten it out. To change the position, lift the lm carefully and attach it again.
• Then wipe the adhesive lm, e.g. with a plastic spatula, from the contact surface outward in the direction of the protective sheet that is still attached.

Attention! Do not use more liquid than absolutely necessary.

- Slide the keypad in from above until the locking latch of the base plate engages into the keypad housing. In this way, the keypad is protected against undesired removal.

- Test the functioning of the unit with the door open. For this purpose, enter a valid opening code (e.g. PIN code, fingerprint,...) several times.

Black and white photo of a vintage office phone with a vertical arrow indicating measurement or alignment (no visible text or symbols)

Cleaning instructions secuENTRY easy plus keypad

Dirt can barely adhere to the keypad surface due to the surface finish. Dusty or dirty surfaces are wiped with a damped cloth. No alcohol-based detergents (denatured alcohol, SIDOLIN® etc.) or aggressive detergents (acetone etc.) may be used, as they can damage the surface or the sensor.

secuENTRY easy plus keypad battery change

- Remove the case cover from below by loosening the 2 screws (Tx 8).

Close-up of a screwdriver inserted into a black cap on a wall (no text or symbols visible)

- Pull the battery compartment lid downwards until it disengages and replace the batteries.

Stacked hardcover or binder with a circular logo and a curved arrow on the left (no readable text or symbols)

When inserting the new batteries, be careful to observe the correct polarity as indicated on the housing.

Close-up of two Varta batteries in a black frame (no visible text or symbols on the battery body)

- To close the battery compartment, first press the battery compartment lid close to the screw holes to make them slide into the recesses, then snap the bottom side into position by pressing on it.

Black structural component with a curved arrow indicating rotation (no text or symbols)

- Fasten the battery compartment lid with screws.

Close-up of a black-and-white photo of a medical or surgical device mounted on a wall, with no visible text or symbols.

Attention! Make sure that no moisture enters the keypad when replacing the battery.

Battery change knob (inside)

1 Using the grub screw supplied, loosen the top locking screw on the cylinder cover. It can be turned out only up to the opening of the cover and will not fall out.

2 Open the cover

Close-up of a hand holding a black rubber pad on a metal door handle, with no visible text or symbols.

3 Replace the batteries. Make sure the batteries are inserted with the correct polarity, indicated at the marked point on the housing.

4 Replace the cover.

Two views of a mechanical component with internal cross-sections, shown from top and side (no text or symbols visible)

Battery change outside knob

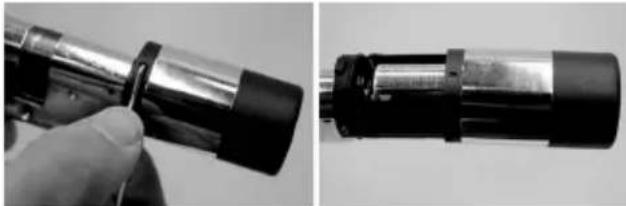

- Press the notches back with the enclosed tool and pull off the knob sleeve.

Close-up of a hand holding a cylindrical mechanical component, alongside a close-up of its black cylindrical component (no text or symbols visible)

- Replace the battery and make sure the polarity is correct.

Close-up of a mechanical component with metallic housing and central shaft (no visible text or symbols)

- Carefully slide the knob sleeve back on Please note: Locking is only possible in one position!

Close-up of a mechanical component with a cylindrical shaft and flange (no visible text or symbols)

Attention! Be careful not to crush the cable. Make sure the O-ring is seated correctly.

Re-engage the knob sleeve.

Close-up of a mechanical component with a cylindrical shaft and flange (no visible text or symbols)

Emergency key (outside) function

Using the mechanical emergency key, you can provide access in case of failure of the system.

1 Swing the emergency key open and then insert it into the indicted slot in the cover panel.

Close-up of a hand pressing down on a wall-mounted device (no text or symbols visible)

2 Turn the key 90° clockwise. If required, move the outer knob slightly to the right and left in order to release the mechanism.
3 Turn the outer knob. The lock opens at the latest when fully turned.

Turn the key to its initial position and take it out. To close the emergency lock, turn the knob twice fully in both directions.

Disassembling secuENTRY easy plus keypad from wall bracket

- Remove the case cover from below by loosening the 2 screws (Tx 8).

Close-up of a black-and-white photo of a hand holding a small object near a wall, no visible text or symbols.

- Pull the battery compartment lid downwards until it disengages and replace the batteries.

Black-and-white photo of a compact electronic device with a curved arrow pointing downward (no visible text or symbols)

- Press the notch with a narrow tool (e.g. slotted screwdriver) downwards and pull the keypad up.

Close-up of a screwdriver inserted into a black plastic electrical socket (no visible text or symbols)

Black-and-white photo of a handheld electronic device with a vertical arrow indicating downward motion (no visible text or symbols)

Warranty

In order to deliver a flawless and high quality product to you and to better assist you in case of service or repair, it is necessary that faulty or defective devices along with the valid administrator code and the QR code(s) be presented to your dealer together with the original documentation.

In the case of return shipments, due to your right of cancellation, all device parts must furthermore be in their factory settings and the seal on the cylinder and knob must be undamaged. Failure to comply with this will invalidate the warranty.

Important information about our electronic locks

General information: please take care that the codes and the code carrier do not fall into the wrong hands. Therefore, store the codes and code carrier in a safe location so that these can only be accessed by authorised persons. In case you lose a code or code carrier, the lock must be converted to a new code / code carrier, or replaced.

• The factory code must be changed as soon as the lock is commissioned.
• Simple codes that are easy to guess (e.g. 1, 2, 3, 4, 5, 6) must not be used.
• Personal data (e.g. birthday) or other data that may be concluded with knowledge of the code owner must not be used as a code.
• After changing the code, the lock must be checked several times with the safety door opened.

Disposal of the device

Dear Customer,

please help us avoid unnecessary waste. Should you intend to dispose of this device at any time, please remember that many components of this device contain valuable materials that can be recycled.

CE

Please be aware that electrical and electronic equipment and batteries marked in this way must not be disposed of with household waste but collected separately. Please obtain information on the collecting points for electrical waste from the responsible authority of your city/municipality.

BURG-WÄCHTER KG hereby declares that this device complies with Directive 2014/53/EU, (RED) 2014/30/EU, (EMC) and 2011/65/EU (RoHS). The complete text of the EU Declaration of Conformity is available at the following Internet address: www.burg.biz

On interferences with Bluetooth devices

Bluetooth devices use the same frequency bandwidth (2.4 GHz) as WiFi devices. Interferences can therefore arise that cause errors or interrupt communication. If this occurs, unnecessary devices should be switched off.

Printing and typesetting errors as well as technical changes reserved.

Cher client,

Diagram showing labeled parts of a device with QR codes and component footprints, likely for product or digital labeling.

secuENTRY easy plus FINGERPRINT

Généralités

Diagram showing labeled parts of a device with QR codes and component footprints, likely for product or digital labeling.

Diagram showing 11 labeled mechanical components and a QR code for scanning, with numbered annotations.

Two black-and-white photos showing hands using a tool to adjust or install a door lock (no text or symbols visible)

Close-up of a white door with a metallic scroll wheel and black buttons, no visible text or symbols

Technical diagram of a mechanical component with labeled dimension A (no text or symbols beyond the label)

Hand holding a small electronic device with black and white components (no visible text or symbols)

Black plastic mechanical component with internal cavities and mounting holes (no text or symbols visible)

Black and white photo of a handheld electronic device with a vertical arrow indicating measurement or alignment (no visible text or symbols)

Close-up of a screwdriver inserted into a black plastic cover on a wall (no text or symbols visible)

Black-and-white photo of a closed hard drive with a circular label and a curved arrow on the side (no readable text or symbols)

Close-up of two Varta batteries in a black frame (no visible text or symbols on the battery body)

Black structural component with a curved arrow indicating rotation (no text or symbols)

Close-up of a black graduation cap attached to a wall, with a tool partially visible (no text or symbols)

Close-up of a hand holding a black rubber pad on a doorbell (no text or symbols visible)

Two views of a mechanical component with internal features, shown from top and side angles (no text or symbols visible)

Close-up of a hand holding a cylindrical mechanical component, alongside a close-up of its black cylindrical component (no visible text or symbols)

Close-up of a mechanical component with internal cylindrical structure (no visible text or symbols)

Close-up of a mechanical component with metallic shaft and flange (no visible text or symbols)

Close-up of a mechanical component with a cylindrical shaft and flange (no visible text or symbols)

Close-up of a hand holding a black cylindrical object with a directional arrow, no visible text or symbols

Close-up of a black cap with a white screwdriver inserted, mounted on a wall (no visible text or symbols)

Black-and-white photo of a CD-ROM drive with a curved arrow pointing downward (no visible text or symbols)

Close-up of a screwdriver inserted into a black plastic electrical socket (no visible text or symbols)

Black and white photo of a vintage electronic device with a vertical arrow indicating measurement or alignment (no visible text or symbols)

Garantie

2 Cilinder (SN; MAC; AES; ADM)

3 Transponder (UID; BW; Type)

Diagram showing various electronic components with numbered labels and icons, including a keypad, QR code, and screwdriver.

secuENTRY easy plus FINGERPRINT

Algemeen

Diagram showing labeled parts of a device with QR codes and component numbers, likely for product or assembly instructions.

Diagram showing 11 labeled mechanical parts and a QR code with numbered annotations

Two black-and-white photos showing hands using a tool to adjust or install a door lock (no text or symbols visible)

Close-up of a metallic door clip and a vertical door handle (no text or symbols visible)

Technical diagram of a mechanical component with labeled dimension A (no text or symbols beyond the label)

Adapter ( L = lengte in mm)

Hand holding a small electronic device with white connectors (no visible text or symbols)

Black plastic mechanical component with internal cavities and mounting holes (no text or symbols visible)

Black-and-white photo of a handheld electronic device with a vertical arrow indicating measurement or direction (no visible text or symbols)

Reinigingsaanw zing secuENTRY easy plus toetsenblok

Close-up of a black plastic object mounted on a wall, with a tool inserted (no visible text or symbols)

Black-and-white photo of a CD-ROM drive with a circular arrow indicating rotation (no visible text or symbols)

Black plastic container with two VARTA battery modules, no visible text or symbols on the main body.

Black structural component with a curved arrow indicating rotation (no text or symbols)

Close-up of a black graduation cap on a wall, with a tool partially visible (no text or symbols)

Close-up of a hand holding a black knob on a wooden door, with no visible text or symbols

Two views of a mechanical component with internal cross-sections, shown from top and side (no text or symbols visible)

Close-up of a hand holding a metallic cylindrical component, alongside a close-up of its black cylindrical body (no text or symbols visible)

Close-up of a mechanical component with internal cylindrical structure and flanged base (no visible text or symbols)

Close-up of a mechanical component with metallic shaft and flange (no visible text or symbols)

Close-up of a mechanical component with a cylindrical shaft and flange (no visible text or symbols)

Close-up of a hand adjusting a black cylindrical object on a wooden surface, with an arrow indicating direction (no text or symbols visible)

Close-up of a black plastic bag attached to a wall, with a tool inserted (no visible text or symbols)

Black-and-white photo of a compact CD-ROM drive with a curved arrow indicating rotation (no visible text or symbols)

Close-up of a screwdriver inserted into a black plastic electrical socket (no visible text or symbols)

Black and white photo of a vintage electronic device with a vertical arrow indicating measurement or alignment (no visible text or symbols)

Garantie
