USER MANUAL RMS 221720NST MILWAUKEE

IMPORTANT SAFETY INSTRUCTIONS

WARNING READ ALL SAFETY WARNINGS AND INSTRUCTIONS. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury, as well as instrument damage and/or damage to the equipment being tested. Save these instructions - This operator's manual contains important safety and operating instructions for the MILWAUKEE True RMS Multimeters (DMM). Before using, read this operator's manual and all labels on the True RMS Multimeters.

DANGER

Never make measurement on a circuit in which voltage over 600V rms exists. Use only leads rated 600V CATIII or better.

Do not apply more than the rated voltage, as marked on the DMM, between terminals or between any terminal and earth ground.

Do not attempt a current measurement when the open voltage is above the fuse protection rating. Suspected open circuit voltage can be checked with voltage function.

Do not use the DMM to measure voltages in circuits that could be damaged by the DMM's low input impedance in Lo-Z Function. Impedance is approximately 4KΩ.

Do not attempt to make measurement in the presence of flammable gases. Otherwise, the use of the instrument may cause sparking, which can lead to an explosion.

Never attempt to use the instrument if its surface or your hand is wet.

Do not exceed the maximum allowable input of any measuring range. Only test on unenergized circuits unless absolutely necessary.

Check tool functionality on a known circuit first. Never assume tool is working. Assume circuits are live until they can be proven de-energized.

Never open the Battery cover during a measurement.

Do not ground yourself while measuring. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators.

This instrument is to be used only in its intended applications or conditions. Otherwise, the instrument's safety functions may not work, resulting in serious personal injury and instrument damage.

To reduce the risk of injury from shock and arc blasts, always wear personal protective equipment where live conductors are exposed.

WARNING

Never attempt to make measurement if any abnormal conditions, such as broken case and exposed metal parts are found on the instrument.

Comply with local and national safety requirements when working in hazardous locations. Keep fingers behind the guards and away from test lead tips during measurements.

Do not rotate the Rotary Dial while the test leads are being connected.

Never attempt a voltage measurement with the test lead inserted into the A input terminal. Verify proper operation on a known source before use or taking action as a result of the indication of the instrument.

Do not install substitute parts, replace fuse or make any modification to the instrument. For repair or re-calibration, return the tool to a factory Service/Sales Support Branch or authorized service station.

Do not try to replace the batteries if the surface of the instrument is wet.

Disconnect all the cords and cables from the object under test and power off the Instrument before opening the Battery Cover for Battery replacement.

This tool is designed to be powered by 2-AA batteries properly inserted into the MILWAUKEE True RMS Multimeters. Do not attempt to use with any other voltage or power supply. Install battery according to polarity (+ and -) diagrams.

Do not leave batteries within the reach of children.

Do not mix new and used batteries. Do not mix brands (or types within brands) of batteries. Properly dispose of used batteries.

Do not incinerate or dismantle batteries.

Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

CAUTION

Set the Rotary Dial to an appropriate position before starting measurement.

Disconnect test leads from test points before changing Rotary Dial functions.

Never connect to a source of voltage with the Dial function in OFF/Ω/V/λA -IF-1

Firmly insert the test leads. Do not expose the instrument to the direct sun, high temperature and humidity or dew fall.

Altitude 2000m or less. Appropriate operating temperature is within -10°C and 50°C.

Keep away from excess dust and water.

Be sure to power off the instrument after use. When the instrument will not be in use for a long period, place it in storage after removing the batteries.

Use a damp cloth or neutral detergent for cleaning the instrument. Do not use abrasives or solvents.

General Specifications
Accuracy is specified for 1 year after calibration, at operating temperatures of 18°C to 28°C (64°F to 82°F), with relative humidity at 45 % to 85 %.
Maximum voltage between any terminal and earth ground	600 V Cat III Rated
Temperature Operating: -10°C to 50°C (14°F to 122°F)Current measurements: -10°C to 40°C (14°F to 104°F)Storage: -40°C to 60 °C (-40°F to 140°F)
Temperature Coefficient	0.1 x (specified accuracy)/°C (<18°C or >28°C)
Operating Altitude 2,000 meters
IP Rating (International Dust & Water Protection)	IP54
Drop Test 1 Meter
Battery 2 AA, NEDA 15 A,IEC LR6
Battery Life	Approx. 26 Hours all lights on
Fuse	600V AC/DC, 10A Fast-acting (Milwaukee p/n 22-89-0305)
Safety Compliances	EN61010-1, UL 61010-1, UL 61010-031 (Probes), EN61010-031 (Probes), IEC/EN 61010-1 2nd Edition for measurementCategory III, 600 V, Pollution Degree 2, EMC EN61326-1
Certifications	cULus, CE

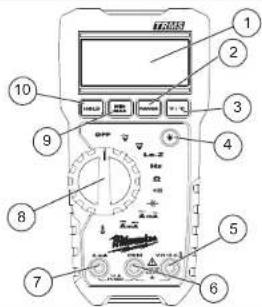

FUNCTIONAL DESCRIPTION

1. Display

2. Range button

3. °F/°C button

4. Backlight button

5. VΩ Terminal input

6. COM Terminal Input

7. A mA Terminal input

8. Rotary Dial

9. Min/Max button

10. Hold button

11. Accessory bay (on back, not shown)

Diagram of a digital multimeter with labeled parts including screen, buttons, and display

Symbology

	Read Operator's Manual
	Double insulation
	Risk of electric shock
	Earth
	Danger, Warning, or Caution - Consult the operators manual for additional safety information.
	Battery compartment
	European Conformily Mark
	Underwriters Laboratories, Inc., United States and Canada
[DT39]	Classifi cation of transient overvoltages, based on nominal line voltage to earth.
	Fuse
	Do not dispose of this product as unsorted municipal waste.

Functions

Dial Position Range Resolution Accuracy
	Voltage AC	600.0mV/6.000V60.00V/600.0V	0.1mV/0.001V/0.01V/0.1V	±(1.0% + 3 dgt) (45-500Hz)±(2.0% + 3 dgt) (500-1000Hz)
	Voltage DC	600.0mV/6.000V60.00V/600.0V	0.1mV/0.001V/0.01V/0.1V	±(0.5% + 2 dgt)
Lo-Z	Low Input Impedance	600.0V 0.1V ±(2.0% + 3 dgt) DC,AC		45-500Hz
Hz	Hertz	99.99/999.9Hz9.999/50.00kHz	0.01Hz/0.1Hz/0.001kHz/0.01kHz	±(0.1% + 2 dgt)
Ω	Resistance	600.0Ω6.000/60.00/600.0kΩ6.000/40.00MΩ	0.1Ω0.001/0.01/0.1kΩ	±(1.0% + 5 dgt)
			.001/.01MΩ ±(1.9% + 5 dgt)
||	Continuity	Cont Buzzer0-600.0Ω		Buzzer sounds at 30Ω or less
—	Capacitance	100.0μF1000μF	0.1μF1μF	±(1.9% + 2 dgt)
	Current AC	0.40mA-60.00mA/600.0mA6.000A/10.00A	0.01mA/0.1mA0.001A/0.01A	±(1.5% + 3 dgt) (45-500Hz)
	Current DC	0.40mA-60.00mA/600.0mA6.000A/10.00A	0.01mA/0.1mA0.001A/0.01A	±(1.0% + 3 dgt)
!	Temperature ^	-40.0°C ~ 400.0°C-40.0°F - 752.0°F	0.1°C0.2°F	±(1.0% + 10 dgt)±(1.0% + 18 dgt)

† Temperature Range, Resolution and Accuracy are for the DMM. Temperature Probe may have different specifications.
* These instruments are True-RMS sensing. All voltage and current readings are True-RMS values.
* Input impedance: Voltage DC: 10MΩ; Voltage AC: 10MΩ // less than 100pF; Lo-z: 4kΩ approximately * Overload protection:
Voltage DC, Voltage AC, Lo-Z Voltage and Hertz: AC/DC 720V for 10 second Current DC & Current AC: AC/DC 20A for 10 sec. Resistance, Continuity, Capacitance and Temperature: AC/DC 600V for 10 second
* Maximum measurement time: 1 minute at 10A, rest time 20 minutes minimum
* Minimum frequency measurement is 2Hz
* Signal voltage in frequency mode: 8V-600V(RMS)
* Minimum AC Current measurement is 0.40mA
* Minimum AC Voltage measurement is 4.0mV
* For AC Voltage, AC Current and Lo-z: Additional Accuracy by Crest Factor (C.F.): 1+10% for C.F. 18-20
Add 6.0% for C.F. 1.0 \~ 2.0
Add 7.0% for C.F. 2.0 \~ 2.5
Add 9.0% for C.F. 2.5 \~ 3.0
Max. Crest Factor: 1.6 for 6000 \~ 5000 digits
2.0 for 5000 \~ 3000 digits
* Measurement accuracy of square wave and truncated waveforms at 1kHz is unspecified.

ASSEMBLY

WARNING To avoid an electrical hazard, the Rotary Dial to OFF and disconnect the leads before replacing batteries.

Loading/Changing the Batteries

Replace batteries when the Low Battery indicator is displayed.

1. Turn Rotary Dial to OFF and disconnect the test leads.

2. Unscrew and remove battery door.

3. Insert two (2) AA batteries, according to the polarity marked in the battery compartment

4. Close the battery door and tighten four (4) screws securely.

OPERATION

WARNING Only use Milwaukee test with the MILWAUKEEDMM. Inspect test for continuity before each use. Do not the readings are high or noisy.

Before Use

Confirm the Rotary Dial is set to the correct position, the instrument is set to the correct measurement mode, and the Dala hold function is disabled. Otherwise, desired measurement cannot be made.

LCD Backlight

The LCD backlight will turn off after about 10 minutes of inactivity. Press the backlight button ✦ to turn the backlight on again.

Making a Measurement

AC Voltage

DANGER To avoid electrical shock: make measurement on a circuit in voltage over AC600V exists. Not use with the Battery Cover removed. Fingers behind the guards and away test lead tips during measurements.

1. Set the Dial to position.
2. Connect the red test lead to the VΩ terminal and the black test lead to the COM terminal.
3. Connect the test leads to the circuit under test. The reading is displayed.

CAUTION Readings may fluctuate or fluenced in noisy environment.

DC Voltage

DANGER To avoid electrical shock: r make measurement on a circuit in h voltage over DC600V exists. Do not use the Battery Cover removed. Keep fi nger and the guards and away from test lead during measurements.

1. Set the Dial to position.
2. Connect the red test lead to the VΩ terminal and the black test lead to the COM terminal.
3. Connect the red test lead to the positive (+) side and black test leads to the negative (-) side of the circuit under test. The reading is displayed. A reversed cc as a negative value.

Lo-Z Low Input Impedance

Automatic voltage detection (AC or DC).

1. Set the Dial to Lo-Z position.
2. Connect the red test lead to the VΩ terminal and the black test lead to the COM terminal.
3. AC: Connect the test leads to the circuit under test. The reading is displayed.

DC: Connect the red test lead to the positive (+) side and black test leads to the negative (-) side of the circuit under test. The reading is displayed. A reversed connection is indicated as a negative value.

CAUTION Do not use the DMM to measure voltages in circuits that could be damaged by the DMM's low input impedance less than approximately 4kΩ.

Hz Frequency

1. Set the Dial to Hz position.
2. Connect the red test lead to the VΩ terminal and the black test lead to the COM terminal.
3. Connect the test leads to the circuit under test. The reading is displayed.

Resistance/Continuity/Capacitance Measurements

DANGER To r

electric shock for Resistance, Continuity, and Capacitance measurements, never use the DMM on an energized circuit. Make sure a capacitor is fully discharged before touching or attempting to make a measurement. Do not use with the Battery Cover removed.

Ω Resistance

1. Set the Dial to position.
2. Connect the red test lead to the VΩ terminal and the black test lead to the COM terminal. Confir rm "OL" is indicated on the display, and then short-circuit the tips of test leads to make the indication zero.
3. Connect the test leads to the both ends of the resistor under test.
4. The reading is displayed.

CAUTION After shorting the test leads, is played value may not be zero due to the tance of test leads themselves.

Continuity

1. Set the Dial to "position."

2. Connect the red test lead to the VΩ terminal and the black test lead to the COM terminal. Confir rm "OL" is indicated on the display, and then short-circuit the tips of test leads to make the indication zero. A buzzer will sound.

3. Connect the test leads to the both ends of the conductor under test. If the resistance under test is 30 or less, the buzzer will sound.

3
[Non-Text]
[Non-Text]
[Non-Text]
1

he es
Vc le
2 te ad t
rmi o th
na e
ar co
d t M t
e ern
ola nin
ck al.
1
[Non-Text]
Pro to
be /Ω.
sh
pul
d b
e c
oni
ec
ted
|
|
1 + u1 - 1 = ( 1 + u) u1 < 1 = u
4
1
©

Capacitance

1. Set the Dial to position.
2. Use the Range button to se-
   lect either 100μF or 1000μF.
3. Connect the red test lead to
   the VΩ terminal and the black
   test lead to the COM terminal.
4. Discharge capacitor
5. Connect the test leads to the
   both ends of the capacitor under test.
6. The reading is displayed.

AC Current

DANGER To avoid electrical shock:

Never make measurement on a circuit in which voltage over AC600V exists. Do not use with the Battery Cover removed. Keep fingers behind the guards and away from test lead tips during measurements.

1. Set the Dial to Aposition.
2. Connect the red test lead to the A terminal and the black test lead to the COM terminal.
3. Turn circuit power off, disconnect the circuit, connect the test leads in series with the circuit under test, and then turn circuit power on. The reading is displayed.

DC Current

DANGER To avoid electrical shock:

Never make measurement on a circuit in which voltage over AC600V exists. Do not use with the Battery Cover removed. Keep flingers behind the guards and away from test lead tips during measurements.

1. Set the Dial to A position.
2. Connect the red test lead to the A terminal and the black test lead to the COM terminal.
3. Turn circuit power off, disconnect the circuit, connect the test leads in series with the circuit under test, and then turn circuit power on. The reading is displayed.

ler test
er test.
[Non-Text]
[Non-Text]
[Non-Text]
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
ectrical shock:

on a circuit in
xists.
over removed.
uards and away
asurements.

n. The reading is

•

Temperature

1. Set the Dial to position.
2. Connect the K-type Temperature Probe to the input terminal. The positive (+) side of Probe should be connected to VΩ.
3. Contact the probe sensor to the object under test.
4. The reading is displayed.

WARNING

Never connect the Temperature Probe to an energized circuit.

CAUTION

When the dial is set to ⚙OL should be displayed. If anything else is displayed, something may be wrong with the DMM. Stop using the DMM immediately.

Using Bar Graph Display

The bar graph is like the needle on an analog meter, it updates much faster than the digital display. The number of segments indicates the measured value and is relative to the full-scale value of the selected range.

HOLD Button

Data Hold Function - Freezes the value on the display. Press the HOLD button to freeze the reading. The reading will be held regardless of subsequent variation in input. HOLD is displayed with the reading. To exit Data Hold mode, press the HOLD button again or change the dial.

SMART HOLD: The meter will beep continuously and the display will flash if the measured signal is 50 counts larger than the display reading. (However, it can not detect across the AC and DC Voltage/Current).

CAUTION

The Data Hold readings of maximum / minimum are released when the DMM enters Sleep Mode.

MIN/MAX Button

The MIN MAX recording mode captures the minimum and maximum input values. When a new high or low is detected, the DMM beeps.

Put the DMM in the desired measurement function and range, then press MIN/MAX button to enter MIN MAX mode, and present readings and MAX MIN are displayed.

Press MIN/MAX to step through the minimum (MIN displayed), maximum (MAX displayed), and present readings (both MAX and MIN are displayed). To pause MIN MAX recording without erasing stored values, press HOLD button the HOLD is displayed.

To resume MIN MAX recording, press HOLD button again.

To exit and erase stored readings, press MAN/MAX button for two seconds or change the dial.

Range Button

The DMM has both Manual and Autorange modes. In the Autorange mode, the DMM selects the range with the best resolution, and in the Manual Range mode, you override Autorange and select the range yourself. When you turn the DMM on, it defaults to Autorange and AUTO is displayed. To enter the Manual Range mode, press RANGE button, AUTO disappears. In the Manual Range mode, press RANGE button to Increment the range. After the highest range, the Meter wraps to the lowest range. When in Manual mode and measuring current, if the value being measured is greater than 600mA and the user is set to a mA range, the tool will display an "OL" indicator and switch the user into the correct current range. To exit Manual Range, press RANGE button for two seconds or change the dial. The Meter returns to Autorange and AUTO is displayed.

CAUTION

Pressing the MIN/MAX button without applying voltage disables the Auto-ranging function and fi xes the Range to 6mV. Connect the test leads to the circuit under test and press the MIN/MAX button after an appropriate range is selected by Auto-ranging function.

°F / °C

To switch between Fahrenheit or Celsius, press the °F / °C button.

Sleep Mode

The DMM is automatically powered off in about 20 min after the last Rotary Dial or button operation. To reset, rotate the Rotary Dial to OFF. If the display is still blank when a new dial setting is selected, replace the batteries.

The DMM does use battery power in sleep mode. Be sure to switch the tool to OFF to conserve battery power.

Over-flow indication

Any time the input exceeds the measuring range "OL" or "-OL" is displayed.

Accessory Bay

To install an accessory, slide it into the accessory bay on the back of the DMM. Follow the instructions supplied with the accessory

MAINTENANCE

WARNING To reduce the risk of Injury, sys remove the batteries from the tool re performing any maintenance. Never assemble the tool. Contact a MILWAUKEE ice facility for ALL repairs.

Maintaining Tool

Keep your tool in good repair by adopting a regular maintenance program. After six months to one year, depending on use, return the tool to a MILWAUKEE service facility for repairs.

If the tool does not start or operate at full power with new batteries, clean the contacts on the battery door. If the tool still does not work properly, return the tool to a MILWAUKEE service facility for repairs.

WARNING To reduce the risk of per- l injury and damage, never immerse your n liquid or allow a liquid to flow inside it.

Cleaning

Clean dust and debris from tool. Keep tool clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean the tool since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use flammable or combustible solvents around tools.

Repairs

For repairs, return the tool to the nearest service center listed on the back cover of this operator's manual.

ACCESSORIES

WARNING Always remove batteries be changing or removing accessories. Only accessories specifi cally recommended for tool. Others may be hazardous.

For a complete listing of accessories refer to your MILWAUKEE Electric Tool catalog or go online to www.milwaukeetool.com. To obtain a catalog, contact your local distributor or service center.

FIVE YEAR TOOL LIMITED WARRANTY

MILWAUKEE Test & Measurement Product (including bare tool, M12™ battery pack(s) and battery charger) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on this product which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of five (5) years* after the date of purchase. Return of the Test & Measurement tool to the nearest Milwaukee Electric Tool Corporation - factory Service Center, freight prepaid and insured is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.

* See separate & distinct CORDLESS BATTERY PACK LIMITED WARRANTY statement for the warranty period of the LITHIUM-ION battery pack that ships with Test & Measurement Product. *Alkaline battery that ships with Test & Measurement Product is separately warranted by the alkaline battery manufacturer.

*The warranty period for a Voltage Detector with Work Light - 2201 20, Voltage Detector with LED - 2202-20 or M12™ 2-Beam Plumb Laser - 2230 20 is one (1) year from the date of purchase.

Warranty Registration is not necessary to obtain the applicable warranty on MILWAUKEE product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested.

ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WRITTEN OR ORAL, TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

This warranty applies to product sold in the U.S.A. and Canada only.

RÈGLES IMPORTANTES DE SÉCURITÉ

AVERTISSEMENT LIRE TOUS LES AVERTISSEMENTS ET TOUTES LES

UNITED STATES MILWAUKEE Service

MILWAUKEE prides itself in producing a premium quality product that is NOTHING BUT HEAVY DUTY ^6 . Your satisfaction with our products is very important to us! If you encounter any problems with the operation of this tool, or you would like to locate the factory Service/Sales Support Branch or authorized service station nearest you, please call... Additionally, we have a nationwide network of authorized Distributors ready to assist you with your tool and accessory needs. Check your "Yellow Pages" phone directory under "Tools-Electric" for the names & addresses of those nearest you or see the 'Where To Buy' section of our website.

1-800-SAWDUST

(1.800.729.3878)

Monday-Friday

7.00 AM - 6.50 PM Control Time

Central Time visit our website

of visit our website at

www.milwaukeetool.com

For service information, use the 'Service Center Search' icon found in the 'Parts & Service' section.

Contact our Corporate After Sales Service Technical Support about ...

•Technical Questions

•Service/Repair Questions

•Warranty

call: 1-800-SAWDUST

tax: 1.800.638.9582

email: [e-mail]

Register your tool online at

www.milwaukeetool.com and...

• receive important notifications regarding

your purchase

- ensure that your tool is protected under the

warranty

• become a HEAVY DUTY club member

CANADA - Service MILWAUKEE

MILWAUKEE prides itself in producing a premium quality product that is NOTHING BUT HEAVY DUTY ^® . Your satisfaction with our products is very important to us!

If you encounter any problems with the operation of this tool, or you would like to locate the factory Service/Sales Support Branch or authorized service station nearest you, please call...

1.800.268.4015

Monday – Friday 7:00 – 4:30 CST

fax: [phone]

Milwaukee Electric Tool (Canada) Ltd

140 Femstaff Court, Unit 4 18129 111 Avenue NW Vaughan, ON L4K 3L8 Edmonton, AB T5S 2P2

Additionally, we have a nationwide network of authorized Distributors ready to assist you with your tool and accessory needs. Call 1.800.268.4015 to find the names and addresses of the closest retailers or consult "Where to buy" on our Web site

www.milwaukeetool.com

Milwaukee Electric Tool (Canada) Ltd

140 Fernstall Court, Unit 4 18129 TTT Avenue N Vaughan, ON L4K 3L8 Edmonton, AB T5S 2P2

MILWAUKEE ELECTRIC TOOL CORPORATION

13135 West Lisbon Road • Brookfield, Wisconsin, U.S.A. 53005

58-14-2219d6

01/13 Printed in Taiwan
