Product Type	Smart Home Controller
Brand	LevelOne
Model	WAC2003
Dimensions (L x W x H)	Approximately 440 x 250 x 44 mm (for 19" rack mounting)
Weight	Approximately 2 kg
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	Max. 30 W
Network Interface	1 RJ-45 Ethernet port 10/100/1000 Mbps
Default IP Address	192.168.1.1
Default Login Credentials	admin / admin
Mounting Type	19-inch rack or tabletop
Operating Temperature	-10 °C to 50 °C
Operating Humidity	10% to 90% non-condensing
Key Features	Centralized management of smart home devices, configuration via web interface
Included Accessories	Power cord, RJ-45 cable, L brackets, rubber feet, CD-ROM, quick installation guide
Care and Cleaning	Dust with a dry cloth, avoid moisture and solvents
Safety	Do not expose to direct sunlight, keep away from heat sources and electromagnetic interference
Spare Parts and Repairability	Contact your local dealer for spare parts
General Information	Compliant with EU Declaration of Conformity

Frequently Asked Questions - WAC2003 LEVELONE

How to install the WAC2003 controller in a rack?

Attach the supplied L brackets to the sides of the controller, then screw them onto the rails of a standard 19-inch rack. Ensure the rack is stable and grounded. Then plug in the power cord.

What is the default IP address to access the controller's interface?

The default IP address is 192.168.1.1. Open a browser and enter this address in the URL bar.

What are the default login credentials for the WAC2003?

The default username and password are both admin (lowercase).

How to configure the computer to connect to the controller?

Assign your computer a static IP address in the range 192.168.1.2 to 192.168.1.253, with subnet mask 255.255.255.0. Connect an Ethernet cable between the computer and the controller.

What are the installation prerequisites for the WAC2003?

Have a Phillips screwdriver, an antistatic wrist strap, a network cable, and a power outlet ready. The environment should be cool, dry, away from sunlight and interference sources.

Can the controller be placed on a table?

Yes, it can be installed on a table. Stick the rubber feet on the bottom of the case and place it on a stable surface. Plug in the power and check that the LED is on.

What is the required power supply voltage?

The controller operates on a mains power supply AC 100-240 V, 50/60 Hz. Ensure the outlet is properly grounded.

What to do if the power LED does not turn on?

Check that the power cord is properly connected and that the power outlet works. If the problem persists, contact your dealer.

How to reset the controller to factory settings?

The manual does not mention a reset procedure. Refer to the supplied CD-ROM or the LevelOne website for detailed instructions.

What accessories are included in the box?

The box contains the main unit, a power cord, an RJ-45 cable, an L bracket, a quick installation guide, a CD-ROM, rubber feet, and the EU Declaration of Conformity.

USER MANUAL WAC2003 LEVELONE

Quick Installation Guide

( Wireless LAN Controller )

V1.0

Digital Data Communications GmbH, Germany.

http://www.level1.com

Content

English 2

Deutsch....5

Français 8

Español....11

Italiano 14

Português 17

This Quick Installation Guide only describes the most basic situations and settings. All detailed information is described in the user manual.

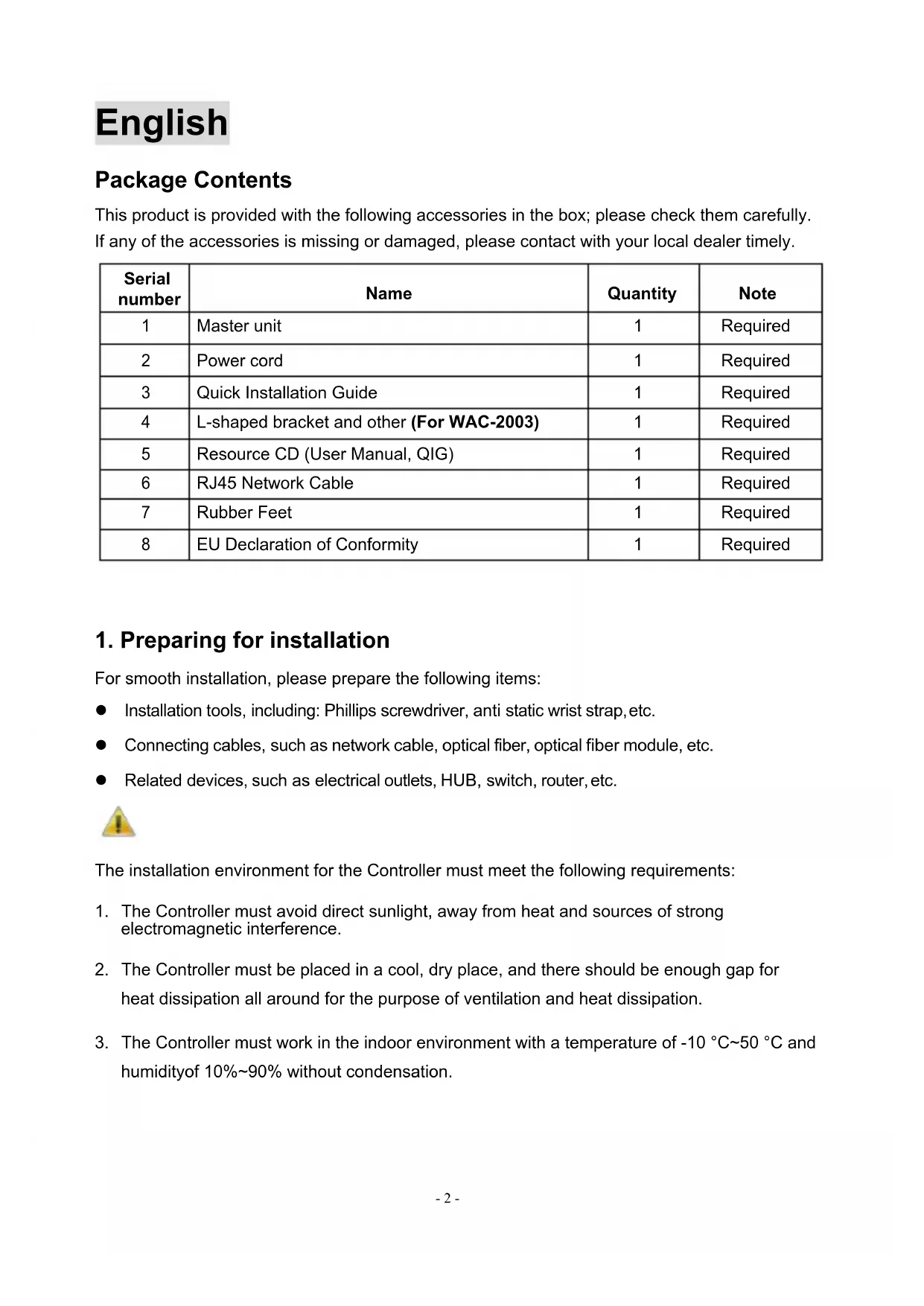

English

Package Contents

This product is provided with the following accessories in the box; please check them carefully. If any of the accessories is missing or damaged, please contact with your local dealer timely.

Serial number	Name	Quantity	Note
1	Master unit	1	Required
2	Power cord	1	Required
3	Quick Installation Guide	1	Required
4	L-shaped bracket and other (For WAC-2003)	1	Required
5	Resource CD (User Manual, QIG)	1	Required
6	RJ45 Network Cable	1	Required
7	Rubber Feet	1	Required
8	EU Declaration of Conformity	1	Required

1. Preparing for installation

For smooth installation, please prepare the following items:

● Installation tools, including: Phillips screwdriver, anti static wrist strap, etc.
- Connecting cables, such as network cable, optical fiber, optical fiber module, etc.
● Related devices, such as electrical outlets, HUB, switch, router, etc.

The installation environment for the Controller must meet the following requirements:

1. The Controller must avoid direct sunlight, away from heat and sources of strong electromagnetic interference.
2. The Controller must be placed in a cool, dry place, and there should be enough gap for heat dissipation all around for the purpose of ventilation and heat dissipation.
3. The Controller must work in the indoor environment with a temperature of -10 °C\~50 °C and humidity of 10%\~90% without condensation.

2. Equipment Installation

■ It is installed in the rack (For WAC-2003)

Install the Wireless LAN Controller on a 19-inch standard rack, and the installation steps are as follows:

1. Check the grounding and stability of the rack;
2. Install the two L-shaped brackets in the accessories on both sides of the Controller panel, and fix them with the screws in the accessories;
3. Place the Controller in the appropriate location of the rack, and support it using a tray;
4. Secure the L-shaped brackets on the guide slots fixed at both ends of the rack, to ensure that the Controller can be mounted on the rack in astable, horizontal manner;
5. Use a power cord to connect the Controller power connector with the powersocket.

■ Installed on the working table

Install the Controller on a working table, and the installation steps are as follows:

1. Place the Controller with its bottom up on a sufficiently large, stable and properly-grounded working table;
2. Remove the adhesive protective paper from the foot pad, and stick the 4 pads in the 4round slots at the bottom of the casing respectively;

3. Flip over the Controller, and place it on the working tablestably;

4. Use a power cord to connect the Controller power connector with the power socket.

5. The Controller uses 100-240V, 50/60Hz AC, and make sure that both power supply and grounding are normal before power on.

6. After power on, please check the Controller's power indicator (Power) is on, and if so, it indicates that the power supply is connected properly.

7. Do not place heavy objects on the top of the Controller.

3. Logging on to the equipment

1. Connect the RJ-45 interface cable of a Controller with a computer using a network cable.

2. Set the TCP/IP properties of the computer, see the Appendix: Setting up your computer.

3. Logging on to the equipment: Open a browser and type 192.168.1.1 in the address bar, and then press Enter; in the pop-up login interface, enter the factory logon username "admin", password "admin" and click OK.

4. Appendix: Setting up your computer

Windows

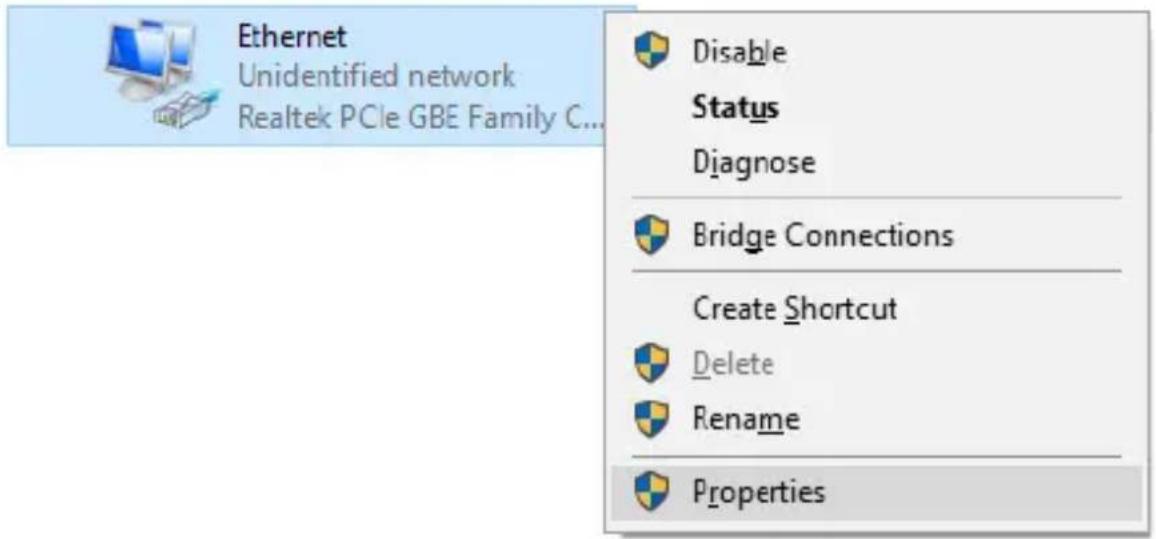

1. Click Start—> Control Panel—> Network and Internet—> Network and Sharing Center—> Change adapter settings, right click Local connection and select Properties;

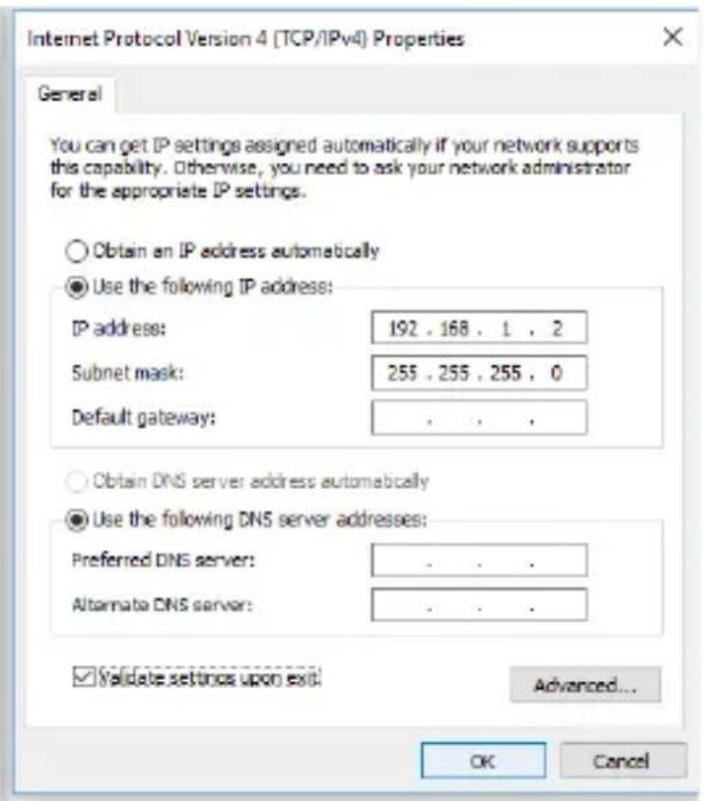

1. Double-click Internet Protocol 4 (TCP/IPv4)

1. Set the computer's IP address: The computer's IP address should be any one of the following free IP addresses 192.168.1.2 \~ 192.168.1.253, and then click OK, to return to the previous page, click OK.
