USER MANUAL CADR118 DAITSU

Thank you very much for purchasing our air purifier.

Before using your air purifier, please read this owner's manual carefully and keep it for future reference.

READ AND SAVE THESE INSTRUCTIONS!

Contents

Preparation 2

Safety Precautions -3

Cautions 4

Installation 6

Operation 7

Maintenance 8

Faults Diagnosis- 9

Sociable Remark- 10

Preparation

Safety Precautions

Maintenance - Must be repaired by professionals.
- Be sure to turn off unit and unplug power before servicing, moving, cleaning unit and removing filter.
- Do not exchange power lines without authorization.
- Be sure to unplug power when not using unit for a long time.

Operation - Do not operate with wet hands. - Do not press hard control panel of the top. - Do not load things on top of the unit. - Do not insert things to the air inlet and outlet.

Never do this - Never put air purifiers to the place where there is flammable and combustible gas.
- Avoid long-term direct sunshine.
- Do not use at the place where is humid and easy to contact water, such as bathrooms.
- Never place this machine on inclined or uneven surfaces.
- Do not use this machine at environment with oil and smoke, such as kitchens.
- Do not use this machine at outdoors.
- Do not modify the length of the power cord or use an extension cord to power the unit.
Do not share a single outlet with other electrical appliances. Improper power supply can cause fire or electrical shock.

NOTE: All the illustrations in the manual are for explanation purpose only. Your machine may be slightly different. The actual shape shall prevail. The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.

Cautions

-This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play the appliance. Cleaning and user maintenance shall not be made by children without supervision. (be applicable for the European Countries)
-Children should be supervised to ensure that they do not play with the appliance.
-If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
This appliance contains a UV emitter. Do not stare at the light source. (be applicable for the appliance with UV light)
-Do not install the appliance in a location that may be exposed to combustible gas.
-If combustible gas accumulates around the unit, it may cause fire.
-If the appliance is knocked over during use, turn off the unit and unplug it from the main power supply immediately. Visually inspect the unit to ensure there is no damage. If you suspect the unit has been damaged, contact a technician or customer service for assistance.
-In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning.

Cautions

-This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
-Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
-Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.

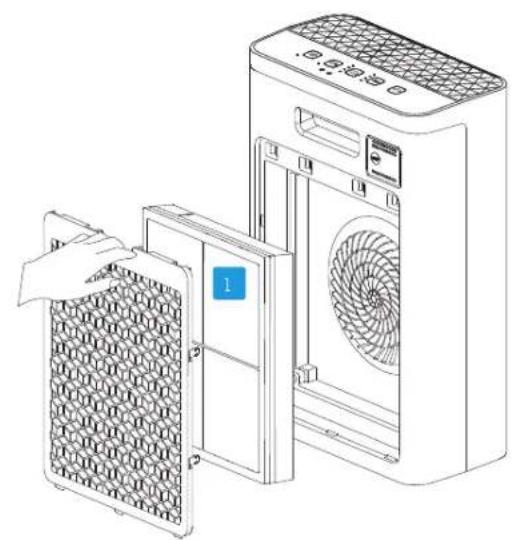

Install filter components

Remove the filter components

Remove the packaging bags of filter components.

Install the filter components

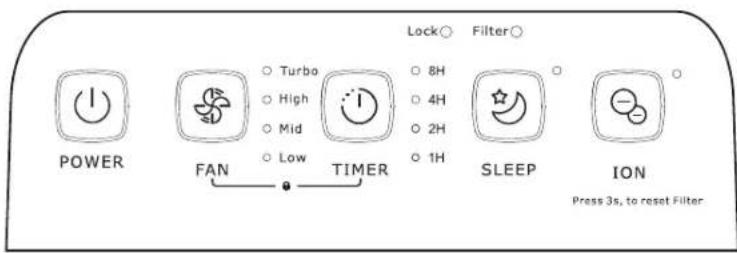

Operation

ON/OFF button Purification button Timer button Press "POWER" button to turn on/off the unit.	Press "FAN" button to choose the options of strong, high, medium and low.	Press "TIMER" button, the time of TIMERPOWER off in turn sets as 1 hour, 2 hours, 4 hours, 8 hours and off, respectively.
Sleep button Press "SLEEP" button to turn on/off sleeping function. For sleeping mode, the light of sleeping mode lights.	Ion button Press "ION" button to tum on/off anion function. Filter when cleaning filter light flashes it reminds you that you need to clean filters. After the cleaning, press "ION" button for 3 seconds, the timer resets from the beginning.	Lock function: Lock o FAN TIMERON Press "FAN" and "TIMER" buttons at the same time for one second, then turn on lock function. The "LOCK" light illuminates. There will be no reaction when press other keys. Press the buttons again, turn off lock function.

Operation

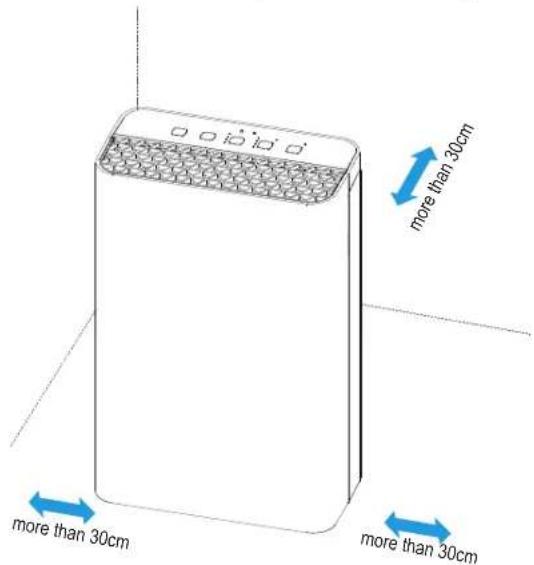

Place correctly

In order to achieve better purification effect and avoid affecting communication by shielding effect of metal, make sure that keep the machine 30 centimeters away from walls, furnitures and so on and at least 50 centimeters away from metals/electrical appliances.

Maintenance

Cleaning/Replacement of filter component

Filter

Clean filter components when

cleaning filter light flashes.

Clean filter with

cleaners or brushes.

Recomment to replace filter

components when filter components

is broken or filtering effect is poor.

Install the filter components.

Read the "installation" section for details.

ION

Press "ION" button for 3 seconds,

the timer resets from the beginning.

Tips:

Do not clean filter with water.

Recommend to clean filter with small soft brushes or household cleaners.

In the use of a strong smell of cigarettes, barbecue, etc., within a few weeks or months, the filter may produce a smell. Please clean the filter and air filter for 2-5 days. If you still can not get rid of the smell, please replace the filter.

Faults Diagnosis

Please check the machine according to the following form before asking for maintenance:

Faults Diagnosis Possible Reasons Possible Solutions
Air purifier does not run.	-Maybe forget to connect the power wires or the connection were not in good condition.-Maybe forget to press down the power switch.	-Please plug in the power well.-please press down the power switch.
Poor effects of oil and smell removal.	-Maybe filter components are in opposite position.-Maybe the lifetime of filter components is over.-Maybe the air inlet is stuck by something.	-Please install filter components correctly.-Please replace new filter components.-Please remove the things in air inlet.
Cleaning light of filter components does not turn off.	-Maybe does not press "ION" button for 3 seconds after cleaning filter components.	-Press "ION" button for 3 seconds after cleaning filter components.
Smell and smoke is hard to remove.	-Maybe filter components are still in packaging bags.	-Please remove packaging bags of filter components.

Please request for repair if occur the following situations:
1. Operate abnormally or does not operate, and the solutions above is useless.
2. Operate abnormally because of things or water entering inside.

Sociable Remark

When using this dehumidifier in the European countries, the following information must be followed:

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

It is prohibited to dispose of this appliance in domestic household waste.

For disposal, there are several possibilities:

A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least free of charge.
C) The manufacture will take back the old appliance for disposal at least free of charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal dealers.

Wild disposal of waste in forests and landscapes endangers your health when hazardous substances leak into the ground-water and find their way into the food chain.
